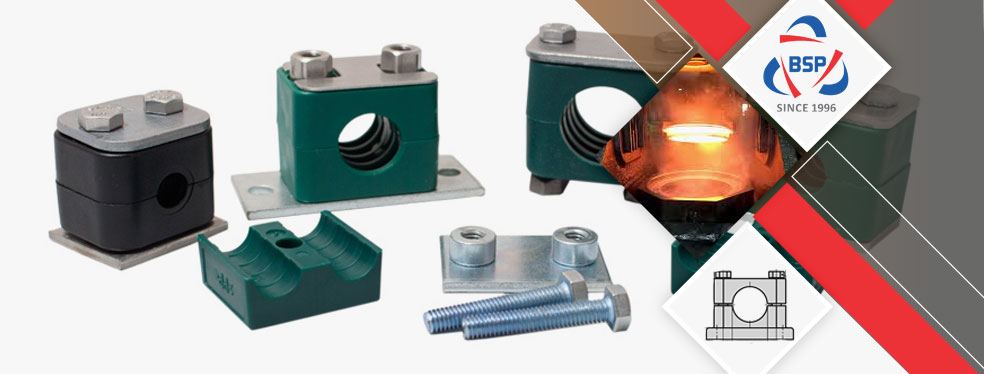

Specification And Material Grade Of Stainless Steel Tube Clamps
Brand |
BAGODA STEEL |
Equivalent To |
STAUFF, SWAGELOK, PARKER |
|---|---|
Minimum Order Quantity |
50 Piece |
COLOR |
GREEN |
Locking Screw |
M6 x 25 to M6 X 100 |
Material |
Polypropylene, Polyamide, Aluminum |
Size Range |
1 /4’’ to 2 ½’’ – 6 mm to 76.1 mm
|
Type |
Standard (Light Duty), Heavy Duty & Twin Clamp Standard : Part 1 – Series A, Part 2 – Series C & Part 3 – Series B |
Pressure |
2,000 psi maximum |
Material |
Jaws – Polypropylene, Aluminum, Polyamide Top & Bottom Plate and Bolt – Stainless Steel |
Stainless Steel Surface Treatment |
Steel – Zinc Coated (A3C), Trivalent Stainless Steel –Natural. |
Clamp Halve |
Polypropylene, Polyamide, Aluminum |
Standard Configurations of Standard Series Tube Clamps
| S | Complete Clamp for Weld Mounting [STW] |
BS |
Complete Clamp for Bolt Mounting [BAP] |
DS |
Complete Double Clamp for Weld Mounting [DOW] |
R0S |
Complete Clamp for mounting to RAL-0 [RCN-0] |
R1S |
Complete Clamp for mounting to RAL-1 [RCN-1] |
US |
Complete Clamp for mounting to Strut Channel [UCN] |
G*S |
Complete Clamp for Group Weld Plate Mounting [GRW] *is the number of positions |
SSK |
Stacking Kit [SAF + STB] |
View Thickness Table Of Tube Clamps, We have Global sales network for SS Tube Clamps, Wide Stockist Of Stainless Steel Tube Clamps, Pipe Clamps In India.
View Standard Series Pipe Clamps Sizes
ONE SET = ONE TOP PLATE + ONE BOTTOM PLATE + 2 HEX BOLTS + ONE PAIRS OF PP JAWS |
|||||||||||
| DIN | OUR PART CODE | PIPE OD | |||||||||
| GROUP | Dia - d | a2 | a3 | a1 | b1 | G | S | h1 | h2 | HEX BOLT SIZE | |
| BAGODA STEEL | IN MM | IN MM | IN MM | IN MM | IN MM | IN MM | IN MM | IN MM | IN MM | SIZE x LENGTH | |
GROUP 1 |
|||||||||||
| 1 | PCL 6 MM | 6 | 43 | 34 | 20 | 30 | 0.4 | 3 | 27 | 33 | M6 x 30 MM |
| PCL 6.4 MM (1/4") | 6.4 | ||||||||||
| PCL 8 MM | 8 | ||||||||||
| PCL 9.5 MM (3/8") | 9.5 | ||||||||||
| PCL 10 MM | 10 | ||||||||||
| PCL 12 MM | 12 | ||||||||||
GROUP 2 |
|||||||||||
| 2 | PCL 12.7 MM (1/2") | 12.7 | 48 | 42 | 26 | 30 | 0.6 | 3 | 32-33 | 38 | M6 x 37 MM |
| PCL 13.7 MM | 13.7 | ||||||||||
| PCL 14 MM (9/16") | 14 | ||||||||||
| PCL 15 MM | 15 | ||||||||||
| PCL 16 MM (5/8") | 16 | ||||||||||
| PCL 17.2 MM | 17.2 | ||||||||||
| PCL 18 MM | 18 | ||||||||||
GROUP 3 |
|||||||||||
| 3 | PCL 19 MM (3/4") | 19.05 | 56 | 50 | 33 | 30 | 0.6 | 3 | 36 | 42 | M6 x 40 MM |
| PCL 20 MM | 20 | ||||||||||
| PCL 21.3 MM | 21.3 | ||||||||||
| PCL 22 MM | 22 | ||||||||||
| PCL 25 MM (1") | 25.4 | ||||||||||
GROUP 4 |
|||||||||||
| 4 | PCL 26.9 MM | 26.9 | 62 | 60 | 40 | 30 | 0.6 | 3 | 42 | 48 | M6 x 45 MM |
| PCL 28 MM | 28 | ||||||||||
| PCL 30 MM | 30 | ||||||||||
GROUP 5 |
|||||||||||
| 5 | PCL 32 MM (11/4") | 32 | 74 | 70 | 52 | 30 | 0.8 | 3 | 58 | 64 | M6 x 60 MM |
| PCL 33.7 MM | 33.7 | ||||||||||
| PCL 35 MM | 35 | ||||||||||
| PCL 38 MM (11/2") | 38 | ||||||||||
| PCL 40 MM | 40 | ||||||||||
| PCL 42 MM | 42 | ||||||||||
GROUP 6 |
|||||||||||
| 6 | PCL 44.5 MM | 44.5 | 88 | 86 | 66 | 30 | 0.8 | 3 | 66 | 72 | M6 x 70 MM |
| PCL 48.3 MM | 48.3 | ||||||||||
| PCL 50.8 MM (2") | 50.8 | ||||||||||
| PCL 53 MM | 53 | ||||||||||
GROUP 7 |
|||||||||||
| 7 | PCL 60.3 MM | 60.3 | 122 | 118 | 94 | 30 | 0.8 | 3 | 93 | 99 or 103 | M6 x 100 MM |
| PCL 63.5 MM | 63.5 | ||||||||||
| PCL 76.1 MM | 76.1 | ||||||||||
Hardware Material Of Hydraulic Pipe Clamps
Omit |
Electro-Zinc Dichromate Plating RCN-0 rail nuts and group weld plates (GRW) are still supplied as untreated carbon steel. Zinc plated available for these parts on request. |
T |
AISI 304 Stainless Steel (A2 - 1.4301/1.4305) |
X |
AISI 316/316Ti Stainless Steel (A4 - 1.4401/1.4571) |
C |
Untreated Carbon Steel |
Check available Sizes of Hydraulic Pipe Clamps, Ask For Ready Stock of Tube Clamps, Pipe Clamps. SS Tube Clamps in Mumbai, India.
