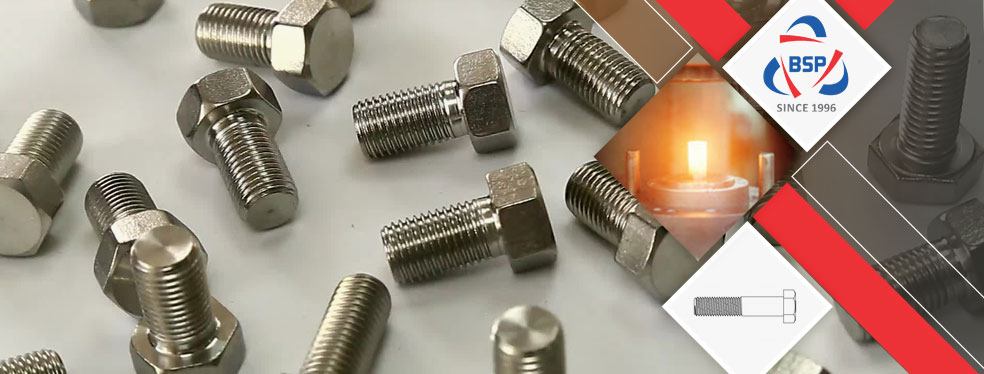

Monel 400 Fasteners, Alloy K500 Bolts, Nickel Alloy 400 Nuts Manufacturer

Nickel Alloy K500 Threaded Rod In Malaysia, Monel Alloy 400 Carriage Bolts Stockist, Alloy K500 Anchor Bolts, Monel® Alloy 400 Hex Bolts, UNS N04400 Allen Cap Screw, Monel 400 Flat Washers In Japan, 2.4360 Nuts, Monel K500 Screws Supplier in Mumbai, India.

The advantage to the cold or hot work positioned into the material is added strength and hardness, and the wear and tear resistance does now no longer lower noticeably. The additions of Silicon and Manganese have given this Monel UNS N05500 Fasteners a matrix to inhibit put on, galling, and fretting even within the annealed condition. This working does now no longer decorate the anti-galling properties as is every day for carbon steels and a few stainless steels. Higher strengths are plausible thru cold working the material and remains completely austenitic after severe cold-working.

Chromium and Nickel additions in Monel WNR 2.4375 Fasteners deliver it similar corrosion to steels, whilst having about two times the yield strength. The excessive mechanical strength in annealed components lets in use of decreased pass sections for weight, and fee discounts thru the usage of thinner stock. Several facts are to be had on the wear and tear compatibility of this alloy with distinct couples, in addition to self-mated coupled results. If galling hassle takes place at much less than 1500ºF, then definitely need to reflect on consideration on switching to this alloy.

Material Specification Chart of Monel 400 / K500 Fasteners

Standard	ASTM B164, ASME SB164
Size	M 02 to M 33
Length	3 mm to 200 mm
Threads:	METRIC, BSW, BSF, UNC, UNF or as required
Standard:	DIN, ISO, JIS, GB, IS, BS, ASTM, ANSI – American National Standards Institute ANSI B 18.2.4 2M ANSI B 28.2.4 1M Stud Bolt length are defined in ASME B16.5 standard Hex nuts are defined in ASME B18.2.2 ASME B18.5 BS en iso 3506 DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Scope of Manufacturer	Up to M36 / 1-1/2” Dia, up to 1100mm lg CNC Machined Fasteners, up to M100 / 4” Dia, up to 1500mm lg
Dia	M6 to M64 (1/4" - 2.5")
Length	12 MM - 500 MM (Upto 20 Inch)
IS	1363, 1364
DIN	931, 933
ISO	ISO 3506
Form of:	Hex, Square, Round, Threading as per Gauge Etc.
Head Drive:	Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Test Certificate:	Manufacturer Test Certificate as per EN 10204 / 3.1
Finishing:	Zinc (yellow, white, blue, black), black oxide, , Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Passivated, Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Mechanically Applied coating and some special one like DACROMET
Production Process	M2-M24: Cold Froging, hot forging M24-M100, , machining and CNC for Customized connecting element
Types	Nuts, Bolts, Screws, Socket Screw, Sockets, Studs, Screw, Nut, Spring Washers, Hex Set Screw, Socket Hexagon Head Screw, Cap Screw, Wing Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Studs, Anchors, Hex Nut,Marine Anchors, Hexagon Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Anchor Bolt, U- Bolts, J Bolts, T-Head Bolts, Mushroom Head Square Neck Bolts, Eye Bolt, Foundation Bolts, Structural Bolts

ANSI and/or ASME Standards (inch series)

ASME B18.1.1	Small Solid Rivets	ASME B18.8.1	Clevis Pins and Cotter Pins
ASME B18.1.2	Large Rivets	ASME B18.8.2	Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins
ASME B18.2.1	Square and Hex Bolts and Screws	ASME B18.9	Plow Bolts
ASME B18.2.2	Square and Hex Nuts	ASME B18.10	Track Bolts and Nuts
ASME B18.2.6	Fasteners for use in Structural Applications	ASME B18.11	Miniature Screws
ASME B18.3	Socket Cap, Shoulder and Set Screws	ASME B18.13	Screws and Washer Assemblies (Sems)
ASME B18.5	Round Head Bolts	ASME B18.15	Forged Eyebolts
ASME B18.6.2	Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws	ASME B18.17	Wing Nuts, Thumb Screws and Wing Screws
ASME B18.6.3	Machine Screws and Machine Screws Nuts	ASME B18.21.1	Lock Washers
ASME B18.6.4	Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws	ASME B18.22.1	Plain Washers
ASME B18.7	General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps	ASME B18.23.1	Beveled Washers

Various Types Of Monel 400 / K500 Fasteners

Monel 400 / K500 Bolts

UNS N05500 Flange Bolts
Monel K500 Bolts In Indonesia
ASME SB164 Nickel Alloy K500 Bolts
Alloy 400 Hex Bolts In Malaysia
ASTM B164 Monel Alloy 400 Bolts
2.4375 Heavy Hex Bolts

Monel 400 / K500 Nuts

Monel K500 Wing Nuts In Philippines
ASTM B164 Alloy 400 Nuts
UNS N04400 Nuts
Nickel Alloy K500 Hex Nuts In Mexico
ASME SB164 Monel® Alloy 400 Nuts
2.4360 Heavy Hex Nuts

Monel 400 / K500 Screw

2.4375 Hex Cap Screws
ASME SB164 Monel Alloy 400 Screw
UNS N05500 Socket Set Screws
Monel 400 Screw In Japan
ASTM B164 Monel K500 Screw
Alloy K500 Allen Cap Screw In Italy

Monel 400 / K500 Washers

ASTM B164 Monel 400 Washers
UNS N04400 Lock Washers
ASME SB164 Monel® Alloy K500 Washers
Alloy 400 Flat Washer In Spain
2.4360 Beveled Washers
Monel K500 Washers In Kuwait

Monel 400 / K500 Threaded Rods

UNS N05500 Threaded Rods
Monel 400 Threaded Rods In Singapore
Alloy K500 Threaded Rods In Indonesia
ASTM B164 Monel K500 Threaded Rods
2.4375 Threaded Rods
ASME SB164 Monel Alloy 400 Threaded Rods

Monel 400 / K500 Stud Bolts

Alloy 400 Stud Bolts In Malaysia
2.4360 Stud Bolts
ASTM B164 Monel 400 Stud Bolts
UNS N04400 Stud Bolts
ASME SB164 Monel® Alloy K500 Stud
Monel K500 Tie Rods In Kuwait

Monel 400 / K500 Anchor Bolts

Monel 400 Anchor Bolts In Spain
2.4375 J Anchor Bolts
UNS N05500 Concrete Anchors
ASME SB166 Monel 400 Self Tapping Anchor
ASTM B166 Monel K500 Anchor Bolts
Monel K500 Wedge Anchor Bolt In Philippines

Equivalent Grades of Monel 400 / K500 Fasteners

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Monel 400	2.4360	N04400	NW 4400	NA 13	МНЖМц 28-2,5-1,5	NU-30M	NiCu30Fe
Monel K500	2.4375	N05500	-	-	-	-	-

View Size Table Of Monel 400 Fasteners, We have Global sales network for Monel® Alloy K500 Stud Bolts, Wide Stockist Of Werkstoff No 2.4360 Nuts, Bolts, Washers In India.

Size Chart of Monel 400 / K500 Bolts

Nominal or Basic Product Diameter		E		F			G		H			J	LT (Thread Length)		Y
Nominal or Basic Product Diameter		Body Diameter		Width Across Flats			Width Across Corners		Head Height			Wrenching Height	For Screw Lengths	For Screw Lengths	Transition Thread Length
1/4	0.25	0.25	0.245	7/16	0.438	0.428	0.505	0.488	5/32	0.163	0.150	0.106	0.750	1.000	0.250
5/16	0.3125	0.3125	0.3065	1/2	0.500	0.489	0.577	0.557	13/64	0.211	0.195	0.140	0.875	1.125	0.278
3/8	0.375	0.375	0.369	9/16	0.562	0.551	0.650	0.628	15/64	0.243	0.226	0.160	1.000	1.250	0.312
7/16	0.4375	0.4375	0.4305	5/8	0.625	0.612	0.722	0.698	9/32	0.291	0.272	0.195	1.125	1.375	0.357
1/2	0.5	0.5	0.493	3/4	0.750	0.736	0.866	0.840	5/16	0.323	0.302	0.215	1.250	1.500	0.385
9/16	0.5625	0.5625	0.5545	13/16	0.812	0.798	0.938	0.910	23/64	0.371	0.348	0.250	1.375	1.625	0.417
5/8	0.625	0.625	0.617	15/16	0.938	0.922	1.083	1.051	25/64	0.403	0.378	0.269	1.500	1.750	0.455
3/4	0.75	0.75	0.741	1-1/8	1.125	1.100	1.299	1.254	15/32	0.483	0.455	0.324	1.750	2.000	0.500
7/8	0.875	0.875	0.866	1-5/16	1.312	1.285	1.516	1.465	35/64	0.563	0.531	0.378	2.000	2.250	0.556
1	1	1	0.99	1-1/2	1.500	1.469	1.732	1.675	39/64	0.627	0.591	0.416	2.250	2.500	0.625
1-1/8	1.125	1.125	1.114	1-11/16	1.688	1.631	1.949	1.859	11/16	0.718	0.658	0.461	2.500	2.750	0.714
1-1/4	1.25	1.25	1.239	1-7/8	1.875	1.812	2.165	2.066	25/32	0.813	0.749	0.530	2.750	3.000	0.714
1-1/2	1.5	1.5	1.488	2-1/4	2.250	2.175	2.598	2.480	15/16	0.974	0.902	0.640	3.250	3.500	0.833

Check available Sizes of ASME SB 164 Monel 400 / K500 Stud Bolt, Ask For Ready Stock of UNS N04400 Fasteners in Mumbai, India.

BAGODA

Quick Contact

Call Us

+91 22 - 66151721

Need Help? Send us Email

sales@bagodasteelproject.com

Monel 600 Washer Weight & Dimensions

Bolt Size	A	B	C	Weight (lbs.) Per 100 Pieces
Bolt Size	ID	OD	Thickness	Weight (lbs.) Per 100 Pieces
1/2	9/16	13/8	0.109	4
5/8	11/16	13/4	0.134	8
3/4	13/16	2	0.148	11
7/8	15/16	21/4	0.165	15
1	11/16	21/2	0.165	19
11/8	11/4	23/4	0.165	22
11/4	13/8	3	0.165	26
13/8	11/2	31/4	0.180	33
11/2	15/8	31/2	0.180	38
15/8	13/4	33/4	0.180	43
13/4	17/8	4	0.180	50
17/8	2	41/4	0.180	57
2	21/8	41/2	0.180	63
21/4	23/8	43/4	0.220	83
21/2	25/8	5	0.238	96
23/4	27/8	51/4	0.259	110
3	31/8	51/2	0.284	130

Monel 400 / K500 Stud Bolt Size Chart

Class 150 Flanges ASME B16.5 (Stud bolt sizes)						Length of Stud Bolts
NPS	Outside Diameter of Flange	The diameter of Bolt Circle	The diameter of Bolt Holes	Number of Bolts	Diameter of Bolts	Raised Face 0.06 in	Ring Joint
1/2	3 1/2	2 3/8	5/8	4	1/2	2 1/4	–
3/4	3 7/8	2 3/4	5/8	4	1/2	2 1/2	–
1	4 1/4	3 1/8	5/8	4	1/2	2 1/2	3
1 1/4	4 5/8	3 1/2	5/8	4	1/2	2 3/4	3 1/4
1 1/2	5	3 7/8	5/8	4	1/2	2 3/4	3 1/4
2	6	4 3/4	3/4	4	5/8	3 1/4	3 3/4
2 1/2	7	5 1/2	3/4	4	5/8	3 1/2	4
3	7 1/2	6	3/4	4	5/8	3 1/2	4
3 1/2	8 1/2	7	3/4	8	5/8	3 1/2	4
4	9	7 1/2	3/4	8	5/8	3 1/2	4
5	10	8 1/2	7/8	8	3/4	3 3/4	4 1/4
6	11	9 1/2	7/8	8	3/4	4	4 1/2
8	13 1/2	11 3/4	7/8	8	3/4	4 1/4	4 3/4
10	16	14 3/4	1	12	7/8	4 1/2	5
12	19	17	1	12	7/8	4 3/4	5 1/4
14	21	18 3/4	1 1/8	12	1	5 1/4	5 3/4
16	23 1/2	21 1/4	1 1/8	16	1	5 1/4	5 3/4
18	25	22 3/4	1 1/4	16	1 1/8	5 3/4	6 1/4
20	27 1/2	25	1 1/4	20	1 1/8	6 1/4	6 3/4
24	32	29 1/2	1 1/4	20	1 1/4	6 3/4	7 1/4
Class 300 Flanges ASME B16.5						Length of Stud Bolts
NPS	Outside Diameter of Flange	The diameter of Bolt Circle	The diameter of Bolt Holes	Number of Bolts	Diameter of Bolts	Raised Face 0.06 in	Ring Joint
1/2	3 3/4	2 5/8	5/8	4	1/2	2 1/2	3
3/4	4 5/8	3 1/4	3/4	4	5/8	3	3 1/2
1	4 7/8	3 1/2	3/4	4	5/8	3	3 1/2
1 1/4	5 1/4	3 7/8	3/4	4	5/8	3 1/4	3 3/4
1 1/2	6 1/8	4 1/2	7/8	4	3/4	3 1/2	4
2	6 1/2	5	3/4	8	5/8	3 1/2	4
2 1/2	7 1/2	5 7/8	7/8	8	3/4	4	4 1/2
3	8 1/4	6 5/8	7/8	8	3/4	4 1/4	4 3/4
3 1/2	9	7 1/4	7/8	8	3/4	4 1/4	5
4	10	7 7/8	7/8	8	3/4	4 1/2	5
5	11	9 1/4	7/8	8	3/4	4 3/4	5 1/4
6	12 1/2	10 5/8	7/8	12	3/4	4 3/4	5 1/2
8	15	13	1	12	7/8	5 1/2	6
10	17 1/2	15 1/4	1 1/8	16	1	6 1/4	6 3/4
12	20 1/2	17 3/4	1 1/4	16	1 1/8	6 3/4	7 1/4
14	23	20 1/4	1 1/4	20	1 1/8	7	7 1/2
16	25 1/2	22 1/2	1 3/8	20	1 1/4	7 1/2	8
18	28	24 3/4	1 3/8	24	1 1/4	7 3/4	8 1/4
20	30 1/2	27	1 3/8	24	1 1/4	8	8 3/4
24	36	32	1 5/8	24	1 1/2	9	10

Ready Stock Monel 400 / K500 Fasteners

Monel 400 Lock Nut In Indonesia
Alloy K500 Wing Nuts In Malaysia
Nickel Alloy 400 Screws Distributor
Monel® Alloy K500 Washers In Mexico
Grade K500 Monel Anchor Bolts
Nickel Alloy 400 Split / Lock Washer In Philippines
Alloy K500 Stud Bolts In Japan
Grade 400 Monel Allen Cap Screw
Monel K500 Threaded Rod In Italy
Monel 400 Tooth Lock Washer
K500 Monel Heavy Hex Nuts In Spain
ASTM B164 Monel 400 Wing Nuts
400 Monel Self Locking Nuts
Alloy K500 Elevator Bolt
Alloy 400 Hexagonal Washer In Kuwait
Monel® Alloy K500 Hex Set Screw Manufacturer
Nickel Alloy 400 Eye Bolts
Monel K500 Square Nuts In Singapore
ASME SB164 Monel 400 Fender Washer
Alloy 400 T-Head Bolts In Indonesia
Monel Alloy K500 Dock Washer Stockholder
Alloy 400 Double Ended Stud
Monel® Alloy K500 Hex Washers In Malaysia
Alloy 400 Machine Fasteners Exporter
Nickel Alloy K500 Hex Coupling Nut
Monel 400 Bolts In Mexico
400 Monel Structural Bolts
Monel K500 Hex Head Bolts In Philippines
400 Monel Customized Washer
ASTM B164 Monel K500 Nyloc Nuts
Alloy 400 Plain Washer Supplier in Mumbai
Alloy K500 Acorn Nuts In Japan
Alloy K500 Fasteners In Italy
Nickel Alloy 400 Concrete Screw
Monel® Alloy K500 Tie Rods
400 Monel Machine Bolt
UNS N05500 Fasteners
Monel Alloy K500 Bolts In Spain
ASTM B164 Monel 400 Fasteners
Monel Alloy K500 Carriage Bolt Stockist
Alloy 400 Hex Head Bolt In Kuwait
Nickel Alloy K500 Hex Domed Cap Nuts
2.4375 Fasteners
Monel® Alloy 400 Socket Cap Screw
JIS NCF 400 Stud Bolts
Monel K500 Heavy Hex Bolts
DIN 2.4360 Countersunk Washer
Alloy 400 Flange Bolt
Monel Alloy K500 Foundation Bolts Manufacturer
400 Alloy Ogee Washer
Monel K500 Coupling Nut In Singapore
ASTM B164 Monel 400 Flat Washers

Monel 400 / K500 Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni
Monel 400	0.30 max	2.00 max	0.50 max	0.024 max	28.00 – 34.00	2.50 max	63.00 min
Monel K500	0.25 max	1.5 max	0.5 max	0.010 max	27.00 – 33.00	0.5 – 2	63.00 min

Monel 400 / K500 Fasteners Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Monel 400	8.8 g/cm3	1350 °C (2460 °F)	Psi – 80,000 , MPa – 550	Psi – 35,000 , MPa – 240	40 %
Monel K500	8.44 g/cm3	1350 °C (2460 °F)	Psi – 160000 , MPa – 1100	Psi – 115000 , MPa – 790	20 %
