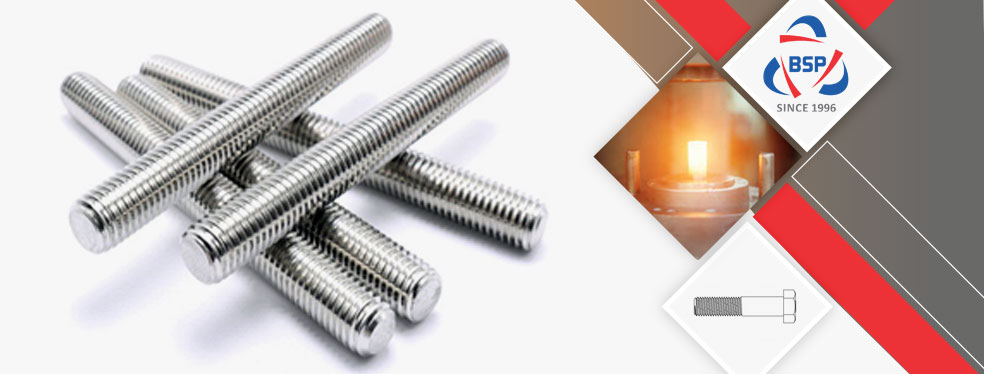

Monel 400 / K500 Stud Bolt

ASTM B164 Monel K500 Studs, K500 Monel Double End Stud Bolt, Nickel Alloy 400 Studs, Monel 400 Stud Bolts, Monel® Alloy K500 Industrial Stud BoltsPrice in India.

Bagoda Steel is a renowned supplier and distributor of Monel 400 / K500 Stud Bolts, which allows fabrication such as bending, in addition to welding. The resistance to intergranular assault is first rate even if sensitized at 1250 F (675 C) for one hour to simulate the warmness-affected region of heavy weldments. Monel UNS N05500 Stud Bolts is annealed at 1950 F (1066 C) has superb resistance to intergranular assault for maximum applications. However, while thick sections are used within the as-welded situation in sure strongly corrosive media, the 2050 F (1121 C) situation offers most advantageous corrosion resistance. It is a non-magnetic cobalt primarily based totally superalloy. In not unusual place by means of having maximum steels, below sure situations, it might also additionally strain-corrosion crack in warm chloride environments. When examined in boiling solution, a completely extended test, Monel WNR 2.4375 Stud Bolts offers resistance to cracking. There is little distinction in susceptibility to cracking whether or not within side the annealed, high-strength (HS), or cold-drawn situations. Corrosion and abrasion resistant, difficult and durable, it is the chrome steel in your abrasive needs.

Industrial Product
Monel 400 / K500 Stud Bolts

Monel 400 Full Threaded Stud Bolt, Monel Alloy K500 Tap End Stud Bolts, Nickel Alloy 400 Tie Rods, Monel® Alloy 400 Stud Stockist, 2.4360 Tie Rods, Alloy K500 Single End Stud Bolt, UNS N04400 Half Thread Stud Bolts Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Monel UNS N04400 Stud Bolts is particularly impact-resistant, which makes it best for a variety of heavy duty applications. Already demonstrated to be the patience chief in coal dealing with gadget and prep plants, it will last as long as two times. Selecting the best material for the task is going properly past the preliminary rate of the material. The maintenance, downtime and substitute fees related to poor material overall performance can wreak havoc with manufacturing time and budget.

It changed into engineered with these realities in mind. It is primarily used for abrasion resistance to coal, gravel and different substrates. Monel WNR 2.4360 Stud Bolts is used in Coal Buckets, Hoppers, Distributors, Ore Separators, Barge Liners, Refrigerated Trucks, Food Processing Equipment, Bulk Solid Handling Equipment, Sewage Treatment Structures, Screens Hoppers, Trailer Bedliners, etc. It offers an Outstanding excessive temperature strength, Oxidation immune to 1800° F, Galling resistant, Resistant to marine environments, acids and frame fluids.

Material Specification Chart of Monel 400 / K500 Stud Bolt

Specification ASTM F468,  B164 / ASME SF468, SB164
Size M02 to M33, Custom Sizes
Length 3 mm to 200 mm
Stud Bolt UNF, BSW, BSF, METRIC, UNC, or as required
Standard DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5
Form Hex, Threading, Square, Round as per Gauge Etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Types Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive of Stud Bolts Six-Lobe, Phillips, Phillips/Slot, Slotted etc
Packing of Stud Bolts IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating Ptfe Coated
Phosphate Coating
Teflon Coating
Zinc Coating
Hot Dipped Galvanizing Coating
Cadmium Coating
Xylon Coating

Various Types Of Monel 400 / K500 Stud Bolt

Monel 400 / K500 Double Ended Stud Bolt
Monel 400 / K500 Double Ended Stud Bolt
  • Alloy K500 Double Ended Stud Bolt
  • Nickel Alloy 400 Double Ended Wheel Stud
  • 2.4375 Double End Stud
  • ASTM B164 Monel 400 Double Ended Stud Bolt
  • ASME SB164 Monel K500 Dual Threaded Stud
  • UNS N05500 Double End Studs
Monel 400 / K500 Stud Bolt
Monel 400 / K500 Stud Bolt
  • ASTM B164 Nickel Alloy 400 Stud Bolts
  • ASME SB164 Monel® Alloy K500 Stud Bolts
  • Alloy K500 Stud Bolts
  • UNS N04400 Stud Bolts
  • 2.4360 Stud Bolt
  • Monel Alloy 400 Stud Bolts
Monel 400 / K500 Stud
Monel 400 / K500 Stud
  • Nickel Alloy 400 Weld Studs
  • ASME SB164 Monel 400 Stud
  • 2.4360 Stud
  • Alloy K500 Studs
  • ASTM B164 Monel K500 Clinch Stud
  • UNS N04400 Dowel Studs
Monel 400 / K500 Flush Head Stud
Monel 400 / K500 Flush Head Stud
  • Monel K500 Self Clinching Stud
  • ASTM B164 Monel 400 Flush Head Self Clinching Studs
  • ASME SB164 Monel Alloy K500 Self Clinch Flush Head Stud
  • 2.4375 Flush Head Studs
  • UNS N05500 Flush Head Clinch Studs
  • Alloy 400 Flush Head Stud
Monel 400 / K500 Threaded Rods
Monel 400 / K500 Threaded Rod
  • Monel K500 Threaded Rods
  • 2.4360 Threaded Rods
  • ASTM B164 Monel® Alloy K500 M5 Threaded Rod
  • Alloy 400 Fully Threaded Rod
  • ASME SB164 Nickel Alloy 400 Threaded Rods
  • UNS N04400 Threaded Stud
Monel 400 / K500 Single End Stud Bolt
Monel 400 / K500 Single End Stud Bolt
  • ASTM B164 Monel K500 Single Ended Stud Bolt
  • Alloy K500 Single End Studs
  • ASME SB164 Monel Alloy 400 Single Ended Stud Bolt
  • 2.4375 Single Ended Stud Bolt
  • UNS N05500 Single Ended Threaded Stud
  • Nickel Alloy 400 M6 Single End Stud

Equivalent Grades of Monel 400 / K500 Stud Bolts

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe
Monel K500 2.4375 N05500 - - - - -
Stud Bolts Dimensions

View Size Table Of Monel 400 Stud Bolts, We have Global sales network for Nickel Alloy K500 Stud Bolts, Wide Stockist Of Werkstoff No 2.4360 Tap End Stud Bolts, Double End Stud Bolts In India.

Size Chart of Monel 400 / K500 Stud Bolts

 Class 150 Flanges ASME B16.5 (Stud bolt sizes) Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face 0.06 in Ring Joint
1/2 3 1/2 2 3/8 5/8 4 1/2 2 1/4 –
3/4 3 7/8 2 3/4 5/8 4 1/2 2 1/2 –
1 4 1/4 3 1/8 5/8 4 1/2 2 1/2 3
1 1/4 4 5/8 3 1/2 5/8 4 1/2 2 3/4 3 1/4
1 1/2 5 3 7/8 5/8 4 1/2 2 3/4 3 1/4
2 6 4 3/4 3/4 4 5/8 3 1/4 3 3/4
2 1/2 7 5 1/2 3/4 4 5/8 3 1/2 4
3 7 1/2 6 3/4 4 5/8 3 1/2 4
3 1/2 8 1/2 7 3/4 8 5/8 3 1/2 4
4 9 7 1/2 3/4 8 5/8 3 1/2 4
5 10 8 1/2 7/8 8 3/4 3 3/4 4 1/4
6 11 9 1/2 7/8 8 3/4 4 4 1/2
8 13 1/2 11 3/4 7/8 8 3/4 4 1/4 4 3/4
10 16 14 3/4 1 12 7/8 4 1/2 5
12 19 17 1 12 7/8 4 3/4 5 1/4
14 21 18 3/4 1 1/8 12 1 5 1/4 5 3/4
16 23 1/2 21 1/4 1 1/8 16 1 5 1/4 5 3/4
18 25 22 3/4 1 1/4 16 1 1/8 5 3/4 6 1/4
20 27 1/2 25 1 1/4 20 1 1/8 6 1/4 6 3/4
24 32 29 1/2 1 1/4 20 1 1/4 6 3/4 7 1/4
Class 300 Flanges ASME B16.5 Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face 0.06 in Ring Joint
1/2 3 3/4 2 5/8 5/8 4 1/2 2 1/2 3
3/4 4 5/8 3 1/4 3/4 4 5/8 3 3 1/2
1 4 7/8 3 1/2 3/4 4 5/8 3 3 1/2
1 1/4 5 1/4 3 7/8 3/4 4 5/8 3 1/4 3 3/4
1 1/2 6 1/8 4 1/2 7/8 4 3/4 3 1/2 4
2 6 1/2 5 3/4 8 5/8 3 1/2 4
2 1/2 7 1/2 5 7/8 7/8 8 3/4 4 4 1/2
3 8 1/4 6 5/8 7/8 8 3/4 4 1/4 4 3/4
3 1/2 9 7 1/4 7/8 8 3/4 4 1/4 5
4 10 7 7/8 7/8 8 3/4 4 1/2 5
5 11 9 1/4 7/8 8 3/4 4 3/4 5 1/4
6 12 1/2 10 5/8 7/8 12 3/4 4 3/4 5 1/2
8 15 13 1 12 7/8 5 1/2 6
10 17 1/2 15 1/4 1 1/8 16 1 6 1/4 6 3/4
12 20 1/2 17 3/4 1 1/4 16 1 1/8 6 3/4 7 1/4
14 23 20 1/4 1 1/4 20 1 1/8 7 7 1/2
16 25 1/2 22 1/2 1 3/8 20 1 1/4 7 1/2 8
18 28 24 3/4 1 3/8 24 1 1/4 7 3/4 8 1/4
20 30 1/2 27 1 3/8 24 1 1/4 8 8 3/4
24 36 32 1 5/8 24 1 1/2 9 10

Check available Sizes of ASME SB164 Monel 400 Stud Bolt, Ask For Ready Stock of UNS N04400 Stud Bolts in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Monel 400 / K500 Stud Bolts

Diameter Diameter in mm Diameter in inch Nut Sizes
M12 12 0.4724 19
M10 10 0.3937 17
M14 14 0.5512 22
M18 18 0.7087 27
M16 16 0.6299 24
M20 20 0.7874 30
M24 24 0.9449 36
M22 22 0.8661 32
M27 27 1.063 41
M33 33 1.2992 50
M30 30 1.1811 46
M36 36 1.4173 55
M42 42 1.6535 65
M39 39 1.5354 60
M45 45 1.7717 70
M52 52 2.0472 80
M48 48 1.8898 75
M56 56 2.2047 85
M64 64 2.5197 95
M60 60 2.3622 90
M68 68 2.6772 100
M76 76 2.9921 110
M72 72 2.8346 105
M80 80 3.1496 115
M90 90 3.5433 130
M85 85 3.3464 120
M100 100 3.937 145
M160 160 6.2992 230
M125 125 4.9212 180
M110 110 4.3307 155
M140 140 5.5118 200

Monel 400 / K500 Stud Bolt Torque Chart

Flange Size B16.5 Class 150 RF/ Ring Gaskets B16.5 Class 150 FF/ Full Face Gaskets
Torque / Round (ft-lbs) Stud Bolts Tighten Sequence Torque / Round (ft-lbs) Stud Bolts Tighten Sequence
1st 2nd Final Dwg/No. Bolt Size 1st 2nd Final Dwg*/No. Bolt Size
1/2″ 10 20 30 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
3/4″ 13 27 40 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1″ 15 30 50 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1-1/4″ 20 40 60 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1-1/2″ 20 40 60 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
2″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
2-1/2″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
3″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
3-1/2″ 40 80 120 8-bolt 5/8″ 40 80 120 8-bolt 5/8″
4″ 40 80 120 8-bolt 5/8″ 40 80 120 8-bolt 5/8″
5″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
6″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
8″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
10″ 95 190 320 12-bolt 7/8″ 95 190 320 12-bolt 7/8″
12″ 95 190 320 12-bolt 7/8″ 95 190 320 12-bolt 7/8″
14″ 147 294 490 12-bolt 1″ 147 294 490 12-bolt 1″
16″ 147 294 490 16-bolt 1″ 147 294 490 16-bolt 1″
18″ 213 426 710 16-bolt 1-1/8″ 213 426 710 16-bolt 1-1/8″
20″ 213 426 710 20-bolt 1-1/8″ 213 426 710 20-bolt 1-1/8″
24″ 300 601 1,000 20-bolt 1-1/4″ 300 601 1,000 20-bolt 1-1/4″

Flange Size B16.5 Class 300 RF/ Ring Gaskets
Torque / Round (ft-lbs) Stud Bolts Tighten Sequence*
1st 2nd Final Dwg/No. Stud Bolts Size
1/2″ 10 20 30 4-bolt 1/2″
3/4″ 15 30 50 4-bolt 5/8″
1″ 21 42 70 4-bolt 5/8″
1-1/4″ 30 60 100 4-bolt 5/8″
1-1/2″ 45 90 150 4-bolt 3/4″
2″ 33 66 110 8-bolt 5/8″
2-1/2″ 42 84 140 8-bolt 3/4″
3″ 60 120 200 8-bolt 3/4″
3-1/2″ 60 120 200 8-bolt 3/4″
4″ 60 120 200 8-bolt 3/4″
5″ 60 120 200 8-bolt 3/4″
6″ 60 120 200 12-bolt 3/4″
8″ 95 190 320 12-bolt 7/8″
10″ 147 294 490 16-bolt 1″
12″ 213 426 710 16-bolt 1-1/8″
14″ 195 390 650 20-bolt 1-1/8″
16″ 273 546 910 20-bolt 1-1/4″
18″ 300 601 1,000 24-bolt 1-1/4″
20″ 300 601 1,000 24-bolt 1-1/4″
24″ 465 930 1,550 24-bolt 1-1/2″

Weight Chart Of Monel 400 / K500 Stud Bolt

Weight Imperial
STUD BOLT LENGTH (in inches) 1/2 5/8 3/4 7/8 1 1 1/8 1 1/4 1.3/8 1 1/2 1.5/8 1.3/4 1 7/8
2.1/2 10.8
2.3/4 11.6 19.8
3.1/4 12.4 21 32.4
3.1/2 13.2 22.2 34.3 50
4 14 23.4 36.2 52.6 71.8
4.1/2 14.8 24.6 38.1 55.2 75.2 102
4.3/4 15.6 25.8 40 57.8 78.6 106 137
5 16.4 27 41.9 60.4 82 111 142 179
5.1/2 17.2 28.2 43.8 63 85.4 115 147 186 234
6 18 29.4 45.7 65.6 88.8 119 153 193 242 289
6.1/4 18.8 30.6 47.6 68.2 92.2 123 158 200 250 298 263
6.1/2 19.6 32.3 49.5 70.8 95.6 128 164 206 258 308 374 437
7 20.4 33.5 50.8 73.4 99 132 169 213 266 317 385 449
7.1/2 21.2 34.8 52.7 75.5 103 136 174 220 275 326 396 462
8 22 36.1 54.5 78 106 141 180 226 283 336 407 475
8.1/4   37.3 56.3 80.5 108 145 185 233 291 345 418 488
8.3/4   38.6 58.1 83.1 112 149 191 240 299 354 429 500
9   39.8 60 85.6 115 153 196 246 307 364 440 513
9.1/2   41.1 61.8 88.2 118 158 201 253 316 373 451 526
10     63.7 90.7 122 162 206 260 324 382 463 538
10/1.4       93.3 125 166 212 267 332 391 474 551
1.0.1/2         128 171 217 273 340 401 485 564
11         132 175 223 279 345 410 496 576
11.1/2         135 179 228 285 350 419 507 589
12         138 184 233 292 358 429 518 602
Weight Of Metric Studs Bolt
STUD BOLT LENGTH (in mm) M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39
60 5,6 8,1 12 15,6
70 6,1 8,9 13 16,9 23,7
80 6,6 9,6 14 18,2 25,4 32,5
90 7,1 10,3 15 19,6 27,1 34,5 45,5
100 7,6 11 16 21 28,8 36,7 47,2 54,2
110 8,1 11,7 17 22,2 30,4 38,7 48,3 58,2 80
120 8,6 12,4 18 23,6 32,1 40,7 50,9 60,2 84,7 107
130 9,1 13,2 19 24,9 33,7 42,8 53,4 63,2 88,6 111 141
140 9,6 14,2 20 26,2 35,4 44,9 55,9 66,2 92,4 116 147 185
150 10,1 14,9 20,8 27,5 36,9 46,9 58,5 69,2 96,3 121 153 192 237
160 10,6 15,6 21,8 29,1 38,6 49 61 72,2 100,1 126 159 199 245
170   16,4 22,8 30,4 40,2 51,1 63,5 75,2 104 130 165 206 253
180     23,8 31,8 41,9 52,3 66,1 78,1 108 135 171 213 261
190       33,1 43,5 54,4 68,4 81,1 112 140 176 219 269
200       34,5 45,2 56,2 71 84 116 144 182 226 278
210       35,8 46,8 58,5 73,5 88,4 120 149 188 233 286
220       37,1 48,4 60,6 76,1 91,4 124 154 194 240 294
230       38,5 50,1 62,6 78,6 94,4 127 159 201 247 302
240       39,8 51,7 64,7 81,2 97,4 130,9 164 208 253 310
250       41,1 53,4 66,8 83,7 100,4 134,8 172 214 260 319
260         55 68,8 86,3 103,4 138,6 177 220 267 327
270         56,6 70,9 88,8 106,4 142,5 182 224 274 335
280         58,3 73 91,4 109,4 146,3 187 230 281 343
290           75 93,9 112,4 150,1 192 236 291 360
300           77,1 96,5 115,4 154 196 241 298 368
320             101,6 121,3 161,7 206 253 312 380
340               127,3 169,4 215 265 326 395
360               133,3 177,1 224 276 340 411
380                 184,8 234 288 353 428
400                 192,5 243 299 367 444
420                   252 311 381 460
440                   262 322 394 477
460                   271 334 408 493
480                   281 345 422 509
500                   290 357 436 526

Ready Stock Monel 400 / K500 Stud Bolts

  • 400 Nickel Alloy Industrial Stud Bolts Supplier in Mumbai
  • Nickel Alloy 400 Drywall Stud
  • K500 Nickel Alloy Metric Thread Stud Bolt Manufacturer
  • JIS NW 4400 Stud Bolts
  • Nickel Alloy 400 Threaded Rod
  • Nickel Alloy 400 Full Threaded Stud Bolt Distributor
  • 400 Monel Threaded Studs
  • Alloy 400 Continuous Thread Stud Bolt
  • Nickel Alloy 400 Industrial Stud Bolts
  • Monel® Alloy K500 Stud Bolts
  • K500 Monel Threaded Studs
  • Nickel Alloy 400 Tap End Stud Bolts
  • Nickel Alloy K500 Stud Bolt
  • Alloy K500 M16 Stud Bolt
  • ASTM B164 Nickel Alloy 400 Double Ended Stud
  • Alloy K500 Tie Rods
  • ASTM B164 Nickel Alloy 400 Stud Bolts
  • Monel K500 Double End Stud Bolts
  • Nickel Alloy K500 Threaded Rod Exporter
  • Alloy 400 Continuous Thread Stud Bolt
  • Nickel Alloy 400 Threaded Stud Bolt
  • DIN 2.4375 Full Threaded Stud Bolt
  • Monel 400 Tie Bars
  • Nickel Alloy 400 Wheel Lug Stud Bolt
  • Monel Alloy 400 Stud Bolt
  • Alloy 400 Double Ended Stud Manufacturer
  • Monel 400 Weld Studs
  • Alloy K500 Stud Bolt
  • ASME SB164 K500 Monel Nickel Studs
  • Monel Alloy 400 Threaded Studs
  • Nickel Alloy K500 Flush Head Studs
  • Nickel Alloy K500 Heavy Stud Bolt
  • Alloy K500 Tap End Stud Bolts
  • UNS N05500 Stud Bolt
  • Monel® Alloy K500 Stud Bolts With Reduced Shank
  • 400 Monel Studs
  • Alloy K500 Single End Stud Bolt
  • Alloy K500 Double Ended Stud
  • ASTM B164 Monel K500 Double Ended Stud
  • ASTM B164 Monel 400 Double End Stud Bolts
  • Nickel Alloy K500 Threaded Stud Bolts
  • Alloy 400 Partial Threaded Stud Bolt Stockholder
  • 2.4360 Continuous Thread Stud Bolt
  • Nickel Alloy K500 Half Thread Stud Bolt
  • Monel 400 Tie Rods
  • Monel EN NiCu30Fe High Pressure Stud Bolt
  • Monel Alloy K500 Continuous Thread Stud Bolt
  • Monel K500 Flush Head Studs Stockist

Monel 400 / K500 Stud Bolts Chemical Composition

Grade C Mn Si S Cu Fe Ni
Monel 400 0.30 max 2.00 max 0.50 max 0.024 max 28.00 – 34.00 2.50 max 63.00 min
Monel K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min

Monel 400 / K500 Stud Bolts Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40 %
Monel K500 8.44 g/cm3 1350 °C (2460 °F) Psi – 160000 , MPa – 1100 Psi – 115000 , MPa – 790 20 %

Export Destinations For Monel 400 / K500 Stud Bolts

industry
