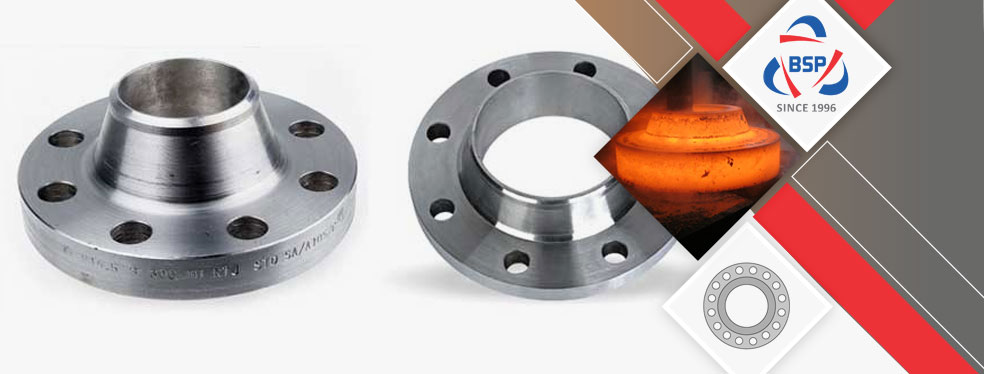

DIN Flange, DIN Raised Face Flange, DIN 2527 Flangs Manufacturer

Carbon Steel DIN Flange, JIS 5K DIN 2527 PN25 Flange, SS DIN Stockist, Nickel Alloy DIN 2527 PN40 Plate Flange, Hastelloy DIN Raised Face Flange, Stainless Steel DIN 2527 PN16 Flange, DIN 2527 Flange Dealer, Inconel Raised Face DIN 2566 Flange, Alloy Steel DIN Flange, Class 150 Alloy Steel DIN PN10-PN25 Flange Supplier in Mumbai, India.

At expanded temperatures it gives resistance to oxidation, carburization, and suffixation at the side of rupture and creep strength. For applications requiring more resistance to strain rupture and creep, in particular at temperatures above 1500 Degree F (816 Degree C), these Inconel Alloy DIN Blind Flanges are used. The chromium within the alloy imparts each aqueous and warmth resistance. Iron gives resistance to inner oxidation. The nickel content material keeps a ductile, austenitic structure. Thus, its miles readily formed, welded, and machined. It is used for warmth-treating gadget which includes baskets, trays, and fixtures. It has excessive mechanical strength over an extensive temperature variety.

In chemical and petrochemical processing, the alloy is used for warmth exchangers and different piping structures in nitric acid media in particular wherein resistance to chloride strain-corrosion cracking is required. In nuclear energy plants, it's miles used for steam-generator tubing. Monel Alloy DIN Spectacle Blind Flanges is frequently utilized in home equipment for sheathing of electrical heating elements. In the manufacturing of paper pulp, digester-liquor warmers are frequently manufactured from this alloy. In petroleum processing, the alloy is used for warmth exchangers that air cool the system stream. It is used for its strength traits at carrier temperatures as much as approximately 1500 Degree F (816 Degree C).

Specification Chart of DIN Flange

Size	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Dimension Standard	ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings.
Class / Pressure Rating	150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
ANSI	ClassClass 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
BS	BS4504 , BS4504, BS1560, BS10, 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design	As per your drawing AS, ANSI, BS, DIN and BS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations BS Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
DIN 2527 Flanges Standard	ANSI DIN, GOST, Korean, UNI, BS, AS2129, Korean, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, Korean/ KS Flange, BS4504 Flange, GB Flange, Korean Flange, GOST Flange, PSI Flange AS 2129: Table D; Table E; Table H B.S: BS4504 , BS3293, BS1560, BS10 ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, Korean, Custom Drawings American standard (ANSI) ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 British standard (BS) Any other specilised flanges The other standard: DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
Testing and Documents	Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
Packing	Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

Material Grades of DIN Flange

Stainless Steel DIN Flange	ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409
Carbon Steel DIN Flange	ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
Alloy Steel DIN Flanges	ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Titanium DIN Flanges	ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 \| R50400/GR.2 \| R50550/GR.3 \| R50700/GR.4 \| GR.6 \|R52400/GR.7 \| R53400/GR.12 \| R56320/GR.9 \|R56400/GR.5
Copper DIN Flanges	T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel DIN Flanges	ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Inconel DIN Flanges	ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 ANSI B16.5 Class 150 ANSI B16.5 Flanges
Hastelloy DIN Flanges	ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges
Monel DIN Flanges	ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 DIN Flanges	ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium DIN Flanges	5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Alloy DIN Flanges	ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Duplex Steel DIN Flanges	S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex DIN Flanges	S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy DIN Flanges	ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges
254 SMO DIN Flanges	ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic DIN Flanges	Nimonic 75, Nimonic 80A, Nimonic 90
Brass DIN Flanges	3602 / 2604 / H59 / H62 / etc.
Other DIN Flanges material	Tin bronze, Alumunum bronze, Lead bronze

View Thickness Table Of Class 150, Class 300 And Class 600 DIN Flange, We have Global sales network for DIN 2527 PN25 Flanges, Wide Stockist Of DIN 2527 Raised Face Flanges In India.

Weight Chart Of DIN Flange

Flange Nominal Diameter	Pressure Rating (PN)
**Nominal BSP Pipe Size	PN6	PN10	PN16	PN25	PN40
DN 10	75	90	90	90	90	O.D.
3/8"	50	60	60	60	60	PCD (bolt circle)
	4 x 11	4 x 14	4 x 14	4 x 14	4 x 14	# of holes x diam. of holes
DN 15	80	95	95	95	95	O.D.
1/2"	55	65	65	65	65	PCD (bolt circle)
	4 x 11	4 x 14	4 x 14	4 x 14	4 x 14	# of holes x diam. of holes
DN 20	90	105	105	105	105	O.D.
3/4"	65	75	75	75	75	PCD (bolt circle)
	4 x 11	4 x 14	4 x 14	4 x 14	4 x 14	# of holes x diam. of holes
DN 25	100	115	115	115	115	O.D.
1"	75	85	85	85	85	PCD (bolt circle)
	4 x 11	4 x 14	4 x 14	4 x 14	4 x 14	# of holes x diam. of holes
DN 32	120	140	140	140	140	O.D.
1 1/4"	90	100	100	100	100	PCD (bolt circle)
	4 x 14	4 x 18	4 x 18	4 x 18	4 x 18	# of holes x diam. of holes
DN 40	130	150	150	150	150	O.D.
1 1/2"	100	110	110	110	110	PCD (bolt circle)
	4 x 14	4 x 18	4 x 18	4 x 18	4 x 18	# of holes x diam. of holes
DN 50	140	165	165	165	165	O.D.
2"	110	125	125	125	125	PCD (bolt circle)
	4 x 14	4 x 18	4 x 18	4 x 18	4 x 18	# of holes x diam. of holes
DN 65	160	185	185	185	185	O.D.
2 1/2"	130	145	145	145	145	PCD (bolt circle)
	4 x 14	4 x 18	4 x 18	8 x 18	8 x 18	# of holes x diam. of holes
DN 80	190	200	200	200	200	O.D.
3"	150	160	160	160	160	PCD (bolt circle)
	4 x 18	8 x 18	8 x 18	8 x 18	8 x 18	# of holes x diam. of holes
DN 100	210	220	220	235	235	O.D.
4"	170	180	180	190	190	PCD (bolt circle)
	4 x 18	8 x 18	8 x 18	8 x 22	8 x 22	# of holes x diam. of holes
DN 125	240	250	250	270	270	O.D.
5"	200	210	210	220	220	PCD (bolt circle)
	8 x 18	8 x 18	8 x 18	8 x 26	8 x 26	# of holes x diam. of holes
DN 150	265	285	285	300	300	O.D.
6"	225	240	240	250	250	PCD (bolt circle)
	8 x 18	8 x 22	8 x 22	8 x 26	8 x 26	# of holes x diam. of holes
DN 175		315	315	330	350	O.D.
7"		270	270	280	295	PCD (bolt circle)
		8 x 22	8 x 22	12 x 26	12 x 30	# of holes x diam. of holes
DN 200	320	340	340	360	375	O.D.
8"	280	295	295	310	320	PCD (bolt circle)
	8 x 18	8 x 22	12 x 22	12 x 26	12 x 30	# of holes x diam. of holes
DN 250	375	395	405	425	450	O.D.
10"	335	350	355	370	385	PCD (bolt circle)
	12 x 18	12 x 22	12 x 26	12 x 30	12 x 33	# of holes x diam. of holes
DN 300	440	445	460	485	515	O.D.
12"	395	400	410	430	450	PCD (bolt circle)
	12 x 22	12 x 22	12 x 26	16 x 30	16 x 33	# of holes x diam. of holes
DN 350	490	505	520	555	580	O.D.
14"	445	460	470	490	510	PCD (bolt circle)
	12 x 22	16 x 22	16 x 26	16 x 33	16 x 36	# of holes x diam. of holes
DN 400	540	565	580	620	660	O.D.
16"	495	515	525	550	585	PCD (bolt circle)
	16 x 22	16 x 26	16 x 30	16 x 36	16 x 39	# of holes x diam. of holes
DN 500	645	670	715	730	755	O.D.
20"	600	620	650	660	670	PCD (bolt circle)
	20 x 22	20 x 26	20 x 33	20 x 36	20 x 42	# of holes x diam. of holes
DN 600	755	780	840	845		O.D.
24"	705	725	770	770		PCD (bolt circle)
	20 x 24	20 x 27	20 x 33	20 x 36		# of holes x diam. of holes

DIN PN6-PN40 Flange Dimensions Diameters & Drilling of DIN Flanges (mm)

Flange Nominal Diameter	Pressure Rating (PN)
**Nominal BSP Pipe Size	PN6	PN10	PN16	PN25	PN40
DN 10	75	90	90	90	90	O.D.
3/8″	50	60	60	60	60	PCD (bolt circle)
	4 x 11	4 x 14	4 x 14	4 x 14	4 x 14	# of holes x diam. of holes
DN 15	80	95	95	95	95	O.D.
1/2″	55	65	65	65	65	PCD (bolt circle)
	4 x 11	4 x 14	4 x 14	4 x 14	4 x 14	# of holes x diam. of holes
DN 20	90	105	105	105	105	O.D.
3/4″	65	75	75	75	75	PCD (bolt circle)
	4 x 11	4 x 14	4 x 14	4 x 14	4 x 14	# of holes x diam. of holes
DN 25	100	115	115	115	115	O.D.
1″	75	85	85	85	85	PCD (bolt circle)
	4 x 11	4 x 14	4 x 14	4 x 14	4 x 14	# of holes x diam. of holes
DN 32	120	140	140	140	140	O.D.
1 1/4″	90	100	100	100	100	PCD (bolt circle)
	4 x 14	4 x 18	4 x 18	4 x 18	4 x 18	# of holes x diam. of holes
DN 40	130	150	150	150	150	O.D.
1 1/2″	100	110	110	110	110	PCD (bolt circle)
	4 x 14	4 x 18	4 x 18	4 x 18	4 x 18	# of holes x diam. of holes
DN 50	140	165	165	165	165	O.D.
2″	110	125	125	125	125	PCD (bolt circle)
	4 x 14	4 x 18	4 x 18	4 x 18	4 x 18	# of holes x diam. of holes
DN 65	160	185	185	185	185	O.D.
2 1/2″	130	145	145	145	145	PCD (bolt circle)
	4 x 14	4 x 18	4 x 18	8 x 18	8 x 18	# of holes x diam. of holes
DN 80	190	200	200	200	200	O.D.
3″	150	160	160	160	160	PCD (bolt circle)
	4 x 18	8 x 18	8 x 18	8 x 18	8 x 18	# of holes x diam. of holes
DN 100	210	220	220	235	235	O.D.
4″	170	180	180	190	190	PCD (bolt circle)
	4 x 18	8 x 18	8 x 18	8 x 22	8 x 22	# of holes x diam. of holes
DN 125	240	250	250	270	270	O.D.
5″	200	210	210	220	220	PCD (bolt circle)
	8 x 18	8 x 18	8 x 18	8 x 26	8 x 26	# of holes x diam. of holes
DN 150	265	285	285	300	300	O.D.
6″	225	240	240	250	250	PCD (bolt circle)
	8 x 18	8 x 22	8 x 22	8 x 26	8 x 26	# of holes x diam. of holes
DN 175		315	315	330	350	O.D.
7″		270	270	280	295	PCD (bolt circle)
		8 x 22	8 x 22	12 x 26	12 x 30	# of holes x diam. of holes
DN 200	320	340	340	360	375	O.D.
8″	280	295	295	310	320	PCD (bolt circle)
	8 x 18	8 x 22	12 x 22	12 x 26	12 x 30	# of holes x diam. of holes
DN 250	375	395	405	425	450	O.D.
10″	335	350	355	370	385	PCD (bolt circle)
	12 x 18	12 x 22	12 x 26	12 x 30	12 x 33	# of holes x diam. of holes
DN 300	440	445	460	485	515	O.D.
12″	395	400	410	430	450	PCD (bolt circle)
	12 x 22	12 x 22	12 x 26	16 x 30	16 x 33	# of holes x diam. of holes
DN 350	490	505	520	555	580	O.D.
14″	445	460	470	490	510	PCD (bolt circle)
	12 x 22	16 x 22	16 x 26	16 x 33	16 x 36	# of holes x diam. of holes
DN 400	540	565	580	620	660	O.D.
16″	495	515	525	550	585	PCD (bolt circle)
	16 x 22	16 x 26	16 x 30	16 x 36	16 x 39	# of holes x diam. of holes
DN 500	645	670	715	730	755	O.D.
20″	600	620	650	660	670	PCD (bolt circle)
	20 x 22	20 x 26	20 x 33	20 x 36	20 x 42	# of holes x diam. of holes
DN 600	755	780	840	845		O.D.
24″	705	725	770	770		PCD (bolt circle)
	20 x 24	20 x 27	20 x 33	20 x 36		# of holes x diam. of holes

Dimensions & Approximate Masses of DIN 2573 PN6 Flange

Germany standard flange DIN 2573 for soldering or welding Nominall Pressure 6
Flanges, smooth for soldering or welding DIN 2573 nominal pressure 6
Weld flat flanges DIN 2573 nominal pressure 6
Pipe			Flange					Screws			Weight (7,85 Kg/dm3)
Rated Diameter	d1		d5	D	b	c	k	Holes	Thread	d2	Kg
	ISO Series 1	DIN Series 2
15	–	20	21	80	12	5	55	4	M 10	11	0,41
	21,3	–	22
20	–	25	26	90	14	5	65	4	M 10	11	0,60
	26,9	–	27,6
25	–	30	31	100	14	5	75	4	M 10	11	0,74
	33,7	–	34,4
32	–	38	39	120	16	5	90	4	M 12	14	1,19
	42,4	–	43,1
40	–	44,5	45,5	130	16	5	100	4	M 12	14	1,39
	48,3	–	49
50	–	57	58,1	140	16	6	110	4	M 12	14	1,53
	60,3	–	61,1
65	76,1	–	77,1	160	16	6	130	4	M 12	14	1,89
80	88,9	–	90,3	190	18	7	150	4	M 16	18	2,98
100	–	108	109,6	210	18	7	170	4	M 16	18	3,46
	114,3	–	115,9
125	–	133	134,8	240	20	7	200	8	M 16	18	4,60
	139,7	–	141,6
150	–	159	161,1	265	20	7	225	8	M 16	18	5,22
	168,3	–	170,5
200	219,1	–	221,8	320	22	7	280	8	M 16	18	7,15
250	–	267	270,2	375	24	7	335	12	M 16	18	9,61
	273	–	276,2
300	323,9	–	327,6	440	24	7	395	12	M 20	22	12,60
350	355,6	–	359,7	490	26	7	445	12	M 20	22	15,60
	–	368	372,2
400	406,4	–	411	540	28	7	495	16	M 20	22	18,40
	–	419	423,7
(450)*	457	–	462,5	595	30	7	550	16	M 20	22	21,40
500	508	–	531,6	645	30	7	600	20	M 20	22	24,60

Dimensions & Approx Masses of DIN 2631 PN6 WNRF Flange

Germany Standard Flange DIN 2631 Welding Neck Flanges; Nominal Pressure 6
Welding Neck Flanges DIN 2631 Nominal Pressure 6
DIN 2631 Flange Welding Flanges: Nominal Pressure 6
Pipe			Flange				Neck				Raised face		Screws			Weight
																(7.85 Kg/dm3)
Rated	d1		D	b	k	h1	d3	s	r	h2	d4	f	Holes	Thread	d2	Kg
Diameter	ISO Series	DIN Series
15	–	20	80	12	55	30	28	2	4	6	40	2	4	M 10	11	0,392
	21,3	–					30
20	–	25	90	14	65	32	35	2,3	4	6	50	2	4	M 10	11	0,592
	26,9	–					38
25	–	30	100	14	75	35	40	2,6	4	6	60	2	4	M 10	11	0,747
	33,7	–					42
32	–	38	120	14	90	35	50	2,6	6	6	70	2	4	M 12	14	1,05
	42,4	–					55
40	–	44,5	130	14	100	38	58	2,6	6	7	80	3	4	M 12	14	1,18
	48,3	–					62
50	–	57	140	14	110	38	70	2,9	6	8	90	3	4	M 12	14	1,34
	60,3	–					74
65	76,1	–	160	14	130	38	88	2,9	6	9	110	3	4	M 12	14	1,67
80	88,9	–	190	16	150	42	102	3,2	8	10	128	3	4	M 16	18	2,71
100	–	108	210	16	170	45	122	3,6	8	10	148	3	4	M 16	18	3,24
	114,3						130
125	–	133	240	18	200	48	148	4	8	10	178	3	8	M 16	18	4,49
	139,7	–					155
150	–	159	265	18	225	48	172	4,5	10	12	202	3	8	M 16	18	5,15
	168,3	–					184
200	219,1	–	320	20	280	55	236	5,9	10	15	258	3	8	M 16	18	7,78
250	–	267	375	22	335	60	282	6,3	12	15	312	3	12	M 16	18	10,8
	273	–					290
300	323,9	–	440	22	395	62	342	7,1	15	15	365	4	12	M 20	22	14
350	355,6	–	490	22	445	62	385	7,1	12	15	415	4	12	M 20	22	18,5
	–	368														16,7
400	406,4	–	540	22	495	65	438	7,1	12	15	465	4	16	M 20	22	21,2
	–	419														19
500	508	–	645	24	600	68	538	7,1	12	15	570	4	20	M 20	22	28,6
600	610	–	755	24	705	70	640	7,1	12	16	670	5	20	M 24	26	31,5
700	711	–	860	24	810	70	740	7,1	12	16	775	5	24	M 24	26	37,4
800	813	–	975	24	920	70	842	7,1	12	16	880	5	24	M 27	30	46,1
900	914	–	1075	26	1020	70	942	7,1	12	16	980	5	24	M 27	30	55,6
1000	1016	–	1175	26	1120	70	1045	7,1	16	16	1080	5	28	M 27	30	61,9

DIN 2565 PN6 THREADED FLANGE

DIN 2565 PN 6 THREADED FLANGE SPECIFICATION
Rated Diameter		Flange					Neck	Raised face		Screws			Weight (7,85 Kg/dm3)
Rated Diameter	d1	Thread	D	b	k	h1	d3	d4	f	Holes	Thread	d2	Kg
15	21,3	R 1/2	80	12	55	20	30	40	2	4	M 10	11	0,373
20	26,9	R 3/4	90	14	65	24	40	50	2	4	M 10	11	0,59
25	33,7	R 1	100	14	75	24	50	60	2	4	M 10	11	0,743
32	42,4	R 1 1/4	120	14	90	26	60	70	2	4	M 12	14	1,05
40	48,3	R 1 1/2	130	14	100	26	70	80	3	4	M 12	14	1,2
50	60,3	R 2	140	14	110	28	80	90	3	4	M 12	14	1,37
65	76,1	R 2 1/2	160	14	130	32	100	110	3	4	M 12	14	1,92
80	88,9	R 3	190	16	150	34	110	128	3	4	M 16	18	2,82
100	114,3	R 4	210	16	170	38	130	148	3	4	M 16	18	3,19
125	139,7	R 5	240	18	200	40	160	178	3	8	M 16	18	4,47
150	165,1	R 6	265	18	225	44	185	202	3	8	M 16	18	5,3

DIN 2566 PN16 Threaded Flanges

DIN 2566 PN16 THREADED FLANGE SPECIFICATION
Rated Diameter		Flange					Neck	Raised face		Screws			Weight (7,85 Kg/dm3)
Rated Diameter	d1	Thread	D	b	k	h1	d3	d4	f	Holes	Thread	d2	Kg
15	21,3	R 1/2	95	14	65	20	35	45	2	4	M 12	14	0,613
20	26,9	R 3/4	105	16	75	24	45	58	2	4	M 12	14	0,91
25	33,7	R 1	115	16	85	24	52	68	2	4	M 12	14	1,1
32	42,4	R 1 1/4	140	16	100	26	60	78	2	4	M 16	18	1,6
40	48,3	R 1 1/2	150	16	110	26	70	88	3	4	M 16	18	1,78
50	60,3	R 2	165	18	125	28	85	102	3	4	M 16	18	2,43
65	76,1	R 2 1/2	185	18	145	32	105	122	3	4	M 16	18	3,18
80	88,9	R 3	200	20	160	34	118	138	3	8	M 16	18	4,12
100	114,3	R 4	220	20	180	38	140	158	3	8	M 16	18	4,47
125	139,7	R 5	250	22	210	40	168	188	3	8	M 16	18	6,13
150	165,1	R 6	285	22	240	44	195	212	3	8	M 20	22	7,92

Dimensions & Approx Masses of DIN 2527 Blind Flange

Germany standard flange DIN 2527 Blind flange Nominal Pressure 6 to 100
Blind flanges nominal pressure 6 to 100
Plain flanges, nominal pressures 6 to 100
DIN 2527 PN6 BLIND FLANGE
Rated Diameter	Flange			Screws			Weight (7,85 Kg/dm3)
	D	b	k	Number	Thread	d2	Shape B
	D	b	k	Number	Thread	d2	Kg
15	80	12	55	4	M 10	11	0.44
20	90	14	65				0.66
25	100	14	75				0.83
32	120	14	90		M 12	14	1.18
40	130	14	100				1.39
50	140	14	110				1.63
65	160	14	130				2.15
80	190	16	150		M 16	18	3.44
100	210	16	170				4.22
125	240	18	200	8			6.11
150	265	18	225				7.51
200	320	20	280				12.31
250	375	22	335	12			18.54
300	440	22	395		M 20	22	25.46
350	490	22	445				31.77
400	540	22	495	16			38.49
500	645	24	600	20			60.10

DIN 2527 PN10 BLIND FLANGE
Rated Diameter	Flange			Screws			Weight (7,85 Kg/dm3)
	D	b	k	Number	Thread	d2	Shape B
	D	b	k	Number	Thread	d2	Kg
15	95	14	65	4	M 12	14	0,72
20	105	16	75				1,01
25	115	16	85				1,23
32	140	16	100		M 16	18	1,8
40	150	16	110				2,09
50	165	18	125				2,88
65	185	18	145				3,66
80	200	20	160				4,77
100	220	20	180	8			5,65
125	250	22	210				8,42
150	285	22	240		M 20	22	10,4
200	340	24	295				16,5
250	395	26	350	12			24
300	445	26	400	12			30,9
350	505	26	460	16			40,6
400	565	26	515	16	M 24	26	49,4
500	670	28	620	20	M 24	26	75

DIN 2527 PN16 BLIND FLANGE
Rated Diameter	Flange			Screws			Weight (7,85 Kg/dm3)
	D	b	k	Number	Thread	d2	Shape B
	D	b	k	Number	Thread	d2	Kg
15	95	14	65	4	M 12	14	0,72
20	105	16	75				1,01
25	115	16	85				1,23
32	140	16	100		M 16	18	1,8
40	150	16	110				2,09
50	165	18	125				2,88
65	185	18	145				3,66
80	200	20	160	8			4,77
100	220	20	180				5,65
125	250	22	210				8,42
150	285	22	240		M 20	22	10,4
200	340	24	295	12	M 20	22	16,1
250	405	26	355		M 24	26	24,9
300	460	28	410				35,1
350	520	30	470	16			47,8
400	580	32	525	16	M 27	30	63,5
500	715	36	650	20	M 30	33	102
