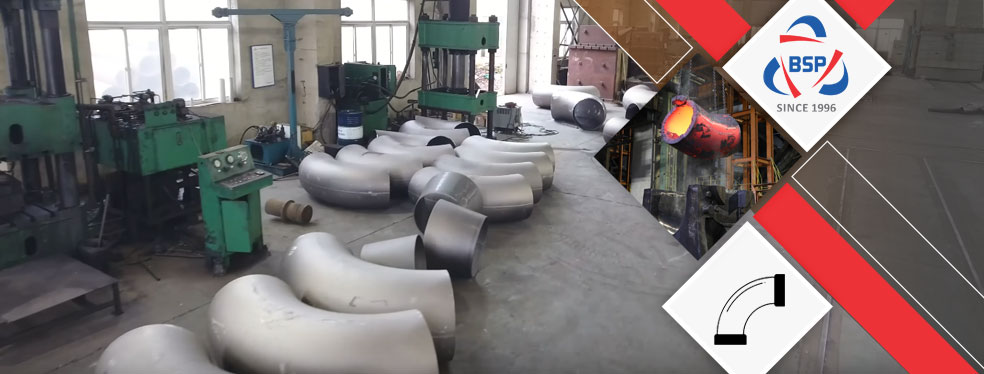

45 Degree Elbow, ASME B16.9 Buttweld 45° Pipe Elbow, 45 Deg Long Radius Elbow Manufacturer

SCH 40, ANSI B16.9 LR 45 Degree Elbow Dealer, Alloy Steel Buttweld 45° Elbow, Hastelloy 45° Seamless Elbow, Carbon Steel LR 45 Degree Elbow, Black, SS 45° Seamless Elbow Stockist, Stainless Steel 45 Degree Elbow, Inconel 45 Deg. Buttweld Elbow, Nickel Alloy 45 Degree Elbows, A234 WPB 45 Degree Elbow Supplier in Mumbai, India.

With these attributes, the alloy is broadly used to defend metal tubes and different additives in coal-fired and waste-to-electricity boilers.It is maximum versatile, corrosion resistant alloy with splendid resistance to uniform corrosion in oxidizing or decreasing environments. Inconel Alloy 45 Degree Elbow Pipe Fittings have a protracted records of use within the Chemical Process Industries and are recognized for his or her versatility. Not simplest do they withstand all acids (particularly hydrochloric, sulfuric, and hydrofluoric) over big temperature ranges, however additionally they withstand the insidious kinds of assault brought on via way of means of chlorides and different halide solutions, particularly pitting, crevice assault, and pressure corrosion cracking.

It has high-quality stability of strength, thermal balance, oxidation resistance, thermal biking resistance and fabricability of any main excessive-temperature alloy. It is utilized in fueloline turbine combustors and different key desk bound components. Also it's far used for warmth treating and business heating applications, and within the chemical/petrochemical procedure enterprise and in fossil strength plants. Monel Alloy 45 Degree Elbow Pipe Fittings is an alloy that mixes outstanding excessive-temperature strength, excellent resistance to oxidizing environments as much as 2100 Degree F (1149 Degree C) for extended exposures, greatest resistance to nitriding environments, and outstanding long-time period thermal balance. It is effortlessly fabricated and formed, and is castable.

Specification Chart of 45 Deg Elbow

Dimensions	ASME B16.25, B16.28, MSS-SP-43, ANSI/ASME B16.9
Fabricated 45 Deg Elbow Size	1/2" (15 NB) to 48" (1200NB)
Seamless 45 Deg Elbow Size	1/2"~24"
Thickness	5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75
Schedule	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Form	45 Deg Short Radius Elbow, 45 Deg Long Radius Elbow
Type	Welded, Seamless, Fabricated

Material Grades of 45 Degree Buttweld Elbow

Stainless Steel 45 Deg Elbow	ASTM A403 WP316, 316L, WP304, 304L, ASTM A182 F316L, 304L, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Alloy Steel 45 Deg Elbow	ASTM A234, ASME SA234 WP1, WP5, WP9, WP11, WP22, WP91
Super Duplex 45 Deg Elbow	ASTM A815 / ASME SA815 UNS No S32750, S32950
Duplex Steel 45 Deg Elbow	ASTM A815 / ASME SA815 UNS No S31803, S32205
Nickel Alloy 45 Deg Elbow	ASTM B336, ASME SB336, Nickel 200 (UNS N02200), Nickel 201 (UNS N02201), Monel 400 (UNS N04400), Monel 500 (UNS N05500), Inconel 800 (UNS N08800), Inconel 825 (UNS N08825), Inconel 600 (UNS N06600), Inconel 625 (UNS N06625), Inconel 601 (UNS N06601), Hastelloy C 276 (UNS N10276), Titanium (Grade I & II), Alloy 20 (UNS N08020), Cupro Nickel 70/30, CuNi30Mn1Fe, CuNi10Fe1Mn.
Carbon Steel 45 Deg Elbow	ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel 45 Deg Elbow	ASTM A420 WPL3, A420 WPL6

View Thickness Table Of 1/2 to 48 Inch Short Radius 45 Deg. Elbow, We have Global sales network for Sch 10 SR 45 Degree Elbow, Wide Stockist Of MSS SP43 45 Degree Elbow In India.

ASME B16.9 45 Degree Short Radius Elbow Dimensional Tolerance

Nom. Pipe Size	Pipe Sched. or No.	Center- to-end Dimen.	Outside Dia.	Inside Dia.	Wall Thick.	Approx. Weight (lb.)
		F	OD	ID	T
STANDARD WEIGHT
1/2	40	5/8	0.840	0.622	0.109	0.1
3/4	40	7/16	1.050	0.824	0.113	0.1
1	40	7/8	1.315	1.049	0.133	0.2
1 1/4	40	1	1.660	1.380	0.140	0.4
1 1/2	40	1 1/8	1.900	1.610	0.145	0.5
2	40	1 3/8	2.375	2.067	0.154	0.9
2 1/2	40	1 3/4	2.875	2.469	0.203	1.5
3	40	2	3.500	3.068	0.216	2.5
3 1/2	40	2 1/4	4.000	3.548	0.226	3.5
4	40	2 1/2	4.500	4.026	0.237	4.8
5	40	3 1/8	5.563	5.047	0.258	7.8
6	40	3 3/4	6.625	6.065	0.280	12
8	40	5	8.625	7.981	0.322	23
10	40	6 1/4	10.750	10.020	0.365	42
12	-	7 1/2	12.750	12.000	0.375	61
14	30	8 3/4	14.000	13.250	0.375	79
16	30	10	16.000	15.250	0.375	103
18	-	11 1/4	18.000	17.250	0.375	132
20	20	12 1/2	20.000	19.250	0.375	160
22	20	13 1/2	22.000	21.250	0.375	195
24	20	15	24.000	23.250	0.375	238
EXTRA STRONG
Nom. Pipe Size	Pipe Sched. or No.	Center- to-end Dimen.	Outside Dia.	Inside Dia.	Wall Thick.	Approx. Weight (lb.)
		F	OD	ID	T
1/2	80	5/8	0.840	0.546	0.147	0.2
3/4	80	7/16	1.050	0.742	0.154	0.3
1	80	7/8	1.315	0.957	0.179	0.4
1 1/4	80	1	1.660	1.278	0.191	0.5
1 1/2	80	1 1/8	1.900	1.500	0.200	0.6
2	80	1 3/8	2.375	1.939	0.218	1.1
2 1/2	80	1 3/4	2.875	2.323	0.276	2.1
3	80	2	3.500	2.900	0.300	3.5
3 1/2	80	2 1/4	4.000	3.364	0.318	4.8
4	80	2 1/2	4.500	3.826	0.337	6.5
5	80	3 1/8	5.563	4.813	0.375	11
6	80	3 3/4	6.625	5.761	0.432	18
8	80	5	8.625	7.625	0.500	35
10	60	6 1/4	10.750	9.750	0.500	56
12	-	7 1/2	12.750	11.750	0.500	80
14	-	8 3/4	14.000	13.000	0.500	100
16	40	10	16.000	15.000	0.500	131
18	-	11 1/4	18.000	17.000	0.500	172
20	30	12 1/2	20.000	19.000	0.500	210
22	30	13 1/2	22.000	21.000	0.500	259
24	-	15	24.000	23.000	0.500	302

ASME B16.9 45° Long Radius Elbow Dimensional Tolerance

DIMENSIONAL TOLERANCES - ELBOWS
For all fittings				Elbows 90/45 deg	180° Returns
Nominal Pipe Size (NPS)	Outside Ø at Bevel	Inside Ø at End	Wall Thickness t / t1	Center to End Dim. A-B-C-M	Center to Center Dim. O	Back to Face Dim. K	Align- ment of Ends U
1/2 a 2 1/2	1	0,8	Not	2	7	7	1
3 a 3 1/2	1	1,6	less	2	7	7	1
4	+2 -1	1,6	than	2	7	7	1
5 a 6	+3 -1	1,6	87,50%	2	7	7	1
8	2	1,6	of nominal	2	7	7	1
10	+4 -3	3,2	tickness	2	7	7	2
12 a 18	+4 -3	3,2		3	10	7	2
20 a 24	+6 -5	4,8		3	10	7	2
26 a 30	+7 -5	4,8		3	.....	.....	.....
32 a 48	+7 -5	4,8		5	.....	.....	.....
