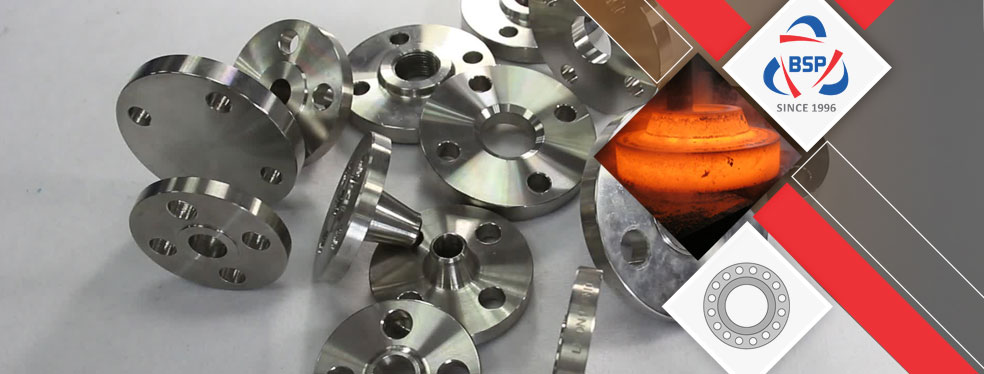

EN 1092-1 Flange

En 1092 1 Type 11 Flange, EN 1092-1 Class 300 Flanges, Raised Face EN 1092-1 PN6-PN63 Flange, Duplex Steel Raised Face EN 1092-1 Flange, EN 1092-1 PN6-PN63 5K & 10K Flange, EN 1092-1 PN6-PN63 20K Flange Price in India.

Bagoda Steel is an acknowledged manufacturer and distributor of EN 1092-1 Pipe Flanges, which is simply machined through trendy methods. Like many austenitic steels, Alloy 20 EN 1092-1 Threaded Flanges may be sensitized, or made at risk of intergranular assault in a few competitive media, through publicity to the temperature variety of a 1000 Degree F to 1400 Degree F (540 Degree C – 760 Degree C). The Huey check determines susceptibility to sensitization. The check includes publicity of a specimen to boiling 65 percentages nitric acid for 5 consecutive 48-hour periods. It produces a thin, adherent, green-black film of oxide on the material. The time- temperature-sensitization display check prices for this alloy annealed at distinct temperatures and uncovered to various sensitizing treatments.

Industrial Product
EN 1092-1 Flange

SS EN 1092-1 PN6-PN63 Stockist, Class 150 Alloy Steel EN 1092-1 Flange, Carbon Steel En 1092 1 Type 11 Flange, EN 1092-1 Type 02 Flange Dealer, Hastelloy EN 1092-1 Raised Face Flange, Alloy Steel EN 1092-1 Flange, Inconel Raised Face EN 1092-1 1092-1 Pn40/ Pn6/ Pn25/ Pn 63 Flange, EN 1092-1 5K Flange, Stainless Steel EN 1092-1 Flange, Nickel Alloy EN 1092-1 Type 11 / Type 12 Plate Flange Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

When its miles uncovered to warmth from welding or different operations, care ought to be taken to keep away from sensitization if the material is to be pickled or subjected to different competitive environments. Sensitization isn't always a hassle in maximum excessive-temperature applications. The diverse mill bureaucracy is fabricated into completed articles and device through fashionable techniques. Titanium Alloy EN 1092-1 Long Weld Neck Flanges is readily formed through both hot working and cold working, and it has accurate weldability and machinability. All material to be heated needs to be clean. Oil, paint, grease, store soil and different overseas materials need to be eliminated previous to the heating operation.

Heating needs to be done in a low-sulfur environment. Open heating need to be carried out in company of low-sulfur fuel, and the furnace environment need to be maintained in a lowering situation to save you immoderate oxidation. For the reason that of the readiness with which chromium is oxidized right into a refractory oxide through air, carbon dioxide or water vapor, it can't be vivid annealed within the standard business annealing furnace. Under intently managed conditions, Hastelloy EN 1092-1 Ring Type Joint Flanges may be vivid annealed in dry, natural hydrogen (dew factor of -73 Degree F (-58 Degree C) or lower). It is generally annealed in container or muffle furnaces the usage of organized lowering atmospheres.

Specification Chart of EN 1092-1 Flange

Specifications EN 1092-1 Flanges
Size ½" (15 NB) to 48" (1200NB)
Dimension Standard ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Class / Pressure Rating 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS BS4504 , BS4504, BS1560, BS10
Flange Face Type Flate Face (FF), Raised Face (RF), ANSI B16.5 (RTJ)
EN 1092 - 1 Flanges Standard ANSI DIN, GOST, Korean, UNI, BS, AS2129, Korean, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, Korean/ KS Flange, BS4504 Flange, GB Flange, Korean Flange, GOST Flange, PSI Flange AS 2129: Table D; Table E; Table H B.S: BS4504 , BS3293, BS1560, BS10 ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, Korean, Custom Drawings American standard (ANSI) ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 British standard (BS) German (DIN) Any other specilised flanges The other standard: DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
Testing and Documents Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
Packing Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

Material Grades of EN 1092-1 Flange

Stainless Steel EN 1092-1 Flange ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409
Carbon Steel EN 1092-1 Flange ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
Alloy Steel EN 1092-1 Flanges ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Titanium EN 1092-1 Flanges ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7
ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5
Copper EN 1092-1 Flanges T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel EN 1092-1 Flanges ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Inconel EN 1092-1 Flanges ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 ANSI B16.5 Class 150 ANSI B16.5 Flanges
Hastelloy EN 1092-1 Flanges ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges
Monel EN 1092-1 Flanges ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 EN 1092-1 Flanges ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium EN 1092-1 Flanges 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Alloy EN 1092-1 Flanges ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Duplex Steel EN 1092-1 Flanges S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex EN 1092-1 Flanges S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy EN 1092-1 Flanges ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges
254 SMO EN 1092-1 Flanges ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic EN 1092-1 Flanges Nimonic 75, Nimonic 80A, Nimonic 90
Brass EN 1092-1 Flanges 3602 / 2604 / H59 / H62 / etc.
Other EN 1092-1 Flanges material Tin bronze, Alumunum bronze, Lead bronze
EN 1092-1 Flanges Dimensions

View Thickness Table Of Class 150, Class 300 And Class 600 EN 1092-1 Flange, We have Global sales network for EN 1092-1 Flanges, Wide Stockist Of EN 1092-1 Raised Face Flanges In India.


Dimension of EN 1092-1 TYPE 01 Flange

EN 1092-1 TYPE 01 PN6 PLATE FLANGE
Rated
Diameter		 Pipe Flange Screws Weight
(7,85 Kg/dm3)
d1 k D b d2 Thread Bolt holes KG
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382
1. SURFACE FINISH FACING TYPES A, B1, B2 etc
2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN6 / P245GH / HEAT NUMBER

Dimensions of EN 1092-1 TYPE 01 PN10 Plate Flange

EN 1092-1 TYPE 01 PN10 PLATE FLANGE
Rated
Diameter		 Pipe Flange Screws Weight
(7,85 Kg/dm3)
d1 k D b d2 Thread Bolt holes KG
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 295 340 24 22 M20 8 9,244
250 273,0 276,5 350 395 26 22 M20 12 11,788
300 323,9 327,5 400 445 26 22 M20 12 13,578
350 355,6 359,5 460 505 30 22 M20 16 21,766
400 406,4 411,0 515 565 32 26 M24 16 27,436
450 457,2 462,0 565 615 36 26 M24 20 33,470
500 508,0 513,5 620 670 38 26 M24 20 40,103
600 610,0 616,5 725 780 42 30 M27 20 54,297
700 711,0 714,2 840 895 50 30 M27 24 82,777
800 813,0 815,8 950 1015 56 33 M30 24 116,534
900 914,0 917,4 1050 1115 62 33 M30 28 141,425
1000 1016,0 1019,0 1160 1230 70 36 M33 28 188,561
1200 1219,0 1224,0 1380 1455 83 39 M36 32 290,884
1. SURFACE FINISH FACING TYPES A, B1, B2 etc
2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN10 / P245GH / HEAT NUMBER

Dimensions of EN 1092-1 PN16 Flange

Flange DN Sizes Pipe Flange Screws Flange Weight In KG
d1 k D b d2 Bolt holes KG
10 17,2 18,0 60 90 14 14 4 0,602
15 21,3 22,0 65 95 14 14 4 0,668
20 26,9 27,5 75 105 16 14 4 0,933
25 33,7 34,5 85 115 16 14 4 1,106
32 42,4 43,5 100 140 18 18 4 1,816
40 48,3 49,5 110 150 18 18 4 2,075
50 60,3 61,5 125 165 20 18 4 2,723
65 76,1 77,5 145 185 20 18 4 3,310
80 88,9 90,5 160 200 20 18 8 3,592
100 114,3 116,0 180 220 22 18 8 4,375
125 139,7 141,5 210 250 22 18 8 5,394
150 168,3 170,5 240 285 24 22 8 7,123
200 219,1 221,5 295 340 26 22 12 9,705
250 273,0 276,5 355 405 29 26 12 14,164
300 323,9 327,5 410 460 32 26 12 18,928
350 355,6 359,0 470 520 35 26 16 28,118
400 406,4 411,0 525 580 38 30 16 35,754
450 457,0 462,0 585 640 42 30 20 45,992
500 508,0 513,5 650 715 46 33 20 63,832
600 610,0 616,5 770 840 55 36 20 101,285
700 711,0 714,2 840 910 63 36 24 111,103
800 813,0 815,8 950 1025 74 39 24 158,555
900 914,0 917,4 1050 1125 82 39 28 192,239
1000 1016,0 1019,0 1170 1255 90 42 28 269,554

Dimension of EN 1092-1 PN25 Flanges

EN 1092-1 TYPE 01 PN25 PLATE FLANGE
Rated
Diameter		 Pipe Flange Screws Weight
(7,85 Kg/dm3)
d1 k D b d2 Thread Bolt holes KG
15 21,3 22,0 65 95 14 14 M12 4 0,668
20 26,9 27,5 75 105 16 14 M12 4 0,933
25 33,7 34,5 85 115 16 14 M12 4 1,106
32 42,4 43,5 100 140 18 18 M16 4 1,816
40 48,3 49,5 110 150 18 18 M16 4 2,075
50 60,3 61,5 125 165 20 18 M16 4 2,723
65 76,1 77,5 145 185 22 18 M16 8 3,465
80 88,9 90,5 160 200 24 18 M16 8 4,310
100 114,3 116,0 190 235 26 22 M20 8 6,056
125 139,7 141,5 220 270 28 26 M24 8 8,170
150 168,3 170,5 250 300 30 26 M24 8 10,238
200 219,1 221,5 310 360 32 26 M24 12 14,245
250 273,0 276,5 370 425 35 30 M27 12 20,087
300 323,9 327,5 430 485 38 30 M27 16 26,526
350 355,6 359,5 490 555 42 33 M30 16 41,656
400 406,4 411,0 550 620 48 36 M33 16 57,456
450 457,0 462,0 600 670 54 36 M33 20 69,548
500 508,0 513,5 660 730 58 36 M33 20 86,736
600 610,0 616,5 770 845 68 39 M36 20 126,866
700 711,2 714,0 875 960 85 42 M39 24 193,031
800 812,8 816,0 990 1085 95 48 M45 24 266,311
1. SURFACE FINISH FACING TYPES A, B1, B2 etc
2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN25 / P245GH / HEAT NUMBER

EN 1092-1 PN40 Flange Dimensions

Flanges DN Pipe Flanges Screws Flanges Weight
d1 k D b d2 Bolt holes KG
15 21,3 22,0 65 95 14 14 4 0,668
20 26,9 27,5 75 105 16 14 4 0,933
25 33,7 34,5 85 115 16 14 4 1,106
32 42,4 43,5 100 140 18 18 4 1,816
40 48,3 49,5 110 150 18 18 4 2,075
50 60,3 61,5 125 165 20 18 4 2,723
65 76,1 77,5 145 185 22 18 8 3,465
80 88,9 90,5 160 200 24 18 8 4,310
100 114,3 116,0 190 235 26 22 8 6,056
125 139,7 141,5 220 270 28 26 8 8,170
150 168,3 170,5 250 300 30 26 8 10,238
200 219,1 221,5 320 375 36 30 12 17,871
250 273,0 276,5 385 450 42 33 12 29,166
300 323,9 327,5 450 515 52 33 16 44,921
350 355,6 359,5 510 580 58 36 16 66,460
400 406,4 411,0 585 660 65 39 16 96,822

EN 1092 Type 1 Flange Pressure Rating

Temperature
EN 1092 1 FLANGE TABLE -10°C to 200°C 250°C 300°C 350°C 400°C 425°C 450°C 475°C
6 6 5.5 5 – – – – –
10 10 9 8 7 6 – – –
16 16 15 13 11 9 – – –
25 25 24 21 17 14 12 9 6
40 40 38 33 28 23 20 15 10
64 64 61 53 44 36 32 24 16
100 100 95 83 70 57 50 37 25
160 160 152 132 112 92 80 60 40

EN 1092 Type 1 Flanges Tolerances

Tolleranza EN 1092-1 PN 2.5 EN 1092-1 PN 6 EN 1092-1 PN 10 (DIN 2642) EN 1092-1 PN 16
Ø DN Ø A S Sp d1 H5 F d1 H5 F d1 H5 F d1 H5 F
10 17,2 +/-0,75%, min. +/-0,3mm +15% / -12,5% S<=6mm +1/-0mm, S>6mm +2/-0mm 35 +2/-1mm 7 +/-1,5mm 2,5 +/-0,20mm 35 +2/-1mm 7 +/-1,5mm 2,5 +/-0,20mm 40 +2/-1millimeter 7 (9) +/-1,5mm 2,5 (3 min) +/-0,20mm 40 +2/-1millimeter 7 +/-1,5mm 2,5 +/-0,20mm
15 21,3 +/-0,75%, min. +/-0,3mm +15% / -12,5% S<=6mm +1/-0mm, S>6mm +2/-0mm 40 +2/-1millimeter 7 +/-1,5mm 2,5 +/-0,20mm 40 +2/-1millimeter 7 +/-1,5mm 2,5 +/-0,20mm 45 +2/-1millimeter 7 (9) +/-1,5mm 2,5 (3 min) +/-0,20mm 45 +2/-1mm 7 +/-1,5mm 2,5 +/-0,20mm
20 26,9 +/-0,75%, min. +/-0,3millimeter +15% / -12,5% S<=6millimeter +1/-0millimeter, S>6millimeter +2/-0millimeter 50 +2/-1millimeter 8 +/-1,5millimeter 3 +/-0,20millimeter 50 +2/-1millimeter 8 +/-1,5millimeter 3 +/-0,20millimeter 58 +2/-1millimeter 8 (12) +/-1,5millimeter 3 +/-0,20millimeter 58 +2/-1millimeter 8 +/-1,5millimeter 3 +/-0,20millimeter
25 33,7 +/-0,75%, min. +/-0,3millimeter +15% / -12,5% S<=6millimeter +1/-0millimeter, S>6millimeter +2/-0millimeter 60 +2/-1millimeter 10 +/-1,5millimeter 3 +/-0,20millimeter 60 +2/-1millimeter 10 +/-1,5millimeter 3 +/-0,20millimeter 68 +2/-1millimeter 10 (15) +/-1,5millimeter 3 +/-0,20millimeter 68 +2/-1millimeter 10 +/-1,5millimeter 3 +/-0,20millimeter
32 42,4 +/-0,75%, min. +/-0,3millimeter +15% / -12,5% S<=6millimeter +1/-0millimeter, S>6millimeter +2/-0millimeter 70 +2/-1millimeter 12 +/-1,5millimeter 3 +/-0,20millimeter 70 +2/-1millimeter 12 +/-1,5mm 3 +/-0,20mm 78 +2/-1millimeter 12 (15) +/-1,5mm 3 (3,5 min) +/-0,20mm 78 +2/-1millimeter 12 +/-1,5mm 3 +/-0,20mm
40 48,3 +/-0,75%, min. +/-0,3mm +15% / -12,5% S<=6mm +1/-0mm, S>6mm +2/-0mm 80 +2/-1millimeter 15 +/-1,5mm 3 +/-0,20mm 80 +2/-1mm 15 +/-1,5mm 3 +/-0,20mm 88 +2/-1mm 15 (17) +/-1,5mm 3 (3,5 min) +/-0,20mm 88 +2/-1mm 15 +/-1,5mm 3 +/-0,20mm
50 60,3 +/-0,75%, min. +/-0,3mm +15% / -12,5% S<=6mm +1/-0mm, S>6mm +2/-0mm 90 +2/-1mm 20 +/-1,5mm 3 +/-0,20mm 90 +2/-1mm 20 +/-1,5mm 3 +/-0,20mm 102 +2/-1mm 20 (23) +/-1,5mm 4 (3,5 min) +/-0,20mm 102 +2/-1mm 20 +/-1,5mm 4 +/-0,20mm
65 76,1 +/-0,75%, min. +/-0,3mm +15% / -12,5% S<=6mm +1/-0mm, S>6mm +2/-0mm 110 +2/-1mm 20 +/-1,5mm 3 +/-0,20mm 110 +2/-1mm 20 +/-1,5mm 3 +/-0,20mm 122 +2/-1mm 20 (23) +/-1,5mm 4 (3,5 min) +/-0,20mm 122 +2/-1mm 20 +/-1,5mm 4 +/-0,20mm
80 88,9 +/-0,75%, min. +/-0,3mm +15% / -12,5% S<=6mm +1/-0mm, S>6mm +2/-0mm 128 +2/-1mm 25 +/-1,5mm 4 +/-0,20mm 128 +2/-1mm 25 +/-1,5mm 4 +/-0,20mm 138 +2/-1mm 25 (23) +/-1,5mm 4 +/-0,20mm 138 +2/-1mm 25 +/-1,5mm 4 +/-0,20mm
100 114,3 +/-0,75%, min. +/-0,3mm +15% / -12,5% S<=6mm +1/-0mm, S>6mm +2/-0mm 148 +2/-1mm 25 +/-2mm 4 +/-0,20mm 148 +2/-1mm 25 +/-2mm 4 +/-0,20mm 158 +2/-1mm 25 (28) +/-2mm 4 +/-0,20mm 158 +2/-1mm 25 +/-2mm 4 +/-0,20mm
125 139,7 +/-0,75%, min. +/-0,3mm +15% / -12,5% S<=6mm +1/-0mm, S>6mm +2/-0mm 178 +2/-1mm 25 +/-2mm 4 +/-0,20mm 178 +2/-1mm 25 +/-2mm 4 +/-0,20mm 188 +2/-1mm 25 (30) +/-2mm 4 +/-0,20mm 188 +2/-1mm 25 +/-2mm 4 +/-0,20mm
150 168,3 +/-0,75%, min. +/-0,3mm +15% / -12,5% S<=6mm +1/-0mm, S>6mm +2/-0mm 202 +2/-1mm 25 +/-2mm 4 +/-0,20mm 202 +2/-1mm 25 +/-2mm 4 +/-0,20mm 212 +2/-1mm 25 (30) +/-2mm 4 +/-0,20mm 212 +2/-1mm 25 +/-2mm 5 +/-0,20mm
200 219,1 * +15% / -12,5% S<=6mm +1/-0mm, S>6mm +2/-0mm 258 +2/-1mm 30 +/-2mm 5 +/-0,20mm 258 +2/-1mm 30 +/-2mm 5 +/-0,20mm 268 +2/-1mm 30 (30) +/-2mm 4 +/-0,20mm 268 +2/-1mm 30 +/-2mm 6 +/-0,20mm

Check available Sizes of EN 1092-1 Raised Face Flanges, Ask For Ready Stock of EN 1092-1 Flange, EN 1092-1 Flanges in Mumbai, India.

BAGODA

Quick Contact

Ready Stock EN 1092-1 Flanges

  • EN 1092-1 16K Flange
  • EN 1092-1 Flange Class 400
  • High Quality EN 1092-1 PN6-PN63 Flanges
  • Titanium En 1092 1 Type 11 Flanges Manufacturer
  • En 1092 1 Type 11 Class 1500 Flange
  • EN 1092-1 Flange
  • EN 1092-1 Flange Exporter
  • DIN 2605 EN 1092-1 1092-1 Pn40/ Pn6/ Pn25/ Pn 63 Flanges
  • EN 1092-1 Type 02 Plate Flanges Stockholder
  • 1/2 EN 1092-1 Flanges
  • DIN Standard PN25 EN 1092-1 Flanges
  • EN 1092-1 Type 11 / Type 12 5K 10K 16K Flanges
  • EN 1092-1 Type 02 10K Flange
  • Super Duplex 2507 EN 1092-1 Type 02 Flanges
  • Class D Raised Face EN 1092-1 Type 02 Flange
  • Duplex Steel 2205 EN 1092-1 Flange
  • Copper Nickel EN 1092-1 Flanges
  • Class 75 En 1092 1 Type 11 Plate Flange
  • Hastelloy Raised Face En 1092 1 Type 11 Flanges
  • Alloy 20 EN 1092-1 Type 11 / Type 12 Plate Flanges Supplier in Mumbai
  • Monel Raised Face EN 1092-1 Flange
  • Copper Nickel Raised Face EN 1092-1 Flange Distributor
  • EN 1092-1 Flanges Manufacturer
  • Brass EN 1092-1 PN6-PN63 Flange
  • High Nickel Alloy Series A and B RTJ EN 1092-1 Flange
  • EN 1092-1 PN6-PN63 Flanges
  • BS4504 Large Diameter EN 1092-1 Flange
  • Inconel En 1092 1 Type 11 Flange
  • EN 1092-1 Plate Flanges
  • A182 EN 1092-1 Type 11 / Type 12 Raised Face Flanges
  • ANSI #150 EN 1092-1 PN6-PN63 Flanges
  • Titanium EN 1092-1 Flange
  • Class 600 En 1092 1 Type 11 Flange
  • Carbon Steel EN 1092-1 Flanges
  • EN 1092-1 PN6-PN63 Inch Flanges
  • 254 SMO EN 1092-1 1092-1 Pn40/ Pn6/ Pn25/ Pn 63 Stockist
  • PN25 EN 1092-1 PN6-PN63 Flange
  • Brass EN 1092-1 1092-1 Pn40/ Pn6/ Pn25/ Pn 63 Raised Face Flanges
  • EN 1092-1 Type 11 / Type 12 Flange
  • EN 1092-1 Flanges Manufacturer
  • BS4504 PN16 EN 1092-1 Flange
  • API 6A En 1092 1 Type 11 Flange

Export Destinations For EN 1092-1 Flanges

industry
