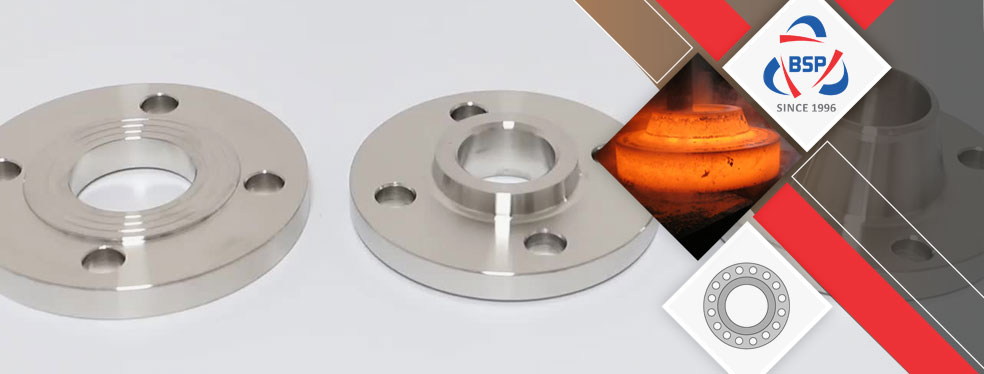

UNI Flange

UNI PN6-PN40 Flange, UNI 6093 PN16 Steel Flange, Duplex Steel Raised Face UNI 2254 PN16 Flange, Raised Face UNI Flange, UNI 6092 PN10 Flange Price in India.

Bagoda Steel is an acknowledged manufacturer and trader of UNI Pipe Flanges, which reveals excessive tensile properties at room and expanded temperatures. It has excessive impact strength at room temperature and stays difficult at cryogenic temperatures. It indicates the impact strength of annealed material after publicity to 1400 Degree F (760 Degree C) for as much as 1500 hours. The compressive yield strength of this alloy is largely similar to the tensile yield strength. At the ones temperatures, gadget layout is typically primarily based totally on tensile properties. For applications that require excessive creep or rupture strength, these Hastelloy Alloy UNI Pipe Lap Joint Flanges are used. The room temperature fatigue strength of this alloy rod in diverse situations is shown. The records are from rotating-beam tests on polished specimens.

Industrial Product
UNI Flange

Hastelloy UNI Raised Face Flange, Inconel Raised Face UNI 2281 PN10 Flange, SS UNI 2282 Pn16 Stockist, Carbon Steel UNI Flange, UNI 2283 PN25 Flange Dealer, Alloy Steel UNI Flange, Class 150 Alloy Steel UNI 2278 PN16 Flange, Stainless Steel UNI Flange, JIS 5K UNI 2277 PN10 Flange, Nickel Alloy UNI PN6-PN40 Plate Flange Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Rotating-beam fatigue strength at temperatures to 1600 Degree F (870 Degree C) of annealed, cold-drawn rod is shown. Titanium nitrides, titanium carbides, and chromium carbides usually seem within the alloy’s microstructure. The nitrides are strong in any respect temperatures under the melting factor and are consequently unaffected through warmness treatment. Chromium carbides precipitate are in company of the alloy at temperatures among a 1000 Degree F and 2000 Degree F (540 Degree C and 1095 Degree C). Consequently, Alloy 20 UNI Weld Neck Pipe Flanges is much like different austenitic alloys in that it may be rendered at risk of intergranular corrosion (sensitized) in positive competitive environments through publicity to temperatures of a thousand to 1400 Degree F (540 Degree C – 760 Degree C).

A critical asset of this alloy is its relative freedom from chloride stress-corrosion cracking. Extensive research of stress-corrosion cracking of austenitic alloys in chloride solutions have proven that the tendency to crack decreases by means of growing nickel content material of alloy. For example, it's miles taken into consideration to be resistant to chloride-ion stress- corrosion cracking. It may be made to crack in excessive laboratory tests; however Titanium Alloy UNI Reducing Pipe Flanges has such excessive resistance that it's miles generally used to replace materials which have failed in provider from stress-corrosion cracking

Specification Chart of UNI Flange

Specifications UNI Flanges
Size ½" (15 NB) to 48" (1200NB).
Dimension Standard ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Class / Pressure Rating 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
UNI Flange Standard UNI 6Bar 10Bar 16Bar 25Bar 40Bar
BS BS4504 , BS4504, BS1560, BS10
Flange Face Type Flate Face (FF), Raised Face (RF), ANSI B16.5 (RTJ)
Special design As per your drawing AS, ANSI, BS, DIN and BS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations BS Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
DIN 2527 Flanges Standard ANSI DIN, GOST, Korean, UNI, BS, AS2129, Korean, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, Korean/ KS Flange, BS4504 Flange, GB Flange, Korean Flange, GOST Flange, PSI Flange AS 2129: Table D; Table E; Table H B.S: BS4504 , BS3293, BS1560, BS10 ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, Korean, Custom Drawings American standard (ANSI) ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 British standard (BS) German (DIN) Any other specilised flanges The other standard: DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
Testing and Documents Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
Packing Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

Material Grades of UNI Flange

Stainless Steel UNI Flange ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, UNI 1.4301, UNI 1.4306, UNI 1.4401, UNI 1.4404, UNI 1.4308, UNI 1.4408, UNI 1.4306, UNI 1.4409
Carbon Steel UNI Flange ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, UNI 1.0402, UNI 1.0460, UNI 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
Alloy Steel UNI Flanges ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Titanium UNI Flanges ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7
ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5
Copper UNI Flanges T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel UNI Flanges ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Inconel UNI Flanges ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 ANSI B16.5 Class 150 ANSI B16.5 Flanges
Hastelloy UNI Flanges ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges
Monel UNI Flanges ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 UNI Flanges ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium UNI Flanges 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Alloy UNI Flanges ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Duplex Steel UNI Flanges S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex UNI Flanges S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy UNI Flanges ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges
254 SMO UNI Flanges ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, UNI 1.4547
Nimonic UNI Flanges Nimonic 75, Nimonic 80A, Nimonic 90
Brass UNI Flanges 3602 / 2604 / H59 / H62 / etc.
Other UNI Flanges material Tin bronze, Alumunum bronze, Lead bronze
UNI Flanges Dimensions

View Thickness Table Of Class 150, Class 300 And Class 600 UNI Flange, We have Global sales network for UNI 2282 PN16 Flanges, Wide Stockist Of UNI 2277 PN10 Raised Face Flanges In India.


UNI PN6-PN40 Flanges Series

SERIES FLAT FLANGE (SLIP ON) WELDING NECK BLIND FLANGE
PN6 UNI EN 1092-1 PN 6 (EX UNI 2276) UNI EN 1092-1 PN 6 (EX UNI 2280) UNI EN 1092-1 PN 6 (EX UNI 6091)
PN10 UNI EN 1092-1 PN 10 (EX UNI 2277) UNI EN 1092-1 PN 10 (EX UNI 2281) UNI EN 1092-1 PN 10 (EX UNI 6092)
PN16 UNI EN 1092-1 PN 16 (EX UNI 2278) UNI EN 1092-1 PN 16 (EX UNI 2282) UNI EN 1092-1 PN 16 (EX UNI 6093)
PN25 UNI EN 1092-1 PN 25 (EX UNI 6083) UNI EN 1092-1 PN 25 (EX UNI 2283) UNI EN 1092-1 PN 25 (EX UNI 6094)
PN40 UNI EN 1092-1 PN 40 (EX UNI 6084) UNI EN 1092-1 PN 40 (EX UNI 2284) UNI EN 1092-1 PN 40 (EX UNI 6095)

UNI PN6-PN40 Flanges Technical Datah

Description Rated Pressure / Presión Nominal / Nenndruck (in bar) (1 bar = 14.5 psi)
1 2.5 6 10 16 25 40 64 100 160 250 320 400
DIN
Blind Flanges 6091 6092 6093 6094 6095 6096 6097 6098 6099
Flat flange for welding (slip-on) 2276 2277 2278 6083 6084
Welding neck flanges 2280 2281 2282 2283 2284 2285 2286
Lapped flanges, Plain collars 6088 6089 6090　
Loose flanges and rings for welding
Loose flanges and rings with neck for welding
Oval plain threaded flanges
Oval flanges, with neck threaded
Threaded flanges with neck 2253 2254
Long neck welding flanges
Hubbed slip-on flanges for welding

UNI 2276 PN6-PN40 Plate Flange Dimensions

ITALIAN STANDARDS UNI 2276 PLATE FLANGE PN 6
Directions for the Designation D1 A B D F Holes Screws Weight*
Kg
Rated
Diameter		 External diameter
of the pipe		 Nominal Tolerance
15 20 20,5 +0,5 55 10 80 11 4 M 10 0,34
21,3 22 0,33
20 25 25,5 65 12 90 11 4 M 10 0,51
26,9 27,5 0,50
25 30 30,5 75 12 100 11 4 M 10 0,63
33,7 34 0,61
32 38 38,5 90 14 120 14 4 M 12 1,09
42,4 43 1,05
40 44,5 45 100 14 130 14 4 M 12 1,26
48,3 49 1,23
50 57 58 110 14 140 14 4 M 12 1,38
60,3 61,5 1,35
65 76,1 77 130 14 160 14 4 M 12 1,68
80 88,9 90 150 16 190 18 4 M 16 2,63
100 108 109 +1,0 170 16 210 18 4*** M 16 3,05
114,3 115,5 2,92
125 133 134,5 200 18 240 18 8 M 16 4,11
139,7 141 3,90
150 159 160,5 225 20 265 18 8 M 16 5,16
168,3 170 4,78
175 193,7 195,5 255 22 295 18 8 M 16 6,27
200 219,1 221 280 22 320 18 8 M 16 6,91
250 267 269 335 24 375 18 12 M 16 9,53
273 275 9,04
300 323,9 326 395 24 440 22 12 M 20 12,1
350 355,6 358 445 26 490 22 12 M 20 17,0
368 370,5 15,6
400 406,4 409 +1,5 495 28 540 22 16 M 20 20,1
419 422 18,3
450 457,2 460,2 ±5 550 28 595 22 16 M 20 25,8
500 508 511 600 30 645 22 20 M 20 30,0
600 609,6 612,6 705 30 755 25 20 M 22 37,9
700 711,2 714,2 810 32 860 25 24 M 22 47,9
800 812,8 815,8 920 34 975 30 24 M 27 62,9
900 914,4 917,4 1020 36 1075 30 24 M 27 74,6
1000 1016 1019 1120 36 1175 30 28 M 27 81,9
* The weight is approximate and calculated on base 7.85 Kg/dm3
** Raw hole to be worked again according to the real external diameter of the pipe
*** For oil piping the flange should have 8 holes

UNI 2280 PN6-PN40 Weld Neck Flanges RF Dimensions

ITALIAN STANDARDS UNI 2280 WELD NECK FLANGE RF PN 6
Directions for the designation d1 a b D f h h1 m r s Holes Screws Weight*
Rated
Diameter		 External diameter
of the pipe		 Kg
15 20 21 55 12 80 11 30 6 28 4 2,5 4 M 10 0,45
21,3 22,5 30 0,45
20 25 26 65 14 90 11 32 6 35 4 2,5 4 M 10 0,66
26,9 28 38 0,66
25 30 31 75 14 100 11 35 6 40 4 2,8 4 M 10 0,83
33,7 34,5 42 0,82
32 38 39 90 14 120 14 35 6 50 6 3 4 M 12 1,18
42,4 43,5 55 1,16
40 44,5 45,5 100 14 130 14 38 7 58 6 3 4 M 12 1,40
48,3 49,5 62 1,38
50 57 58 110 14 140 14 38 8 70 6 3,5 4 M 12 1,58
60,3 61,5 74 1,56
65 76,1 77 130 14 160 14 38 9 88 6 3,5 4 M 12 1,95
80 88,9 90 150 16 190 18 42 10 102 8 3,7 4 M 16 3,07
100 108 109 170 16 210 18 45 10 122 8 3,7 4** M 16 3,68
114,3 115,5 130 3,56
125 133 134 200 18 240 18 48 10 148 8 4 8 M 16 5,04
139,7 141 155 4,80
150 159 161 225 18 265 18 48 12 172 10 5 8 M 16 5,75
168,3 170,5 184 5,52
175 193,7 195,5 255 20 295 18 52 12 208 10 5 8 M 16 7,22
200 219,1 221 280 20 320 18 55 15 236 10 5 8 M 16 8,16
250 267 269 335 22 375 18 60 15 282 12 5,5 12 M 16 11,4
273 275 290 11,1
300 323,9 326 395 22 440 22 62 15 342 12 6 12 M 20 14,8
350 355,6 357,5 445 22 490 22 62 15 385 12 6,5 12 M 20 19,5
368 370 17,7
400 406,4 408,5 495 22 540 22 65 15 438 12 7 16 M 20 22,5
419 421 20,3
450 457,2 459 550 22 595 22 65 15 476 12 7,3 16 M 20 25,0
500 508 510 600 24 645 22 68 15 538 12 7,3 20 M 20 30,4
600 609,6 611,5 705 24 755 25 70 16 640 12 7,3 20 M 22 38,0
700 711,2 715 810 24 860 25 70 16 740 12 9 24 M 22 45,9
800 812,8 817 920 24 975 30 70 16 842 12 9 24 M 27 55,0
900 914,4 918 1020 26 1075 30 70 16 942 12 9 24 M 27 64,7
1000 1016 1020 1120 26 1175 30 70 16 1045 16 9 28 M 27 70,6
1200 1220 1224 1340 28 1405 33 90 20 1248 16 9 32 M 30 108
1400 1420 1424 1560 32 1630 36 90 20 1452 16 9 36 M 33 153
1600 1620 1624 1760 34 1830 36 90 20 1655 16 11 40 M 33 189
1800 1820 1824 1970 36 2045 39 100 20 1855 16 11 44 M 36 x 3 239
2000 2020 2024 2180 38 2265 42 110 25 2058 16 12 48 M 39 x 3 308
* The weight is approximate and calculated on base 7.85 Kg/dm3
** For oil piping the flange should have 8 holes

UNI 2253 PN6-PN40 Threaded Flange Dimensions

ITALIAN STANDARDS UNI 2253 THREADED FLANGE PN 6
Flange Neck Raised face Screws Weight
(7,85 Kg/dm3)
Rated
Diameter		 d1 Thread D b k h1 d3 d4 f Number Thread d2 Kg
15 21,3 R 1/2 80 12 55 20 30 40 2 4 M 10 11 0,373
20 26,9 R 3/4 90 14 65 24 40 50 2 4 M 10 11 0,59
25 33,7 R 1 100 14 75 24 50 60 2 4 M 10 11 0,743
32 42,4 R 1 1/4 120 14 90 26 60 70 2 4 M 12 14 1,05
40 48,3 R 1 1/2 130 14 100 26 70 80 3 4 M 12 14 1,2
50 60,3 R 2 140 14 110 28 80 90 3 4 M 12 14 1,37
65 76,1 R 2 1/2 160 14 130 32 100 110 3 4 M 12 14 1,92
80 88,9 R 3 190 16 150 34 110 128 3 4 M 16 18 2,82
100 114,3 R 4 210 16 170 38 130 148 3 4 M 16 18 3,19
125 139,7 R 5 240 18 200 40 160 178 3 8 M 16 18 4,47
150 165,1 R 6 265 18 225 44 185 202 3 8 M 16 18 5,3

Dimensions of UNI 6092 PN6-PN40 Blind Flange

ITALIAN STANDARDS UNI 6092 BLIND FLANGE PN 10
Rated Diameter a b D f Number of holes Threading of the screws Weight* in Kg
15 65 14 95 14 4 M 12 0,71
20 75 16 105 14 4 M 12 1,01
25 85 16 115 14 4 M 12 1,22
32 100 16 140 18 4 M 16 1,80
40 110 16 150 18 4 M 16 2,09
50 125 18 165 18 4 M 16 2,87
65 145 18 185 18 4 M 16 3,65
80 160 20 200 18 4 M 16 4,61
100 180 20 220 18 8 M 16 5,65
125 210 22 250 18 8 M 16 8,12
150 240 22 285 22 8 M 20 10,5
175 270 24 315 22 8 M 20 14,1
200 295 24 340 22 8 M 20 16,5
250 350 26 395 22 12 M 20 24,1
300 400 26 445 22 12 M 20 30,8
350 460 26 505 22 16 M 20 39,6
400 515 26 565 25 16 M 22 49,6
450 565 26 615 25 20 M 22 58,6
500 620 28 670 25 20 M 22 75,3
* The weight is approximate and calculated on base 7.85 Kg/dm3

Dimensions of UNI PN40 Flanges

Nominal Pipe Size Flange Dimension Screw Parameter Approx. Flange Weight
Flange Dia Thk of Flange Dia of Bolt Circle No. of holes Dia of Bolt Holes
DIN D b k X d2 KG/PCS
10 90 16 60 4 14 0.72
15 95 16 65 4 14 0.81
20 105 18 75 4 14 1.14
25 115 18 85 4 14 1.38
32 140 18 100 4 18 2.03
40 150 18 110 4 18 2.35
50 165 20 125 4 18 3.2
65 185 22 145 8 18 4.29
80 200 24 160 8 18 5.54
100 235 24 190 8 22 7.6
125 270 26 220 8 26 10.82
150 300 28 250 8 26 14.6
175 350 32 295 12 30 22.04
200 375 34 320 12 30 27.21
250 450 38 385 12 33 44.38
300 515 42 450 16 33 64.17
350 580 46 510 16 36 89.52
400 660 50 585 16 39 126.76
500 755 56 670 20 42 184.63
600 890 62 795 20 48 285.17
700 995 64 900 24 48 368.83
800 1140 70 1030 24 56 528.39
900 1250 76 1140 28 56 690.99

Pipe Gasket for UNI Flanges

NPS Gasket I.D. Gasket O.D.
Class 150 Class 300 Class 400 Class 600 Class 900

Check available Sizes of UNI Raised Face Flanges, Ask For Ready Stock of UNI Flange, UNI Flanges in Mumbai, India.

BAGODA

Quick Contact

Ready Stock UNI Flanges

  • Duplex Steel UNI 2254 PN16 Flange
  • Hastelloy Raised Face UNI Flanges
  • High Nickel Alloy Series A and B RTJ UNI 2282 PN16 Flange
  • Super Duplex UNI Flanges
  • Alloy 20 UNI 2253 PN6 Plate Flanges Supplier in Mumbai
  • Titanium UNI 2278 PN16 Flange
  • High Quality UNI Flanges
  • Brass UNI 2254 PN16 Raised Face Flanges
  • UNI PN6-PN40 Flanges
  • BS4504 Large Diameter UNI Flange
  • UNI 2254 PN16 Flange
  • Brass UNI Flange
  • EN 1092-1 UNI 2277 PN10 Flange
  • JIS 10K UNI 2277 PN10 Flange
  • JIS 16K UNI 2277 PN10 Flange
  • JIS B2220 5K 10K 16K UNI Flanges
  • UNI Flange Exporter
  • UNI 6092 PN10 Flange
  • UNI 6093 PN16 Plate Flanges Stockholder
  • 1/2 UNI Flanges
  • BS4504 UNI 2281 PN10 Flange
  • Class 600 UNI 2282 PN16 Flange
  • UNI 2254 PN16 Inch Flanges
  • UNI 6092 PN10 Flange Class 400
  • UNI 2254 PN16 Plate Flanges
  • Class D Raised Face UNI 2278 PN16 Flange
  • UNI 2281 PN10 Flanges
  • UNI 2278 PN16 Flanges Manufacturer
  • ANSI #150 UNI Flanges
  • UNI Flanges Manufacturer
  • Titanium UNI 6093 PN16 Flanges Manufacturer
  • A182 UNI 6092 PN10 Raised Face Flanges
  • UNI 2277 PN10 Flanges
  • UNI 2253 PN6 6A Flange
  • Monel Raised Face UNI 2281 PN10 Flange
  • Inconel UNI Flange
  • UNI Class 1500 Flange
  • 254 SMO UNI 2282 PN16 Stockist
  • Class 75 UNI PN6-PN40 Plate Flange
  • Carbon Steel UNI 6093 PN16 Flanges
  • Copper Nickel Raised Face UNI Flange Distributor
  • Copper Nickel UNI Flanges

Export Destinations For UNI Flanges

industry
