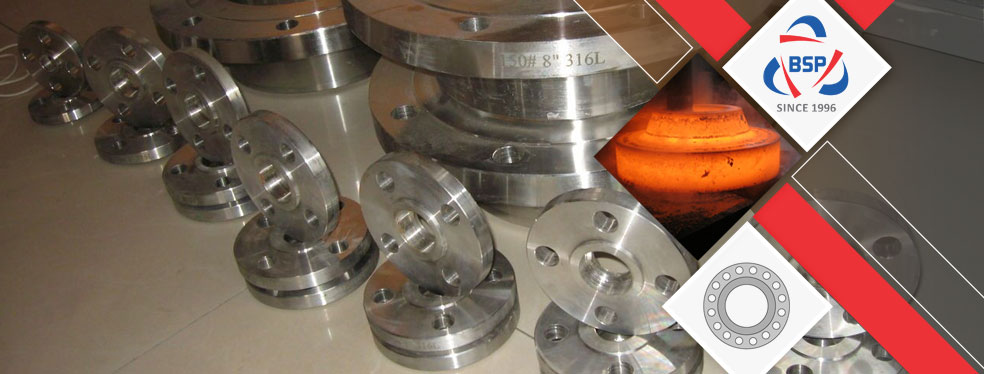

SABS / SANS 1123 Flange

SANS 1123 Flange, SANS 1123 Class 300 Flanges, Raised Face SABS 1123 Flange, SABS 1123 Flange, Duplex Steel Raised Face SANS 1123 Flange, SANS 1123 20K Flange Price in India.

Bagoda Steel is an acknowledged exporter and manufacturer of SABS Pipe Flanges / SANS 1123 Pipe Flanges, which is used for the very best fine output. The device used for this method is referred to as a draw bench, and we offer them in diverse sizes. A smaller one is used every time the tube is reduced. Inconel Alloy SABS Lap Joint Flanges are prepared with specific gear so one can carry out different sorts of cold drawing. It is drawn thru a hardened die product of polished device metal or, for smaller sizes. With the best lubrication, while the tube floor comes into touch with the polished die floor it is worked smooth. It is one of the predominant intermediate drawing ranges. The outdoor diameter and wall thickness are decreased on the equal time. Monel Alloy SANS Weld Neck Flanges is loaded over a hardened metal mandrel rod and each are then drawn via a die. This squeezes the tube onto the rod and decreases the wall thickness. The die and mandrel decide the dimensions of the drawn tube that is then barely multiplied the usage of stress rollers in order that the rod may be eliminated.

Industrial Product
SABS / SANS 1123 Flange

Nickel Alloy SABS 1123 Plate Flange, Class 150 Alloy Steel SANS 1123 Flange, Alloy Steel SANS 1123 Flange, Carbon Steel SABS 1123 Flange, Inconel Raised Face SABS 1123 63 Flange, Stainless Steel SANS 1123 Flange, SABS 1123 Flange Dealer, SS SABS 1123 Stockist, Hastelloy SANS 1123 Raised Face Flange, SANS 1123 5K Flange Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

The inside and outside diameters of the tube are worked on the equal time. A plug product of excessive grade device metal with a refined floor is placed exactly within the center of the outdoor diameter drawing die. Hastelloy Alloy SABS Reducing Flanges is loaded over the plug connected to a hard and fast rod. As the tube is drawn via the die the burnishing movement of the steel flowing over the desk bound plug imparts an excessive tolerance floor end within the tube.

The inner bore floor isn't restricted so the wall thickness of the tube will continually boom while it’s drawn. Large go sectional region discounts may be carried out the usage of this method. Titanium Alloy SANS Slip On Flanges attracts and are used as intermediate ranges to lessen tube sizes previous to the very last drawing cycle. The annealing procedure homogenizes the metallurgical microstructure of the tube.

Specification Chart of SABS / SANS 1123 Flange

Specifications SABS / SANS 1123 Flanges
Size ½" (15 NB) to 48" (1200NB)
Dimension Standard ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Class / Pressure Rating 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS BS4504 , BS4504, BS1560, BS10
Flange Face Type Flate Face (FF), Raised Face (RF), ANSI B16.5 (RTJ)
EN 1092 - 1 Flanges Standard ANSI DIN, GOST, Korean, UNI, BS, AS2129, Korean, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, Korean/ KS Flange, BS4504 Flange, GB Flange, Korean Flange, GOST Flange, PSI Flange AS 2129: Table D; Table E; Table H B.S: BS4504 , BS3293, BS1560, BS10 ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, Korean, Custom Drawings American standard (ANSI) ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 British standard (BS) German (DIN) Any other specilised flanges The other standard: DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
Testing and Documents Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
Packing Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

Material Grades of SABS / SANS 1123 Flange

Stainless Steel SABS / SANS 1123 Flange ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409
Carbon Steel SABS / SANS 1123 Flange ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
Alloy Steel SABS / SANS 1123 Flanges ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Titanium SABS / SANS 1123 Flanges ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7
ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5
Copper SABS / SANS 1123 Flanges T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel SABS / SANS 1123 Flanges ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Inconel SABS / SANS 1123 Flanges ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 ANSI B16.5 Class 150 ANSI B16.5 Flanges
Hastelloy SABS / SANS 1123 Flanges ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges
Monel SABS / SANS 1123 Flanges ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 SABS / SANS 1123 Flanges ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium SABS / SANS 1123 Flanges 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Alloy SABS / SANS 1123 Flanges ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Duplex Steel SABS / SANS 1123 Flanges S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex SABS / SANS 1123 Flanges S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy SABS / SANS 1123 Flanges ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges
254 SMO SABS / SANS 1123 Flanges ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic SABS / SANS 1123 Flanges Nimonic 75, Nimonic 80A, Nimonic 90
Brass SABS / SANS 1123 Flanges 3602 / 2604 / H59 / H62 / etc.
Other SABS / SANS 1123 Flanges material Tin bronze, Alumunum bronze, Lead bronze
SABS / SANS 1123 Flanges Dimensions

View Thickness Table Of Class 150, Class 300 And Class 600 SANS 1123 Flange, We have Global sales network for SABS 1123 Flanges, Wide Stockist Of SABS / SANS 1123 Raised Face Flanges In India.


South Africa Standard SABS/SANS 1123 FLange Specifications

Nominal Bore 15 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600/3 80mm 55mm 4 M10 11mm 10mm
SABS1123-1000/3 95mm 65mm 4 M12 14mm 10mm
SABS1123-1600/3 95mm 65mm 4 M12 14mm 10mm
SABS1123-2500/3 95mm 65mm 4 M12 14mm 14mm
SABS1123-4000/3 95mm 65mm 4 M12 14mm 14mm
Nominal Bore 20 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 90mm 65mm 4 M10 11mm 10mm
SABS1123-1000 105mm 75mm 4 M12 14mm 10mm
SABS1123-1600 105mm 75mm 4 M12 14mm 10mm
SABS1123-2500 105mm 75mm 4 M12 14mm 14mm
SABS1123-4000 105mm 75mm 4 M12 14mm 14mm
Nominal Bore 25 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 100mm 75mm 4 M10 11mm 10mm
SABS1123-1000 115mm 85mm 4 M12 14mm 10mm
SABS1123-1600 115mm 85mm 4 M12 14mm 10mm
SABS1123-2500 115mm 85mm 4 M12 14mm 16mm
SABS1123-4000 115mm 85mm 4 M12 14mm 16mm
Nominal Bore 32 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 120mm 90mm 4 M12 14mm 10mm
SABS1123-1000 140mm 100mm 4 M16 18mm 10mm
SABS1123-1600 140mm 100mm 4 M16 18mm 10mm
SABS1123-2500 140mm 100mm 4 M16 18mm 18mm
SABS1123-4000 140mm 100mm 4 M16 18mm 18mm
Nominal Bore 40 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 130mm 100mm 4 M12 14mm 10mm
SABS1123-1000 150mm 110mm 4 M16 18mm 10mm
SABS1123-1600 150mm 110mm 4 M16 18mm 10mm
SABS1123-2500 150mm 110mm 4 M16 18mm 20mm
SABS1123-4000 150mm 110mm 4 M16 18mm 20mm
Nominal Bore 50 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 140mm 110mm 4 M12 14mm 10mm
SABS1123-1000 165mm 125mm 4 M16 18mm 10mm
SABS1123-1600 165mm 125mm 4 M16 18mm 12mm
SABS1123-2500 165mm 125mm 4 M16 18mm 20mm
SABS1123-4000 165mm 125mm 4 M16 18mm 20mm
Nominal Bore 65 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 160mm 130mm 4 M12 14mm 10mm
SABS1123-1000 185mm 145mm 4 M16 18mm 12mm
SABS1123-1600 185mm 145mm 4 M16 18mm 12mm
SABS1123-2500 185mm 145mm 8 M16 18mm 22mm
SABS1123-4000 185mm 145mm 8 M16 18mm 22mm
Nominal Bore 80 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 190mm 150mm 4 M16 18mm 10mm
SABS1123-1000 200mm 160mm 8 M16 18mm 12mm
SABS1123-1600 200mm 160mm 8 M16 18mm 14mm
SABS1123-2500 200mm 160mm 8 M16 18mm 22mm
SABS1123-4000 200mm 160mm 8 M16 18mm 22mm
Nominal Bore100 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 210mm 170mm 4 M16 18mm 10mm
SABS1123-1000 220mm 180mm 8 M16 18mm 12mm
SABS1123-1600 220mm 180mm 8 M16 18mm 14mm
SABS1123-2500 235mm 190mm 8 M20 22mm 25mm
SABS1123-4000 235mm 190mm 8 M20 22mm 25mm
Nominal Bore150 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 240mm 200mm 8 M16 18mm 12mm
SABS1123-1000 250mm 210mm 8 M16 18mm 14mm
SABS1123-1600 250mm 210mm 8 M16 18mm 16mm
SABS1123-2500 270mm 220mm 8 M24 26mm 28mm
SABS1123-4000 270mm 220mm 8 M24 26mm 28mm
Nominal Bore200 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 265mm 225mm 8 M16 18mm 12mm
SABS1123-1000 285mm 240mm 8 M20 22mm 16mm
SABS1123-1600 285mm 240mm 8 M20 22mm 18mm
SABS1123-2500 300mm 250mm 8 M24 26mm 30mm
SABS1123-4000 300mm 250mm 8 M24 26mm 30mm
Nominal Bore250 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 320mm 280mm 8 M16 18mm 14mm
SABS1123-1000 340mm 295mm 8 M20 22mm 18mm
SABS1123-1600 340mm 295mm 12 M20 22mm 22mm
SABS1123-2500 360mm 310mm 12 M24 26mm 28mm
SABS1123-4000 375mm 320mm 12 M24 26mm 32mm
Nominal Bore300 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 375mm 335mm 12 M16 18mm 16mm
SABS1123-1000 395mm 350mm 12 M20 22mm 20mm
SABS1123-1600 405mm 355mm 12 M24 26mm 25mm
SABS1123-2500 425mm 370mm 12 M24 26mm 30mm
SABS1123-4000 450mm 385mm 12 M30 33mm 38mm
Nominal Bore500 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 645mm 600mm 20 M20 22mm 25mm
SABS1123-1000 670mm 620mm 20 M24 26mm 32mm
SABS1123-1600 715mm 650mm 20 M30 33mm 40mm
SABS1123-2500 730mm 660mm 20 M30 33mm 50mm
SABS1123-4000 755mm 670mm 20 M39 39mm 70mm

South Africa Standard SABS/SANS 1123 FLange CLASS 600KPA Specifications

Nominal pressure 600 kPa 600/2 = Table 4 600/4 = Table 6 600/3 = Table 5 600/8 = Table 8
NB Pipe O.D.
d1		 Flange Raised Face Bolt Drilling Neck Boss
D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r d5
10 17.2 75 8 10 8 10 16 28 35 2 M10 4 11 50 26 6 4 25
15 21.3 80 8 10 8 10 16 30 40 2 M10 4 11 55 30 6 4 30
20 26.9 90 8 10 8 10 18 32 50 2 M10 4 11 65 38 6 4 40
25 33.7 100 8 10 8 10 18 35 60 2 M10 4 11 75 42 6 4 50
32 42.4 120 8 10 8 10 20 35 70 2 M12 4 14 90 55 6 6 60
40 48.3 130 8 10 8 10 20 38 80 3 M12 4 14 100 62 7 6 70
50 60.3 140 8 10 8 10 22 38 90 3 M12 4 14 110 74 8 6 80
65 76.1 160 8 10 8 10 26 38 110 3 M12 4 14 130 88 9 6 100
80 88.9 190 10 10 10 10 28 42 128 3 M16 4 18 150 102 10 8 110
100 114.3 210 10 10 10 10 34 45 148 3 M16 4 18 170 130 10 8 130
*125 139.7 240 13 12 13 12 39 48 178 3 M16 8 18 200 155 10 8 160
150 168.3 265 13 12 13 12 39 48 202 3 M16 8 18 225 184 12 10 185
*175 193.7 295 13 14 – 14 – 52 230 3 M16 8 18 255 210 12 10 –
200 219.1 320 13 14 – 14 – 55 258 3 M16 8 18 280 236 15 10 –
*225 244.5 345 16 16 – 16 – 58 285 3 M16 8 18 305 264 15 12 –
250 273 375 16 16 – 16 – 60 312 3 M16 12 18 335 290 15 12 –
300 323.9 440 20 20 – 20 – 62 365 4 M20 12 22 395 342 15 12 –
350 355.6 490 22 22 – 22 – 62 415 4 M20 12 22 445 385 15 12 –
400 406.4 540 22 22 – 22 – 65 465 4 M20 16 22 495 438 15 12 –
450 457.2 595 24 25 – 25 – 65 520 4 M20 16 22 550 492 15 12 –
500 508 645 24 25 – 25 – 68 570 4 M20 20 22 600 538 15 12 –
550 559 705 24 28 – 28 – 68 620 5 M24 20 26 655 590 16 12 –
600 609.6 755 24 30 – 30 – 70 670 5 M24 20 26 705 640 16 12 –
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa

South Africa Standard SABS/ SANS 1123 Flanges Class 1000KPA Specification

Nominal pressure 1000 kPa 1000/2 = Table 9 1000/4 = Table 11 1000/3 = Table 10 1000/8 = Table 13
NB Pipe O.D.
d1		 Flange Raised Face Bolt Drilling Neck Boss
D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r d5
10 17.2 90 8 10 8 10 14 35 40 2 M12 4 14 60 28 6 4 30
15 21.3 95 8 10 8 10 14 35 45 2 M12 4 14 65 32 6 4 35
20 26.9 105 8 10 8 10 16 38 58 2 M12 4 14 75 40 6 4 45
25 33.7 115 8 10 8 10 16 38 68 2 M12 4 14 85 46 6 4 52
32 42.4 140 10 10 10 10 20 40 78 2 M16 4 18 100 56 6 6 60
40 48.3 150 10 10 10 10 20 42 88 3 M16 4 18 110 64 7 6 70
50 60.3 165 12 10 10 12 20 45 102 3 M16 4 18 125 75 8 6 85
65 76.1 185 12 12 12 12 26 45 122 3 M16 4 18 145 90 10 6 105
80 88.9 200 14 12 12 14 26 50 138 3 M16 8 18 160 105 10 8 118
100 114.3 220 14 12 12 14 32 52 158 3 M16 8 18 180 131 12 8 140
*125 139.7 250 16 14 14 16 36 55 188 3 M16 8 18 210 156 12 8 168
150 168.3 285 18 16 16 18 38 55 212 3 M20 8 22 240 184 12 10 195
*175 193.7 315 18 16 18 60 242 3 M20 8 22 270 210 12 10
200 219.1 340 18 18 18 62 268 3 M20 8 22 295 235 16 10
*225 244.5 370 18 18 18 62 290 3 M20 8 22 325 265 16 10
250 273.0 395 20 20 20 68 320 3 M20 12 22 350 292 16 12
300 323.9 445 22 22 22 68 370 4 M20 12 22 400 344 16 12
350 355.6 505 26 25 25 68 430 4 M20 16 22 460 385 16 12
400 406.4 565 26 25 25 72 482 4 M24 16 26 515 400 16 12
450 457.2 615 28 30 30 72 532 4 M24 20 26 565 492 16 12
500 508.0 670 28 32 32 75 585 4 M24 20 26 620 542 16 12
550 559.0 730 28 35 35 80 635 5 M24 20 26 675 592 18 12
600 609.6 780 28 38 38 80 685 5 M24 20 26 725 642 18 12
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa

South Africa Standard SABS/ SANS 1123 Flanges Class 1600KPA Specification

Nominal pressure 1600 kPa 1600/2 = Table 14 1600/4 = Table 16 1600/3 = Table 15 1600/8 = Table 18
NB Pipe O.D.
d1		 Flange Raised Face Bolt Drilling Neck Boss
D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r d5
10 17.2 90 8 10 8 10 14 35 40 2 M12 4 14 60 28 6 4 30
15 21.3 95 8 10 8 10 14 35 45 2 M12 4 14 65 32 6 4 35
20 26.9 105 8 10 8 10 16 38 58 2 M12 4 14 75 40 6 4 45
25 33.7 115 8 10 8 10 16 38 68 2 M12 4 14 85 46 6 4 52
32 42.4 140 10 10 10 10 20 40 78 2 M16 4 18 100 56 6 6 60
40 48.3 150 10 10 10 10 20 42 88 3 M16 4 18 110 64 7 6 70
50 60.3 165 12 12 12 12 22 45 102 3 M16 4 18 125 75 8 6 85
65 76.1 185 12 12 12 12 26 45 122 3 M16 4 18 145 90 10 6 105
80 88.9 200 14 14 14 14 28 50 138 3 M16 8 18 160 105 10 8 118
100 114.3 220 14 14 14 14 34 52 158 3 M16 8 18 180 131 12 8 140
*125 139.7 250 16 16 16 16 38 55 188 3 M16 8 18 210 156 12 8 168
150 168.3 285 18 18 18 18 40 55 212 3 M20 8 22 240 184 12 10 195
*175 193.7 315 20 20 20 60 242 3 M20 8 22 270 210 12 10
200 219.1 340 22 22 22 62 268 3 M20 12 22 295 235 16 10
*225 244.5 370 24 22 22 66 294 3 M20 12 22 325 265 16 10
250 273.0 405 24 25 25 70 320 3 M24 12 26 355 292 16 12
300 323.9 460 28 28 28 78 378 4 M24 12 26 410 344 16 12
350 355.6 520 30 30 30 82 438 4 M24 16 26 470 390 16 12
400 406.4 580 32 35 35 85 490 4 M24 16 26 525 445 16 12
450 457.2 640 34 40 40 87 550 4 M24 20 26 585 496 16 12
500 508.0 715 34 40 40 90 610 4 M30 20 33 650 548 16 12
550 559.0 775 36 95 670 5 M30 20 33 710 600 18 12
600 609.6 840 36 50 95 725 5 M30 20 33 770 652 18 12
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa

South Africa Standard SABS/ SANS 1123 Flanges Class 2500KPA Specification

Nominal pressure 2500 kPa 2500/2 = Table 19 2500/4 = Table 21 2500/3 = Table 20 2500/8 = Table 23
NB Pipe O.D.d1 Flange Raised Face Bolt Drilling Neck Boss
D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r d5
10 17.2 90 12 12 10 12 16 35 40 2 M12 4 14 60 28 6 4 30
15 21.3 95 14 14 11 14 17 38 45 2 M12 4 14 65 32 6 4 35
20 26.9 105 14 14 11 14 19 40 58 2 M12 4 14 75 40 6 4 45
25 33.7 115 16 16 12 16 22 40 68 2 M12 4 14 85 46 6 4 52
32 42.4 140 18 18 14 18 26 42 78 2 M16 4 18 100 55 6 6 60
40 48.3 150 18 20 14 20 28 45 88 3 M16 4 18 110 64 7 6 70
50 60.3 165 20 20 17 20 31 48 102 3 M16 4 18 125 75 8 6 85
65 76.1 185 22 22 17 22 33 52 122 3 M16 8 18 145 90 10 6 105
80 88.9 200 24 22 18 22 34 58 138 3 M16 8 18 160 105 12 8 118
100 114.3 235 24 25 21 25 41 65 162 3 M20 8 22 190 134 12 8 145
*125 139.7 270 26 28 24 28 46 68 188 3 M24 8 26 220 162 12 8 170
150 168.3 300 28 30 24 30 48 75 218 3 M24 8 26 250 192 12 10 200
*175 193.7 330 30 30 – 25 – 75 248 3 M24 12 26 280 218 15 10 –
200 219.1 360 30 30 – 30 – 80 278 3 M24 12 26 310 244 16 10 –
*225 244.5 395 30 30 – 30 – 84 306 3 M24 12 26 340 270 16 10 –
250 273.0 425 30 30 – 30 – 88 335 3 M24 12 26 370 298 18 12 –
300 323.9 485 34 32 – 32 – 92 395 4 M24 16 26 430 352 18 12 –
350 355.6 555 38 35 – 35 – 100 450 4 M30 16 33 490 398 20 12 –
400 406.5 620 40 40 – 40 – 110 505 4 M30 16 33 550 452 20 12 –
450 457.2 670 42 45 – 45 – 110 555 4 M30 20 33 600 505 20 12 –
500 508.0 730 44 50 – 50 – 125 615 4 M30 20 33 660 558 20 12 –
550 559.0 785 – 55 – – – – 670 5 M36 20 39 710 – – – –
600 609.6 845 46 60 – – – 125 720 5 M36 20 39 770 660 20 12 –
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa

SABS 1123 T1000/3 Backing Ring Flange with Hot Dipped Galvanized HDPE Pipe

Pipe OD ID OD Thickness PCD No Holes Hole ID Weight Radius
mm mm mm mm mm mm KG mm
40 140 10 100 4 18
50 150 10 110 4 18
63 165 12 125 4 18
75 185 12 145 4 18
90 200 12 160 8 18
110 220 12 180 8 18
125 220 12 180 8 18
140 250 14 210 8 18
160 285 16 240 8 22
180 285 16 240 8 22
200 340 18 295 8 22
225 340 18 295 8 22
250 395 18 350 12 22
280 395 20 350 12 22
315 445 22 400 12 22
355 505 25 460 16 22
400 565 25 515 16 26
450 615 30 565 20 26
500 670 30 620 20 26
560 730 35 675 20 26
630 835 36 780 20 26

BS T/D BACKING RING FLANGE WITH HOT DIPPD GALVANIZED FOR HDPE PIPE
Pipe OD ID OD Thickness PCD No Holes Hole ID Weight Radius
mm mm mm mm mm mm KG mm
40 120 6 87.3 4 14
50 133.4 6 98.4 4 14
63 152.4 8 114.3 4 18
75 165.1 8 127 4 18
90 184.1 10 146 4 18
110 215.9 10 177.8 4 18
125 215.9 10 177.8 4 18
125 PVC 250 13 209.6 8 18
140 250 13 209.6 8 18
160 279.4 13 235 8 18
180 279.4 13 235 8 18
200 336.6 13 292.1 8 18
225 336.6 13 292.1 8 18
250 406.4 16 355.6 8 22
280 406.4 16 355.6 8 22
315 457.2 20 406.4 12 22
355 527.1 22 469.9 12 26
400 577.9 22 520.7 12 26
450 641.4 25 584.2 12 26
500 705 29 641.4 16 26
560 825.5 30 755.7 16 26
630 825.5 32 755.7 16 26

Check available Sizes of SABS 1123 Raised Face Flanges, Ask For Ready Stock of SANS 1123 Flange, EN 1092-1 Flanges in Mumbai, India.

BAGODA

Quick Contact

Ready Stock SABS / SANS 1123 Flanges

  • High Quality SABS 1123 Flanges
  • SABS 1123 Plate Flanges Stockholder
  • SABS 1123 Inch Flanges
  • Carbon Steel SANS 1123 Flanges
  • SABS 1123 Flange
  • High Nickel Alloy Series A and B RTJ SANS 1123 Flange
  • DIN 2605 SABS 1123 63 Flanges
  • Class 75 SABS 1123 Plate Flange
  • 1/2 SANS 1123 Flanges
  • Super Duplex 2507 SABS 1123 Flanges
  • A182 SABS 1123 Raised Face Flanges
  • SANS 1123 Flanges Manufacturer
  • BS4504 PN16 SANS 1123 Flange
  • DIN Standard PN25 SANS 1123 Flanges
  • SANS 1123 Flange Class 400
  • SABS 1123 5K 10K 16K Flanges
  • SABS 1123 Class 1500 Flange
  • SANS 1123 Flanges Manufacturer
  • Titanium SABS 1123 Flanges Manufacturer
  • Class D Raised Face SABS 1123 Flange
  • Brass SABS 1123 Flange
  • BS4504 Large Diameter SANS 1123 Flange
  • PN25 SABS 1123 Flange
  • Hastelloy Raised Face SABS 1123 Flanges
  • 254 SMO SABS 1123 63 Stockist
  • SABS 1123 Flanges
  • SANS 1123 16K Flange
  • SANS 1123 Plate Flanges
  • Alloy 20 SABS 1123 Plate Flanges Supplier in Mumbai
  • Titanium SANS 1123 Flange
  • API 6A SABS 1123 Flange
  • Class 600 SABS 1123 Flange
  • Copper Nickel SANS 1123 Flanges
  • Brass SABS 1123 63 Raised Face Flanges
  • SANS 1123 Flange
  • Inconel SABS 1123 Flange
  • SANS 1123 Flange Exporter
  • Copper Nickel Raised Face SANS 1123 Flange Distributor
  • Duplex Steel 2205 SANS 1123 Flange
  • SABS 1123 10K Flange
  • ANSI #150 SABS 1123 Flanges
  • Monel Raised Face SANS 1123 Flange

Export Destinations For SABS / SANS 1123 Flanges

industry
