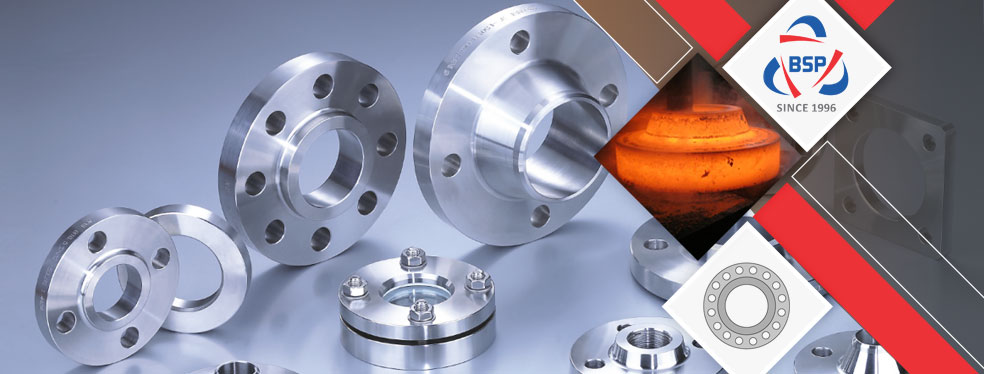

JIS B2220 Flange, JIS B2220 Raised Face Flange, JIS B2220 Flangs Manufacturer

Hastelloy JIS B2220 Raised Face Flange, JIS B2220 5K Flange, Carbon Steel JIS B2220 Flange, Inconel Raised Face JIS B2220 Flange, Nickel Alloy JIS B2220 Plate Flange, SS JIS B2220 Stockist, JIS B2220 Flange Dealer, Class 150 Alloy Steel JIS B2220 Flange, Alloy Steel JIS B2220 Flange, Stainless Steel JIS B2220 Flange Supplier in Mumbai, India.

Stress comfort starts off evolved at approximately a 1000 Degree F (540 Degree C) and is absolutely after 1.5 hours at 1600 Degree F (870 Degree C). Softening through annealing starts off evolved at approximately 1400 Degree F (760 Degree C) and in all fairness entire after ten to fifteen mins at 1800 Degree F (980 Degree C). Appreciable grain boom can also additionally arise at temperatures over 1800 Degree F (980 Degree C). A high-quality anneal in Monel Alloy JIS B2220 Socket Weld Flanges, however, can generally be received through two to five mins heating at 1900 Degree F (1040 Degree C).

Oxide film and scales formed for the duration of heating may be eliminated through pickling. Because of the alloy’s inherent resistance to chemical attack, specialized pickling tactics are needed. Good effects have additionally been received with excessive-speed-metal gear, which can be higher for interrupted cutting. Hot forming in Hastelloy Alloy JIS B2220 Forged Flanges is completed within the temperature variety of 1600 Degree F to 2200 Degree F (870 Degree C to 1200 Degree C). Heavy forging have to be completed at temperatures from 1850 Degree F to 2200 Degree F (1010 Degree C to 1200 Degree C). Forming at temperatures among 1200 Degree F and 1600 Degree F (650 Degree C - 870 Degree C) can bring about cracking of the work piece.

Specification Chart of JIS B2220 Flange

Specifications	JIS B2220 Flanges
Size	½" (15 NB) to 48" (1200NB)
Dimension Standard	ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Class / Pressure Rating	150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN	DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS	BS4504 , BS4504, BS1560, BS10
Flange Face Type	Flate Face (FF), Raised Face (RF), ANSI B16.5 (RTJ)
EN 1092 - 1 Flanges Standard	ANSI DIN, GOST, Korean, UNI, BS, AS2129, Korean, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, Korean/ KS Flange, BS4504 Flange, GB Flange, Korean Flange, GOST Flange, PSI Flange AS 2129: Table D; Table E; Table H B.S: BS4504 , BS3293, BS1560, BS10 ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, Korean, Custom Drawings American standard (ANSI) ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 British standard (BS) German (DIN) Any other specilised flanges The other standard: DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
Testing and Documents	Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
Packing	Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

Material Grades of JIS B2220 Flange

Stainless Steel JIS B2220 Flange	ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409
Carbon Steel JIS B2220 Flange	ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
Alloy Steel JIS B2220 Flanges	ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Titanium JIS B2220 Flanges	ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 \| R50400/GR.2 \| R50550/GR.3 \| R50700/GR.4 \| GR.6 \|R52400/GR.7 \| R53400/GR.12 \| R56320/GR.9 \|R56400/GR.5
Copper JIS B2220 Flanges	T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel JIS B2220 Flanges	ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Inconel JIS B2220 Flanges	ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 ANSI B16.5 Class 150 ANSI B16.5 Flanges
Hastelloy JIS B2220 Flanges	ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges
Monel JIS B2220 Flanges	ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 JIS B2220 Flanges	ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium JIS B2220 Flanges	5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Alloy JIS B2220 Flanges	ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Duplex Steel JIS B2220 Flanges	S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex JIS B2220 Flanges	S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy JIS B2220 Flanges	ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges
254 SMO JIS B2220 Flanges	ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic JIS B2220 Flanges	Nimonic 75, Nimonic 80A, Nimonic 90
Brass JIS B2220 Flanges	3602 / 2604 / H59 / H62 / etc.
Other JIS B2220 Flanges material	Tin bronze, Alumunum bronze, Lead bronze

View Thickness Table Of Class 150, Class 300 And Class 600 JIS B2220 Flange, We have Global sales network for JIS B2220 Flanges, Wide Stockist Of JIS B2220 Raised Face Flanges In India.

Dimension of JIS B2220 5K Flange

JIS 5K Flange					LTB		Drilling Data
Normal Pipe Sizes (NPS)		O.D. Flanges	Flanges Thickness	BLRF Thickness	Length Of Bossed SOH.SW LI	Length Of Weld Neck	Daimeter Of Pitch Circle	Bolt Holes Number	Daimeter Of Bolt Holes
Millimeter	Inches	C	T	T1	L	L1	PCD	#	H
10	3/8	75	9	9	13	24	55	4	12
15	1/2	80	9	9	13	25	60	4	12
20	3/4	85	10	10	15	28	65	4	12
25	1	95	10	10	17	30	75	4	12
32	1 1/4	115	12	12	19	33	90	4	15
40	2 1/2	120	12	12	20	34	95	4	15
50	2	130	14	14	24	36	105	4	15
65	2 1/2	155	14	14	27	39	130	4	15
80	3	180	14	14	30	41	145	4	19
90	3 1/2	190	14	14	N/A	41	155	4	19
100	4	200	16	16	36	41	165	8	19
125	5	235	16	16	40	43	200	8	19
150	6	265	18	18	40	49	230	8	19
175	7	300	18	18	N/A	49	260	8	23
200	8	320	20	20	N/A	53	280	8	23
225	9	345	20	20	N/A	54	305	12	23
250	10	385	22	22	N/A	61	345	12	23
300	12	430	22	22	N/A	62	390	12	23
350	14	480	24	24	N/A	73	435	12	25
400	16	540	24	24	N/A	76	495	16	25
450	18	605	24	24	40	79	555	16	25
500	20	655	24	24	40	79	605	20	25
550	22	720	26	26	42	81	665	20	27
600	24	770	26	26	44	81	715	20	27
650	26	825	26	28	48	85	770	24	27
700	28	875	26	30	48	94	820	24	27
750	30	945	28	32	52	100	880	24	33
800	32	995	28	34	52	100	930	24	33
850	34	1045	28	36	54	108	980	24	33
900	36	1095	30	36	56	108	1030	24	33
1000	40	1195	32	40	60	116	1130	28	33

Dimensions of JIS B2220 10K Flange

JIS 10K Flange					LTB		Drilling Data
Normal Pipe Sizes (NPS)		O.D. Flanges	Flanges Thickness	BLRF Thickness	Length Of Bossed SOH.SW LI	Length Of Weld Neck	Daimeter Of Pitch Circle	Bolt Holes Number	Daimeter Of Bolt Holes
Millimeter	Inches	C	T	T1	L	L1	PCD	#	H
10	3/8	90	12	12	16	29	65	4	15
15	1/2	95	12	12	16	31	70	4	15
20	3/4	100	14	14	20	32	75	4	15
25	1	125	14	14	20	36	90	4	19
32	1 1/4	135	16	16	22	38	100	4	19
40	2 1/2	140	16	16	24	38	105	4	19
50	2	155	16	16	24	40	120	4	19
65	2 1/2	175	18	18	27	44	140	4	19
80	3	185	18	18	30	45	150	8	19
90	3 1/2	195	18	18	N/A	45	160	8	19
100	4	210	18	18	36	45	175	8	19
125	5	250	20	20	40	47	210	8	23
150	6	280	22	22	40	53	240	8	23
175	7	305	22	22	N/A	55	265	12	23
200	8	330	22	22	N/A	58	290	12	23
225	9	350	22	22	N/A	58	310	12	23
250	10	400	24	24	36	65	355	12	25
300	12	445	24	24	38	68	400	16	25
350	14	490	26	26	42	79	445	16	25
400	16	560	28	28	44	85	510	16	27
450	18	620	30	30	48	90	565	20	27
500	20	675	30	30	48	99	620	20	27
550	22	745	32	34	52	111	680	20	33
600	24	795	32	36	52	112	730	24	33
650	26	845	34	38	56	116	780	24	33
700	28	905	34	40	58	132	840	24	33
750	30	970	36	44	62	139	900	24	33
800	32	1020	36	46	64	139	950	28	33
850	34	1070	36	48	66	139	1000	28	33
900	36	1120	38	50	70	140	1050	28	33
1000	40	1235	40	56	74	151	1160	28	39

Dimensions of JIS B2220 16k Flanges

JIS 16K Flange					LTB		Drilling Data
Normal Pipe Sizes (NPS)		O.D. Flanges	Flanges Thickness	BLRF Thickness	Length Of Bossed SOH.SW LI	Length Of Weld Neck	Daimeter Of Pitch Circle	Bolt Holes Number	Daimeter Of Bolt Holes
Millimeter	Inches	C	T	T1	L	L1	PCD	#	H
10	3/8	90	12	12	16	31	65	4	15
15	1/2	95	12	12	16	32	70	4	15
20	3/4	100	14	14	20	34	75	4	15
25	1	125	14	14	20	36	90	4	19
32	1 1/4	135	16	16	22	39	100	4	19
40	2 1/2	140	16	16	24	39	105	4	19
50	2	155	16	16	24	40	120	8	19
65	2 1/2	175	18	18	26	46	140	8	19
80	3	200	20	20	28	49	160	8	23
90	3 1/2	210	20	20	30	50	170	8	23
100	4	225	22	22	34	56	185	8	23
125	5	270	22	22	34	60	225	8	25
150	6	305	24	24	38	79	260	12	25
200	8	350	26	26	40	73	305	12	25
250	10	430	28	28	44	81	380	12	27
300	12	480	30	30	48	88	430	16	27
350	14	540	34	34	52	104	480	16	33
400	16	605	38	38	60	115	540	16	33
450	18	675	40	40	64	126	605	20	33
500	20	730	42	42	68	128	660	20	33
550	22	795	44	44	70	135	720	20	39
600	24	845	46	46	74	141	770	24	39
650	26	895	48	N/A	77	N/A	820	24	39
700	28	960	50	N/A	80	N/A	875	24	42
750	30	1020	52	N/A	83	N/A	935	24	42
800	32	1085	54	N/A	86	N/A	990	24	48
850	34	1135	56	N/A	89	N/A	1040	24	48
900	36	1185	58	N/A	93	N/A	1090	28	48
1000	40	1320	62	N/A	99	N/A	1210	28	56

Dimension of JIS B2220 20K Flanges

JIS 20K Flange					LTB		Drilling Data
Normal Pipe Sizes (NPS)		O.D. Flanges	Flanges Thickness	BLRF Thickness	Length Of Bossed SOH.SW LI	Length Of Weld Neck	Daimeter Of Pitch Circle	Bolt Holes Number	Daimeter Of Bolt Holes
Millimeter	Inches	C	T	T1	L	L1	PCD	#	H
10	3/8	90	14	14	20	33	65	4	15
15	1/2	95	14	14	20	34	70	4	15
20	3/4	100	16	16	22	36	75	4	15
25	1	125	16	16	24	38	90	4	19
32	1 1/4	135	18	18	26	41	100	4	19
40	2 1/2	140	18	18	26	41	105	4	19
50	2	155	18	18	26	42	120	8	19
65	2 1/2	175	20	20	30	48	140	8	19
80	3	200	22	22	34	51	160	8	23
90	3 1/2	210	24	24	36	54	170	8	23
100	4	225	24	24	36	58	185	8	23
125	5	270	26	26	40	64	225	8	25
150	6	305	28	28	42	73	260	12	25
200	8	350	30	30	46	77	305	12	25
250	10	430	34	34	52	87	380	12	27
300	12	480	36	36	56	94	430	16	27
350	14	540	40	40	62	110	480	16	33
400	16	605	46	46	70	123	540	16	33
450	18	675	48	48	78	134	605	20	33
500	20	730	50	50	84	136	660	20	33
550	22	795	52	52	90	143	720	20	39
600	24	845	54	56	96	149	770	24	39

Dimension of JIS B2220 30K Flanges

JIS 30K Flange					LTB		Drilling Data
Normal Pipe Sizes (NPS)		O.D. Flanges	Flanges Thickness	BLRF Thickness	Length Of Bossed SOH.SW LI	Length Of Weld Neck	Daimeter Of Pitch Circle	Bolt Holes Number	Daimeter Of Bolt Holes
Millimeter	Inches	C	T	T1	L	L1	PCD	#	H
10	3/8	110	16	16	24	N/A	75	4	19
15	1/2	115	18	18	26	45	80	4	19
20	3/4	120	18	18	28	45	85	4	19
25	1	130	20	20	30	48	95	4	19
32	1 1/4	140	22	22	32	52	105	4	19
40	2 1/2	160	22	22	34	54	120	4	23
50	2	165	22	22	36	57	130	8	19
65	2 1/2	200	26	26	40	69	160	8	23
80	3	210	28	28	44	73	170	8	23
90	3 1/2	230	30	30	46	74	185	8	25
100	4	240	32	32	48	76	195	8	25
125	5	275	36	36	54	86	230	8	25
150	6	325	38	38	58	95	275	12	27
200	8	370	42	42	64	102	320	12	27
250	10	450	48	48	72	118	390	12	33
300	12	515	52	52	78	127	450	16	33
350	14	560	54	54	84	134	495	16	33
400	16	630	60	60	92	149	560	16	39

JIS Dimensions of JIS B2220 30K Slip On Flange

Nominal Diameter of Flanges	Outside Diameter of Flanges D	Flange Sectional Dimensions														Reference
		Diameter Of Bolt Circle C	Diameter Of raised Face g	Inside Diameter (I.D.) Of Flange do	Outside Diameter (O.D.) of Steel pipe	t	T	Diameter of Hub		Radius r	f	D	No. of Bolt Holes	Holes Diameter H	Nominal Bolts Sizes	S1	M	S2	N	L
		Diameter Of Bolt Circle C	Diameter Of raised Face g	Inside Diameter (I.D.) Of Flange do	Outside Diameter (O.D.) of Steel pipe	t	T	a	b	Radius r	f	D	No. of Bolt Holes	Holes Diameter H	Nominal Bolts Sizes	S1	M	S2	N	L
10	110	75	52	17.8	17.3	16	24	30	34	4	1	–	4	19	M16	–	–	–	–	–
15	115	80	55	22.2	21.7	18	26	36	40	5	1	–	4	19	M16	31	4	40	5	–
20	120	85	60	27.7	27.2	18	28	42	46	5	1	–	4	19	M16	37	5	44	5	–
25	130	95	70	34.5	34	20	30	50	54	5	1	–	4	19	M16	55	6	52	5	–
32	140	105	80	43.2	42.7	22	32	60	64	6	2	–	4	19	M16	52	6	60	5	–
40	160	120	90	49.1	48.6	22	34	66	70	6	2	–	4	23	M20	58	6	66	5	–
50	165	130	105	61.1	60.5	22	36	82	86	6	2	–	8	19	M16	70	6.5	78	5	–
65	200	160	130	77.1	76.3	26	40	102	106	8	2	65.9	8	23	M20	96	9.5	94	5	6
80	210	170	140	90	89.1	28	44	115	21	8	2	78.1	8	23	M20	109	9.5	–	–	6
-90	230	185	150	102.6	101.6	30	46	128	134	8	2	90.2	8	25	M22	122	9.5	–	–	6
100	240	195	160	115.4	114.3	32	48	141	147	8	2	102.3	8	25	M22	135	9.5	–	–	6
125	275	230	195	141.2	139.8	36	54	166	172	8	2	126.6	8	25	M22	160	9.5	–	–	6
150	325	275	235	166.6	165.2	38	58	196	204	8	2	151	12	27	M24	186	9.5	–	–	6
200	370	320	280	218	216.3	42	64	248	256	8	2	199.9	12	27	M24	237	9.5	–	–	6
250	450	390	345	269.5	267.4	48	72	306	314	10	2	248.8	12	22	M30	290	10	–	–	6
300	515	450	405	321	318.5	52	78	360	370	10	3	297.9	16	33	M30	345	12	–	–	6
350	560	495	450	358.1	355.6	54	84	402	412	12	3	333.4	16	33	M30	383	13	–	–	6
400	630	560	510	409	406.4	60	92	456	468	15	3	381	16	39	M36	435	14	–	–	7

JIS B2220 Blind Flanges Size Chart

Flange Size	d	D	C	Bolts Number	h	t
010 – 3/8″	17.8 millimeter	75 millimeter	55 millimeter	4	12 millimeter	9 millimeter
015 – 1/2″	22.2 mm	80 mm	60 mm	4	12 mm	9 mm
020 – 3/4″	27.7 mm	85 mm	65 mm	4	12 mm	10 mm
025 – 1″	34.5 mm	95 mm	75 mm	4	12 mm	10 mm
032 – 1-1/4″	43.2 mm	115 mm	90 mm	4	15 mm	12 mm
040 – 1-1/2″	49.1 mm	120 mm	95 mm	4	15 mm	12 mm
050 – 2″	61.1 mm	130 mm	105 mm	4	15 mm	14 mm
065 – 2-1/2″	77.1 mm	155 mm	130 mm	4	15 mm	14 mm
080 – 3″	90.0 mm	180 mm	145 mm	4	19 mm	14 mm
090 – 3-1/2″	102.6 mm	190 mm	155 mm	4	19 mm	14 mm
100 – 4″	115.4 mm	200 mm	165 mm	8	19 mm	16 mm
125 – 5″	141.2 mm	235 mm	200 mm	8	19 mm	16 mm
150 – 6″	166.6 mm	265 mm	230 mm	8	19 mm	18 mm
175 – 7″	192.1 mm	300 mm	260 mm	8	23 mm	18 mm
200 – 8″	218.0 mm	320 mm	280 mm	8	23 mm	20 mm
250 – 10″	269.5 mm	385 mm	345 mm	12	23 mm	22 mm
300 – 12″	321.0 mm	430 mm	390 mm	12	23 mm	22 mm
350 – 14″	358.1 mm	480 mm	435 mm	12	25 mm	24 mm
400 – 16″	409.0 mm	540 mm	495 mm	16	25 mm	24 mm
450 – 18″	460 mm	605 mm	555 mm	16	25 mm	24 mm
500 – 20″	511.0 mm	655 mm	605 mm	20	25 mm	24 mm
550 – 22″	562.0 mm	720 mm	665 mm	20	27 mm	26 mm
600 – 24″	613.0 mm	770 mm	715 mm	20	27 mm	26 mm
650 – 26″	664.0 mm	825 mm	770 mm	24	27 mm	26 mm
700 – 28″	715 mm	875 mm	820 mm	24	27 mm	26 mm

Dimensions of JIS B2220 30k Weld Neck Flanges

Flange Size	d	D	C	Bolts Number	h	t
010 – 3/8″	17.8 millimeter	75 millimeter	55 millimeter	4	12 millimeter	9 millimeter
015 – 1/2″	22.2 mm	80 mm	60 mm	4	12 mm	9 mm
020 – 3/4″	27.7 mm	85 mm	65 mm	4	12 mm	10 mm
025 – 1″	34.5 mm	95 mm	75 mm	4	12 mm	10 mm
032 – 1-1/4″	43.2 mm	115 mm	90 mm	4	15 mm	12 mm
040 – 1-1/2″	49.1 mm	120 mm	95 mm	4	15 mm	12 mm
050 – 2″	61.1 mm	130 mm	105 mm	4	15 mm	14 mm
065 – 2-1/2″	77.1 mm	155 mm	130 mm	4	15 mm	14 mm
080 – 3″	90.0 mm	180 mm	145 mm	4	19 mm	14 mm
090 – 3-1/2″	102.6 mm	190 mm	155 mm	4	19 mm	14 mm
100 – 4″	115.4 mm	200 mm	165 mm	8	19 mm	16 mm
125 – 5″	141.2 mm	235 mm	200 mm	8	19 mm	16 mm
150 – 6″	166.6 mm	265 mm	230 mm	8	19 mm	18 mm
175 – 7″	192.1 mm	300 mm	260 mm	8	23 mm	18 mm
200 – 8″	218.0 mm	320 mm	280 mm	8	23 mm	20 mm
250 – 10″	269.5 mm	385 mm	345 mm	12	23 mm	22 mm
300 – 12″	321.0 mm	430 mm	390 mm	12	23 mm	22 mm
350 – 14″	358.1 mm	480 mm	435 mm	12	25 mm	24 mm
400 – 16″	409.0 mm	540 mm	495 mm	16	25 mm	24 mm
450 – 18″	460 mm	605 mm	555 mm	16	25 mm	24 mm
500 – 20″	511.0 mm	655 mm	605 mm	20	25 mm	24 mm
550 – 22″	562.0 mm	720 mm	665 mm	20	27 mm	26 mm
600 – 24″	613.0 mm	770 mm	715 mm	20	27 mm	26 mm
650 – 26″	664.0 mm	825 mm	770 mm	24	27 mm	26 mm
700 – 28″	715 mm	875 mm	820 mm	24	27 mm	26 mm
