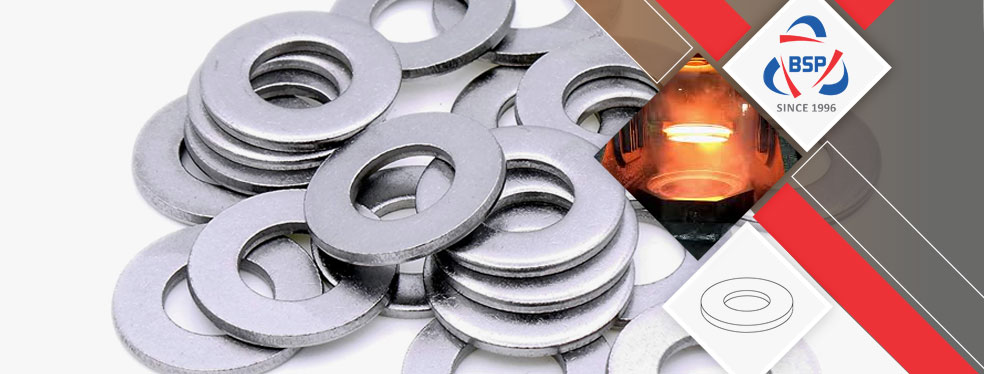

Monel 400 / K500 Washers

Monel K500 Industrial Washers, Monel Alloy 400 Washers, ASTM B164 Monel K500 Spring Washers, Alloy 400 Star Washers, Monel 400 Flat Washers Price in India.

Bagoda Steel is a renowned supplier and seller of Monel 400 / K500 Washers, whichhas wonderful strength and hardness traits within the cold-laboured condition. It continues excellent strength up to 2150°F and continues excellent oxidation resistance as much as 1900° F. It has a completely unique capacity to face up to corrosion in very intense environments. Highly immune to hydrochloric acid, nitric acid and moist chlorine (challenge to want for workout care in its choice at positive concentrations and temperatures). Monel WNR 2.4360 Flat Washers is used in Gas turbine engine combustion chambers and afterburners, and High temperature ball bearings and bearing races.

Industrial Product
Monel 400 / K500 Washers

Monel 400 Split Washers, Monel® Alloy K500 Tooth Lock Washer Stockist, Nickel Alloy K500 Square Washer, Alloy K500 Ogee Washers, 2.4360 Belleville Washers, Alloy 400 Dome Washers, UNS N04400 Fender Washer, Monel 400 Lock Washers Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

It does now no longer reply to commonplace ageing treatments, however stress ageing at pretty low temperatures (700-1100° F) can enhance creep and rupture strength whilst the alloy is in provider at temperatures below 1300° F. Also, tensile and creep strength may be advanced through cold working. Monel UNS N04400 Lock Washers is an austenitic alloy and is not notably hardenable.All commonplace machining operations are without difficulty performed. The effects imply that it is advanced in galling resistance to many materials, and is handed handiest through alloy. They have constrained software and aren't recommended for cease milling, drilling or tapping. Sulphur chlorinated, water-primarily based totally reducing fluids work efficiently whilst machining this alloy.These excessive belongings ranges also are obvious at accelerated temperature, making MonelUNS N05500 Machine Washers pretty appropriate for applications together in company of ball bearings and bearing races. A modest extra growth in hardness and strength may be completed thru ageing of the cold-laboured material.

When uncovered for extended intervls at intermediate temperatures, it well-known shows a lack of room temperature ductility in a good deal the equal style as a few different solid-solution-bolstered awesome alloys. This conduct happens because of the precipitation of deleterious phases. Monel WNR 2.4375 Star Washers well-known shows wonderful resistance to metallic galling. Wear effects proven beneath have been generated for popular matching material room-temperature pin on disc assessments. Wear depths are given as a characteristic of implemented load.

Material Specification Chart of Monel 400 / K500 Washers

Specification ASTM B164 / ASME SB164
Size M02 to M33, Custom Sizes
Length 3 mm to 200 mm
Washer UNF, BSW, BSF, METRIC, UNC, or as required
Standard of Washers DIN 125A, DIN 125B, DIN 127B, DIN 137B, DIN 6797A, DIN 6797J, ISO 7089, DIN 7980, DIN 127 B, IS 2016, ASTM F436M, ASME B18.13, ASME B18.21.1, ASME B18.22.1, ASME B18.23.1
Form of Washers Hex, Threading, Square, Round as per Gauge Etc.
Raw materials Source JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate of Washers as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive of Washers Six-Lobe, Phillips, Phillips/Slot, Slotted etc
Packing of Washers IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating Ptfe Coated Washers
Phosphate Coating
Teflon Coating
Zinc Coating
Hot Dipped Galvanizing Coating
Cadmium Coating
Xylon Coating
Types Plain / Flat Washer, Spring Washers, Dome Washer, Hexagonal Washer, Square Washer, Dome Tooth Washer, Countersunk Washer, Tooth Lock Washer, Dock Washer, Fender Washer, Ogee Washer, Hex Washers, Split / Lock Washer, Customized Washer, Tab Washers

Various Types Of Monel 400 / K500 Washers

Monel 400 / K500 Flat Washers
Monel 400 / K500 Flat Washers
  • Alloy K500 Flat Washer
  • Monel 400 Thin Flat Washer
  • 2.4360 Flat Washer
  • UNS N04400 Plain Washer
  • ASTM B164 Monel K500 Thick Flat Washer
  • ASME SB164 Monel Alloy 400 Knurled Flat Washer
Monel 400 / K500 Ogee Washers
Monel 400 / K500 Ogee Washers
  • ASME SB164 Monel Alloy K500 Thin Ogee Washer
  • Alloy K500 Ogee Washer
  • UNS N04400 Ogee Washer
  • 2.4360 Ogee Washer
  • Monel 400 Thick Ogee Washer
  • ASTM B164 Monel 400 Ogee Washer
Monel 400 / K500 Lock Washers
Monel 400 / K500 Lock Washers
  • Alloy K500 Lock Washer
  • ASTM B164 Monel K500 Heavy Duty Lock Washers
  • ASME SB164 Monel Alloy 400 Split Lock Washer
  • Nickel Alloy 400 Lock Washer
  • 2.4360 Internal Tooth Lock Washer
  • UNS N04400 Lock Washer
Monel 400 / K500 Spring Washers
Monel 400 / K500 Spring Washers
  • ASTM B164 Monel K500 Spring Washer
  • UNS N05500 Spring Washers
  • Alloy 400 Wave Spring Washer
  • Alloy 400 Spring Washers
  • 2.4375 Helical Spring Washer
  • ASME SB164 Monel Alloy K500 Flat Spring Washer
Monel 400 / K500 Star Washers
Monel 400 / K500 Star Washers
  • UNS N05500 Internal Star Washer
  • ASME SB164 Monel Alloy 400 Spring Washer
  • Monel K500 External Star Washer
  • Alloy 400 Star Spring Washer
  • ASTM B164 Monel K500 Spring Washer
  • 2.4375 Spring Washer
Monel 400 / K500 Fender Washers
Monel 400 / K500 Fender Washers
  • Monel K500 Spring Steel Fender Washer
  • ASME SB164 Monel Alloy 400 Fender Washer
  • ASTM B164 Monel 400 Standard Fender Washer
  • UNS N05500 Heavy Duty Fender Washer
  • 2.4375 Fender Washer
  • Alloy K500 Fender Washer

Equivalent Grades of Monel 400 / K500 Washers

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe
Monel K500 2.4375 N05500 – – – – –
Washers Dimensions

View Size Table Of Monel 400 Washers, We have Global sales network for Monel K500 Plain Washer, Wide Stockist Of Werkstoff No 2.4375 Spring Washers In India.

Size Chart of Monel 400 / K500 Washers

Size USS SAE
Inside Diameter
(A)		 Outside Diameter
(B)		 Thickness
(C)		 Inside Diameter
(A)		 Outside Diameter
(B)		 Thickness
(C)
#2 – – – 3/32″ 1/4″ 0.020″
#4 – – – 1/8″ 5/16″ 0.032″
#6 – – – 5/32″ 3/8″ 0.049″
#8 – – – 3/16″ 7/16″ 0.049″
#10 – – – 7/32″ 1/2″ 0.049″
#12 – – – 1/4″ 9/16″ 0.065″
1/4″ 5/16″ 0.734″ 0.065″ 9/32″ 5/8″ 0.065″
5/16″ 3/8″ 7/8″ 0.083″ 11/32″ 11/16″ 0.065″
3/8″ 7/16″ 1″ 0.083″ 13/32″ 13/16″ 0.065″
7/16″ 1/2″ 1-1/4″ 0.083″ 15/32″ 15/16″ 0.065″
1/2″ 9/16″ 1-3/8″ 0.109″ 17/32″ 1-1/16″ 0.095″
9/16″ 5/8″ 1-15/32″ 0.109″ 19/32″ 1-5/32″ 0.095″
5/8″ 11/16″ 1-3/4″ 0.134″ 21/32″ 1-5/16″ 0.095″
3/4″ 13/16″ 2″ 0.148″ 13/16″ 1-15/32″ 0.134″
7/8″ 15/16″ 2-1/4″ 0.165″ 15/16″ 1-3/4″ 0.134″
1″ 1-1/16″ 2-1/2″ 0.165″ 1-1/16″ 2″ 0.134″
1-1/8″ 1-1/4″ 2-3/4″ 0.165″ – – –
1-1/4″ 1-3/8″ 3″ 0.165″ – – –
1-3/8″ 1-1/2″ 3-1/4″ 0.180″ – – –
1-1/2″ 1-5/8″ 3-1/2″ 0.180″ – – –
1-5/8″ 1-3/4″ 3-3/4″ 0.180″ – – –
1-3/4″ 1-7/8″ 4″ 0.180″ – – –
2″ 2-1/8″ 4-1/2″ 0.213″ – – –

Check available Sizes of ASME SB 164 Monel 400 Washers, Ask For Ready Stock of UNS N05500 Washers in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Alloy 400 / K500 Spring Washer

NOM SIZE Inner Dia (d) Basic Tol (+) Outer Dia (d1) Max WIDTH (b) Basic Tol (+ or -) THICKNESS (S) Basic Tol (+ or -) Weight per 1000 in Kgs
3 3.1 0.3 6.2 1.3 0.1 0.8 0.1 0.11
4 4.1 0.3 7.6 1.5 0.1 0.9 0.1 0.18
5 5.1 0.3 9.2 1.8 0.1 1.2 0.1 0.36
6 6.1 0.4 11.8 2.5 0.15 1.6 0.1 0.83
8 8.1 0.4 14.8 3 0.15 2 0.1 1.60
10 10.2 0.5 18.1 3.5 0.2 2.2 0.15 2.53
12 12.2 0.5 21.1 4 0.2 2.5 0.15 3.82
14 14.2 0.5 24.1 4.5 0.2 3 0.15 6.01
16 16.2 0.8 27.4 5 0.2 3.5 0.2 8.91
18 18.2 0.8 29.4 5 0.2 3.5 0.2 9.73
20 20.2 1 33.6 6 0.2 4 0.2 15.20
22 22.5 1 35.9 6 0.2 4 0.2 16.50
24 24.5 1 40 7 0.25 5 0.2 26.20
27 27.5 1 43 7 0.25 5 0.2 28.70
30 30.5 1.2 48.2 8 0.25 6 0.2 44.30
33 33.5 1.2 55.2 10 0.25 6 0.2 63.00
36 36.5 1.2 58.2 10 0.25 6 0.2 67.30
39 39.5 1.2 61.2 10 0.25 6 0.2 71.70
42 42.5 1.2 68.2 12 0.25 7 0.25 111.00
45 45.5 1.2 71.2 12 0.25 7 0.25 117.00
48 49 1.5 75 12 0.25 7 0.25 123.00
52 53 1.5 83 14 0.25 8 0.25 320.00

Dimensions of Alloy 400 / K500 Flat Washer

Bolt Size USS SAE
OD (in.) ID (in.) Thickness OD (in.) ID (in.) Thickness
1/8 (#6) – – – 0.375 0.156 .036/.065
5/32 (#8) – – – 0.438 0.188 .036/.065
3/16 (#10) 0.560 0.250 .036/.065 0.500 0.220 .036/.065
7/32 (#12) – – – 0.562 0.250 .051/.080
1/4 (#14) 0.734 0.312 .051/.080 0.625 0.281 .051/.080
5/16 0.875 0.375 .064/.104 0.688 0.344 .051/.080
3/8 1.000 0.438 .064/.104 0.812 0.406 .051/.080
7/16 1.250 0.500 .064/.104 0.922 0.469 .051/.080
1/2 1.375 0.562 .086/.132 1.062 0.531 .074/.121
9/16 1.469 0.625 .086/.132 1.156 0.594 .074/.121
5/8 1.750 0.688 .108/.160 1.312 0.656 .074/.121
3/4 2.000 0.812 .122/.177 1.469 0.812 .108/.160
7/8 2.250 0.938 .136/.192 1.750 0.938 .108/.160
1 2.500 1.062 .136/.192 2.000 1.062 .108/.160
1 1/8 2.750 1.250 .136/.192 2.250 1.250 .108/.160
1 1/4 3.000 1.375 .136/.192 2.500 1.375 .136/.192
1 3/8 3.250 1.500 .153/.213 2.750 1.500 .136/.213
1 1/2 3.500 1.625 .153/.213 3.000 1.625 .153/.213
1 5/8 3.750 1.750 .153/.213 – – –
1 3/4 4.000 1.875 .153/.213 – – –
1 7/8 4.250 2.000 .153/.213 – – –
2 4.500 2.125 .153/.213 – – –
2 1/4 4.750 2.375 .320/.248 – – –
2 1/2 5.000 2.625 .210/.280 – – –
2 3/4 5.250 2.875 .228/.410S – – –
3 5.500 3.125 .249/.327 – – –

Weight Chart Of Monel Alloy 400 / K500 Washers

APPROX. WEIGHT IN KGS FOR 100 NOS
SIZE PLAIN PUNCHED WASHER
IS:2016		 HEAVY WASHER
IS:6610		 MACHINED WASHER
IS:2016		 SQUARE | TAPER | WASHERS SPRING WASHER FLAT SECTION IS:3063-72 SPRING WASHER SQUARE SECTION IS:6735-72
DIN : 7980		 Size (Inches) PLAIN PUNCHED WASHER
BS:3410 TABLE 7
MACHINED HIGH  STRENGTH
FRICTION  GRIP
FOR
CHANNELS IS:5372-75		 FOR
I-BEAM IS:5374-75		 TYPE-B
(CHANNELS) IS : 6649-85		 TYPE-C
( I-BEAMS ) IS : 6649-85
M-3               0.01 0.01
M-4               0.02 0.02
M-5 0.04   0.04         0.03 0.03
M-6 0.11   0.11         0.08 0.04 1/4″ 0.21
M-8 0.20   0.21 1.10 1.20     0.16 0.11 5/16″ 0.35
M-10 0.39 1.60 0.40 1.00 1.10     0.25 0.20 3/8″ 0.48
M-12 0.58 1.90 0.62 2.00 2.20 2.00 1.80 0.38 0.23 1/2″ 1.07
M-14 0.82             0.60 0.38
M-16 1.06 2.90 1.13 3.40 3.75 9.00 8.50 0.89 0.59 5/8″ 1.85
M-18 1.27             0.97 0.66
M-20 1.64 4.40 1.72 5.80 6.70 8.50 8.00 1.52 1.23 3/4″ 2.91
M-22 1.75         7.50 7.00 1.65 1.36 7/8″ 4.27
M-24 3.11 6.30 3.30 13.50 16.00 6.50 6.00 2.62 1.81 1″ 6.13
M-27 3.94 8.00 4.23 12.50 15.00 12.00 11.50 2.87 2.06 1.1/8″ 7.69
M-30 5.05 10.10 5.36 16.50 18.70 17.50 16.00 4.43 3.20 1.1/4″ 9.90
M-33 7.10 12.00 7.54 21.00 23.50 23.00 22.50 6.30 3.50
M-36 8.73 14.60 9.20 25.50 29.20 26.50 26.00 6.73 5.25 1.1/2″ 17.24
M-39 12.60 16.70 13.30 28.30 34.50     7.17 5.61
M-42 17.50 20.10 18.30         11.10 8.00
M-45 21.20 22.20 22.00         11.70 8.53
M-48 28.40 26.00 29.40         12.30 9.00 2″ 27.78
M-52 31.90   33.00         18.20
M-56 47.90             19.30
M-60 51.60             20.30
M-64 55.40             21.80
M-68 57.40
M-72 63.40             24.00

Ready Stock Monel 400 / K500 Washers

  • DIN 2.4360 Countersunk Washer
  • JIS NCF 400 Tooth Lock Washer
  • Monel K500 Industrial Washers
  • Monel K500 Spring Washers
  • Alloy 400 Hexagonal Washer
  • K500 Monel Spherical Washer
  • Alloy K500 Fender Washers
  • Nickel Alloy 400 Curved Spring Washer
  • Monel Alloy® 400 Fender Washer
  • Alloy 400 Cup Washer
  • Monel K500 Tab Washer Exporter
  • ASTM B164 Monel K500 Wave Washer
  • Nickel Alloy 400 Round Washer
  • Monel K500 Spring Washers
  • K500 Monel Split Ring Washer
  • Monel 400 Punched Washer
  • 400 Monel Square Washer Manufacturer
  • Monel Alloy K500 Customized Washer
  • ASTM B164 Monel K500 Dome Washer
  • Monel K500 Dock Washer Stockholder
  • Alloy 400 Ogee Washer
  • Alloy K500 Plain Washer Supplier in Mumbai
  • 2.4360 Machine Washer
  • Monel 400 Dock Washer
  • ASME SB164 Monel K500 Fender Washer
  • Monel 400 Hexagonal Washer
  • Monel 400 Dome Tooth Washer
  • 400 Monel Belleville Washers
  • Monel® Alloy 400 Finishing Washers
  • Monel 400 Tab Washers
  • Nickel Alloy 400 Split Washer
  • ASTM B164 Monel 400 Washers
  • UNS N04400 Washers
  • ASTM B164 Monel K500 Flat Washers
  • Monel K500 Countersunk Washer
  • Nickel Alloy 400 Countersunk Finishing Washer
  • Monel Alloy K500 Flat Washer
  • Monel Alloy 400 Flat Washer Stockist
  • Nickel Alloy K500 Spring Washers Distributor
  • Monel 400 Star Washers
  • Monel 400 Customized Washer
  • Monel Alloy 400 Washer
  • Monel® Alloy K500 Tab Washer Manufacturer
  • Alloy 400 Hex Washers
  • 400 Monel Conical Spring Washer
  • Monel 400 Split / Lock Washer
  • Monel® Alloy 400 Hex Washers
  • Monel Alloy 400 Industrial Washers
  • Monel® Alloy K500 Square Washer
  • Alloy 400 Hex Washers

Monel 400 / K500 Washers Chemical Composition

Grade C Mn Si S Cu Fe Ni
Monel 400 0.30 max 2.00 max 0.50 max 0.024 max 28.00 – 34.00 2.50 max 63.00 min
Monel K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min

Alloy 400 / K500 Washers Mechanical Properties

Grade C Mn Si S Cu Fe Ni
Monel 400 0.30 max 2.00 max 0.50 max 0.024 max 28.00 – 34.00 2.50 max 63.00 min
Monel K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min
