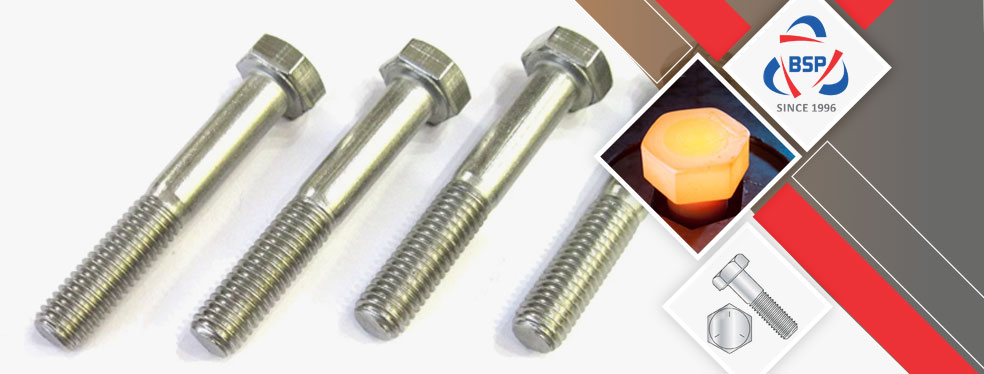

Alloy 20 Hex Bolts

Alloy 20 Hex Bolts, Carpenter 20 Heavy Hex Bolt, Alloy 20 Hexagonal Bolt, Incoloy® Alloy 20 Hex Head Bolt, Alloy 20 Hex Bolts Price in India.

Bagoda Steel is a popular trader and supplier of Alloy 20 Hex Bolts, which possesses exceptional mechanical properties. It is utilized in Chemical system vessels, piping and warmth exchangers; Pulp mill digesters, bleach washers, chip pre-steaming vessels; etc. It is also used in Food processing equipment; Oil discipline piping and warmth exchangers; Flue fueloline desulfurization equipment; etc. Alloy 20Cb3 Hex Bolts is designed for applications which call for tremendous strength and corrosion resistance. This excessive molybdenum, chromium and nitrogen content material effects in exceptional resistance to chloride pitting and crevice corrosion assault and the shape offers with tremendous resistance to chloride strain corrosion cracking. Extended improved temperature publicity can lessen each the sturdiness and corrosion resistance of alloy.

Industrial Product
Alloy 20 Hex Bolts

Alloy 20 Machine Hex Bolt, Carpenter 20Cb-3® Industrial Hex Bolt, Alloy 20Hex Bolt Stockist, Incoloy® Alloy 20 Hex Flange Bolt, Alloy 20 Hex Cap Screw, 2.4660 Hex Bolts, Hastelloy® Alloy 20 Hex Head Shoulder Bolt, UNS N08020 Full Threaded Hex Bolt Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Often a mild gauge material may be used to acquire the equal design strength of a thicker nickel alloy. The ensuing financial savings in weight can dramatically lessen the general value of fabrication. It is relatively proof against uniform corrosion via way of means of natural acids together with formic and acetic acid. It is likewise relatively proof against inorganic acids, mainly in the event that they comprise chlorides. UNS N08020 Hex Bolts is relatively proof against carbide-associated intergranular corrosion. Due to the ferrite part of the shape of the alloy its miles very proof against strain corrosion cracking in heat chloride containing environments. Through additions of chromium, molybdenum and nitrogen localized corrosion together in company of pitting and crevice assault are improved. It has exceptional localized pitting resistance.

It has High resistance to chloride strain corrosion cracking, High Strength, Superior resistance to chloride pitting and crevice corrosion, and Good popular corrosion resistance. It is Suggested for applications as much as 600° F, Low fee of thermal expansion, Combination of properties given via way of means of austenitic and ferrite shape, Good weldability and workability. WNR 2.4660 Hex Bolts is utilized in Desalination Equipment; Chemical method strain vessels, piping and warmth exchangers; etc. It is as well used in Marine Applications; Flue Gas Scrubbing Equipment; Pulp & Paper Mill Equipment; Offshore Oil production/technology; Oil and fueloline enterprise equipment; etc.

Material Specification Chart of Alloy 20 Hex Bolts

Standard DIN 933, DIN 931, DIN-EN14399-4, DIN 601, ISO 4016, IS1364, ISO 4014, ISO 4017, BS 1768, BS 1083, ASME B18.2.1, JIS B1180, DIN 558, ISO 4018, CSN 21301, EU 24016, DIN 7968, DIN7990
Manufacturing Method
  • Cold Forming Hex Bolt: M2 to M24
  • Hot Forging Hex Bolt: M24 to M100
Metric Sizes
  • Dia: M10 – M110
  • Length: 12 – 1200MM
Length 3 mm to 200 mm or custom
US Threads METRIC, BSW, BSF, Unified national coarse (UNC), Unified national fine (UNF), Unified national extra fine (UNEF), UNJC and UNJF threads, UNK threads, UNR threads, Constant-pitch threads
UTS – Unified Thread Standard UNC, UNF, NPT, UNS, UNEF, NPTF
Heads and drive style Phillips/ Slot, Phillips, indented hex head, Oval, Pan, Flat 82 degree, Round, flat undercut, Truss, binding, flat head 100 degree, Slotted, fillister head, Six-Lobe
Manufacturing process Wire Drawing, Insert tapping, Cold Heading, Heat Treatment, Inspection, Surface Plating, Packing
Standard
  • ANSI B 28.2.4 1M/ B 18.2.4 2M
  • ANSI – American National Standards Institute
  • GB/T5783, GB/T5782, GB5783
  • American ASME
  • Indian IS
  • International ISO
  • American SAE
  • German DIN
  • Spanish CSN
  • British BS
  • Italian UNI
  • Polish PN
  • European EU
Surface Coating
  • Ptfe Coated Hex Bolts
  • Hot Dipped Galvanized
  • Phosphate
  • Teflon
  • Xylon
  • Zinc Phosphate
  • Manganese Phosphate
  • Zinc Electro Plating (Hexavalent or Trivalent Chrome)
  • ZAC (Zinc Alluminium Flake Coating)
  • Cadmium
Surface treatment
  • Polish
  • Passivation
  • Black oxide coating
  • Anodizing
  • Sand blasting
  • Rust preventive oil
  • Heat-disposing
  • Hot dip galvanized
  • Electroplating color
Test Certificates
  • EN 10204 / 3.1 MTC
  • ISO 898-1, ISO 898-2,
  • EN 14399-10
  • EN 14399-2
  • ISO 148-1, ISO 6508-1
ISO – International Organization for Standardization
  • ISO 4014
  • ISO 4017
  • ISO 4032
  • ISO 4162
  • ISO 4161

Various Types Of Alloy 20 Hex Bolts

Alloy 20 Hex Head Bolt
Alloy 20 Hex Head Bolt
  • Alloy 20 Hex Head Bolt
  • 2.4660 Hex Head Bolts
  • ALLOY 20CB-3® Hex Head Bolt
  • UNS N08020 Hex Head Bolts
  • Alloy 20 Hex Socket Head Bolt
Alloy 20 Heavy Hex Bolts
Alloy 20 Heavy Hex Bolt
  • Alloy 20 Heavy Hex Bolts
  • Alloy 20 Heavy Hex Bolts
  • Carpenter 20 Heavy Hex Bolts
  • 2.4660 Heavy Hex Bolts
  • UNS N08020 Heavy Hex Bolts
Alloy 20 Hex Flange Bolts
Alloy 20 Hex Flange Bolt
  • Incoloy® Alloy 20 Flange Hex Bolts
  • UNS N08020 Hex Flange Bolt
  • Alloy 20 Hex Flange Bolt
  • 2.4660 Hex Flange Bolts
  • Alloy 20 Hex Flange Bolt
Alloy 20 Slotted Hex Bolts
Alloy 20 Slotted Hex Bolt
  • UNS N08020 Slotted Hex Bolts
  • Alloy 20 Slotted Hex Bolt
  • Carpenter 20Cb-3® Slotted Hex Bolts
  • 2.4660 Beveled Slotted Hex Bolt
  • Alloy 20 Slotted Hex Bolts
Alloy 20 Full Threaded Hex Bolt
Alloy 20 Full Threaded Hex Bolt
  • Alloy 20 Full Threaded Hex Bolt
  • 2.4660 Fully Threaded Hex Bolt
  • Alloy 20 Full Threaded Hex Bolt
  • EN NiCr20CuMo Full Threaded Hex Bolt
  • UNS N08020 Fully Threaded Hex Bolts
Alloy 20 Half Threaded Hex Bolts
Alloy 20 Half Threaded Hex Bolt
  • UNS N08020 Half Threaded Hex Bolts
  • Alloy 20 Half Threaded Hex Bolts
  • 2.4660 Half Threaded Hex Bolts
  • Alloy 20 Half Threaded Hex Bolts
  • Carpenter 20 Half Threaded Hex Bolts

Equivalent Grades of Alloy 20 Hex Bolts

STANDARD UNS WERKSTOFF NR. EN AFNOR
Alloy 20 N08020 2.4660 NiCr20CuMo Z2NCUD31-20AZ
Hex Bolts Dimensions

View Size Table Of Alloy 20 Hex Bolts, We have Global sales network for Carpenter 20 Heavy Hex Bolts, Wide Stockist Of Werkstoff No 2.4660 Hex Head Bolts, Industrial Hex Bolts In India.

Dimensions of Alloy 20 Hex Bolts

Nominal Size or Basic
Product Diameter		 E F G H R LT
Full-size Body Diameter Width Across Flats Width Across Corners Height Radius of Fillet Nominal Thread Length for
Bolt Lengths
6 in. and
Shorter		 Over
6 in.
Max. Min. Basic Max. Min. Max. Min. Basic Max. Min. Max. Min.
1/4 0.2500 0.260 0.237 7/16 0.438 0.425 0.505 0.484 11/64 0.188 0.150 0.03 0.01 0.750 1.000
5/16 0.3125 0.324 0.298 1/2 0.500 0.484 0.577 0.552 7/32 0.235 0.195 0.03 0.01 0.875 1.125
3/8 0.3750 0.388 0.360 9/16 0.562 0.544 0.650 0.620 1/4 0.268 0.226 0.03 0.01 1.000 1.250
1/2 0.4375 0.452 0.421 5/8 0.625 0.603 0.722 0.687 19/64 0.316 0.272 0.03 0.01 1.125 1.375
1/2 0.5000 0.515 0.482 3/4 0.750 0.725 0.866 0.826 11/32 0.364 0.302 0.03 0.01 1.250 1.500
5/8 0.6250 0.642 0.605 15/16 0.938 0.906 1.083 1.033 27/64 0.444 0.378 0.06 0.02 1.500 1.750
3/4 0.7500 0.768 0.729 1-1/8 1.125 1.088 1.299 1.240 1/2 0.524 0.455 0.06 0.02 1.750 2.000
7/8 0.8750 0.895 0.852 1-5/16 1.312 1.269 1.516 1.447 37/64 0.604 0.531 0.06 0.02 2.000 2.250
1 1.0000 1.022 0.976 1-1/2 1.500 1.450 1.732 1.653 43/64 0.700 0.591 0.09 0.03 2.250 2.500
1-1/8 1.1250 1.149 1.098 1-11/16 1.688 1.631 1.949 1.859 3/4 0.780 0.658 0.09 0.03 2.500 2.750
1-1/4 1.2500 1.277 1.223 1-7/8 1.875 1.812 2.165 2.066 27/32 0.876 0.749 0.09 0.03 2.750 3.000
1-3/8 1.3750 1.404 1.345 2-1/16 2.062 1.994 2.382 2.273 29/32 0.940 0.810 0.09 0.03 3.000 3.250
1-1/2 1.5000 1.531 1.470 2-1/4 2.250 2.175 2.598 2.480 1 1.036 0.902 0.09 0.03 3.250 3.500
1-5/8 1.6250 1.658 1.591 2-7/16 2.438 2.356 2.815 2.616 1-3/32 1.116 0.978 0.09 0.03 3.500 3.750
1-3/4 1.7500 1.785 1.716 2-5/8 2.625 2.538 3.031 2.893 1-5/32 1.196 1.054 0.12 0.04 3.750 4.000
1-7/8 1.8750 1.912 1.839 2-13/16 2.812 2.719 3.248 3.099 1-1/4 1.276 1.130 0.12 0.04 4.000 4.250
2 2.0000 2.039 1.964 3 3.000 2.900 3.464 3.306 1-11/32 1.388 1.175 0.12 0.04 4.250 4.500
2-1/4 2.2500 2.305 2.214 3-3/8 3.375 3.262 3.897 3.719 1-1/2 1.548 1.327 0.19 0.06 4.750 5.000
2-1/2 2.5000 2.559 2.461 3-3/4 3.750 3.625 4.330 4.133 1-21/32 1.708 1.479 0.19 0.06 5.250 5.500
2-3/4 2.7500 2.827 2.711 4-1/8 4.125 3.988 4.763 4.546 1-13/16 1.869 1.632 0.19 0.06 5.750 6.000
3 3.0000 3.081 2.961 4-1/2 4.500 4.350 5.196 4.959 2 2.060 1.815 0.19 0.06 6.250 6.500
3-1/4 3.2500 3.335 3.210 4-7/8 4.875 4.712 5.629 5.372 2-3/16 2.251 1.936 0.19 0.06 6.750 7.000
3-1/2 3.5000 3.589 3.461 5-1/4 5.250 5.075 6.062 5.786 2-5/16 2.380 2.057 0.19 0.06 7.250 7.500
3-3/4 3.7500 3.858 3.726 5-5/8 5.625 5.437 6.495 6.198 2-1/2 2.572 2.241 0.19 0.06 7.750 8.000
4 4.0000 4.111 3.975 6 6.000 5.800 6.928 6.612 2-11/16 2.764 2.424 0.19 0.06 8.250 8.500

Dimensions of Alloy 20 Heavy Hex Bolts

Nominal Size
or Basic
Product Diameter		 E F G H R LT
Full-size Body
Diameter		 Width Across Flats Width Across
Corners		 Head Height Radius of Fillet Nominal Thread
Length for
Screw Lengths
6 in.
and
Shorter		 Over 6
in.
Max. Min. Basic Max. Min. Max. Min. Basic Max. Min. Max. Min. Nom. Nom.
3/8 0.3750 0.388 0.360 11/16 0.688 0.669 0.794 0.763 1/4 0.268 0.226 0.03 0.01 1.000 1.250
1/2 0.5000 0.515 0.482 7/8 0.875 0.850 1.010 0.969 11/32 0.364 0.302 0.03 0.01 1.250 1.500
5/8 0.6250 0.642 0.605 1-1/16 1.062 1.031 1.227 1.175 27/64 0.444 0.378 0.06 0.02 1.500 1.750
3/4 0.7500 0.768 0.729 1-1/4 1.250 1.212 1.443 1.383 1/2 0.524 0.455 0.06 0.02 1.750 2.000
7/8 0.8750 0.895 0.852 1-7/16 1.438 1.394 1.660 1.589 37/64 0.604 0.531 0.06 0.02 2.000 2.250
1 1.0000 1.022 0.976 1-5/8 1.625 1.575 1.876 1.796 43/64 0.700 0.591 0.09 0.03 2.250 2.500
1-1/8 1.1250 1.149 1.098 1-13/16 1.812 1.756 2.093 2.002 3/4 0.780 0.658 0.09 0.03 2.500 2.750
1-1/4 1.2500 1.277 1.223 2 2.000 1.938 2.309 2.209 27/32 0.876 0.749 0.09 0.03 2.750 3.000
1-3/8 1.3750 1.404 1.345 2-3/16 2.188 2.119 2.526 2.416 29/32 0.940 0.810 0.09 0.03 3.000 3.250
1-1/2 1.5000 1.531 1.470 2-3/8 2.375 2.300 2.742 2.622 1 1.036 0.902 0.09 0.03 3.250 3.500
1-5/8 1.6250 1.658 1.591 2-9/16 2.562 2.481 2.959 2.829 1-3/32 1.116 0.978 0.09 0.03 3.500 3.750
1-3/4 1.7500 1.785 1.716 2-3/4 2.750 2.662 3.175 3.035 1-5/32 1.196 1.054 0.12 0.04 3.750 4.000
1-7/8 1.8750 1.912 1.839 2-15/16 2.938 2.844 3.392 3.242 1-1/4 1.276 1.130 0.12 0.04 4.000 4.250
2 2.0000 2.039 1.964 3-1/8 3.125 3.025 3.608 3.449 1-11/32 1.388 1.175 0.12 0.04 4.250 4.500
2-1/4 2.2500 2.305 2.214 3-1/2 3.500 3.388 4.041 3.862 1-1/2 1.548 1.327 0.19 0.06 4.750 5.000
2-1/2 2.5000 2.559 2.461 3-7/8 3.875 3.750 4.474 4.275 1-21/32 1.708 1.479 0.19 0.06 5.250 5.500
2-3/4 2.7500 2.827 2.711 4-1/4 4.250 4.112 4.907 4.688 1-13/16 1.869 1.632 0.19 0.06 5.750 6.000
3 3.0000 3.081 2.961 4-5/8 4.625 4.475 5.340 5.102 2 2.060 1.815 0.19 0.06 6.250 6.500

Check available Sizes of Alloy 20 Hex Bolts, Ask For Ready Stock of UNS N08020 Heavy Hex Bolts in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Alloy 20 Heavy Hex Structural Bolt

Bolt Size A B C D E
Radius of Fillet		 F
Thread Length		 G
Transitional
Thread Length		 Runout of
Bearing Surface
FIM
max min min max min max
1/2″ 0.515 0.482 7/8 0.969 5/16 0.031 0.009 1.00 0.19 0.016
5/8″ 0.642 0.605 1-1/16 1.175 25/64 0.062 0.021 1.25 0.22 0.019
3/4″ 0.768 0.729 1-1/4 1.383 15/32 0.062 0.021 1.38 0.25 0.022
7/8″ 0.895 0.852 1-7/16 1.589 35/64 0.062 0.031 1.50 0.28 0.025
1″ 1.022 0.976 1-5/8 1.796 39/64 0.093 0.062 1.75 0.31 0.028
1-1/8″ 1.149 1.098 1-13/16 2.002 11/16 0.093 0.062 2.00 0.34 0.032
1-1/4″ 1.277 1.223 2 2.209 25/32 0.093 0.062 2.00 0.38 0.035
1-3/8″ 1.404 1.345 2-3/16 2.416 27/32 0.093 0.062 2.25 0.44 0.038
1-1/2″ 1.531 1.470 2-3/8 2.622 15/16 0.093 0.062 2.25 0.44 0.041

Weight Chart Of Alloy 20 Hex Bolts

THREADS According to IS 1363/67
APPROX. WEIGHT IN KGS FOR 100 NOS
LENGTH in mm DIAMETER (METRIC)
M5 M6 M12 M8 M10 M16 M14 M20 M18 M22
16 0.448 0.743 1.590 3.211
20 0.598 0.812 4.892 1.711 3.411
25 0.660 0.897 5.252 1.871 3.660 8.170
30 0.737 1.010 5.574 2.070 3.912 10.707 9.690 18.657
35 0.804 1.120 5.974 2.271 4.223 11.416 10.000 19.608 16.026
40 0.881 1.230 6.410 2.470 4.533 12.107 10.288 20.747 16.667
45 0.958 1.340 6.859 2.671 4.840 12.821 10.504 21.739 17.241
50 1.030 1.450 7.299 2.870 5.155 13.624 11.261 22.727 17.857 28.409
55 1.560 7.740 3.071 5.464 14.409 11.628 23.810 18.868 30.120
60 1.670 8.183 3.270 5.774 15.244 12.255 25.126 20.000 32.051
65 1.781 8.621 3.472 6.083 16.026 12.626 26.455 21.008 34.014
70 1.890 9.058 3.671 6.394 16.835 12.987 27.778 22.124 35.461
75 2.000 9.506 3.873 6.702 17.606 13.228 29.070 23.256 39.063
80 2.111 10.000 4.072 7.013 18.248 13.889 30.303 24.510 40.000
90 10.917 4.472 7.634 19.841 14.925 33.113 26.042 41.667
100 11.820 4.873 8.251 21.459 16.340 35.714 27.778 46.296
110 12.723 8.881 23.041 17.730 38.168 31.250 47.170
120 13.624 9.506 24.631 18.797 40.984 32.895 50.000
130 14.535 10.101 26.316 20.000 43.478 34.722 52.632
140 15.432 10.707 27.933 20.833 46.296 35.461 55.556
150 16.340 11.312 29.412 22.222 48.544 37.594 58.824
160 17.241 11.905 31.056 24.272 50.505 40.984 61.728
170 18.116 12.500 32.680 53.191 64.935
180 19.011 13.123 34.247 26.882 55.556 67.568
190 19.920 13.736 35.971 58.140 70.423
200 20.833 14.327 37.594 29.586 60.976 49.020 73.529
220 22.624 15.528 40.650 65.789 79.365
240 24.510 16.722 43.860 71.429 84.746
250 25.381 17.301 45.455 74.627 87.719
260 26.316 17.921 47.170 76.923 90.909
280 28.090 19.157 50.505 81.967 98.039
300 29.940 20.325 53.763 87.719 104.167
320 31.646 56.818 92.593
340 33.557 60.241 98.039
360 35.211 63.291 104.167
380 37.037 66.667 108.696
400 39.063 69.444 113.636

Ready Stock Alloy 20 Hex Bolts

  • Alloy 20 Heavy Hex Bolts
  • Carpenter 20 Half Threaded Hex Bolt
  • Alloy 20 Slotted Hex Bolts
  • Alloy 20 Hex Flange Bolt
  • Incoloy® Alloy 20 Half Threaded Hex Bolt
  • Alloy 20 Hex Bolt Manufacturer
  • UNS N08020 Hex Bolts
  • Alloy 20 Hexagon Bolt Supplier in Mumbai
  • EN NiCr20CuMo 6022 Heavy Hex Bolts
  • Alloy 20 Hex Socket Bolts Distributor
  • Alloy 20 Hex Structural Bolts
  • Carpenter 20Cb-3® Industrial Hex Bolts
  • Alloy 20 Heavy Hex Bolts
  • Alloy 20 Hex Bolts
  • Incoloy® Alloy 20 Hex Head Shoulder Bolts
  • Alloy 20 Hex Machine Bolt Stockist
  • Alloy 20 Slotted Hex Bolts
  • Carpenter 20 Hexagon Bolts
  • Alloy 20 Hex Head Bolt
  • Alloy 20 Full Threaded Hex Bolt
  • ALLOY 20CB-3® Hexagon Screw Head Bolt
  • Alloy 20 Flanged Hex Bolts Stockholder
  • Alloy 20 Hex Bolts Manufacturer
  • Carpenter 20 Hex Head Shoulder Bolt
  • Alloy 20 Hex Cap Screw
  • Alloy 20 Hex Tap Bolts
  • Incoloy® Alloy 20 Socket Head Cap Screw
  • Alloy 20 High Tensile Hex Bolts
  • Alloy 20 Industrial Hex Bolts Exporter
  • DIN 2.4660 Hex Bolts
  • Alloy 20 Metric Hex Bolts
  • EN Nicr20cumo Heavy Hex Structural Bolt
  • Alloy 20 Fully Threaded Hex Bolt
  • Alloy 20 Self Sealing Hex Bolts
  • 2.4660 Hex Machine Bolt
  • Carpenter 20Cb-3® Threaded Hex Bolts

Alloy 20 Hex Bolts Chemical Composition

Grade C Mn Si S Cu Ni Cr Fe Mo P
Alloy 20 0.07 max 2.00 max 1.00 max 0.035 max 3.00 – 4.00 32.00 – 38.00 19.00 – 21.00 29.85 min* 2.00 – 3.00 0.045 max

Alloy 20 Hex Bolts Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Alloy 20 8.1 g/cm3 1443 °C (2430 °F) Psi -80,000, MPa -551 Psi - 35,000, MPa - 241 30 %

Export Destinations For Alloy 20 Hex Bolts

industry
