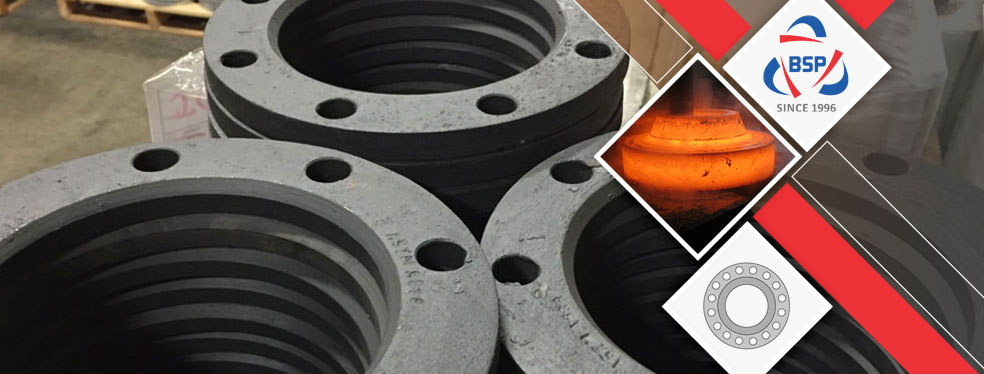

A182 F9 Socket weld Flanges, UNS K90941 Flanges, Chrome Moly F9 Long Weld Neck Flanges, DIN 1.7386 SORF Flanges, ASME SA182 F9 Forged Flanges, A182 F9 RTJ Flanges Supplier in Mumbai, India.
It is usually taken into consideration to be weldable through the not unusual place fusion and resistance techniques. ASTM A182 Alloy Steel F9 Blind Flanges is susceptibility to carbide precipitation for the duration of welding restricts its use in many applications in prefer of different alloys. It lets in better tensile strengths to be carried out through rolling with a decrease lack of ductility. Through such forming techniques pressure hardened, it is able to be partly converted to martensitic. Sometimes forming manner for this alloy is hard in which a couple of forming techniques are necessary. It can't be hardened through thermal treatment.
Considering our understanding and functionality to competitively supply business metals like this alloy, we've got set up recognition of a favored sourcing and deliver companion of diverse business purchasers in the course of India and within the worldwide market. It does now no longer reply to warmth treatment. The mechanical properties for the one of a kind tempers of this alloy are received through cold working and now no longer through warmth treating. Stress Relief Annealing Heat for this ASME SA 182 Alloy Steel F9 Spectacle Blind Flanges is finished at 500 Degree F – 900 Degree F (260 Degree C – 482 Degree C), after which air cool.
Material Specification Chart of Alloy Steel F9 Flanges
| Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Most common types | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Alloy Steel F9 Flanges Manufacturing Standards
| American Standard | Standard Code | ANSI ASME SA182 | ANSI ASME B16.5 | ASME – B 16.47 | ASME – B 16.36 | ||
|---|---|---|---|---|---|---|---|
| Standard Name | Forged Flanges | Slip on flange, Welding neck flange, Blind flange, Threaded flange, Lap joint flange, RTJ flange | Welding neck flange, Blind flange | Welding neck flange Slip on flange | |||
| German Standard | DIN 2527 | DIN 2573 / 2576 | DIN 2673 | DIN 2641 / 2642 | DIN 28115 | DIN PN10, PN16 | DIN PN20, PN25 |
| Blind Flanges, BLRF | Flat Flange for Welding (Slip On) | Loose Flanges and Rings for Welding (Slip On Flanges and Plain Collars) | Lapped / Loose (Lap Joint) Flanges Plain Collars | Long Neck Welding Flanges | PN10 Flanges, DIN PN 10 Flanges, PN16 Flange | PN20 Flanges, DIN PN 25 Flanges | |
| Japanese Standard | JIS B2220 | JIS B2291 | JIS 5K, 10K | JIS 16K, 20K | JIS 30K, 40K | ||
| Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL) | Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL) | 5K SORF Flanges, 10K SOFF Flanges | 16K Blind Flanges, 20K BLRF Flanges | 30K Slip on Flanges, 40K Blind Flanges | |||
| Italian Standard | UNI FLANGES | ||||||
| Plan flanges (2276, 2277, 2278, 6083, 6084) Welding neck (2280, 2281, 2282, 2283, 2284, 2285, 2286) Lapped flanges (6088, 6089, 6090, 2999, 2300) Blind flanges (6091, 6092, 6093, 6094, 6095, 6096, 6097) threaded flanges (2253, 2254) | |||||||
| British Standard | BS 10 Table D | BS 10 Table E | BS 10 Table F | BS 10 Table H | |||
| BS 10 Table D Flanges, Table D Pipe Flange | BS 10 Table E Flanges, Table E Pipe Flange | BS 10 Table E Flanges, Table E Flanges | BS 10 Table E Flanges, Table E Pipe Flanges |
Manufacturing Standards / Pressure Rating
| ASME/ANSI B 16.5 | Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Slip on Flange, Threaded Flange, Welding Neck Flange, |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | PN 2.5 TO PN F9 |
| BS 1560 BOSS | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Various Types Of Alloy Steel F9 Flanges
- Alloy Steel F9 Socket weld Flanges
- UNS K90941 Socket weld Flanges
- Chrome Moly F9 SWRF Flanges
- 1.7386 Socket weld Flange
- ASTM A182 Alloy Steel F9 Socket weld Flanges
- ASME SA182 Alloy Steel F9 SWRF Flanges
- 1.7386 Lap Joint Flange
- ASME SA182 Alloy Steel F9 Lapped Joint Flanges
- ASTM A182 Alloy Steel F9 Lap Joint Flanges
- Chrome Moly F9 LJ Flanges
- Alloy Steel F9 Lapped Joint Flanges
- UNS K90941 Lap Joint Flanges
- 1.7386 Slip on Flange
- Chrome Moly F9 Slip on Flanges
- ASTM A182 Alloy Steel F9 Slip on Flanges
- ASME SA182 Alloy Steel F9 SORF Flanges
- Alloy Steel F9 SORF Flanges
- UNS K90941 Slip on Flanges
- 1.7386 Forged Flange
- Chrome Moly F9 Forged Flanges
- ASTM A182 Alloy Steel F9 Forged Flanges
- ASME SA182 Alloy Steel F9 Forged Flanges
- UNS K90941 Forged Flanges
- CrMo F9 Forged Flanges
- 1.7386 Orifice Flange
- UNS K90941 Orifice Flanges
- Chrome Moly F9 Orifice Flanges
- ASTM A182 Alloy Steel F9 Orifice Flanges
- CrMo F9 Orifice Flanges
- ASME SA182 Alloy Steel F9 Orifice Flanges
- ASME SA182 Alloy Steel F9 BLRF Flanges
- Chrome Moly F9 Blind Flanges
- Alloy Steel F9 BLRF Flanges
- 1.7386 Blind Flange
- ASTM A182 Alloy Steel F9 Blind Flanges
- UNS K90941 Blind Flanges
- ASME SA182 Alloy Steel F9 WNRF Flanges
- Chrome Moly F9 Welding Neck Flanges
- ASTM A182 Alloy Steel F9 Weld Neck Flanges
- 1.7386 Welding Neck Flange
- CrMo F9 WNRF Flanges
- UNS K90941 Weld Neck Flanges
- ASME SA182 Alloy Steel F9 Reducing Flanges
- ASTM A182 Alloy Steel F9 Reducing Flanges
- UNS K90941 Reducing Flanges
- Chrome Moly F9 Reducing Flanges
- 1.7386 Reducing Flange
- CrMo F9 Reducing Flanges
- Alloy Steel F9 Screwed Flanges
- Chrome Moly F9 Threaded Flanges
- ASTM A182 Alloy Steel F9 Threaded Flanges
- ASME SA182 Alloy Steel F9 Screwed Flanges
- UNS K90941 Threaded Flanges
- 1.7386 Threaded Flange
- 1.7386 Long Weld Neck Flange
- ASME SA182 Alloy Steel F9 LWN Flanges
- UNS K90941 Long Weld Neck Flanges
- ASTM A182 Alloy Steel F9 Long Weld Neck Flanges
- Chrome Moly F9 LWN Flanges
- CrMo F9 Long Weld Neck Flanges
- 1.7386 Spectacle Blind Flange
- ASTM A182 Alloy Steel F9 Spectacle Blind Flanges
- Chrome Moly F9 Spectacle Blind Flanges
- ASME SA182 Alloy Steel F9 Spectacle Blind Flanges
- CrMo F9 Spectacle Blind Flanges
- UNS K90941 Spectacle Blind Flanges
- ASTM A182 Alloy Steel F9 RTJ Flanges
- ASME SA182 Alloy Steel F9 RTJ Flanges
- 1.7386 Ring Type Joint Flange
- UNS K90941 Ring Type Joint Flanges
- Chrome Moly F9 RTJ Flanges
- CrMo F9 Ring Type Joint Flanges
Equivalent Grades of Alloy Steel F9 Flanges
| STANDARD | WERKSTOFF NR. | UNS |
| Alloy Steel F9 | 1.7386 | K90941 |
View Size Table Of Alloy Steel F9 Pipe Flanges, We have Global sales network for Alloy Steel F9 SORF Flanges, Wide Stockist Of Werkstoff No 1.7386 BLRF Flanges, Raised Face, Flat Face Flanges In India.
Check available Sizes of ASME SA 182 Alloy Steel F9 Pipe Flanges, Ask For Ready Stock of UNS K90941 Male & Female Flanges in Mumbai, India.
BAGODA
Quick Contact
Schedule / Class of Alloy Steel F9 Flanges
| Flange Schedule/Class | Flange Connection Type | Pipe Size – Pipe Flanges | Max. Pressure |
|---|---|---|---|
| ASME B16.5 Class 150 | FNPT | 1/2″ | 150 psi |
| ASME B16.5 Class 150 | Socket Weld | 1/2″ | 275 psi |
| ASME B16.5 Class 150 | Welded | 1/2″ | 150 psi |
| ASME B16.5 Class 150 | FNPT | 3/4″ | 150 psi |
| ASME B16.5 Class 150 | Socket Weld | 3/4″ | 275 psi |
| ASME B16.5 Class 150 | Socket Weld | 1-1/4″ | 275 psi |
| ASME B16.5 Class 150 | Socket Weld | 1-1/2″ | 275 psi |
| ASME B16.5 Class 150 | FNPT | 2″ | 150 psi |
| ASME B16.5 Class 150 | Socket Weld | 2″ | 275 psi |
| ASME B16.5 Class 150 | Socket Weld | 2-1/2″ | 275 psi |
| ASME B16.5 Class 150 | Socket Weld | 3″ | 275 psi |
| ASME B16.5 Class 150 | FNPT | 4″ | 150 psi |
| ASME B16.5 Class 150 | Socket Weld | 4″ | 275 psi |
| ASME B16.5 Class 300 | Slip On | 1/2″ | 720 psi |
| ASME B16.5 Class 300 | Slip On | 1/2″ | 720 psi |
| ASME B16.5 Class 300 | Slip On | 1″ | 720 psi |
| ASME B16.5 Class 300 | Slip On | 1″ | 720 psi |
| ASME B16.5 Class 300 | FNPT | 1-1/4″ | 720 psi |
| ASME B16.5 Class 300 | Slip On | 1-1/4″ | 720 psi |
| ASME B16.5 Class 300 | Slip On | 1-1/2″ | 720 psi |
| ASME B16.5 Class 300 | Slip On | 1-1/2″ | 720 psi |
| ASME B16.5 Class 300 | Slip On | 2″ | 720 psi |
| ASME B16.5 Class 300 | Slip On | 2″ | 720 psi |
| ASME B16.5 Class 300 | Slip On | 2-1/2″ | 720 psi |
| ASME B16.5 Class 300 | Slip On | 2-1/2″ | 720 psi |
| ASME B16.5 Class 300 | Slip On | 3″ | 720 psi |
| ASME B16.5 Class 300 | Slip On | 3″ | 720 psi |
| ASME B16.5 Class 300 | Slip On | 4″ | 720 psi |
| ASME B16.5 Class 300 | Slip On | 4″ | 720 psi |
Pressure Rating Of Alloy Steel F9 Flanges
| ANSI/ASME B16.34 | PRESSURE RATING CHART | ||||||
| Temperature °F | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
Size Chart Of Alloy Steel F9 Flange
| Nominal Pipe Size | Outside Diameter of Flanges | Thickness of Flanges | Diameter of Raised Face | Diameter of Hub at Base | Length Thru Hub | Diameter or Bore | Diameter of Hub at Bevel | Radius of Fillet | Depth of Socket | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Welding Neck | Slip-On Threaded Socket | Lap Joint | Slip-on Socket | Lap Joint | ||||||||
| O | Q | R | X | Y | Y | Y | W | B | H | r | Z | |
| 1/2 | 3-1/2 | 7/16 | 1-3/8 | 1-3/16 | 1-7/8 | 5/8 | 5/8 | .88 | .90 | .84 | 1/8 | 3/8 |
| 3/4 | 3-7/8 | 1/2 | 1-11/16 | 1-1/2 | 2-1/16 | 5/8 | 5/8 | 1.09 | 1.11 | 1.05 | 1/8 | 7/16 |
| 1 | 4-1/4 | 9/16 | 2 | 1-15/16 | 2-3/16 | 11/16 | 11/16 | 1.36 | 1.38 | 1.32 | 1/8 | 1/2 |
| 1-1/4 | 4-5/8 | 5/8 | 2-1/2 | 2-5/16 | 2-1/4 | 13/16 | 13/16 | 1.70 | 1.72 | 1.66 | 3/16 | 9/16 |
| 1-1/2 | 5 | 11/16 | 2-7/8 | 2-9/16 | 2-7/16 | 7/8 | 7/8 | 1.95 | 1.97 | 1.90 | 1/4 | 5/8 |
| 2 | 6 | 3/4 | 3-5/8 | 3-1/16 | 2-1/2 | 1 | 1 | 2.44 | 2.46 | 2.38 | 5/16 | 11/16 |
| 2-1/2 | 7 | 7/8 | 4-1/8 | 3-9/16 | 2-3/4 | 1-1/8 | 1-1/8 | 2.94 | 2.97 | 2.88 | 5/16 | 3/4 |
| 3 | 7-1/2 | 15/16 | 5 | 4-1/4 | 2-3/4 | 1-3/16 | 1-3/16 | 3.57 | 3.60 | 3.50 | 3/8 | 13/16 |
| 3-1/2 | 8-1/2 | 15/16 | 5-1/2 | 4-13/16 | 2-13/16 | 1-1/4 | 1-1/4 | 4.07 | 4.10 | 4.00 | 3/8 | 7/8 |
| 4 | 9 | 15/16 | 6-3/16 | 5-5/16 | 3 | 1-5/16 | 1-5/16 | 4.57 | 4.60 | 4.50 | 7/16 | 15/16 |
| 5 | 10 | 15/16 | 7.5/16 | 6-7/16 | 3-1/2 | 1-7/16 | 1-7/16 | 5.66 | 5.69 | 5.56 | 7/16 | 15/16 |
| 6 | 11 | 1 | 8-1/2 | 7-9/16 | 3-1/2 | 1-9/16 | 1-9/16 | 6.72 | 6.75 | 6.63 | 1/2 | 1-1/16 |
| 8 | 13-1/2 | 1-1/8 | 10-5/8 | 9-11/16 | 4 | 1-3/4 | 1-3/4 | 8.72 | 8.75 | 8.63 | 1/2 | 1-1/4 |
| 10 | 16 | 1-3/16 | 12-3/4 | 12 | 4 | 1-15/16 | 1-15/16 | 10.88 | 10.92 | 10.75 | 1/2 | 1-5/16 |
| 12 | 19 | 1-1/4 | 15 | 14-3/8 | 4-1/2 | 2-3/16 | 2-3/16 | 12.88 | 12.92 | 12.75 | 1/2 | 1-9/16 |
| 14 | 21 | 1-3/8 | 16-1/4 | 15-3/4 | 5 | 2-1/4 | 3-1/8 | 14.14 | 14.18 | 14.00 | 1/2 | 1-5/8 |
| 16 | 23-1/2 | 1-7/16 | 18-1/2 | 18 | 5 | 2-1/2 | 3-7/16 | 16.16 | 16.19 | 16.00 | 1/2 | 1-3/4 |
| 18 | 25 | 1-9/16 | 21 | 19-7/8 | 5-1/2 | 2-11/16 | 3-13/16 | 18.18 | 18.20 | 18.00 | 1/2 | 1-15/16 |
| 20 | 27-1/2 | 1-11/16 | 23 | 22 | 5-11/16 | 2-7/8 | 4-1/16 | 20.20 | 20.25 | 20.00 | 1/2 | 2-1/8 |
| 24 | 32 | 1-7/8 | 27-1/4 | 26-1/8 | 6 | 3-1/4 | 4-3/8 | 24.25 | 24.25 | 24.00 | 1/2 | 2-1/2 |
Weight Chart Of Alloy Steel F9 Flanges
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | dn | O | C | X | G | Y | T | BC | BH | BN | BD | ||
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
| 5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
| 16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
Ready Stock Alloy Steel F9 Flanges
- 1.7386 SWRF Flange
- ANSI B16.5 Alloy Steel F9 PN16 Flanges
- Alloy Steel F9 Welding Neck Flanges
- Alloy Steel F9 Class 2500 Flange
- 3 inch Alloy Steel F9 Welding Neck 300 LBS Flange
- ASME SA182 Alloy Steel F9 Forged Flanges
- Chrome Moly F9 Blind Flange
- Alloy Steel F9 WNRF Flange
- Alloy Steel F9 JIS B2220 Flange
- Alloy Steel F9 Orifice Flanges
- 6 Inch Alloy Steel F9 Pipe Flanges
- Alloy Steel F9 Reducing Flanges
- ASME B16.5 Alloy Steel F9 Slip on Flanges
- Alloy Steel F9 Screwed Flanges
- Alloy Steel F9 Pipe Flanges
- Alloy Steel F9 Ring Type Joint Flanges
- Alloy Steel F9 Tongue & Groove Flanges
- Alloy Steel F9 BLRF Flange
- ASME B16.5 AS F9 Spectacle Blind Flanges
- Alloy Steel F9 Paddle Spacer Flanges
- Alloy Steel F9 High Hub Blind Flanges
- Alloy Steel F9 EN 1092-1 Flange
- ASTM A182 Alloy Steel F9 Plate Flanges
- DIN 1.7386 Pipe Flanges
- Alloy Steel F9 DN150 PN16 Flange
- Alloy Steel F9 BLRF Flange
- F9 Alloy Steel RTJ Flanges Manufacturer
- Alloy Steel F9 Loose Flanges
- Chrome Moly F9 JIS B2220 Flange
- Alloy Steel F9 BS 4504 Flanges
- UNS K90941 Flanges
- ASTM A182 Chrome Moly F9 Socket weld Flanges
- Chrome Moly F9 Square Flanges
- Alloy Steel F9 BS 4504 Flanges
- ANSI B16.5 Alloy Steel F9 Male & Female Flanges
- CrMo F9 Blind Flanges Supplier in Mumbai
- Alloy Steel F9 Lapped Joint Flanges
- Alloy Steel F9 Large Diameter Flanges
- Alloy Steel F9 Flanges
- Alloy Steel F9 Flanges Manufacturer
- Chrome Moly F9 JIS B2220 Flange
- Alloy Steel F9 Slip On Flanges Distributor
- Alloy Steel F9 Long Weld Neck Flanges
- ASTM A182 Alloy Steel F9 Expander Flanges
- CrMo F9 DIN 2566 PN10 Flanges Stockholder
- Alloy Steel F9 Threaded Flanges
- Alloy Steel F9 Raised Face Flanges Exporter
- ASTM A182 Alloy Steel F9 SORF Flange
- Alloy Steel F9 Flat Flanges
- Chrome Moly F9 Lap Joint Flanges
- Alloy Steel F9 AWWA C207 Flange Stockist
- Class 150 Alloy Steel F9 Pipe Flange
Alloy Steel F9 Flanges Chemical Composition
| Grade | C | Mn | Si | Mo | Cr | P | Others |
| ASTM A182 F5 | 0.15 Max | 0.30-0.60 | 0.50 Max | 0.44-0.65 | 4.0-6.0 | 0.035 Max | - |
Alloy Steel F9 Flanges Mechanical Properties
| Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min |
| 415 | 30 | 205 |
