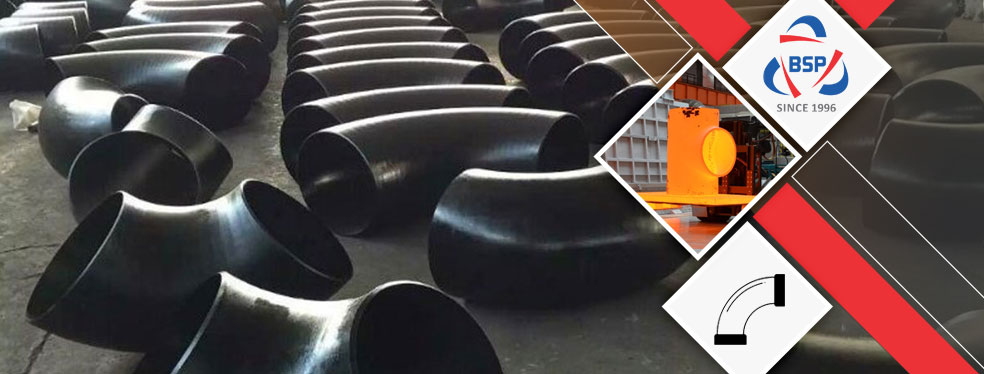

A234 WPB LR Elbow In Spain, Carbon Steel A234 WPB Stub End In Philippines, ASTM A234 WPB Cross, A234 WPB Equal Tee, Carbon Steel A234 WPB Reducer Supplier in Mumbai, India.
Fully hardened – and – tempered, our low - carbon pipe fittings have an awesome aggregate of strength and sturdiness, each at room temperature and coffee temperature. Care have to be taken in warmness remedy of these pipe fittings, however, due to the fact sturdiness may also possibly be reduced drastically with the aid of using mood brittleness. ASTM A234 Carbon Steel WPB 45-Degree Elbow Pipe Fittings is a shape of embrittlement evolved with the aid of using sluggish cooling thru the variety of 900 Degree F to six hundred Degree F, or with the aid of using protecting or tempering on this variety. It is as properly appropriate for hydraulic and instrumentation applications in tropical marine environments.
It gives some of best capabilities which include dimensional accuracy, impeccable finish, abrasion resistant, etc. It is a super - austenitic alloy taken into consideration for pitting and corrosion resistance in an enormous series of technique atmospheres. It is proposed to be used below strict corrosion situations within the improvement industry. ASME SA 234 Carbon Steel WPB 90-Degree Elbow Pipe Fittings is a high - alloy austenitic metal by using low content material of carbon. It is acid - evidence and hovering alloyed metal that is industrialized to face up to corrosion in diluted sulfuric acid. Meanwhile, it's also being provided in distinct dimensions and shapes to our customers.
Material Specification Chart of Carbon Steel A234 WPB Pipe Fittings
| Specifications | ASTM A234/ ASME SA234 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A234 Gr WPB Pipe Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A234 Gr WPB Buttweld Fitting |
| Connection | Welding |
| Manufacturing Process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized Manufacturer of | 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
Carbon Steel A234 WPB Pipe Fittings Manufacturing Standards
| ASTM A234/A234M | Wrought Austenitic SS Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| MSS SP-43 | Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications |
| BS3799 – | Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry |
| ASTM A234 – ASME SA234 | Standard Specification for Wrought Austenitic SS Piping Fitting |
| ASME Standard | ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43 |
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | Wrought Steel SR Elbows and Buttwelding Returns |
| API 590-605 ASME B16.9 |
‘Factory-Made Wrought Butt-welding Fittings’ |
Various Types Of ASTM A234 Gr WPB weld Pipe Fittings
- Carbon Steel A234 WPB 3D Butt weld Elbow In Indonesia
- A234 WPB Carbon Steel LR Elbow
- Carbon Steel A234 WPB 90 Degree Elbow
- Carbon Steel A234 WPB 45 Degree Elbow In Malaysia
- Carbon Steel A234 WPB 180 Deg Elbow
- ANSI B16.9 Carbon Steel A234 WPB 5D Elbow
- ASTM A234 Gr WPB Short Radius Elbow
- ANSI B16.9 Carbon Steel A234 WPB Buttweld Tee
- Carbon Steel A234 WPB Tee
- Carbon Steel A234 WPB Unequal Tee In Mexico
- Carbon Steel A234 WPB Reducing Tee
- A234 WPB Carbon Steel Butt weld Tee
- ASTM A234 Gr WPB Buttweld Tees In Philippines
- A234 WPB Carbon Steel Equal Tee
- A234 WPB Carbon Steel Equal Cross
- Carbon Steel A234 WPB Cross In Japan
- ANSI B16.9 Carbon Steel A234 WPB Buttweld Cross
- Carbon Steel A234 WPB Reducing Cross
- A234 WPB Carbon Steel Butt weld Cross
- Carbon Steel A234 WPB Unequal Cross In Italy
- ASTM A234 Gr WPB Buttweld Cross
- ASTM A234 Gr WPB Concentric Reducer
- Carbon Steel A234 WPB Concentric Reducer In Spain
- A234 WPB Carbon Steel Butt weld Concentric Reducer
- ANSI B16.9 Carbon Steel A234 WPB Concentric Reducer
- A234 WPB Carbon Steel Concentric Reducer In Kuwait
- ANSI B16.9 Carbon Steel A234 WPB Eccentric Reducer
- ASTM A234 Gr WPB Eccentric Reducer
- A234 WPB Carbon Steel Eccentric Reducer In Singapore
- A234 WPB Carbon Steel Butt weld Eccentric Reducer
- Carbon Steel A234 WPB Eccentric Reducer In Indonesia
- ASTM A234 Gr WPB Butt weld Stub End In Kuwait
- ASTM A234 Gr WPB Short Stub End
- ANSI B16.9 Carbon Steel A234 WPB Lap Joint Stub End
- Carbon Steel A234 WPB Short Stub End In Malaysia
- A234 WPB Carbon Steel Long Stub End
- ASTM A234 Gr WPB Butt weld Cap
- A234 WPB Carbon Steel Pipe Cap In Mexico
- ANSI B16.9 Carbon Steel A234 WPB Pipe End Cap
- Carbon Steel A234 WPB End Pipe Cap In Spain
- Carbon Steel A234 WPB End Cap
- A234 WPB Carbon Steel Pipe Nipple
- Carbon Steel A234 WPB Butt weld Nipple In Philippines
- ASTM A234 Gr WPB Swage Nipple
- Carbon Steel A234 WPB Nipple In Italy
- ANSI B16.9 Carbon Steel A234 WPB Barrel Nipple
- ANSI B16.9 Carbon Steel A234 WPB Bend
- Carbon Steel A234 WPB Long Radius Bend In Japan
- ASTM A234 Gr WPB Butt weld Bend
- ASTM A234 WPB Hot Induction Bend
- Carbon Steel A234 WPB Piggable Bend In Philippines
Equivalent Grades of Carbon Steel A234 WPB Buttweld Fittings
| Pipe | Fittings | Flanges | Valves | Bolts & Nuts |
|---|---|---|---|---|
| A106 Gr A | A234 Gr WPA | A105 | A216 Gr WCB | A193 Gr B7 A194 Gr 2H |
| A106 Gr B | A234 Gr WPB | A105 | A216 Gr WCB | |
| A106 Gr C | A234 Gr WPC | A105 | A216 Gr WCB |
View Thickness Table Of Carbon Steel A234 WPB Buttweld Fittings, We have Global sales network for Carbon Steel A234 WPB LR Elbow, Wide Stockist Of Werkstoff No ASTM A234 Gr WPB Seamless Fittings In India.
Check available Sizes of ASME SA 234 Carbon Steel Gr WPB Pipe Reducer, Ask For Ready Stock of Carbon Steel A234 WPB Stub End in Mumbai, India.
BAGODA
Quick Contact
ASME B16.9 Carbon Steel A234 WPB Short and Long Radius Elbows Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Center to Face (inches) |
Center to Center (inches) |
Back to face (inches) |
|
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
ASME B16.9 Carbon Steel A234 WPB Tee & Cap Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter |
Caps | Straight Crosses | Straight Tees | Stub Ends | |||
| (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
|
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1/2 | 21.3 | 0.840 | 1 | – | 1 | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | – | 1 1/8 | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
ASME B16.9 Carbon Steel A234 WPB Concentric & Eccentric Reducer Dimensions
| Nominal Pipe Size |
Outside Diameter | Reducers | ||
| Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) | Concentric & Eccentric Length (inches) |
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
A234 WPB Carbon Steel Buttweld Fittings Weights(Kg)
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Ready Stock Carbon Steel A234 WPB Pipe Fittings
- A234 WPB Carbon Steel Buttweld Nipple In Indonesia
- A234 WPB Carbon Steel Lap Joint Stub End In Malaysia
- ASTM A234 WPB Carbon Steel Buttweld Fittings
- Carbon Steel A234 WPB Welded Fittings In Philippines
- Carbon Steel A234 WPB Butt Weld Pipe Fittings
- Carbon Steel A234 WPB SR Elbow In Mexico
- Carbon Steel A234 WPB Pipe Bend In Japan
- A234 WPB Carbon Steel Pipe Fittings Manufacturer
- Carbon Steel A234 WPB Barrel Nipple Supplier in Mumbai
- Schedule 80 Carbon Steel A234 WPB Grade Long Stub End
- 5" Nb Sch10s Carbon Steel A234 WPB 90° Short Radius Elbow
- A234 WPB Carbon Steel Equal Cross
- SCH 60 A234 WPB Carbon Steel Pipe Nipples
- Carbon Steel A234 WPB Eccentric Reducer Manufacturer
- Carbon Steel A234 WPB Eccentric Reducer In Italy
- Carbon Steel A234 WPB Long Radius Bend Stockholder
- Sch 80 Carbon Steel A234 WPB Pipe Fittings
- Carbon Steel A234 WPB Buttweld Fittings In Spain
- Carbon Steel A234 WPB Two Joint Pipe Fittings In Kuwait
- 1/2” - 16” ASTM A234 Gr WPB Butt weld Elbow
- ASTM A234 Carbon Steel A234 WPB Pipe Fittings
- Carbon Steel A234 WPB Long Radius Elbow In Singapore
- Carbon Steel A234 WPB Mandrel Pipe Bend
- A234 WPB Carbon Steel Pipe Fittings In Kuwait
- Carbon Steel A234 WPB Seamless Fittings In Spain
- ASTM A234 Gr WPB Butt weld Fittings
- ANSI B16.9 Carbon Steel A234 WPB Short Stub End
- Carbon Steel A234 WPB LR Elbow Stockist
- DIN ASTM A234 Gr WPB Swage Nipple
- A234 WPB Carbon Steel Butt weld Tee
- Carbon Steel A234 WPB Two Halve Butt weld Fittings
- ASTM A234 Gr WPB 45 Degree Elbow
- ASME SA234 WPA234 WPB Carbon Steel Lateral Tee
- ASME B16.9 Schedule 10 A234 WPB Carbon Steel Elbow
- Carbon Steel A234 WPB End Cap Distributor
- ASTM A234 Carbon Steel Stub End
- A234 WPB Carbon Steel Elbow
- DIN 2605 Carbon Steel A234 WPB Elbow Exporter
- Carbon Steel A234 WPB 180° LR Return Bends In Italy
- A234 WPB Carbon Steel Pipe Elbow
- Carbon Steel A234 WPB Reducer In Japan
- 15 NB SCH 10 Carbon Steel A234 WPB 90° Short Radius Elbow
- Carbon Steel A234 WPB 1D Elbow/3D Elbow/5D Elbow In Philippines
- Carbon Steel A234 WPB Long Stub End
- ANSI B16.9 Carbon Steel A234 WPB Pipe Cap
- Carbon Steel A234 WPB Reducing Nipple In Mexico
- Carbon Steel A234 WPB Piggable Bends In Malaysia
- ASME B16.9 Carbon Steel A234 WPB Buttweld Fittings
Carbon Steel A234 WPB Butt weld Fittings Chemical Composition
| Grade | C | Mn | P | S | Si | Cr | Mo |
|---|---|---|---|---|---|---|---|
| WPB | 0.30 max | 0.29-1.06 | 0.050 | 0.058 | 0.10 min | 0.40 max | 0.15 max |
| WPC | 0.35 max | 0.29-1.06 | 0.050 | 0.058 | 0.10 min | 0.40 max | 0.15 max |
| WP1 | 0.28 max | 0.30-0.90 | 0.045 | 0.045 | 0.10-0.50 | … | 0.44-0.65 |
| WP12 CL1, WP12 CL2 | 0.05-0.20 | 0.30-0.80 | 0.045 | 0.045 | 0.60 max | 0.80-1.25 | 0.44-0.65 |
| WP11 CL1, | 0.05-0.15 | 0.30-0.60 | 0.030 | 0.030 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| WP11 CL2, WP11 CL3 | 0.05-0.20 | 0.30-0.80 | 0.040 | 0.040 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| WP22 CL1, WP22 CL3 | 0.05-0.15 | 0.30-0.60 | 0.040 | 0.040 | 0.50 max | 1.90-2.60 | 0.87-1.13 |
| WP5 CL1, WP5 CL3 | 0.15 max | 0.30-0.60 | 0.040 | 0.030 | 0.50 max | 4.0-6.0 | 0.44-0.65 |
| WP9 CL1, WP9 CL3 | 0.15 max | 0.30-0.60 | 0.030 | 0.030 | 1.00 max | 8.0-10.0 | 0.90-1.10 |
| WPR | 0.20 max | 0.40-1.06 | 0.045 | 0.050 | … | … | … |
| WP91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | 0.20-0.50 | 8.0-9.5 | 0.85-1.05 |
| WP911 | 0.09-0.13 | 0.30-0.60 | 0.020 | 0.010 | 0.10-0.50 | 8.5-9.5 | 0.90-1.10 |
A234 WPB Carbon Steel Pipe Fittings Mechanical Properties
| Grade | Tensile Requirements | Tensile Strength, min, ksi[MPa] | (0.2% offset or 0.5% extension-under-load) | Yield Strength, min, ksi[MPa] |
|---|---|---|---|---|
| WPB | 60-85 | 70-95 | 60-85 | 75-100 |
| WPC, WP11CL2 | [415-585] | [485-655] | [415-585] | [520-690] |
| WP11CL1 | 32 | 40 | 30 | 45 |
| WP11CL3 | [240] | [275] | [205] | [310] |
