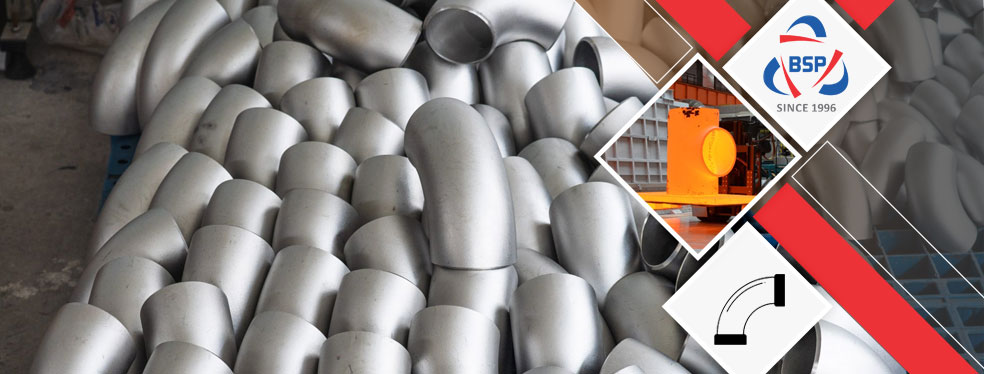

Nickel Alloy 200 Pipe Fittings

ASTM B366 Nickel Alloy 200 Short Radius Elbow, Alloy 200 90 Deg. Elbow Price in India.

Bagoda Steel is a well-known trader and seller of Nickel 200 Pipe Fittings, which are in maximum instances and harder than ferrite stainless steels. The tensile strength of these pipe fittings will increase with a growth in content material of nickel; enlargement stays identical after minor discount in its content material. Besides of different elements, nickel content material in these Nickel UNS N02200 Reducer Pipe Fittings is delivered within the maximum attention after copper. This has created a better call for in software regions consisting of hygienic and sanitary environments in hospitals, kitchens, nursing houses and different healthcare environments. This aggregate of properties can suggest a few compromises whilst as compared with natural austenitic and natural ferrite grades.

Industrial Product
Nickel Alloy 200 Pipe Fittings

Nickel 200 Equal Tee In Mexico, UNS N02200 LR Elbow, DIN 2.4066 Reducer, Nickel 200 Stub End, UNS N02200 Pipe Fittings Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Strengths can in a few instances be double that for austenitic steels. Whilst these pipe fittings are taken into consideration proof against strain corrosion cracking, they may be now no longer as proof against this shape of assault as ferrite steels. However, the corrosion resistance of the least resistant is extra than that for the maximum usually used grades of steels. Nickel WNR 2.4066 Eccentric Reducer Pipe Fittings also are magnetic, an assets that may be used to effortlessly differentiate them from not unusual place austenitic grades of stainless. The excessive chromium content material protects in opposition to corrosion and reasons embrittlement at temperatures over approximately three hundred Degree C.

Fabrication ought to be carried out most effective with gear devoted to stainless metallic materials. Annealing of these pipe fittings in air, oxidize the floor to a depth, relying on time and temperature of the treatment. Ni-Alloy 200 Concentric Reducer Pipe Fittings makes this metallic quite corrosion resistant within the shape of the metallic collection and lots of grade stainless alloys. It is the principle aspect within the Earth's core, wherein close to the floor its miles located as a ferrous or ferric compound. Normally its miles located as hematite ore with inside the ground, wherein a few meteorites include iron within the shape of uncommon minerals. It seems to fall among each the immaculate and nickel classes because it consists of traits of each.

Material Specification Chart of Nickel Alloy 200 Pipe Fittings

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Connection Welding
Manufacturing Process Push, Press, Forge, Cast, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

Nickel Alloy 200 PIPE FITTINGS MANUFACTURING STANDARDS

ASTM B366/B366M Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
MSS SP-43 Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM B366 – ASME SB366 Standard Specification for Piping Fitting
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.25 Buttwelding Ends
ASME B16.28 SR Elbows and Buttwelding Returns
API 590-605
ASME B16.9 		‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of Nickel Alloy 200 Butt weld Pipe Fittings

Nickel Alloy 200 Butt weld Elbow
Nickel Alloy 200 Butt weld Elbow
  • Nickel 200 90 Degree Elbow In Indonesia
  • UNS N02200 LR Elbow
  • Nickel 200 45 Degree Elbow In Malaysia
  • Alloy 200 3D Butt weld Elbow
  • 2.4066 Short Radius Elbow
  • Nickel Alloy 200 180 Deg Elbow
  • ANSI B16.9 Nickel Alloy 200 5D Elbow
Nickel Alloy 200 Butt weld Tee
Nickel Alloy 200 Butt weld Tee
  • 2.4066 Buttweld Tees
  • Alloy 200 Equal Tee In Mexico
  • UNS N02200 Butt weld Tee
  • Nickel 200 Unequal Tee In Philippines
  • Nickel Alloy 200 Reducing Tee
  • Nickel 200 Tee
  • ANSI B16.9 Nickel Alloy 200 Buttweld Tee
Nickel Alloy 200 Butt weld Cross
Nickel Alloy 200 Butt weld Cross
  • 2.4066 Buttweld Cross
  • UNS N02200 Butt weld Cross
  • Nickel Alloy 200 Unequal Cross In Japan
  • ANSI B16.9 Nickel Alloy 200 Buttweld Cross
  • Nickel 200 Reducing Cross In Italy
  • Alloy 200 Equal Cross
  • Nickel 200 Cross
Nickel Alloy 200 Concentric Reducer
Nickel Alloy 200 Concentric Reducer
  • Alloy 200 Concentric Reducer In Spain
  • Nickel Alloy 200 Concentric Reducer In Kuwait
  • UNS N02200 Concentric Reducer
  • 2.4066 Concentric Reducer
  • ANSI B16.9 Nickel 200 Concentric Reducer
Nickel Alloy 200 Eccentric Reducer
Nickel Alloy 200 Eccentric Reducer
  • UNS N02200 Eccentric Reducer
  • 2.4066 Eccentric Reducer
  • Alloy 200 Eccentric Reducer In Singapore
  • Nickel 200 Eccentric Reducer
  • ANSI B16.9 Nickel Alloy 200 Eccentric Reducer
Nickel Alloy 200 Stub End
Nickel Alloy 200 Stub End
  • ANSI B16.9 Nickel Alloy 200 Lap Joint Stub End
  • Alloy 200 Long Stub End In Kuwait
  • UNS N02200 Butt weld Stub End
  • 2.4066 Short Stub End
  • Nickel 200 Short Stub End In Spain
Nickel Alloy 200 Pipe End Cap
Nickel Alloy 200 Pipe End Cap
  • 2.4066 End Pipe Cap
  • UNS N02200 Butt weld Cap
  • Nickel 200 End Cap In Philippines
  • ANSI B16.9 Nickel Alloy 200 Pipe End Cap
  • Alloy 200 Pipe Cap In Malaysia
Nickel Alloy 200 Pipe Nipple
Nickel Alloy 200 Pipe Nipple
  • Nickel 200 Nipple In Philippines
  • 2.4066 Swage Nipple
  • UNS N02200 Butt weld Nipple
  • ANSI B16.9 Nickel Alloy 200 Barrel Nipple
  • Alloy 200 Pipe Nipple In Italy
Nickel Alloy 200 Pipe Bend
Nickel Alloy 200 Pipe Bend
  • 2.4066 Hot Induction Bend
  • ANSI B16.9 Nickel Alloy 200 Bend
  • Nickel 200 Long Radius Bend In Mexico
  • UNS N02200 Butt weld Bend
  • Alloy 200 Piggable Bend In Indonesia

Equivalent Grades of Nickel Alloy 200 Buttweld Fittings

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Nickel 200 2.4066 N02200 NW 2200 NA 11 НП-2 N-100M Ni 99.2
Pipe Fittings Dimensions

View Thickness Table Of Nickel 200 Buttweld Fittings, We have Global sales network for Nickel Alloy 200 LR Elbow, Wide Stockist Of Werkstoff No 2.4066 Seamless Fittings In India.

Check available Sizes of ASME SB 366 Nickel 200 Pipe Reducer, Ask For Ready Stock of UNS N02200 Stub End in Mumbai, India.

BAGODA

Quick Contact

ASME B16.9 Nickel Alloy 200 Short and Long Radius Elbows Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter 		45°Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Radius
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

ASME B16.9 Nickel Alloy 200 Tee & Cap Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter		 Caps Straight Crosses Straight Tees Stub Ends
(mm) (inches) Length
(inches)		 Center to End
(inches)		 Center to End
(inches)		 Lap Diameter
(inches)		 Long Length
(inches)		 Short Length
(inches)
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1/2 21.3 0.840 1 – 1 1 3/8 3 2
3/4 26.7 1.050 1 – 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

ASME B16.9 Nickel Alloy 200 Concentric & Eccentric Reducer Dimensions

Nominal
Pipe
Size		 Outside
Diameter 		Reducers
Reduced from
(inches)		 (mm) (inches) Reduced to
(inches) 		Concentric & Eccentric Length
(inches)
1 33.4 1.315 3/8 2
1/2 2
3/4 2
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 1/4 42.2 1.660 1/2 2
3/4 2
1 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 2 1/2
1 1/4 2 1/2
2 60.3 2.375 3/4 3
1 3
1 1/4 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/4 3 1/2
1 1/2 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
1 1/2 3 1/2
2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2 4
2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 4
2 1/2 4
3 4
3 1/2 4
5 141.3 5.563 2 5
2 1/2 5
3 5
3 1/2 5
4 5
6 168.3 6.625 2 1/2 5 1/2
3 5 1/2
3 1/2 5 1/2
4 5 1/2
5 5 1/2
8 219.1 8.625 3 6
3 1/2 6
4 6
5 6
6 6
10 273.1 10.750 4 7
5 7
6 7
8 7
12 323.9 12.750 5 8
6 8
8 8
10 8

Nickel Alloy 200 Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.96 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Nickel Alloy 200 Pipe Fittings

  • ANSI B16.9 Nickel 200 Short Stub End
  • Alloy 200 Reducing Nipple In Indonesia
  • Alloy 200 Mandrel Pipe Bend In Malaysia
  • Alloy 200 Eccentric Reducer Manufacturer
  • Sch 80 Nickel 200 Pipe Fittings
  • UNS N02200 Pipe Fittings
  • 5" Nb Sch10s Nickel 200 90° Short Radius Elbow
  • Alloy 200 Barrel Nipple Supplier in Mumbai
  • Nickel 200 Seamless Fittings In Mexico
  • Nickel Alloy 200 End Cap Distributor
  • Nickel Alloy 200 Elbow In Philippines
  • Nickel Alloy 200 Eccentric Reducer In Japan
  • Alloy 200 LR Elbow Stockist
  • Nickel 200 Pipe Bend In Italy
  • Nickel 200 SR Elbow
  • Nickel 200 Two Halve Butt weld Fittings
  • 15 NB SCH 10 Nickel 200 90° Short Radius Elbow
  • Nickel Alloy 200 Two Joint Pipe Fittings In Spain
  • ASME B16.9 Nickel 200 Buttweld Fittings
  • Nickel Alloy 200 Long Radius Bend Stockholder
  • ANSI B16.9 Nickel 200 Pipe Cap
  • ASTM B366 Nickel 200 Pipe Fittings
  • 1/2” - 16” ASTM B366 Alloy 200 Butt weld Elbow
  • Nickel Alloy 200 Butt weld Tee In Kuwait
  • ASTM B366 Nickel 200 Buttweld Fittings
  • DIN 2605 Nickel 200 Elbow Exporter
  • ASTM B366 Alloy 200 45 Degree Elbow
  • ASME SB366 Nickel Alloy 200 Lateral Tee
  • Nickel Alloy 200 Equal Cross In Singapore
  • DIN 2.4066 Swage Nipple
  • Nickel 200 Long Stub End In Kuwait
  • Nickel Alloy 200 Pipe Elbow
  • Nickel 200 Reducer In Spain
  • Nickel Alloy 200 Lap Joint Stub End
  • ASME B16.9 Schedule 10 Nickel Alloy 200 Elbow
  • Nickel 200 Piggable Bends In Italy
  • ASTM B366 Nickel 200 Stub End
  • SCH 60 Nickel Alloy 200 Pipe Nipples
  • Nickel Alloy 200 Pipe Fittings Manufacturer
  • Nickel 200 Butt Weld Pipe Fittings In Japan
  • Alloy 200 Long Radius Elbow In Philippines
  • 200 Nickel Buttweld Nipple
  • Nickel 200 Buttweld Fittings In Mexico
  • 200 Nickel 180° LR Return Bends
  • Schedule 80 Nickel 200 Grade Long Stub End
  • 2.4066 Butt weld Fittings
  • Nickel 200 Welded Fittings In Malaysia
  • Alloy 200 1D Elbow/3D Elbow/5D Elbow In Indonesia

Nickel Alloy 200 Butt weld Fittings Chemical Composition

Grade C Mn Si S Cu Fe Ni
Nickel 200 0.15 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min

Nickel Alloy 200 Pipe Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Nickel 200 8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %

Export Destinations For Nickel Alloy 200 Butt weld Pipe Fittings

industry
