Copper Nickel 70/30 Equal Tee In Mexico, 2.0872 Reducer, Cupro Nickel 70/30 Pipe Cap Stockist, Cu-Ni 70/30 Cross, UNS C71500 Pipe Fittings, Copper Nickel 70/30 Stub End In Spain, Copper Nickel 70/30 Two Joint Pipe Fittings, CuNi 70/30 LR Elbow Supplier in Mumbai, India.
Due to the discharge of copper ions and the shape of oxide layers which can be mounted all through herbal corrosion processes; it gives bacteriostatic properties and is proof against microfouling. The tensile strength, proof strength, hot strength, solidification and liquefaction temperature and corrosion resistance of our Copper Nickel UNS C71500 Short Radius Elbow Pipe Fittings enhance by the addition of nickel even though the thermal and electric conductivity lessen because of its performance. It is used within the following applications: Hydraulic lines, and Fish cages for aquaculture.
It appears to be an excellent material to weld, wherein possibly the extent of cleanliness required to efficiently weld is relatively high, or perhaps the blackness affects from impurities within the base metallic itself. It is more potent and has advanced resistance to impingement corrosion. It is thought to show off many suitable features sine many days because it is straightforward to bend and is quite corrosion resistant however it lacked in corrosion fatigue strength. Cu-Ni DIN 2.0882 Long Radius Elbow Pipe Fittings conforms to ASTM Standard (American Society for Testing and Materials), which specifies dimensions, tensile strength and yield strength. In many cases, the resistance to erosion-corrosion of pipe fittings lets in its budget friendly use as a piping material.
Material Specification Chart of Copper Nickel 70/30 Pipe Fittings
| Specifications | ASTM B446 / ASME SB446 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Connection | Welding |
| Manufacturing Process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized Manufacturer of | 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
Copper Nickel 70/30 PIPE FITTINGS MANUFACTURING STANDARDS
| ASTM B446/B446M | Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| MSS SP-43 | Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications |
| BS3799 – | Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry |
| ASTM B446 – ASME SB446 | Standard Specification for Piping Fitting |
| ASME Standard | ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43 |
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | SR Elbows and Buttwelding Returns |
| API 590-605 ASME B16.9 |
‘Factory-Made Wrought Butt-welding Fittings’ |
Various Types Of Copper Nickel 70/30 Butt weld Pipe Fittings

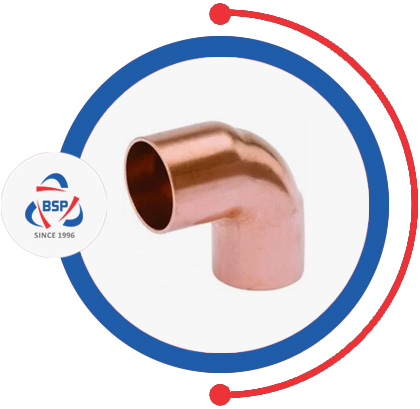

- Copper Nickel 70/30 90 Degree Elbow In Indonesia
- 2.0872 Short Radius Elbow
- CuNi 70/30 180 Deg Elbow
- Cupro Nickel 70/30 45 Degree Elbow In Malaysia
- UNS C71500 LR Elbow
- Cu-Ni 70/30 3D Butt weld Elbow
- ANSI B16.9 Cupro Nickel 70/30 5D Elbow

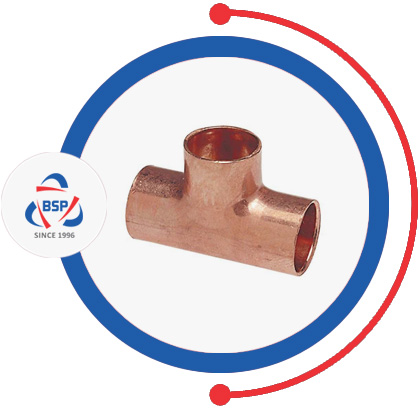

- CuNi 70/30 Reducing Tee In Philippines
- 2.0872 Buttweld Tees
- Cu-Ni 70/30 Equal Tee In Mexico
- Copper Nickel 70/30 Unequal Tee
- ANSI B16.9 Copper Nickel 70/30 Buttweld Tee
- Copper Nickel 70/30 Tee
- UNS C71500 Butt weld Tee

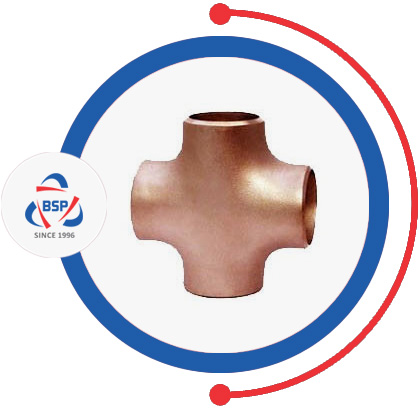

- Cupro Nickel 70/30 Unequal Cross In Japan
- Copper Nickel 70/30 Reducing Cross
- ANSI B16.9 Cupro Nickel 70/30 Buttweld Cross
- UNS C71500 Butt weld Cross
- 2.0872 Buttweld Cross
- CuNi 70/30 Cross In Italy
- Cu-Ni 70/30 Equal Cross

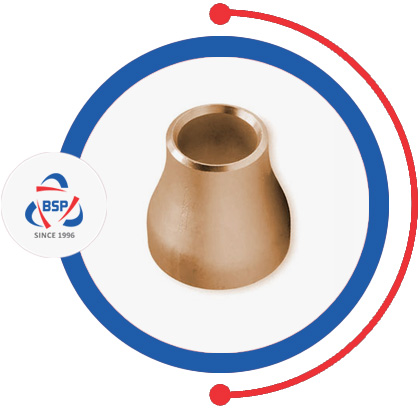

- Cu-Ni 70/30 Concentric Reducer In Spain
- 2.0872 Concentric Reducer
- ANSI B16.9 Cupro Nickel 70/30 Concentric Reducer
- CuNi 70/30 Concentric Reducer In Kuwait
- UNS C71500 Concentric Reducer

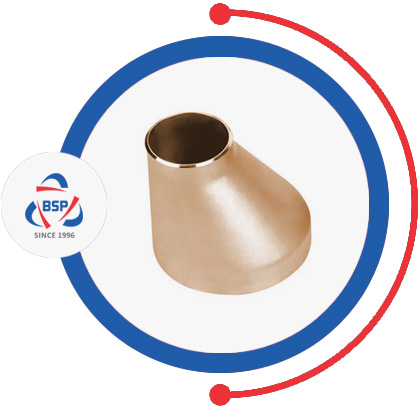

- 2.0872 Eccentric Reducer
- Cu-Ni 70/30 Eccentric Reducer In Singapore
- UNS C71500 Eccentric Reducer
- ANSI B16.9 Cupro Nickel 70/30 Eccentric Reducer
- 70/30 CuNi Eccentric Reducer In Japan

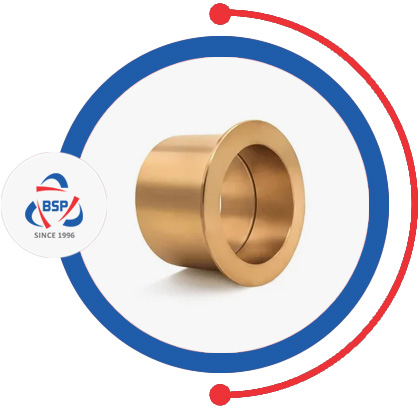

- UNS C71500 Butt weld Stub End
- ANSI B16.9 Cupro Nickel 70/30 Lap Joint Stub End
- Copper Nickel 70/30 Short Stub End In Indonesia
- Cu-Ni 70/30 Long Stub End In Singapore
- 2.0872 Short Stub End

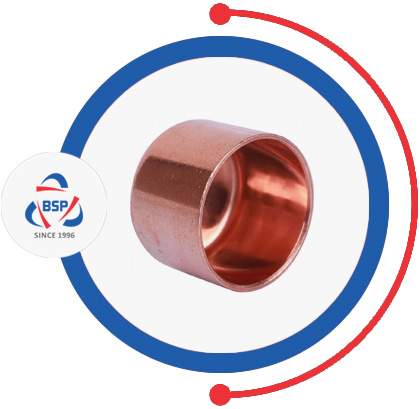

- UNS C71500 Butt weld Cap
- Copper Nickel 70/30 End Cap In Malaysia
- Cu-Ni 70/30 Pipe Cap In Kuwait
- 2.0872 End Pipe Cap
- ANSI B16.9 Cupro Nickel 70/30 Pipe End Cap

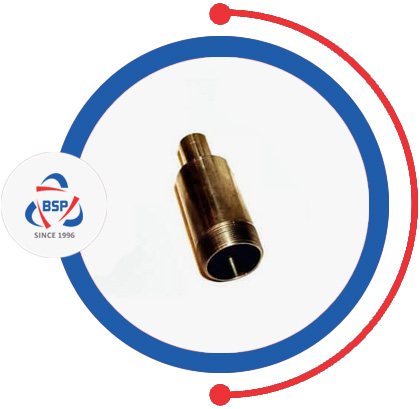

- ANSI B16.9 Cupro Nickel 70/30 Barrel Nipple
- UNS C71500 Butt weld Nipple
- 2.0872 Swage Nipple
- Cu-Ni 70/30 Pipe Nipple In Spain
- Copper Nickel 70/30 Nipple In Mexico

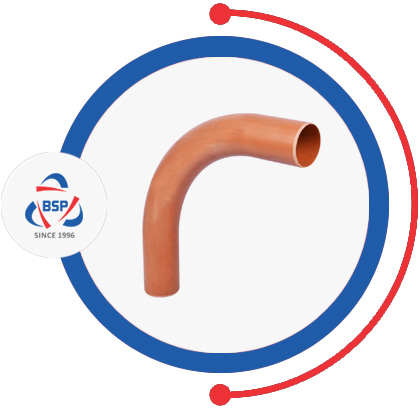

- UNS C71500 Butt weld Bend
- Cu-Ni 70/30 Piggable Bend In Philippines
- 2.0872 Hot Induction Bend
- Copper Nickel 70/30 Long Radius Bend In Spain
- ANSI B16.9 Cupro Nickel 70/30 Bend
Equivalent Grades of Copper Nickel 70/30 Buttweld Fittings
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| Copper nickel 70/30 | C71500 | 2.0882 |
View Thickness Table Of Copper Nickel 70/30 Buttweld Fittings, We have Global sales network for Copper Nickel 70/30 LR Elbow, Wide Stockist Of Werkstoff No 2.0872 Seamless Fittings In India.
ASTM B446 Copper Nickel 70/30 Buttweld Fittings
| Seamless/ Welded 100% Radiography Tested | ||
| Products | Size | |
| ASTM B446 Copper Nickel 70/30 Elbow – Long Radius | ASTM B446 Copper Nickel 70/30 45° Elbow | Sizes 1/2″ – 48″ |
| ASTM B446 Copper Nickel 70/30 Elbow – Short Radius | ASTM B446 Copper Nickel 70/30 Cross | |
| ASTM B446 Copper Nickel 70/30 3D Elbow | ASTM B446 Copper Nickel 70/30 5D Elbow | |
| ASTM B446 Copper Nickel 70/30 Stub End | ASTM B446 Copper Nickel 70/30 Pipe Bend | |
| ASTM B446 Copper Nickel 70/30 Fabricated Tee | ASTM B446 Copper Nickel 70/30 End Cap | |
| ASTM B446 Copper Nickel 70/30 Reducer | ASTM B446 Copper Nickel 70/30 Tee | |
| ASTM B446 Copper Nickel 70/30 Reducing Elbow | ASTM B446 Copper Nickel 70/30 Pipe Nipple | |
| ASTM B446 Copper Nickel 70/30 Reducing Cross | ASTM B446 Copper Nickel 70/30 Eccentric Reducer | |
| ASTM B446 Copper Nickel 70/30 Concentric Reducer | ASTM B446 Copper Nickel 70/30 Welded Fittings | |
Check available Sizes of ASME SB 446 Copper Nickel 70/30 Pipe Reducer, Ask For Ready Stock of UNS C71500 Stub End in Mumbai, India.
BAGODA
Quick Contact
ASME B16.9 Copper Nickel 70/30 Short and Long Radius Elbows Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Center to Face (inches) |
Center to Center (inches) |
Back to face (inches) |
|
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
ASME B16.9 Copper Nickel 70/30 Tee & Cap Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter |
Caps | Straight Crosses | Straight Tees | Stub Ends | |||
| (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
|
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1/2 | 21.3 | 0.840 | 1 | – | 1 | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | – | 1 1/8 | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
ASME B16.9 Copper Nickel 70/30 Concentric & Eccentric Reducer Dimensions
| Nominal Pipe Size |
Outside Diameter | Reducers | ||
| Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) | Concentric & Eccentric Length (inches) |
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
Copper Nickel 70/30 Buttweld Fittings Weights(Kg)
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.96 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Ready Stock Copper Nickel 70/30 Pipe Fittings
- DIN 2.0882 Swage Nipple
- ASME B16.9 Copper Nickel 70/30 Buttweld Fittings
- 70/30 Cu-Ni 180° LR Return Bends In Indonesia
- UNS C71500 Pipe Fittings
- Cu-Ni 70/30 Eccentric Reducer Manufacturer
- Copper Nickel 70/30 Two Halve Butt weld Fittings In Malaysia
- 70/30 Cu-Ni Buttweld Nipple
- Cupro Nickel 90/30 Barrel Nipple Supplier in Mumbai
- Copper Nickel 70/30 Buttweld Fittings In Mexico
- CuNi 70/30 Equal Cross In Philippines
- 70/30 Copper Nickel End Cap Distributor
- CuNi 70/30 Butt weld Tee In Japan
- Cu-Ni 70/30 Long Radius Elbow In Italy
- SCH 60 CuNi 70/30 Pipe Nipples
- Cu-Ni 70/30 Reducing Nipple
- DIN 2605 Copper Nickel 70/30 Elbow Exporter
- Cupro Nickel 70/30 Long Radius Bend Stockholder
- ASME B16.9 Schedule 10 CuNi 70/30 Elbow
- Copper Nickel 70/30 Reducer In Spain
- Copper Nickel 70/30 SR Elbow In Kuwait
- Copper Nickel 70/30 Butt Weld Pipe Fittings
- 1/2” - 16” ASTM B446 Cu-Ni 70/30 Butt weld Elbow
- ANSI B16.9 Copper Nickel 70/30 Pipe Cap
- Copper Nickel 70/30 Seamless Fittings In Singapore
- 15 NB SCH 10 Copper Nickel 70/30 90° Short Radius Elbow
- ASTM B446 Copper Nickel 70/30 Buttweld Fittings
- ASTM B446 Copper Nickel 70/30 Stub End
- Copper Nickel 70/30 Piggable Bends In Indonesia
- ASME SB446 CuNi 70/30 Lateral Tee
- Copper Nickel 70/30 Pipe Bend In Malaysia
- Copper Nickel 70/30 Welded Fittings
- ANSI B16.9 Copper Nickel 70/30 Short Stub End
- ASTM B446 Copper Nickel 70/30 Pipe Fittings
- 5" Nb Sch10s Copper Nickel 70/30 90° Short Radius Elbow
- Schedule 80 Copper Nickel 70/30 Grade Long Stub End
- 2.0872 Butt weld Fittings
- ASTM B446 Cu-Ni 70/30 45 Degree Elbow
- Copper Nickel 70/30 Long Stub End In Philippines
- Inconel JIS NCF 70/30 Mandrel Pipe Bend
- CuNi 70/30 Lap Joint Stub End
- Sch 80 Copper Nickel 70/30 Pipe Fittings
- CuNi 70/30 Elbow In Mexico
- 70/30 Copper Nickel Pipe Fittings Manufacturer
- CuNi 70/30 Pipe Elbow In Japan
- Cu-Ni 70/30 LR Elbow Stockist
- Cupro Nickel 70/30 Two Joint Pipe Fittings In Italy
- Cupro Nickel 90/30 1D Elbow/3D Elbow/5D Elbow In Spain
- Cupro Nickel 70/30 Eccentric Reducer In Kuwait
Copper Nickel 70/30 Butt weld Fittings Chemical Composition
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
|---|---|---|---|---|---|---|
| Cu-Ni 70-30 | 65.0 min | 1 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
Copper Nickel 70/30 Pipe Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Copper Nickel 70-30 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
