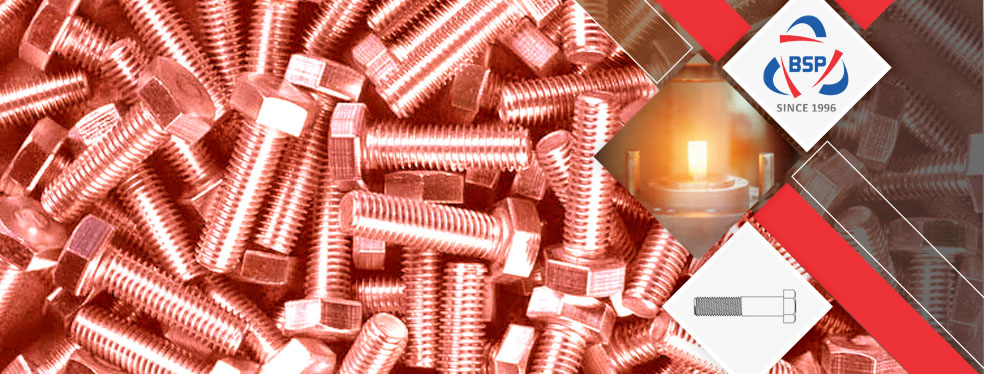

Copper Nickel 70/30 Fasteners, Copper Nickel 70/30 Bolts, Copper Nickel 70/30 Nuts Manufacturer

2.0882 Nuts, Cupro Nickel 70/30 Threaded Rod In Malaysia, Copper Nickel 70/30 Screws, UNS C71500 Allen Cap Screw, Copper Nickel 70/30 Anchor Bolts In Mexico, Cu-Ni 70/30 Carriage Bolts Stockist, Copper Nickel 70/30 Flat Washers, 70/30 Cu-Ni Hex Bolts Supplier in Mumbai, India.

Its welding through electric powered arc is a not unusual place exercise however calls for cautious manipulate of the manner parameters. Otherwise, the precipitation of undesirable intermetallic stages occurs, which reduces the longevity of the welds. Copper Nickel UNS C71500 Fasteners is utilized in a large number of fields such as architecture, art, chemical engineering, meals and beverage manufacture, vehicles, medicine, power and firearms. The better acquisition cost (AC) of steel additives are frequently offset through upgrades in running and upkeep charges, decreased lack of production (LP) charges, and the better resale cost of steel additives.

Copper Nickel WNR 2.0882 Fasteners is utilized in utilities, including energy plants, water supply & wastewater remedy, and hospitals. Any upkeep would require greater charges related to persevering by means of having an excellent service. It consists of approximately 60 percentages recycled material of which about 40 percentages originates from end-of-life products, whilst the closing 60 percentages comes from production procedures. What prevents a better recycling content material is the supply of steel scrap, regardless of a totally excessive recycling rate. These might also additionally have applications as components for excessive-overall performance applications. For example, sulfurization, phosphorization, and nitridation remedies to provide nanoscale metal primarily based totally catalysts ought to beautify the electrocatalytic overall performance of stainless-steel for water splitting.

Material Specification Chart of Copper Nickel 70/30 Fasteners

Standard	ASTM B151, ASME SB151
Size	M 02 to M 33
Length	3 mm to 200 mm
Threads:	METRIC, BSW, BSF, UNC, UNF or as required
Standard:	DIN, ISO, JIS, GB, IS, BS, ASTM, ANSI – American National Standards Institute ANSI B 18.2.4 2M ANSI B 28.2.4 1M Stud Bolt length are defined in ASME B16.5 standard Hex nuts are defined in ASME B18.2.2 ASME B18.5 BS en iso 3506 DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Scope of Manufacturer	Up to M36 / 1-1/2” Dia, up to 1100mm lg CNC Machined Fasteners, up to M100 / 4” Dia, up to 1500mm lg
Dia	M6 to M64 (1/4" - 2.5")
Length	12 MM - 500 MM (Upto 20 Inch)
IS	1363, 1364
DIN	931, 933
ISO	ISO 3506
Form of:	Hex, Square, Round, Threading as per Gauge Etc.
Head Drive:	Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Test Certificate:	Manufacturer Test Certificate as per EN 10204 / 3.1
Finishing:	Zinc (yellow, white, blue, black), black oxide, , Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Passivated, Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Mechanically Applied coating and some special one like DACROMET
Production Process	M2-M24: Cold Froging, hot forging M24-M100, , machining and CNC for Customized connecting element
Types	Nuts, Bolts, Screws, Socket Screw, Sockets, Studs, Screw, Nut, Spring Washers, Hex Set Screw, Socket Hexagon Head Screw, Cap Screw, Wing Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Studs, Anchors, Hex Nut,Marine Anchors, Hexagon Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Anchor Bolt, U- Bolts, J Bolts, T-Head Bolts, Mushroom Head Square Neck Bolts, Eye Bolt, Foundation Bolts, Structural Bolts

ANSI and/or ASME Standards (inch series)

ASME B18.1.1	Small Solid Rivets	ASME B18.8.1	Clevis Pins and Cotter Pins
ASME B18.1.2	Large Rivets	ASME B18.8.2	Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins
ASME B18.2.1	Square and Hex Bolts and Screws	ASME B18.9	Plow Bolts
ASME B18.2.2	Square and Hex Nuts	ASME B18.10	Track Bolts and Nuts
ASME B18.2.6	Fasteners for use in Structural Applications	ASME B18.11	Miniature Screws
ASME B18.3	Socket Cap, Shoulder and Set Screws	ASME B18.13	Screws and Washer Assemblies (Sems)
ASME B18.5	Round Head Bolts	ASME B18.15	Forged Eyebolts
ASME B18.6.2	Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws	ASME B18.17	Wing Nuts, Thumb Screws and Wing Screws
ASME B18.6.3	Machine Screws and Machine Screws Nuts	ASME B18.21.1	Lock Washers
ASME B18.6.4	Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws	ASME B18.22.1	Plain Washers
ASME B18.7	General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps	ASME B18.23.1	Beveled Washers

Various Types Of Copper Nickel 70/30 Fasteners

Copper Nickel 70/30 Bolts

ASTM B166 Copper Nickel 70/30 Bolts
ASME SB166 Cupro Nickel 70/30 Bolts
Copper Nickel 70/30 Hex Bolts In Indonesia
2.0882 Heavy Hex Bolts
UNS C71500 Flange Bolts
CuNi 70/30 Bolts In Malaysia

Copper Nickel 70/30 Nuts

ASTM B151 Cupro Nickel 70/30 Nuts
ASME SB151 Copper Nickel 70/30 Nuts
2.0882 Heavy Hex Nuts
70/30 Cu-Ni Wing Nuts
Copper Nickel 70/30 Hex Nuts In Mexico
UNS C71500 Nuts

Copper Nickel 70/30 Screw

ASTM B151 Cu-Ni 70/30 Screw
UNS C71500 Socket Set Screws
ASME SB151 Copper Nickel 70/30 Screw
2.0882 Hex Cap Screws
70/30 Cu-Ni Allen Cap Screw In Philippines
Copper Nickel 70/30 Screw In Japan

Copper Nickel 70/30 Washers

2.0882 Beveled Washers
CuNi 70/30 Flat Washer In Spain
ASME SB151 Cupro Nickel 70/30 Washers
ASTM B151 Copper Nickel 70/30 Washers
Copper Nickel 70/30 Washers In Italy
UNS C71500 Lock Washers

Copper Nickel 70/30 Threaded Rods

Copper Nickel 70/30 Threaded Rods In Kuwait
ASTM B151 70/30 Cu-Ni Threaded Rods
ASME SB151 Copper Nickel 70/30 Threaded Rods
Copper Nickel 70/30 Threaded Rods In Singapore
2.0882 Threaded Rods
UNS C71500 Threaded Rods

Copper Nickel 70/30 Stud Bolts

ASME SB151 Copper Nickel 70/30 Stud
2.0882 Stud Bolts
ASTM B151 CuNi 70/30 Stud Bolts
Copper Nickel 70/30 Stud Bolts In Indonesia
UNS C71500 Stud Bolts
Cupro Nickel 70/30 Tie Rods In Malaysia

Equivalent Grades of Copper Nickel 70/30 Fasteners

STANDARD	WERKSTOFF NR.	UNS
Copper Nickel 70/30	2.0882	C71500

View Size Table Of Copper Nickel 70/30 Fasteners, We have Global sales network for Copper Nickel 70/30 Stud Bolts, Wide Stockist Of Werkstoff No 2.0882 Nuts, Bolts, Washers In India.

Size Chart of Copper Nickel 70/30 Bolts

Nominal or Basic Product Diameter		E		F			G		H			J	LT (Thread Length)		Y
Nominal or Basic Product Diameter		Body Diameter		Width Across Flats			Width Across Corners		Head Height			Wrenching Height	For Screw Lengths	For Screw Lengths	Transition Thread Length
1/4	0.25	0.25	0.245	7/16	0.438	0.428	0.505	0.488	5/32	0.163	0.150	0.106	0.750	1.000	0.250
5/16	0.3125	0.3125	0.3065	1/2	0.500	0.489	0.577	0.557	13/64	0.211	0.195	0.140	0.875	1.125	0.278
3/8	0.375	0.375	0.369	9/16	0.562	0.551	0.650	0.628	15/64	0.243	0.226	0.160	1.000	1.250	0.312
7/16	0.4375	0.4375	0.4305	5/8	0.625	0.612	0.722	0.698	9/32	0.291	0.272	0.195	1.125	1.375	0.357
1/2	0.5	0.5	0.493	3/4	0.750	0.736	0.866	0.840	5/16	0.323	0.302	0.215	1.250	1.500	0.385
9/16	0.5625	0.5625	0.5545	13/16	0.812	0.798	0.938	0.910	23/64	0.371	0.348	0.250	1.375	1.625	0.417
5/8	0.625	0.625	0.617	15/16	0.938	0.922	1.083	1.051	25/64	0.403	0.378	0.269	1.500	1.750	0.455
3/4	0.75	0.75	0.741	1-1/8	1.125	1.100	1.299	1.254	15/32	0.483	0.455	0.324	1.750	2.000	0.500
7/8	0.875	0.875	0.866	1-5/16	1.312	1.285	1.516	1.465	35/64	0.563	0.531	0.378	2.000	2.250	0.556
1	1	1	0.99	1-1/2	1.500	1.469	1.732	1.675	39/64	0.627	0.591	0.416	2.250	2.500	0.625
1-1/8	1.125	1.125	1.114	1-11/16	1.688	1.631	1.949	1.859	11/16	0.718	0.658	0.461	2.500	2.750	0.714
1-1/4	1.25	1.25	1.239	1-7/8	1.875	1.812	2.165	2.066	25/32	0.813	0.749	0.530	2.750	3.000	0.714
1-1/2	1.5	1.5	1.488	2-1/4	2.250	2.175	2.598	2.480	15/16	0.974	0.902	0.640	3.250	3.500	0.833

Check available Sizes of ASME SB 151 Copper Nickel 70/30 Stud Bolt, Ask For Ready Stock of UNS C71500 Fasteners in Mumbai, India.

BAGODA

Quick Contact

Call Us

+91 22 - 66151721

Need Help? Send us Email

sales@bagodasteelproject.com

Copper Nickel 70/30 Washer Weight & Dimensions

Bolt Size	A	B	C	Weight (lbs.) Per 100 Pieces
Bolt Size	ID	OD	Thickness	Weight (lbs.) Per 100 Pieces
1/2	9/16	13/8	0.109	4
5/8	11/16	13/4	0.134	8
3/4	13/16	2	0.148	11
7/8	15/16	21/4	0.165	15
1	11/16	21/2	0.165	19
11/8	11/4	23/4	0.165	22
11/4	13/8	3	0.165	26
13/8	11/2	31/4	0.180	33
11/2	15/8	31/2	0.180	38
15/8	13/4	33/4	0.180	43
13/4	17/8	4	0.180	50
17/8	2	41/4	0.180	57
2	21/8	41/2	0.180	63
21/4	23/8	43/4	0.220	83
21/2	25/8	5	0.238	96
23/4	27/8	51/4	0.259	110
3	31/8	51/2	0.284	130

Copper Nickel 70/30 Stud Bolt Size Chart

Class 150 Flanges ASME B16.5 (Stud bolt sizes)						Length of Stud Bolts
NPS	Outside Diameter of Flange	The diameter of Bolt Circle	The diameter of Bolt Holes	Number of Bolts	Diameter of Bolts	Raised Face 0.06 in	Ring Joint
1/2	3 1/2	2 3/8	5/8	4	1/2	2 1/4	–
3/4	3 7/8	2 3/4	5/8	4	1/2	2 1/2	–
1	4 1/4	3 1/8	5/8	4	1/2	2 1/2	3
1 1/4	4 5/8	3 1/2	5/8	4	1/2	2 3/4	3 1/4
1 1/2	5	3 7/8	5/8	4	1/2	2 3/4	3 1/4
2	6	4 3/4	3/4	4	5/8	3 1/4	3 3/4
2 1/2	7	5 1/2	3/4	4	5/8	3 1/2	4
3	7 1/2	6	3/4	4	5/8	3 1/2	4
3 1/2	8 1/2	7	3/4	8	5/8	3 1/2	4
4	9	7 1/2	3/4	8	5/8	3 1/2	4
5	10	8 1/2	7/8	8	3/4	3 3/4	4 1/4
6	11	9 1/2	7/8	8	3/4	4	4 1/2
8	13 1/2	11 3/4	7/8	8	3/4	4 1/4	4 3/4
10	16	14 3/4	1	12	7/8	4 1/2	5
12	19	17	1	12	7/8	4 3/4	5 1/4
14	21	18 3/4	1 1/8	12	1	5 1/4	5 3/4
16	23 1/2	21 1/4	1 1/8	16	1	5 1/4	5 3/4
18	25	22 3/4	1 1/4	16	1 1/8	5 3/4	6 1/4
20	27 1/2	25	1 1/4	20	1 1/8	6 1/4	6 3/4
24	32	29 1/2	1 1/4	20	1 1/4	6 3/4	7 1/4
Class 300 Flanges ASME B16.5						Length of Stud Bolts
NPS	Outside Diameter of Flange	The diameter of Bolt Circle	The diameter of Bolt Holes	Number of Bolts	Diameter of Bolts	Raised Face 0.06 in	Ring Joint
1/2	3 3/4	2 5/8	5/8	4	1/2	2 1/2	3
3/4	4 5/8	3 1/4	3/4	4	5/8	3	3 1/2
1	4 7/8	3 1/2	3/4	4	5/8	3	3 1/2
1 1/4	5 1/4	3 7/8	3/4	4	5/8	3 1/4	3 3/4
1 1/2	6 1/8	4 1/2	7/8	4	3/4	3 1/2	4
2	6 1/2	5	3/4	8	5/8	3 1/2	4
2 1/2	7 1/2	5 7/8	7/8	8	3/4	4	4 1/2
3	8 1/4	6 5/8	7/8	8	3/4	4 1/4	4 3/4
3 1/2	9	7 1/4	7/8	8	3/4	4 1/4	5
4	10	7 7/8	7/8	8	3/4	4 1/2	5
5	11	9 1/4	7/8	8	3/4	4 3/4	5 1/4
6	12 1/2	10 5/8	7/8	12	3/4	4 3/4	5 1/2
8	15	13	1	12	7/8	5 1/2	6
10	17 1/2	15 1/4	1 1/8	16	1	6 1/4	6 3/4
12	20 1/2	17 3/4	1 1/4	16	1 1/8	6 3/4	7 1/4
14	23	20 1/4	1 1/4	20	1 1/8	7	7 1/2
16	25 1/2	22 1/2	1 3/8	20	1 1/4	7 1/2	8
18	28	24 3/4	1 3/8	24	1 1/4	7 3/4	8 1/4
20	30 1/2	27	1 3/8	24	1 1/4	8	8 3/4
24	36	32	1 5/8	24	1 1/2	9	10

Ready Stock Copper Nickel 70/30 Fasteners

70/30 Cu-Ni Bolts
Copper Nickel 70/30 Hex Coupling Nut
Copper Nickel 70/30 Anchor Bolts In Indonesia
DIN 2.0882 Countersunk Washer
UNS C71500 Fasteners
Copper Nickel 70/30 Fasteners In Malaysia
CuNi 70/30 Screws Distributor
Copper Nickel 70/30 Heavy Hex Nuts
Copper Nickel 70/30 Washers
Copper Nickel 70/30 Machine Bolt
Copper Nickel 70/30 Dock Washer Stockholder
Copper Nickel 70/30 Heavy Hex Bolts In Malaysia
Copper Nickel 70/30 Elevator Bolt
Copper Nickel 70/30 Wing Nuts In Mexico
Cu-Ni 70/30 Flange Bolt
ASTM B151 Copper Nickel 70/30 Fasteners
2.0882 Fasteners
CuNi 70/30 Hex Domed Cap Nuts
Copper Nickel 70/30 Lock Nut In Philippines
ASTM B151 ICopper Nickel 70/30 Wing Nuts
Copper Nickel 70/30 Tie Rods
ASTM B151 Copper Nickel 70/30 Nyloc Nuts
Cupro Nickel 70/30 Double Ended Stud In Japan
Copper Nickel 70/30 T-Head Bolts
Copper Nickel 70/30 Acorn Nuts In Italy
Copper Nickel 70/30 Stud Bolts
Copper Nickel 70/30 Hex Head Bolt In Singapore
Copper Nickel 70/30 Bolts In Spain
Copper Nickel 70/30 Self Locking Nuts In Kuwait
Cupro Nickel 70/30 Customized Washer
Copper Nickel 70/30 Eye Bolts
CuNi 70/30 Hexagonal Washer In Spain
Copper Nickel 70/30 Structural Bolts
Cu-Ni 70/30 Square Nuts In Kuwait
Copper Nickel 70/30 Hex Washers In Singapore
Copper Nickel 70/30 Ogee Washer In Italy
Copper Nickel 70/30 Foundation Bolts Manufacturer
Cu-Ni 70/30 Split / Lock Washer
Copper Nickel 70/30 Tooth Lock Washer In Indonesia
Copper Nickel 70/30 Allen Cap Screw
Copper Nickel 70/30 Hex Head Bolts In Malaysia
Copper Nickel 70/30 Carriage Bolt Stockist
70/30 Cu-Ni Concrete Screw
ASME SB151 Copper Nickel 70/30 Fender Washer
Copper Nickel 70/30 Machine Fasteners Exporter
Cupro Nickel 70/30 Threaded Rod In Mexico
Copper Nickel 70/30 Socket Cap Screw
Copper Nickel 70/30 Hex Set Screw Manufacturer
Copper Nickel 70/30 Plain Washer Supplier in Mumbai
ASTM B151 Copper Nickel 70/30 Flat Washers
Cupro Nickel 70/30 Coupling Nut In Philippines
Copper Nickel 70/30 Stud Bolts In Japan

Copper Nickel 70/30 Chemical Composition

Grade	Cu	Mn	Pb	Ni	Fe	Zn
Cu-Ni 70-30	65.0 min	1 max	.05 max	29-33	0.4-1.0	1 max

Copper Nickel 70/30 Fasteners Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Copper Nickel 70-30	0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %

Copper Nickel 70/30 Fasteners
