Copper Nickel 70 / 30 Hex Nuts, Cupro Nickel 70 / 30 Hex Nuts, Cu-Ni 70 / 30 Heavy Hex Nuts Manufacturer

Cu-Ni 70 / 30 Hexagonal Nylon Lock Nut, Copper Nickel 70 / 30 Machine Hex Nut, UNS C71500 Hex Flange Nut, CuNi 70 / 30 Long Hex Nuts, Cu-Ni 70 / 30 Finished Hex Nut Stockist, ASTM B151 Copper Nickel 70 / 30 Industrial Hex Nut, 2.0882 Hex Nuts, Cupro Nickel 70 / 30 Hex Jam Nuts Supplier in Mumbai, India.

Important issues to gain gold standard corrosion overall performance are: the ideal grade preference for the chloride content material of the water; avoidance of crevices whilst viable through suitable design; adherence to suitable fabrication practices, mainly disposing of weld warmness tint; and set off drainage after hydro testing. Copper Nickel UNS C71500 Hex Nuts are used notably within the pulp and paper enterprise to keep away from iron infection of the product and due to their corrosion resistance to the numerous chemical substances used within the papermaking process. For example, they're utilized in digesters to transform timber chips into timber pulp.

They are used within the bleach plant and also are used notably within the paper machine.They are used notably within the chemical and petrochemical industries for his or her corrosion resistance to aqueous, gaseous, and excessive-temperature environments, their mechanical properties in any respect temperatures, and every so often for different unique physical properties. Copper Nickel WNR 2.0882 Hex Nuts are wonderful due to the fact they do now no longer have an effect on the flavor of the product, are without difficulty wiped clean and sterilized to save you bacterial infection of the meals, and are durable.

Material Specification Chart of Copper Nickel 70 / 30 Hex Nuts

Size	M3 – M56 \| 3/6″ to 2″ \| Custom Sizes
Length	3 mm to 200 mm
Hex Nuts	UNF, BSW, BSF, METRIC, UNC, or as required
Standard	DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hex nuts
Form	Hex, Threading, Square, Round as per Gauge Etc.
Threads Configuration	ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification	Dual Certified As per ASTM & ASME Codes
Dimensions	DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Threads	Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate	as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications	PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process	M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive	Six-Lobe,Phillips,Phillips/Slot, Slotted etc
Surface Coating	Ptfe Coated Nuts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating
Finishing	Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide

Various Types Of Copper Nickel 70 / 30 Hex Nuts

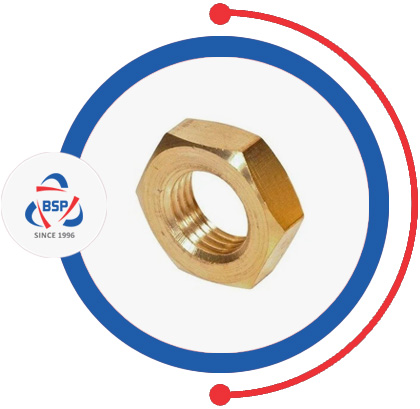

Copper Nickel 70 / 30 Hex Jam Nut

Copper Nickel 70 / 30 Heavy Hex Jam Nuts
UNS C71500 Hex Jam Nuts
2.0882 Hex Jam Nuts
Cu-Ni 70 / 30 Hex Jam Nut
CuNi 70 / 30 Hex Jam Nut

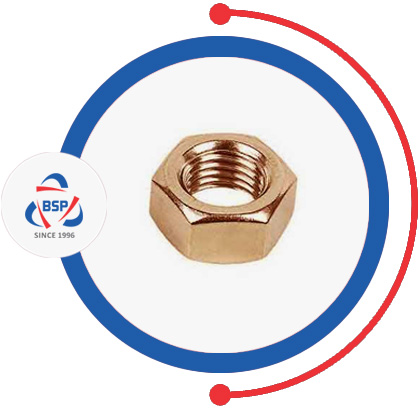

Copper Nickel 70 / 30 Heavy Hex Nut

Copper Nickel 70 / 30 Heavy Hex Nut
2.0882 Heavy Hex Nuts
Cu-Ni 70 / 30 Heavy Hex Nuts
UNS C71500 Heavy Hex Nuts
CuNi 70 / 30 Heavy Hex Nut

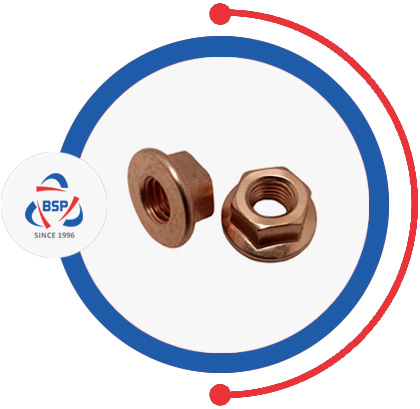

Copper Nickel 70 / 30 Hex Flange Nut

2.0882 Hex Flange Nuts
CuNi 70 / 30 Flange Hex Nuts
UNS C71500 Hex Flange Nut
Copper Nickel 70 / 30 Hex Flange Nut
Cu-Ni 70 / 30 Hex Flange Nut

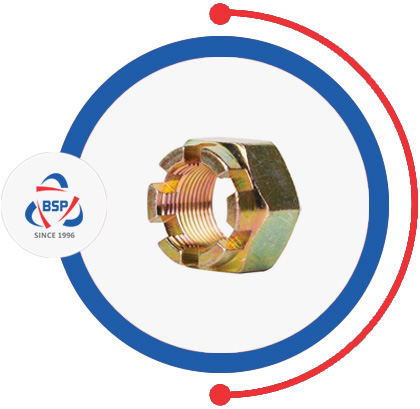

Copper Nickel 70 / 30 Slotted Hex Nut

2.0882 Beveled Slotted Hex Nut
UNS C71500 Slotted Hex Nuts
Cu-Ni 70 / 30 Slotted Hex Nuts
Copper Nickel 70 / 30 Slotted Hex Nut
Cupro Nickel 70 / 30 Slotted Hex Nuts

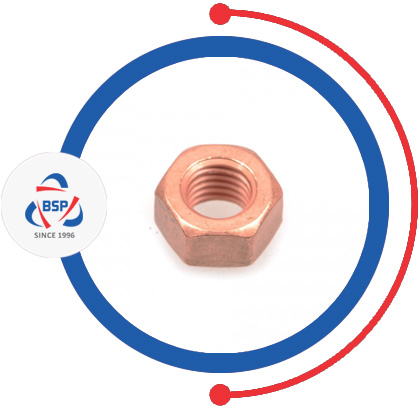

Copper Nickel 70 / 30 Machine Hex Nut

2.0882 Machine Hex Nuts
Copper Nickel 70 / 30 Machine Hex Nuts
UNS C71500 Machine Hex Nuts
Cupro Nickel 70 / 30 Machine Hex Nut
Cu-Ni 70 / 30 Machine Hex Nut

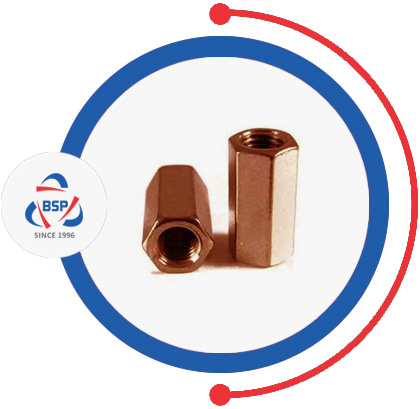

Copper Nickel 70 / 30 Long Hex Nut

CuNi 70 / 30 Long Hex Nuts
Copper Nickel 70 / 30 Coupling Hex Nuts
Cu-Ni 70 / 30 Long Hex Nuts
UNS C71500 Long Hex Nuts
2.0882 Hex Coupling Nuts

Equivalent Grades of Copper Nickel 70 / 30 Hex Nuts

STANDARD	WERKSTOFF NR.	UNS
Copper Nickel 70/30	2.0882	C71500

View Size Table Of Copper Nickel 70 / 30 Hex Nuts, We have Global sales network for Cupro Nickel 70 / 30 Heavy Hex Nuts, Wide Stockist Of Werkstoff No 2.0882 Hex Head Nuts, Industrial Hex Nuts In India.

Dimensions of Copper Nickel 70 / 30 Hex Nuts

Nominal Size	Basic Major Diameter of Thread	F		G		H		H1		Maximum Runout of Bearing Surface to Thread Axis, FIM
		Width Across Flats		Width Across Corners		Thickness Hex Nuts		Thickness Jam Nuts		Hex Nuts		Hex Jam Nuts
		Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Specified Proof Load		Hex Jam Nuts
		Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Up to 150,000 psi	150,000 psi and Greater	All Strength Levels
1/4	0.2500	0.428	0.438	0.488	0.505	0.212	0.226	0.150	0.163	0.015	0.010	0.015
5/16	0.3125	0.489	0.500	0.557	0.577	0.258	0.273	0.180	0.195	0.016	0.011	0.016
3/8	0.3750	0.551	0.563	0.628	0.650	0.320	0.337	0.210	0.227	0.017	0.012	0.017
7/16	0.4375	0.675	0.688	0.768	0.794	0.365	0.385	0.240	0.260	0.018	0.013	0.018
1/2	0.5000	0.736	0.750	0.840	0.866	0.427	0.448	0.302	0.323	0.019	0.014	0.019
9/16	0.5625	0.861	0.875	0.982	1.010	0.473	0.496	0.301	0.324	0.020	0.015	0.020
5/8	0.6250	0.922	0.938	1.051	1.083	0.535	0.559	0.363	0.387	0.021	0.016	0.021
3/4	0.7500	1.088	1.125	1.240	1.299	0.617	0.665	0.398	0.446	0.023	0.018	0.023
7/8	0.8750	1.269	1.312	1.447	1.516	0.724	0.776	0.458	0.510	0.025	0.020	0.025
1	1.0000	1.450	1.500	1.653	1.732	0.831	0.887	0.519	0.575	0.027	0.022	0.027
1-1/8	1.1250	1.631	1.688	1.859	1.949	0.939	0.999	0.579	0.639	0.030	0.025	0.030
1-1/4	1.2500	1.812	1.875	2.066	2.165	1.030	1.094	0.687	0.751	0.033	0.028	0.033
1-3/8	1.3750	1.994	2.062	2.273	2.382	1.138	1.206	0.747	0.815	0.036	0.031	0.036
1-1/2	1.5000	2.175	2.250	2.480	2.598	1.245	1.317	0.808	0.880	0.039	0.034	0.039
1-5/8	1.6250	2.35	2.43	2.679	2.805	1.364	1.416	0.868	0.944	0.044	0.038	0.044
1-3/4	1.7500	2.538	2.625	2.893	3.031	1.460	1.540	0.929	1.009	0.048	0.041	0.048
1-7/8	1.8750	2.722	2.813	3.103	3.247	1.567	1.651	0.989	1.073	0.051	0.044	0.051
2	2.0000	2.900	3.000	3.306	3.464	1.675	1.763	1.050	1.138	0.055	0.047	0.055
2-1/4	2.2500	3.263	3.375	3.719	3.897	1.890	1.986	1.155	1.267	0.061	0.052	0.061
2-1/2	2.5000	3.625	3.750	4.133	4.330	2.105	2.209	1.401	1.427	0.068	0.058	0.068
2-3/4	2.7500	3.998	4.125	4.546	4.763	2.319	2.431	1.522	1.556	0.074	0.064	0.074
3	3.0000	4.350	4.500	4.959	5.196	2.534	2.654	1.643	1.685	0.081	0.070	0.081
3-1/4	3.2500	4.713	4.875	5.373	5.629	2.749	2.877	1.748	1.814	0.087	0.075	0.087
3-1/2	3.5000	5.075	5.250	5.786	6.062	2.964	3.100	1.870	1.943	0.094	0.081	0.094
3-3/4	3.7500	5.438	5.625	6.199	6.495	3.178	3.322	1.990	2.072	0.100	0.087	0.100
4	4.0000	5.800	6.000	6.612	6.928	3.393	3.545	2.112	2.201	0.107	0.093	0.107

Dimensions of Copper Nickel 70 / 30 Heavy Hex Nuts & Heavy Hex Jam Nuts

Nominal Size	Basic Major Diameter of Thread	F			G		H			H1			Maximum Runout of Bearing Surface to Thread Axis, FIM
		Width Across Flats			Width Across Corners		Thickness Heavy Hex Nuts			Thickness Heavy Hex Jam Nuts			Heavy Hex Nuts		Heavy Hex Jam Nuts
		Width Across Flats			Width Across Corners		Thickness Heavy Hex Nuts			Thickness Heavy Hex Jam Nuts			Specified Proof Load		Heavy Hex Jam Nuts
		Basic	Min.	Max.	Min.	Max.	Basic	Min.	Max.	Basic	Min.	Max.	Up to 150,000 psi	150,000 psi and Greater	All Strength Levels
1/4	0.2500	1/2	0.488	0.500	0.556	0.577	15/64	0.218	0.250	11/64	0.156	0.188	0.017	0.011	0.017
5/16	0.3125	9/16	0.546	0.562	0.622	0.650	19/64	0.280	0.314	13/64	0.186	0.220	0.020	0.012	0.020
3/8	0.3750	11/16	0.669	0.688	0.763	0.794	23/64	0.341	0.377	15/64	0.216	0.252	0.021	0.014	0.021
7/16	0.4375	3/4	0.728	0.750	0.830	0.866	27/64	0.403	0.441	17/64	0.247	0.285	0.022	0.015	0.022
1/2	0.5000	7/8	0.850	0.875	0.969	1.010	31/64	0.464	0.504	19/64	0.277	0.317	0.023	0.016	0.023
9/16	0.5625	15/16	0.909	0.938	1.037	1.083	35/64	0.526	0.568	21/64	0.307	0.349	0.024	0.017	0.024
5/16	0.6250	1-1/16	1.031	1.062	1.175	1.227	39/64	0.587	0.631	23/64	0.337	0.381	0.025	0.018	0.025
3/4	0.7500	1-1/4	1.212	1.250	1.382	1.443	47/64	0.710	0.758	27/64	0.398	0.446	0.027	0.020	0.027
7/8	0.8750	1-7/16	1.394	1.438	1.589	1.660	55/64	0.833	0.885	31/64	0.458	0.510	0.029	0.022	0.029
1	1.0000	1-5/8	1.575	1.625	1.796	1.876	63/64	0.956	1.012	35/64	0.519	0.575	0.031	0.024	0.031
1-1/8	1.1250	1-13/16	1.756	1.812	2.002	2.093	1-7/64	1.079	1.139	39/64	0.579	0.639	0.033	0.027	0.033
1-1/4	1.2500	2	1.938	2.000	2.209	2.309	1-7/32	1.187	1.251	23/32	0.687	0.751	0.035	0.030	0.035
1-3/8	1.3750	2-3/16	2.119	2.188	2.416	2.526	1-11/32	1.310	1.378	25/32	0.747	0.815	0.038	0.033	0.038
1-1/2	1.5000	2-3/8	2.300	2.375	2.622	2.742	1-15/32	1.433	1.505	27/32	0.808	0.880	0.041	0.036	0.041
1-5/8	1.6250	2-9/16	2.481	2.562	2.828	2.959	1-19/32	1.556	1.632	29/32	0.868	0.944	0.044	0.038	0.044
1-3/4	1.7500	2-3/4	2.662	2.750	3.035	3.175	1-23/32	1.679	1.759	31/32	0.929	1.009	0.048	0.041	0.048
1-7/8	1.8750	2-15/16	2.844	2.938	3.242	3.392	1-27/32	1.802	1.886	1-1/32	0.989	1.073	0.051	0.044	0.051
2	2.0000	3-1/8	3.025	3.125	3.449	3.608	1-31/32	1.925	2.013	1-3/32	1.050	1.138	0.055	0.047	0.055
2-1/4	2.2500	3-1/2	3.388	3.500	3.862	4.041	2-13/64	2.155	2.251	1-13/64	1.155	1.251	0.061	0.052	0.061
2-1/2	2.5000	3-7/8	3.750	3.875	4.275	4.474	2-29/64	2.401	2.505	1-29/64	1.401	1.505	0.068	0.058	0.068
2-3/4	2.7500	4-1/4	4.112	4.250	4.688	4.907	2-45/64	2.647	2.759	1-37/64	1.522	1.634	0.074	0.064	0.074
3	3.0000	4-5/8	4.475	4.625	5.102	5.340	2-61/64	2.893	3.013	1-45/64	1.643	1.763	0.081	0.070	0.081
3-1/4	3.2500	5	4.838	5.000	5.515	5.774	3-3/16	3.124	3.252	1-13/16	1.748	1.876	0.087	0.075	0.087
3-1/4	3.5000	5-3/8	5.200	5.375	5.928	6.207	3-7/16	3.370	3.506	1-15/16	1.870	2.006	0.094	0.081	0.094
3-3/4	3.7500	5-3/4	5.562	5.750	6.341	6.640	3-11/16	3.616	3.760	2-1/16	1.990	2.134	0.100	0.087	0.100
4	4.0000	6-1/4	5.925	6.125	6.755	7.073	3-15/16	3.862	4.014	2-3/16	2.112	2.264	0.107	0.093	0.107

Ready Stock Copper Nickel 70 / 30 Hex Nuts

Copper Nickel 70 / 30 Hex Sleeve Nuts
Cupro Nickel 70 / 30 Heavy Hexagon Nuts
2.0882 Thin Hex Nuts
CuNi 70 / 30 Hexagonal Nylon Lock Nut
Copper Nickel 70 / 30 Machine Hex Nuts
CuNi 70 / 30 Hex Flange Nut
Cupro Nickel 70 / 30 Hex Jam Nuts
Cu-Ni 70 / 30 Heavy Hex Jam Nuts
Copper Nickel 70 / 30 Industrial Hex Nuts Exporter
CuNi 70 / 30 Nylon Insert Lock Nuts
Copper Nickel 70 / 30 Hex Nut Manufacturer
Cupro Nickel 70 / 30 Self Locking Hex Nuts
CuNi 70 / 30 Hexagon Nuts
ASME SB151 Copper Nickel 70 / 30 Industrial Hex Nuts
CuNi 70 / 30 Heavy Hex Nuts
DIN 2.0882 Hex Nuts
Copper Nickel 70 / 30 Hex Head Nut
Copper Nickel 70 / 30 Hex Nuts Manufacturer
Copper Nickel 70 / 30 Hex Machine Nut Stockist
CuNi 70 / 30 Semi-Finished Hex Nuts
CuNi 70 / 30 Long Hex Nut
Copper Nickel 70 / 30 Finished Hex Nuts
Copper Nickel 70 / 30 Hex Round Nut
ASME SB151 Copper Nickel 70 / 30 Flanged Hex Nuts Stockholder
ASTM B151 CuNi 70 / 30 Heavy Hex Nuts Distributor
Copper Nickel 70 / 30 Heavy Hex Nuts
Copper Nickel 70 / 30 Hexagon Nut Supplier in Mumbai
UNS C71500 Hex Nuts
Copper Nickel 70 / 30 Hex Nuts
Cupro Nickel 70 / 30 Slotted Hex Nuts
ASTM B151 Copper Nickel 70 / 30 Coupling Nuts
CuNi 70 / 30 Hex Socket Nut
Copper Nickel 70 / 30 Hexagonal Nylon Lock Nut
Copper Nickel 70 / 30 Heavy Hex Nuts
Copper Nickel 70 / 30 Serrated Hex Flange Nut
CuNi 70 / 30 Slotted Hex Nuts

Copper Nickel 70 / 30 Hex Nuts Chemical Composition

Grade	Cu	Mn	Pb	Ni	Fe	Zn
Cu-Ni 70-30	65.0 min	1 max	.05 max	29-33	0.4-1.0	1 max

Copper Nickel 70 / 30 Hex Nuts Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Copper Nickel 70-30	0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %

Copper Nickel 70 / 30 Hex Nuts

Copper Nickel 70 / 30 Hex Head Nut, Cupro Nickel 70 / 30 Hex Nuts, Cu-Ni 70 / 30 Hex Nuts, CuNi 70 / 30 Heavy Hex Nut, Copper Nickel 70 / 30 Hexagonal Nut Price in India.
