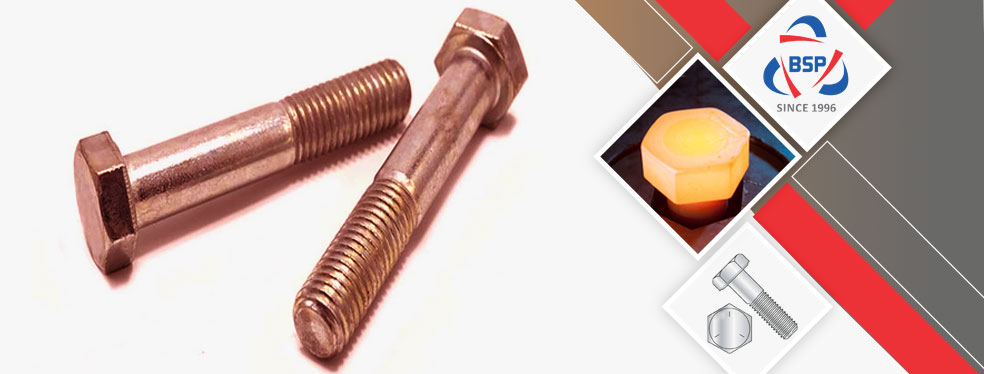

Copper Nickel 70 / 30 Hex Bolts

Copper Nickel 70 Hexagonal Bolt, Copper Nickel 70 Hex Bolts, Cupro Nickel 30 Heavy Hex Bolt, Cu-Ni 30 Hex Head Bolt, Copper Nickel 70 Hex Bolts Price in India.

Bagoda Steel is a recognised manufacturer and trader of Cupronickel 70 / 30 Hex Bolts, which is utilized in a range of applications in dentistry. It is the material of preference for the meals and beverage enterprise. Within the meals and beverage enterprise, it's miles notably utilized in cookware, business meals processing, business kitchens, brewing beer, winemaking, and meat processing. Acidic meals with excessive salt additions, which include tomato sauce, and enormously salted condiments, which includes soy sauce, can also additionally require higher-alloyed steels to save you pitting corrosion through chloride. The biggest use of chrome steel like Cu-Ni 70 / 30 Hex Bolts in motors is the exhaust line. Environment safety necessities geared toward lowering pollutants and noise for the whole thing of a car's lifespan caused using ferrite steels.

Industrial Product
Copper Nickel 70 / 30 Hex Bolts

Copper Nickel 30 Hex Cap Screw, UNS C71500 Full Threaded Hex Bolt, Cupro Nickel 30 Machine Hex Bolt, Copper Nickel 70 Industrial Hex Bolt, 2.0882 Hex Bolts, Copper Nickel 70 Hex Bolt Stockist, Copper Nickel 70 Hex Head Shoulder Bolt, Cu-Ni 30 Hex Flange Bolt Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Copper Nickel WNR 2.0882 Hex Bolts are used for collector, tubing, muffler, catalytic converter, and tailpipe. They are utilized in elements of turbochargers, even as different warmness-resisting grades are used for exhaust fueloline recirculation and for inlet and exhaust valves. In addition, not unusual rail injection structures and their injectors depend upon steels. They are appreciably utilized in all forms of strength stations, from nuclear to solar. It has proved to be the excellent preference for miscellaneous applications, which includes stiffeners for windshield wiper blades, balls for seat belt operation tool in case of accident, springs, fasteners, etc. Some automobile producers use metal as ornamental highlights of their vehicles.

Copper Nickel UNS C71500 Hex Bolts is now used as certainly considered one among the materials for tramlines, collectively with aluminium alloys and carbon metal. It has a tendency to be favored way to their corrosion resistance and higher strength, permitting a discount of weight and a protracted existence in maritime environments. Surgical equipment and scientific gadget are typically made from metallic, due to its sturdiness and capacity to be sterilized in an autoclave. In addition, surgical implants inclusive of bone reinforcements and replacements (e.g. hip sockets and cranial plates) are made wi

Material Specification Chart of Copper Nickel 70 / 30 Hex Bolts

Standard DIN 933, DIN 931, DIN-EN14399-4, DIN 601, ISO 4016, IS1364, ISO 4014, ISO 4017, BS 1768, BS 1083, ASME B18.2.1, JIS B1180, DIN 558, ISO 4018, CSN 21301, EU 24016, DIN 7968, DIN7990
Manufacturing Method
  • Cold Forming Hex Bolt: M2 to M24
  • Hot Forging Hex Bolt: M24 to M100
Metric Sizes
  • Dia: M10 – M110
  • Length: 12 – 1200MM
Length 3 mm to 200 mm or custom
US Threads METRIC, BSW, BSF, Unified national coarse (UNC), Unified national fine (UNF), Unified national extra fine (UNEF), UNJC and UNJF threads, UNK threads, UNR threads, Constant-pitch threads
UTS – Unified Thread Standard UNC, UNF, NPT, UNS, UNEF, NPTF
Heads and drive style Phillips/ Slot, Phillips, indented hex head, Oval, Pan, Flat 82 degree, Round, flat undercut, Truss, binding, flat head 100 degree, Slotted, fillister head, Six-Lobe
Manufacturing process Wire Drawing, Insert tapping, Cold Heading, Heat Treatment, Inspection, Surface Plating, Packing
Standard
  • ANSI B 28.2.4 1M/ B 18.2.4 2M
  • ANSI – American National Standards Institute
  • GB/T5783, GB/T5782, GB5783
  • American ASME
  • Indian IS
  • International ISO
  • American SAE
  • German DIN
  • Spanish CSN
  • British BS
  • Italian UNI
  • Polish PN
  • European EU
Surface Coating
  • Ptfe Coated Hex Bolts
  • Hot Dipped Galvanized
  • Phosphate
  • Teflon
  • Xylon
  • Zinc Phosphate
  • Manganese Phosphate
  • Zinc Electro Plating (Hexavalent or Trivalent Chrome)
  • ZAC (Zinc Alluminium Flake Coating)
  • Cadmium
Surface treatment
  • Polish
  • Passivation
  • Black oxide coating
  • Anodizing
  • Sand blasting
  • Rust preventive oil
  • Heat-disposing
  • Hot dip galvanized
  • Electroplating color
Test Certificates
  • EN 10204 / 3.1 MTC
  • ISO 898-1, ISO 898-2,
  • EN 14399-10
  • EN 14399-2
  • ISO 148-1, ISO 6508-1
ISO – International Organization for Standardization
  • ISO 4014
  • ISO 4017
  • ISO 4032
  • ISO 4162
  • ISO 4161

Various Types Of Copper Nickel 70 / 30 Hex Bolts

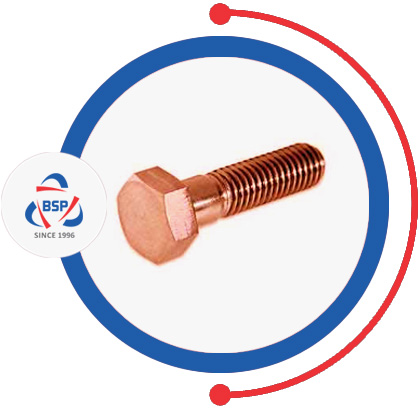

Copper Nickel 70 / 30 Hex Head Bolt
Copper Nickel 70 / 30 Hex Head Bolt
  • Copper Nickel 70 Hex Head Bolt
  • UNS C71500 Hex Head Bolts
  • 2.0882 Hex Head Bolts
  • Copper Nickel 30 Hex Socket Head Bolt
  • Copper Nickel Alloy 70 Hex Head Bolt

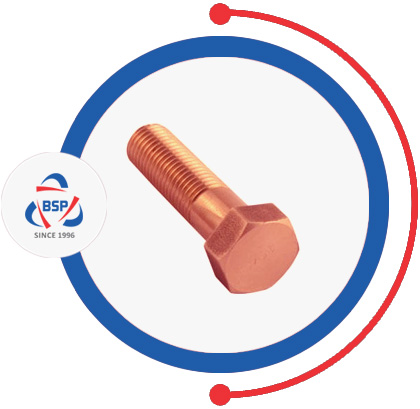

Copper Nickel 70 / 30 Heavy Hex Bolts
Copper Nickel 70 / 30 Heavy Hex Bolt
  • Copper Nickel 30 Heavy Hex Bolts
  • Copper Nickel 70 Heavy Hex Bolts
  • Cu-Ni 70 Heavy Hex Bolts
  • 2.0882 Heavy Hex Bolts
  • UNS C71500 Heavy Hex Bolts

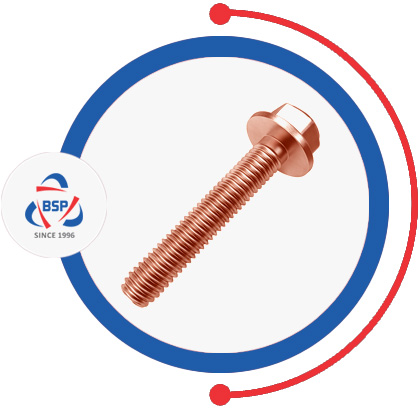

Copper Nickel 70 / 30 Hex Flange Bolts
Copper Nickel 70 / 30 Hex Flange Bolt
  • 30 Cu-Ni Hex Flange Bolt
  • 2.0882 Hex Flange Bolts
  • Copper Nickel 30 Flange Hex Bolts
  • UNS C71500 Hex Flange Bolt
  • Copper Nickel 70 Hex Flange Bolt

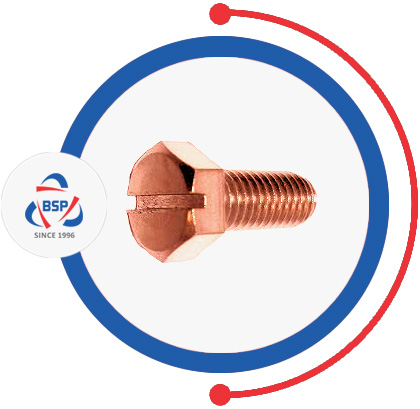

Copper Nickel 70 / 30 Slotted Hex Bolts
Copper Nickel 70 / 30 Slotted Hex Bolt
  • UNS C71500 Slotted Hex Bolts
  • CuNi 30 Slotted Hex Bolt
  • Copper Nickel 30 Slotted Hex Bolts
  • 2.0882 Beveled Slotted Hex Bolt
  • Copper Nickel 70 Slotted Hex Bolts

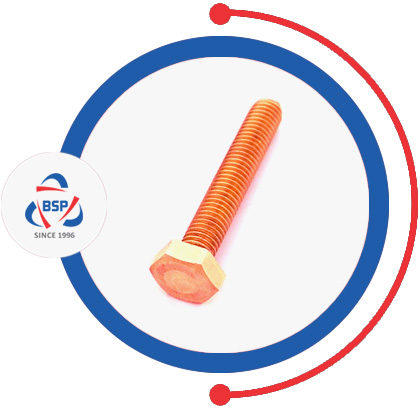

Copper Nickel 70 / 30 Full Threaded Hex Bolt
Copper Nickel 70 / 30 Full Threaded Hex Bolt
  • Copper Nickel Alloy Full Threaded Hex Bolt
  • Copper Nickel 30 Full Threaded Hex Bolt
  • Copper Nickel 70 Full Threaded Hex Bolt
  • 2.0882 Fully Threaded Hex Bolt
  • UNS C71500 Fully Threaded Hex Bolts
Copper Nickel 70 / 30 Half Threaded Hex Bolts
Copper Nickel 70 / 30 Half Threaded Hex Bolt
  • 2.0882 Half Threaded Hex Bolts
  • Copper Nickel 70 Half Threaded Hex Bolts
  • Copper Nickel 30 Half Threaded Hex Bolts
  • Cu-Ni 30 Half Threaded Hex Bolts
  • UNS C71500 Half Threaded Hex Bolts

Equivalent Grades of Copper Nickel 70 / 30 Hex Bolts

STANDARD UNS WERKSTOFF NR.
Copper Nickel 70/30 C71500 2.0882
Hex Bolts Dimensions

View Size Table Of Copper Nickel 70 Hex Bolts, We have Global sales network for Copper Nickel 30 Heavy Hex Bolts, Wide Stockist Of Werkstoff No 2.0882 Hex Head Bolts, Industrial Hex Bolts In India.

Dimensions of Copper Nickel 70 / 30 Hex Bolts

Nominal Size or Basic
Product Diameter		 E F G H R LT
Full-size Body Diameter Width Across Flats Width Across Corners Height Radius of Fillet Nominal Thread Length for
Bolt Lengths
6 in. and
Shorter		 Over
6 in.
Max. Min. Basic Max. Min. Max. Min. Basic Max. Min. Max. Min.
1/4 0.2500 0.260 0.237 7/16 0.438 0.425 0.505 0.484 11/64 0.188 0.150 0.03 0.01 0.750 1.000
5/16 0.3125 0.324 0.298 1/2 0.500 0.484 0.577 0.552 7/32 0.235 0.195 0.03 0.01 0.875 1.125
3/8 0.3750 0.388 0.360 9/16 0.562 0.544 0.650 0.620 1/4 0.268 0.226 0.03 0.01 1.000 1.250
1/2 0.4375 0.452 0.421 5/8 0.625 0.603 0.722 0.687 19/64 0.316 0.272 0.03 0.01 1.125 1.375
1/2 0.5000 0.515 0.482 3/4 0.750 0.725 0.866 0.826 11/32 0.364 0.302 0.03 0.01 1.250 1.500
5/8 0.6250 0.642 0.605 15/16 0.938 0.906 1.083 1.033 27/64 0.444 0.378 0.06 0.02 1.500 1.750
3/4 0.7500 0.768 0.729 1-1/8 1.125 1.088 1.299 1.240 1/2 0.524 0.455 0.06 0.02 1.750 2.000
7/8 0.8750 0.895 0.852 1-5/16 1.312 1.269 1.516 1.447 37/64 0.604 0.531 0.06 0.02 2.000 2.250
1 1.0000 1.022 0.976 1-1/2 1.500 1.450 1.732 1.653 43/64 0.700 0.591 0.09 0.03 2.250 2.500
1-1/8 1.1250 1.149 1.098 1-11/16 1.688 1.631 1.949 1.859 3/4 0.780 0.658 0.09 0.03 2.500 2.750
1-1/4 1.2500 1.277 1.223 1-7/8 1.875 1.812 2.165 2.066 27/32 0.876 0.749 0.09 0.03 2.750 3.000
1-3/8 1.3750 1.404 1.345 2-1/16 2.062 1.994 2.382 2.273 29/32 0.940 0.810 0.09 0.03 3.000 3.250
1-1/2 1.5000 1.531 1.470 2-1/4 2.250 2.175 2.598 2.480 1 1.036 0.902 0.09 0.03 3.250 3.500
1-5/8 1.6250 1.658 1.591 2-7/16 2.438 2.356 2.815 2.616 1-3/32 1.116 0.978 0.09 0.03 3.500 3.750
1-3/4 1.7500 1.785 1.716 2-5/8 2.625 2.538 3.031 2.893 1-5/32 1.196 1.054 0.12 0.04 3.750 4.000
1-7/8 1.8750 1.912 1.839 2-13/16 2.812 2.719 3.248 3.099 1-1/4 1.276 1.130 0.12 0.04 4.000 4.250
2 2.0000 2.039 1.964 3 3.000 2.900 3.464 3.306 1-11/32 1.388 1.175 0.12 0.04 4.250 4.500
2-1/4 2.2500 2.305 2.214 3-3/8 3.375 3.262 3.897 3.719 1-1/2 1.548 1.327 0.19 0.06 4.750 5.000
2-1/2 2.5000 2.559 2.461 3-3/4 3.750 3.625 4.330 4.133 1-21/32 1.708 1.479 0.19 0.06 5.250 5.500
2-3/4 2.7500 2.827 2.711 4-1/8 4.125 3.988 4.763 4.546 1-13/16 1.869 1.632 0.19 0.06 5.750 6.000
3 3.0000 3.081 2.961 4-1/2 4.500 4.350 5.196 4.959 2 2.060 1.815 0.19 0.06 6.250 6.500
3-1/4 3.2500 3.335 3.210 4-7/8 4.875 4.712 5.629 5.372 2-3/16 2.251 1.936 0.19 0.06 6.750 7.000
3-1/2 3.5000 3.589 3.461 5-1/4 5.250 5.075 6.062 5.786 2-5/16 2.380 2.057 0.19 0.06 7.250 7.500
3-3/4 3.7500 3.858 3.726 5-5/8 5.625 5.437 6.495 6.198 2-1/2 2.572 2.241 0.19 0.06 7.750 8.000
4 4.0000 4.111 3.975 6 6.000 5.800 6.928 6.612 2-11/16 2.764 2.424 0.19 0.06 8.250 8.500

Dimensions of Copper Nickel 70 / 30 Heavy Hex Bolts

Nominal Size
or Basic
Product Diameter		 E F G H R LT
Full-size Body
Diameter		 Width Across Flats Width Across
Corners		 Head Height Radius of Fillet Nominal Thread
Length for
Screw Lengths
6 in.
and
Shorter		 Over 6
in.
Max. Min. Basic Max. Min. Max. Min. Basic Max. Min. Max. Min. Nom. Nom.
3/8 0.3750 0.388 0.360 11/16 0.688 0.669 0.794 0.763 1/4 0.268 0.226 0.03 0.01 1.000 1.250
1/2 0.5000 0.515 0.482 7/8 0.875 0.850 1.010 0.969 11/32 0.364 0.302 0.03 0.01 1.250 1.500
5/8 0.6250 0.642 0.605 1-1/16 1.062 1.031 1.227 1.175 27/64 0.444 0.378 0.06 0.02 1.500 1.750
3/4 0.7500 0.768 0.729 1-1/4 1.250 1.212 1.443 1.383 1/2 0.524 0.455 0.06 0.02 1.750 2.000
7/8 0.8750 0.895 0.852 1-7/16 1.438 1.394 1.660 1.589 37/64 0.604 0.531 0.06 0.02 2.000 2.250
1 1.0000 1.022 0.976 1-5/8 1.625 1.575 1.876 1.796 43/64 0.700 0.591 0.09 0.03 2.250 2.500
1-1/8 1.1250 1.149 1.098 1-13/16 1.812 1.756 2.093 2.002 3/4 0.780 0.658 0.09 0.03 2.500 2.750
1-1/4 1.2500 1.277 1.223 2 2.000 1.938 2.309 2.209 27/32 0.876 0.749 0.09 0.03 2.750 3.000
1-3/8 1.3750 1.404 1.345 2-3/16 2.188 2.119 2.526 2.416 29/32 0.940 0.810 0.09 0.03 3.000 3.250
1-1/2 1.5000 1.531 1.470 2-3/8 2.375 2.300 2.742 2.622 1 1.036 0.902 0.09 0.03 3.250 3.500
1-5/8 1.6250 1.658 1.591 2-9/16 2.562 2.481 2.959 2.829 1-3/32 1.116 0.978 0.09 0.03 3.500 3.750
1-3/4 1.7500 1.785 1.716 2-3/4 2.750 2.662 3.175 3.035 1-5/32 1.196 1.054 0.12 0.04 3.750 4.000
1-7/8 1.8750 1.912 1.839 2-15/16 2.938 2.844 3.392 3.242 1-1/4 1.276 1.130 0.12 0.04 4.000 4.250
2 2.0000 2.039 1.964 3-1/8 3.125 3.025 3.608 3.449 1-11/32 1.388 1.175 0.12 0.04 4.250 4.500
2-1/4 2.2500 2.305 2.214 3-1/2 3.500 3.388 4.041 3.862 1-1/2 1.548 1.327 0.19 0.06 4.750 5.000
2-1/2 2.5000 2.559 2.461 3-7/8 3.875 3.750 4.474 4.275 1-21/32 1.708 1.479 0.19 0.06 5.250 5.500
2-3/4 2.7500 2.827 2.711 4-1/4 4.250 4.112 4.907 4.688 1-13/16 1.869 1.632 0.19 0.06 5.750 6.000
3 3.0000 3.081 2.961 4-5/8 4.625 4.475 5.340 5.102 2 2.060 1.815 0.19 0.06 6.250 6.500

Check available Sizes of Copper Nickel 70 Hex Bolts, Ask For Ready Stock of UNS C71500 Heavy Hex Bolts in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Copper Nickel 70 / 30 Heavy Hex Structural Bolt

Bolt Size A B C D E
Radius of Fillet		 F
Thread Length		 G
Transitional
Thread Length		 Runout of
Bearing Surface
FIM
max min min max min max
1/2″ 0.515 0.482 7/8 0.969 5/16 0.031 0.009 1.00 0.19 0.016
5/8″ 0.642 0.605 1-1/16 1.175 25/64 0.062 0.021 1.25 0.22 0.019
3/4″ 0.768 0.729 1-1/4 1.383 15/32 0.062 0.021 1.38 0.25 0.022
7/8″ 0.895 0.852 1-7/16 1.589 35/64 0.062 0.031 1.50 0.28 0.025
1″ 1.022 0.976 1-5/8 1.796 39/64 0.093 0.062 1.75 0.31 0.028
1-1/8″ 1.149 1.098 1-13/16 2.002 11/16 0.093 0.062 2.00 0.34 0.032
1-1/4″ 1.277 1.223 2 2.209 25/32 0.093 0.062 2.00 0.38 0.035
1-3/8″ 1.404 1.345 2-3/16 2.416 27/32 0.093 0.062 2.25 0.44 0.038
1-1/2″ 1.531 1.470 2-3/8 2.622 15/16 0.093 0.062 2.25 0.44 0.041

Weight Chart Of Copper Nickel 70 / 30 Hex Bolts

THREADS According to IS 1363/67
APPROX. WEIGHT IN KGS FOR 100 NOS
LENGTH in mm DIAMETER (METRIC)
M5 M6 M12 M8 M10 M16 M14 M20 M18 M22
16 0.448 0.743 1.590 3.211
20 0.598 0.812 4.892 1.711 3.411
25 0.660 0.897 5.252 1.871 3.660 8.170
30 0.737 1.010 5.574 2.070 3.912 10.707 9.690 18.657
35 0.804 1.120 5.974 2.271 4.223 11.416 10.000 19.608 16.026
40 0.881 1.230 6.410 2.470 4.533 12.107 10.288 20.747 16.667
45 0.958 1.340 6.859 2.671 4.840 12.821 10.504 21.739 17.241
50 1.030 1.450 7.299 2.870 5.155 13.624 11.261 22.727 17.857 28.409
55 1.560 7.740 3.071 5.464 14.409 11.628 23.810 18.868 30.120
60 1.670 8.183 3.270 5.774 15.244 12.255 25.126 20.000 32.051
65 1.781 8.621 3.472 6.083 16.026 12.626 26.455 21.008 34.014
70 1.890 9.058 3.671 6.394 16.835 12.987 27.778 22.124 35.461
75 2.000 9.506 3.873 6.702 17.606 13.228 29.070 23.256 39.063
80 2.111 10.000 4.072 7.013 18.248 13.889 30.303 24.510 40.000
90 10.917 4.472 7.634 19.841 14.925 33.113 26.042 41.667
100 11.820 4.873 8.251 21.459 16.340 35.714 27.778 46.296
110 12.723 8.881 23.041 17.730 38.168 31.250 47.170
120 13.624 9.506 24.631 18.797 40.984 32.895 50.000
130 14.535 10.101 26.316 20.000 43.478 34.722 52.632
140 15.432 10.707 27.933 20.833 46.296 35.461 55.556
150 16.340 11.312 29.412 22.222 48.544 37.594 58.824
160 17.241 11.905 31.056 24.272 50.505 40.984 61.728
170 18.116 12.500 32.680 53.191 64.935
180 19.011 13.123 34.247 26.882 55.556 67.568
190 19.920 13.736 35.971 58.140 70.423
200 20.833 14.327 37.594 29.586 60.976 49.020 73.529
220 22.624 15.528 40.650 65.789 79.365
240 24.510 16.722 43.860 71.429 84.746
250 25.381 17.301 45.455 74.627 87.719
260 26.316 17.921 47.170 76.923 90.909
280 28.090 19.157 50.505 81.967 98.039
300 29.940 20.325 53.763 87.719 104.167
320 31.646 56.818 92.593
340 33.557 60.241 98.039
360 35.211 63.291 104.167
380 37.037 66.667 108.696
400 39.063 69.444 113.636

Ready Stock Copper Nickel 70 / 30 Hex Bolts

  • Cu-Ni 30 High Tensile Hex Bolts
  • UNS C71500 Hex Bolts
  • Cu-Ni 70 Heavy Hex Bolts
  • Cupro Nickel 70 Hex Machine Bolt Stockist
  • Copper Nickel 70 Threaded Hex Bolts
  • Copper Nickel 30 Slotted Hex Bolts
  • Copper Nickel 70 Hex Structural Bolts
  • 70 CuNi Fully Threaded Hex Bolt
  • Copper Nickel 30 Heavy Hex Bolts
  • Copper Nickel 30 Hex Flange Bolt
  • Copper Nickel 30 Hex Head Shoulder Bolt
  • Cu-Ni 70 Self Sealing Hex Bolts
  • Copper Nickel 70 Hexagon Screw Head Bolt
  • Copper Nickel Alloy 70 Heavy Hex Bolts
  • Copper Nickel 30 Slotted Hex Bolts
  • Copper Nickel 30 Hex Tap Bolts
  • Copper Nickel 70 Full Threaded Hex Bolt
  • Copper Nickel 30 Half Threaded Hex Bolt
  • Copper Nickel 30 Heavy Hex Structural Bolt
  • DIN 2.0882 Hex Bolts
  • 2.0882 Hex Machine Bolt
  • Copper Nickel 70 Hex Bolt Manufacturer
  • Cu-Ni 70 Flanged Hex Bolts Stockholder
  • Copper Nickel 70 Half Threaded Hex Bolt
  • Copper Nickel 30 Hex Bolts Manufacturer
  • Copper Nickel 70 Hex Head Shoulder Bolts
  • Cupro Nickel 30 Hex Bolts
  • Cupro Nickel 70 Metric Hex Bolts
  • Cu-Ni 30 Industrial Hex Bolts Exporter
  • Cupro Nickel 70 Hex Head Bolt
  • 30 CuNi Hex Cap Screw
  • 70 CuNi Socket Head Cap Screw
  • Cupro Nickel 70 Hex Socket Bolts Distributor
  • Copper Nickel 70 Industrial Hex Bolts
  • Copper Nickel 70 Hexagon Bolts
  • Copper Nickel Alloy 70 Hexagon Bolt Supplier in Mumbai

Copper Nickel 70 / 30 Hex Bolts Chemical Composition

Grade Cu Mn Pb Ni Fe Zn
Cu-Ni 70-30 65.0 min 1 max .05 max 29-33 0.4-1.0 1 max

Copper Nickel 70 / 30 Hex Bolts Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Copper Nickel 70-30 0.323 lb/in3 at 68 F 2260 F 50000 psi 20000 psi 30 %

Export Destinations For Copper Nickel 70 / 30 Hex Bolts

industry
