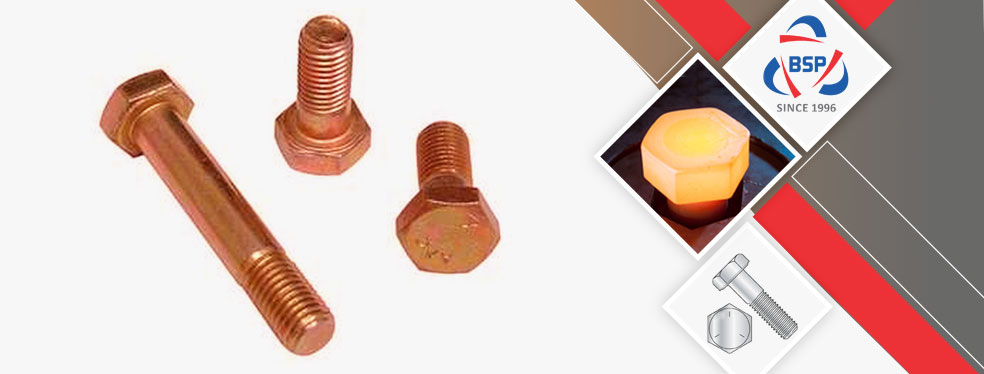

Copper Nickel 90 / 10 Hex Bolts

Cupro Nickel 10 Heavy Hex Bolt, Copper Nickel 90 Hex Bolts, Copper Nickel 90 Hex Bolts, Copper Nickel 90 Hexagonal Bolt, Cu-Ni 10 Hex Head Bolt Price in India.

Bagoda Steel is a recognised exporter and trader of Cupronickel 90 / 10 Hex Bolts, which has better creep pressure and rupture properties. It combines right bendability and weldability by means of having the aid of a choice for assured effect toughness. It brings a stage of user-friendliness now no longer determined in lots of different steels designed for excessive put on resistance and gets rid of the want to sacrifice put on resistance to decorate impact strength. Cu-Ni 90 / 10 Hex Bolts has received its mechanical properties in company of the aid of using quenching and whilst essential by means of having the aid of next tempering. It is also used in Medical industries, Power, Generation, Marine, Hydro Carbon Processing, Automotive, Aerospace, and more. They are molybdenum, vanadium, niobium, tantalum, zirconium, manganese, iron, chromium, cobalt, nickel, and copper.

Industrial Product
Copper Nickel 90 / 10 Hex Bolts

2.0872 Hex Bolts, Cu-Ni 10 Hex Flange Bolt, UNS C70600 Full Threaded Hex Bolt, Copper Nickel 10 Hex Cap Screw, Copper Nickel 90 Industrial Hex Bolt, Cupro Nickel 10 Machine Hex Bolt, Copper Nickel 90 Hex Bolt Stockist, Copper Nickel 90 Hex Head Shoulder Bolt Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

It is castable and is frequently applied in solid valves and fittings. They are as nicely utilized in quite a number chemical exercise system in addition to in aeronautical and marine applications. Furthermore, they've some of exceptional functions together in company of first-rate finishing, unique dimensions, top of the line material power, etc. However, first-rate complicated castings may be made with these alloys, supplied that foundry practices are appropriate. Furthermore, Copper Nickel WNR 2.0872 Hex Bolts additionally provides some of admirable functions which include first-rate finish, dimensionally stable, excessive material potency, and so on. As well, we additionally provide these alloys inside dedicated time to the customers and at maximum affordable rates.

The data of these alloys supplied right here is given as a guide, for reference functions simplest and have to now no longer be used as technical / layout specifications. They are fabricated from dependable professionals and as an end result making positive in their sturdiness and advanced exceptional. Obtainable offerings are extraordinarily valued in countrywide marketplace for his or her range and seamlessness. Copper Nickel UNS C70600 Hex Bolts are very preferably priced subsequently are excessive desired within the worldwide marketplace. They are acknowledged for being rust-resistant, damage-resistant and sturdy in nature.

Material Specification Chart of Copper Nickel 90 / 10 Hex Bolts

Standard DIN 933, DIN 931, DIN-EN14399-4, DIN 601, ISO 4016, IS1364, ISO 4014, ISO 4017, BS 1768, BS 1083, ASME B18.2.1, JIS B1180, DIN 558, ISO 4018, CSN 21101, EU 24016, DIN 7968, DIN7990
Manufacturing Method
  • Cold Forming Hex Bolt: M2 to M24
  • Hot Forging Hex Bolt: M24 to M100
Metric Sizes
  • Dia: M10 – M110
  • Length: 12 – 1200MM
Length 3 mm to 200 mm or custom
US Threads METRIC, BSW, BSF, Unified national coarse (UNC), Unified national fine (UNF), Unified national extra fine (UNEF), UNJC and UNJF threads, UNK threads, UNR threads, Constant-pitch threads
UTS – Unified Thread Standard UNC, UNF, NPT, UNS, UNEF, NPTF
Heads and drive style Phillips/ Slot, Phillips, indented hex head, Oval, Pan, Flat 82 degree, Round, flat undercut, Truss, binding, flat head 100 degree, Slotted, fillister head, Six-Lobe
Manufacturing process Wire Drawing, Insert tapping, Cold Heading, Heat Treatment, Inspection, Surface Plating, Packing
Standard
  • ANSI B 28.2.4 1M/ B 18.2.4 2M
  • ANSI – American National Standards Institute
  • GB/T5783, GB/T5782, GB5783
  • American ASME
  • Indian IS
  • International ISO
  • American SAE
  • German DIN
  • Spanish CSN
  • British BS
  • Italian UNI
  • Polish PN
  • European EU
Surface Coating
  • Ptfe Coated Hex Bolts
  • Hot Dipped Galvanized
  • Phosphate
  • Teflon
  • Xylon
  • Zinc Phosphate
  • Manganese Phosphate
  • Zinc Electro Plating (Hexavalent or Trivalent Chrome)
  • ZAC (Zinc Alluminium Flake Coating)
  • Cadmium
Surface treatment
  • Polish
  • Passivation
  • Black oxide coating
  • Anodizing
  • Sand blasting
  • Rust preventive oil
  • Heat-disposing
  • Hot dip galvanized
  • Electroplating color
Test Certificates
  • EN 10204 / 3.1 MTC
  • ISO 898-1, ISO 898-2,
  • EN 14399-10
  • EN 14399-2
  • ISO 148-1, ISO 6508-1
ISO – International Organization for Standardization
  • ISO 4014
  • ISO 4017
  • ISO 4032
  • ISO 4162
  • ISO 4161

Various Types Of Copper Nickel 90 / 10 Hex Bolts

Copper Nickel 90 / 10 Hex Head Bolt
Copper Nickel 90 / 10 Hex Head Bolt
  • 2.0872 Hex Head Bolts
  • Copper Nickel Alloy 90 Hex Head Bolt
  • Copper Nickel 10 Hex Socket Head Bolt
  • UNS C70600 Hex Head Bolts
  • Copper Nickel 90 Hex Head Bolt
Copper Nickel 90 / 10 Heavy Hex Bolts
Copper Nickel 90 / 10 Heavy Hex Bolt
  • UNS C70600 Heavy Hex Bolts
  • Copper Nickel 10 Heavy Hex Bolts
  • 2.0872 Heavy Hex Bolts
  • Cu-Ni 90 Heavy Hex Bolts
  • Copper Nickel 90 Heavy Hex Bolts
Copper Nickel 90 / 10 Hex Flange Bolts
Copper Nickel 90 / 10 Hex Flange Bolt
  • UNS C70600 Hex Flange Bolt
  • 10 Cu-Ni Hex Flange Bolt
  • 2.0872 Hex Flange Bolts
  • Copper Nickel 10 Flange Hex Bolts
  • Copper Nickel 90 Hex Flange Bolt
Copper Nickel 90 / 10 Slotted Hex Bolts
Copper Nickel 90 / 10 Slotted Hex Bolt
  • 2.0872 Beveled Slotted Hex Bolt
  • Copper Nickel 90 Slotted Hex Bolts
  • Copper Nickel 10 Slotted Hex Bolts
  • UNS C70600 Slotted Hex Bolts
  • CuNi 10 Slotted Hex Bolt
Copper Nickel 90 / 10 Full Threaded Hex Bolt
Copper Nickel 90 / 10 Full Threaded Hex Bolt
  • UNS C70600 Fully Threaded Hex Bolts
  • Copper Nickel 90 Full Threaded Hex Bolt
  • Copper Nickel Alloy Full Threaded Hex Bolt
  • 2.0872 Fully Threaded Hex Bolt
  • Copper Nickel 10 Full Threaded Hex Bolt
Copper Nickel 90 / 10 Half Threaded Hex Bolts
Copper Nickel 90 / 10 Half Threaded Hex Bolt
  • Cu-Ni 10 Half Threaded Hex Bolts
  • 2.0872 Half Threaded Hex Bolts
  • Copper Nickel 10 Half Threaded Hex Bolts
  • Copper Nickel 90 Half Threaded Hex Bolts
  • UNS C70600 Half Threaded Hex Bolts

Equivalent Grades of Copper Nickel 90 / 10 Hex Bolts

STANDARD UNS WERKSTOFF NR.
Copper Nickel 90/10 C70600 2.0872
Hex Bolts Dimensions

View Size Table Of Copper Nickel 90 Hex Bolts, We have Global sales network for Copper Nickel 10 Heavy Hex Bolts, Wide Stockist Of Werkstoff No 2.0872 Hex Head Bolts, Industrial Hex Bolts In India.

Dimensions of Copper Nickel 90 / 10 Hex Bolts

Nominal Size or Basic
Product Diameter		 E F G H R LT
Full-size Body Diameter Width Across Flats Width Across Corners Height Radius of Fillet Nominal Thread Length for
Bolt Lengths
6 in. and
Shorter		 Over
6 in.
Max. Min. Basic Max. Min. Max. Min. Basic Max. Min. Max. Min.
1/4 0.2500 0.260 0.237 7/16 0.438 0.425 0.505 0.484 11/64 0.188 0.150 0.03 0.01 0.750 1.000
5/16 0.3125 0.324 0.298 1/2 0.500 0.484 0.577 0.552 7/32 0.235 0.195 0.03 0.01 0.875 1.125
3/8 0.3750 0.388 0.360 9/16 0.562 0.544 0.650 0.620 1/4 0.268 0.226 0.03 0.01 1.000 1.250
1/2 0.4375 0.452 0.421 5/8 0.625 0.603 0.722 0.687 19/64 0.316 0.272 0.03 0.01 1.125 1.375
1/2 0.5000 0.515 0.482 3/4 0.750 0.725 0.866 0.826 11/32 0.364 0.302 0.03 0.01 1.250 1.500
5/8 0.6250 0.642 0.605 15/16 0.938 0.906 1.083 1.033 27/64 0.444 0.378 0.06 0.02 1.500 1.750
3/4 0.7500 0.768 0.729 1-1/8 1.125 1.088 1.299 1.240 1/2 0.524 0.455 0.06 0.02 1.750 2.000
7/8 0.8750 0.895 0.852 1-5/16 1.312 1.269 1.516 1.447 37/64 0.604 0.531 0.06 0.02 2.000 2.250
1 1.0000 1.022 0.976 1-1/2 1.500 1.450 1.732 1.653 43/64 0.700 0.591 0.09 0.03 2.250 2.500
1-1/8 1.1250 1.149 1.098 1-11/16 1.688 1.631 1.949 1.859 3/4 0.780 0.658 0.09 0.03 2.500 2.750
1-1/4 1.2500 1.277 1.223 1-7/8 1.875 1.812 2.165 2.066 27/32 0.876 0.749 0.09 0.03 2.750 3.000
1-3/8 1.3750 1.404 1.345 2-1/16 2.062 1.994 2.382 2.273 29/32 0.940 0.810 0.09 0.03 3.000 3.250
1-1/2 1.5000 1.531 1.470 2-1/4 2.250 2.175 2.598 2.480 1 1.036 0.902 0.09 0.03 3.250 3.500
1-5/8 1.6250 1.658 1.591 2-7/16 2.438 2.356 2.815 2.616 1-3/32 1.116 0.978 0.09 0.03 3.500 3.750
1-3/4 1.7500 1.785 1.716 2-5/8 2.625 2.538 3.031 2.893 1-5/32 1.196 1.054 0.12 0.04 3.750 4.000
1-7/8 1.8750 1.912 1.839 2-13/16 2.812 2.719 3.248 3.099 1-1/4 1.276 1.130 0.12 0.04 4.000 4.250
2 2.0000 2.039 1.964 3 3.000 2.900 3.464 3.306 1-11/32 1.388 1.175 0.12 0.04 4.250 4.500
2-1/4 2.2500 2.305 2.214 3-3/8 3.375 3.262 3.897 3.719 1-1/2 1.548 1.327 0.19 0.06 4.750 5.000
2-1/2 2.5000 2.559 2.461 3-3/4 3.750 3.625 4.330 4.133 1-21/32 1.708 1.479 0.19 0.06 5.250 5.500
2-3/4 2.7500 2.827 2.711 4-1/8 4.125 3.988 4.763 4.546 1-13/16 1.869 1.632 0.19 0.06 5.750 6.000
3 3.0000 3.081 2.961 4-1/2 4.500 4.350 5.196 4.959 2 2.060 1.815 0.19 0.06 6.250 6.500
3-1/4 3.2500 3.335 3.210 4-7/8 4.875 4.712 5.629 5.372 2-3/16 2.251 1.936 0.19 0.06 6.750 7.000
3-1/2 3.5000 3.589 3.461 5-1/4 5.250 5.075 6.062 5.786 2-5/16 2.380 2.057 0.19 0.06 7.250 7.500
3-3/4 3.7500 3.858 3.726 5-5/8 5.625 5.437 6.495 6.198 2-1/2 2.572 2.241 0.19 0.06 7.750 8.000
4 4.0000 4.111 3.975 6 6.000 5.800 6.928 6.612 2-11/16 2.764 2.424 0.19 0.06 8.250 8.500

Dimensions of Copper Nickel 90 / 10 Heavy Hex Bolts

Nominal Size
or Basic
Product Diameter		 E F G H R LT
Full-size Body
Diameter		 Width Across Flats Width Across
Corners		 Head Height Radius of Fillet Nominal Thread
Length for
Screw Lengths
6 in.
and
Shorter		 Over 6
in.
Max. Min. Basic Max. Min. Max. Min. Basic Max. Min. Max. Min. Nom. Nom.
3/8 0.3750 0.388 0.360 11/16 0.688 0.669 0.794 0.763 1/4 0.268 0.226 0.03 0.01 1.000 1.250
1/2 0.5000 0.515 0.482 7/8 0.875 0.850 1.010 0.969 11/32 0.364 0.302 0.03 0.01 1.250 1.500
5/8 0.6250 0.642 0.605 1-1/16 1.062 1.031 1.227 1.175 27/64 0.444 0.378 0.06 0.02 1.500 1.750
3/4 0.7500 0.768 0.729 1-1/4 1.250 1.212 1.443 1.383 1/2 0.524 0.455 0.06 0.02 1.750 2.000
7/8 0.8750 0.895 0.852 1-7/16 1.438 1.394 1.660 1.589 37/64 0.604 0.531 0.06 0.02 2.000 2.250
1 1.0000 1.022 0.976 1-5/8 1.625 1.575 1.876 1.796 43/64 0.700 0.591 0.09 0.03 2.250 2.500
1-1/8 1.1250 1.149 1.098 1-13/16 1.812 1.756 2.093 2.002 3/4 0.780 0.658 0.09 0.03 2.500 2.750
1-1/4 1.2500 1.277 1.223 2 2.000 1.938 2.309 2.209 27/32 0.876 0.749 0.09 0.03 2.750 3.000
1-3/8 1.3750 1.404 1.345 2-3/16 2.188 2.119 2.526 2.416 29/32 0.940 0.810 0.09 0.03 3.000 3.250
1-1/2 1.5000 1.531 1.470 2-3/8 2.375 2.300 2.742 2.622 1 1.036 0.902 0.09 0.03 3.250 3.500
1-5/8 1.6250 1.658 1.591 2-9/16 2.562 2.481 2.959 2.829 1-3/32 1.116 0.978 0.09 0.03 3.500 3.750
1-3/4 1.7500 1.785 1.716 2-3/4 2.750 2.662 3.175 3.035 1-5/32 1.196 1.054 0.12 0.04 3.750 4.000
1-7/8 1.8750 1.912 1.839 2-15/16 2.938 2.844 3.392 3.242 1-1/4 1.276 1.130 0.12 0.04 4.000 4.250
2 2.0000 2.039 1.964 3-1/8 3.125 3.025 3.608 3.449 1-11/32 1.388 1.175 0.12 0.04 4.250 4.500
2-1/4 2.2500 2.305 2.214 3-1/2 3.500 3.388 4.041 3.862 1-1/2 1.548 1.327 0.19 0.06 4.750 5.000
2-1/2 2.5000 2.559 2.461 3-7/8 3.875 3.750 4.474 4.275 1-21/32 1.708 1.479 0.19 0.06 5.250 5.500
2-3/4 2.7500 2.827 2.711 4-1/4 4.250 4.112 4.907 4.688 1-13/16 1.869 1.632 0.19 0.06 5.750 6.000
3 3.0000 3.081 2.961 4-5/8 4.625 4.475 5.340 5.102 2 2.060 1.815 0.19 0.06 6.250 6.500

Check available Sizes of Copper Nickel 90 Hex Bolts, Ask For Ready Stock of UNS C70600 Heavy Hex Bolts in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Copper Nickel 90 / 10 Heavy Hex Structural Bolt

Bolt Size A B C D E
Radius of Fillet		 F
Thread Length		 G
Transitional
Thread Length		 Runout of
Bearing Surface
FIM
max min min max min max
1/2″ 0.515 0.482 7/8 0.969 5/16 0.031 0.009 1.00 0.19 0.016
5/8″ 0.642 0.605 1-1/16 1.175 25/64 0.062 0.021 1.25 0.22 0.019
3/4″ 0.768 0.729 1-1/4 1.383 15/32 0.062 0.021 1.38 0.25 0.022
7/8″ 0.895 0.852 1-7/16 1.589 35/64 0.062 0.031 1.50 0.28 0.025
1″ 1.022 0.976 1-5/8 1.796 39/64 0.093 0.062 1.75 0.31 0.028
1-1/8″ 1.149 1.098 1-13/16 2.002 11/16 0.093 0.062 2.00 0.34 0.032
1-1/4″ 1.277 1.223 2 2.209 25/32 0.093 0.062 2.00 0.38 0.035
1-3/8″ 1.404 1.345 2-3/16 2.416 27/32 0.093 0.062 2.25 0.44 0.038
1-1/2″ 1.531 1.470 2-3/8 2.622 15/16 0.093 0.062 2.25 0.44 0.041

Weight Chart Of Copper Nickel 90 / 10 Hex Bolts

THREADS According to IS 1363/67
APPROX. WEIGHT IN KGS FOR 100 NOS
LENGTH in mm DIAMETER (METRIC)
M5 M6 M12 M8 M10 M16 M14 M20 M18 M22
16 0.448 0.743 1.590 3.211
20 0.598 0.812 4.892 1.711 3.411
25 0.660 0.897 5.252 1.871 3.660 8.170
30 0.737 1.010 5.574 2.070 3.912 10.707 9.690 18.657
35 0.804 1.120 5.974 2.271 4.223 11.416 10.000 19.608 16.026
40 0.881 1.230 6.410 2.470 4.533 12.107 10.288 20.747 16.667
45 0.958 1.340 6.859 2.671 4.840 12.821 10.504 21.739 17.241
50 1.030 1.450 7.299 2.870 5.155 13.624 11.261 22.727 17.857 28.409
55 1.560 7.740 3.071 5.464 14.409 11.628 23.810 18.868 30.120
60 1.670 8.183 3.270 5.774 15.244 12.255 25.126 20.000 32.051
65 1.781 8.621 3.472 6.083 16.026 12.626 26.455 21.008 34.014
70 1.890 9.058 3.671 6.394 16.835 12.987 27.778 22.124 35.461
75 2.000 9.506 3.873 6.702 17.606 13.228 29.070 23.256 39.063
80 2.111 10.000 4.072 7.013 18.248 13.889 30.303 24.510 40.000
90 10.917 4.472 7.634 19.841 14.925 33.113 26.042 41.667
100 11.820 4.873 8.251 21.459 16.340 35.714 27.778 46.296
110 12.723 8.881 23.041 17.730 38.168 31.250 47.170
120 13.624 9.506 24.631 18.797 40.984 32.895 50.000
130 14.535 10.101 26.316 20.000 43.478 34.722 52.632
140 15.432 10.707 27.933 20.833 46.296 35.461 55.556
150 16.340 11.312 29.412 22.222 48.544 37.594 58.824
160 17.241 11.905 31.056 24.272 50.505 40.984 61.728
170 18.116 12.500 32.680 53.191 64.935
180 19.011 13.123 34.247 26.882 55.556 67.568
190 19.920 13.736 35.971 58.140 70.423
200 20.833 14.327 37.594 29.586 60.976 49.020 73.529
220 22.624 15.528 40.650 65.789 79.365
240 24.510 16.722 43.860 71.429 84.746
250 25.381 17.301 45.455 74.627 87.719
260 26.316 17.921 47.170 76.923 90.909
280 28.090 19.157 50.505 81.967 98.039
300 29.940 20.325 53.763 87.719 104.167
320 31.646 56.818 92.593
340 33.557 60.241 98.039
360 35.211 63.291 104.167
380 37.037 66.667 108.696
400 39.063 69.444 113.636

Ready Stock Copper Nickel 90 / 10 Hex Bolts

  • Cu-Ni 90 Heavy Hex Bolts
  • Cu-Ni 90 Flanged Hex Bolts Stockholder
  • 2.0872 Hex Machine Bolt
  • 90 CuNi Fully Threaded Hex Bolt
  • Copper Nickel 10 Heavy Hex Structural Bolt
  • Copper Nickel 10 Slotted Hex Bolts
  • Cupro Nickel 90 Hex Head Bolt
  • Cu-Ni 10 Industrial Hex Bolts Exporter
  • Copper Nickel 10 Slotted Hex Bolts
  • Copper Nickel 90 Half Threaded Hex Bolt
  • 90 CuNi Socket Head Cap Screw
  • UNS C70600 Hex Bolts
  • Cupro Nickel 90 Metric Hex Bolts
  • Copper Nickel 90 Threaded Hex Bolts
  • Cupro Nickel 10 Hex Bolts
  • DIN 2.0872 Hex Bolts
  • Copper Nickel 90 Hexagon Screw Head Bolt
  • 10 CuNi Hex Cap Screw
  • Cu-Ni 10 High Tensile Hex Bolts
  • Copper Nickel 90 Hex Structural Bolts
  • Copper Nickel 90 Hex Bolt Manufacturer
  • Copper Nickel 10 Hex Bolts Manufacturer
  • Copper Nickel Alloy 90 Heavy Hex Bolts
  • Copper Nickel 10 Hex Tap Bolts
  • Copper Nickel 10 Hex Head Shoulder Bolt
  • Cupro Nickel 90 Hex Socket Bolts Distributor
  • Cu-Ni 90 Self Sealing Hex Bolts
  • Cupro Nickel 90 Hex Machine Bolt Stockist
  • Copper Nickel Alloy 90 Hexagon Bolt Supplier in Mumbai
  • Copper Nickel 90 Full Threaded Hex Bolt
  • Copper Nickel 90 Hexagon Bolts
  • Copper Nickel 10 Hex Flange Bolt
  • Copper Nickel 90 Industrial Hex Bolts
  • Copper Nickel 10 Heavy Hex Bolts
  • Copper Nickel 10 Half Threaded Hex Bolt
  • Copper Nickel 90 Hex Head Shoulder Bolts

Copper Nickel 90 / 10 Hex Bolts Chemical Composition

Grade Cu Mn Pb Ni Fe Zn
Cu-Ni 90-10 88.6 min 1.0 max .05 max 9-11 max 1.8 max 1 max

Copper Nickel 90 / 10 Hex Bolts Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Copper Nickel 90-10 0.323 lb/in3 at 68 F 2260 F 50000 psi 20000 psi 30 %

Export Destinations For Copper Nickel 90 / 10 Hex Bolts

industry
