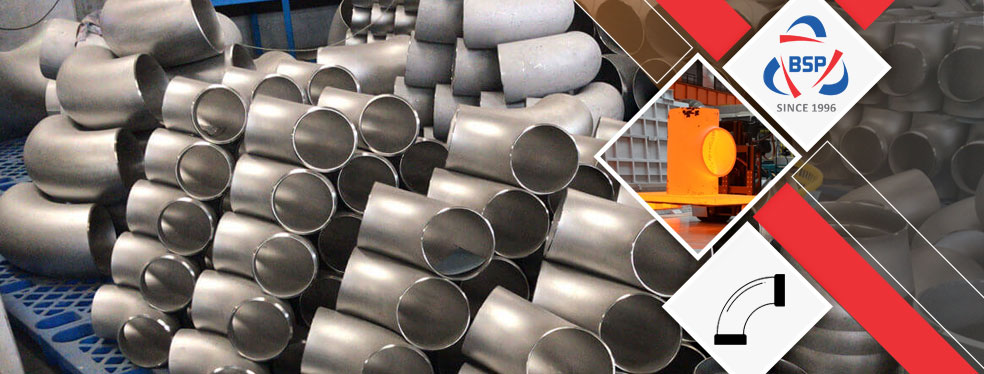

Hastelloy C22 Pipe Fittings

ANSI B16.9 Hastelloy Alloy C22 Short Radius Elbow, Hastelloy C22 Buttweld Fittings In Japan, ASTM B366 Hastelloy C22 Buttweld Pipe Fittings, Alloy C22 90 Deg. Elbow, Hastelloy C22 Elbow Price in India.

Bagoda Steel is a well-known supplier and trader of Hastelloy Alloy C22 Pipe Fittings, which finds applications because of each outstanding corrosion resistance and excessive strength. It gives outstanding and regular machining properties for expanded slicing speeds, decreased device put on and set - up times. The formation of intermetallic stages of these Pipe Fittings which include sigma segment takes place within the temperature variety six hundred Degree C – a thousand Degree C and decomposition of ferrite takes place within the variety 350 Degree C – 500 Degree C (475 Degree C embrittlement). The fundamental concept of our Hastelloy Alloy UNS N06022 Elbow Pipe Fittings is to supply a chemical composition that ends in an about same combination of ferrite and austenite.

Industrial Product
Hastelloy C22 Pipe Fittings

Hastelloy C22 Equal Tee In Spain, 2.4602 Reducer, Hastelloy Alloy C22 Pipe Cap Stockist, Hastelloy C22 Two Joint Pipe Fittings In Malaysia, Nickel Alloy C22 Cross, UNS N06022 Pipe Fittings, Hastelloy C22 Stub End, Hastelloy® Alloy C22 LR Elbow Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

The chemical composition is balanced to provide about same quantities of ferrite and austenite in solution - annealed condition. By approach of thorough information of the applicable industry, we're presenting a huge variety of our Pipe Fittings that is quite extra tough to gadget than the collection austenitic steels. We are as properly taken into consideration as one of the outstanding exporter and provider for these excessive exceptional Pipe Fittings, which resists chloride environments and sulphide pressure corrosion. Hastelloy Alloy WNR 2.4602 45-Degree Elbow Pipe Fittings is the maximum broadly used steel grade and is characterised with the aid of using excessive yield strength, double that of the usual austenitic stainless-steel grades.

It does now no longer simply corrode, rust or stain by using water as regular metallic does. However, it isn't always absolutely stain - evidence in low - oxygen, excessive - salinity, or bad air - movement environments. Hastelloy Alloy C22 90-Degree Elbow Pipe Fittings differs from carbon metallic with the aid of using the quantity of chromium present, in which unprotected carbon metallic rusts simply whilst uncovered to air and moisture. Besides, it additionally reveals an abnormal sample and behaviour whilst present process numerous hot working processes (mainly hot working processes). Its mechanical and physical properties permit appropriate potential for these Pipe Fittings to sign up for with bones and different tissue.

Material Specification Chart of Hastelloy C22 Pipe Fittings

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Connection Welding
Manufacturing Process Push, Press, Forge, Cast, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

Hastelloy C22 PIPE FITTINGS MANUFACTURING STANDARDS

ASTM B366/B366M Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
MSS SP-43 Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM B366 – ASME SB366 Standard Specification for Piping Fitting
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.25 Buttwelding Ends
ASME B16.28 SR Elbows and Buttwelding Returns
API 590-605
ASME B16.9 		‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of Hastelloy C22 Butt weld Pipe Fittings

Hastelloy C22 Butt weld Elbow
Hastelloy C22 Butt weld Elbow
  • 2.4602 Short Radius Elbow
  • ANSI B16.9 Hastelloy Alloy C22 5D Elbow
  • Nickel Alloy C22 180 Deg Elbow In Indonesia
  • Hastelloy® Alloy C22 45 Degree Elbow In Malaysia
  • Alloy C22 3D Butt weld Elbow
  • Hastelloy C22 90 Degree Elbow
  • UNS N06022 LR Elbow
Hastelloy C22 Butt weld Tee
Hastelloy C22 Butt weld Tee
  • Hastelloy C22 Unequal Tee In Philippines
  • Hastelloy® Alloy C22 Reducing Tee
  • Alloy C22 Equal Tee In Mexico
  • Hastelloy C22 Tee
  • UNS N06022 Butt weld Tee
  • ANSI B16.9 Hastelloy C22 Buttweld Tee
  • 2.4602 Buttweld Tees
Hastelloy C22 Butt weld Cross
Hastelloy C22 Butt weld Cross
  • UNS N06022 Butt weld Cross
  • Hastelloy C22 Cross
  • 2.4602 Buttweld Cross
  • Hastelloy Alloy C22 Unequal Cross
  • Hastelloy C22 Reducing Cross In Japan
  • ANSI B16.9 Hastelloy Alloy C22 Buttweld Cross
  • Alloy C22 Equal Cross In Italy
Hastelloy C22 Concentric Reducer
Hastelloy C22 Concentric Reducer
  • UNS N06022 Concentric Reducer
  • ANSI B16.9 Hastelloy Alloy C22 Concentric Reducer
  • Nickel Alloy C22 Concentric Reducer In Spain
  • Alloy C22 Concentric Reducer In Kuwait
  • 2.4602 Concentric Reducer
Hastelloy C22 Eccentric Reducer
Hastelloy C22 Eccentric Reducer
  • 2.4602 Eccentric Reducer
  • UNS N06022 Eccentric Reducer
  • Nickel Alloy C22 Eccentric Reducer In Singapore
  • ANSI B16.9 Hastelloy Alloy C22 Eccentric Reducer
  • Alloy C22 Eccentric Reducer
Hastelloy C22 Stub End
Hastelloy C22 Stub End
  • UNS N06022 Butt weld Stub End
  • Alloy C22 Long Stub End In Singapore
  • Hastelloy C22 Short Stub End In Indonesia
  • 2.4602 Short Stub End
  • ANSI B16.9 Hastelloy Alloy C22 Lap Joint Stub End
Hastelloy C22 Pipe End Cap
Hastelloy C22 Pipe End Cap
  • 2.4602 End Pipe Cap
  • ANSI B16.9 Hastelloy Alloy C22 Pipe End Cap
  • Hastelloy C22 End Cap In Malaysia
  • UNS N06022 Butt weld Cap
  • Alloy C22 Pipe Cap In Kuwait
Hastelloy C22 Pipe Nipple
Hastelloy C22 Pipe Nipple
  • UNS N06022 Butt weld Nipple
  • ANSI B16.9 Hastelloy Alloy C22 Barrel Nipple
  • 2.4602 Swage Nipple
  • Alloy C22 Pipe Nipple In Mexico
  • Hastelloy C22 Nipple In Spain
Hastelloy C22 Pipe Bend
Hastelloy C22 Pipe Bend
  • Hastelloy C22 Long Radius Bend In Philippines
  • UNS N06022 Butt weld Bend
  • Alloy C22 Piggable Bend In Italy
  • ANSI B16.9 Hastelloy Alloy C22 Bend
  • 2.4602 Hot Induction Bend

Equivalent Grades of Hastelloy C22 Buttweld Fittings

STANDARD UNS WERKSTOFF NR. JIS EN
Hastelloy C22 N06022 2.4602 NW 6022 NiCr21Mo14W
Pipe Fittings Dimensions

View Thickness Table Of Hastelloy C22 Buttweld Fittings, We have Global sales network for Hastelloy C22 LR Elbow, Wide Stockist Of Werkstoff No 2.4602 Seamless Fittings In India.

ASTM B366 Hastelloy C22 Buttweld Fittings

Seamless/ Welded 100% Radiography Tested
Products Size
ASTM B366 Alloy C22 Elbow – Long Radius ASTM B366 Alloy C22 45° Elbow Sizes 1/2″ – 48″
ASTM B366 Alloy C22 Elbow – Short Radius ASTM B366 Alloy C22 Cross
ASTM B366 Alloy C22 3D Elbow ASTM B366 Alloy C22 5D Elbow
ASTM B366 Alloy C22 Stub End ASTM B366 Alloy C22 Pipe Bend
ASTM B366 Alloy C22 Fabricated Tee ASTM B366 Alloy C22 End Cap
ASTM B366 Alloy C22 Reducer ASTM B366 Alloy C22 Tee
ASTM B366 Alloy C22 Reducing Elbow ASTM B366 Alloy C22 Pipe Nipple
ASTM B366 Alloy C22 Reducing Cross ASTM B366 Alloy C22 Eccentric Reducer
ASTM B366 Alloy C22 Concentric Reducer ASTM B366 Alloy C22 Welded Fittings

Check available Sizes of ASME SB 366 Hastelloy C22 Pipe Reducer, Ask For Ready Stock of UNS N06022 Stub End in Mumbai, India.

BAGODA

Quick Contact

ASME B16.9 Hastelloy C22 Short and Long Radius Elbows Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter 		45°Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Radius
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

ASME B16.9 Hastelloy C22 Tee & Cap Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter		 Caps Straight Crosses Straight Tees Stub Ends
(mm) (inches) Length
(inches)		 Center to End
(inches)		 Center to End
(inches)		 Lap Diameter
(inches)		 Long Length
(inches)		 Short Length
(inches)
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1/2 21.3 0.840 1 – 1 1 3/8 3 2
3/4 26.7 1.050 1 – 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

ASME B16.9 Hastelloy C22 Concentric & Eccentric Reducer Dimensions

Nominal
Pipe
Size		 Outside
Diameter 		Reducers
Reduced from
(inches)		 (mm) (inches) Reduced to
(inches) 		Concentric & Eccentric Length
(inches)
1 33.4 1.315 3/8 2
1/2 2
3/4 2
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 1/4 42.2 1.660 1/2 2
3/4 2
1 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 2 1/2
1 1/4 2 1/2
2 60.3 2.375 3/4 3
1 3
1 1/4 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/4 3 1/2
1 1/2 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
1 1/2 3 1/2
2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2 4
2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 4
2 1/2 4
3 4
3 1/2 4
5 141.3 5.563 2 5
2 1/2 5
3 5
3 1/2 5
4 5
6 168.3 6.625 2 1/2 5 1/2
3 5 1/2
3 1/2 5 1/2
4 5 1/2
5 5 1/2
8 219.1 8.625 3 6
3 1/2 6
4 6
5 6
6 6
10 273.1 10.750 4 7
5 7
6 7
8 7
12 323.9 12.750 5 8
6 8
8 8
10 8

Hastelloy C22 Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.96 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Hastelloy C22 Pipe Fittings

  • Hastelloy C22 Buttweld Fittings In Indonesia
  • ASTM B366 Hastelloy C22 Stub End
  • Nickel Alloy C22 Pipe Fittings Manufacturer
  • 2.4602 Butt weld Fittings
  • Hastelloy C22 Seamless Fittings In Malaysia
  • UNS N06022 Pipe Fittings
  • ASME B16.9 Hastelloy C22 Buttweld Fittings
  • ANSI B16.9 Hastelloy C22 Pipe Cap
  • Alloy C22 LR Elbow Stockist
  • ASTM B366 Hastelloy C22 Buttweld Fittings
  • Hastelloy C22 SR Elbow In Mexico
  • Hastelloy C22 Long Stub End In Philippines
  • Alloy C22 1D Elbow/3D Elbow/5D Elbow
  • 15 NB SCH 10 Hastelloy C22 90° Short Radius Elbow
  • Hastelloy® Alloy C22 Equal Cross
  • DIN 2605 Hastelloy C22 Elbow Exporter
  • Hastelloy C22 Welded Fittings In Japan
  • Hastelloy® Alloy C22 Pipe Elbow
  • C22 Hastelloy Buttweld Nipple
  • ASME SB366 Hastelloy® Alloy C22 Lateral Tee
  • Alloy C22 Reducing Nipple
  • Hastelloy® Alloy C22 Butt weld Tee
  • Hastelloy C22 Two Halve Butt weld Fittings In Italy
  • Alloy C22 Barrel Nipple Supplier in Mumbai
  • Sch 80 Hastelloy C22 Pipe Fittings
  • Hastelloy C22 Butt Weld Pipe Fittings
  • SCH 60 Hastelloy® Alloy C22 Pipe Nipples
  • Hastelloy Alloy C22 Long Radius Bend Stockholder
  • C22 Hastelloy 180° LR Return Bends
  • ASTM B366 Hastelloy C22 Pipe Fittings In Japan
  • Hastelloy C22 Reducer In Spain
  • Hastelloy C22 Piggable Bends In Kuwait
  • ASME B16.9 Schedule 10 Hastelloy® Alloy C22 Elbow
  • Hastelloy® Alloy C22 Lap Joint Stub End
  • Hastelloy Alloy C22 Two Joint Pipe Fittings In Philippines
  • ANSI B16.9 Hastelloy C22 Short Stub End
  • Schedule 80 Hastelloy C22 Grade Long Stub End
  • Nickel Alloy C22 End Cap Distributor
  • Hastelloy C22 Pipe Bend In Singapore
  • Hastelloy JIS NCF C22 Mandrel Pipe Bend In Malaysia
  • DIN 2.4602 Swage Nipple
  • Alloy C22 Long Radius Elbow In Indonesia
  • Hastelloy Alloy C22 Eccentric Reducer
  • 1/2” - 16” ASTM B366 Alloy C22 Butt weld Elbow
  • Hastelloy® Alloy C22 Elbow
  • Alloy C22 Eccentric Reducer Manufacturer
  • 5" Nb Sch10s Hastelloy C22 90° Short Radius Elbow
  • ASTM B366 Alloy C22 45 Degree Elbow In Mexico

Hastelloy C22 Butt weld Fittings Chemical Composition

Grade C Mn Si S Co Ni Cr Fe Mo P
Alloy C22 0.010 max 0.50 max 0.08 max 0.02 max 2.50 max 50.015 min* 20.00 – 22.50 2.00 – 6.00 12.50 – 14.50 0.02 max

Hastelloy C22 Pipe Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C22 8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %

Export Destinations For Hastelloy C22 Butt weld Pipe Fittings

industry
