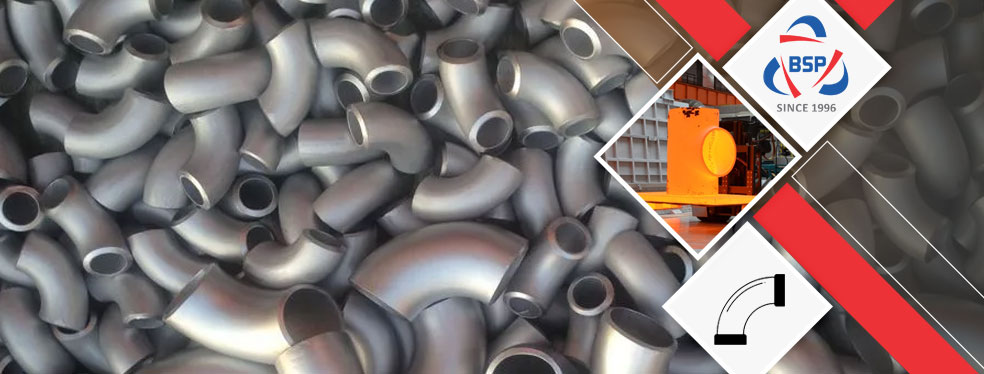

Super Duplex Steel 2507 Two Joint Pipe Fittings In Spain, UNS S32750 Stub End, DIN 1.4410 Reducer Supplier in Mumbai, India.
When twist drill bits are utilized in these pipe fittings, cobalt drills are desired however excessive pace metal (HSS) drills will also work so long as you preserve the rate gradual and steady. It makes viable an excessive diploma of uniformity in growing maximum strength, which may be duplicated software after software. However, tapping and heavy drilling (huge diameter or deep - hollow drilling) in these pipe fittings calls for a heavy duty, mild viscosity petroleum reducing oil. Other applications for these Alloy 2507 End Cap Pipe Fittings might also additionally use distinct lubricants primarily based totally on trial and error, wherein lubricants / coolants are desirable.
When the use of insert drills in CNC machines use the identical speeds (SFM) for facing, turning and dull for the particular alloy such as these pipe fittings. In offshore oil and fueloline systems and processing and FPSO vessels, they're utilized in structures and splash area sheathings. It has tremendous resistance to sea water corrosion because of the presence of full-size quantities of manganese and iron. Super Duplex WNR 1.4410 Dish Cap Pipe Fittings is metal this is alloyed with loads of factors in general quantities with the aid of using weight to enhance its mechanical properties. Being an exceptional orientated organization; we're capable of offer these products, which can be product of the greatest exceptional material & main strategies according with the set norms of industry.
Material Specification Chart of Super Duplex Steel S32750 / S32760 Pipe Fittings
| Specifications | ASTM B815 / ASME SB815 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Connection | Welding |
| Manufacturing Process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized Manufacturer of | 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
Super Duplex Steel S32750 / S32760 PIPE FITTINGS MANUFACTURING STANDARDS
| ASTM B815/B815M | Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| MSS SP-43 | Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications |
| BS3799 – | Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry |
| ASTM B815 – ASME SB815 | Standard Specification for Piping Fitting |
| ASME Standard | ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43 |
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | SR Elbows and Buttwelding Returns |
| API 590-605 ASME B16.9 |
‘Factory-Made Wrought Butt-welding Fittings’ |
Various Types Of Super Duplex Steel S32750 / S32760 Butt weld Pipe Fittings
- SDSS S32760 45 Degree Elbow In Indonesia
- SDSS S32750 180 Deg Elbow
- ANSI B16.9 Super Duplex Stainless Steel S32750 5D Elbow
- Super Duplex S32760 3D Butt weld Elbow In Malaysia
- UNS S32760 LR Elbow
- 1.4410 Short Radius Elbow
- Super Duplex Steel S32750 90 Degree Elbow
- 1.4410 Buttweld Tees
- Super Duplex Stainless Steel S32750 Unequal Tee
- SDSS S32760 Reducing Tee In Mexico
- UNS S32760 Butt weld Tee
- ANSI B16.9 Super Duplex Steel S32750 Buttweld Tee
- Super Duplex Steel S32750 Tee In Philippines
- Super Duplex S32760 Equal Tee
- ANSI B16.9 Super Duplex Steel 2507 Buttweld Cross
- SDSS S32750 Equal Cross In Japan
- UNS S32750 Butt weld Cross
- Super Duplex Steel S32760 Unequal Cross
- Super Duplex Stainless Steel S32750 Reducing Cross
- 1.4410 Buttweld Cross
- Super Duplex S32760 Cross In Italy
- 1.4410 Concentric Reducer
- UNS S32750 Concentric Reducer
- Super Duplex Steel S32750 Concentric Reducer In Spain
- SDSS S32760 Concentric Reducer In Kuwait
- ANSI B16.9 Super Duplex 2507 Concentric Reducer
- UNS S32760 Eccentric Reducer
- 1.4410 Eccentric Reducer
- Super Duplex Steel 2507 Eccentric Reducer In Kuwait
- SDSS S32750 Eccentric Reducer In Singapore
- ANSI B16.9 Super Duplex S32750 Eccentric Reducer
- ANSI B16.9 Super Duplex S32750 Lap Joint Stub End
- 1.4410 Short Stub End
- Super Duplex Stainless Steel S32750 Long Stub End In Kuwait
- Super Duplex Steel S32760 Short Stub End In Indonesia
- UNS S32760 Butt weld Stub End
- UNS S32760 Butt weld Cap
- Super Duplex Steel S32750 End Cap In Mexico
- 1.4410 End Pipe Cap
- Super Duplex Stainless Steel S32760 Pipe Cap In Spain
- ANSI B16.9 Super Duplex S32750 Pipe End Cap
- Super Duplex Steel 2507 Nipple In Philippines
- 1.4410 Swage Nipple
- ANSI B16.9 Super Duplex S32760 Barrel Nipple
- Super Duplex Stainless Steel S32750 Pipe Nipple In Italy
- UNS S32750 Butt weld Nipple
- UNS S32750 Butt weld Bend
- ANSI B16.9 Super Duplex S32760 Bend
- Super Duplex Stainless Steel S32750 Long Radius Bend
- Super Duplex Steel 2507 Piggable Bend In Japan
- 1.4410 Hot Induction Bend
Equivalent Grades of Super Duplex Steel S32750 / S32760 Buttweld Fittings
| Standard | Workstoff NR. | UNS |
|---|---|---|
| Super Duplex 2507 | 1.4410 | S32750 / S32760 |
View Thickness Table Of Super Duplex Steel S32760 Buttweld Fittings, We have Global sales network for Super Duplex Steel S32750 LR Elbow, Wide Stockist Of Werkstoff No 1.4410 Seamless Fittings In India.
Check available Sizes of ASME SB 815 Super Duplex Steel S32750 Pipe Reducer, Ask For Ready Stock of UNS S32750 Stub End in Mumbai, India.
BAGODA
Quick Contact
ASME B16.9 Super Duplex Steel S32750 / S32760 Short and Long Radius Elbows Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Center to Face (inches) |
Center to Center (inches) |
Back to face (inches) |
|
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
ASME B16.9 Super Duplex Steel S32750 / S32760 Tee & Cap Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter |
Caps | Straight Crosses | Straight Tees | Stub Ends | |||
| (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
|
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1/2 | 21.3 | 0.840 | 1 | – | 1 | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | – | 1 1/8 | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
ASME B16.9 Super Duplex Steel S32750 / S32760 Concentric & Eccentric Reducer Dimensions
| Nominal Pipe Size |
Outside Diameter | Reducers | ||
| Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) | Concentric & Eccentric Length (inches) |
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
Super Duplex Steel S32750 / S32760 Buttweld Fittings Weights(Kg)
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.96 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Ready Stock Super Duplex Steel S32750 / S32760 Pipe Fittings
- ASME SB815 SDSS S32760 Lateral Tee
- 5" Nb Sch10s Super Duplex Steel S32750 90° Short Radius Elbow
- Super Duplex Steel 2507 Reducer In Indonesia
- ANSI B16.9 Super Duplex Stainless Steel S32760 Pipe Cap
- SDSS S32750 Seamless Fittings In Malaysia
- SCH 60 SDSS S32760 Pipe Nipples
- Super Duplex Steel S32760 Two Halve Butt weld Fittings
- Super Duplex Steel S32750 Welded Fittings In Mexico
- UNS S32760 Pipe Fittings
- ANSI B16.9 Super Duplex Steel S32750 Short Stub End
- SDSS S32750 Piggable Bends In Philippines
- Super Duplex 2507 Reducing Nipple
- SDSS S32760 Equal Cross In Japan
- DIN 1.4410 Swage Nipple
- Super Duplex Stainless Steel S32760 Pipe Bend
- Super Duplex S32760 Two Joint Pipe Fittings In Italy
- UNS S32750 Long Radius Elbow
- SDSS S32760 Lap Joint Stub End In Spain
- UNS S32750 Eccentric Reducer Manufacturer
- ASTM B815 Super Duplex Steel 2507 45 Degree Elbow
- Sch 80 Super Duplex Steel S32750 Pipe Fittings
- SDSS S32750 Elbow
- ASTM B815 Super Duplex Steel S32760 Pipe Fittings
- ASTM B815 Super Duplex Stainless Steel S32750 Stub End
- Schedule 80 Super Duplex Steel S32750 Grade Long Stub End
- 15 NB SCH 10 Super Duplex Steel S32750 90° Short Radius Elbow
- SDSS S32760 Pipe Elbow In Kuwait
- SDSS S32750 Butt weld Tee
- 1/2” - 16” ASTM B815 Super Duplex Steel UNS S32750 Butt weld Elbow
- Super Duplex S32760 Long Radius Bend Stockholder
- ASTM B815 Super Duplex Stainless Steel S32750 Buttweld Fittings
- 1.4410 Butt weld Fittings In Malaysia
- Super Duplex Steel S32760 Butt Weld Pipe Fittings In Singapore
- UNS S32750 Barrel Nipple Supplier in Mumbai
- Super Duplex S32750 Eccentric Reducer In Kuwait
- Super Duplex Steel S32750 1D Elbow/3D Elbow/5D Elbow In Spain
- Super Duplex JIS NCF S32750 Mandrel Pipe Bend
- DIN 2605 Super Duplex Stainless Steel S32760 Elbow Exporter
- SDSS S32750 Pipe Fittings Manufacturer
- SDSS S32750 End Cap Distributor
- Super Duplex Stainless Steel S32760 Long Stub End In Italy
- UNS S32750 Buttweld Fittings
- ASME B16.9 Schedule 10 SDSS S32750 Elbow
- Super Duplex Steel 2507 180° LR Return Bends
- Super Duplex 2507 LR Elbow Stockist
- Super Duplex Stainless Steel S32760 SR Elbow In Japan
- ASME B16.9 SDSS S32760 Buttweld Fittings
- Super Duplex Steel 2507 Buttweld Nipple In Philippines
Super Duplex Steel S32750 / S32760 Butt weld Fittings Chemical Composition
| Grade | C | MN | Si | P | S | Cr | N | Ni | Fe |
|---|---|---|---|---|---|---|---|---|---|
| S32750 | 0.030 max | 1.20 max | 8.0 Max | 0.035 max | 0.020 Max | 24.00 – 26.00 | 0.24 – 0.32 | 6.00 – 8.00 | 58.095 min |
| S32760 | 0.05 max | 1.0 Max | 10.0 Max | 0.030 max | 0.010 max | 24.00 – 26.00 | 0.20 – 0.30 | 6.00 – 8.00 | 57.61 min |
Super Duplex Steel S32750 / S32760 Pipe Fittings Mechanical Properties
| Grade | Tensile Strength (Mpa) Min | Yield Strenght 0.2% Proof (MPa) Min | Elognation (%in 50mm) min | Hardness [HRC] | ||
|---|---|---|---|---|---|---|
s32760/s32750 | 116 min. | 80 min | 15 min. | 32 max | ||
