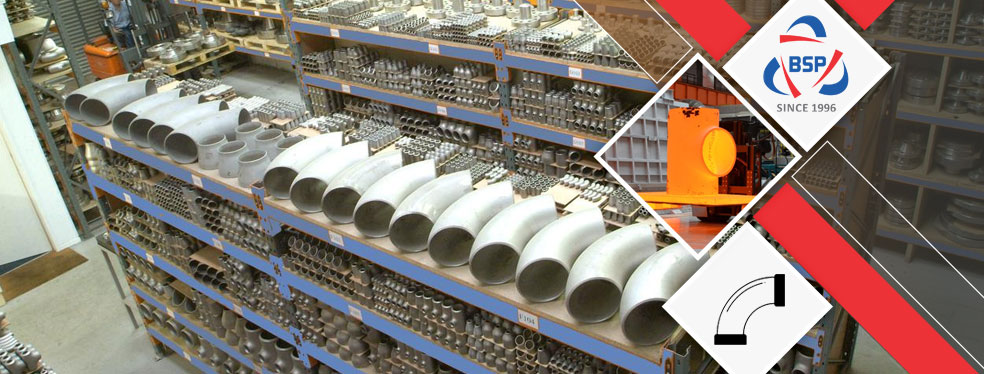

Titanium Gr 2 Two Joint Pipe Fittings In Malaysia, Titanium Gr 2 Stub End, UNS R50400 Pipe Fittings, Titanium Alloy Gr 2 Pipe Cap Stockist, 3.7035 Reducer, Ti Alloy Gr 2 LR Elbow In Japan, Titanium Gr 2 Equal Tee, Ti Alloy Gr 2Cross Supplier in Mumbai, India.
Each of the about factors used for Pipe Fittings has an awesome effect on microstructure and at the temperature, protecting time, and cooling quotes at which microstructures alternate. We are one of the pioneer stockiest and exporter for excessive exceptional Ti-Alloy Gr 2 Concentric Reducer Pipe Fittings, which adjust the transformation factors among ferrite and austenite, adjust answer and diffusion quotes, and compete with different factors in forming intermetallic compounds including carbides and nitrides. There is a large quantity of empirical statistics on how alloying in Pipe Fittings impacts heat - remedy conditions, microstructures, and properties.
In addition, there is a great theoretical expertise of principles, which, in company of the assist of computers, allows engineers to are expecting the microstructures and properties of these Pipe Fittings while alloying, hot - rolling, heat - treating, and cold - forming in any manner. It is utilized in chemical processing, vacuum furnaces, and mechanical components. Meanwhile, the salts in these Pipe Fittings may also increase while hydrochloric acid comes in touch by means of iron and copper. We have placed forth for our customers a significant collection of Titanium Alloy UNS R50400 Eccentric Reducer Pipe Fittings, which additionally provide a few excellent capabilities to provide including excessive tensile strength, rust free, smooth to match and more.
Material Specification Chart of Titanium Gr 2 Pipe Fittings
Specifications | ASTM B366 / ASME SB366 |
---|---|
Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
Size | Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48" |
Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D |
Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
Connection | Welding |
Manufacturing Process | Push, Press, Forge, Cast, etc. |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized Manufacturer of | 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
Titanium Gr 2 PIPE FITTINGS MANUFACTURING STANDARDS
ASTM B366/B366M | Piping Fittings |
---|---|
ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
MSS SP-43 | Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications |
BS3799 – | Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry |
ASTM B366 – ASME SB366 | Standard Specification for Piping Fitting |
ASME Standard | ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43 |
DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
EN Standard | EN10253-2, EN10253-1 |
ASME B16.25 | Buttwelding Ends |
ASME B16.28 | SR Elbows and Buttwelding Returns |
API 590-605 ASME B16.9 |
‘Factory-Made Wrought Butt-welding Fittings’ |
Various Types Of Titanium Gr 2 Butt weld Pipe Fittings
- UNS R50400 LR Elbow
- 3.7035 Short Radius Elbow
- Titanium Grade 2 3D Butt weld Elbow In Indonesia
- Titanium Gr 2 90 Degree Elbow
- ANSI B16.9 Titanium Alloy Gr 2 5D Elbow
- Ti Alloy Gr 2 45 Degree Elbow In Malaysia
- Ti Alloy Gr 2180 Deg Elbow
- 3.7035 Buttweld Tees
- UNS R50400 Butt weld Tee
- Titanium Grade 2 Equal Tee In Mexico
- Titanium Alloy Gr 2 Unequal Tee
- Ti Alloy Gr 2 Reducing Tee
- Titanium Gr 2 Tee In Philippines
- ANSI B16.9 Titanium Gr 2 Buttweld Tee
- UNS R50400 Butt weld Cross
- Titanium Gr 2 Reducing Cross
- Titanium Gr 2 Cross In Japan
- 3.7035 Buttweld Cross
- ANSI B16.9 Titanium Alloy Gr 2 Buttweld Cross
- Titanium Grade 2 Equal Cross In Italy
- Titanium Alloy Gr 2 Unequal Cross
- ANSI B16.9 Titanium Alloy Gr 2 Concentric Reducer
- Ti Alloy Gr 2 Concentric Reducer In Spain
- 3.7035 Concentric Reducer
- Titanium Grade 2 Concentric Reducer In Kuwait
- UNS R50400 Concentric Reducer
- Titanium Grade 2 Eccentric Reducer In Singapore
- Ti Alloy Gr 2 Eccentric Reducer In Japan
- ANSI B16.9 Titanium Alloy Gr 2 Eccentric Reducer
- 3.7035 Eccentric Reducer
- UNS R50400 Eccentric Reducer
- 3.7035 Short Stub End
- UNS R50400 Butt weld Stub End
- ANSI B16.9 Titanium Alloy Gr 2 Lap Joint Stub End
- Titanium Grade 2 Long Stub End In Singapore
- Titanium Gr 2 Short Stub End In Indonesia
- 3.7035 End Pipe Cap
- Titanium Grade 2 Pipe Cap In Malaysia
- UNS R50400 Butt weld Cap
- ANSI B16.9 Titanium Alloy Gr 2 Pipe End Cap
- Titanium Gr 2 End Cap In Kuwait
- UNS R50400 Butt weld Nipple
- Titanium Gr 2 Nipple In Spain
- ANSI B16.9 Titanium Alloy Gr 2 Barrel Nipple
- 3.7035 Swage Nipple
- Titanium Grade 2 Pipe Nipple In Mexico
- UNS R50400 Butt weld Bend
- Titanium Gr 2 Long Radius Bend In Philippines
- Titanium Grade 2 Piggable Bend In Italy
- 3.7035 Hot Induction Bend
- ANSI B16.9 Titanium Alloy Gr 2 Bend
Equivalent Grades of Titanium Gr 2 Buttweld Fittings
STANDARD | WERKSTOFF NR. | UNS |
Gr 2 | 3.7035 | R50400 |
View Thickness Table Of Titanium Gr 2 Buttweld Fittings, We have Global sales network for Titanium Gr 2 LR Elbow, Wide Stockist Of Werkstoff No 3.7035 Seamless Fittings In India.
ASTM B366 Titanium Gr 2 Buttweld Fittings
Seamless/ Welded 100% Radiography Tested | ||
Products | Size | |
ASTM B366 Titanium Grade 2 Elbow – Long Radius | ASTM B366 Titanium Grade 2 45° Elbow | Sizes 1/2″ – 48″ |
ASTM B366 Titanium Grade 2 Elbow – Short Radius | ASTM B366 Titanium Grade 2 Cross | |
ASTM B366 Titanium Grade 2 3D Elbow | ASTM B366 Titanium Grade 2 5D Elbow | |
ASTM B366 Titanium Grade 2 Stub End | ASTM B366 Titanium Grade 2 Pipe Bend | |
ASTM B366 Titanium Grade 2 Fabricated Tee | ASTM B366 Titanium Grade 2 End Cap | |
ASTM B366 Titanium Grade 2 Reducer | ASTM B366 Titanium Grade 2 Tee | |
ASTM B366 Titanium Grade 2 Reducing Elbow | ASTM B366 Titanium Grade 2 Pipe Nipple | |
ASTM B366 Titanium Grade 2 Reducing Cross | ASTM B366 Titanium Grade 2 Eccentric Reducer | |
ASTM B366 Titanium Grade 2 Concentric Reducer | ASTM B366 Titanium Grade 2 Welded Fittings |
Check available Sizes of ASME SB 366 Titanium Gr 2 Pipe Reducer, Ask For Ready Stock of UNS R50400 Stub End in Mumbai, India.
BAGODA
Quick ContactASME B16.9 Titanium Gr 2 Short and Long Radius Elbows Dimensions
Nominal Pipe Size (inches) |
Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
Long Radius | Long Radius | Short Radius | Long Radius | |||||
(mm) | (inches) | Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Center to Face (inches) |
Center to Center (inches) |
Back to face (inches) |
|
1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
ASME B16.9 Titanium Gr 2 Tee & Cap Dimensions
Nominal Pipe Size (inches) |
Outside Diameter |
Caps | Straight Crosses | Straight Tees | Stub Ends | |||
(mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
|
1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
1/2 | 21.3 | 0.840 | 1 | – | 1 | 1 3/8 | 3 | 2 |
3/4 | 26.7 | 1.050 | 1 | – | 1 1/8 | 1 11/16 | 3 | 2 |
1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
ASME B16.9 Titanium Gr 2 Concentric & Eccentric Reducer Dimensions
Nominal Pipe Size |
Outside Diameter | Reducers | ||
Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) | Concentric & Eccentric Length (inches) |
1 | 33.4 | 1.315 | 3/8 | 2 |
1/2 | 2 | |||
3/4 | 2 | |||
1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
3/8 | 1 1/2 | |||
3/4 | 26.7 | 1.050 | 3/8 | 2 |
1/2 | 2 | |||
1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
3/4 | 2 | |||
1 | 2 | |||
1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
3/4 | 2 1/2 | |||
1 | 2 1/2 | |||
1 1/4 | 2 1/2 | |||
2 | 60.3 | 2.375 | 3/4 | 3 |
1 | 3 | |||
1 1/4 | 3 | |||
1 1/2 | 3 | |||
2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
1 1/4 | 3 1/2 | |||
1 1/2 | 3 1/2 | |||
2 | 3 1/2 | |||
3 | 88.9 | 3.500 | 1 | 3 1/2 |
1 1/2 | 3 1/2 | |||
2 | 3 1/2 | |||
2 1/2 | 3 1/2 | |||
3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
1 1/2 | 4 | |||
2 | 4 | |||
2 1/2 | 4 | |||
3 | 4 | |||
4 | 114.3 | 4.500 | 1 1/2 | 4 |
2 | 4 | |||
2 1/2 | 4 | |||
3 | 4 | |||
3 1/2 | 4 | |||
5 | 141.3 | 5.563 | 2 | 5 |
2 1/2 | 5 | |||
3 | 5 | |||
3 1/2 | 5 | |||
4 | 5 | |||
6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
3 | 5 1/2 | |||
3 1/2 | 5 1/2 | |||
4 | 5 1/2 | |||
5 | 5 1/2 | |||
8 | 219.1 | 8.625 | 3 | 6 |
3 1/2 | 6 | |||
4 | 6 | |||
5 | 6 | |||
6 | 6 | |||
10 | 273.1 | 10.750 | 4 | 7 |
5 | 7 | |||
6 | 7 | |||
8 | 7 | |||
12 | 323.9 | 12.750 | 5 | 8 |
6 | 8 | |||
8 | 8 | |||
10 | 8 |
Titanium Gr 2 Buttweld Fittings Weights(Kg)
Product range and theoretical weights (kg) | |||||||||
DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.96 | 28.12 |
250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Product range and theoretical weights (kg) | |||||||||
DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Ready Stock Titanium Gr 2 Pipe Fittings
- Titanium Grade 2 LR Elbow Stockist
- ASME SB366 Ti Alloy Gr 2 Lateral Tee
- Titanium Gr 2 Reducer In Indonesia
- ANSI B16.9 Titanium Gr 2 Short Stub End
- Titanium Gr 2 Buttweld Fittings In Malaysia
- Nickel Titanium Grade 2 Pipe Fittings Manufacturer
- UNS R50400 Pipe Fittings
- Titanium Grade 2 Eccentric Reducer Manufacturer
- Ti Alloy Gr 2 Buttweld Nipple In Mexico
- Titanium Alloy Gr 2 Two Joint Pipe Fittings
- Ti Alloy Gr 2 Lap Joint Stub End
- Titanium Grade 2 Reducing Nipple In Philippines
- Titanium JIS NCF Gr 2 Mandrel Pipe Bend
- Titanium Grade 2 1D Elbow/3D Elbow/5D Elbow
- Ti Alloy Gr 2 180° LR Return Bends
- ASME B16.9 Schedule 10 Ti Alloy Gr 2 Elbow
- Titanium Gr 2 Butt Weld Pipe Fittings In Japan
- DIN 3.7035 Swage Nipple
- Titanium Gr 2 SR Elbow In Italy
- Titanium Gr 2 Seamless Fittings In Spain
- 3.7035 Butt weld Fittings
- Titanium Grade 2 End Cap Distributor
- Ti Alloy Gr 2 Pipe Elbow
- Titanium Gr 2 Piggable Bends
- ASME B16.9 Titanium Gr 2 Buttweld Fittings
- SCH 60 Ti Alloy Gr 2 Pipe Nipples
- Ti Alloy Gr 2 Butt weld Tee In Kuwait
- Titanium Gr 2 Pipe Bend
- Titanium Gr 2 Two Halve Butt weld Fittings
- Sch 80 Titanium Gr 2 Pipe Fittings
- DIN 2605 Titanium Gr 2 Elbow Exporter
- Titanium Gr 2 Welded Fittings In Singapore
- ASTM B366 Titanium Grade 2 45 Degree Elbow
- ASTM B366 Titanium Gr 2 Stub End
- Titanium Alloy Gr 2 Eccentric Reducer In Indonesia
- Titanium Grade 2 Long Radius Elbow
- ASTM B366 Titanium Gr 2 Pipe Fittings
- 1/2” - 16” ASTM B366 Titanium Grade 2 Butt weld Elbow
- Titanium Alloy Gr 2 Long Radius Bend Stockholder
- Titanium Gr 2 Long Stub End In Malaysia
- 5" Nb Sch10s Titanium Gr 2 90° Short Radius Elbow
- Schedule 80 Titanium Gr 2 Grade Long Stub End
- Ti Alloy Gr 2 Elbow In Mexico
- Titanium Grade 2 Barrel Nipple Supplier in Mumbai
- 15 NB SCH 10 Titanium Gr 2 90° Short Radius Elbow
- ANSI B16.9 Titanium Gr 2 Pipe Cap
- ASTM B366 Titanium Gr 2 Buttweld Fittings
- Ti Alloy Gr 2 Equal Cross In Philippines
Titanium Gr 2 Butt weld Fittings Chemical Composition
Grade | Ti | C | Fe | H | N | O |
Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max |
Titanium Gr 2 Pipe Fittings Mechanical Properties
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Titanium Gr 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
