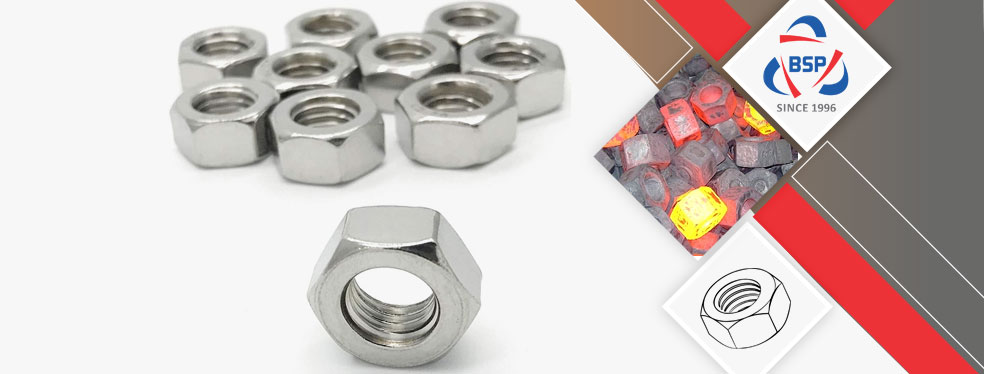

Duplex Steel S31803 Hex Nuts

Duplex Steel S31803 Hexagonal Nut, Duplex Stainless Steel S31803 Hex Nuts, Duplex 2205 Hex Nuts, ASTM B193 Duplex Steel S32205 Heavy Hex Nut, Duplex Steel S32205 Hex Head Nut Price in India.

Bagoda Steel is a renowned manufacturer and supplier of Duplex UNS S31803 Hex Nuts, whichis a wrought alloy with exceptional excessive temperature strength and oxidation resistance. All of the product paperwork are exceptional in phrases of forming and welding. Although it is often referred to for warmth and oxidation resistance, it additionally has precise resistance to chloride pressure-corrosion cracking and has precise resistance to carburization, exceptional resistance to lowering or carburizing atmospheres. Duplex Steel UNS S32205 Hex Nuts has no yield or tensile strength requirements, however it does require a hardness most and pressure rupture minimums. With strong and Oxidation Resistant to 2200 Deg. F (1200 Deg. C), it is a stable answer strengthened grade has precise strength and oxidation resistance as much as 2200 Deg. F (1200 Deg. C).

Industrial Product
Duplex Steel S31803 Hex Nuts

Duplex 2205 Finished Hex Nut Stockist, ASTM B193 Duplex Steel S32205 Machine Hex Nut, SAF 2205 Hex Jam Nuts, 1.4462 Hex Nuts, Alloy S32205 Hexagonal Nylon Lock Nut, UNS S31803 Hex Flange Nut, DSS S31803 Long Hex Nuts, Duplex Steel S32205 Industrial Hex Nut Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Tests had been carried out via way of means of exposing samples to dry air at 2000 Deg. F. and to dry air pressurized to three hundred psi at 1750 Deg. F. Two standards for comparing oxidation resistance are weight alternate and intensity of corrosion penetration. Duplex Steel 2205 Hex Nut sexcels in each respects because of the formation of a protective, tenacious oxide film.It additionally resists carburization and nitriding, not unusualplace situations which regularly cause early failure in excessive-temperature alloys. After one hundred hours in petroleum coke, it had been absolutely penetrated via way of means of carburization; whereas, its specimens confirmed no carburization at all.

It is evaluated in an environment of hydrogen, nitrogen and ammonia at 1100 Deg. F.It had a nitride case much less than one-fourth as thick because the closest competitive material withoutintergranular attack.It unearths use in petrochemical procedure system and fueloline generators withinthe warm combustor area sections. Also used for structural additives in commercial furnace applications due to the exceptional oxidation resistance. DSS 2205 Hex Nuts is suggested mainly to be used in furnace applications as it has uncommon resistance to oxidizing, lowering, and impartial atmospheres.It is one of the maximum broadly used nickel base superalloys for fueloline turbine engine additives.

Material Specification Chart of Duplex Steel S31803 Hex Nuts

Size M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length 3 mm to 200 mm
Hex Nuts UNF, BSW, BSF, METRIC, UNC, or as required
Standard DIN : DIN 934, DIN 931, DIN 970, DIN 933
UTS : UNEF, NPT, UNC, UNS, UNF, NPTF
ISO : JIS standards, ISO 4033, ISO 4032,
ANSI – American National Standards Institute
ASME B18.5 ANSI B 28.2.4 1M ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hex nuts
Form Hex, Threading, Square, Round as per Gauge Etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Dimensions DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive Six-Lobe,Phillips,Phillips/Slot, Slotted etc
Surface Coating Ptfe Coated Nuts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating
Finishing Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide

Various Types Of Duplex Steel S31803 Hex Nuts

Duplex Steel S31803 Hex Jam Nut
Duplex Steel S31803 Hex Jam Nut
  • Duplex Stainless Steel S32205 Hex Jam Nut
  • Duplex Steel S31803 Heavy Hex Jam Nuts
  • 1.4462 Hex Jam Nuts
  • UNS S32205 Hex Jam Nuts
  • DSS S31803 Hex Jam Nut
Duplex Steel S31803 Heavy Hex Nuts
Duplex Steel S31803 Heavy Hex Nut
  • 1.4462 Heavy Hex Nuts
  • DSS S32205 Heavy Hex Nut
  • Duplex Steel S31803 Heavy Hex Nuts
  • Duplex Stainless Steel S32205 Heavy Hex Nut
  • UNS S31803 Heavy Hex Nuts
Duplex Steel S31803 Hex Flange Nuts
Duplex Steel S31803 Hex Flange Nut
  • 1.4462 Hex Flange Nuts
  • UNS S32205 Hex Flange Nut
  • Duplex 2205 Hex Flange Nut
  • Duplex Steel S31803 Flange Hex Nuts
  • Duplex Stainless Steel S31803 Hex Flange Nut
Duplex Steel S31803 Slotted Hex Nuts
Duplex Steel S31803 Slotted Hex Nut
  • Duplex Stainless Steel S31803 Slotted Hex Nut
  • UNS S31803 Slotted Hex Nuts
  • 1.4462 Beveled Slotted Hex Nut
  • DSS S32205 Slotted Hex Nuts
  • Duplex Steel S32205 Slotted Hex Nuts
Duplex Steel S31803 Machine Hex Nut
Duplex Steel S31803 Machine Hex Nut
  • DSS S31803 Machine Hex Nut
  • 1.4462 Machine Hex Nuts
  • Duplex Steel S32205 Machine Hex Nuts
  • Duplex Stainless Steel S31803 Machine Hex Nut
  • UNS S32205 Machine Hex Nuts
Duplex Steel S31803 Long Hex Nuts
Duplex Steel S31803 Long Hex Nut
  • 1.4462 Hex Coupling Nuts
  • DSS S32205 Long Hex Nuts
  • UNS S31803 Long Hex Nuts
  • Duplex Stainless Steel S31803 Long Hex Nuts
  • Duplex Steel S32205 Coupling Hex Nuts

Equivalent Grades of Duplex Steel S31803 Hex Nuts

STANDARD WERKSTOFF NR. UNS
Duplex 2205 1.4462 S31803 / S32205
Hex Nuts Dimensions

View Size Table Of Duplex Steel S31803 Hex Nuts, We have Global sales network for Duplex Steel S32205 Heavy Hex Nuts, Wide Stockist Of Werkstoff No 1.4462 Hex Head Nuts, Industrial Hex Nuts In India.

Dimensions of Duplex Steel S31803 Hex Nuts

Nominal
Size		 Basic
Major
Diameter
of Thread		 F G H H1 Maximum Runout of Bearing
Surface to Thread Axis, FIM
Width Across
Flats		 Width Across
Corners		 Thickness Hex
Nuts		 Thickness Jam
Nuts		 Hex Nuts Hex Jam
Nuts
Min. Max. Min. Max. Min. Max. Min. Max. Specified Proof
Load
Up to
150,000
psi		 150,000
psi and
Greater		 All
Strength
Levels
1/4 0.2500 0.428 0.438 0.488 0.505 0.212 0.226 0.150 0.163 0.015 0.010 0.015
5/16 0.3125 0.489 0.500 0.557 0.577 0.258 0.273 0.180 0.195 0.016 0.011 0.016
3/8 0.3750 0.551 0.563 0.628 0.650 0.320 0.337 0.210 0.227 0.017 0.012 0.017
7/16 0.4375 0.675 0.688 0.768 0.794 0.365 0.385 0.240 0.260 0.018 0.013 0.018
1/2 0.5000 0.736 0.750 0.840 0.866 0.427 0.448 0.302 0.323 0.019 0.014 0.019
9/16 0.5625 0.861 0.875 0.982 1.010 0.473 0.496 0.301 0.324 0.020 0.015 0.020
5/8 0.6250 0.922 0.938 1.051 1.083 0.535 0.559 0.363 0.387 0.021 0.016 0.021
3/4 0.7500 1.088 1.125 1.240 1.299 0.617 0.665 0.398 0.446 0.023 0.018 0.023
7/8 0.8750 1.269 1.312 1.447 1.516 0.724 0.776 0.458 0.510 0.025 0.020 0.025
1 1.0000 1.450 1.500 1.653 1.732 0.831 0.887 0.519 0.575 0.027 0.022 0.027
1-1/8 1.1250 1.631 1.688 1.859 1.949 0.939 0.999 0.579 0.639 0.030 0.025 0.030
1-1/4 1.2500 1.812 1.875 2.066 2.165 1.030 1.094 0.687 0.751 0.033 0.028 0.033
1-3/8 1.3750 1.994 2.062 2.273 2.382 1.138 1.206 0.747 0.815 0.036 0.031 0.036
1-1/2 1.5000 2.175 2.250 2.480 2.598 1.245 1.317 0.808 0.880 0.039 0.034 0.039
1-5/8 1.6250 2.35 2.43 2.679 2.805 1.364 1.416 0.868 0.944 0.044 0.038 0.044
1-3/4 1.7500 2.538 2.625 2.893 3.031 1.460 1.540 0.929 1.009 0.048 0.041 0.048
1-7/8 1.8750 2.722 2.813 3.103 3.247 1.567 1.651 0.989 1.073 0.051 0.044 0.051
2 2.0000 2.900 3.000 3.306 3.464 1.675 1.763 1.050 1.138 0.055 0.047 0.055
2-1/4 2.2500 3.263 3.375 3.719 3.897 1.890 1.986 1.155 1.267 0.061 0.052 0.061
2-1/2 2.5000 3.625 3.750 4.133 4.330 2.105 2.209 1.401 1.427 0.068 0.058 0.068
2-3/4 2.7500 3.998 4.125 4.546 4.763 2.319 2.431 1.522 1.556 0.074 0.064 0.074
3 3.0000 4.350 4.500 4.959 5.196 2.534 2.654 1.643 1.685 0.081 0.070 0.081
3-1/4 3.2500 4.713 4.875 5.373 5.629 2.749 2.877 1.748 1.814 0.087 0.075 0.087
3-1/2 3.5000 5.075 5.250 5.786 6.062 2.964 3.100 1.870 1.943 0.094 0.081 0.094
3-3/4 3.7500 5.438 5.625 6.199 6.495 3.178 3.322 1.990 2.072 0.100 0.087 0.100
4 4.0000 5.800 6.000 6.612 6.928 3.393 3.545 2.112 2.201 0.107 0.093 0.107

Dimensions of Duplex Steel S31803 Heavy Hex Nuts & Heavy Hex Jam Nuts

Nominal Size Basic Major
Diameter
of Thread		 F G H H1 Maximum Runout of
Bearing Surface to Thread
Axis, FIM
Width Across Flats Width Across
Corners		 Thickness Heavy Hex
Nuts		 Thickness Heavy Hex
Jam Nuts		 Heavy Hex Nuts Heavy
Hex
Jam
Nuts
Specified Proof Load
Basic Min. Max. Min. Max. Basic Min. Max. Basic Min. Max. Up to
150,000
psi		 150,000
psi and
Greater		 All Strength
Levels
1/4 0.2500 1/2 0.488 0.500 0.556 0.577 15/64 0.218 0.250 11/64 0.156 0.188 0.017 0.011 0.017
5/16 0.3125 9/16 0.546 0.562 0.622 0.650 19/64 0.280 0.314 13/64 0.186 0.220 0.020 0.012 0.020
3/8 0.3750 11/16 0.669 0.688 0.763 0.794 23/64 0.341 0.377 15/64 0.216 0.252 0.021 0.014 0.021
7/16 0.4375 3/4 0.728 0.750 0.830 0.866 27/64 0.403 0.441 17/64 0.247 0.285 0.022 0.015 0.022
1/2 0.5000 7/8 0.850 0.875 0.969 1.010 31/64 0.464 0.504 19/64 0.277 0.317 0.023 0.016 0.023
9/16 0.5625 15/16 0.909 0.938 1.037 1.083 35/64 0.526 0.568 21/64 0.307 0.349 0.024 0.017 0.024
5/16 0.6250 1-1/16 1.031 1.062 1.175 1.227 39/64 0.587 0.631 23/64 0.337 0.381 0.025 0.018 0.025
3/4 0.7500 1-1/4 1.212 1.250 1.382 1.443 47/64 0.710 0.758 27/64 0.398 0.446 0.027 0.020 0.027
7/8 0.8750 1-7/16 1.394 1.438 1.589 1.660 55/64 0.833 0.885 31/64 0.458 0.510 0.029 0.022 0.029
1 1.0000 1-5/8 1.575 1.625 1.796 1.876 63/64 0.956 1.012 35/64 0.519 0.575 0.031 0.024 0.031
1-1/8 1.1250 1-13/16 1.756 1.812 2.002 2.093 1-7/64 1.079 1.139 39/64 0.579 0.639 0.033 0.027 0.033
1-1/4 1.2500 2 1.938 2.000 2.209 2.309 1-7/32 1.187 1.251 23/32 0.687 0.751 0.035 0.030 0.035
1-3/8 1.3750 2-3/16 2.119 2.188 2.416 2.526 1-11/32 1.310 1.378 25/32 0.747 0.815 0.038 0.033 0.038
1-1/2 1.5000 2-3/8 2.300 2.375 2.622 2.742 1-15/32 1.433 1.505 27/32 0.808 0.880 0.041 0.036 0.041
1-5/8 1.6250 2-9/16 2.481 2.562 2.828 2.959 1-19/32 1.556 1.632 29/32 0.868 0.944 0.044 0.038 0.044
1-3/4 1.7500 2-3/4 2.662 2.750 3.035 3.175 1-23/32 1.679 1.759 31/32 0.929 1.009 0.048 0.041 0.048
1-7/8 1.8750 2-15/16 2.844 2.938 3.242 3.392 1-27/32 1.802 1.886 1-1/32 0.989 1.073 0.051 0.044 0.051
2 2.0000 3-1/8 3.025 3.125 3.449 3.608 1-31/32 1.925 2.013 1-3/32 1.050 1.138 0.055 0.047 0.055
2-1/4 2.2500 3-1/2 3.388 3.500 3.862 4.041 2-13/64 2.155 2.251 1-13/64 1.155 1.251 0.061 0.052 0.061
2-1/2 2.5000 3-7/8 3.750 3.875 4.275 4.474 2-29/64 2.401 2.505 1-29/64 1.401 1.505 0.068 0.058 0.068
2-3/4 2.7500 4-1/4 4.112 4.250 4.688 4.907 2-45/64 2.647 2.759 1-37/64 1.522 1.634 0.074 0.064 0.074
3 3.0000 4-5/8 4.475 4.625 5.102 5.340 2-61/64 2.893 3.013 1-45/64 1.643 1.763 0.081 0.070 0.081
3-1/4 3.2500 5 4.838 5.000 5.515 5.774 3-3/16 3.124 3.252 1-13/16 1.748 1.876 0.087 0.075 0.087
3-1/4 3.5000 5-3/8 5.200 5.375 5.928 6.207 3-7/16 3.370 3.506 1-15/16 1.870 2.006 0.094 0.081 0.094
3-3/4 3.7500 5-3/4 5.562 5.750 6.341 6.640 3-11/16 3.616 3.760 2-1/16 1.990 2.134 0.100 0.087 0.100
4 4.0000 6-1/4 5.925 6.125 6.755 7.073 3-15/16 3.862 4.014 2-3/16 2.112 2.264 0.107 0.093 0.107

Ready Stock Duplex Steel S31803 Hex Nuts

  • DSS S32205 Slotted Hex Nuts
  • ASTM B193 Duplex Stainless Steel S32205 Hex Round Nut
  • Duplex Steel S31803 Industrial Hex Nuts
  • Duplex Steel S32205 Hexagonal Nylon Lock Nut
  • Duplex Steel S32205 Hex Head Nut
  • Duplex Stainless Steel S32205 Heavy Hex Jam Nuts
  • UNS S32205 Hex Nuts
  • DSS S32205 Hex Socket Nut
  • SAF 2205 Slotted Hex Nuts
  • DIN 1.4462 Hex Nuts
  • DSS S31803 Hexagon Nuts
  • Duplex Stainless Steel S32205 Heavy Hex Nuts
  • Duplex Steel S31803 Coupling Nuts
  • Duplex Stainless Steel S31803 Hex Jam Nuts
  • DSS S31803 Semi-Finished Hex Nuts
  • Duplex Steel S31803 Hex Nut Manufacturer
  • DSS S32205 Heavy Hex Nuts Distributor
  • Duplex Steel S32205 Hex Machine Nut Stockist
  • Duplex Steel S31803 Serrated Hex Flange Nut
  • Duplex Stainless Steel S31803 Hexagonal Nylon Lock Nut
  • Duplex Stainless Steel S31803 Nylon Insert Lock Nuts
  • ASME SB193 Heavy Hex Nuts
  • Duplex Steel S32205 Hex Nuts Manufacturer
  • 1.4462 Thin Hex Nuts
  • Duplex Steel S31803 Finished Hex Nuts
  • Duplex Steel S31803 Industrial Hex Nuts Exporter
  • S32205 Duplex Stainless Steel Hex Sleeve Nuts
  • SAF 2205 Self Locking Hex Nuts
  • SAF 2205 Heavy Hexagon Nuts
  • Duplex Stainless Steel S31803 Hex Flange Nut
  • Duplex Steel S32205 Flanged Hex Nuts Stockholder
  • Duplex Steel S31803 Machine Hex Nuts
  • ASME SB193 Duplex Steel S31803 Hexagon Nut Supplier in Mumbai
  • DSS S32205 Long Hex Nut
  • DSS S31803 Heavy Hex Nuts
  • Duplex Steel S32205 Hex Nuts

Duplex Stainless Steel S31803 Hex Nuts Chemical Composition

Grade C Mn Si P S Cr Mo Ni N Fe
S31803 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22.0 – 23.0 3.0 – 3.5 4.50 – 6.50 0.14 – 0.20 63.72 min
S32205 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 21.0 – 23.0 2.50 – 3.50 4.50 – 6.50 0.8 – 0.20 63.54 min

Duplex Stainless Steel S31803 Hex Nuts Mechanical Properties

Tensile Strength, ksi 0.2% Yield Strength, ksi Elongation, % Hardness [HRC]
90 min 65 min 25 min 293 max
