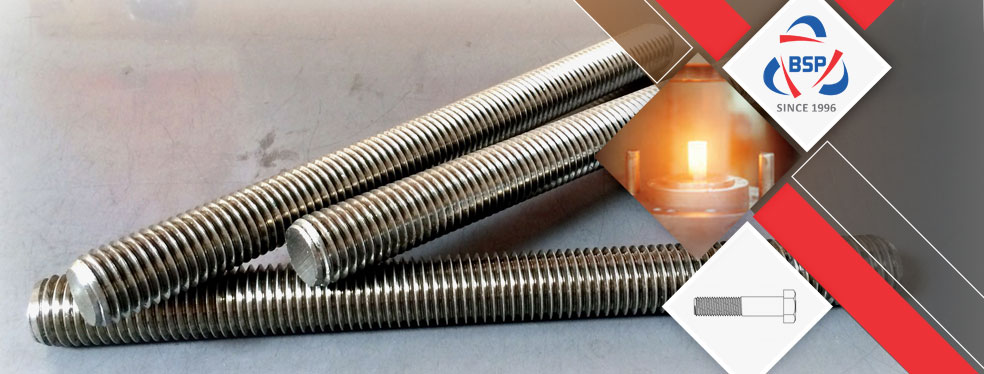

Hastelloy C-22 Tap End Stud Bolts, UNS N06022 Half Thread Stud Bolts, 2.4602 Tie Rods, Hastelloy® Alloy C22 Tie Rods, Nickel Alloy C22 Single End Stud Bolt, Nickel Alloy C22 Stud Stockist, Hastelloy C22 Full Threaded Stud Bolt Supplier in Mumbai, India.
Furthermore, this nickel alloy has awesome resistance to hydrochloric acid in any respect concentrations and temperatures. Its distinguishing characteristic is its cap-potential to preserve awesome ductility at some stage in brief exposures to intermediate temperatures. Such exposures are automatically skilled at some stage in warmth remedies related to fabrication. Hastelloy Alloy WNR 2.4602 Stud Bolts gives an awesome resistance to acetic, formic and phosphoric acids and different non-oxidizing media. It gives resistance to hydrochloric acid in any respect concentrations and temperatures, in which thermal balance advanced to different alloys.
It has bad corrosion resistance to oxidizing environments, therefore, it isn't always advocated to be used in oxidizing media or within the presence of ferric or cupric salts due to the fact they'll purpose speedy untimely corrosion failure. These salts can also additionally expand while hydrochloric acid comes in touch by means of iron and copper. Therefore, if this nickel metallic alloy is used alongside iron or copper piping in a gadget containing hydrochloric acid, the presence of these salts may want to purpose the alloy to fail prematurely. Nickel Alloy C22 Stud Bolts keeps awesome ductility at some stage in brief exposures to intermediate temperatures. It has awesome resistance to pitting, corrosion and pressure-corrosion cracking, and an awesome resistance to knife-line and warmth-affected quarter attack.
Material Specification Chart of Hastelloy C22 Stud Bolt
| Specification | ASTM F468, B574 / ASME SF468, SB574 |
|---|---|
| Size | M02 to M33, Custom Sizes |
| Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Types | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
Various Types Of Hastelloy C22 Stud Bolt
Hastelloy C22 Double Ended Stud Bolt
- ASTM B574 Hastelloy Alloy C-22 Double Ended Stud Bolt
- ASME SB574 Hastelloy C22 Dual Threaded Stud
- Alloy C22 Double Ended Stud Bolt
- UNS N06022 Double End Studs
- 2.4602 Double End Stud
- Nickel Alloy C22 Double Ended Wheel Stud
Hastelloy C22 Stud Bolt
- 2.4602 Stud Bolt
- ASTM B574 Hastelloy C22 Stud Bolts
- UNS N06022 Stud Bolts
- Alloy C22 Stud Bolts
- Hastelloy® Alloy C22 Stud Bolts
- ASME SB574 Nickel Alloy C22 Stud Bolts
Hastelloy C22 Stud
- 2.4602 Stud
- ASME SB574 Hastelloy C-22 Stud
- ASTM B574 Hastelloy C22 Clinch Stud
- Alloy C22 Studs
- Nickel Alloy C22 Weld Studs
- UNS N06022 Dowel Studs
Hastelloy C22 Flush Head Stud
- ASME SB574 Nickel Alloy C22 Self Clinch Flush Head Stud
- UNS N06022 Flush Head Clinch Studs
- Alloy C22 Flush Head Stud
- Hastelloy C22 Self Clinching Stud
- ASTM B574 Hastelloy C-22 Flush Head Self Clinching Studs
- 2.4602 Flush Head Studs
Hastelloy C22 Threaded Rod
- Hastelloy C22 Threaded Rods
- ASTM B574 Hastelloy® Alloy C22 M5 Threaded Rod
- UNS N06022 Threaded Stud
- Alloy C22 Fully Threaded Rod
- ASME SB574 Hastelloy C-22 Threaded Rods
- 2.4602 Threaded Rods
Hastelloy C22 Single End Stud Bolt
- Hastelloy C-22 M6 Single End Stud
- Alloy C22 Single End Studs
- ASTM B574 Hastelloy C22 Single Ended Stud Bolt
- 2.4602 Single Ended Stud Bolt
- UNS N06022 Single Ended Threaded Stud
- ASME SB574 Nickel Alloy C22 Single Ended Stud Bolt
Equivalent Grades of Hastelloy C22 Stud Bolts
| STANDARD | UNS | WERKSTOFF NR. | EN | JIS |
| Hastelloy C22 | N06022 | 2.4602 | NiCr21Mo14W | NW 6022 |
View Size Table Of Hastelloy C22 Stud Bolts, We have Global sales network for Nickel Alloy C22 Stud Bolts, Wide Stockist Of Werkstoff No 2.4602 Tap End Stud Bolts, Double End Stud Bolts In India.
Size Chart of Hastelloy C22 Stud Bolts
| Class 150 Flanges ASME B16.5 (Stud bolt sizes) | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in | Ring Joint | |
| 1/2 | 3 1/2 | 2 3/8 | 5/8 | 4 | 1/2 | 2 1/4 | – | |
| 3/4 | 3 7/8 | 2 3/4 | 5/8 | 4 | 1/2 | 2 1/2 | – | |
| 1 | 4 1/4 | 3 1/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 1 1/4 | 4 5/8 | 3 1/2 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 1 1/2 | 5 | 3 7/8 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 2 | 6 | 4 3/4 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 2 1/2 | 7 | 5 1/2 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 | 7 1/2 | 6 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 1/2 | 8 1/2 | 7 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 4 | 9 | 7 1/2 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 5 | 10 | 8 1/2 | 7/8 | 8 | 3/4 | 3 3/4 | 4 1/4 | |
| 6 | 11 | 9 1/2 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 8 | 13 1/2 | 11 3/4 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 10 | 16 | 14 3/4 | 1 | 12 | 7/8 | 4 1/2 | 5 | |
| 12 | 19 | 17 | 1 | 12 | 7/8 | 4 3/4 | 5 1/4 | |
| 14 | 21 | 18 3/4 | 1 1/8 | 12 | 1 | 5 1/4 | 5 3/4 | |
| 16 | 23 1/2 | 21 1/4 | 1 1/8 | 16 | 1 | 5 1/4 | 5 3/4 | |
| 18 | 25 | 22 3/4 | 1 1/4 | 16 | 1 1/8 | 5 3/4 | 6 1/4 | |
| 20 | 27 1/2 | 25 | 1 1/4 | 20 | 1 1/8 | 6 1/4 | 6 3/4 | |
| 24 | 32 | 29 1/2 | 1 1/4 | 20 | 1 1/4 | 6 3/4 | 7 1/4 | |
| Class 300 Flanges ASME B16.5 | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in | Ring Joint | |
| 1/2 | 3 3/4 | 2 5/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 3/4 | 4 5/8 | 3 1/4 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 | 4 7/8 | 3 1/2 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 1/4 | 5 1/4 | 3 7/8 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 1 1/2 | 6 1/8 | 4 1/2 | 7/8 | 4 | 3/4 | 3 1/2 | 4 | |
| 2 | 6 1/2 | 5 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 2 1/2 | 7 1/2 | 5 7/8 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 3 | 8 1/4 | 6 5/8 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 3 1/2 | 9 | 7 1/4 | 7/8 | 8 | 3/4 | 4 1/4 | 5 | |
| 4 | 10 | 7 7/8 | 7/8 | 8 | 3/4 | 4 1/2 | 5 | |
| 5 | 11 | 9 1/4 | 7/8 | 8 | 3/4 | 4 3/4 | 5 1/4 | |
| 6 | 12 1/2 | 10 5/8 | 7/8 | 12 | 3/4 | 4 3/4 | 5 1/2 | |
| 8 | 15 | 13 | 1 | 12 | 7/8 | 5 1/2 | 6 | |
| 10 | 17 1/2 | 15 1/4 | 1 1/8 | 16 | 1 | 6 1/4 | 6 3/4 | |
| 12 | 20 1/2 | 17 3/4 | 1 1/4 | 16 | 1 1/8 | 6 3/4 | 7 1/4 | |
| 14 | 23 | 20 1/4 | 1 1/4 | 20 | 1 1/8 | 7 | 7 1/2 | |
| 16 | 25 1/2 | 22 1/2 | 1 3/8 | 20 | 1 1/4 | 7 1/2 | 8 | |
| 18 | 28 | 24 3/4 | 1 3/8 | 24 | 1 1/4 | 7 3/4 | 8 1/4 | |
| 20 | 30 1/2 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 8 3/4 | |
| 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 10 | |
Check available Sizes of ASME SB574 Hastelloy C22 Stud Bolt, Ask For Ready Stock of UNS N06022 Stud Bolts in Mumbai, India.
BAGODA
Quick Contact
Dimensions of Hastelloy C22 Stud Bolts
| Diameter | Diameter in mm | Diameter in inch | Nut Sizes |
|---|---|---|---|
| M12 | 12 | 0.4724 | 19 |
| M10 | 10 | 0.3937 | 17 |
| M14 | 14 | 0.5512 | 22 |
| M18 | 18 | 0.7087 | 27 |
| M16 | 16 | 0.6299 | 24 |
| M20 | 20 | 0.7874 | 30 |
| M24 | 24 | 0.9449 | 36 |
| M22 | 22 | 0.8661 | 32 |
| M27 | 27 | 1.063 | 41 |
| M33 | 33 | 1.2992 | 50 |
| M30 | 30 | 1.1811 | 46 |
| M36 | 36 | 1.4173 | 55 |
| M42 | 42 | 1.6535 | 65 |
| M39 | 39 | 1.5354 | 60 |
| M45 | 45 | 1.7717 | 70 |
| M52 | 52 | 2.0472 | 80 |
| M48 | 48 | 1.8898 | 75 |
| M56 | 56 | 2.2047 | 85 |
| M64 | 64 | 2.5197 | 95 |
| M60 | 60 | 2.3622 | 90 |
| M68 | 68 | 2.6772 | 100 |
| M76 | 76 | 2.9921 | 110 |
| M72 | 72 | 2.8346 | 105 |
| M80 | 80 | 3.1496 | 115 |
| M90 | 90 | 3.5433 | 130 |
| M85 | 85 | 3.3464 | 120 |
| M100 | 100 | 3.937 | 145 |
| M160 | 160 | 6.2992 | 230 |
| M125 | 125 | 4.9212 | 180 |
| M110 | 110 | 4.3307 | 155 |
| M140 | 140 | 5.5118 | 200 |
Hastelloy C22 Stud Bolt Torque Chart
| Flange Size | B16.5 Class 150 RF/ Ring Gaskets | B16.5 Class 150 FF/ Full Face Gaskets | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | |||||||
| 1st | 2nd | Final | Dwg/No. | Bolt Size | 1st | 2nd | Final | Dwg*/No. | Bolt Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 3/4″ | 13 | 27 | 40 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1″ | 15 | 30 | 50 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/4″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 2-1/2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3-1/2″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 4″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 8″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 10″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 12″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 14″ | 147 | 294 | 490 | 12-bolt | 1″ | 147 | 294 | 490 | 12-bolt | 1″ |
| 16″ | 147 | 294 | 490 | 16-bolt | 1″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 18″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 20″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ |
| 24″ | 300 | 601 | 1,000 | 20-bolt | 1-1/4″ | 300 | 601 | 1,000 | 20-bolt | 1-1/4″ |
| Flange Size | B16.5 Class 300 RF/ Ring Gaskets | ||||
|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence* | ||||
| 1st | 2nd | Final | Dwg/No. | Stud Bolts Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ |
| 3/4″ | 15 | 30 | 50 | 4-bolt | 5/8″ |
| 1″ | 21 | 42 | 70 | 4-bolt | 5/8″ |
| 1-1/4″ | 30 | 60 | 100 | 4-bolt | 5/8″ |
| 1-1/2″ | 45 | 90 | 150 | 4-bolt | 3/4″ |
| 2″ | 33 | 66 | 110 | 8-bolt | 5/8″ |
| 2-1/2″ | 42 | 84 | 140 | 8-bolt | 3/4″ |
| 3″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 3-1/2″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 12-bolt | 3/4″ |
| 8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 10″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 12″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 14″ | 195 | 390 | 650 | 20-bolt | 1-1/8″ |
| 16″ | 273 | 546 | 910 | 20-bolt | 1-1/4″ |
| 18″ | 300 | 601 | 1,000 | 24-bolt | 1-1/4″ |
| 20″ | 300 | 601 | 1,000 | 24-bolt | 1-1/4″ |
| 24″ | 465 | 930 | 1,550 | 24-bolt | 1-1/2″ |
Weight Chart Of Hastelloy C22 Stud Bolt
| Weight Imperial | |||||||||||||
| STUD BOLT LENGTH (in inches) | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1.3/8 | 1 1/2 | 1.5/8 | 1.3/4 | 1 7/8 | |
| 2.1/2 | 10.8 | ||||||||||||
| 2.3/4 | 11.6 | 19.8 | |||||||||||
| 3.1/4 | 12.4 | 21 | 32.4 | ||||||||||
| 3.1/2 | 13.2 | 22.2 | 34.3 | 50 | |||||||||
| 4 | 14 | 23.4 | 36.2 | 52.6 | 71.8 | ||||||||
| 4.1/2 | 14.8 | 24.6 | 38.1 | 55.2 | 75.2 | 102 | |||||||
| 4.3/4 | 15.6 | 25.8 | 40 | 57.8 | 78.6 | 106 | 137 | ||||||
| 5 | 16.4 | 27 | 41.9 | 60.4 | 82 | 111 | 142 | 179 | |||||
| 5.1/2 | 17.2 | 28.2 | 43.8 | 63 | 85.4 | 115 | 147 | 186 | 234 | ||||
| 6 | 18 | 29.4 | 45.7 | 65.6 | 88.8 | 119 | 153 | 193 | 242 | 289 | |||
| 6.1/4 | 18.8 | 30.6 | 47.6 | 68.2 | 92.2 | 123 | 158 | 200 | 250 | 298 | 263 | ||
| 6.1/2 | 19.6 | 32.3 | 49.5 | 70.8 | 95.6 | 128 | 164 | 206 | 258 | 308 | 374 | 437 | |
| 7 | 20.4 | 33.5 | 50.8 | 73.4 | 99 | 132 | 169 | 213 | 266 | 317 | 385 | 449 | |
| 7.1/2 | 21.2 | 34.8 | 52.7 | 75.5 | 103 | 136 | 174 | 220 | 275 | 326 | 396 | 462 | |
| 8 | 22 | 36.1 | 54.5 | 78 | 106 | 141 | 180 | 226 | 283 | 336 | 407 | 475 | |
| 8.1/4 | 37.3 | 56.3 | 80.5 | 108 | 145 | 185 | 233 | 291 | 345 | 418 | 488 | ||
| 8.3/4 | 38.6 | 58.1 | 83.1 | 112 | 149 | 191 | 240 | 299 | 354 | 429 | 500 | ||
| 9 | 39.8 | 60 | 85.6 | 115 | 153 | 196 | 246 | 307 | 364 | 440 | 513 | ||
| 9.1/2 | 41.1 | 61.8 | 88.2 | 118 | 158 | 201 | 253 | 316 | 373 | 451 | 526 | ||
| 10 | 63.7 | 90.7 | 122 | 162 | 206 | 260 | 324 | 382 | 463 | 538 | |||
| 10/1.4 | 93.3 | 125 | 166 | 212 | 267 | 332 | 391 | 474 | 551 | ||||
| 1.0.1/2 | 128 | 171 | 217 | 273 | 340 | 401 | 485 | 564 | |||||
| 11 | 132 | 175 | 223 | 279 | 345 | 410 | 496 | 576 | |||||
| 11.1/2 | 135 | 179 | 228 | 285 | 350 | 419 | 507 | 589 | |||||
| 12 | 138 | 184 | 233 | 292 | 358 | 429 | 518 | 602 | |||||
| Weight Of Metric Studs Bolt | |||||||||||||
| STUD BOLT LENGTH (in mm) | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
| 60 | 5,6 | 8,1 | 12 | 15,6 | |||||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | 23,7 | ||||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 25,4 | 32,5 | |||||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 27,1 | 34,5 | 45,5 | ||||||
| 100 | 7,6 | 11 | 16 | 21 | 28,8 | 36,7 | 47,2 | 54,2 | |||||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 30,4 | 38,7 | 48,3 | 58,2 | 80 | ||||
| 120 | 8,6 | 12,4 | 18 | 23,6 | 32,1 | 40,7 | 50,9 | 60,2 | 84,7 | 107 | |||
| 130 | 9,1 | 13,2 | 19 | 24,9 | 33,7 | 42,8 | 53,4 | 63,2 | 88,6 | 111 | 141 | ||
| 140 | 9,6 | 14,2 | 20 | 26,2 | 35,4 | 44,9 | 55,9 | 66,2 | 92,4 | 116 | 147 | 185 | |
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 36,9 | 46,9 | 58,5 | 69,2 | 96,3 | 121 | 153 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 38,6 | 49 | 61 | 72,2 | 100,1 | 126 | 159 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 40,2 | 51,1 | 63,5 | 75,2 | 104 | 130 | 165 | 206 | 253 | |
| 180 | 23,8 | 31,8 | 41,9 | 52,3 | 66,1 | 78,1 | 108 | 135 | 171 | 213 | 261 | ||
| 190 | 33,1 | 43,5 | 54,4 | 68,4 | 81,1 | 112 | 140 | 176 | 219 | 269 | |||
| 200 | 34,5 | 45,2 | 56,2 | 71 | 84 | 116 | 144 | 182 | 226 | 278 | |||
| 210 | 35,8 | 46,8 | 58,5 | 73,5 | 88,4 | 120 | 149 | 188 | 233 | 286 | |||
| 220 | 37,1 | 48,4 | 60,6 | 76,1 | 91,4 | 124 | 154 | 194 | 240 | 294 | |||
| 230 | 38,5 | 50,1 | 62,6 | 78,6 | 94,4 | 127 | 159 | 201 | 247 | 302 | |||
| 240 | 39,8 | 51,7 | 64,7 | 81,2 | 97,4 | 130,9 | 164 | 208 | 253 | 310 | |||
| 250 | 41,1 | 53,4 | 66,8 | 83,7 | 100,4 | 134,8 | 172 | 214 | 260 | 319 | |||
| 260 | 55 | 68,8 | 86,3 | 103,4 | 138,6 | 177 | 220 | 267 | 327 | ||||
| 270 | 56,6 | 70,9 | 88,8 | 106,4 | 142,5 | 182 | 224 | 274 | 335 | ||||
| 280 | 58,3 | 73 | 91,4 | 109,4 | 146,3 | 187 | 230 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 150,1 | 192 | 236 | 291 | 360 | |||||
| 300 | 77,1 | 96,5 | 115,4 | 154 | 196 | 241 | 298 | 368 | |||||
| 320 | 101,6 | 121,3 | 161,7 | 206 | 253 | 312 | 380 | ||||||
| 340 | 127,3 | 169,4 | 215 | 265 | 326 | 395 | |||||||
| 360 | 133,3 | 177,1 | 224 | 276 | 340 | 411 | |||||||
| 380 | 184,8 | 234 | 288 | 353 | 428 | ||||||||
| 400 | 192,5 | 243 | 299 | 367 | 444 | ||||||||
| 420 | 252 | 311 | 381 | 460 | |||||||||
| 440 | 262 | 322 | 394 | 477 | |||||||||
| 460 | 271 | 334 | 408 | 493 | |||||||||
| 480 | 281 | 345 | 422 | 509 | |||||||||
| 500 | 290 | 357 | 436 | 526 | |||||||||
Ready Stock Hastelloy C22 Stud Bolts
- Hastelloy C22 Studs
- 2.4602 Continuous Thread Stud Bolt
- ASTM B574 Nickel Alloy C22 Stud Bolts
- Nickel Alloy C22 Threaded Stud Bolts
- Nickel Alloy C22 Threaded Stud Bolt
- DIN 2.4602 Full Threaded Stud Bolt
- ASTM B574 Hastelloy C22 Double Ended Stud
- Hastelloy C22 Double Ended Stud
- Alloy C22 Stud Bolt
- Alloy C22 M16 Stud Bolt
- ASTM B574 Hastelloy Alloy Double Ended Stud
- Nickel Alloy C22 Threaded Rod Exporter
- Alloy C22 Continuous Thread Stud Bolt
- Hastelloy C22 Tie Rods
- Hastelloy C22 Threaded Studs
- Nickel Alloy C22 Drywall Stud
- Hastelloy C22 Tie Bars
- Grade C22 Hastelloy Threaded Studs
- Hastelloy® Alloy C22 Stud Bolts With Reduced Shank
- Hastelloy C-22 Flush Head Studs Stockist
- Nickel Alloy C22 Tap End Stud Bolts
- Nickel Alloy C22 Flush Head Studs
- Hastelloy EN NiCr21Mo14W High Pressure Stud Bolt
- Hastelloy Alloy C-22 Threaded Studs
- Hastelloy® Alloy C22 Stud Bolts
- Alloy C22 Heavy Stud Bolt
- Nickel Alloy C22 Full Threaded Stud Bolt Distributor
- Hastelloy C22 Metric Thread Stud Bolt Manufacturer
- Alloy C22 Tie Rods
- Grade C22 Hastelloy Weld Studs
- Alloy C22 Double Ended Stud Manufacturer
- ASTM B574 Alloy C22 Double End Stud Bolts
- Alloy C22 Continuous Thread Stud Bolt
- UNS N06022 Stud Bolt
- Nickel Alloy C22 Wheel Lug Stud Bolt
- JIS NW 6022 Stud Bolts
- Nickel Alloy C22 Industrial Stud Bolts
- Nickel Alloy C22 Tap End Stud Bolts
- Hastelloy C22 Double End Stud Bolts
- C22 Hastelloy Stud Bolt
- Hastelloy C22 Industrial Stud Bolts Supplier in Mumbai
- C22 Hastelloy Threaded Rod
- ASME SB574 Hastelloy C22 Nickel Studs
- Alloy C22 Partial Threaded Stud Bolt Stockholder
- Alloy C22 Continuous Thread Stud Bolt
- Nickel Alloy C22 Half Thread Stud Bolt
- C22 Nickel Alloy Stud Bolt
- Alloy C22 Single End Stud Bolt
Hastelloy C22 Stud Bolts Chemical Composition
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| Alloy C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
Hastelloy C22 Stud Bolts Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
