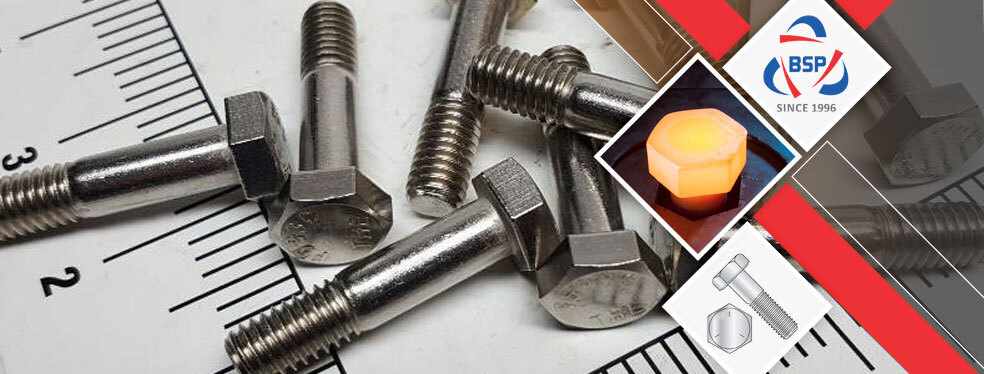

Hastelloy C22 Hex Bolts

Hastelloy Alloy C22 Hex Bolts, Hastelloy C22 Heavy Hex Bolt, Hastelloy C22 Hexagonal Bolt, Hastelloy C22 Hex Head Bolt, Alloy C22 Hex Bolts Price in India.

Bagoda Steel is a popular exporter and trader of Hastelloy C22 Hex Bolts, which has awesome forming and welding characteristics. It is usually recommended to be used in business furnace applications as it has uncommon resistance to oxidizing, lowering and impartial atmospheres. It is likewise used within the chemical procedure enterprise for retorts, muffles, catalysts guide grids, furnace baffles, tubing for pyrolysis operations and flash drier additives. Hastelloy Alloy UNS N06022 Hex Bolts may be welded through each guide and automated strategies which includes shielded steel arc, fueloline tungsten arc, fueloline steel arc and submerged arc methods. The alloy also can be resistance welded. For warm forming, the alloy must be heated to a beginning temperature of 2150 Degree F (1175 Degree C).

Industrial Product
Hastelloy C22 Hex Bolts

Hastelloy C22 Machine Hex Bolt, Hastelloy C22 Industrial Hex Bolt, Alloy C22 Hex Bolt Stockist, Nickel Alloy C22 Hex Flange Bolt, Alloy C22 Hex Cap Screw, 2.4602 Hex Bolts, Hastelloy® Alloy C22 Hex Head Shoulder Bolt, UNS N06022 Full Threaded Hex Bolt Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

It is a stable answer strengthened, nickel-molybdenum alloy, with big resistance to lowering environments like hydrogen chloride fueloline, and sulphuric, acetic and phosphoric acids. Molybdenum is the number one alloying detail which presents big corrosion resistance to lowering environments. This nickel metallic alloy may be used within the as-welded situation as it resists the formation of grain-boundary carbide precipitates within the weld warmth-affected quarter. This nickel alloy presents awesome resistance to hydrochloric acid in any respect concentrations and temperatures. In additions, Hastelloy WNR 2.4602 Hex Bolts has awesome resistance to pitting, pressure corrosion cracking and to knife-line and warmth-affected quarter attack.

It has bad corrosion resistance to oxidizing environments, as a result, it isn't always advocated to be used in oxidizing media or within the presence of ferric or cupric salts due to the fact they'll purpose speedy untimely corrosion failure. These salts can also additionally expand while hydrochloric acid comes in touch with iron and copper. Therefore, if this Nickel Alloy C22 Hex Bolts is used alongside iron or copper piping in a gadget containing hydrochloric acid, the presence of these salts may want to purpose the alloy to fail prematurely. In addition, this nickel metallic alloy must now no longer be used at temperatures among 1000 Degree F and 1600 Degree F due to a discount within the ductility within the alloy.

Material Specification Chart of Hastelloy C22 Hex Bolts

Standard DIN 933, DIN 931, DIN-EN14399-4, DIN 601, ISO 4016, IS1364, ISO 4014, ISO 4017, BS 1768, BS 1083, ASME B18.2.1, JIS B1180, DIN 558, ISO 4018, CSN 21301, EU 24016, DIN 7968, DIN7990
Manufacturing Method
  • Cold Forming Hex Bolt: M2 to M24
  • Hot Forging Hex Bolt: M24 to M100
Metric Sizes
  • Dia: M10 – M110
  • Length: 12 – 1200MM
Length 3 mm to 200 mm or custom
US Threads METRIC, BSW, BSF, Unified national coarse (UNC), Unified national fine (UNF), Unified national extra fine (UNEF), UNJC and UNJF threads, UNK threads, UNR threads, Constant-pitch threads
UTS – Unified Thread Standard UNC, UNF, NPT, UNS, UNEF, NPTF
Heads and drive style Phillips/ Slot, Phillips, indented hex head, Oval, Pan, Flat 82 degree, Round, flat undercut, Truss, binding, flat head 100 degree, Slotted, fillister head, Six-Lobe
Manufacturing process Wire Drawing, Insert tapping, Cold Heading, Heat Treatment, Inspection, Surface Plating, Packing
Standard
  • ANSI B 28.2.4 1M/ B 18.2.4 2M
  • ANSI – American National Standards Institute
  • GB/T5783, GB/T5782, GB5783
  • American ASME
  • Indian IS
  • International ISO
  • American SAE
  • German DIN
  • Spanish CSN
  • British BS
  • Italian UNI
  • Polish PN
  • European EU
Surface Coating
  • Ptfe Coated Hex Bolts
  • Hot Dipped Galvanized
  • Phosphate
  • Teflon
  • Xylon
  • Zinc Phosphate
  • Manganese Phosphate
  • Zinc Electro Plating (Hexavalent or Trivalent Chrome)
  • ZAC (Zinc Alluminium Flake Coating)
  • Cadmium
Surface treatment
  • Polish
  • Passivation
  • Black oxide coating
  • Anodizing
  • Sand blasting
  • Rust preventive oil
  • Heat-disposing
  • Hot dip galvanized
  • Electroplating color
Test Certificates
  • EN 10204 / 3.1 MTC
  • ISO 898-1, ISO 898-2,
  • EN 14399-10
  • EN 14399-2
  • ISO 148-1, ISO 6508-1
ISO – International Organization for Standardization
  • ISO 4014
  • ISO 4017
  • ISO 4032
  • ISO 4162
  • ISO 4161

Various Types Of Hastelloy C22 Hex Bolts

Hastelloy C22 Hex Head Bolt
Hastelloy C22 Hex Head Bolt
  • 2.4602 Hex Head Bolts
  • Hastelloy C22 Hex Socket Head Bolt
  • UNS N06022 Hex Head Bolts
  • Alloy C22 Hex Head Bolt
  • Nickel Alloy C22 Hex Head Bolt
Hastelloy C22 Heavy Hex Bolts
Hastelloy C22 Heavy Hex Bolt
  • Alloy C22 Heavy Hex Bolts
  • Nickel Alloy C22 Heavy Hex Bolts
  • 2.4602 Heavy Hex Bolts
  • Hastelloy Alloy C22 Heavy Hex Bolts
  • UNS N06022 Heavy Hex Bolts
Hastelloy C22 Hex Flange Bolts
Hastelloy C22 Hex Flange Bolt
  • UNS N06022 Hex Flange Bolt
  • Hastelloy Alloy C22 Hex Flange Bolt
  • 2.4602 Hex Flange Bolts
  • Alloy C22 Hex Flange Bolt
  • Nickel Alloy C22 Flange Hex Bolts
Hastelloy C22 Slotted Hex Bolts
Hastelloy C22 Slotted Hex Bolt
  • UNS N06022 Slotted Hex Bolts
  • Alloy C22 Slotted Hex Bolt
  • Hastelloy Alloy C22 Slotted Hex Bolts
  • 2.4602 Beveled Slotted Hex Bolt
  • Nickel Alloy C22 Slotted Hex Bolts
Hastelloy C22 Full Threaded Hex Bolt
Hastelloy C22 Full Threaded Hex Bolt
  • Hastelloy Alloy C22 Full Threaded Hex Bolt
  • Alloy C22 Full Threaded Hex Bolt
  • Nickel Alloy C22 Full Threaded Hex Bolt
  • 2.4602 Fully Threaded Hex Bolt
  • UNS N06022 Fully Threaded Hex Bolts
Hastelloy C22 Half Threaded Hex Bolts
Hastelloy C22 Half Threaded Hex Bolt
  • UNS N06022 Half Threaded Hex Bolts
  • Hastelloy Alloy C22 Half Threaded Hex Bolts
  • Alloy C22 Half Threaded Hex Bolts
  • Nickel Alloy C22 Half Threaded Hex Bolts
  • 2.4602 Half Threaded Hex Bolts

Equivalent Grades of Hastelloy C22 Hex Bolts

STANDARD WERKSTOFF NR. UNS JIS EN
Hastelloy C22 2.4602 N06022 NW 6022 NiCr21Mo14W
Hex Bolts Dimensions

View Size Table Of Hastelloy C22 Hex Bolts, We have Global sales network for Hastelloy C22 Heavy Hex Bolts, Wide Stockist Of Werkstoff No 2.4602 Hex Head Bolts, Industrial Hex Bolts In India.

Dimensions of Hastelloy C22 Hex Bolts

Nominal Size or Basic
Product Diameter		 E F G H R LT
Full-size Body Diameter Width Across Flats Width Across Corners Height Radius of Fillet Nominal Thread Length for
Bolt Lengths
6 in. and
Shorter		 Over
6 in.
Max. Min. Basic Max. Min. Max. Min. Basic Max. Min. Max. Min.
1/4 0.2500 0.260 0.237 7/16 0.438 0.425 0.505 0.484 11/64 0.188 0.150 0.03 0.01 0.750 1.000
5/16 0.3125 0.324 0.298 1/2 0.500 0.484 0.577 0.552 7/32 0.235 0.195 0.03 0.01 0.875 1.125
3/8 0.3750 0.388 0.360 9/16 0.562 0.544 0.650 0.620 1/4 0.268 0.226 0.03 0.01 1.000 1.250
1/2 0.4375 0.452 0.421 5/8 0.625 0.603 0.722 0.687 19/64 0.316 0.272 0.03 0.01 1.125 1.375
1/2 0.5000 0.515 0.482 3/4 0.750 0.725 0.866 0.826 11/32 0.364 0.302 0.03 0.01 1.250 1.500
5/8 0.6250 0.642 0.605 15/16 0.938 0.906 1.083 1.033 27/64 0.444 0.378 0.06 0.02 1.500 1.750
3/4 0.7500 0.768 0.729 1-1/8 1.125 1.088 1.299 1.240 1/2 0.524 0.455 0.06 0.02 1.750 2.000
7/8 0.8750 0.895 0.852 1-5/16 1.312 1.269 1.516 1.447 37/64 0.604 0.531 0.06 0.02 2.000 2.250
1 1.0000 1.022 0.976 1-1/2 1.500 1.450 1.732 1.653 43/64 0.700 0.591 0.09 0.03 2.250 2.500
1-1/8 1.1250 1.149 1.098 1-11/16 1.688 1.631 1.949 1.859 3/4 0.780 0.658 0.09 0.03 2.500 2.750
1-1/4 1.2500 1.277 1.223 1-7/8 1.875 1.812 2.165 2.066 27/32 0.876 0.749 0.09 0.03 2.750 3.000
1-3/8 1.3750 1.404 1.345 2-1/16 2.062 1.994 2.382 2.273 29/32 0.940 0.810 0.09 0.03 3.000 3.250
1-1/2 1.5000 1.531 1.470 2-1/4 2.250 2.175 2.598 2.480 1 1.036 0.902 0.09 0.03 3.250 3.500
1-5/8 1.6250 1.658 1.591 2-7/16 2.438 2.356 2.815 2.616 1-3/32 1.116 0.978 0.09 0.03 3.500 3.750
1-3/4 1.7500 1.785 1.716 2-5/8 2.625 2.538 3.031 2.893 1-5/32 1.196 1.054 0.12 0.04 3.750 4.000
1-7/8 1.8750 1.912 1.839 2-13/16 2.812 2.719 3.248 3.099 1-1/4 1.276 1.130 0.12 0.04 4.000 4.250
2 2.0000 2.039 1.964 3 3.000 2.900 3.464 3.306 1-11/32 1.388 1.175 0.12 0.04 4.250 4.500
2-1/4 2.2500 2.305 2.214 3-3/8 3.375 3.262 3.897 3.719 1-1/2 1.548 1.327 0.19 0.06 4.750 5.000
2-1/2 2.5000 2.559 2.461 3-3/4 3.750 3.625 4.330 4.133 1-21/32 1.708 1.479 0.19 0.06 5.250 5.500
2-3/4 2.7500 2.827 2.711 4-1/8 4.125 3.988 4.763 4.546 1-13/16 1.869 1.632 0.19 0.06 5.750 6.000
3 3.0000 3.081 2.961 4-1/2 4.500 4.350 5.196 4.959 2 2.060 1.815 0.19 0.06 6.250 6.500
3-1/4 3.2500 3.335 3.210 4-7/8 4.875 4.712 5.629 5.372 2-3/16 2.251 1.936 0.19 0.06 6.750 7.000
3-1/2 3.5000 3.589 3.461 5-1/4 5.250 5.075 6.062 5.786 2-5/16 2.380 2.057 0.19 0.06 7.250 7.500
3-3/4 3.7500 3.858 3.726 5-5/8 5.625 5.437 6.495 6.198 2-1/2 2.572 2.241 0.19 0.06 7.750 8.000
4 4.0000 4.111 3.975 6 6.000 5.800 6.928 6.612 2-11/16 2.764 2.424 0.19 0.06 8.250 8.500

Dimensions of Hastelloy C22 Heavy Hex Bolts

Nominal Size
or Basic
Product Diameter		 E F G H R LT
Full-size Body
Diameter		 Width Across Flats Width Across
Corners		 Head Height Radius of Fillet Nominal Thread
Length for
Screw Lengths
6 in.
and
Shorter		 Over 6
in.
Max. Min. Basic Max. Min. Max. Min. Basic Max. Min. Max. Min. Nom. Nom.
3/8 0.3750 0.388 0.360 11/16 0.688 0.669 0.794 0.763 1/4 0.268 0.226 0.03 0.01 1.000 1.250
1/2 0.5000 0.515 0.482 7/8 0.875 0.850 1.010 0.969 11/32 0.364 0.302 0.03 0.01 1.250 1.500
5/8 0.6250 0.642 0.605 1-1/16 1.062 1.031 1.227 1.175 27/64 0.444 0.378 0.06 0.02 1.500 1.750
3/4 0.7500 0.768 0.729 1-1/4 1.250 1.212 1.443 1.383 1/2 0.524 0.455 0.06 0.02 1.750 2.000
7/8 0.8750 0.895 0.852 1-7/16 1.438 1.394 1.660 1.589 37/64 0.604 0.531 0.06 0.02 2.000 2.250
1 1.0000 1.022 0.976 1-5/8 1.625 1.575 1.876 1.796 43/64 0.700 0.591 0.09 0.03 2.250 2.500
1-1/8 1.1250 1.149 1.098 1-13/16 1.812 1.756 2.093 2.002 3/4 0.780 0.658 0.09 0.03 2.500 2.750
1-1/4 1.2500 1.277 1.223 2 2.000 1.938 2.309 2.209 27/32 0.876 0.749 0.09 0.03 2.750 3.000
1-3/8 1.3750 1.404 1.345 2-3/16 2.188 2.119 2.526 2.416 29/32 0.940 0.810 0.09 0.03 3.000 3.250
1-1/2 1.5000 1.531 1.470 2-3/8 2.375 2.300 2.742 2.622 1 1.036 0.902 0.09 0.03 3.250 3.500
1-5/8 1.6250 1.658 1.591 2-9/16 2.562 2.481 2.959 2.829 1-3/32 1.116 0.978 0.09 0.03 3.500 3.750
1-3/4 1.7500 1.785 1.716 2-3/4 2.750 2.662 3.175 3.035 1-5/32 1.196 1.054 0.12 0.04 3.750 4.000
1-7/8 1.8750 1.912 1.839 2-15/16 2.938 2.844 3.392 3.242 1-1/4 1.276 1.130 0.12 0.04 4.000 4.250
2 2.0000 2.039 1.964 3-1/8 3.125 3.025 3.608 3.449 1-11/32 1.388 1.175 0.12 0.04 4.250 4.500
2-1/4 2.2500 2.305 2.214 3-1/2 3.500 3.388 4.041 3.862 1-1/2 1.548 1.327 0.19 0.06 4.750 5.000
2-1/2 2.5000 2.559 2.461 3-7/8 3.875 3.750 4.474 4.275 1-21/32 1.708 1.479 0.19 0.06 5.250 5.500
2-3/4 2.7500 2.827 2.711 4-1/4 4.250 4.112 4.907 4.688 1-13/16 1.869 1.632 0.19 0.06 5.750 6.000
3 3.0000 3.081 2.961 4-5/8 4.625 4.475 5.340 5.102 2 2.060 1.815 0.19 0.06 6.250 6.500

Check available Sizes of Hastelloy C22 Hex Bolts, Ask For Ready Stock of UNS N06022 Heavy Hex Bolts in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Hastelloy C22 Heavy Hex Structural Bolt

Bolt Size A B C D E
Radius of Fillet		 F
Thread Length		 G
Transitional
Thread Length		 Runout of
Bearing Surface
FIM
max min min max min max
1/2″ 0.515 0.482 7/8 0.969 5/16 0.031 0.009 1.00 0.19 0.016
5/8″ 0.642 0.605 1-1/16 1.175 25/64 0.062 0.021 1.25 0.22 0.019
3/4″ 0.768 0.729 1-1/4 1.383 15/32 0.062 0.021 1.38 0.25 0.022
7/8″ 0.895 0.852 1-7/16 1.589 35/64 0.062 0.031 1.50 0.28 0.025
1″ 1.022 0.976 1-5/8 1.796 39/64 0.093 0.062 1.75 0.31 0.028
1-1/8″ 1.149 1.098 1-13/16 2.002 11/16 0.093 0.062 2.00 0.34 0.032
1-1/4″ 1.277 1.223 2 2.209 25/32 0.093 0.062 2.00 0.38 0.035
1-3/8″ 1.404 1.345 2-3/16 2.416 27/32 0.093 0.062 2.25 0.44 0.038
1-1/2″ 1.531 1.470 2-3/8 2.622 15/16 0.093 0.062 2.25 0.44 0.041

Weight Chart Of Hastelloy Alloy C22 Hex Bolts

THREADS According to IS 1363/67
APPROX. WEIGHT IN KGS FOR 100 NOS
LENGTH in mm DIAMETER (METRIC)
M5 M6 M12 M8 M10 M16 M14 M20 M18 M22
16 0.448 0.743 1.590 3.211
20 0.598 0.812 4.892 1.711 3.411
25 0.660 0.897 5.252 1.871 3.660 8.170
30 0.737 1.010 5.574 2.070 3.912 10.707 9.690 18.657
35 0.804 1.120 5.974 2.271 4.223 11.416 10.000 19.608 16.026
40 0.881 1.230 6.410 2.470 4.533 12.107 10.288 20.747 16.667
45 0.958 1.340 6.859 2.671 4.840 12.821 10.504 21.739 17.241
50 1.030 1.450 7.299 2.870 5.155 13.624 11.261 22.727 17.857 28.409
55 1.560 7.740 3.071 5.464 14.409 11.628 23.810 18.868 30.120
60 1.670 8.183 3.270 5.774 15.244 12.255 25.126 20.000 32.051
65 1.781 8.621 3.472 6.083 16.026 12.626 26.455 21.008 34.014
70 1.890 9.058 3.671 6.394 16.835 12.987 27.778 22.124 35.461
75 2.000 9.506 3.873 6.702 17.606 13.228 29.070 23.256 39.063
80 2.111 10.000 4.072 7.013 18.248 13.889 30.303 24.510 40.000
90 10.917 4.472 7.634 19.841 14.925 33.113 26.042 41.667
100 11.820 4.873 8.251 21.459 16.340 35.714 27.778 46.296
110 12.723 8.881 23.041 17.730 38.168 31.250 47.170
120 13.624 9.506 24.631 18.797 40.984 32.895 50.000
130 14.535 10.101 26.316 20.000 43.478 34.722 52.632
140 15.432 10.707 27.933 20.833 46.296 35.461 55.556
150 16.340 11.312 29.412 22.222 48.544 37.594 58.824
160 17.241 11.905 31.056 24.272 50.505 40.984 61.728
170 18.116 12.500 32.680 53.191 64.935
180 19.011 13.123 34.247 26.882 55.556 67.568
190 19.920 13.736 35.971 58.140 70.423
200 20.833 14.327 37.594 29.586 60.976 49.020 73.529
220 22.624 15.528 40.650 65.789 79.365
240 24.510 16.722 43.860 71.429 84.746
250 25.381 17.301 45.455 74.627 87.719
260 26.316 17.921 47.170 76.923 90.909
280 28.090 19.157 50.505 81.967 98.039
300 29.940 20.325 53.763 87.719 104.167
320 31.646 56.818 92.593
340 33.557 60.241 98.039
360 35.211 63.291 104.167
380 37.037 66.667 108.696
400 39.063 69.444 113.636

Ready Stock Hastelloy C22 Hex Bolts

  • Alloy C22 Heavy Hex Bolts
  • Hastelloy C22 Half Threaded Hex Bolt
  • Nickel Alloy C22 Slotted Hex Bolts
  • Alloy C22 Hex Flange Bolt
  • Nickel Alloy C22 Half Threaded Hex Bolt
  • Hastelloy C22 Hex Bolt Manufacturer
  • UNS N06022 Hex Bolts
  • Hastelloy C22 Hexagon Bolt Supplier in Mumbai
  • JIS NW 6022 Heavy Hex Bolts
  • Nickel Alloy C22 Hex Socket Bolts Distributor
  • Hastelloy C22 Hex Structural Bolts
  • Hastelloy C22 Industrial Hex Bolts
  • Nickel Alloy C22 Heavy Hex Bolts
  • Hastelloy C-22 Hex Bolts
  • Nickel Alloy C22 Hex Head Shoulder Bolts
  • Hastelloy C22 Hex Machine Bolt Stockist
  • Hastelloy® Alloy C22 Slotted Hex Bolts
  • Hastelloy C22 Hexagon Bolts
  • Hastelloy Alloy B2 Hex Head Bolt
  • Hastelloy® Alloy C22 Full Threaded Hex Bolt
  • Alloy C22 Hexagon Screw Head Bolt
  • Hastelloy C22 Flanged Hex Bolts Stockholder
  • Hastelloy C22 Hex Bolts Manufacturer
  • Hastelloy C22 Hex Head Shoulder Bolt
  • Hastelloy Alloy C22 Hex Cap Screw
  • Nickel Alloy C22 Hex Tap Bolts
  • Alloy C22 Socket Head Cap Screw
  • Alloy C22 High Tensile Hex Bolts
  • Hastelloy C22 Industrial Hex Bolts Exporter
  • DIN 2.4602 Hex Bolts
  • C22 Hastelloy Alloy Metric Hex Bolts
  • Hastelloy C22 Heavy Hex Structural Bolt
  • Hastelloy C22 Fully Threaded Hex Bolt
  • Nickel Alloy C22 Self Sealing Hex Bolts
  • 2.4602 Hex Machine Bolt
  • Hastelloy® Alloy C22 Threaded Hex Bolts

Hastelloy Alloy C22 Hex Bolts Chemical Composition

Grade C Mn Si S Co Ni Cr Fe Mo P
Hastelloy C22 0.010 max 0.50 max 0.08 max 0.02 max 2.50 max 50.015 min* 20.00 – 22.50 2.00 – 6.00 12.50 – 14.50 0.02 max

Alloy C22 Hex Bolts Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C22 8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %

Export Destinations For Hastelloy C22 Hex Bolts

industry
