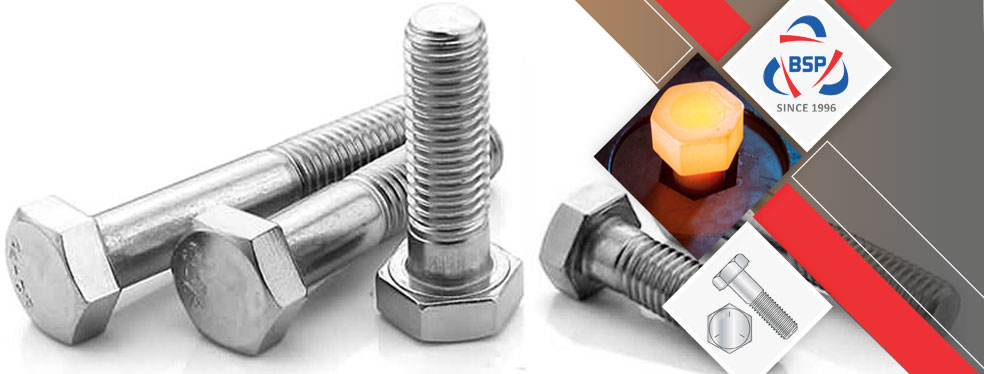

Hastelloy C276 Hex Bolts, Alloy C276 Hex Bolts, Hastelloy Alloy C276 Heavy Hex Bolts Manufacturer

Alloy C276 Hex Bolt Stockist, Nickel Alloy C276 Hex Flange Bolt, UNS N10276 Full Threaded Hex Bolt, Hastelloy C276 Industrial Hex Bolt, 2.4819 Hex Bolts, Hastelloy C276 Machine Hex Bolt, Alloy C276 Hex Cap Screw, Hastelloy® Alloy C276 Hex Head Shoulder Bolt Supplier in Mumbai, India.

It has first-rate corrosion resistance in an extensive variety of chemicals, in particular in acidic chloride environments which includes the ones encountered in pulp and paper mills. Increased tiers of chromium, nickel and molybdenum in comparison to metal enhance resistance to chloride pitting and well-known corrosion. Resistance will increase with molybdenum alloy content material. It is proof against sulphuric acid concentrations as much as five percentage at temperatures as excessive as 120 Degree F (49 Degree C). At temperatures below 100 Degree F (38 Degree C) this alloy has first-rate resistance to solutions of better attention. Hastelloy Alloy WNR 2.4819 Hex Bolts is regularly utilized in Flue-fueloline desulfurization systems, Chemical system vessels, Petrochemical, Pulp and Paper, and Condensers in electricity generation.

However, provider assessments are encouraged to account for the outcomes of precise working situations which could have an effect on corrosion behavior. In procedures wherein condensation of sulphur-bearing gases occurs, its miles a good deal extra proof against assault on the factor of condensation than traditional alloy. The acid attention has a marked impact at the price of assault in such environments and has to be cautiously decided through provider assessments. Nickel Alloy C276 Hex Bolts is simply welded through a complete variety of traditional welding procedures (besides oxyacetylene).They are for regarded for its Improved well-known and localized corrosion, Good formability, and Good weldability.

Material Specification Chart of Hastelloy C276 Hex Bolts

Standard	DIN 933, DIN 931, DIN-EN14399-4, DIN 601, ISO 4016, IS1364, ISO 4014, ISO 4017, BS 1768, BS 1083, ASME B18.2.1, JIS B1180, DIN 558, ISO 4018, CSN 21301, EU 24016, DIN 7968, DIN7990
Manufacturing Method	Cold Forming Hex Bolt: M2 to M24 Hot Forging Hex Bolt: M24 to M100
Metric Sizes	Dia: M10 – M110 Length: 12 – 1200MM
Length	3 mm to 200 mm or custom
US Threads	METRIC, BSW, BSF, Unified national coarse (UNC), Unified national fine (UNF), Unified national extra fine (UNEF), UNJC and UNJF threads, UNK threads, UNR threads, Constant-pitch threads
UTS – Unified Thread Standard	UNC, UNF, NPT, UNS, UNEF, NPTF
Heads and drive style	Phillips/ Slot, Phillips, indented hex head, Oval, Pan, Flat 82 degree, Round, flat undercut, Truss, binding, flat head 100 degree, Slotted, fillister head, Six-Lobe
Manufacturing process	Wire Drawing, Insert tapping, Cold Heading, Heat Treatment, Inspection, Surface Plating, Packing
Standard	ANSI B 28.2.4 1M/ B 18.2.4 2M ANSI – American National Standards Institute GB/T5783, GB/T5782, GB5783 American ASME Indian IS International ISO American SAE German DIN Spanish CSN British BS Italian UNI Polish PN European EU
Surface Coating	Ptfe Coated Hex Bolts Hot Dipped Galvanized Phosphate Teflon Xylon Zinc Phosphate Manganese Phosphate Zinc Electro Plating (Hexavalent or Trivalent Chrome) ZAC (Zinc Alluminium Flake Coating) Cadmium
Surface treatment	Polish Passivation Black oxide coating Anodizing Sand blasting Rust preventive oil Heat-disposing Hot dip galvanized Electroplating color
Test Certificates	EN 10204 / 3.1 MTC ISO 898-1, ISO 898-2, EN 14399-10 EN 14399-2 ISO 148-1, ISO 6508-1
ISO – International Organization for Standardization	ISO 4014 ISO 4017 ISO 4032 ISO 4162 ISO 4161

Various Types Of Hastelloy C276 Hex Bolts

Hastelloy C276 Hex Head Bolt

Hastelloy C276 Hex Socket Head Bolt
Alloy C276 Hex Head Bolt
UNS N10276 Hex Head Bolts
2.4819 Hex Head Bolts
Nickel Alloy C276 Hex Head Bolt

Hastelloy C276 Heavy Hex Bolt

2.4819 Heavy Hex Bolts
Alloy C276 Heavy Hex Bolts
Hastelloy Alloy C276 Heavy Hex Bolts
UNS N10276 Heavy Hex Bolts
Nickel Alloy C276 Heavy Hex Bolts

Hastelloy C276 Hex Flange Bolt

Nickel Alloy C276 Flange Hex Bolts
2.4819 Hex Flange Bolts
UNS N10276 Hex Flange Bolt
Alloy C276 Hex Flange Bolt
Hastelloy Alloy C276 Hex Flange Bolt

Hastelloy C276 Slotted Hex Bolt

UNS N10276 Slotted Hex Bolts
Nickel Alloy C276 Slotted Hex Bolts
Alloy C276 Slotted Hex Bolt
Hastelloy Alloy C276 Slotted Hex Bolts
2.4819 Beveled Slotted Hex Bolt

Hastelloy C276 Full Threaded Hex Bolt

Hastelloy Alloy C276 Full Threaded Hex Bolt
Nickel Alloy C276 Full Threaded Hex Bolt
Alloy C276 Full Threaded Hex Bolt
2.4819 Fully Threaded Hex Bolt
UNS N10276 Fully Threaded Hex Bolts

Hastelloy C276 Half Threaded Hex Bolt

2.4819 Half Threaded Hex Bolts
Nickel Alloy C276 Half Threaded Hex Bolts
Hastelloy Alloy C276 Half Threaded Hex Bolts
Alloy C276 Half Threaded Hex Bolts
UNS N10276 Half Threaded Hex Bolts

Equivalent Grades of Hastelloy C276 Hex Bolts

STANDARD	UNS	WERKSTOFF NR.	EN	JIS	GOST
Hastelloy C276	N10276	2.4819	NiMo16Cr15W	NW 0276	ХН65МВУ

View Size Table Of Hastelloy C276 Hex Bolts, We have Global sales network for Hastelloy C276 Heavy Hex Bolts, Wide Stockist Of Werkstoff No 2.4819 Hex Head Bolts, Industrial Hex Bolts In India.

Dimensions of Hastelloy C276 Hex Bolts

Nominal Size or Basic Product Diameter		E		F			G		H			R		LT
		Full-size Body Diameter		Width Across Flats			Width Across Corners		Height			Radius of Fillet		Nominal Thread Length for Bolt Lengths
		Full-size Body Diameter		Width Across Flats			Width Across Corners		Height			Radius of Fillet		6 in. and Shorter	Over 6 in.
		Max.	Min.	Basic	Max.	Min.	Max.	Min.	Basic	Max.	Min.	Max.	Min.	6 in. and Shorter	Over 6 in.
1/4	0.2500	0.260	0.237	7/16	0.438	0.425	0.505	0.484	11/64	0.188	0.150	0.03	0.01	0.750	1.000
5/16	0.3125	0.324	0.298	1/2	0.500	0.484	0.577	0.552	7/32	0.235	0.195	0.03	0.01	0.875	1.125
3/8	0.3750	0.388	0.360	9/16	0.562	0.544	0.650	0.620	1/4	0.268	0.226	0.03	0.01	1.000	1.250
1/2	0.4375	0.452	0.421	5/8	0.625	0.603	0.722	0.687	19/64	0.316	0.272	0.03	0.01	1.125	1.375
1/2	0.5000	0.515	0.482	3/4	0.750	0.725	0.866	0.826	11/32	0.364	0.302	0.03	0.01	1.250	1.500
5/8	0.6250	0.642	0.605	15/16	0.938	0.906	1.083	1.033	27/64	0.444	0.378	0.06	0.02	1.500	1.750
3/4	0.7500	0.768	0.729	1-1/8	1.125	1.088	1.299	1.240	1/2	0.524	0.455	0.06	0.02	1.750	2.000
7/8	0.8750	0.895	0.852	1-5/16	1.312	1.269	1.516	1.447	37/64	0.604	0.531	0.06	0.02	2.000	2.250
1	1.0000	1.022	0.976	1-1/2	1.500	1.450	1.732	1.653	43/64	0.700	0.591	0.09	0.03	2.250	2.500
1-1/8	1.1250	1.149	1.098	1-11/16	1.688	1.631	1.949	1.859	3/4	0.780	0.658	0.09	0.03	2.500	2.750
1-1/4	1.2500	1.277	1.223	1-7/8	1.875	1.812	2.165	2.066	27/32	0.876	0.749	0.09	0.03	2.750	3.000
1-3/8	1.3750	1.404	1.345	2-1/16	2.062	1.994	2.382	2.273	29/32	0.940	0.810	0.09	0.03	3.000	3.250
1-1/2	1.5000	1.531	1.470	2-1/4	2.250	2.175	2.598	2.480	1	1.036	0.902	0.09	0.03	3.250	3.500
1-5/8	1.6250	1.658	1.591	2-7/16	2.438	2.356	2.815	2.616	1-3/32	1.116	0.978	0.09	0.03	3.500	3.750
1-3/4	1.7500	1.785	1.716	2-5/8	2.625	2.538	3.031	2.893	1-5/32	1.196	1.054	0.12	0.04	3.750	4.000
1-7/8	1.8750	1.912	1.839	2-13/16	2.812	2.719	3.248	3.099	1-1/4	1.276	1.130	0.12	0.04	4.000	4.250
2	2.0000	2.039	1.964	3	3.000	2.900	3.464	3.306	1-11/32	1.388	1.175	0.12	0.04	4.250	4.500
2-1/4	2.2500	2.305	2.214	3-3/8	3.375	3.262	3.897	3.719	1-1/2	1.548	1.327	0.19	0.06	4.750	5.000
2-1/2	2.5000	2.559	2.461	3-3/4	3.750	3.625	4.330	4.133	1-21/32	1.708	1.479	0.19	0.06	5.250	5.500
2-3/4	2.7500	2.827	2.711	4-1/8	4.125	3.988	4.763	4.546	1-13/16	1.869	1.632	0.19	0.06	5.750	6.000
3	3.0000	3.081	2.961	4-1/2	4.500	4.350	5.196	4.959	2	2.060	1.815	0.19	0.06	6.250	6.500
3-1/4	3.2500	3.335	3.210	4-7/8	4.875	4.712	5.629	5.372	2-3/16	2.251	1.936	0.19	0.06	6.750	7.000
3-1/2	3.5000	3.589	3.461	5-1/4	5.250	5.075	6.062	5.786	2-5/16	2.380	2.057	0.19	0.06	7.250	7.500
3-3/4	3.7500	3.858	3.726	5-5/8	5.625	5.437	6.495	6.198	2-1/2	2.572	2.241	0.19	0.06	7.750	8.000
4	4.0000	4.111	3.975	6	6.000	5.800	6.928	6.612	2-11/16	2.764	2.424	0.19	0.06	8.250	8.500

Dimensions of Hastelloy C276 Heavy Hex Bolts

Nominal Size or Basic Product Diameter		E		F			G		H			R		LT
		Full-size Body Diameter		Width Across Flats			Width Across Corners		Head Height			Radius of Fillet		Nominal Thread Length for Screw Lengths
		Full-size Body Diameter		Width Across Flats			Width Across Corners		Head Height			Radius of Fillet		6 in. and Shorter	Over 6 in.
		Max.	Min.	Basic	Max.	Min.	Max.	Min.	Basic	Max.	Min.	Max.	Min.	Nom.	Nom.
3/8	0.3750	0.388	0.360	11/16	0.688	0.669	0.794	0.763	1/4	0.268	0.226	0.03	0.01	1.000	1.250
1/2	0.5000	0.515	0.482	7/8	0.875	0.850	1.010	0.969	11/32	0.364	0.302	0.03	0.01	1.250	1.500
5/8	0.6250	0.642	0.605	1-1/16	1.062	1.031	1.227	1.175	27/64	0.444	0.378	0.06	0.02	1.500	1.750
3/4	0.7500	0.768	0.729	1-1/4	1.250	1.212	1.443	1.383	1/2	0.524	0.455	0.06	0.02	1.750	2.000
7/8	0.8750	0.895	0.852	1-7/16	1.438	1.394	1.660	1.589	37/64	0.604	0.531	0.06	0.02	2.000	2.250
1	1.0000	1.022	0.976	1-5/8	1.625	1.575	1.876	1.796	43/64	0.700	0.591	0.09	0.03	2.250	2.500
1-1/8	1.1250	1.149	1.098	1-13/16	1.812	1.756	2.093	2.002	3/4	0.780	0.658	0.09	0.03	2.500	2.750
1-1/4	1.2500	1.277	1.223	2	2.000	1.938	2.309	2.209	27/32	0.876	0.749	0.09	0.03	2.750	3.000
1-3/8	1.3750	1.404	1.345	2-3/16	2.188	2.119	2.526	2.416	29/32	0.940	0.810	0.09	0.03	3.000	3.250
1-1/2	1.5000	1.531	1.470	2-3/8	2.375	2.300	2.742	2.622	1	1.036	0.902	0.09	0.03	3.250	3.500
1-5/8	1.6250	1.658	1.591	2-9/16	2.562	2.481	2.959	2.829	1-3/32	1.116	0.978	0.09	0.03	3.500	3.750
1-3/4	1.7500	1.785	1.716	2-3/4	2.750	2.662	3.175	3.035	1-5/32	1.196	1.054	0.12	0.04	3.750	4.000
1-7/8	1.8750	1.912	1.839	2-15/16	2.938	2.844	3.392	3.242	1-1/4	1.276	1.130	0.12	0.04	4.000	4.250
2	2.0000	2.039	1.964	3-1/8	3.125	3.025	3.608	3.449	1-11/32	1.388	1.175	0.12	0.04	4.250	4.500
2-1/4	2.2500	2.305	2.214	3-1/2	3.500	3.388	4.041	3.862	1-1/2	1.548	1.327	0.19	0.06	4.750	5.000
2-1/2	2.5000	2.559	2.461	3-7/8	3.875	3.750	4.474	4.275	1-21/32	1.708	1.479	0.19	0.06	5.250	5.500
2-3/4	2.7500	2.827	2.711	4-1/4	4.250	4.112	4.907	4.688	1-13/16	1.869	1.632	0.19	0.06	5.750	6.000
3	3.0000	3.081	2.961	4-5/8	4.625	4.475	5.340	5.102	2	2.060	1.815	0.19	0.06	6.250	6.500

Check available Sizes of Hastelloy C276 Hex Bolts, Ask For Ready Stock of UNS N10276 Heavy Hex Bolts in Mumbai, India.

BAGODA

Quick Contact

Call Us

+91 22 - 66151721

Need Help? Send us Email

sales@bagodasteelproject.com

Dimensions of Hastelloy C276 Heavy Hex Structural Bolt

Bolt Size	A		B	C	D	E Radius of Fillet		F Thread Length	G Transitional Thread Length	Runout of Bearing Surface FIM
Bolt Size	max	min	B	min	D	max	min	F Thread Length	max
1/2″	0.515	0.482	7/8	0.969	5/16	0.031	0.009	1.00	0.19	0.016
5/8″	0.642	0.605	1-1/16	1.175	25/64	0.062	0.021	1.25	0.22	0.019
3/4″	0.768	0.729	1-1/4	1.383	15/32	0.062	0.021	1.38	0.25	0.022
7/8″	0.895	0.852	1-7/16	1.589	35/64	0.062	0.031	1.50	0.28	0.025
1″	1.022	0.976	1-5/8	1.796	39/64	0.093	0.062	1.75	0.31	0.028
1-1/8″	1.149	1.098	1-13/16	2.002	11/16	0.093	0.062	2.00	0.34	0.032
1-1/4″	1.277	1.223	2	2.209	25/32	0.093	0.062	2.00	0.38	0.035
1-3/8″	1.404	1.345	2-3/16	2.416	27/32	0.093	0.062	2.25	0.44	0.038
1-1/2″	1.531	1.470	2-3/8	2.622	15/16	0.093	0.062	2.25	0.44	0.041

Weight Chart Of Hastelloy Alloy C276 Hex Bolts

THREADS According to IS 1363/67
APPROX. WEIGHT IN KGS FOR 100 NOS
LENGTH in mm	DIAMETER (METRIC)
LENGTH in mm	M5	M6	M12	M8	M10	M16	M14	M20	M18	M22
16	0.448	0.743		1.590	3.211
20	0.598	0.812	4.892	1.711	3.411
25	0.660	0.897	5.252	1.871	3.660		8.170
30	0.737	1.010	5.574	2.070	3.912	10.707	9.690	18.657
35	0.804	1.120	5.974	2.271	4.223	11.416	10.000	19.608	16.026
40	0.881	1.230	6.410	2.470	4.533	12.107	10.288	20.747	16.667
45	0.958	1.340	6.859	2.671	4.840	12.821	10.504	21.739	17.241
50	1.030	1.450	7.299	2.870	5.155	13.624	11.261	22.727	17.857	28.409
55		1.560	7.740	3.071	5.464	14.409	11.628	23.810	18.868	30.120
60		1.670	8.183	3.270	5.774	15.244	12.255	25.126	20.000	32.051
65		1.781	8.621	3.472	6.083	16.026	12.626	26.455	21.008	34.014
70		1.890	9.058	3.671	6.394	16.835	12.987	27.778	22.124	35.461
75		2.000	9.506	3.873	6.702	17.606	13.228	29.070	23.256	39.063
80		2.111	10.000	4.072	7.013	18.248	13.889	30.303	24.510	40.000
90			10.917	4.472	7.634	19.841	14.925	33.113	26.042	41.667
100			11.820	4.873	8.251	21.459	16.340	35.714	27.778	46.296
110			12.723		8.881	23.041	17.730	38.168	31.250	47.170
120			13.624		9.506	24.631	18.797	40.984	32.895	50.000
130			14.535		10.101	26.316	20.000	43.478	34.722	52.632
140			15.432		10.707	27.933	20.833	46.296	35.461	55.556
150			16.340		11.312	29.412	22.222	48.544	37.594	58.824
160			17.241		11.905	31.056	24.272	50.505	40.984	61.728
170			18.116		12.500	32.680		53.191		64.935
180			19.011		13.123	34.247	26.882	55.556		67.568
190			19.920		13.736	35.971		58.140		70.423
200			20.833		14.327	37.594	29.586	60.976	49.020	73.529
220			22.624		15.528	40.650		65.789		79.365
240			24.510		16.722	43.860		71.429		84.746
250			25.381		17.301	45.455		74.627		87.719
260			26.316		17.921	47.170		76.923		90.909
280			28.090		19.157	50.505		81.967		98.039
300			29.940		20.325	53.763		87.719		104.167
320			31.646			56.818		92.593
340			33.557			60.241		98.039
360			35.211			63.291		104.167
380			37.037			66.667		108.696
400			39.063			69.444		113.636

Ready Stock Hastelloy C276 Hex Bolts

Nickel Alloy C276 Hex Head Shoulder Bolts
Hastelloy C276 Hex Head Shoulder Bolt
Alloy C276 Heavy Hex Bolts
Hastelloy Alloy C276 Hex Cap Screw
Hastelloy C276 Hexagon Bolts
2.4819 Hex Machine Bolt
Hastelloy C276 Hex Structural Bolts
Hastelloy C276 Hex Bolt Manufacturer
Hastelloy C276 Hexagon Bolt Supplier in Mumbai
Nickel Alloy C276 Hex Tap Bolts
Alloy C276 Socket Head Cap Screw
Hastelloy C276 Industrial Hex Bolts
Hastelloy C276 Heavy Hex Structural Bolt
Hastelloy Alloy B2 Hex Head Bolt
Hastelloy C276 Hex Machine Bolt Stockist
Nickel Alloy C276 Hex Socket Bolts Distributor
Hastelloy C-22 Hex Bolts
Hastelloy C276 Hex Bolts Manufacturer
Alloy C276 High Tensile Hex Bolts
DIN 2.4819 Hex Bolts
Nickel Alloy C276 Self Sealing Hex Bolts
JIS NW 6022 Heavy Hex Bolts
Alloy C276 Hex Flange Bolt
Nickel Alloy C276 Slotted Hex Bolts
Hastelloy C276 Fully Threaded Hex Bolt
Nickel Alloy C276 Heavy Hex Bolts
Hastelloy® Alloy C276 Threaded Hex Bolts
Alloy C276 Hexagon Screw Head Bolt
Hastelloy® Alloy C276 Slotted Hex Bolts
Hastelloy C276 Flanged Hex Bolts Stockholder
Hastelloy C276 Half Threaded Hex Bolt
UNS N10276 Hex Bolts
Nickel Alloy C276 Half Threaded Hex Bolt
Hastelloy C276 Industrial Hex Bolts Exporter
C276 Hastelloy Alloy Metric Hex Bolts
Hastelloy® Alloy C276 Full Threaded Hex Bolt

Hastelloy Alloy C276 Hex Bolts Chemical Composition

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
Alloy C276	0.010 max	1.00 max	0.08 max	0.03 max	2.50 max	50.99 min*	14.50 – 16.50	4.00 – 7.00	15.00 – 17.00	0.04 max

Alloy C276 Hex Bolts Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.89 g/cm3	1370 °C (2500 °F)	Psi – 1,15,000 , MPa – 790	Psi – 52,000 , MPa – 355	40 %
