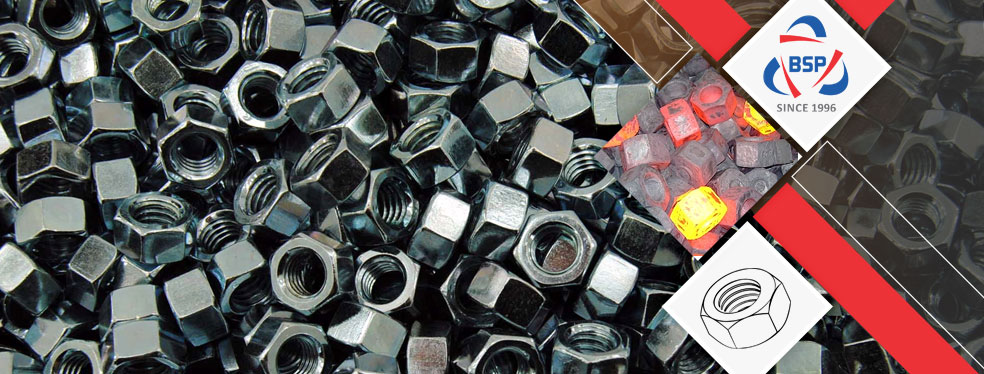

Nickel Alloy 200 / 201 Hex Nuts

Nickel 201 Hex Head Nut, Nickel Alloy 201 Hex Nuts, Alloy 200 Hex Nuts, Nickel 200 Hexagonal Nut, ASTM B160 Nickel 201 Heavy Hex Nut Price in India.

Bagoda Steel is a renowned exporter and supplier of Nickel 200 / 201 Hex Nuts, which has high-quality strength and hardness traits in the cold-laboured condition. Nickel UNS N02200 Hex Nuts is the most powerful of the formable cobalt alloys, beneficial for non-stop provider to 1800°F. Because of lengthy and tremendous use, this alloy has been the problem of many investigations to decide its properties over a huge variety of conditions, accordingly making it a strangely nicely characterized material. When uncovered for extended durations at intermediate temperatures, it has a lack of room temperature ductility in a whole lot the equal style as different top notch alloys.

Industrial Product
Nickel Alloy 200 / 201 Hex Nuts

Alloy 200 Finished Hex Nut Stockist, Alloy 201 Hexagonal Nylon Lock Nut, Nickel 201 Industrial Hex Nut, Nickel Alloy 200 Long Hex Nuts, ASTM B160 Nickel 201 Machine Hex Nut, 2.4066 Hex Nuts, UNS N02200 Hex Flange Nut, Nickel Alloy 200 Hex Jam Nuts Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Nickel UNS N02201 Hex Nuts is welded the usage of fueloline tungsten arc, fueloline steel arc, shielded steel arc, electron beam and resistance welding. Submerged arc welding isn't always recommended. Use top joint fit-up, minimal restraint, low inter-by skip temperature and funky swiftly from welding. For most ductility fabricated additives need to be annealed 2150-2250°F, speedy cool.Its resistance to excessive temperature oxidation and carburization is top. The alloy, even as now no longer broadly speaking supposed for aqueous corrosion, is likewise immune to corrosion via way of means of acids inclusive of hydrochloric and nitric acid, in addition to being immune to moist chlorine solutions.All commonplace machining operations are without difficulty performed. Its collection excessive-pace gear are usually used. Nickel WNR 2.4068 Hex Nuts have restrained software and aren't recommended for stop milling, drilling or tapping. Sulphur chlorinated, water-primarily based totally reducing fluids work effectively whilst machining this alloy.

A modest extra boom in hardness and strength may be carried out thru getting older of the cold-laboured material.These excessive assets stages also are glaring at extended temperature, making it pretty appropriate for applications inclusive of ball bearings and bearing races. This conduct happens attributable to the precipitation of deleterious phases. Nickel WNR 2.4066 Hex Nuts offers high-quality resistance to steel galling. Wear effects proven beneathhad been generated for well-known matching material room-temperature pin on disc tests. However, wear depths are given as a feature of carried out load.

Material Specification Chart of Nickel Alloy 200 / 201 Hex Nuts

Size M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length 3 mm to 200 mm
Hex Nuts UNF, BSW, BSF, METRIC, UNC, or as required
Standard DIN : DIN 934, DIN 931, DIN 970, DIN 933
UTS : UNEF, NPT, UNC, UNS, UNF, NPTF
ISO : JIS standards, ISO 4033, ISO 4032,
ANSI – American National Standards Institute
ASME B18.5 ANSI B 28.2.4 1M ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hex nuts
Form Hex, Threading, Square, Round as per Gauge Etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Dimensions DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive Six-Lobe,Phillips,Phillips/Slot, Slotted etc
Surface Coating Ptfe Coated Nuts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating
Finishing Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide

Various Types Of Nickel Alloy 200 / 201 Hex Nuts

Nickel Alloy 200 / 201 Hex Jam Nut
Nickel Alloy 200 / 201 Hex Jam Nut
  • 2.4066 Hex Jam Nuts
  • Nickel Alloy 200 Hex Jam Nut
  • Nickel 200 Heavy Hex Jam Nuts
  • UNS N02201 Hex Jam Nuts
  • Alloy 201 Hex Jam Nut
Nickel Alloy 200 / 201 Heavy Hex Nuts
Nickel Alloy 200 / 201 Heavy Hex Nut
  • Nickel Alloy 201 Heavy Hex Nut
  • Nickel 200 Heavy Hex Nuts
  • Alloy 201 Heavy Hex Nut
  • 2.4068 Heavy Hex Nuts
  • UNS N02200 Heavy Hex Nuts
Nickel Alloy 200 / 201 Hex Flange Nuts
Nickel Alloy 200 / 201 Hex Flange Nut
  • Nickel 201 Flange Hex Nuts
  • UNS N02201 Hex Flange Nut
  • 2.4068 Hex Flange Nuts
  • Alloy 200 Hex Flange Nut
  • Nickel Alloy 200 Hex Flange Nut
Nickel Alloy 200 / 201 Slotted Hex Nuts
Nickel Alloy 200 / 201 Slotted Hex Nut
  • 2.4068 Beveled Slotted Hex Nut
  • Nickel Alloy 201 Slotted Hex Nuts
  • Nickel 200 Slotted Hex Nuts
  • Alloy 200 Slotted Hex Nut
  • UNS N02200 Slotted Hex Nuts
Nickel Alloy 200 / 201 Machine Hex Nut
Nickel Alloy 200 / 201 Machine Hex Nut
  • Nickel Alloy 201 Machine Hex Nut
  • UNS N02201 Machine Hex Nuts
  • Nickel 200 Machine Hex Nut
  • 2.4066 Machine Hex Nuts
  • Alloy 201 Machine Hex Nuts
Nickel Alloy 200 / 201 Long Hex Nuts
Nickel Alloy 200 / 201 Long Hex Nut
  • Alloy 201 Coupling Hex Nuts
  • Nickel Alloy 201 Long Hex Nuts
  • 2.4066 Hex Coupling Nuts
  • Nickel 200 Long Hex Nuts
  • UNS N02200 Long Hex Nuts

Equivalent Grades of Nickel Alloy 200 / 201 Hex Nuts

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Nickel 200 2.4066 N02200 NW 2200 NA 11 НП-2 N-100M Ni 99.2
Nickel 201 2.4068 N02201 NW 2201 NA 12 НП-2 – LC-Ni 99
Hex Nuts Dimensions

View Size Table Of Nickel 200 Hex Nuts, We have Global sales network for Nickel 201 Heavy Hex Nuts, Wide Stockist Of Werkstoff No 2.4066 Hex Head Nuts, Industrial Hex Nuts In India.

Dimensions of Nickel Alloy 200 / 201 Hex Nuts

Nominal
Size		 Basic
Major
Diameter
of Thread		 F G H H1 Maximum Runout of Bearing
Surface to Thread Axis, FIM
Width Across
Flats		 Width Across
Corners		 Thickness Hex
Nuts		 Thickness Jam
Nuts		 Hex Nuts Hex Jam
Nuts
Min. Max. Min. Max. Min. Max. Min. Max. Specified Proof
Load
Up to
150,000
psi		 150,000
psi and
Greater		 All
Strength
Levels
1/4 0.2500 0.428 0.438 0.488 0.505 0.212 0.226 0.150 0.163 0.015 0.010 0.015
5/16 0.3125 0.489 0.500 0.557 0.577 0.258 0.273 0.180 0.195 0.016 0.011 0.016
3/8 0.3750 0.551 0.563 0.628 0.650 0.320 0.337 0.210 0.227 0.017 0.012 0.017
7/16 0.4375 0.675 0.688 0.768 0.794 0.365 0.385 0.240 0.260 0.018 0.013 0.018
1/2 0.5000 0.736 0.750 0.840 0.866 0.427 0.448 0.302 0.323 0.019 0.014 0.019
9/16 0.5625 0.861 0.875 0.982 1.010 0.473 0.496 0.301 0.324 0.020 0.015 0.020
5/8 0.6250 0.922 0.938 1.051 1.083 0.535 0.559 0.363 0.387 0.021 0.016 0.021
3/4 0.7500 1.088 1.125 1.240 1.299 0.617 0.665 0.398 0.446 0.023 0.018 0.023
7/8 0.8750 1.269 1.312 1.447 1.516 0.724 0.776 0.458 0.510 0.025 0.020 0.025
1 1.0000 1.450 1.500 1.653 1.732 0.831 0.887 0.519 0.575 0.027 0.022 0.027
1-1/8 1.1250 1.631 1.688 1.859 1.949 0.939 0.999 0.579 0.639 0.030 0.025 0.030
1-1/4 1.2500 1.812 1.875 2.066 2.165 1.030 1.094 0.687 0.751 0.033 0.028 0.033
1-3/8 1.3750 1.994 2.062 2.273 2.382 1.138 1.206 0.747 0.815 0.036 0.031 0.036
1-1/2 1.5000 2.175 2.250 2.480 2.598 1.245 1.317 0.808 0.880 0.039 0.034 0.039
1-5/8 1.6250 2.35 2.43 2.679 2.805 1.364 1.416 0.868 0.944 0.044 0.038 0.044
1-3/4 1.7500 2.538 2.625 2.893 3.031 1.460 1.540 0.929 1.009 0.048 0.041 0.048
1-7/8 1.8750 2.722 2.813 3.103 3.247 1.567 1.651 0.989 1.073 0.051 0.044 0.051
2 2.0000 2.900 3.000 3.306 3.464 1.675 1.763 1.050 1.138 0.055 0.047 0.055
2-1/4 2.2500 3.263 3.375 3.719 3.897 1.890 1.986 1.155 1.267 0.061 0.052 0.061
2-1/2 2.5000 3.625 3.750 4.133 4.330 2.105 2.209 1.401 1.427 0.068 0.058 0.068
2-3/4 2.7500 3.998 4.125 4.546 4.763 2.319 2.431 1.522 1.556 0.074 0.064 0.074
3 3.0000 4.350 4.500 4.959 5.196 2.534 2.654 1.643 1.685 0.081 0.070 0.081
3-1/4 3.2500 4.713 4.875 5.373 5.629 2.749 2.877 1.748 1.814 0.087 0.075 0.087
3-1/2 3.5000 5.075 5.250 5.786 6.062 2.964 3.100 1.870 1.943 0.094 0.081 0.094
3-3/4 3.7500 5.438 5.625 6.199 6.495 3.178 3.322 1.990 2.072 0.100 0.087 0.100
4 4.0000 5.800 6.000 6.612 6.928 3.393 3.545 2.112 2.201 0.107 0.093 0.107

Dimensions of Nickel Alloy 200 / 201 Heavy Hex Nuts & Heavy Hex Jam Nuts

Nominal Size Basic Major
Diameter
of Thread		 F G H H1 Maximum Runout of
Bearing Surface to Thread
Axis, FIM
Width Across Flats Width Across
Corners		 Thickness Heavy Hex
Nuts		 Thickness Heavy Hex
Jam Nuts		 Heavy Hex Nuts Heavy
Hex
Jam
Nuts
Specified Proof Load
Basic Min. Max. Min. Max. Basic Min. Max. Basic Min. Max. Up to
150,000
psi		 150,000
psi and
Greater		 All Strength
Levels
1/4 0.2500 1/2 0.488 0.500 0.556 0.577 15/64 0.218 0.250 11/64 0.156 0.188 0.017 0.011 0.017
5/16 0.3125 9/16 0.546 0.562 0.622 0.650 19/64 0.280 0.314 13/64 0.186 0.220 0.020 0.012 0.020
3/8 0.3750 11/16 0.669 0.688 0.763 0.794 23/64 0.341 0.377 15/64 0.216 0.252 0.021 0.014 0.021
7/16 0.4375 3/4 0.728 0.750 0.830 0.866 27/64 0.403 0.441 17/64 0.247 0.285 0.022 0.015 0.022
1/2 0.5000 7/8 0.850 0.875 0.969 1.010 31/64 0.464 0.504 19/64 0.277 0.317 0.023 0.016 0.023
9/16 0.5625 15/16 0.909 0.938 1.037 1.083 35/64 0.526 0.568 21/64 0.307 0.349 0.024 0.017 0.024
5/16 0.6250 1-1/16 1.031 1.062 1.175 1.227 39/64 0.587 0.631 23/64 0.337 0.381 0.025 0.018 0.025
3/4 0.7500 1-1/4 1.212 1.250 1.382 1.443 47/64 0.710 0.758 27/64 0.398 0.446 0.027 0.020 0.027
7/8 0.8750 1-7/16 1.394 1.438 1.589 1.660 55/64 0.833 0.885 31/64 0.458 0.510 0.029 0.022 0.029
1 1.0000 1-5/8 1.575 1.625 1.796 1.876 63/64 0.956 1.012 35/64 0.519 0.575 0.031 0.024 0.031
1-1/8 1.1250 1-13/16 1.756 1.812 2.002 2.093 1-7/64 1.079 1.139 39/64 0.579 0.639 0.033 0.027 0.033
1-1/4 1.2500 2 1.938 2.000 2.209 2.309 1-7/32 1.187 1.251 23/32 0.687 0.751 0.035 0.030 0.035
1-3/8 1.3750 2-3/16 2.119 2.188 2.416 2.526 1-11/32 1.310 1.378 25/32 0.747 0.815 0.038 0.033 0.038
1-1/2 1.5000 2-3/8 2.300 2.375 2.622 2.742 1-15/32 1.433 1.505 27/32 0.808 0.880 0.041 0.036 0.041
1-5/8 1.6250 2-9/16 2.481 2.562 2.828 2.959 1-19/32 1.556 1.632 29/32 0.868 0.944 0.044 0.038 0.044
1-3/4 1.7500 2-3/4 2.662 2.750 3.035 3.175 1-23/32 1.679 1.759 31/32 0.929 1.009 0.048 0.041 0.048
1-7/8 1.8750 2-15/16 2.844 2.938 3.242 3.392 1-27/32 1.802 1.886 1-1/32 0.989 1.073 0.051 0.044 0.051
2 2.0000 3-1/8 3.025 3.125 3.449 3.608 1-31/32 1.925 2.013 1-3/32 1.050 1.138 0.055 0.047 0.055
2-1/4 2.2500 3-1/2 3.388 3.500 3.862 4.041 2-13/64 2.155 2.251 1-13/64 1.155 1.251 0.061 0.052 0.061
2-1/2 2.5000 3-7/8 3.750 3.875 4.275 4.474 2-29/64 2.401 2.505 1-29/64 1.401 1.505 0.068 0.058 0.068
2-3/4 2.7500 4-1/4 4.112 4.250 4.688 4.907 2-45/64 2.647 2.759 1-37/64 1.522 1.634 0.074 0.064 0.074
3 3.0000 4-5/8 4.475 4.625 5.102 5.340 2-61/64 2.893 3.013 1-45/64 1.643 1.763 0.081 0.070 0.081
3-1/4 3.2500 5 4.838 5.000 5.515 5.774 3-3/16 3.124 3.252 1-13/16 1.748 1.876 0.087 0.075 0.087
3-1/4 3.5000 5-3/8 5.200 5.375 5.928 6.207 3-7/16 3.370 3.506 1-15/16 1.870 2.006 0.094 0.081 0.094
3-3/4 3.7500 5-3/4 5.562 5.750 6.341 6.640 3-11/16 3.616 3.760 2-1/16 1.990 2.134 0.100 0.087 0.100
4 4.0000 6-1/4 5.925 6.125 6.755 7.073 3-15/16 3.862 4.014 2-3/16 2.112 2.264 0.107 0.093 0.107

Ready Stock Nickel Alloy 200 / 201 Hex Nuts

  • Nickel Alloy 201 Heavy Hex Jam Nuts
  • Nickel 200 Industrial Hex Nuts Exporter
  • Nickel 200 Hex Nut Manufacturer
  • Nickel 201 Hex Head Nut
  • Nickel Alloy 201 Hexagonal Nylon Lock Nut
  • Alloy 200 Hex Flange Nut
  • Nickel Alloy 201 Self Locking Hex Nuts
  • UNS N02201 Hex Nuts
  • Nickel 201 Hex Nuts
  • Nickel 200 Industrial Hex Nuts
  • Alloy 200 Hex Jam Nuts
  • Nickel Alloy 201 Heavy Hex Nuts Distributor
  • ASTM B160 Alloy 201 Hex Round Nut
  • Nickel 201 Hex Machine Nut Stockist
  • Nickel Alloy 201 Heavy Hexagon Nuts
  • Nickel Alloy 200 Heavy Hex Nuts
  • 201 Nickel Alloy Hex Sleeve Nuts
  • Nickel Alloy 201 Slotted Hex Nuts
  • ASME SB160 Heavy Hex Nuts
  • Nickel Alloy 201 Hex Socket Nut
  • 2.4068 Thin Hex Nuts
  • Nickel 200 Machine Hex Nuts
  • Nickel Alloy 201 Long Hex Nut
  • DIN 2.4066 Hex Nuts
  • Alloy 201 Heavy Hex Nuts
  • Nickel Alloy 200 Hexagon Nuts
  • ASME SB160 Nickel 200 Hexagon Nut Supplier in Mumbai
  • Nickel 201 Hexagonal Nylon Lock Nut
  • Nickel 200 Serrated Hex Flange Nut
  • Nickel 200 Finished Hex Nuts
  • Nickel Alloy 201 Slotted Hex Nuts
  • Nickel 201 Hex Nuts Manufacturer
  • Alloy 200 Nylon Insert Lock Nuts
  • Nickel 200 Coupling Nuts
  • Nickel 201 Flanged Hex Nuts Stockholder
  • Nickel Alloy 200 Semi-Finished Hex Nuts

Nickel Alloy 201 / 201 Hex Nuts Chemical Composition

Grade C Mn Si S Cu Fe Ni
Nickel 200 0.15 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min
Nickel 201 0.02 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min

Alloy 200 / 201 Hex Nuts Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Nickel 200 / 201 8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %
