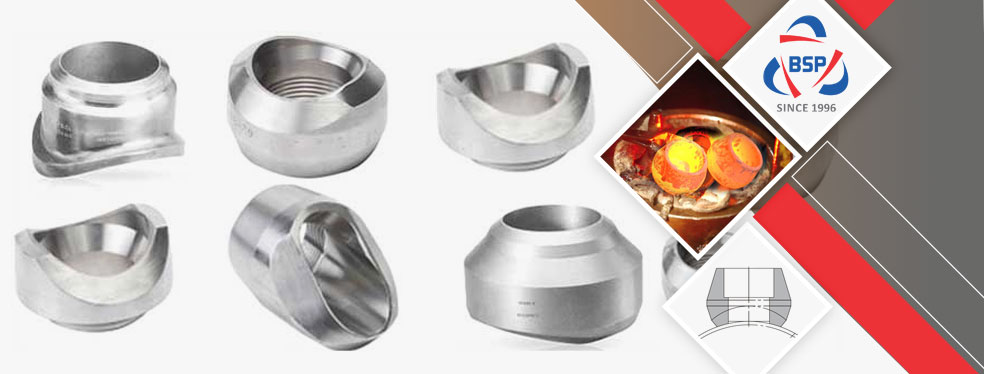

Stainless Steel 310 / 310S Olets

310S SS Elbolets, Stainless Steel 310 Olet, SS 310S Welding Outlet, Stainless Steel 310 Outlet Fittings, ASTM A182 SS 310 Sockolet Fittings Price in India.

Bagoda Steel is a renowned supplier of SS 310 / 310S Olets, which has some of first-rate capabilities to provide which includes Corrosion proof, Hard-wearing, etc. We provide an extensive variety of our Stainless Steel UNS S31000 Latrolet, which can be very well inspected on positive parameters of excellent to make sure their disorder unfastened nature. The detection and quantification of the sigma segment the use of non - unfavourable ultrasounds trying out has been one of the maximum applicable occasions of this have a look at that contributes to enhancing the correlation of the effects acquired the use of unfavourable and non - unfavourable strategies for the quantification of unwanted stages in these outlet fittings at some stage in the producing process. It has some of awesome capabilities to offer which includes quality finish, pleasant excellent, excessive tensile power, and so on. In addition, Stainless Steel UNS S31008 Insertweldolet has a few pleasant capabilities to provide which includes longer purposeful existence, first-rate performance, low protection price and more. The engineers we've employed do now no longer compromise by means of having the excellent of our products this is used within the manufacturing process.

Industrial Product
Stainless Steel LTCS A350 LF2 Olets

UNS S31008 Weldolet, Stainless Steel 310 Threadolet, SS 310S Branch Connection Fittings, 1.4845 Latrolet, 310S Stainless Steel Nipple Outlets, SS 310 Sweepolet Stockist, SS 310 Branch Outlet Fittings, Stainless Steel 310 Flexolet, 310S SS Outlet Fittings Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Stainless Steel WNR 1.4845 Coupolet had been protected via water-resistant and rust proof material that progresses its existence cycle and excellent by means of bounds and leaps. We own talent in providing of a first-rate series and excellent of our outlet fittings to our big patron base. At par via the set enterprise norms, they locate its use in some of functions and are taken into consideration for use for long term period.

We provide an in depth sort of our outlet, which can be systematically reviewed on positive constraints of excellent to ensure mistakes unfastened nature. Also, we make sure that the deliveries of this Stainless Steel WNR. 1.4841 Brazolet is well timed provided at customers’ ends. The contemporary corrosion provides the impact of thermal remedies on our olets, carried out a good way to sell the precipitation of various sigma segment possibilities in a ferrite / austenite microstructure.

Material Specification Chart of SS 310 / 310S Olets

Specifications ASTM A182/ ASME SA182
Dimensions ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc
Size 1/8"-4" (DN6-DN100)
Connect Type Welded, threaded, BW, SW
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of Weldolets, Threadolets, Sockolets, Elbolets, Elbolets, Nippolets, Lateral Outlet, Coupolet, Flexolet, Sweepolet, Brazolet
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

SS 310 / 310S Olets Manufacturing Standards

ASTM A182/A182M Wrought Austenitic SS 310 / 310S Outlet Fittings
ASME SA182 – ASTM A182 Standard Specification for Wrought Austenitic Stainless Steel 310 / 310S Outlet Piping Fittings
MSS SP-97 Integrally Reinforced Forged Branch Outlet Fittings – Socket Welding, Threaded and Buttwelding Ends
BS3799 – Specification for Outlet Fittings for the petroleum industry
ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic SS Outlet Fittings
ASME Standard ASME/ANSI B16.11, MSS-SP-97
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.11 Threaded, Welded, SW, BW

Various Types Of 310 / 310S SS Olets

SS 310 / 310S Weldolet
SS 310 / 310S Weldolet
  • 310S SS Weldolet
  • 1.4845 Welding Outlet
  • UNS S31008 Weldolet
  • SS 310 Welding Outlet
  • Stainless Steel 310 Weldolet
Threadolet
SS 310 / 310S Threadolet
  • 310S SS Threading Outlet
  • Stainless Steel 310 Threadolet
  • 310 SS Threadolet
  • 1.4845 Threadolet
  • UNS S31008 Threaded Outlet
SS 310 / 310S Sockolet
SS 310 / 310S Sockolet
  • 310 SS Sockolet
  • UNS S31008 Sockolet
  • Stainless Steel 310S Socket Weld Outlets
  • 1.4845 Sockolet
  • SS 310 Socket Weld Olets
SS 310 / 310S Elbolet
SS 310 / 310S Elbolet
  • 1.4845 Elbolet
  • 310 SS Elbolet
  • UNS S31008 Elbolet
  • Stainless Steel 310S Elbow Outlets
SS 310 / 310S Latrolet
SS 310 / 310S Latrolet
  • UNS S31008 Latrolet
  • 310 SS Latrolet
  • Stainless Steel 310S Lateral Outlet
  • 1.4845 Latrolet
SS 310 / 310S Nippolet
SS 310 / 310S Nippolet
  • 1.4845 Nippolet
  • Stainless Steel 310 Nipple Outlets
  • 310S SS Nippolet
  • UNS S31008 Nippolet
SS 310 / 310S Flexolet
SS 310 / 310S Flexolet
  • UNS S31008 Flexolet
  • Stainless Steel 310 Flexolet
  • 310S SS Flexolet
  • 1.4845 Flexolet
SS 310 / 310S Sweepolet
SS 310 / 310S Sweepolet
  • UNS S31008 Sweepolet
  • 310S SS Swept Outlet
  • 1.4845 Sweepolet
  • Stainless Steel 310 Sweepolet
SS 310 / 310S Brazolet
SS 310 / 310S Brazolet
  • Stainless Steel 310S Brazolet
  • 1.4845 Brazolet
  • 310 SS Brazolet
  • UNS S31008 Brazolet
SS 310 / 310S Flangeolet
SS 310 / 310S Flangeolet
  • 310S SS Flangeolet
  • 1.4845 Flangeolet
  • UNS S31008 Flangeolet
  • Stainless Steel 310 Flangeolet
SS 310 / 310S Coupolet
SS 310 / 310S Coupolet
  • Stainless Steel 310S Coupolet
  • UNS S31008 Coupolet
  • 310 SS Coupolet
  • 1.4845 Coupolet
SS 310 / 310S Insert Weld Outlet
SS 310 / 310S Insert Weld Outlet
  • Stainless Steel 310 Insert Weld Outlet
  • 310S SS Insert Weld Outlet
  • UNS S31008 Insert Weld Outlet
  • 1.4845 Insert Weld Outlet

Equivalent Grades of SS 310 / 310S Olets

STANDARD WERKSTOFF NR. UNS JIS BS GOST EN
SS 310 1.4841 S31000 SUS 310 310S24 20Ch25N20S2 X15CrNi25-20
SS 310S 1.4845 S31008 SUS 310S 310S16 20Ch23N18 X8CrNi25-21
Olets Dimensions

View Thickness Table Of 310 SS Olets, We have Global sales network for Stainless Steel 310S Outlet Connection Fittings, Wide Stockist Of Werkstoff No 1.4845 Socket Weld Outlets In India.

Check available Sizes of ASME SA 182 SS 310 Branch Outlets Fittings, Ask For Ready Stock of UNS S31008 Threadolets in Mumbai, India.

BAGODA

Quick Contact

Stainless Steel 310 / 310S Weldolet Dimensions

NPS A B C D
1 1.1/16
26.99		 2
50.80		 1.7/16
36.51		 1.1/32
26.19
1/2 3/4
19.05		 1.3/8
34.93		 15/16
23.81		 5/8
15.88
3/4 7/8
22.23		 1.5/8
41.28		 1.3/16
30.16		 13/16
20.64
1¼ 1¼
31.75		 2.3/8
60.3		 1.3/4
44.45		 1.3/8
34.93
1½ 1.5/16
33.34		 2.7/8
73		 2
50.80		 1.5/8
41.28
2 1½
38.10		 3½
88.90		 2.9/16
65.09		 2.1/16
52.39
2½ 1.5/8
41.28		 4.1/16
103.19		 3
76.20		 2.7/16
61.91
3 1.3/4
44.45		 4.13/16
122.24		 3.11/16
93.66		 3.1/16
77.79
3½ 2
50.80		 5.3/8
136.53		 3.7/8
98.43		 3.9/16
90.49
4 2
50.80		 6
152.40		 4.3/4
120.65		 4
101.60
5 2¼
57.15		 7.1/8
180.98		 5.9/16
141.29		 5.1/16
128.59
6 2.3/8
60.3		 8½
215.90		 6.11/16
169.86		 6.1/16
153.99
8 2.3/4
69.85		 10.3/8
263.53		 8.11/16
220.66		 7.15/16
201.61
10 3.1/16
77.79		 12.9/16
319.09		 10.13/16
274.64		 10
254.00
12 3.3/8
85.73		 14.7/8
377.83		 12.13/16
325.44		 12
304.80
14 3½
88.90		 16.1/8
409.58		 14.1/16
357.19		 13¼
336.55
16 3.11/16
93.66		 18¼
463.55		 16.1/16
407.99		 15¼
387.35
18 4.1/16
103.19		 20.3/4
527.05		 18.5/8
473.08		 17¼
438.15
20 4.5/8
117.48		 23.1/16
585.79		 20.1/16
509.59		 19¼
488.95
24 5.3/8
136.53		 27.7/8
708.03		 25.1/8
638.18		 23¼
590.55
NPS A B C D

Stainless Steel 310 / 310S Sockolet Dimensions

Nominal Pipe Size Socket (C)
Minimum		 Face to Crotch (L)
3000 Lbs 6000 Lbs
1″ 13 22 29
1/8″ 10 10 –
1/4″ 10 10 –
3/8″ 10 13 –
1/2″ 10 16 24
3/4″ 13 16 25
1 1/4″ 13 22 30
1 1/2″ 13 24 32
2″ 16 24 37
2 1/2″ 16 25 –
3″ 16 30 –
4″ 19 30 –

Stainless Steel 310 / 310S Threadolet Dimensions

Nominal Pipe Size Face to Crotch (L)
3000 Lbs 6000 Lbs
1″ 33 40
1/8″ 19 –
1/4″ 19 –
3/8″ 21 –
1/2″ 25 32
3/4″ 27 37
1 1/4″ 33 41
1 1/2″ 35 43
2″ 38 52
2 1/2″ 46 –
3″ 51 –
4″ 57 –

Stainless Steel 310 / 310S Nipolet Dimensions

Nominal Pipe Size Face to Crotch (L)
3000 Lbs 6000 Lbs
1/2″ 25 32
3/4″ 27 37
1 1/4″ 33 41
1″ 33 40
1/8″ 19 –
1/4″ 19 –
3/8″ 21 –
1 1/2″ 35 43
2″ 38 52
2 1/2″ 46 –
3″ 51 –
4″ 57 –

Stainless Steel 310 / 310S Latrolet Dimensions

Nominal Pipe Size Face to Crotch (L)
3000 Lbs 6000 Lbs
1/2″ 25 32
3/4″ 27 37
1 1/4″ 33 41
1″ 33 40
1/8″ 19 –
1/4″ 19 –
3/8″ 21 –
1 1/2″ 35 43
2″ 38 52
2 1/2″ 46 –
3″ 51 –
4″ 57 –

Stainless Steel 310 / 310S Elbolet Dimensions

Nominal Pipe Size Face to Crotch (L)
3000 Lbs 6000 Lbs
1/2″ 25 32
3/4″ 27 37
1 1/4″ 33 41
1″ 33 40
1/8″ 19 –
1/4″ 19 –
3/8″ 21 –
1 1/2″ 35 43
2″ 38 52
2 1/2″ 46 –
3″ 51 –
4″ 57 –
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Stainless Steel 310 / 310S Olets

  • SS 310 Olets
  • 310 SS Olets Manufacturer
  • SS 310S Branch Outlets Fittings
  • Stainless Steel 310 Branch Connection
  • 310S Stainless Steel Sockolet
  • 310 Stainless Steel Welding Outlets
  • 5" Nb SS 310S Elbolet
  • DIN 1.4841 Socket Weld Outlets
  • Stainless Steel 310 Industrial Olets
  • 310S Stainless Steel Coupling Outlet
  • ASME SA182 Stainless Steel Threadolet
  • Stainless Steel 310S Threading Outlet
  • ASTM A182 Stainless Steel 310 Flexolet
  • Stainless Steel 310S Nippolet
  • UNS S31000 Olet Fittings
  • Stainless Steel 310S Pipe Outlets
  • Stainless Steel 310 Olet Fittings
  • SS 310 Sweepolet
  • SS 310S Weldolet Distributor
  • Stainless Steel 310 Nipple Outlet Exporter
  • Stainless Steel 310S Flangeolet
  • 310S Stainless Steel Threading Outlet
  • 310S SS Brazolet Supplier in Mumbai
  • 310 SS Insertweldolet
  • Stainless Steel 310 Outlet Fittings
  • SS 310 Coupolet
  • ASTM A182 SS 310S Olets Branch Fittings
  • SS 310 Olet Fittings
  • ASTM A182 SS 310 Flexible Outlet
  • SS 310 Latrolet
  • 310S SS Insert Welding Outlet Manufacturer
  • 310S Stainless Steel Outlets

Stainless Steel 310 / 310S Olets Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 310 0.015 max 2.0 max 0.15 max 0.020 max 0.015 max 24.00 - 26.00 0.10 max 19.00 - 21.00 54.7 min
SS 310S 0.08 max 2.0 max 1.00 ma 0.045 max 0.030 max 24.00 - 26.00 0.75 max 19.00 - 21.00 53.095 min

310 / 310S Stainless Steel Olets Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.9 g/cm3 1402 °C (2555 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 40 %
