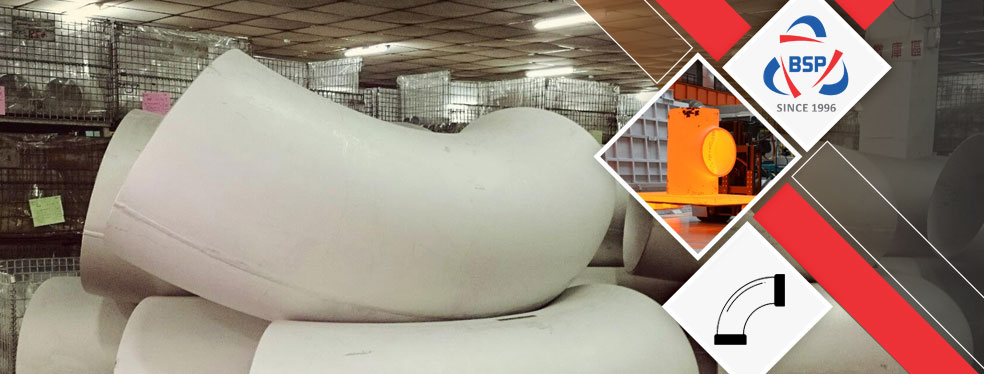

Stainless Steel 304 Pipe Fittings

ASTM A403 WP304 304 Elbow, ANSI B16.9 SS 304 Short Radisus Elbow Price in India.

Bagoda Steel is a known manufacturer of SS 304 Pipe Fittings, which is being supplied in various and customized orders sizes, designs and shapes for our esteemed clienteles. It additionally provide a few first rate functions which includes Durable, High Tensile Strength, Weather Resistant, Anti – Corrosive, Resilient, Resistance to acid and alkaline solutions, Rugged construction, and so on. We are passionately engaged in providing a first-rate of these Alloy 304 Elbow Pipe Fittings, which can be demanded for its tough and difficult utilization and excessive useful efficiency. These fittings supplied via way of us are made from stainless-steel of top rate first-rate, in which we fabricate these products in numerous first-rate - examined variants.

Industrial Product
Stainless Steel 304 Pipe Fittings

UNS S30400 Pipe Fittings, DIN 1.4301 Reducer In Italy, SS 304 Two Joint Pipe Fittings Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

It is an appealing alternative while thinking about the lifestyles cycle value of an installation, which does now no longer require portray and blends by present day indoors layout and is likewise completely recyclable. Our first-rate inspector inspects these Stainless Steel UNS S30400 90-Degree Elbow Pipe Fittings consistent in company of the worldwide and country wide first-rate of standards. The material advantages from delivered chromium and molybdenum which gives these fittings extra corrosion resistance and resistance to heat. We request you to mail us your exact enquiry to permit us to post our rock backside charges for the delivery of prime - genuine - examined materials.

It may be machined, shot - peened and polished in as - constructed or pressure relieved states if required, in which the rust is the apparent seen proof of corrosive activity. Solution annealing of our fittings is not always vital for the motive that the mechanical properties of as - constructed nation are displaying favoured values. An exception to that is that these Stainless Steel WNR 1.4301 45-Degree Pipe Fittings has about some percentage of chromium content, and may be used to withstand scaling at temperatures as much as 1100 Degree C. It especially takes place for the reason that of environmental elements which includes wind exposure, commercial pollutants and extended temperatures, and is worse toward the sea, a first-rate purpose of salt water pollutants.

Material Specification Chart of SS 304 Pipe Fittings

Specifications ASTM A403/ ASME SA403
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP304 / 304L Pipe Fitting
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP 304 / 304L Buttweld Fitting
Connection Welding
Manufacturing Process Push, Press, Forge, Cast, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

SS 304 Pipe Fittings Manufacturing Standards

ASTM A403/A403M Wrought Austenitic SS Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
MSS SP-43 Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM A403 – ASME SA403 Standard Specification for Wrought Austenitic SS Piping Fitting
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.25 Buttwelding Ends
ASME B16.28 Wrought Steel SR Elbows and Buttwelding Returns
API 590-605
ASME B16.9 		‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of 304 SS Butt weld Pipe Fittings

SS 304 Butt weld Elbow
SS 304 Butt weld Elbow
  • Stainless Steel 304 90 Degree Elbow In Malaysia
  • 304 SS 45 Degree Elbow
  • SS 304 180 Deg Elbow In Indonesia
  • UNS S30400 LR Elbow
  • 1.4301 Short Radius Elbow
  • 304 SS 3D Butt weld Elbow
  • ANSI B16.9 SS 304 5D Elbow
SS 304 Butt weld Tee
SS 304 Butt weld Tee
  • Stainless Steel 304 Tee In Mexico
  • 304 SS Equal Tee
  • SS 304 Unequal Tee In Philippines
  • UNS S30400 Butt weld Tee
  • 1.4301 Buttweld Tees
  • SS 304 Reducing Tee
  • ANSI B16.9 SS 304 Buttweld Tee
SS 304 Butt weld Cross
SS 304 Butt weld Cross
  • Stainless Steel 304 Cross In Japan
  • 304 SS Equal Cross
  • SS 304 Unequal Cross In Italy
  • UNS S30400 Butt weld Cross
  • 1.4301 Buttweld Cross
  • SS 304 Reducing Cross In Spain
  • ANSI B16.9 SS 304 Buttweld Cross
SS 304 Concentric Reducer
SS 304 Concentric Reducer
  • Stainless Steel 304 Concentric Reducer In Kuwait
  • 304 SS Concentric Reducer In Singapore
  • UNS S30400 Butt weld Concentric Reducer
  • 1.4301 Concentric Reducer
  • ANSI B16.9 SS 304 Concentric Reducer
SS 304 Eccentric Reducer
SS 304 Eccentric Reducer
  • Stainless Steel 304 Eccentric Reducer In Singapore
  • 304 SS Eccentric Reducer In Kuwait
  • UNS S30400 Butt weld Eccentric Reducer
  • 1.4301 Eccentric Reducer
  • ANSI B16.9 SS 304 Eccentric Reducer
SS 304 Stub End
SS 304 Stub End
  • Stainless Steel 304 Short Stub End In Kuwait
  • 304 SS Long Stub End In Malaysia
  • UNS S30400 Butt weld Stub End
  • 1.4301 Short Stub End
  • ANSI B16.9 SS 304 Lap Joint Stub End
SS 304 Pipe End Cap
SS 304 Pipe End Cap
  • Stainless Steel 304 End Cap In Japan
  • 304 SS Pipe Cap In Spain
  • UNS S30400 Butt weld Cap
  • 1.4301 End Pipe Cap
  • ANSI B16.9 SS 304 Pipe End Cap
SS 304 Pipe Nipple
SS 304 Pipe Nipple
  • Stainless Steel 304 Nipple In Italy
  • 304 SS Pipe Nipple In Singapore
  • UNS S30400 Butt weld Nipple
  • 1.4301 Swage Nipple
  • ANSI B16.9 SS 304 Barrel Nipple
SS 304 Pipe Bend
SS 304 Pipe Bend
  • Stainless Steel 304 Long Radius Bend In Spain
  • 304 SS Piggable Bend In Indonesia
  • UNS S30400 Butt weld Bend
  • 1.4301 Hot Induction Bend
  • ANSI B16.9 SS 304 Bend

Equivalent Grades of SS 304 Buttweld Fittings

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
Pipe Fittings Dimensions

View Thickness Table Of 304 SS Buttweld Fittings, We have Global sales network for Stainless Steel 304 LR Elbow, Wide Stockist Of Werkstoff No 1.4301 Seamless Fittings In India.

Check available Sizes of ASME SA 403 WP304 Pipe Reducer, Ask For Ready Stock of UNS S30400 Stub End in Mumbai, India.

BAGODA

Quick Contact

ASME B16.9 SS 304 Short and Long Radius Elbows Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter 		45°Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Radius
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

ASME B16.9 SS 304 Tee & Cap Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter		 Caps Straight Crosses Straight Tees Stub Ends
(mm) (inches) Length
(inches)		 Center to End
(inches)		 Center to End
(inches)		 Lap Diameter
(inches)		 Long Length
(inches)		 Short Length
(inches)
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1/2 21.3 0.840 1 – 1 1 3/8 3 2
3/4 26.7 1.050 1 – 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

ASME B16.9 SS 304 Concentric & Eccentric Reducer Dimensions

Nominal
Pipe
Size		 Outside
Diameter 		Reducers
Reduced from
(inches)		 (mm) (inches) Reduced to
(inches) 		Concentric & Eccentric Length
(inches)
1 33.4 1.315 3/8 2
1/2 2
3/4 2
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 1/4 42.2 1.660 1/2 2
3/4 2
1 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 2 1/2
1 1/4 2 1/2
2 60.3 2.375 3/4 3
1 3
1 1/4 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/4 3 1/2
1 1/2 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
1 1/2 3 1/2
2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2 4
2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 4
2 1/2 4
3 4
3 1/2 4
5 141.3 5.563 2 5
2 1/2 5
3 5
3 1/2 5
4 5
6 168.3 6.625 2 1/2 5 1/2
3 5 1/2
3 1/2 5 1/2
4 5 1/2
5 5 1/2
8 219.1 8.625 3 6
3 1/2 6
4 6
5 6
6 6
10 273.1 10.750 4 7
5 7
6 7
8 7
12 323.9 12.750 5 8
6 8
8 8
10 8

304 Stainless Steel Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.56 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Stainless Steel 304 Pipe Fittings

  • 304 Stainless Steel Lap Joint Stub End In Indonesia
  • UNS S30400 Pipe Fittings
  • 304 Stainless Steel Elbow
  • ASTM A403 Stainless Steel 304 Pipe Fittings
  • Sch 80 Stainless Steel 304 Pipe Fittings
  • SS 304 End Cap Distributor
  • ASME SA403 WP304 Stainless Steel Lateral Tee
  • 304 SS Barrel Nipple Supplier in Mumbai
  • 304 Stainless Steel Pipe Elbow
  • Stainless Steel 304 Buttweld Fittings In Malaysia
  • DIN 1.4301 Swage Nipple
  • Schedule 80 SS 304 Grade Long Stub End
  • Stainless Steel 304 SR Elbow In Mexico
  • 304 Stainless Steel Equal Cross In Philippines
  • SS 304 1D Elbow/3D Elbow/5D Elbow
  • SS 304 Eccentric Reducer In Japan
  • SS 304 Seamless Fittings In Spain
  • ASTM A403 WP304 45 Degree Elbow
  • 304 SS Eccentric Reducer Manufacturer
  • Stainless Steel 304 Welded Fittings In Italy
  • ASME B16.9 Stainless Steel 304 Buttweld Fittings
  • Stainless Steel 304 Long Stub End In Kuwait
  • Stainless Steel 304 Reducer In Singapore
  • 304 SS Reducing Nipple
  • DIN 2605 Stainless Steel 304 Elbow Exporter
  • SCH 60 304 Stainless Steel Pipe Nipples
  • ASME B16.9 Schedule 10 304 Stainless Steel Elbow
  • SS 304 Two Joint Pipe Fittings In Indonesia
  • Stainless Steel 304 Butt Weld Pipe Fittings In Malaysia
  • ANSI B16.9 SS 304 Short Stub End
  • 5" Nb Sch10s SS 304 90° Short Radius Elbow
  • 304 Stainless Steel Pipe Fittings Manufacturer
  • Stainless Steel 304 Two Halve Butt weld Fittings In Mexico
  • ASTM A403 WP304 Buttweld Fittings
  • 304 SS LR Elbow Stockist
  • 1.4301 Butt weld Fittings
  • SS 304 180° LR Return Bends
  • 304 SS Long Radius Elbow In Japan
  • Stainless Steel 304 Piggable Bends In Philippines
  • 15 NB SCH 10 SS 304 90° Short Radius Elbow
  • ANSI B16.9 Stainless Steel 304 Pipe Cap
  • SS 304 Long Radius Bend Stockholder
  • 304 Stainless Steel Butt weld Tee In Spain
  • 304 Stainless Steel Buttweld Nipple In Singapore
  • ASTM A403 WP304 SS Stub End
  • 1/2” - 16” ASTM A403 WP304 Butt weld Elbow
  • Stainless Steel 304 Pipe Bend In Italy
  • Stainless Steel SUS 304 Mandrel Pipe Bend In Kuwait

Stainless Steel 304 Butt weld Fittings Chemical Composition

Grade C Mn Si P S Cr Ni
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 – 20 8 – 11

304 Stainless Steel Pipe Fittings Mechanical Properties

Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
304 8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Export Destinations For 304 SS Butt weld Pipe Fittings

industry
