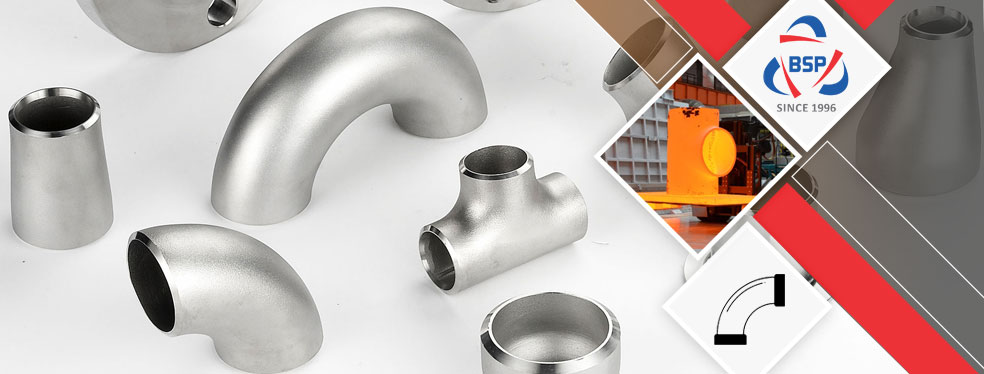

Stainless Steel 310H Pipe Fittings

ANSI B16.9 SS 310H Short Radius Elbow, ASTM A403 WP310H 90 Deg. Elbow Price in India.

Bagoda Steel is a known trader of SS 310H Pipe Fittings, which are designed and engineered with precision at our technically superior production unit, with using top rate best material.It has a few wonderful functions to offer which include dimensionally stable, durable, first-rate finish, etc. Also, our logistics workers make certain that deliveries are provided at clients’ ends within the scheduled time period. We provide an intensive range of these Alloy 310H Reducer Pipe Fittings, wherein quality best of components is utilized by our engineers to make the presented range of these products. Highly skilled and skilled professionals are employed with the aid of using us to make the presented series of these fittings, which has a few excellent functions to provide which include quality best, first-rate finish, excessive tensile strength and more.

Industrial Product
Stainless Steel 310H Pipe Fittings

UNS S31009 Pipe Fittings, DIN 1.4845 Reducer In Indonesia, 310H Stainless Steel LR Elbow Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

We are one of the pioneer manufacturer and stockiest for best of these fittings, which gives superb resistance to inorganic acids, mainly the ones containing chlorides. The excessive chromium and molybdenum content material of these Stainless Steel UNS S31009 Concentric Reducer Pipe Fittings makes it extraordinarily immune to uniform corrosion with the aid of using natural acids like formic and acetic acid. The condition lets in on the spot completing of the work - piece with milling or drilling. It is appropriate for provider in fantastically corrosive situations and wherein excessive strength is required.

The properties of these fittings are being extensively utilized in offshore oil and fueloline exploration and manufacturing and in warmness exchangers in petrochemical and chemical processing. At par with the set enterprise standards, our products unearth utility in numerous functions and are designed for use for long term period. 310H Stainless Steel Eccentric Reducer Pipe Fittings had been lined with rust evidence and water resistant material which improves its best and existence cycle with the aid of using leaps and bounds. Keeping in numerous necessities of the clients in mind, we're engaged in presenting quality best of these products, which has some of best functions to provide which include correct dimensions, sturdy design, smooth to fit, etc.

Material Specification Chart of SS 310H Pipe Fittings

Specifications ASTM A403/ ASME SA403
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP310H Pipe Fitting
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP 310H Buttweld Fitting
Connection Welding
Manufacturing Process Push, Press, Forge, Cast, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

SS 310H Pipe Fittings Manufacturing Standards

ASTM A403/A403M Wrought Austenitic SS Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
MSS SP-43 Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM A403 – ASME SA403 Standard Specification for Wrought Austenitic SS Piping Fitting
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.25 Buttwelding Ends
ASME B16.28 Wrought Steel SR Elbows and Buttwelding Returns
API 590-605
ASME B16.9 		‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of 310H SS Butt weld Pipe Fittings

SS 310H Butt weld Elbow
SS 310H Butt weld Elbow
  • 310H SS 3D Butt weld Elbow In Indonesia
  • 310H SS 45 Degree Elbow In Malaysia
  • ANSI B16.9 SS 310H 5D Elbow
  • SS 310H 180 Deg Elbow
  • UNS S31009 LR Elbow
  • Stainless Steel 310H 90 Degree Elbow In Mexico
  • 1.4845 Short Radius Elbow
SS 310H Butt weld Tee
SS 310H Butt weld Tee
  • 1.4845 Buttweld Tees
  • ANSI B16.9 SS 310H Buttweld Tee
  • SS 310H Reducing Tee In Philippines
  • UNS S31009 Butt weld Tee
  • SS 310H Unequal Tee In Japan
  • 310H SS Equal Tee
  • Stainless Steel 310H Tee
SS 310H Butt weld Cross
SS 310H Butt weld Cross
  • UNS S31009 Butt weld Cross
  • 310H SS Equal Cross In Spain
  • SS 310H Unequal Cross
  • 1.4845 Buttweld Cross
  • ANSI B16.9 SS 310H Buttweld Cross
  • SS 310H Reducing Cross In Italy
  • Stainless Steel 310H Cross
SS 310H Concentric Reducer
SS 310H Concentric Reducer
  • Stainless Steel 310H Concentric Reducer In Kuwait
  • ANSI B16.9 SS 310H Concentric Reducer
  • 310H SS Concentric Reducer In Singapore
  • UNS S31009 Butt weld Concentric Reducer
  • 1.4845 Concentric Reducer
SS 310H Eccentric Reducer
SS 310H Eccentric Reducer
  • 1.4845 Eccentric Reducer
  • 310H SS Eccentric Reducer In Indonesia
  • UNS S31009 Butt weld Eccentric Reducer
  • Stainless Steel 310H Eccentric Reducer In Singapore
  • ANSI B16.9 SS 310H Eccentric Reducer
SS 310H Stub End
SS 310H Stub End
  • ANSI B16.9 SS 310H Lap Joint Stub End
  • 1.4845 Short Stub End
  • 310H SS Long Stub End In Kuwait
  • Stainless Steel 310H Short Stub End In Malaysia
  • UNS S31009 Butt weld Stub End
SS 310H Pipe End Cap
SS 310H Pipe End Cap
  • ANSI B16.9 SS 310H Pipe End Cap
  • Stainless Steel 310H End Cap In Mexico
  • 1.4845 End Pipe Cap
  • UNS S31009 Butt weld Cap
  • 310H SS Pipe Cap In Italy
SS 310H Pipe Nipple
SS 310H Pipe Nipple
  • 1.4845 Swage Nipple
  • UNS S31009 Butt weld Nipple
  • ANSI B16.9 SS 310H Barrel Nipple
  • Stainless Steel 310H Nipple In Spain
  • 310H SS Pipe Nipple In Philippines
SS 310H Pipe Bend
SS 310H Pipe Bend
  • 1.4845 Hot Induction Bend
  • UNS S31009 Butt weld Bend
  • Stainless Steel 310H Long Radius Bend In Japan
  • 310H SS Piggable Bend In Mexico
  • ANSI B16.9 SS 310H Bend

Equivalent Grades of SS 310H Buttweld Fittings

STANDARD WERKSTOFF NR. UNS
SS 310H 1.4845 S31009
Pipe Fittings Dimensions

View Thickness Table Of 310H SS Buttweld Fittings, We have Global sales network for Stainless Steel 310H LR Elbow, Wide Stockist Of Werkstoff No 1.4845 Seamless Fittings In India.

Check available Sizes of ASME SA403 WP310H Pipe Reducer, Ask For Ready Stock of UNS S31009 Stub End in Mumbai, India.

BAGODA

Quick Contact

ASME B16.9 SS 310H Short and Long Radius Elbows Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter 		45°Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Radius
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

ASME B16.9 SS 310H Tee & Cap Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter		 Caps Straight Crosses Straight Tees Stub Ends
(mm) (inches) Length
(inches)		 Center to End
(inches)		 Center to End
(inches)		 Lap Diameter
(inches)		 Long Length
(inches)		 Short Length
(inches)
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1/2 21.3 0.840 1 – 1 1 3/8 3 2
3/4 26.7 1.050 1 – 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

ASME B16.9 SS 310H Concentric & Eccentric Reducer Dimensions

Nominal
Pipe
Size		 Outside
Diameter 		Reducers
Reduced from
(inches)		 (mm) (inches) Reduced to
(inches) 		Concentric & Eccentric Length
(inches)
1 33.4 1.315 3/8 2
1/2 2
3/4 2
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 1/4 42.2 1.660 1/2 2
3/4 2
1 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 2 1/2
1 1/4 2 1/2
2 60.3 2.375 3/4 3
1 3
1 1/4 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/4 3 1/2
1 1/2 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
1 1/2 3 1/2
2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2 4
2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 4
2 1/2 4
3 4
3 1/2 4
5 141.3 5.563 2 5
2 1/2 5
3 5
3 1/2 5
4 5
6 168.3 6.625 2 1/2 5 1/2
3 5 1/2
3 1/2 5 1/2
4 5 1/2
5 5 1/2
8 219.1 8.625 3 6
3 1/2 6
4 6
5 6
6 6
10 273.1 10.750 4 7
5 7
6 7
8 7
12 323.9 12.750 5 8
6 8
8 8
10 8

310H Stainless Steel Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.96 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Stainless Steel 310H Pipe Fittings

  • 5" Nb Sch10s SS 310H 90° Short Radius Elbow
  • SS 310H Eccentric Reducer In Indonesia
  • ANSI B16.9 Stainless Steel 310H Pipe Cap
  • ASTM A403 Stainless Steel 310H Pipe Fittings
  • Stainless Steel 310H Long Stub End In Malaysia
  • SCH 60 310H Stainless Steel Pipe Nipples
  • Stainless Steel 310H SR Elbow In Mexico
  • Stainless Steel 310H Pipe Bend In Philippines
  • Stainless Steel 310H Reducer In Japan
  • 310H Stainless Steel Butt weld Tee In Spain
  • Sch 80 Stainless Steel 310H Pipe Fittings
  • 310H SS Reducing Nipple
  • Stainless Steel SUS 310H Mandrel Pipe Bend
  • ASME B16.9 Stainless Steel 310H Buttweld Fittings
  • 310H Stainless Steel Equal Cross In Italy
  • 310H Stainless Steel Pipe Elbow
  • 310H SS Eccentric Reducer Manufacturer
  • 310H Stainless Steel Elbow In Mexico
  • Stainless Steel 310H Two Halve Butt weld Fittings
  • SS 310H End Cap Distributor
  • ASTM A403 WP310H Buttweld Fittings
  • SS 310H 180° LR Return Bends In Kuwait
  • 310H Stainless Steel Buttweld Nipple In Philippines
  • 310H Stainless Steel Pipe Fittings Manufacturer
  • SS 310H 1D Elbow/3D Elbow/5D Elbow
  • ANSI B16.9 SS 310H Short Stub End
  • SS 310H Seamless Fittings
  • 310H SS Barrel Nipple Supplier in Mumbai
  • ASME SA403 WP310H Stainless Steel Lateral Tee
  • ASME B16.9 Schedule 10 310H Stainless Steel Elbow
  • DIN 2605 Stainless Steel 310H Elbow Exporter
  • SS 310H Two Joint Pipe Fittings
  • 1/2” - 16” ASTM A403 WP310H Butt weld Elbow
  • ASTM A403 WP310H SS Stub End
  • ASTM A403 WP310H 45 Degree Elbow
  • 310H Stainless Steel Lap Joint Stub End
  • 310H SS Long Radius Elbow In Singapore
  • Schedule 80 SS 310H Grade Long Stub End
  • Stainless Steel 310H Buttweld Fittings In Italy
  • 310H SS LR Elbow Stockist
  • SS 310H Long Radius Bend Stockholder
  • 1.4845 Butt weld Fittings
  • DIN 1.4845 Swage Nipple
  • Stainless Steel 310H Piggable Bends
  • UNS S31009 Pipe Fittings
  • Stainless Steel 310H Butt Weld Pipe Fittings In Spain
  • Stainless Steel 310H Welded Fittings In Japan
  • 15 NB SCH 10 SS 310H 90° Short Radius Elbow

Stainless Steel 310H Butt weld Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
310H min. – – – – – 24.0 – 19.0 –
max. 0.08 2.00 1.50 0.045 0.030 26.0 22.0

310H Stainless Steel Pipe Fittings Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
310H 515 205 40 95 217

Export Destinations For 310H SS Butt weld Pipe Fittings

industry
