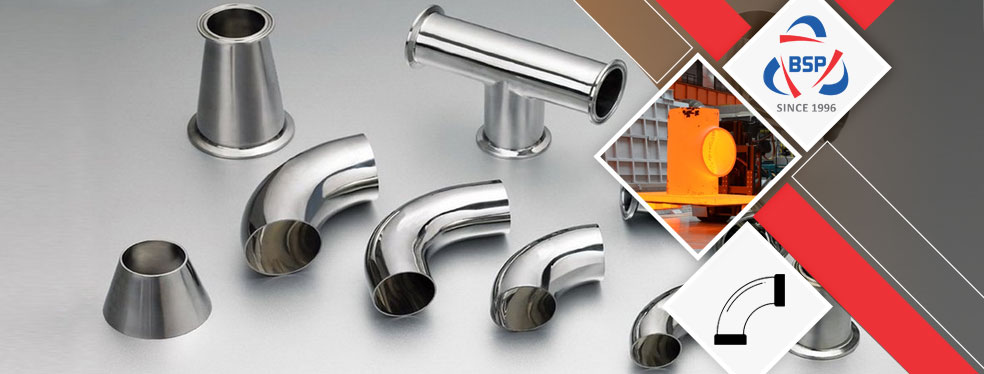

347H Stainless Steel LR Elbow In Malaysia, DIB 1.4961 Reducer, UNS S34709 Pipe Fittings, Stainless Steel 347H Stub End Supplier in Mumbai, India.
It has been attempted in amazingly asking for situations obliging excessive excellent and excellent scraped abrasion resistance. These pipe fittings provided by means of us are widespread by means of customers in diverse spheres of the industries starting from simple industries consisting of Textile, Dairy, Sugar, Paper, Engineering, etc. Stainless Steel WNR 1.4961 Short Stub End Pipe Fittings are utilized in greater complicated consisting of Petrochemical, Oil & Gas, Chemical & Fertilizers, Nuclear Industries and Power Generation. The microstructure of our pipe fittings generally reveals a minor quantity of non - metal inclusions, basically oxides, which might be unchanged by means of annealing.
It is likewise utilized in several applications consisting of feeders, crushers, sieves, measuring pockets, conveyors, buckets, skips, slicing edges, gears, etc. They also are utilized in loaders, sprockets, dump-trucks, commercial trucks, excavators, slurry pipe systems, lorries, bulldozers, screw conveyors, presses etc. Thanks to its excessive toughness, desirable bendability and weldability, it is able to be utilized in systems by mild wear. 347H Stainless Steel Long Stub End Pipe Fittings is an abrasion resistant by means of having a hardness, meant for applications wherein needs are imposed on abrasion resistance in aggregate by desirable cold bending properties. It is through - hardened, wherein minimal middle hardness is of the assured minimal floor hardness.
Material Specification Chart of SS 347H Pipe Fittings
| Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP347H Pipe Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP 347H Buttweld Fitting |
| Connection | Welding |
| Manufacturing Process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized Manufacturer of | 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
SS 347H Pipe Fittings Manufacturing Standards
| ASTM A403/A403M | Wrought Austenitic SS Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| MSS SP-43 | Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications |
| BS3799 – | Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry |
| ASTM A403 – ASME SA403 | Standard Specification for Wrought Austenitic SS Piping Fitting |
| ASME Standard | ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43 |
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | Wrought Steel SR Elbows and Buttwelding Returns |
| API 590-605 ASME B16.9 |
‘Factory-Made Wrought Butt-welding Fittings’ |
Various Types Of 347H SS Butt weld Pipe Fittings
- Stainless Steel 347H 90 Degree Elbow In Malaysia
- ANSI B16.9 SS 347H 5D Elbow
- 1.4961 Short Radius Elbow
- 347H SS 45 Degree Elbow
- SS 347H 180 Deg Elbow In Indonesia
- 347H SS 3D Butt weld Elbow
- UNS S34709 LR Elbow
- SS 347H Unequal Tee In Mexico
- 347H SS Equal Tee
- ANSI B16.9 SS 347H Buttweld Tee
- 1.4961 Buttweld Tees
- UNS S34709 Butt weld Tee
- Stainless Steel 347H Tee In Philippines
- SS 347H Reducing Tee
- 1.4961 Buttweld Cross
- SS 347H Unequal Cross In Japan
- 347H SS Equal Cross
- Stainless Steel 347H Cross In Italy
- ANSI B16.9 SS 347H Buttweld Cross
- SS 347H Reducing Cross
- UNS S34709 Butt weld Cross
- Stainless Steel 347H Concentric Reducer In Spain
- 347H SS Concentric Reducer In Kuwait
- UNS S34709 Butt weld Concentric Reducer
- 1.4961 Concentric Reducer
- ANSI B16.9 SS 347H Concentric Reducer
- 347H SS Eccentric Reducer In Singapore
- ANSI B16.9 SS 347H Eccentric Reducer
- Stainless Steel 347H Eccentric Reducer In Philippines
- 1.4961 Eccentric Reducer
- UNS S34709 Butt weld Eccentric Reducer
- Stainless Steel 347H Short Stub End In Japan
- 347H SS Long Stub End In Kuwait
- ANSI B16.9 SS 347H Lap Joint Stub End
- 1.4961 Short Stub End
- UNS S34709 Butt weld Stub End
- 1.4961 End Pipe Cap
- ANSI B16.9 SS 347H Pipe End Cap
- 347H SS Pipe Cap In Indonesia
- UNS S34709 Butt weld Cap
- Stainless Steel 347H End Cap In Singapore
- Stainless Steel 347H Nipple In Malaysia
- ANSI B16.9 SS 347H Barrel Nipple
- 1.4961 Swage Nipple
- 347H SS Pipe Nipple In Kuwait
- UNS S34709 Butt weld Nipple
- 347H SS Piggable Bend In Mexico
- Stainless Steel 347H Long Radius Bend In Spain
- 1.4961 Hot Induction Bend
- UNS S34709 Butt weld Bend
- ANSI B16.9 SS 347H Bend
Equivalent Grades of SS 347H Buttweld Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS 347H | 1.4961 | S34709 | SUS 347H | – | X6CrNiNb18-12 |
View Thickness Table Of 347H SS Buttweld Fittings, We have Global sales network for Stainless Steel 347H LR Elbow, Wide Stockist Of Werkstoff No 1.4961 Seamless Fittings In India.
Check available Sizes of ASME SA403 WP347H Pipe Reducer, Ask For Ready Stock of UNS S34709 Stub End in Mumbai, India.
BAGODA
Quick Contact
ASME B16.9 SS 347H Short and Long Radius Elbows Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Center to Face (inches) |
Center to Center (inches) |
Back to face (inches) |
|
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
ASME B16.9 SS 347H Tee & Cap Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter |
Caps | Straight Crosses | Straight Tees | Stub Ends | |||
| (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
|
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1/2 | 21.3 | 0.840 | 1 | – | 1 | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | – | 1 1/8 | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
ASME B16.9 SS 347H Concentric & Eccentric Reducer Dimensions
| Nominal Pipe Size |
Outside Diameter | Reducers | ||
| Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) | Concentric & Eccentric Length (inches) |
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
347H Stainless Steel Buttweld Fittings Weights(Kg)
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.96 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Ready Stock Stainless Steel 347H Pipe Fittings
- ANSI B16.9 SS 347H Short Stub End
- 347H Stainless Steel Lap Joint Stub End In Indonesia
- Sch 80 Stainless Steel 347H Pipe Fittings
- UNS S347H09 Pipe Fittings
- SCH 60 347H Stainless Steel Pipe Nipples
- Stainless Steel 347H Two Halve Butt weld Fittings In Malaysia
- ASME B16.9 Schedule 10 347H Stainless Steel Elbow
- ASTM A403 Stainless Steel 347H Pipe Fittings
- 347H SS LR Elbow Stockist
- SS 347H Two Joint Pipe Fittings In Mexico
- SS 347H 1D Elbow/3D Elbow/5D Elbow In Philippines
- 347H Stainless Steel Buttweld Nipple In Japan
- SS 347H End Cap Distributor
- 347H Stainless Steel Pipe Elbow In Italy
- Stainless Steel 347H Long Stub End In Spain
- ASME B16.9 Stainless Steel 347H Buttweld Fittings
- Stainless Steel 347H Buttweld Fittings In Kuwait
- ASTM A403 WP347H Buttweld Fittings
- ASTM A403 WP347H SS Stub End
- Stainless Steel 347H SR Elbow In Singapore
- 15 NB SCH 10 SS 347H 90° Short Radius Elbow
- 347H SS Reducing Nipple In Indonesia
- 1.4961 Butt weld Fittings
- Stainless Steel 347H Pipe Bend In Malaysia
- 347H Stainless Steel Pipe Fittings Manufacturer
- Stainless Steel 347H Reducer In Mexico
- 347H Stainless Steel Elbow In Philippines
- SS 347H 180° LR Return Bends
- Stainless Steel SUS 347H Mandrel Pipe Bend
- Schedule 80 SS 347H Grade Long Stub End
- 1/2” - 16” ASTM A403 WP347H Butt weld Elbow
- 347H SS Long Radius Elbow
- 5" Nb Sch10s SS 347H 90° Short Radius Elbow
- 347H SS Barrel Nipple Supplier in Mumbai
- DIN 2605 Stainless Steel 347H Elbow Exporter
- 347H Stainless Steel Butt weld Tee In Japan
- SS 347H Eccentric Reducer In Italy
- Stainless Steel 347H Piggable Bends In Spain
- ANSI B16.9 Stainless Steel 347H Pipe Cap
- Stainless Steel 347H Welded Fittings
- ASTM A403 WP347H 45 Degree Elbow
- Stainless Steel 347H Butt Weld Pipe Fittings
- 347H Stainless Steel Equal Cross In Kuwait
- SS 347H Seamless Fittings In Singapore
- DIN 1.4961 Swage Nipple
- 347H SS Eccentric Reducer Manufacturer
- SS 347H Long Radius Bend Stockholder
- ASME SA403 WP347H Stainless Steel Lateral Tee
Stainless Steel 347H Butt weld Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 8xC – 1.10 | 9.0 -13.0 | 63.72 min |
347H Stainless Steel Pipe Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
