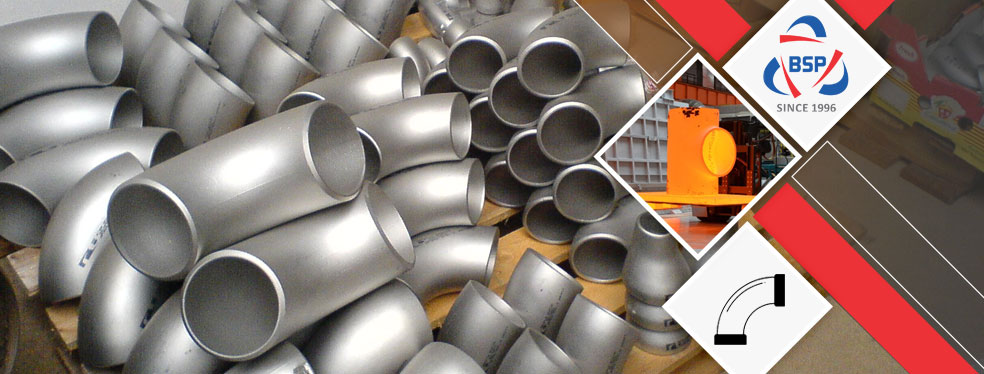

Stainless Steel 904L Pipe Fittings

ASTM A403 WP904L 904L Elbow, ANSI B16.9 SS 904L Short Radius Elbow Price in India.

Bagoda Steel is a well-known seller of SS 904L Pipe Fittings, which is a proven material for the manufacturing of boiler and stress vessels.It is particularly proof against many corrosive media, wherein it additionally has desirable electrical, thermal and magnetostrictive properties. Although maximum beneficial in lowering environments, Stainless Steel UNS N08904 Cross Pipe Fittings is able to be used additionally beneath oxidizing situations that motive the improvement of a passive oxide film. It is commercially natural and has desirable mechanical properties and exquisite corrosion resistance to alkalis i.e. Sodium hydroxide. It offers exquisite provider in flowing sea water even at excessive speed. However in stagnant or very low - speed sea water, intense nearby assault may also arise in these pipe fittings beneath fouling organisms or different deposits.

Industrial Product
Stainless Steel 904L Pipe Fittings

Stainless Steel 904L Stub End In Italy, DIN 1.4539 Reducer, SS 904L Two Joint Pipe Fittings Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

The terrific resistance of our pipe fittings to caustics is primarily based totally in this form of protection. In all environments, whilst temperatures above Six Hundred Degree F (315 Degree C) are involved, the preferred material is these pipe fittings which are to be had from us on the exceptional affordable rates. Stainless Steel WNR 1.4539 End Cap Pipe Fittings have considerably better creep and rupture strength. It is a twin licensed that mixes the properties of each forms, that's similarly meant for excessive temperature structural applications. It works harden whilst machining and hold larger strength. Years of Experimentation and Research, collectively with the improvement of latest generation has one of the maximum superior organizations on this field.

High velocity equipment of these pipe fittings are endorsed for abnormal cuts and tender end to shut tolerance, wherein use reducing equipment with advantageous rake angles. It gives trendy corrosion resistance to loads of aqueous media and, via way of means of distinctive feature of its content material of nickel, resists pressure corrosion cracking. At extended temperatures, Alloy 904L Dish Cap Pipe Fittings gives resistance to oxidation, carburization, and suffixation alongside rupture and creep strength. For applications requiring extra resistance to pressure rupture and creep, mainly at temperatures above 1500 Degree F (816 Degree C), these pipe fittings are used.

Material Specification Chart of SS 904L Pipe Fittings

Specifications ASTM A403/ ASME SA403
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP904L Pipe Fitting
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP 904L Buttweld Fitting
Connection Welding
Manufacturing Process Push, Press, Forge, Cast, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

SS 904L Pipe Fittings Manufacturing Standards

ASTM A403/A403M Wrought Austenitic SS Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
MSS SP-43 Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM A403 – ASME SA403 Standard Specification for Wrought Austenitic SS Piping Fitting
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.25 Buttwelding Ends
ASME B16.28 Wrought Steel SR Elbows and Buttwelding Returns
API 590-605
ASME B16.9 		‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of 904L SS Butt weld Pipe Fittings

SS 904L Butt weld Elbow
SS 904L Butt weld Elbow
  • ANSI B16.9 SS 904L 5D Elbow
  • 904L SS 3D Butt weld Elbow In Indonesia
  • UNS N08904 LR Elbow
  • 904L SS 45 Degree Elbow In Malaysia
  • 1.4539 Short Radius Elbow
  • SS 904L 180 Deg Elbow
  • Stainless Steel 904L 90 Degree Elbow
SS 904L Butt weld Tee
SS 904L Butt weld Tee
  • UNS N08904 Butt weld Tee
  • Stainless Steel 904L Tee In Mexico
  • 904L SS Equal Tee
  • SS 904L Reducing Tee In Philippines
  • ANSI B16.9 SS 904L Buttweld Tee
  • 1.4539 Buttweld Tees
  • SS 904L Unequal Tee
SS 904L Butt weld Cross
SS 904L Butt weld Cross
  • 1.4539 Buttweld Cross
  • Stainless Steel 904L Cross In Japan
  • ANSI B16.9 SS 904L Buttweld Cross
  • SS 904L Reducing Cross In Italy
  • 904L SS Equal Cross
  • UNS N08904 Butt weld Cross
  • SS 904L Unequal Cross
SS 904L Concentric Reducer
SS 904L Concentric Reducer
  • UNS N08904 Butt weld Concentric Reducer
  • ANSI B16.9 SS 904L Concentric Reducer
  • 1.4539 Concentric Reducer
  • 904L SS Concentric Reducer In Spain
  • Stainless Steel 904L Concentric Reducer In Kuwait
SS 904L Eccentric Reducer
SS 904L Eccentric Reducer
  • Stainless Steel 904L Eccentric Reducer In Singapore
  • ANSI B16.9 SS 904L Eccentric Reducer
  • 1.4539 Eccentric Reducer
  • UNS N08904 Butt weld Eccentric Reducer
  • 904L SS Eccentric Reducer In Indonesia
SS 904L Stub End
SS 904L Stub End
  • UNS N08904 Butt weld Stub End
  • ANSI B16.9 SS 904L Lap Joint Stub End
  • 904L SS Long Stub End In Kuwait
  • Stainless Steel 904L Short Stub End In Malaysia
  • 1.4539 Short Stub End
SS 904L Pipe End Cap
SS 904L Pipe End Cap
  • 904L SS Pipe Cap In Mexico
  • Stainless Steel 904L End Cap In Spain
  • 1.4539 End Pipe Cap
  • UNS N08904 Butt weld Cap
  • ANSI B16.9 SS 904L Pipe End Cap
SS 904L Pipe Nipple
SS 904L Pipe Nipple
  • ANSI B16.9 SS 904L Barrel Nipple
  • UNS N08904 Butt weld Nipple
  • Stainless Steel 904L Nipple In Philippines
  • 1.4539 Swage Nipple
  • 904L SS Pipe Nipple In Italy
SS 904L Pipe Bend
SS 904L Pipe Bend
  • 1.4539 Hot Induction Bend
  • 904L SS Piggable Bend In Philippines
  • ANSI B16.9 SS 904L Bend
  • Stainless Steel 904L Long Radius Bend In Japan
  • UNS N08904 Butt weld Bend

Equivalent Grades of SS 904L Buttweld Fittings

STANDARD WERKSTOFF NR. UNS JIS BS KS AFNOR EN
SS 904L 1.4539 N08904 SUS 904L 904S13 STS 317J5L Z2 NCDU 25-20 X1NiCrMoCu25-20-5
Pipe Fittings Dimensions

View Thickness Table Of 904L SS Buttweld Fittings, We have Global sales network for Stainless Steel 904L LR Elbow, Wide Stockist Of Werkstoff No 1.4539 Seamless Fittings In India.

Check available Sizes of ASME SA 403 WP904L Pipe Reducer, Ask For Ready Stock of UNS N08904 Stub End in Mumbai, India.

BAGODA

Quick Contact

ASME B16.9 SS 904L Short and Long Radius Elbows Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter 		45°Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Radius
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

ASME B16.9 SS 904L Tee & Cap Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter		 Caps Straight Crosses Straight Tees Stub Ends
(mm) (inches) Length
(inches)		 Center to End
(inches)		 Center to End
(inches)		 Lap Diameter
(inches)		 Long Length
(inches)		 Short Length
(inches)
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1/2 21.3 0.840 1 – 1 1 3/8 3 2
3/4 26.7 1.050 1 – 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

ASME B16.9 SS 904L Concentric & Eccentric Reducer Dimensions

Nominal
Pipe
Size		 Outside
Diameter 		Reducers
Reduced from
(inches)		 (mm) (inches) Reduced to
(inches) 		Concentric & Eccentric Length
(inches)
1 33.4 1.315 3/8 2
1/2 2
3/4 2
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 1/4 42.2 1.660 1/2 2
3/4 2
1 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 2 1/2
1 1/4 2 1/2
2 60.3 2.375 3/4 3
1 3
1 1/4 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/4 3 1/2
1 1/2 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
1 1/2 3 1/2
2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2 4
2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 4
2 1/2 4
3 4
3 1/2 4
5 141.3 5.563 2 5
2 1/2 5
3 5
3 1/2 5
4 5
6 168.3 6.625 2 1/2 5 1/2
3 5 1/2
3 1/2 5 1/2
4 5 1/2
5 5 1/2
8 219.1 8.625 3 6
3 1/2 6
4 6
5 6
6 6
10 273.1 10.750 4 7
5 7
6 7
8 7
12 323.9 12.750 5 8
6 8
8 8
10 8

904L Stainless Steel Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.56 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Stainless Steel 904L Pipe Fittings

  • 904L SS Eccentric Reducer Manufacturer
  • 904L SS Long Radius Elbow In Indonesia
  • 904L Stainless Steel Buttweld Nipple
  • ASTM A403 WP904L 45 Degree Elbow
  • ASTM A403 Stainless Steel 904L Pipe Fittings
  • Stainless Steel 904L Two Halve Butt weld Fittings In Malaysia
  • DIN 2605 Stainless Steel 904L Elbow Exporter
  • 904L Stainless Steel Lap Joint Stub End In Mexico
  • 904L SS LR Elbow Stockist
  • ASME SA403 WP904L Stainless Steel Lateral Tee
  • ASME B16.9 Schedule 10 904L Stainless Steel Elbow
  • SS 904L Seamless Fittings In Philippines
  • Schedule 80 SS 904L Grade Long Stub End
  • 904L Stainless Steel Pipe Elbow In Japan
  • Stainless Steel 904L Long Stub End In Italy
  • 1.4539 Butt weld Fittings
  • Stainless Steel 904L Pipe Bend In Spain
  • Stainless Steel 904L SR Elbow
  • SS 904L Long Radius Bend Stockholder
  • Stainless Steel 904L Reducer In Kuwait
  • ASTM A403 WP904L SS Stub End
  • Stainless Steel 904L Buttweld Fittings
  • 904L Stainless Steel Elbow In Singapore
  • 5" Nb Sch10s SS 904L 90° Short Radius Elbow
  • ASME B16.9 Stainless Steel 904L Buttweld Fittings
  • SCH 60 904L Stainless Steel Pipe Nipples
  • DIN 1.4539 Swage Nipple
  • Stainless Steel 904L Welded Fittings In Indonesia
  • 904L SS Barrel Nipple Supplier in Mumbai
  • 904L Stainless Steel Pipe Fittings Manufacturer
  • Stainless Steel 904L Butt Weld Pipe Fittings In Malaysia
  • Stainless Steel 904L Piggable Bends In Mexico
  • SS 904L End Cap Distributor
  • ASTM A403 WP904L Buttweld Fittings
  • 1/2” - 16” ASTM A403 WP904L Butt weld Elbow
  • 904L SS Reducing Nipple
  • ANSI B16.9 SS 904L Short Stub End
  • Stainless Steel SUS 904L Mandrel Pipe Bend In Philippines
  • SS 904L 1D Elbow/3D Elbow/5D Elbow In Japan
  • SS 904L Eccentric Reducer In Italy
  • Sch 80 Stainless Steel 904L Pipe Fittings
  • UNS N08904 Pipe Fittings
  • ANSI B16.9 Stainless Steel 904L Pipe Cap
  • 904L Stainless Steel Butt weld Tee In Spain
  • 15 NB SCH 10 SS 904L 90° Short Radius Elbow
  • 904L Stainless Steel Equal Cross In Kuwait
  • SS 904L Two Joint Pipe Fittings In Singapore
  • SS 904L 180° LR Return Bends

Stainless Steel 904L Butt weld Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni Cu
SS 904L 0.020 max 2.00 max 1.00 max 0.040 max 0.030 max 19.00 – 23.00 4.00 – 5.00 max 23.00 – 28.00 1.00 – 2.00

904L Stainless Steel Pipe Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.95 g/cm3 1350 °C (2460 °F) Psi – 71000 , MPa – 490 Psi – 32000 , MPa – 220 35 %

Export Destinations For 904L SS Butt weld Pipe Fittings

industry
