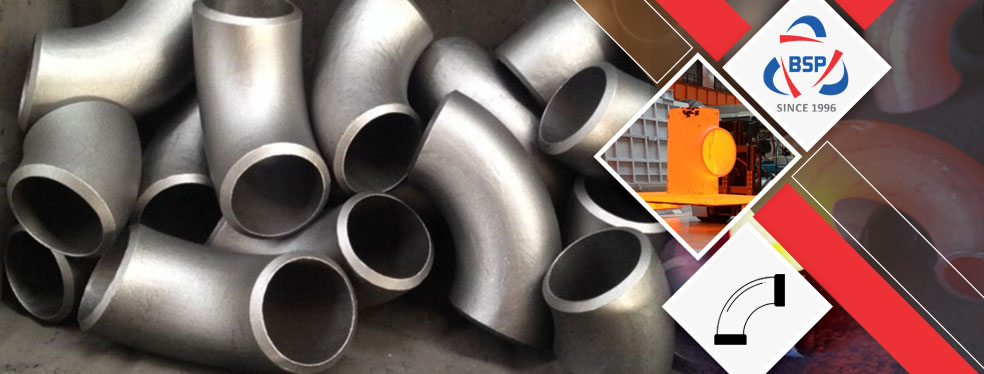

Stainless Steel 321 Pipe Fittings

ASTM A403 WP321 90 Deg. Elbow, ANSI B16.9 SS 321 Short Radius Elbow Price in India.

Bagoda Steel is a well-known exporter of SS 321 Pipe Fittings, which have excessive resistance to sea water environments. Oxidation of the surface of these fittings is frequently required to save you seizing on drawing. Annealing of these fittings may be finished below excessive vacuum, below argon after cautious purging of the recipient or in air. It is frequently utilized in Aerospace, Chemical Processing, Marine, Medical, etc. You can get inventory alternatives and mill deliveries of these Alloy 321 Elbow Pipe Fittings in company of shortest production time, we guarantee you of as reaction in very quickly. It is barely more potent and similarly as corrosion resistant in an extensive type of environments. It is frequently utilized in Chemical Processing & Chlorate Manufacturing, Desalination, Architecture, and so on.

Industrial Product
Stainless Steel 321 Pipe Fittings

UNS S32100 Pipe Fittings, 321 Stainless Steel LR Elbow In Indonesia, DIN 1.4541 Reducer Stockist, SS 321 Equal Tee Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

It is wanted in applications wherein excessive strength is required: Airframe components, Cryogenic vessels, Heat exchangers, CPI equipment, Condenser tubing, Surgical hardware, Pickling baskets, and so on. It well-known shows the BCC allotropic form, in which factors used on this alloy are one or extra of the subsequent apart from titanium in a number of amounts. Stainless Steel UNS S32100 90-Degree Elbow Pipe Fittings can without difficulty be cold rolled, but cold drawing may be very hard due to common seizing at the die. It gives a first rate mixture of excessive strength and toughness, which similarly has accurate welding and fabrication characteristics.

It is rather proof against many chemical environments inclusive of oxidizing media, alkaline media, natural compounds and acids, aqueous salt solutions, and moist or dry warm gases. It offers first rate corrosion resistance, notwithstanding the reactivity of the metal, in which the oxide layer bureaucracy spontaneously and swiftly on publicity to the atmosphere. The physical properties of these Stainless Steel WNR 1.4541 45-Degree Elbow Pipe Fittings are summarized, from which it could be visible that there's little variant from one alloy to another. They are thermally solid and own moderate strength even if the temperature is excessive. In seawater machine design, they're utilized in tubular warmness exchangers and condensers, piping and excessive stress systems.

Material Specification Chart of SS 321 Pipe Fittings

Specifications ASTM A403/ ASME SA403
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP321 Pipe Fitting
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP 321 Buttweld Fitting
Connection Welding
Manufacturing Process Push, Press, Forge, Cast, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

SS 321 Pipe Fittings Manufacturing Standards

ASTM A403/A403M Wrought Austenitic SS Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
MSS SP-43 Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM A403 – ASME SA403 Standard Specification for Wrought Austenitic SS Piping Fitting
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.25 Buttwelding Ends
ASME B16.28 Wrought Steel SR Elbows and Buttwelding Returns
API 590-605
ASME B16.9 		‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of 321 SS Butt weld Pipe Fittings

SS 321 Butt weld Elbow
SS 321 Butt weld Elbow
  • 321 SS 3D Butt weld Elbow In Indonesia
  • 321 SS 45 Degree Elbow
  • 1.4541 Short Radius Elbow
  • Stainless Steel 321 90 Degree Elbow In Malaysia
  • SS 321 180 Deg Elbow
  • ANSI B16.9 SS 321 5D Elbow
  • UNS S32100 LR Elbow
SS 321 Butt weld Tee
SS 321 Butt weld Tee
  • SS 321 Unequal Tee In Mexico
  • 1.4541 Buttweld Tees
  • ANSI B16.9 SS 321 Buttweld Tee
  • SS 321 Reducing Tee In Philippines
  • Stainless Steel 321 Tee
  • UNS S32100 Butt weld Tee
  • 321 SS Equal Tee
SS 321 Butt weld Cross
SS 321 Butt weld Cross
  • 321 SS Equal Cross In Philippines
  • Stainless Steel 321 Cross In Japan
  • 1.4541 Buttweld Cross
  • ANSI B16.9 SS 321 Buttweld Cross
  • UNS S32100 Butt weld Cross
  • SS 321 Reducing Cross
  • SS 321 Unequal Cross
SS 321 Concentric Reducer
SS 321 Concentric Reducer
  • 321 SS Concentric Reducer In Spain
  • UNS S32100 Butt weld Concentric Reducer
  • 1.4541 Concentric Reducer
  • ANSI B16.9 SS 321 Concentric Reducer
  • Stainless Steel 321 Concentric Reducer In Italy
SS 321 Eccentric Reducer
SS 321 Eccentric Reducer
  • 1.4541 Eccentric Reducer
  • ANSI B16.9 SS 321 Eccentric Reducer
  • UNS S32100 Butt weld Eccentric Reducer
  • 321 SS Eccentric Reducer In Kuwait
  • Stainless Steel 321 Eccentric Reducer In Singapore
SS 321 Stub End
SS 321 Stub End
  • 1.4541 Short Stub End
  • 321 SS Long Stub End In Indonesia
  • ANSI B16.9 SS 321 Lap Joint Stub End
  • UNS S32100 Butt weld Stub End
  • Stainless Steel 321 Short Stub End In Singapore
SS 321 Pipe End Cap
SS 321 Pipe End Cap
  • ANSI B16.9 SS 321 Pipe End Cap
  • Stainless Steel 321 End Cap In Kuwait
  • UNS S32100 Butt weld Cap
  • 1.4541 End Pipe Cap
  • 321 SS Pipe Cap In Mexico
SS 321 Pipe Nipple
SS 321 Pipe Nipple
  • Stainless Steel 321 Nipple In Philippines
  • ANSI B16.9 SS 321 Barrel Nipple
  • 321 SS Pipe Nipple In Italy
  • UNS S32100 Butt weld Nipple
  • 1.4541 Swage Nipple
SS 321 Pipe Bend
SS 321 Pipe Bend
  • UNS S32100 Butt weld Bend
  • Stainless Steel 321 Long Radius Bend In Japan
  • 1.4541 Hot Induction Bend
  • 321 SS Piggable Bend In Indonesia
  • ANSI B16.9 SS 321 Bend

Equivalent Grades of SS 321 Buttweld Fittings

STANDARDWERKSTOFF NR.UNSJISEN
SS 3211.4541S32100SUS 321X6CrNiTi18-10
Pipe Fittings Dimensions

View Thickness Table Of 321 SS Buttweld Fittings, We have Global sales network for Stainless Steel 321 LR Elbow, Wide Stockist Of Werkstoff No 1.4541 Seamless Fittings In India.

Check available Sizes of ASME SA 403 WP321 Pipe Reducer, Ask For Ready Stock of UNS S32100 Stub End in Mumbai, India.

BAGODA

Quick Contact

ASME B16.9 SS 321 Short and Long Radius Elbows Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter 		45°Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Radius
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

ASME B16.9 SS 321 Tee & Cap Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter		 Caps Straight Crosses Straight Tees Stub Ends
(mm) (inches) Length
(inches)		 Center to End
(inches)		 Center to End
(inches)		 Lap Diameter
(inches)		 Long Length
(inches)		 Short Length
(inches)
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1/2 21.3 0.840 1 – 1 1 3/8 3 2
3/4 26.7 1.050 1 – 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

ASME B16.9 SS 321 Concentric & Eccentric Reducer Dimensions

Nominal
Pipe
Size		 Outside
Diameter 		Reducers
Reduced from
(inches)		 (mm) (inches) Reduced to
(inches) 		Concentric & Eccentric Length
(inches)
1 33.4 1.315 3/8 2
1/2 2
3/4 2
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 1/4 42.2 1.660 1/2 2
3/4 2
1 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 2 1/2
1 1/4 2 1/2
2 60.3 2.375 3/4 3
1 3
1 1/4 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/4 3 1/2
1 1/2 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
1 1/2 3 1/2
2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2 4
2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 4
2 1/2 4
3 4
3 1/2 4
5 141.3 5.563 2 5
2 1/2 5
3 5
3 1/2 5
4 5
6 168.3 6.625 2 1/2 5 1/2
3 5 1/2
3 1/2 5 1/2
4 5 1/2
5 5 1/2
8 219.1 8.625 3 6
3 1/2 6
4 6
5 6
6 6
10 273.1 10.750 4 7
5 7
6 7
8 7
12 323.9 12.750 5 8
6 8
8 8
10 8

321 Stainless Steel Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.96 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Stainless Steel 321 Pipe Fittings

  • Stainless Steel 321 Long Stub End In Indonesia
  • 5" Nb Sch10s SS 321 90° Short Radius Elbow
  • 1.4541 Butt weld Fittings
  • 321 SS Eccentric Reducer Manufacturer
  • ASTM A403 WP321 45 Degree Elbow
  • ASME B16.9 Schedule 10 321 Stainless Steel Elbow
  • 321 Stainless Steel Pipe Fittings Manufacturer
  • ASME B16.9 Stainless Steel 321 Buttweld Fittings
  • 1/2” - 16” ASTM A403 WP321 Butt weld Elbow
  • ANSI B16.9 Stainless Steel 321 Pipe Cap
  • Stainless Steel 321 SR Elbow In Malaysia
  • Stainless Steel 321 Two Halve Butt weld Fittings
  • 321 SS Barrel Nipple Supplier in Mumbai
  • Sch 80 Stainless Steel 321 Pipe Fittings
  • 321 Stainless Steel Pipe Elbow In Mexico
  • Stainless Steel 321 Welded Fittings In Japan
  • SS 321 Eccentric Reducer In Philippines
  • 321 Stainless Steel Elbow
  • DIN 2605 Stainless Steel 321 Elbow Exporter
  • SS 321 180° LR Return Bends
  • Stainless Steel 321 Reducer In Japan
  • SS 321 Seamless Fittings
  • SS 321 1D Elbow/3D Elbow/5D Elbow
  • Stainless Steel 321 Buttweld Fittings In Italy
  • ANSI B16.9 SS 321 Short Stub End
  • 321 Stainless Steel Butt weld Tee In Italy
  • Stainless Steel 321 Butt Weld Pipe Fittings In Indonesia
  • 15 NB SCH 10 SS 321 90° Short Radius Elbow
  • SS 321 Long Radius Bend Stockholder
  • Schedule 80 SS 321 Grade Long Stub End
  • UNS S32100 Pipe Fittings
  • 321 Stainless Steel Lap Joint Stub End
  • Stainless Steel 321 Piggable Bends In Kuwait
  • SS 321 Two Joint Pipe Fittings In Philippines
  • 321 Stainless Steel Buttweld Nipple
  • 321 SS Long Radius Elbow
  • 321 SS Reducing Nipple
  • DIN 1.4541 Swage Nipple
  • ASTM A403 Stainless Steel 321 Pipe Fittings
  • Stainless Steel SUS 321 Mandrel Pipe Bend
  • ASTM A403 WP321 Buttweld Fittings
  • ASTM A403 WP321 SS Stub End
  • ASME SA403 WP321 Stainless Steel Lateral Tee
  • 321 Stainless Steel Equal Cross
  • Stainless Steel 321 Pipe Bend In Malaysia
  • SS 321 End Cap Distributor
  • 321 SS LR Elbow Stockist
  • SCH 60 321 Stainless Steel Pipe Nipples

Stainless Steel 321 Butt weld Fittings Chemical Composition

GradeCMnSiPSCrMoNiFe
SS 3210.08 max2.0 max1.0 max0.045 max0.030 max17.00 – 19.000.10 max9.00 – 12.005(C+N) – 0.70 max

321 Stainless Steel Pipe Fittings Mechanical Properties

DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
8.0 g/cm31457 °C (2650 °F)Psi – 75000 , MPa – 515Psi – 30000 , MPa – 20535 %

Export Destinations For 321 SS Butt weld Pipe Fittings

industry
