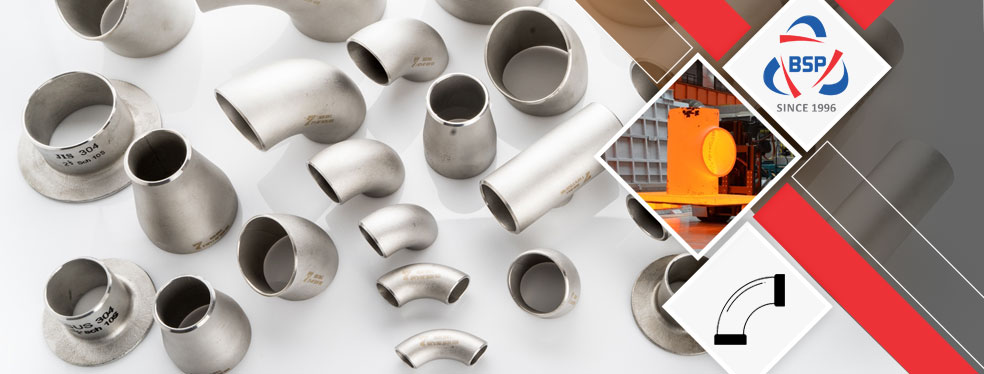

Stainless Steel 321H Pipe Fittings

ANSI B16.9 SS 321H Short Radius Elbow, ASTM A403 WP321H 90 Deg. Elbow Price in India.

Bagoda Steel is a well-known supplier of SS 321H Pipe Fittings, which is to be had in special form length and thickness consistent with the wishes of our customer.The creation of electrical furnace melting in foundries brought about decorate hobby in these fittings, especially the alloy containing Cr. Owing to their inflexible construction, specific dimensions, extremely good performance, excessive conductivity and corrosion resistance, it finds applications in various industries. With the boom in publicity time to seawater inoculated with these fittings, the impedance and section perspective height decreased. Alloy 321H Elbow Pipe Fittings has extremely good mechanical & magnetic properties, excessive thermal & electric conductivity, and anti-corrosive. It is simple to bend and has very excessive corrosion resistance; however there may be challenge approximately its low corrosion-fatigue strength.

Industrial Product
Stainless Steel 321H Pipe Fittings

SS 321H Two Joint Pipe Fittings In Indonesia, DIN 1.4878 Reducer, 321H Stainless Steel LR Elbow, UNS S32109 Pipe Fittings Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

The addition of iron in these fittings facilitates grain refining and will increase the erosion resistance with flowing seawater. It is likewise utilized in Plumbing, Machinery & equipment, Heat exchanger tubes, Steam tubes, Power plants, Ship building & deliver repairs, Condensers, Distillers, Evaporators, etc. Stainless Steel UNS S32109 Short Radius Elbow Pipe Fittings have applications within the dealing with of warm brines, and are often hired in condenser and warmth exchangers for tubes. It isn't always meant for similarly warmth remedy and make certain that products furnished with the aid of using us are at affordable cost.

Especially ideal for excessive put on conditions, it is able to nevertheless be reduced and welded, making it an extremely good desire for excessive-performance applications. In company of an excellent hardness, it gives a completely unique mixture of weldability, hardness and toughness. The shipping situation is quenched, wherein they may be brought by means of sheared or thermally reduce edges and untrimmed edges after agreement. It is an abrasion resistant plate with an extremely good hardness, predicted for applications wherein requests are compelled on abrasion resistant in blend with awesome cold twisting properties. Stainless Steel WNR 1.4940 Long Radius Elbow Pipe Fittings represents a giant step within the improvement of excessive mill rolled quenched and tempered put on resistant metal plate.

Material Specification Chart of SS 321H Pipe Fittings

Specifications ASTM A403/ ASME SA403
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP321H Pipe Fitting
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP 321H Buttweld Fitting
Connection Welding
Manufacturing Process Push, Press, Forge, Cast, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

SS 321H Pipe Fittings Manufacturing Standards

ASTM A403/A403M Wrought Austenitic SS Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
MSS SP-43 Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM A403 – ASME SA403 Standard Specification for Wrought Austenitic SS Piping Fitting
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.25 Buttwelding Ends
ASME B16.28 Wrought Steel SR Elbows and Buttwelding Returns
API 590-605
ASME B16.9 		‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of 321H SS Butt weld Pipe Fittings

SS 321H Butt weld Elbow
SS 321H Butt weld Elbow
  • SS 321H 180 Deg Elbow In Indonesia
  • 1.4878 Short Radius Elbow
  • ANSI B16.9 SS 321H 5D Elbow
  • UNS S32109 LR Elbow
  • 321H SS 45 Degree Elbow
  • 321H SS 3D Butt weld Elbow
  • Stainless Steel 321H 90 Degree Elbow In Malaysia
SS 321H Butt weld Tee
SS 321H Butt weld Tee
  • 321H SS Equal Tee
  • ANSI B16.9 SS 321H Buttweld Tee
  • 1.4878 Buttweld Tees
  • Stainless Steel 321H Tee In Mexico
  • UNS S32109 Butt weld Tee
  • SS 321H Unequal Tee In Philippines
  • SS 321H Reducing Tee
SS 321H Butt weld Cross
SS 321H Butt weld Cross
  • 321H SS Equal Cross
  • SS 321H Unequal Cross In Kuwait
  • Stainless Steel 321H Cross In Japan
  • SS 321H Reducing Cross
  • ANSI B16.9 SS 321H Buttweld Cross
  • UNS S32109 Butt weld Cross
  • 1.4878 Buttweld Cross
SS 321H Concentric Reducer
SS 321H Concentric Reducer
  • 321H SS Concentric Reducer In Indonesia
  • Stainless Steel 321H Concentric Reducer In Singapore
  • 1.4878 Concentric Reducer
  • ANSI B16.9 SS 321H Concentric Reducer
  • UNS S32109 Butt weld Concentric Reducer
SS 321H Eccentric Reducer
SS 321H Eccentric Reducer
  • UNS S32109 Butt weld Eccentric Reducer
  • ANSI B16.9 SS 321H Eccentric Reducer
  • 1.4878 Eccentric Reducer
  • Stainless Steel 321H Eccentric Reducer In Singapore
  • 321H SS Eccentric Reducer In Malaysia
SS 321H Stub End
SS 321H Stub End
  • ANSI B16.9 SS 321H Lap Joint Stub End
  • UNS S32109 Butt weld Stub End
  • 1.4878 Short Stub End
  • 321H SS Long Stub End In Malaysia
  • Stainless Steel 321H Short Stub End In Japan
SS 321H Pipe End Cap
SS 321H Pipe End Cap
  • 1.4878 End Pipe Cap
  • Stainless Steel 321H End Cap In Japan
  • 321H SS Pipe Cap In Spain
  • UNS S32109 Butt weld Cap
  • ANSI B16.9 SS 321H Pipe End Cap
SS 321H Pipe Nipple
SS 321H Pipe Nipple
  • UNS S32109 Butt weld Nipple
  • ANSI B16.9 SS 321H Barrel Nipple
  • Stainless Steel 321H Nipple In Mexico
  • 321H SS Pipe Nipple In Kuwait
  • 1.4878 Swage Nipple
SS 321H Pipe Bend
SS 321H Pipe Bend
  • Stainless Steel 321H Long Radius Bend In Italy
  • UNS S32109 Butt weld Bend
  • 1.4878 Hot Induction Bend
  • 321H SS Piggable Bend In Malaysia
  • ANSI B16.9 SS 321H Bend

Equivalent Grades of SS 321H Buttweld Fittings

STANDARD WERKSTOFF NR. UNS JIS EN
SS 321H 1.4878 S32109 SUS 321H X12CrNiTi18-9
Pipe Fittings Dimensions

View Thickness Table Of 321H SS Buttweld Fittings, We have Global sales network for Stainless Steel 321H LR Elbow, Wide Stockist Of Werkstoff No 1.4878 Seamless Fittings In India.

Check available Sizes of ASME SA 403 WP321H Pipe Reducer, Ask For Ready Stock of UNS S32109 Stub End in Mumbai, India.

BAGODA

Quick Contact

ASME B16.9 SS 321H Short and Long Radius Elbows Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter 		45°Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Radius
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

ASME B16.9 SS 321H Tee & Cap Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter		 Caps Straight Crosses Straight Tees Stub Ends
(mm) (inches) Length
(inches)		 Center to End
(inches)		 Center to End
(inches)		 Lap Diameter
(inches)		 Long Length
(inches)		 Short Length
(inches)
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1/2 21.3 0.840 1 – 1 1 3/8 3 2
3/4 26.7 1.050 1 – 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

ASME B16.9 SS 321H Concentric & Eccentric Reducer Dimensions

Nominal
Pipe
Size		 Outside
Diameter 		Reducers
Reduced from
(inches)		 (mm) (inches) Reduced to
(inches) 		Concentric & Eccentric Length
(inches)
1 33.4 1.315 3/8 2
1/2 2
3/4 2
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 1/4 42.2 1.660 1/2 2
3/4 2
1 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 2 1/2
1 1/4 2 1/2
2 60.3 2.375 3/4 3
1 3
1 1/4 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/4 3 1/2
1 1/2 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
1 1/2 3 1/2
2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2 4
2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 4
2 1/2 4
3 4
3 1/2 4
5 141.3 5.563 2 5
2 1/2 5
3 5
3 1/2 5
4 5
6 168.3 6.625 2 1/2 5 1/2
3 5 1/2
3 1/2 5 1/2
4 5 1/2
5 5 1/2
8 219.1 8.625 3 6
3 1/2 6
4 6
5 6
6 6
10 273.1 10.750 4 7
5 7
6 7
8 7
12 323.9 12.750 5 8
6 8
8 8
10 8

321H Stainless Steel Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.96 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Stainless Steel 321H Pipe Fittings

  • Stainless Steel SUS 321H Mandrel Pipe Bend
  • 321H Stainless Steel Pipe Elbow
  • ASTM A403 Stainless Steel 321H Pipe Fittings
  • ASME B16.9 Stainless Steel 321H Buttweld Fittings
  • Stainless Steel 321H Long Stub End In Indonesia
  • SS 321H Seamless Fittings In Malaysia
  • ANSI B16.9 Stainless Steel 321H Pipe Cap
  • SS 321H Two Joint Pipe Fittings
  • ASTM A403 WP321H SS Stub End
  • 321H Stainless Steel Pipe Fittings Manufacturer
  • 1/2” - 16” ASTM A403 WP321H Butt weld Elbow
  • SS 321H 180° LR Return Bends
  • Stainless Steel 321H Two Halve Butt weld Fittings
  • 321H Stainless Steel Lap Joint Stub End In Mexico
  • 321H SS Eccentric Reducer Manufacturer
  • Stainless Steel 321H Piggable Bends In Philippines
  • ASME B16.9 Schedule 10 321H Stainless Steel Elbow
  • Stainless Steel 321H Welded Fittings In Japan
  • 15 NB SCH 10 SS 321H 90° Short Radius Elbow
  • 321H Stainless Steel Buttweld Nipple
  • 321H SS Barrel Nipple Supplier in Mumbai
  • SS 321H End Cap Distributor
  • UNS S32109 Pipe Fittings
  • Stainless Steel 321H SR Elbow In Italy
  • SS 321H Long Radius Bend Stockholder
  • Sch 80 Stainless Steel 321H Pipe Fittings
  • 321H Stainless Steel Elbow In Spain
  • Stainless Steel 321H Reducer
  • 5" Nb Sch10s SS 321H 90° Short Radius Elbow
  • 1.4878 Butt weld Fittings
  • ASTM A403 WP321H Buttweld Fittings
  • ASME SA403 WP321H Stainless Steel Lateral Tee
  • 321H Stainless Steel Equal Cross In Kuwait
  • ANSI B16.9 SS 321H Short Stub End
  • SS 321H Eccentric Reducer In Indonesia
  • Schedule 80 SS 321H Grade Long Stub End
  • 321H Stainless Steel Butt weld Tee In Singapore
  • Stainless Steel 321H Butt Weld Pipe Fittings
  • 321H SS LR Elbow Stockist
  • ASTM A403 WP321H 45 Degree Elbow
  • 321H SS Reducing Nipple In Malaysia
  • Stainless Steel 321H Pipe Bend In Mexico
  • 321H SS Long Radius Elbow
  • SS 321H 1D Elbow/3D Elbow/5D Elbow In Spain
  • DIN 1.4878 Swage Nipple
  • DIN 2605 Stainless Steel 321H Elbow Exporter
  • Stainless Steel 321H Buttweld Fittings In Philippines
  • SCH 60 321H Stainless Steel Pipe Nipples

Stainless Steel 321H Butt weld Fittings Chemical Composition

Grade C Mn Si P S Cr N Ni Ti
SS 321H 0.04 – 0.10 2.0 max 1.0 max 0.045 max 0.030 max 17.00 - 19.00 0.10 max 9.00 – 12.00 4(C+N) – 0.70 max

321H Stainless Steel Pipe Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1457 °C (2650 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Export Destinations For 321H SS Butt weld Pipe Fittings

industry
