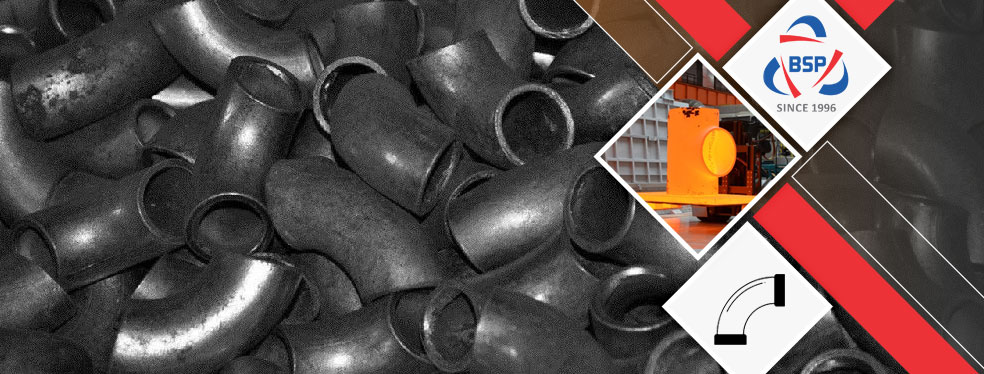

Stainless Steel 316Ti Pipe Fittings

ASTM A403 WP316Ti 90 Deg. Elbow, ASTM A403 SS 316Ti Buttweld Pipe Fittings Price in India.

Bagoda Steel is a known seller of SS 316Ti Pipe Fittings, which has very excessive erosion and corrosion resistance.It is these days in large part applied within the orthodontic subject and is followed for orthodontics uses. When loaded within the rolling route in our fittings twinning and de-twinning have been lively, respectively, in the course of compression and anxiety following compression, while twinning and de-twinning have been lively in the course of anxiety and compression following anxiety. Alloy 316Ti 10D Bend Pipe Fittings has brilliant corrosion resistance within the chemical and marine industries; in airframe production in which most ease of formability is desired. Strength of our fittings at room temperature is normalized with the aid of using density, compared via different structural metals.

Industrial Product
Stainless Steel 316Ti Pipe Fittings

UNS S31635 Pipe Fittings, SS 316Ti Pipe Cap Stockist, 1.4571 Reducer, SS 316Ti Two Joint Pipe Fittings, Stainless Steel 316Ti Stub End In Indonesia, SS 316Ti Cross In Mexico, 316Ti Stainless Steel LR Elbow, SS 316Ti Equal Tee Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

We offer these fittings in unique form of thickness, specification, grades and dimensions, in which packing listing along with range of boxes, internet weight and gross weight, Marks and Numbers, Fumigation Certificates. Other useful properties of consist of most suitable ductility, cold formability, useful strength, effect sturdiness and brilliant weldability. The oxide scale of these Stainless Steel UNS S31635 U-Bend Pipe Fittings, in turn, provides a superb defensive layer, stopping bulk from oxidation. The oxidized layer presents a higher safety than using argon or excessive vacuum. It may be used at better temperatures, in which it similarly has appropriate cold rolling properties.

Crevice corrosion of these fittings can arise in warm halide or sulfate solutions, which may be an attention in marine applications. They are used for marine applications because of their resistance to seawater corrosion, appropriate fabricability, and their effectiveness in reducing macrofouling levels. We focus on production and exporting our customers a robustly designed variety of these fittings, in which excessive conductivity copper may be very readily worked warm or cold. At par with the prerequisite enterprise standards, Stainless Steel WNR 1.4571 180-Degree Bend Pipe Fittings could be bought with the aid of using customers in standard & custom designed specs and at value powerful rates. They are annealed at temperatures among 649 Degree C and 816 Degree C (1200 Degree F and 1500 Degree F).

Material Specification Chart of SS 316Ti Pipe Fittings

Specifications ASTM A403/ ASME SA403
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP316Ti Pipe Fitting
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP 316Ti Buttweld Fitting
Connection Welding
Manufacturing Process Push, Press, Forge, Cast, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

SS 316Ti Pipe Fittings Manufacturing Standards

ASTM A403/A403M Wrought Austenitic SS Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
MSS SP-43 Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM A403 – ASME SA403 Standard Specification for Wrought Austenitic SS Piping Fitting
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.25 Buttwelding Ends
ASME B16.28 Wrought Steel SR Elbows and Buttwelding Returns
API 590-605
ASME B16.9 		‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of 316Ti SS Butt weld Pipe Fittings

SS 316Ti Butt weld Elbow
SS 316Ti Butt weld Elbow
  • 316Ti SS 45 Degree Elbow In Indonesia
  • ANSI B16.9 SS 316Ti 5D Elbow
  • UNS S31635 LR Elbow
  • SS 316Ti 180 Deg Elbow
  • 316Ti SS 3D Butt weld Elbow
  • 1.4571 Short Radius Elbow
  • Stainless Steel 316Ti 90 Degree Elbow In Malaysia
SS 316Ti Butt weld Tee
SS 316Ti Butt weld Tee
  • 1.4571 Buttweld Tees
  • UNS S31635 Butt weld Tee
  • 316Ti SS Equal Tee In Mexico
  • ANSI B16.9 SS 316Ti Buttweld Tee
  • SS 316Ti Reducing Tee In Philippines
  • Stainless Steel 316Ti Tee
  • SS 316Ti Unequal Tee
SS 316Ti Butt weld Cross
SS 316Ti Butt weld Cross
  • SS 316Ti Unequal Cross In Japan
  • UNS S31635 Butt weld Cross
  • Stainless Steel 316Ti Cross In Italy
  • 316Ti SS Equal Cross
  • 1.4571 Buttweld Cross
  • SS 316Ti Reducing Cross
  • ANSI B16.9 SS 316Ti Buttweld Cross
SS 316Ti Concentric Reducer
SS 316Ti Concentric Reducer
  • Stainless Steel 316Ti Concentric Reducer In Spain
  • ANSI B16.9 SS 316Ti Concentric Reducer
  • 316Ti SS Concentric Reducer In Kuwait
  • UNS S31635 Butt weld Concentric Reducer
  • 1.4571 Concentric Reducer
SS 316Ti Eccentric Reducer
SS 316Ti Eccentric Reducer
  • Stainless Steel 316Ti Eccentric Reducer In Singapore
  • UNS S31635 Butt weld Eccentric Reducer
  • ANSI B16.9 SS 316Ti Eccentric Reducer
  • 1.4571 Eccentric Reducer
  • 316Ti SS Eccentric Reducer In Indonesia
SS 316Ti Stub End
SS 316Ti Stub End
  • ANSI B16.9 SS 316Ti Lap Joint Stub End
  • 316Ti SS Long Stub End
  • Stainless Steel 316Ti Short Stub End
  • UNS S31635 Butt weld Stub End
  • 1.4571 Short Stub End
SS 316Ti Pipe End Cap
SS 316Ti Pipe End Cap
  • 316Ti SS Pipe Cap In Kuwait
  • UNS S31635 Butt weld Cap
  • Stainless Steel 316Ti End Cap In Malaysia
  • ANSI B16.9 SS 316Ti Pipe End Cap
  • 1.4571 End Pipe Cap
SS 316Ti Pipe Nipple
SS 316Ti Pipe Nipple
  • 316Ti SS Pipe Nipple In Mexico
  • ANSI B16.9 SS 316Ti Barrel Nipple
  • Stainless Steel 316Ti Nipple In Spain
  • UNS S31635 Butt weld Nipple
  • 1.4571 Swage Nipple
SS 316Ti Pipe Bend
SS 316Ti Pipe Bend
  • 1.4571 Hot Induction Bend
  • Stainless Steel 316Ti Long Radius Bend In Italy
  • ANSI B16.9 SS 316Ti Bend
  • 316Ti SS Piggable Bend In Philippines
  • UNS S31635 Butt weld Bend

Equivalent Grades of SS 316Ti Buttweld Fittings

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316Ti 1.4571 S31635 SUS 316Ti 320S31 08Ch17N13M2T Z6CNDT17‐123 X6CrNiMoTi17-12-2
Pipe Fittings Dimensions

View Thickness Table Of 316Ti SS Buttweld Fittings, We have Global sales network for Stainless Steel 316Ti LR Elbow, Wide Stockist Of Werkstoff No 1.4571 Seamless Fittings In India.

Check available Sizes of ASME SA 403 WP316Ti Pipe Reducer, Ask For Ready Stock of UNS S31635 Stub End in Mumbai, India.

BAGODA

Quick Contact

ASME B16.9 SS 316Ti Short and Long Radius Elbows Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter 		45°Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Radius
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

ASME B16.9 SS 316Ti Tee & Cap Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter		 Caps Straight Crosses Straight Tees Stub Ends
(mm) (inches) Length
(inches)		 Center to End
(inches)		 Center to End
(inches)		 Lap Diameter
(inches)		 Long Length
(inches)		 Short Length
(inches)
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1/2 21.3 0.840 1 – 1 1 3/8 3 2
3/4 26.7 1.050 1 – 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

ASME B16.9 SS 316Ti Concentric & Eccentric Reducer Dimensions

Nominal
Pipe
Size		 Outside
Diameter 		Reducers
Reduced from
(inches)		 (mm) (inches) Reduced to
(inches) 		Concentric & Eccentric Length
(inches)
1 33.4 1.315 3/8 2
1/2 2
3/4 2
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 1/4 42.2 1.660 1/2 2
3/4 2
1 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 2 1/2
1 1/4 2 1/2
2 60.3 2.375 3/4 3
1 3
1 1/4 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/4 3 1/2
1 1/2 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
1 1/2 3 1/2
2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2 4
2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 4
2 1/2 4
3 4
3 1/2 4
5 141.3 5.563 2 5
2 1/2 5
3 5
3 1/2 5
4 5
6 168.3 6.625 2 1/2 5 1/2
3 5 1/2
3 1/2 5 1/2
4 5 1/2
5 5 1/2
8 219.1 8.625 3 6
3 1/2 6
4 6
5 6
6 6
10 273.1 10.750 4 7
5 7
6 7
8 7
12 323.9 12.750 5 8
6 8
8 8
10 8

316Ti Stainless Steel Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.96 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Stainless Steel 316Ti Pipe Fittings

  • 316Ti Stainless Steel Butt weld Tee In Indonesia
  • SS 316Ti End Cap Distributor
  • ASME B16.9 Stainless Steel 316Ti Buttweld Fittings
  • Stainless Steel 316Ti Buttweld Fittings In Malaysia
  • ASTM A403 WP316Ti Buttweld Fittings
  • SS 316Ti Seamless Fittings In Mexico
  • Stainless Steel 316Ti SR Elbow
  • SS 316Ti Eccentric Reducer In Philippines
  • Stainless Steel SUS 316Ti Mandrel Pipe Bend
  • ANSI B16.9 Stainless Steel 316Ti Pipe Cap
  • Stainless Steel 316Ti Pipe Bend In Japan
  • Schedule 80 SS 316Ti Grade Long Stub End
  • DIN 2605 Stainless Steel 316Ti Elbow Exporter
  • 1.4571 Butt weld Fittings
  • SS 316Ti 180° LR Return Bends
  • 1/2” - 16” ASTM A403 WP316Ti Butt weld Elbow
  • Stainless Steel 316Ti Two Halve Butt weld Fittings In Italy
  • Stainless Steel 316Ti Butt Weld Pipe Fittings In Spain
  • ASTM A403 WP316Ti 45 Degree Elbow
  • 316Ti Stainless Steel Equal Cross
  • 316Ti SS Long Radius Elbow
  • SS 316Ti 1D Elbow/3D Elbow/5D Elbow
  • 316Ti SS Barrel Nipple Supplier in Mumbai
  • 316Ti Stainless Steel Pipe Fittings Manufacturer
  • ASTM A403 WP316Ti SS Stub End
  • SS 316Ti Long Radius Bend Stockholder
  • Stainless Steel 316Ti Reducer In Kuwait
  • 316Ti SS Reducing Nipple
  • ASME SA403 WP316Ti Stainless Steel Lateral Tee
  • 316Ti SS LR Elbow Stockist
  • Stainless Steel 316Ti Welded Fittings
  • SS 316Ti Two Joint Pipe Fittings
  • ASTM A403 Stainless Steel 316Ti Pipe Fittings
  • 316Ti Stainless Steel Buttweld Nipple In Spain
  • 15 NB SCH 10 SS 316Ti 90° Short Radius Elbow
  • 316Ti Stainless Steel Lap Joint Stub End In Philippines
  • 316Ti Stainless Steel Elbow In Japan
  • Stainless Steel 316Ti Piggable Bends In Singapore
  • 316Ti SS Eccentric Reducer Manufacturer
  • DIN 1.4571 Swage Nipple
  • UNS S31635 Pipe Fittings
  • ASME B16.9 Schedule 10 316Ti Stainless Steel Elbow
  • Stainless Steel 316Ti Long Stub End In Mexico
  • 5" Nb Sch10s SS 316Ti 90° Short Radius Elbow
  • ANSI B16.9 SS 316Ti Short Stub End
  • SCH 60 316Ti Stainless Steel Pipe Nipples
  • 316Ti Stainless Steel Pipe Elbow In Indonesia
  • Sch 80 Stainless Steel 316Ti Pipe Fittings

Stainless Steel 316Ti Butt weld Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 316Ti 0.08 max 2.0 max 0.75 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00 68.395 min

316Ti Stainless Steel Pipe Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1399 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Export Destinations For 316Ti SS Butt weld Pipe Fittings

industry
