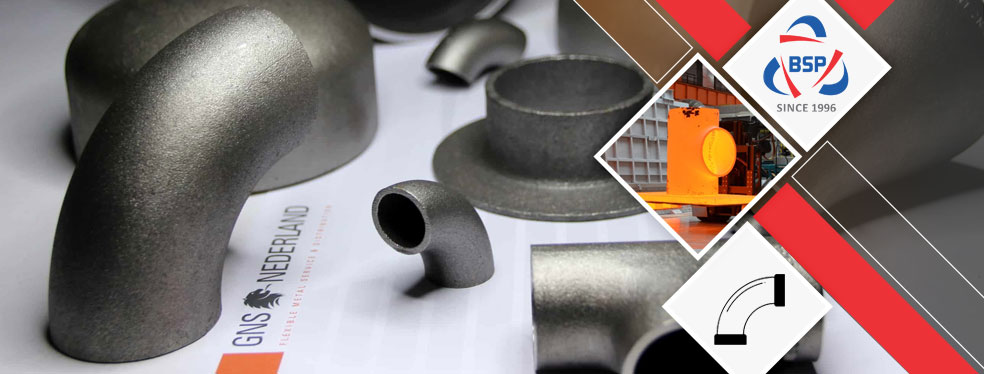

A234 WP92 Stub End, Cr-Mo WP92 Reducer In Spain, Chrome Moly WP92 Pipe Cap Stockist, A234 WP92 Cross, ASTM A234 WP92 Equal Tee, A234 WP92 LR Elbow Supplier in Mumbai, India.
The mechanical and dimensional traits of our pipe fittings fulfil the maximum disturbing orders that require tight tolerances. We additionally Supply & Maintain large inventory of our pipe fittings of excessive exceptional raw materials, that are checked through specialists on some of parameters a good way to supply a disorder loose range. Though it's far generally used within the following industrial applications, it has these days observed a gap as a scientific grade. ASTM A234 Alloy Steel WP92 Long Stub End Pipe Fittings are metastable and include enough beta stabilisers (along with molybdenum, silicon and vanadium) to permit them to preserve the beta section whilst quenched.
Such infection might also additionally enhance the impurity stage of these pipe fittings, thereby remodelling the material right into a higher product. ASME SA 234 Alloy Steel WP92 Short Stub End Pipe Fittings is the maximum commercially to be had of all alloys, in which preheat or put up warmth remedies aren't required. The opportunity of crevice corrosion ought to be taken into consideration in such pipe fittings, however, and additives correctly designed to keep away from tight crevices. It is reactive, by means of having a totally excessive affinity for oxygen, which bureaucracy a pores and skin of very strong and pretty adherent oxide.
Material Specification Chart of Alloy Steel A234 WP92 Pipe Fittings
| Specifications | ASTM A234/ ASME SA234 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Connection | Welding |
| Manufacturing Process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized Manufacturer of | 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
Alloy Steel A234 WP92 Pipe Fittings Manufacturing Standards
| ASTM A234/A234M | Alloy Steel Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| MSS SP-43 | Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications |
| BS3799 – | Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry |
| ASTM A234 – ASME SA234 | Standard Specification for Wrought Austenitic SS Piping Fitting |
| ASME Standard | ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43 |
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | Wrought Steel SR Elbows and Buttwelding Returns |
| API 590-605 ASME B16.9 |
‘Factory-Made Wrought Butt-welding Fittings’ |
Various Types Of Cr-Mo WP92 Butt weld Pipe Fittings
- Cr-Mo WP92 45 Degree Elbow In Indonesia
- ANSI B16.9 Chromium Molybdenum WP92 5D Elbow
- Cr-Mo WP92 3D Butt weld Elbow In Malaysia
- ASTM A234 CRMO WP92 LR Elbow
- Chrome Moly WP92 Short Radius Elbow
- Alloy Steel A234 WP92 90 Degree Elbow
- Alloy Steel A234 WP92 180 Deg Elbow
- ANSI B16.9 Alloy Steel A234 WP92 Buttweld Tee
- Cr-Mo WP92 Equal Tee In Philippines
- Chrome Moly WP92 Buttweld Tees In Mexico
- Alloy Steel A234 WP92 Unequal Tee
- Chromium Molybdenum WP92 Butt weld Tee
- Alloy Steel A234 WP92 Tee
- WP92 Alloy Steel Reducing Tee
- ANSI B16.9 Alloy Steel A234 WP92 Buttweld Cross
- Cr-Mo WP92 Equal Cross In Japan
- Alloy Steel A234 WP92 Cross
- Alloy Steel A234 Butt weld Cross In Italy
- Chromium Molybdenum WP92 Buttweld Cross
- Alloy Steel WP92 Reducing Cross
- Chrome Moly WP92 Unequal Cross
- AS WP92 Concentric Reducer In Spain
- Chrome Moly WP92 Butt weld Concentric Reducer
- Cr-Mo WP92 Concentric Reducer In Singapore
- CrMo A234 WP92 Concentric Reducer
- ANSI B16.9 Chromium Molybdenum WP92 Concentric Reducer
- AS A234 WP92 Eccentric Reducer In Kuwait
- Alloy Steel WP92 Eccentric Reducer
- Cr-Mo WP92 Eccentric Reducer In Japan
- WP92 Alloy Steel Butt weld Eccentric Reducer
- ANSI B16.9 Alloy Steel A234 WP92 Eccentric Reducer
- Cr-Mo WP92 Long Stub End In Indonesia
- WP92 Alloy Steel Butt weld Stub End
- Alloy Steel A234 WP92 Short Stub End In Mexico
- Chromium Molybdenum WP92 Short Stub End
- ANSI B16.9 Alloy Steel A234 WP92 Lap Joint Stub End
- ANSI B16.9 Chromium Molybdenum WP92 Pipe End Cap
- Alloy Steel A234 WP92 End Cap In Japan
- Chrome Moly WP92 End Pipe Cap
- Cr-Mo WP92 Pipe Cap In Malaysia
- Alloy Steel A234 WP92 Butt weld Cap
- Cr-Mo WP92 Swage Nipple In Mexico
- Cr-Mo WP92 Pipe Nipple
- Alloy Steel A234 WP92 Nipple
- Chrome Moly WP92 Butt weld Nipple In Japan
- ANSI B16.9 Chromium Molybdenum WP92 Barrel Nipple
- Cr-Mo WP92 Piggable Bend In Singapore
- ANSI B16.9 Alloy Steel A234 WP92 Bend
- ASTM A234 CRMO WP92 Butt weld Bend
- Chrome Moly WP92 Hot Induction Bend
- Alloy Steel A234 WP92 Long Radius Bend In Philippines
View Thickness Table Of Cr-Mo WP92 Buttweld Fittings, We have Global sales network for Alloy Steel A234 WP92 LR Elbow, Wide Stockist Of Alloy Steel A234 WP92 Seamless Fittings In India.
Check available Sizes of ASME SA 234 WP92 Pipe Reducer, Ask For Ready Stock of Alloy Steel WP92 Stub End in Mumbai, India.
BAGODA
Quick Contact
ASME B16.9 Alloy Steel WP92 Short and Long Radius Elbows Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Center to Face (inches) |
Center to Center (inches) |
Back to face (inches) |
|
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
ASME B16.9 Alloy Steel A234 WP92 Tee & Cap Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter |
Caps | Straight Crosses | Straight Tees | Stub Ends | |||
| (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
|
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1/2 | 21.3 | 0.840 | 1 | – | 1 | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | – | 1 1/8 | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
ASME B16.9 Alloy Steel WP92 Concentric & Eccentric Reducer Dimensions
| Nominal Pipe Size |
Outside Diameter | Reducers | ||
| Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) | Concentric & Eccentric Length (inches) |
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
A234 WP92 Alloy Steel Buttweld Fittings Weights(Kg)
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Ready Stock Alloy Steel A234 WP92 Pipe Fittings
- 15 NB SCH 10 CrMo WP92 90° Short Radius Elbow
- Alloy Steel A234 WP92 Piggable Bends In Indonesia
- Schedule 80 Cr-Mo WP92 Grade Long Stub End
- A234 WP92 Alloy Steel Equal Cross In Malaysia
- SCH 60 WP92 Alloy Steel Pipe Nipples
- Alloy Steel A234 WP92 Pipe Bend In Mexico
- Alloy Steel WP92 Seamless Fittings In Philippines
- ASTM A234 CRMO WP92 Buttweld Fittings
- Alloy Steel WP92 Swage Nipple In Japan
- Cr-Mo WP92 Reducing Nipple In Italy
- Alloy Steel A234 WP92 Reducer In Spain
- Cr-Mo WP92 Eccentric Reducer Manufacturer
- 1/2” - 16” ASTM A234 CRMO WP92 Butt weld Elbow
- Alloy Steel A234 WP92 Buttweld Fittings
- Cr-Mo WP92 Two Joint Pipe Fittings In Kuwait
- ASME SA234 WP92 Alloy Steel Lateral Tee
- A234 WP92 Alloy Steel Buttweld Nipple
- ASTM A234 Alloy Steel WP92 Pipe Fittings
- Chromium Molybdenum WP92 180° LR Return Bends In Singapore
- A234 WP92 Alloy Steel Elbow
- Alloy Steel WP92 Long Radius Bend Stockholder
- ASME B16.9 Schedule 10 A234 WP92 Alloy Steel Elbow
- Alloy Steel WP92 Two Halve Butt weld Fittings
- Cr-Mo WP92 1D Elbow/3D Elbow/5D Elbow
- A234 WP92 Alloy Steel Lap Joint Stub End
- Cr-Mo WP92 Barrel Nipple Supplier in Mumbai
- Chrome Moly WP92 Pipe Fittings In Kuwait
- Cr-Mo WP92 Long Radius Elbow
- Chrome Moly WP92 Butt weld Fittings
- ASTM A234 CRMO WP92 Stub End In Spain
- Alloy Steel A234 WP92 Welded Fittings
- ASME B16.9 Alloy Steel A234 WP92 Buttweld Fittings
- ANSI B16.9 Alloy Steel WP92 Short Stub End
- Cr-Mo WP92 Eccentric Reducer In Italy
- ASTM A234 CRMO WP92 45 Degree Elbow
- Chromium Molybdenum WP92 SR Elbow In Japan
- A234 WP92 Alloy Steel Butt weld Tee
- Alloy Steel WP92 Mandrel Pipe Bend In Philippines
- Sch 80 Alloy Steel WP92 Pipe Fittings
- Cr-Mo WP92 LR Elbow Stockist
- A234 WP92 Alloy Steel Pipe Elbow
- Alloy Steel A234 WP92 Long Stub End In Mexico
- Cr-Mo WP92 End Cap Distributor
- DIN 2605 Alloy Steel WP92 Elbow Exporter
- Alloy Steel A234 WP92 Butt Weld Pipe Fittings In Malaysia
- 5" Nb Sch10s CrMo WP92 90° Short Radius Elbow
- ANSI B16.9 Alloy Steel A234 WP92 Pipe Cap In Indonesia
- A234 WP92 Alloy Steel Pipe Fittings Manufacturer
Alloy Steel A234 WP92 Butt weld Fittings Chemical Composition
| Grade | C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % | Ni, % |
|---|---|---|---|---|---|---|---|---|
| A234 WP92 | 0.08-0.12 | 0.3-0.6 | 0.02 max | 0.01 max | 0.5 | 8.5-9.5 | 0.85-1.05 | 0.4 max |
A234 WP92 Alloy Steel Pipe Fittings Mechanical Properties
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % | Hardness, HB |
|---|---|---|---|---|
| A234 WP92 | 415 min | 585 min | 20 min | 248 max |
