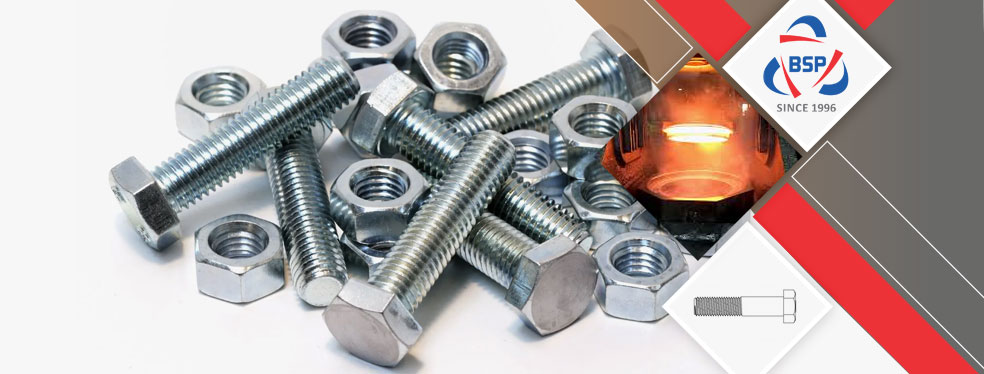

ASTM A193 B8T Fasteners

ASTM A193 Grade B8T Fasteners, ASTM A193 Grade B8T Nuts, ASTM A193 B8T Washers, ASTM A193 B8T Bolts, ASTM A193 B8T Stud Bolts Price in India.

Bagoda Steel is a customary exporter of ASTM A193 Grade B8T Fasteners, which may be fabricated the use of the equal strategies as are used for other alloys. Wide forms of industries depend on these ffasteners for some of different applications, along with: Pesticide production, Sour fueloline services, Pollution control, and Waste incinerators. It did now no longer go through localized assault at ninety five Degree C by means of inside the liquid section or at ninety Degree C within side the vapour section. Stainless Steel ASTM A193 Grade B8T Nuts well-known shows very excessive resistance to chloride - caused pitting and crevice assault, sorts of corrosion to which the austenitic stainless steels are specifically prone. It has extremely good resistance to each decreasing and oxidizing media, and additionally amazing resistance to oxidizing aqueous media.

Industrial Product
ASTM A193 B8T Fasteners

ASTM A193 B8T Allen Cap Screw, ASTM A193 B8T Fasteners, ASTM A193 Grade B8T Screws, ASTM A193 B8T Carriage Bolts Stockist, ASTM A193 B8T Threaded Rod, ASTM A193 B8T Nuts, A193 B8T Hex Bolts, ASTM A193 B8T Anchor Bolts, ASTM A193 Grade B8T Flat Washers Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

It additionally has extremely good resistance to localized corrosion and amazing resistance to pressure corrosion cracking, fine alloy to apply as a customary weld filler steel to face up to corrosion of weldments. Stainless Steel ASME SA 193 Grade B8T Washers must additionally now no longer be used in applications along in the company of moist chloride or hypochlorite bleach. It has a unique chemistry designed to gain a degree of thermal balance significantly advanced to that of its predecessors. It withstands moist HCl fueloline, sulphuric, acetic and phosphoric acids, and has amazing resistance to pitting and to pressure corrosion cracking.

Therefore, if its miles used at the side of iron or copper piping in a gadget containing hydrochloric acid, the presence of these salts should purpose the alloy to fail prematurely. Principal excessive-temperature makes use of for SS ASTM A193 Grade B8T Bolts are the ones wherein a low coefficient of thermal enlargement is required. It may be cold rolled to diverse tempers, and cannot be hardened warmth treating. The stepped forward thermal balance of fasteners minimizes the issues related to fabrication of alloy components. Manganese, chromium, cobalt, iron, and tungsten are all found in small quantities in these fasteners, in which none of these factors exceed of the whole composition.

Standard Specification For ASTM A193 B8T Fasteners

Specification ASTM A193 / ASME SA193
Dimensions ASME B18.2.1, B18.3
Size M02 to M160, Custom Sizes
Length 3 mm to 200 mm
Threads METRIC, BSW, BSF, UNC, UNF or as required
In Form of Hex, Square, Round, Threading as per Gauge Etc.
Test Certificate: Manufacturer Test Certificate as per EN 10204 / 3.1
Surface finishing Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Production process M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element
Surface Coating
  • Teflon Coated Fasteners
  • Phosphate Coated Fasteners
  • Zinc Coated Fasteners
  • Ptfe Coated
  • Xylon Coated Fasteners
  • Cadmium Coated Fasteners
  • Hot Dipped Galvanizing Coated Fasteners
All surface finishes offered including Geomet & PTFE, Galvanised, Zinc, Electroless Nickel, Sherardized, Dacromet
Packing IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request

ASTM A193 Grade B8T Raw Material

GradeTensile ClassRaw Material Description
B8TClass 1AISI 321 Stainless Steel, Carbide Solution Treated
Class 2AISI 321 Stainless Steel, Carbide Solution Treated and Strained Hardened

ASTM A193 B8T Fasteners Manufacturing Standards

Hexagon Bolt / Set Screws Stud Bolt Hexagon Nuts Socket Cap screws
DIN 931 BS4882 DIN 934 DIN 912
DIN 933 DIN 976 BS 1768 DIN 6912
BS 1768 BS 1769 DIN 7984
UNI 5731 BS 1083 ANSI B18.3
UNI 5739 BS 3692 ISO 4762
ISO 4014 ISO 4032 UNI 5931
ISO 4017 ISO 4033 BS 2470
BS 1769 ANSI B18.2.2 BS 4168
BS 3692
ANSI B18.2.1
Socket & Slotted Set Screws Socket & Slotted Countersunk Screws Studs Washers
DIN 913 DIN 963 DIN 938 DIN 125
DIN 914 DIN 7991 DIN 939 DIN 9021

Various Types Of ASTM A193 B8T Fasteners

ASTM A193 B8T Bolts
ASTM A193 B8T Bolts
  • ASTM A193 B8T Heavy Hex Bolts
  • ASTM A193 Grade B8T Bolts
  • ASTM A193 Grade B8T Hex Bolts
  • ASTM A193 B8T Bolts
ASTM A193 B8T Screw
ASTM A193 B8T Screw
  • ASTM A193 B8T q Set Screws
  • ASTM A193 Grade B8T Allen Cap Screw
  • ASTM A193 B8T Hex Cap Screws
  • ASTM A193 Grade B8T Screw
  • ASTM A193 B8T Screw
ASTM A193 B8T Stud Bolts
ASTM A193 B8T Stud Bolts
  • ASTM A193 B8T Stud Bolts
  • ASTM A193 Gr B8T Bolts
  • ASTM A193 Grade B8T Stud Bolts
  • ASTM A193 B8T Stud
ASTM A193 B8T Hex Bolts
ASTM A193 B8T Hex Bolts
  • ASTM A193 Gr B8T Hex Bolts
  • ASTM A193 Grade B8T Hex Bolts
  • ASTM A193 B8T Heavy Hex Bolts
  • ASTM A193 B8T Hex Head Bolts
Fasteners Dimensions

View Size Table Of ASTM A193 B8T Fasteners, We have Global sales network for ASTM A193 Grade B8T Stud Bolts, Wide Stockist Of ASTM A193 Gr B8T Nuts, Bolts, Washers In India.

Dimensions Of ASTM A193 B8T Bolts

**All measurements in millimeters**
NOMINAL SIZE (D) BODY DIAMETER HEAD THICKNEASTM A193 ACROASTM A193 THE FLATS ACROASTM A193 CORNERS
D (MAX) D (MIN) H (MAX) H (MIN) F (MAX) F (MIN) C (MAX) C (MIN)
m10 10.00 9.78 6.63 6.17 17.00 15.73 18.48 17.77
m12 12.00 11.73 7.76 4.24 19.00 17.73 20.78 20.03
m14 14.00 13.73 9.09 8.51 22.00 20.67 24.25 23.35
m16 16.00 15.73 10.32 9.68 24.00 23.67 27.71 26.75
m20 20.00 19.67 12.88 12.12 30.00 29.16 34.64 32.95
m24 24.00 23.67 15.44 14.56 36.00 35.00 41.57 39.55
m30 30.00 29.67 19.48 17.92 46.00 45.00 53.12 50.85
m36 36.00 35.61 23.38 21.63 55.00 53.80 63.51 60.79
m42 42.00 41.38 26.97 25.03 65.00 62.90 75.06 71.71
m48 48.00 47.38 31.07 28.93 75.00 72.60 86.60 82.76
m56 56.00 55.26 36.2 33.80 85.00 82.20 98.15 93.71
m64 64.00 63.26 41.32 38.68 95.00 91.80 109.70 104.65
m72 72.00 71.26 46.45 43.55 105.00 101.40 121.24 115.60
m80 80.00 79.26 51.58 48.42 115.00 111.00 132.72 126.54
m90 90.00 89.13 57.74 54.26 130.00 125.50 150.11 143.07
m100 90.00 99.13 63.9 60.10 145.00 140.00 167.43 159.60

Check available Sizes of ASTM A193 B8T Stud Bolt, Ask For Ready Stock of ASTM A193 Grade B8T Fasteners in Mumbai, India.

BAGODA

Quick Contact

ASTM A193 B8T Bolts Weight Chart

MM THREADS AS PER IS 1363/67
APPROXIMATE WEIGHT IN KGS FOR 100 NOS
LENGTH DIAMETER
M 5 M 6 M 8 M 10 M 12 M 14 M 16 M 18 M 20 M 22
16 mm 0.448 0.743 1.590 3.211
20 mm 0.598 0.812 1.711 3.411 4.892
25 mm 0.660 0.897 1.871 3.660 5.252 8.170
30 mm 0.737 1.010 2.070 3.912 5.574 9.690 10.707 18.657
35 mm 0.804 1.120 2.271 4.223 5.974 10.000 11.416 16.026 19.608
40 mm 0.881 1.230 2.470 4.533 6.410 10.288 12.107 16.667 20.747
45 mm 0.958 1.340 2.671 4.840 6.859 10.504 12.821 17.241 21.739
50 mm 1.030 1.450 2.870 5.155 7.299 11.261 13.624 17.857 22.727 28.409
55 mm 1.560 3.071 5.464 7.740 11.628 14.409 18.868 23.810 30.120
60 mm 1.670 3.270 5.774 8.183 12.255 15.244 20.000 25.126 32.051
65 mm 1.781 3.472 6.083 8.621 12.626 16.026 21.008 26.455 34.014
70 mm 1.890 3.671 6.394 9.058 12.987 16.835 22.124 27.778 35.461
75 mm 2.000 3.873 6.702 9.506 13.228 17.606 23.256 29.070 39.063
80 mm 2.111 4.072 7.013 10.000 13.889 18.248 24.510 30.303 40.000
90 mm 4.472 7.634 10.917 14.925 19.841 26.042 33.113 41.667
100 mm 4.873 8.251 11.820 16.340 21.459 27.778 35.714 46.296
110 mm 8.881 12.723 17.730 23.041 31.250 38.168 47.170
120 mm 9.506 13.624 18.797 24.631 32.895 40.984 50.000
130 mm 10.101 14.535 20.000 26.316 34.722 43.478 52.632
140 mm 10.707 15.432 20.833 27.933 35.461 46.296 55.556
150 mm 11.312 16.340 22.222 29.412 37.594 48.544 58.824
160 mm 11.905 17.241 24.272 31.056 40.984 50.505 61.728
170 mm 12.500 18.116 32.680 53.191 64.935
180 mm 13.123 19.011 26.882 34.247 55.556 67.568
190 mm 13.736 19.920 35.971 58.140 70.423
200 mm 14.327 20.833 29.586 37.594 49.020 60.976 73.529
220 mm 15.528 22.624 40.650 65.789 79.365
240 mm 16.722 24.510 43.860 71.429 84.746
250 mm 17.301 25.381 45.455 74.627 87.719
260 mm 17.921 26.316 47.170 76.923 90.909
280 mm 19.157 28.090 50.505 81.967 98.039
300 mm 20.325 29.940 53.763 87.719 104.167
320 mm 31.646 56.818 92.593
340 mm 33.557 60.241 98.039
360 mm 35.211 63.291 104.167
380 mm 37.037 66.667 108.696
400 mm 39.063 69.444 113.636

ASTM A193 B8T Stud Bolts Dimensions

Diameter Diameter in mm Diameter in inch Nut Sizes
M12 12 0.4724 19
M10 10 0.3937 17
M14 14 0.5512 22
M18 18 0.7087 27
M16 16 0.6299 24
M20 20 0.7874 30
M24 24 0.9449 36
M22 22 0.8661 32
M27 27 1.063 41
M33 33 1.2992 50
M30 30 1.1811 46
M36 36 1.4173 55
M42 42 1.6535 65
M39 39 1.5354 60
M45 45 1.7717 70
M52 52 2.0472 80
M48 48 1.8898 75
M56 56 2.2047 85
M64 64 2.5197 95
M60 60 2.3622 90
M68 68 2.6772 100
M76 76 2.9921 110
M72 72 2.8346 105
M80 80 3.1496 115
M90 90 3.5433 130
M85 85 3.3464 120
M100 100 3.937 145
M160 160 6.2992 230
M125 125 4.9212 180
M110 110 4.3307 155
M140 140 5.5118 200

ASTM A193 B8T Studs Torque Chart

BOLT
DIA		 Torque FT-LBS
30% Initial
Torque		 70%
Torque		 100% Final
Torque
1/2 16 36 52
9/16 23 53 75
5/8 31 73 104
3/4 55 129 184
7/8 71 166 237
1 107 249 356
1.1/8 127 297 424
1.1/4 179 417 596
1.3/8 186 435 622
1.1/2 246 574 821
1.9/16 168 392 560
1.5/8 191 445 636
1.3/4 240 561 801
1.7/8 298 696 994
2 366 853 1219
2.1/4 529 1234 1762
2.1/2 733 1709 2442
2.3/4 986 2300 3285
3 1289 3008 4297

Ready Stock ASTM A193 B8T Fasteners

  • ASTM A193 Grade B8T Concrete Screw
  • ASTM A193 Grade B8T Bolts
  • ASTM A193 B8T Hex Head Bolt
  • ASTM A193 B8T Plain Washer Supplier in Mumbai
  • ASTM A193 B8T Nyloc Nuts
  • ASTM A193 B8T Double Ended Stud
  • ASTM A193 B8T Stud Bolts
  • ASTM A193 Gr B8T Socket Cap Screw
  • ASTM A193 Grade B8T Allen Cap Screw
  • ASTM A193 Gr B8T Eye Bolts
  • ASTM A193 Grade B8T Split / Lock Washer
  • ASTM A193 Gr B8T Machine Bolt
  • ASTM A193 Gr B8T Screws Distributor
  • ASTM A193 B8T Hex Washers
  • ASTM A193 Grade B8T Wing Nuts
  • ASTM A193 B8T Dock Washer Stockholder
  • ASTM A193 B8T Lock Nut
  • ASTM A193 B8T Hex Set Screw Manufacturer
  • ASTM A193 B8T Ogee Washer
  • ASTM A193 B8T Hex Coupling Nut
  • ASTM A193 Grade B8T Self Locking Nuts
  • ASTM A193 B8T Hexagonal Washer
  • ASTM A193 B8T Coupling Nut
  • ASTM A193 B8T Threaded Rod
  • ASTM A193 Gr B8T T-Head Bolts
  • ASTM A193 B8T Bolts
  • ASTM A193 B8T Heavy Hex Nuts
  • ASTM A193 B8T Customized Washer
  • ASTM A193 Gr B8T Machine Fasteners Exporter
  • ASTM A193 B8T Fasteners
  • ASTM A193 B8T Fender Washer
  • ASTM A193 Grade B8T Wing Nuts
  • ASTM A193 B8T Acorn Nuts
  • ASTM A193 Gr B8T Countersunk Washer
  • ASTM A193 B8T Elevator Bolt
  • ASTM A193 B8T Flange Bolt
  • ASTM A193 B8T Foundation Bolts Manufacturer
  • ASTM A193 Grade B8T Tooth Lock Washer
  • ASTM A193 Grade B8T Fasteners
  • ASTM A193 B8T Flat Washers
  • ASTM A193 B8T Washers
  • ASTM A193 Gr B8T Hex Domed Cap Nuts
  • ASTM A193 Gr B8T Fasteners
  • ASTM A193 B8T Tie Rods
  • ASTM A193 B8T Anchor Bolts
  • ASTM A193 B8T Square Nuts
  • ASTM A193 Grade B8T Stud Bolts
  • ASTM A193 Gr B8T Carriage Bolt Stockist
  • ASTM A193 Grade B8T Hex Head Bolts
  • ASTM A193 B8T Heavy Hex Bolts
  • ASTM A193 B8T Structural Bolts

ASTM A193 B8T Fasteners Chemical Composition

Grade C Mn Si P S Cr Ni
ASTM A193 B8T 0.08 max. 2.00 max 1.0 max 0.045 max 0.030 max 18.00-20.00 10.00-14.00

ASTM A193 B8T Mechanical Properties

Tensile Strength Yield Strength Elongation Reduction area Brinell Hardness
52.75/MM2min 21.1kg/MM2min 30% min 50% min 223 B.H.N max.
