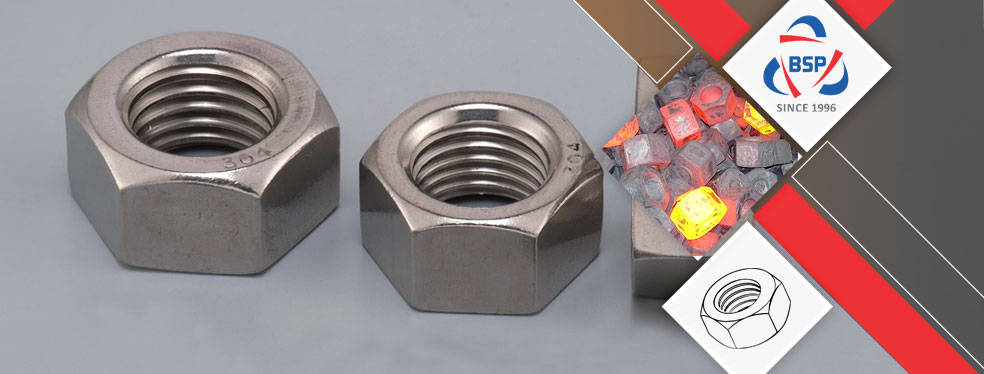

![Hastelloy C276 Hex Nuts Hastelloy C276 Hex Nuts](assets/img/hastelloy-c276-hex-nut.jpg)
2.4819 Hex Nuts, Alloy C276 Finished Hex Nut Stockist, Alloy C276 Hexagonal Nylon Lock Nut, UNS N10276 Hex Flange Nut, Hastelloy C276 Industrial Hex Nut, Hastelloy® Alloy C276 Hex Jam Nuts, Nickel Alloy C276 Long Hex Nuts, Hastelloy C276 Machine Hex Nut Supplier in Mumbai, India.
It is utilized in Burners, Boiler Nozzles, Petrochemical and refinery tube hangers, Heat exchangers, Expansion bellow, Stack dampers, etc. In assessment to carbon metal, stainless steels are more difficult and generally tend to work harden rapidly. However, with nice feeds and sluggish speeds blended with plentiful reducing fluid this alloys tendency to work harden can be minimized. Hastelloy Alloy UNS N10276 Hex Nuts may be welded the usage of traditional welding procedures. Filler metallic has to be of comparable composition for max weld integrity and properties.It is an austenitic warmth resistant alloy with first-rate resistance to oxidation below mildly cyclic situations thru 2000 Degree F.
Its excessive chromium and nickel contents offer similar corrosion resistance, advanced resistance to oxidation and the retention of a bigger fraction of room temperature strength than the not unusual place austenitic alloys. It is regularly used at cryogenic temperatures, with first-rate durability to -450 Degree F, and occasional magnetic permeability. The features of this Nickel Alloy C276 Hex Nuts are: Oxidation resistance to 2000 Degree F, Moderate strength at excessive temperature, Resistance to warm corrosion, Strength and durability at cryogenic temperatures. In assessment to carbon metal, stainless steels are more difficult and generally tend to work harden rapidly.
Material Specification Chart of Hastelloy C276 Hex Nuts
Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
---|---|
Length | 3 mm to 200 mm |
Hex Nuts | UNF, BSW, BSF, METRIC, UNC, or as required |
Standard | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hex nuts |
Form | Hex, Threading, Square, Round as per Gauge Etc. |
Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
Certification | Dual Certified As per ASTM & ASME Codes |
Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
Production process | M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
Head drive | Six-Lobe,Phillips,Phillips/Slot, Slotted etc |
Surface Coating | Ptfe Coated Nuts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
Finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide |
Various Types Of Hastelloy C276 Hex Nuts
![Hastelloy C276 Hex Jam Nut Hastelloy C276 Hex Jam Nut](assets/img/hex-jam-nuts.jpg)
- Hastelloy C276 Heavy Hex Jam Nuts
- Alloy C276 Hex Jam Nut
- UNS N10276 Hex Jam Nuts
- 2.4819 Hex Jam Nuts
- Nickel Alloy C276 Hex Jam Nut
![Hastelloy C276 Heavy Hex Nuts Hastelloy C276 Heavy Hex Nuts](assets/img/heavy-hex-nuts.jpg)
- 2.4819 Heavy Hex Nuts
- Nickel Alloy C276 Heavy Hex Nut
- Hastelloy Alloy C276 Heavy Hex Nut
- UNS N10276 Heavy Hex Nuts
- Alloy C276 Heavy Hex Nuts
![Hastelloy C276 Hex Flange Nuts Hastelloy C276 Hex Flange Nuts](assets/img/hex-flange-nut.jpg)
- 2.4819 Hex Flange Nuts
- Hastelloy Alloy C276 Hex Flange Nut
- Alloy C276 Hex Flange Nut
- Nickel Alloy C276 Flange Hex Nuts
- UNS N10276 Hex Flange Nut
![Hastelloy C276 Slotted Hex Nuts Hastelloy C276 Slotted Hex Nuts](assets/img/slotted-hex-nut.jpg)
- UNS N10276 Slotted Hex Nuts
- Hastelloy Alloy C276 Slotted Hex Nuts
- Alloy C276 Slotted Hex Nut
- 2.4819 Beveled Slotted Hex Nut
- Nickel Alloy C276 Slotted Hex Nuts
![Hastelloy C276 Machine Hex Nut Hastelloy C276 Machine Hex Nut](assets/img/machine-hex-nut.jpg)
- Hastelloy Alloy C276 Machine Hex Nut
- Nickel Alloy C276 Machine Hex Nut
- 2.4819 Machine Hex Nuts
- UNS N10276 Machine Hex Nuts
- Alloy C276 Machine Hex Nuts
![Hastelloy C276 Long Hex Nuts Hastelloy C276 Long Hex Nuts](assets/img/long-hex-nut.jpg)
- Hastelloy Alloy C276 Long Hex Nuts
- 2.4819 Hex Coupling Nuts
- Nickel Alloy C276 Long Hex Nuts
- Alloy C276 Coupling Hex Nuts
- UNS N10276 Long Hex Nuts
Equivalent Grades of Hastelloy C276 Hex Nuts
STANDARD | UNS | WERKSTOFF NR. | EN | JIS | GOST |
Hastelloy C276 | N10276 | 2.4819 | NiMo16Cr15W | NW 0276 | ХН65МВУ |
![Hex Nuts Dimensions](assets/img/hex-nut-dimention.png)
View Size Table Of Hastelloy C276 Hex Nuts, We have Global sales network for Hastelloy C276 Heavy Hex Nuts, Wide Stockist Of Werkstoff No 2.4819 Hex Head Nuts, Industrial Hex Nuts In India.
Dimensions of Hastelloy C276 Hex Nuts
Nominal Size |
Basic Major Diameter of Thread |
F | G | H | H1 | Maximum Runout of Bearing Surface to Thread Axis, FIM |
||||||
Width Across Flats |
Width Across Corners |
Thickness Hex Nuts |
Thickness Jam Nuts |
Hex Nuts | Hex Jam Nuts |
|||||||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Specified Proof Load |
||||
Up to 150,000 psi |
150,000 psi and Greater |
All Strength Levels |
||||||||||
1/4 | 0.2500 | 0.428 | 0.438 | 0.488 | 0.505 | 0.212 | 0.226 | 0.150 | 0.163 | 0.015 | 0.010 | 0.015 |
5/16 | 0.3125 | 0.489 | 0.500 | 0.557 | 0.577 | 0.258 | 0.273 | 0.180 | 0.195 | 0.016 | 0.011 | 0.016 |
3/8 | 0.3750 | 0.551 | 0.563 | 0.628 | 0.650 | 0.320 | 0.337 | 0.210 | 0.227 | 0.017 | 0.012 | 0.017 |
7/16 | 0.4375 | 0.675 | 0.688 | 0.768 | 0.794 | 0.365 | 0.385 | 0.240 | 0.260 | 0.018 | 0.013 | 0.018 |
1/2 | 0.5000 | 0.736 | 0.750 | 0.840 | 0.866 | 0.427 | 0.448 | 0.302 | 0.323 | 0.019 | 0.014 | 0.019 |
9/16 | 0.5625 | 0.861 | 0.875 | 0.982 | 1.010 | 0.473 | 0.496 | 0.301 | 0.324 | 0.020 | 0.015 | 0.020 |
5/8 | 0.6250 | 0.922 | 0.938 | 1.051 | 1.083 | 0.535 | 0.559 | 0.363 | 0.387 | 0.021 | 0.016 | 0.021 |
3/4 | 0.7500 | 1.088 | 1.125 | 1.240 | 1.299 | 0.617 | 0.665 | 0.398 | 0.446 | 0.023 | 0.018 | 0.023 |
7/8 | 0.8750 | 1.269 | 1.312 | 1.447 | 1.516 | 0.724 | 0.776 | 0.458 | 0.510 | 0.025 | 0.020 | 0.025 |
1 | 1.0000 | 1.450 | 1.500 | 1.653 | 1.732 | 0.831 | 0.887 | 0.519 | 0.575 | 0.027 | 0.022 | 0.027 |
1-1/8 | 1.1250 | 1.631 | 1.688 | 1.859 | 1.949 | 0.939 | 0.999 | 0.579 | 0.639 | 0.030 | 0.025 | 0.030 |
1-1/4 | 1.2500 | 1.812 | 1.875 | 2.066 | 2.165 | 1.030 | 1.094 | 0.687 | 0.751 | 0.033 | 0.028 | 0.033 |
1-3/8 | 1.3750 | 1.994 | 2.062 | 2.273 | 2.382 | 1.138 | 1.206 | 0.747 | 0.815 | 0.036 | 0.031 | 0.036 |
1-1/2 | 1.5000 | 2.175 | 2.250 | 2.480 | 2.598 | 1.245 | 1.317 | 0.808 | 0.880 | 0.039 | 0.034 | 0.039 |
1-5/8 | 1.6250 | 2.35 | 2.43 | 2.679 | 2.805 | 1.364 | 1.416 | 0.868 | 0.944 | 0.044 | 0.038 | 0.044 |
1-3/4 | 1.7500 | 2.538 | 2.625 | 2.893 | 3.031 | 1.460 | 1.540 | 0.929 | 1.009 | 0.048 | 0.041 | 0.048 |
1-7/8 | 1.8750 | 2.722 | 2.813 | 3.103 | 3.247 | 1.567 | 1.651 | 0.989 | 1.073 | 0.051 | 0.044 | 0.051 |
2 | 2.0000 | 2.900 | 3.000 | 3.306 | 3.464 | 1.675 | 1.763 | 1.050 | 1.138 | 0.055 | 0.047 | 0.055 |
2-1/4 | 2.2500 | 3.263 | 3.375 | 3.719 | 3.897 | 1.890 | 1.986 | 1.155 | 1.267 | 0.061 | 0.052 | 0.061 |
2-1/2 | 2.5000 | 3.625 | 3.750 | 4.133 | 4.330 | 2.105 | 2.209 | 1.401 | 1.427 | 0.068 | 0.058 | 0.068 |
2-3/4 | 2.7500 | 3.998 | 4.125 | 4.546 | 4.763 | 2.319 | 2.431 | 1.522 | 1.556 | 0.074 | 0.064 | 0.074 |
3 | 3.0000 | 4.350 | 4.500 | 4.959 | 5.196 | 2.534 | 2.654 | 1.643 | 1.685 | 0.081 | 0.070 | 0.081 |
3-1/4 | 3.2500 | 4.713 | 4.875 | 5.373 | 5.629 | 2.749 | 2.877 | 1.748 | 1.814 | 0.087 | 0.075 | 0.087 |
3-1/2 | 3.5000 | 5.075 | 5.250 | 5.786 | 6.062 | 2.964 | 3.100 | 1.870 | 1.943 | 0.094 | 0.081 | 0.094 |
3-3/4 | 3.7500 | 5.438 | 5.625 | 6.199 | 6.495 | 3.178 | 3.322 | 1.990 | 2.072 | 0.100 | 0.087 | 0.100 |
4 | 4.0000 | 5.800 | 6.000 | 6.612 | 6.928 | 3.393 | 3.545 | 2.112 | 2.201 | 0.107 | 0.093 | 0.107 |
Dimensions of Hastelloy C22 Heavy Hex Nuts & Heavy Hex Jam Nuts
Nominal Size | Basic Major Diameter of Thread |
F | G | H | H1 | Maximum Runout of Bearing Surface to Thread Axis, FIM |
|||||||||
Width Across Flats | Width Across Corners |
Thickness Heavy Hex Nuts |
Thickness Heavy Hex Jam Nuts |
Heavy Hex Nuts | Heavy Hex Jam Nuts |
||||||||||
Specified Proof Load | |||||||||||||||
Basic | Min. | Max. | Min. | Max. | Basic | Min. | Max. | Basic | Min. | Max. | Up to 150,000 psi |
150,000 psi and Greater |
All Strength Levels |
||
1/4 | 0.2500 | 1/2 | 0.488 | 0.500 | 0.556 | 0.577 | 15/64 | 0.218 | 0.250 | 11/64 | 0.156 | 0.188 | 0.017 | 0.011 | 0.017 |
5/16 | 0.3125 | 9/16 | 0.546 | 0.562 | 0.622 | 0.650 | 19/64 | 0.280 | 0.314 | 13/64 | 0.186 | 0.220 | 0.020 | 0.012 | 0.020 |
3/8 | 0.3750 | 11/16 | 0.669 | 0.688 | 0.763 | 0.794 | 23/64 | 0.341 | 0.377 | 15/64 | 0.216 | 0.252 | 0.021 | 0.014 | 0.021 |
7/16 | 0.4375 | 3/4 | 0.728 | 0.750 | 0.830 | 0.866 | 27/64 | 0.403 | 0.441 | 17/64 | 0.247 | 0.285 | 0.022 | 0.015 | 0.022 |
1/2 | 0.5000 | 7/8 | 0.850 | 0.875 | 0.969 | 1.010 | 31/64 | 0.464 | 0.504 | 19/64 | 0.277 | 0.317 | 0.023 | 0.016 | 0.023 |
9/16 | 0.5625 | 15/16 | 0.909 | 0.938 | 1.037 | 1.083 | 35/64 | 0.526 | 0.568 | 21/64 | 0.307 | 0.349 | 0.024 | 0.017 | 0.024 |
5/16 | 0.6250 | 1-1/16 | 1.031 | 1.062 | 1.175 | 1.227 | 39/64 | 0.587 | 0.631 | 23/64 | 0.337 | 0.381 | 0.025 | 0.018 | 0.025 |
3/4 | 0.7500 | 1-1/4 | 1.212 | 1.250 | 1.382 | 1.443 | 47/64 | 0.710 | 0.758 | 27/64 | 0.398 | 0.446 | 0.027 | 0.020 | 0.027 |
7/8 | 0.8750 | 1-7/16 | 1.394 | 1.438 | 1.589 | 1.660 | 55/64 | 0.833 | 0.885 | 31/64 | 0.458 | 0.510 | 0.029 | 0.022 | 0.029 |
1 | 1.0000 | 1-5/8 | 1.575 | 1.625 | 1.796 | 1.876 | 63/64 | 0.956 | 1.012 | 35/64 | 0.519 | 0.575 | 0.031 | 0.024 | 0.031 |
1-1/8 | 1.1250 | 1-13/16 | 1.756 | 1.812 | 2.002 | 2.093 | 1-7/64 | 1.079 | 1.139 | 39/64 | 0.579 | 0.639 | 0.033 | 0.027 | 0.033 |
1-1/4 | 1.2500 | 2 | 1.938 | 2.000 | 2.209 | 2.309 | 1-7/32 | 1.187 | 1.251 | 23/32 | 0.687 | 0.751 | 0.035 | 0.030 | 0.035 |
1-3/8 | 1.3750 | 2-3/16 | 2.119 | 2.188 | 2.416 | 2.526 | 1-11/32 | 1.310 | 1.378 | 25/32 | 0.747 | 0.815 | 0.038 | 0.033 | 0.038 |
1-1/2 | 1.5000 | 2-3/8 | 2.300 | 2.375 | 2.622 | 2.742 | 1-15/32 | 1.433 | 1.505 | 27/32 | 0.808 | 0.880 | 0.041 | 0.036 | 0.041 |
1-5/8 | 1.6250 | 2-9/16 | 2.481 | 2.562 | 2.828 | 2.959 | 1-19/32 | 1.556 | 1.632 | 29/32 | 0.868 | 0.944 | 0.044 | 0.038 | 0.044 |
1-3/4 | 1.7500 | 2-3/4 | 2.662 | 2.750 | 3.035 | 3.175 | 1-23/32 | 1.679 | 1.759 | 31/32 | 0.929 | 1.009 | 0.048 | 0.041 | 0.048 |
1-7/8 | 1.8750 | 2-15/16 | 2.844 | 2.938 | 3.242 | 3.392 | 1-27/32 | 1.802 | 1.886 | 1-1/32 | 0.989 | 1.073 | 0.051 | 0.044 | 0.051 |
2 | 2.0000 | 3-1/8 | 3.025 | 3.125 | 3.449 | 3.608 | 1-31/32 | 1.925 | 2.013 | 1-3/32 | 1.050 | 1.138 | 0.055 | 0.047 | 0.055 |
2-1/4 | 2.2500 | 3-1/2 | 3.388 | 3.500 | 3.862 | 4.041 | 2-13/64 | 2.155 | 2.251 | 1-13/64 | 1.155 | 1.251 | 0.061 | 0.052 | 0.061 |
2-1/2 | 2.5000 | 3-7/8 | 3.750 | 3.875 | 4.275 | 4.474 | 2-29/64 | 2.401 | 2.505 | 1-29/64 | 1.401 | 1.505 | 0.068 | 0.058 | 0.068 |
2-3/4 | 2.7500 | 4-1/4 | 4.112 | 4.250 | 4.688 | 4.907 | 2-45/64 | 2.647 | 2.759 | 1-37/64 | 1.522 | 1.634 | 0.074 | 0.064 | 0.074 |
3 | 3.0000 | 4-5/8 | 4.475 | 4.625 | 5.102 | 5.340 | 2-61/64 | 2.893 | 3.013 | 1-45/64 | 1.643 | 1.763 | 0.081 | 0.070 | 0.081 |
3-1/4 | 3.2500 | 5 | 4.838 | 5.000 | 5.515 | 5.774 | 3-3/16 | 3.124 | 3.252 | 1-13/16 | 1.748 | 1.876 | 0.087 | 0.075 | 0.087 |
3-1/4 | 3.5000 | 5-3/8 | 5.200 | 5.375 | 5.928 | 6.207 | 3-7/16 | 3.370 | 3.506 | 1-15/16 | 1.870 | 2.006 | 0.094 | 0.081 | 0.094 |
3-3/4 | 3.7500 | 5-3/4 | 5.562 | 5.750 | 6.341 | 6.640 | 3-11/16 | 3.616 | 3.760 | 2-1/16 | 1.990 | 2.134 | 0.100 | 0.087 | 0.100 |
4 | 4.0000 | 6-1/4 | 5.925 | 6.125 | 6.755 | 7.073 | 3-15/16 | 3.862 | 4.014 | 2-3/16 | 2.112 | 2.264 | 0.107 | 0.093 | 0.107 |
Ready Stock Hastelloy C276 Hex Nuts
- JIS NW 6022 Heavy Hex Nuts
- Nickel Alloy C276 Semi-Finished Hex Nuts
- Hastelloy C276 Hexagon Nut Supplier in Mumbai
- Nickel Alloy C276 Slotted Hex Nuts
- Hastelloy® Alloy C276 Heavy Hexagon Nuts
- Hastelloy C276 Industrial Hex Nuts Exporter
- Hastelloy Alloy B2 Hexagonal Nylon Lock Nut
- Hastelloy C-276 Hex Nuts
- Alloy C276 Nylon Insert Lock Nuts
- Hastelloy C276 Machine Hex Nuts
- Nickel Alloy C276 Hex Socket Nut
- Hastelloy Alloy C276 Heavy Hex Jam Nuts
- UNS N10276 Hex Nuts
- Hastelloy C276 Hexagonal Nylon Lock Nut
- Alloy C276 Hex Flange Nut
- Alloy C276 Heavy Hex Nuts
- Hastelloy® Alloy C276 Self Locking Hex Nuts
- Hastelloy C276 Finished Hex Nuts
- C276 Hastelloy Alloy Hex Sleeve Nuts
- DIN 2.4819 Hex Nuts
- Nickel Alloy C276 Long Hex Nut
- Nickel Alloy C276 Heavy Hex Nuts Distributor
- 2.4819 Thin Hex Nuts
- Hastelloy C276 Hex Head Nut
- Hastelloy® Alloy C276 Slotted Hex Nuts
- Hastelloy C276 Industrial Hex Nuts
- Hastelloy C276 Flanged Hex Nuts Stockholder
- Alloy C276 Hex Round Nut
- Nickel Alloy C276 Hexagon Nuts
- Alloy C276 Hex Jam Nuts
- Hastelloy C276 Hex Nuts Manufacturer
- Hastelloy C276 Serrated Hex Flange Nut
- Hastelloy C276 Coupling Nuts
- Hastelloy C276 Hex Nut Manufacturer
- Nickel Alloy C276 Heavy Hex Nuts
- Hastelloy C276 Hex Machine Nut Stockist
Hastelloy Alloy C276 Hex Nuts Chemical Composition
Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
Alloy C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
Alloy C276 Hex Nuts Mechanical Properties
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
