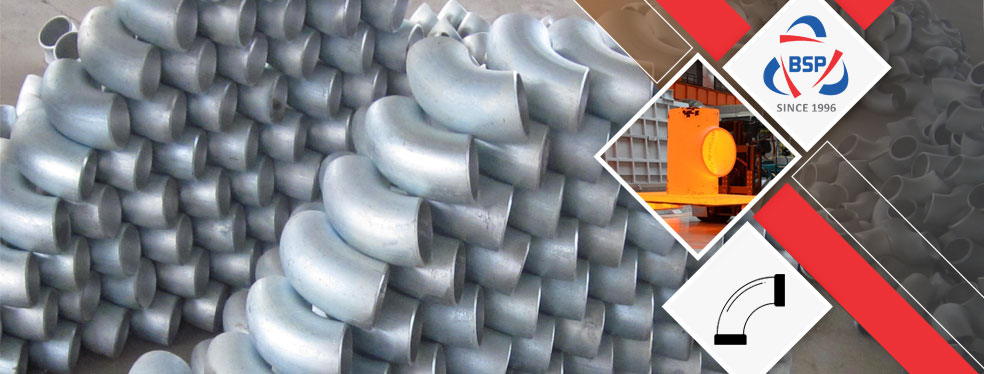

Incoloy 800 Pipe Fittings

Alloy 800 90 Deg. Elbow, Incoloy 800 Elbow, ANSI B16.9 Incoloy Alloy 800HT Short Radius Elbow Price in India.

Bagoda Steel is a well-known exporter and seller of Incoloy Alloy 800 Pipe Fittings, which is a member of the Ni – Mo – own circle of relatives of alloys with a unique chemistry designed. Strengthening of these Pipe Fittings is similarly more desirable via way of means of getting older the cold - worked shape close to one thousand Degree F (540 Degree C) for duration of four hours to sixteen hours. The excessive nickel and chromium contents make our Incoloy Alloy UNS N08800 Equal Tee Pipe Fittings proof against a number of each lowering and oxidizing media. The aluminium, at the side of the chromium, gives oxidation resistance at excessive temperatures in these Pipe Fittings. This mixture of remedies will increase each the room and improved tensile strength of these Pipe Fittings that has high-quality resistance to carburization.

Industrial Product
Incoloy 800 Pipe Fittings

DIN 1.4876 Reducer, Incoloy 800 Equal Tee, Incoloy 800 Stub End In Kuwait, Nickel Alloy 800 Cross, UNS N08800 LR Elbow Stockist Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Cold working previous to getting older in our Incoloy Alloy WNR 1.4876 Unequal Tee Pipe Fittings considerably will increase the price of the getting older reaction. The mixture of excessive strength and oxidation resistance at temperatures over 1800 Degree F makes these Pipe Fittings an attractive material for such additives as ducting and combustion cans. It has been often used for his or her resistance to corrosion in non - oxidizing environments inclusive of HCl. It is more or less double the strength of trendy austenitic stainless steels and is likewise to be had in one of kind sizes to our clients.

We in reality suggest a most warm forming temperature in our Pipe Fittings among 2010 Degree F and 2100 Degree F (1100 Degree C to 1150 Degree C). If the form of the work piece isn't compact, the rims of these Incoloy Alloy 800 Lateral Tee Pipe Fittings can be considerably cooler than the bulk, and there's chance of cracking within the cooler regions. They are to a point extra tough to gadget than the collection austenitic steels, wherein better reducing forces of the equal are required and extra fast device put on is typical. It isn't typically appropriate to be used at temperatures above three hundred Degree C, which typically offers higher assured corrosion resistance.

Material Specification Chart of Incoloy 800 Pipe Fittings

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Connection Welding
Manufacturing Process Push, Press, Forge, Cast, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

Incoloy 800 PIPE FITTINGS MANUFACTURING STANDARDS

ASTM B366/B366M Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
MSS SP-43 Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM B366 – ASME SB366 Standard Specification for Piping Fitting
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.25 Buttwelding Ends
ASME B16.28 SR Elbows and Buttwelding Returns
API 590-605
ASME B16.9 		‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of Incoloy 800 Butt weld Pipe Fittings

Incoloy 800 Butt weld Elbow
Incoloy 800 Butt weld Elbow
  • Incoloy® Alloy 800 45 Degree Elbow In Singapore
  • Incoloy 800 90 Degree Elbow In Kuwait
  • Alloy 800 3D Butt weld Elbow
  • Nickel Alloy 800 180 Deg Elbow
  • 1.4876 Short Radius Elbow
  • ANSI B16.9 Incoloy Alloy 800 5D Elbow
  • UNS N08800 LR Elbow
Incoloy 800 Butt weld Tee
Incoloy 800 Butt weld Tee
  • Incoloy® Alloy 800 Reducing Tee In Spain
  • Incoloy 800 Tee
  • Incoloy 800 Unequal Tee In Italy
  • UNS N08800 Butt weld Tee
  • 1.4876 Buttweld Tees
  • ANSI B16.9 Incoloy 800 Buttweld Tee
  • Alloy 800 Equal Tee
Incoloy 800 Butt weld Cross
Incoloy 800 Butt weld Cross
  • 1.4876 Buttweld Cross
  • ANSI B16.9 Incoloy Alloy 800 Buttweld Cross
  • Incoloy 800 Cross In Japan
  • UNS N08800 Butt weld Cross
  • Incoloy Alloy 800 Unequal Cross In Philippines
  • Incoloy 800 Reducing Cross
  • Alloy 800 Equal Cross
Incoloy 800 Concentric Reducer
Incoloy 800 Concentric Reducer
  • UNS N08800 Concentric Reducer
  • Alloy 800 Concentric Reducer In Mexico
  • ANSI B16.9 Incoloy Alloy 800 Concentric Reducer
  • Nickel Alloy 800 Concentric Reducer In Malaysia
  • 1.4876 Concentric Reducer
Incoloy 800 Eccentric Reducer
Incoloy 800 Eccentric Reducer
  • ANSI B16.9 Incoloy Alloy 800 Eccentric Reducer
  • Nickel Alloy 800 Eccentric Reducer In Singapore
  • UNS N08800 Eccentric Reducer
  • Alloy 800 Eccentric Reducer In Indonesia
  • 1.4876 Eccentric Reducer
Incoloy 800 Stub End
Incoloy 800 Stub End
  • ANSI B16.9 Incoloy Alloy 800 Lap Joint Stub End
  • Alloy 800 Long Stub End In Kuwait
  • UNS N08800 Butt weld Stub End
  • Incoloy 800 Short Stub End In Malaysia
  • 1.4876 Short Stub End
Incoloy 800 Pipe End Cap
Incoloy 800 Pipe End Cap
  • Incoloy 800 End Cap In Mexico
  • UNS N08800 Butt weld Cap
  • 1.4876 End Pipe Cap
  • ANSI B16.9 Incoloy Alloy 800 Pipe End Cap
  • Alloy 800 Pipe Cap In Spain
Incoloy 800 Pipe Nipple
Incoloy 800 Pipe Nipple
  • ANSI B16.9 Incoloy Alloy 800 Barrel Nipple
  • Incoloy 800 Nipple In Italy
  • Alloy 800 Pipe Nipple In Philippines
  • UNS N08800 Butt weld Nipple
  • 1.4876 Swage Nipple
Incoloy 800 Pipe Bend
Incoloy 800 Pipe Bend
  • ANSI B16.9 Incoloy Alloy 800 Bend
  • UNS N08800 Butt weld Bend
  • Incoloy 800 Long Radius Bend In Japan
  • Alloy 800 Piggable Bend
  • 1.4876 Hot Induction Bend

Equivalent Grades of Incoloy 800 Buttweld Fittings

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 800 1.4876 N08800 NCF 800 NA 15 ЭИ670 Z8NC32-21 X10NiCrAlTi32-20 XH32T
Incoloy 800H 1.4958 / 1.4876 N08810 NCF 800H NA 15(H) ЭИ670 Z8NC33-21 X5NiCrAlTi31-20 XH32T
Incoloy 800HT 1.4859 / 1.4876 N08811 NCF 800HT NA 15(HT) ЭИ670 - X8NiCrAlTi32-21 XH32T
Pipe Fittings Dimensions

View Thickness Table Of Incoloy 800 Buttweld Fittings, We have Global sales network for Incoloy 800 LR Elbow, Wide Stockist Of Werkstoff No 1.4876 Seamless Fittings In India.

Check available Sizes of ASME SB 366 Incoloy 800 Pipe Reducer, Ask For Ready Stock of UNS N08800 Stub End in Mumbai, India.

BAGODA

Quick Contact

ASME B16.9 Incoloy 800 Short and Long Radius Elbows Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter 		45°Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Radius
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

ASME B16.9 Incoloy 800 Tee & Cap Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter		 Caps Straight Crosses Straight Tees Stub Ends
(mm) (inches) Length
(inches)		 Center to End
(inches)		 Center to End
(inches)		 Lap Diameter
(inches)		 Long Length
(inches)		 Short Length
(inches)
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1/2 21.3 0.840 1 – 1 1 3/8 3 2
3/4 26.7 1.050 1 – 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

ASME B16.9 Incoloy 800 Concentric & Eccentric Reducer Dimensions

Nominal
Pipe
Size		 Outside
Diameter 		Reducers
Reduced from
(inches)		 (mm) (inches) Reduced to
(inches) 		Concentric & Eccentric Length
(inches)
1 33.4 1.315 3/8 2
1/2 2
3/4 2
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 1/4 42.2 1.660 1/2 2
3/4 2
1 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 2 1/2
1 1/4 2 1/2
2 60.3 2.375 3/4 3
1 3
1 1/4 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/4 3 1/2
1 1/2 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
1 1/2 3 1/2
2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2 4
2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 4
2 1/2 4
3 4
3 1/2 4
5 141.3 5.563 2 5
2 1/2 5
3 5
3 1/2 5
4 5
6 168.3 6.625 2 1/2 5 1/2
3 5 1/2
3 1/2 5 1/2
4 5 1/2
5 5 1/2
8 219.1 8.625 3 6
3 1/2 6
4 6
5 6
6 6
10 273.1 10.750 4 7
5 7
6 7
8 7
12 323.9 12.750 5 8
6 8
8 8
10 8

Incoloy 800 Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.96 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Incoloy 800 Pipe Fittings

  • ASTM B366 Incoloy 800 Buttweld Fittings
  • Inconel 800H Long Stub End In Indonesia
  • Alloy 800 1D Elbow/3D Elbow/5D Elbow In Malaysia
  • Nickel Alloy 800 End Cap Distributor
  • ANSI B16.9 Incoloy 800 Pipe Cap
  • Incoloy 800 Buttweld Fittings In Mexico
  • ASME B16.9 Inconel 800 Buttweld Fittings
  • 800 Incoloy Buttweld Nipple
  • SCH 60 Incoloy® Alloy 800 Pipe Nipples
  • Incoloy® Alloy 800 Elbow In Philippines
  • Incoloy® Alloy 800HT Butt weld Tee In Japan
  • Incoloy® Alloy 800 Lap Joint Stub End In Italy
  • UNS N08800 Pipe Fittings
  • 800 Incoloy 180° LR Return Bends
  • DIN 1.4876 Swage Nipple
  • Incoloy Alloy 800 Long Radius Bend Stockholder
  • Alloy 800 LR Elbow Stockist
  • Incoloy 800 Welded Fittings In Spain
  • Nickel Alloy 800 Pipe Fittings Manufacturer
  • ASME B16.9 Schedule 10 Inconel® Alloy 800 Elbow
  • Inconel Alloy 800HT Eccentric Reducer In Kuwait
  • Incoloy 800 Pipe Bend In Singapore
  • Incoloy 800 Piggable Bends
  • Alloy 800 Long Radius Elbow In Singapore
  • ASTM B366 Incoloy 800 Pipe Fittings
  • DIN 2605 Incoloy 800H Elbow Exporter
  • Incoloy 800 Reducer In Kuwait
  • Incoloy Alloy 800 Two Joint Pipe Fittings In Spain
  • Incoloy 800 Two Halve Butt weld Fittings
  • ASTM B366 Alloy 800 45 Degree Elbow
  • Incoloy® Alloy 800 Equal Cross In Italy
  • Alloy 800 Barrel Nipple Supplier in Mumbai
  • Incoloy 800 Seamless Fittings In Japan
  • Incoloy® Alloy 800 Pipe Elbow In Philippines
  • 15 NB SCH 10 Incoloy 800 90° Short Radius Elbow
  • Schedule 80 Incoloy 800 Grade Long Stub End
  • Alloy 800 Eccentric Reducer Manufacturer
  • ANSI B16.9 Incoloy 800 Short Stub End
  • ASTM B366 Incoloy 800 Stub End
  • Alloy 800 Reducing Nipple In Mexico
  • 1.4876 Butt weld Fittings
  • 1/2” - 16” ASTM B366 Alloy 800 Butt weld Elbow
  • Sch 80 Incoloy 800 Pipe Fittings
  • Incoloy 800 Butt Weld Pipe Fittings In Malaysia
  • Incoloy JIS NCF 800 Mandrel Pipe Bend
  • Incoloy 800 SR Elbow In Indonesia
  • ASME SB366 Incoloy® Alloy 800 Lateral Tee
  • 5" Nb Sch10s Incoloy 800 90° Short Radius Elbow

Incoloy 800 Butt weld Fittings Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr Al Ti
800 0.10 max 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60 0.15 – 0.60
800H 0.05 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60 0.15 – 0.60
800HT 0.06 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60ᴬ 0.15 – 0.60ᴬ

Incoloy 800 Pipe Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
800 / 800H / 800HT 7.94 g/cm3 1385 °C (2525 °F) Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa – 205 30 %

Export Destinations For Incoloy 800 Butt weld Pipe Fittings

industry
