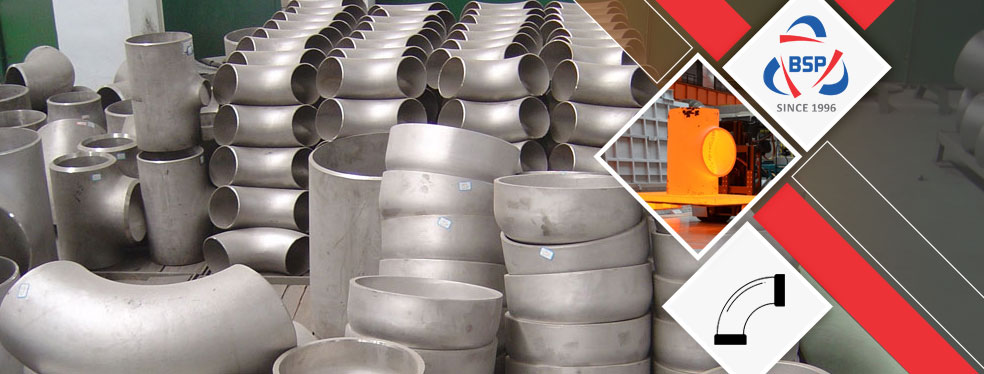

Inconel® Alloy 625 LR Elbow, Inconel 625 Equal Tee In Japan, Nickel Alloy 625 Cross, UNS N06625 Stub End, DIN 2.4856 Reducer Supplier in Mumbai, India.
Complying with the aid of the purchaser particular demands, they're available in host of specs at main enterprise prices. They are factory-made by means of our professionals who use of great-accepted material within the production procedure. Inconel Alloy WNR 2.4856 Pipe Fittings are designed and engineered the usage of top rate great metals and alloys in adherence with the worldwide great requirements and norms. While related to prolonged publicity to temperatures extra than 572 Degree F, the use of these pipe fittings isn't always recommended. The chemical composition of these pipe fittings carries barely extra copper and tungsten.
We are one of the nicely - acknowledged stockiest and distributor of these pipe fittings, which capabilities excessive resistance to sturdy alkalis and resists corrosion in some of non oxidizing acids. Inconel Alloy 625 Pipe Fittings is utilized in system for the oil & fueloline enterprise, on offshore platforms, in warmth exchangers, chemical processing, etc. The copper content (minimal 0.5 and maximal 1.0) in these pipe fittings lets in terrific resistance to corrosion in lots of non oxidizing and mineral acids like hydrochloric and sulphuric acid. The overall performance of our pipe fittings, at the side of that of different alloys, improves with inside the presence of oxidisers’ within the acid, as much as the onset of Trans - passive corrosion, and reduces because the chloride awareness increases.
Material Specification Chart of Inconel 625 Pipe Fittings
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Connection | Welding |
| Manufacturing Process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized Manufacturer of | 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
INCONEL 625 PIPE FITTINGS MANUFACTURING STANDARDS
| ASTM B366/B366M | Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| MSS SP-43 | Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications |
| BS3799 – | Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry |
| ASTM B366 – ASME SB366 | Standard Specification for Piping Fitting |
| ASME Standard | ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43 |
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | SR Elbows and Buttwelding Returns |
| API 590-605 ASME B16.9 |
‘Factory-Made Wrought Butt-welding Fittings’ |
Various Types Of Inconel 625 Butt weld Pipe Fittings
- Nickel Alloy 625 180 Deg Elbow In Indonesia
- Inconel® Alloy 625 45 Degree Elbow
- Inconel 625 90 Degree Elbow In Malaysia
- Alloy 625 3D Butt weld Elbow
- ANSI B16.9 Inconel Alloy 625 5D Elbow
- 2.4856 Short Radius Elbow
- UNS N06625 LR Elbow
- Alloy 625 Equal Tee In Mexico
- Inconel® Alloy 625 Reducing Tee
- ANSI B16.9 Inconel 625 Buttweld Tee
- 2.4856 Buttweld Tees
- UNS N06625 Butt weld Tee
- Inconel 625 Unequal Tee In Philippines
- Inconel 625 Tee
- ANSI B16.9 Inconel Alloy 625 Buttweld Cross
- Inconel 625 Cross In Italy
- 2.4856 Buttweld Cross
- Inconel Alloy 625 Unequal Cross
- Inconel 625 Reducing Cross
- Alloy 625 Equal Cross In Japan
- UNS N06625 Butt weld Cross
- UNS N06625 Concentric Reducer
- Nickel Alloy 625 Concentric Reducer In Spain
- Alloy 625 Concentric Reducer In Italy
- ANSI B16.9 Inconel Alloy 625 Concentric Reducer
- 2.4856 Concentric Reducer
- 2.4856 Eccentric Reducer
- Alloy 625 Eccentric Reducer In Kuwait
- UNS N06625 Eccentric Reducer
- Nickel Alloy 625 Eccentric Reducer In Singapore
- ANSI B16.9 Inconel Alloy 625 Eccentric Reducer
- Inconel 625 Short Stub End In Malaysia
- UNS N06625 Butt weld Stub End
- ANSI B16.9 Inconel Alloy 625 Lap Joint Stub End
- Alloy 625 Long Stub End In Italy
- 2.4856 Short Stub End
- Inconel 625 End Cap In Philippines
- Alloy 625 Pipe Cap In Indonesia
- UNS N06625 Butt weld Cap
- ANSI B16.9 Inconel Alloy 625 Pipe End Cap
- 2.4856 End Pipe Cap
- ANSI B16.9 Inconel Alloy 625 Barrel Nipple
- Inconel 625 Nipple In Malaysia
- Alloy 625 Pipe Nipple In Kuwait
- 2.4856 Swage Nipple
- UNS N06625 Butt weld Nipple
- ANSI B16.9 Inconel Alloy 625 Bend
- UNS N06625 Butt weld Bend
- 2.4856 Hot Induction Bend
- Alloy 625 Piggable Bend In Japan
- Inconel 625 Long Radius Bend In Kuwait
Equivalent Grades of Inconel 625 Buttweld Fittings
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Inconel 625 | N06625 | 2.4856 | NC22DNB4M | NiCr22Mo9Nb | NCF 625 | NA 21 | ХН75МБТЮ | ЭИ602 |
View Thickness Table Of Inconel 625 Buttweld Fittings, We have Global sales network for Inconel 625 LR Elbow, Wide Stockist Of Werkstoff No 2.4856 Seamless Fittings In India.
Check available Sizes of ASME SB 366 Inconel 625 Pipe Reducer, Ask For Ready Stock of UNS N06625 Stub End in Mumbai, India.
BAGODA
Quick Contact
ASME B16.9 Inconel 625 Short and Long Radius Elbows Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Center to Face (inches) |
Center to Center (inches) |
Back to face (inches) |
|
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
ASME B16.9 Inconel 625 Tee & Cap Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter |
Caps | Straight Crosses | Straight Tees | Stub Ends | |||
| (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
|
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1/2 | 21.3 | 0.840 | 1 | – | 1 | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | – | 1 1/8 | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
ASME B16.9 Inconel 625 Concentric & Eccentric Reducer Dimensions
| Nominal Pipe Size |
Outside Diameter | Reducers | ||
| Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) | Concentric & Eccentric Length (inches) |
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
Inconel 625 Buttweld Fittings Weights(Kg)
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.96 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Ready Stock Inconel 625 Pipe Fittings
- Inconel JIS NCF 625 Mandrel Pipe Bend
- 5" Nb Sch10s Inconel 625 90° Short Radius Elbow
- Inconel® Alloy 625 Butt weld Tee In Indonesia
- Inconel Alloy 625 Eccentric Reducer In Malaysia
- ASTM B366 Inconel 625 Pipe Fittings
- 2.4856 Butt weld Fittings
- Inconel 625 Reducer In Mexico
- Alloy 625 1D Elbow/3D Elbow/5D Elbow In Philippines
- Schedule 80 Inconel 625 Grade Long Stub End
- ASTM B366 Inconel 625 Buttweld Fittings
- Inconel 625 Two Halve Butt weld Fittings In Japan
- Inconel® Alloy 625 Pipe Elbow In Italy
- Sch 80 Inconel 625 Pipe Fittings
- Alloy 625 Barrel Nipple Supplier in Mumbai
- Inconel 625 Buttweld Fittings In Spain
- Inconel Alloy 625 Long Radius Bend Stockholder
- DIN 2.4856 Swage Nipple
- Alloy 625 Reducing Nipple
- Nickel Alloy 625 End Cap Distributor
- Alloy 625 LR Elbow Stockist
- ANSI B16.9 Inconel 625 Pipe Cap
- Inconel 625 Seamless Fittings In Kuwait
- ASTM B366 Inconel 625 Stub End
- ANSI B16.9 Inconel 625 Short Stub End
- 625 Inconel Buttweld Nipple
- Inconel® Alloy 625 Elbow In Singapore
- Inconel 625 Welded Fittings
- 1/2” - 16” ASTM B366 Alloy 625 Butt weld Elbow
- DIN 2605 Inconel 625 Elbow Exporter
- UNS N06625 Pipe Fittings
- 625 Inconel 180° LR Return Bends
- Inconel 625 Piggable Bends In Indonesia
- Inconel Alloy 625 Two Joint Pipe Fittings
- Inconel® Alloy 625 Equal Cross In Malaysia
- 15 NB SCH 10 Inconel 625 90° Short Radius Elbow
- Inconel® Alloy 625 Lap Joint Stub End In Mexico
- SCH 60 Inconel® Alloy 625 Pipe Nipples
- Alloy 625 Eccentric Reducer Manufacturer
- ASME SB366 Inconel® Alloy 625 Lateral Tee
- Alloy 625 Long Radius Elbow In Philippines
- Inconel 625 Butt Weld Pipe Fittings In Japan
- ASTM B366 Alloy 625 45 Degree Elbow
- Inconel 625 SR Elbow In Italy
- Inconel 625 Pipe Bend In Spain
- Nickel Alloy 625 Pipe Fittings Manufacturer
- Inconel 625 Long Stub End In Kuwait
- ASME B16.9 Schedule 10 Inconel® Alloy 625 Elbow
- ASME B16.9 Inconel 625 Buttweld Fittings
Inconel 625 Butt weld Fittings Chemical Composition
| Grade | C | Mn | Si | S | Al | Ti | Fe | Ni | Cr |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | 0.40 max | 0.40 max | 5.0 max | 58.0 min | 20.0 – 23.0 |
Inconel 625 Pipe Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa -930 | Psi – 75,000 , MPa – 517 | 42.5 % |
