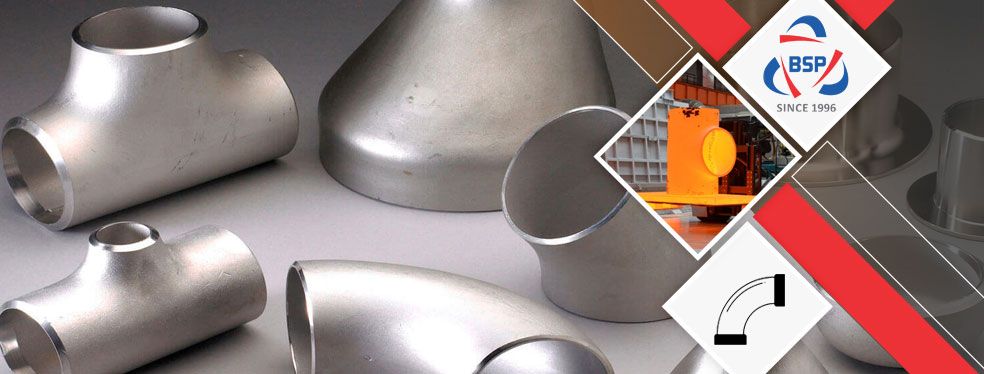

Inconel 600 Pipe Fittings

ANSI B16.9 Inconel Alloy 600 Short Radius Elbow, Alloy 600 90 Deg. Elbow, Inconel 600 Elbow Price in India.

Bagoda Steel is a well-known exporter and trader of Inconel Alloy 600 Pipe Fittings, which is a conventional and furnished in wide - ranging general sizes. It gives some of best capabilities which include enterprise designs, correct dimensions, low maintenance, etc. Nourishing and nurturing the roots of our firm, we gift a best grade of our pipe fittings. Applications of these Inconel Alloy UNS N06600 Reducer Pipe Fittings are restricted to a most temperature of a thousand Degree F in step with ASME. It has correct mechanical properties at cryogenic temperatures to reasonably excessive temperatures as much as 538 Degree C. It alongside the molybdenum and copper, additionally offers high-quality resistance to lowering environments which includes the ones containing sulphuric and phosphoric acids. The chemical composition is designed to offer splendid resistance to a whole lot of corrosive environments.

Industrial Product
Inconel 600 Pipe Fittings

Inconel 600 Equal Tee In Indonesia, DIN 2.4816 Reducer, UNS N06600 Stub End, Inconel® Alloy 600 LR Elbow Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

It is characterised via way of means of excellent chloride corrosion resistance, blended with very excessive mechanical strength. Inconel WNR 2.4816 Concentric Reducer Pipe Fittings obtains its warmth resistant properties via way of means of tight manages of micro alloy additions. The use of cerium in in mixture with silicon consequences in advanced oxidation resistance to 2000 Degree F (1093 Degree C). Nitrogen, carbon, and cerium integrate to offer creep rupture strength this is double that of different steels at 1600 Degree F (871 Degree C). It is pretty ductile within the annealed condition, in which nearby suffixation assault beneath the deposit can then occur.

It has correct resistance to warm bearing atmospheres that means suffixation beneath oxidizing conditions. Note that despite the fact that the environment can be oxidizing in our pipe fittings, the partial stress of oxygen may be extraordinarily low beneath stable sulphate deposits. Inconel 600 Eccentric Reducer Pipe Fittings has splendid oxidation resistance as much as approximately 2000 Degree F (1093 Degree C), in which above this temperature, its oxidation resistance drops off. Solution Treatment (Annealing) Heat of our pipe fittings is as much as 1010 Degree C – 1120 Degree C after which cool unexpectedly, which similarly can't be hardened via way of means of thermal treatment.

Material Specification Chart of Inconel 600 Pipe Fittings

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Connection Welding
Manufacturing Process Push, Press, Forge, Cast, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

INCONEL 600 PIPE FITTINGS MANUFACTURING STANDARDS

ASTM B366/B366M Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
MSS SP-43 Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM B366 – ASME SB366 Standard Specification for Piping Fitting
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.25 Buttwelding Ends
ASME B16.28 SR Elbows and Buttwelding Returns
API 590-605
ASME B16.9 		‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of Inconel 600 Butt weld Pipe Fittings

Inconel 600 Butt weld Elbow
Inconel 600 Butt weld Elbow
  • Alloy 600 3D Butt weld Elbow In Indonesia
  • Nickel Alloy 600 180 Deg Elbow In Malaysia
  • Inconel 600 90 Degree Elbow
  • 2.4816 Short Radius Elbow
  • ANSI B16.9 Inconel Alloy 600 5D Elbow
  • Inconel® Alloy 600 45 Degree Elbow
  • UNS N06600 LR Elbow
Inconel 600 Butt weld Tee
Inconel 600 Butt weld Tee
  • Alloy 600 Equal Tee
  • UNS N06600 Butt weld Tee
  • Inconel 600 Tee In Mexico
  • Inconel® Alloy 600 Reducing Tee
  • 2.4816 Buttweld Tees
  • ANSI B16.9 Inconel 600 Buttweld Tee
  • Inconel 600 Unequal Tee In Philippines
Inconel 600 Butt weld Cross
Inconel 600 Butt weld Cross
  • 2.4816 Buttweld Cross
  • UNS N06600 Butt weld Cross
  • Inconel Alloy 600 Unequal Cross
  • ANSI B16.9 Inconel Alloy 600 Buttweld Cross
  • Inconel 600 Reducing Cross In Japan
  • Alloy 600 Equal Cross In Italy
  • Inconel 600 Cross
Inconel 600 Concentric Reducer
Inconel 600 Concentric Reducer
  • UNS N06600 Concentric Reducer
  • ANSI B16.9 Inconel Alloy 600 Concentric Reducer
  • 2.4816 Concentric Reducer
  • Nickel Alloy 600 Concentric Reducer In Spain
  • Alloy 600 Concentric Reducer In Kuwait
Inconel 600 Eccentric Reducer
Inconel 600 Eccentric Reducer
  • ANSI B16.9 Inconel Alloy 600 Eccentric Reducer
  • Alloy 600 Eccentric Reducer In Singapore
  • UNS N06600 Eccentric Reducer
  • Nickel Alloy 600 Eccentric Reducer In Indonesia
  • 2.4816 Eccentric Reducer
Inconel 600 Stub End
Inconel 600 Stub End
  • ANSI B16.9 Inconel Alloy 600 Lap Joint Stub End
  • Alloy 600 Long Stub End In Malaysia
  • UNS N06600 Butt weld Stub End
  • 2.4816 Short Stub End
  • Inconel 600 Short Stub End In Kuwait
Inconel 600 Pipe End Cap
Inconel 600 Pipe End Cap
  • ANSI B16.9 Inconel Alloy 600 Pipe End Cap
  • Alloy 600 Pipe Cap In Spain
  • 2.4816 End Pipe Cap
  • Inconel 600 End Cap In Mexico
  • UNS N06600 Butt weld Cap
Inconel 600 Pipe Nipple
Inconel 600 Pipe Nipple
  • ANSI B16.9 Inconel Alloy 600 Barrel Nipple
  • Inconel 600 Nipple In Philippines
  • 2.4816 Swage Nipple
  • Alloy 600 Pipe Nipple In Italy
  • UNS N06600 Butt weld Nipple
Inconel 600 Pipe Bend
Inconel 600 Pipe Bend
  • Alloy 600 Piggable Bend In Japan
  • UNS N06600 Butt weld Bend
  • 2.4816 Hot Induction Bend
  • Inconel 600 Long Radius Bend
  • ANSI B16.9 Inconel Alloy 600 Bend In Singapore

Equivalent Grades of Inconel 600 Buttweld Fittings

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 600 2.4816 N06600 NCF 600 NA 13 МНЖМц 28-2,5-1,5 NC15FE11M NiCr15Fe
Pipe Fittings Dimensions

View Thickness Table Of Inconel 600 Buttweld Fittings, We have Global sales network for Inconel 600 LR Elbow, Wide Stockist Of Werkstoff No 2.4816 Seamless Fittings In India.

Check available Sizes of ASME SB 366 Inconel 600 Pipe Reducer, Ask For Ready Stock of UNS N06600 Stub End in Mumbai, India.

BAGODA

Quick Contact

ASME B16.9 Inconel 600 Short and Long Radius Elbows Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter 		45°Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Radius
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

ASME B16.9 Inconel 600 Tee & Cap Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter		 Caps Straight Crosses Straight Tees Stub Ends
(mm) (inches) Length
(inches)		 Center to End
(inches)		 Center to End
(inches)		 Lap Diameter
(inches)		 Long Length
(inches)		 Short Length
(inches)
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1/2 21.3 0.840 1 – 1 1 3/8 3 2
3/4 26.7 1.050 1 – 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

ASME B16.9 Inconel 600 Concentric & Eccentric Reducer Dimensions

Nominal
Pipe
Size		 Outside
Diameter 		Reducers
Reduced from
(inches)		 (mm) (inches) Reduced to
(inches) 		Concentric & Eccentric Length
(inches)
1 33.4 1.315 3/8 2
1/2 2
3/4 2
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 1/4 42.2 1.660 1/2 2
3/4 2
1 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 2 1/2
1 1/4 2 1/2
2 60.3 2.375 3/4 3
1 3
1 1/4 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/4 3 1/2
1 1/2 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
1 1/2 3 1/2
2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2 4
2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 4
2 1/2 4
3 4
3 1/2 4
5 141.3 5.563 2 5
2 1/2 5
3 5
3 1/2 5
4 5
6 168.3 6.625 2 1/2 5 1/2
3 5 1/2
3 1/2 5 1/2
4 5 1/2
5 5 1/2
8 219.1 8.625 3 6
3 1/2 6
4 6
5 6
6 6
10 273.1 10.750 4 7
5 7
6 7
8 7
12 323.9 12.750 5 8
6 8
8 8
10 8

Inconel 600 Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.96 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Inconel 600 Pipe Fittings

  • Inconel Alloy 600 Long Radius Bend Stockholder
  • Alloy 600 Long Radius Elbow In Indonesia
  • Inconel Alloy 600 Two Joint Pipe Fittings In Malaysia
  • ASME SB366 Inconel® Alloy 600 Lateral Tee
  • Schedule 80 Inconel 600 Grade Long Stub End
  • 600 Inconel Buttweld Nipple In Mexico
  • Alloy 600 Reducing Nipple In Philippines
  • Inconel® Alloy 600 Lap Joint Stub End In Japan
  • ASTM B366 Inconel 600 Stub End
  • ANSI B16.9 Inconel 600 Pipe Cap
  • Inconel 600 SR Elbow In Italy
  • ASME B16.9 Inconel 600 Buttweld Fittings
  • Alloy 600 Eccentric Reducer Manufacturer
  • DIN 2605 Inconel 600 Elbow Exporter
  • ASTM B366 Inconel 600 Pipe Fittings
  • Inconel 600 Long Stub End In Spain
  • Inconel JIS NCF 600 Mandrel Pipe Bend
  • SCH 60 Inconel® Alloy 600 Pipe Nipples
  • Inconel 600 Pipe Bend In Kuwait
  • Nickel Alloy 600 Pipe Fittings Manufacturer
  • 1/2” - 16” ASTM B366 Alloy 600 Butt weld Elbow
  • Inconel 600 Butt Weld Pipe Fittings In Singapore
  • DIN 2.4816 Swage Nipple
  • Inconel 600 Two Halve Butt weld Fittings
  • Inconel Alloy 600 Eccentric Reducer In Kuwait
  • Inconel® Alloy 600 Pipe Elbow In Spain
  • 600 Inconel 180° LR Return Bends
  • Sch 80 Inconel 600 Pipe Fittings
  • Inconel® Alloy 600 Elbow In Italy
  • 5" Nb Sch10s Inconel 600 90° Short Radius Elbow
  • 2.4816 Butt weld Fittings
  • Nickel Alloy 600 End Cap Distributor
  • ASME B16.9 Schedule 10 Inconel® Alloy 600 Elbow
  • Inconel 600 Buttweld Fittings
  • Alloy 600 1D Elbow/3D Elbow/5D Elbow
  • ANSI B16.9 Inconel 600 Short Stub End
  • Inconel 600 Reducer In Indonesia
  • Alloy 600 Barrel Nipple Supplier in Mumbai
  • Inconel® Alloy 600 Butt weld Tee In Japan
  • Inconel 600 Piggable Bends
  • Inconel 600 Seamless Fittings In Malaysia
  • Alloy 600 LR Elbow Stockist
  • ASTM B366 Alloy 600 45 Degree Elbow
  • Inconel 600 Welded Fittings In Mexico
  • Inconel® Alloy 600 Equal Cross In Philippines
  • 15 NB SCH 10 Inconel 600 90° Short Radius Elbow
  • UNS N06600 Pipe Fittings
  • ASTM B366 Inconel 600 Buttweld Fittings

Inconel 600 Butt weld Fittings Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Inconel 600 0.15 max 1.00 max 0.50 max 0.015max 0.50 max 6.00 – 10.00 72.00 min 14.00 – 17.00

Inconel 600 Pipe Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 600 8.47 g/cm3 1413 °C (2580 °F) Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 40 %

Export Destinations For Inconel 600 Butt weld Pipe Fittings

industry
