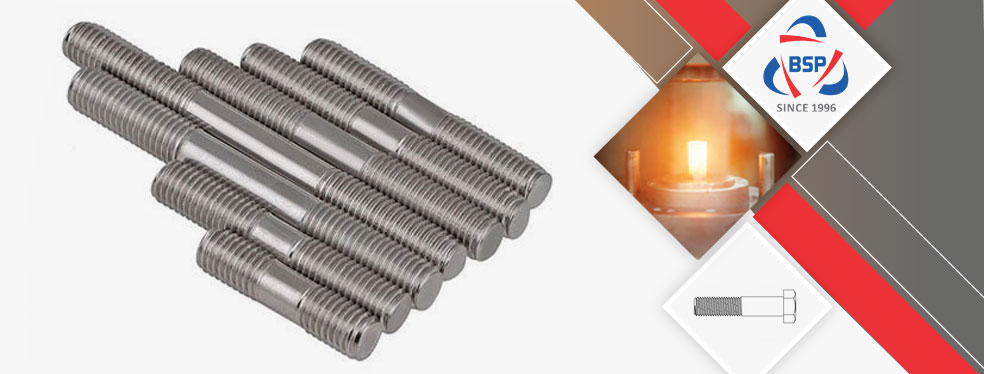

UNS S32750 Half Thread Stud Bolts, 1.4410 Tie Rods, SDSS S32750 Full Threaded Stud Bolt, Super Duplex Grade S32750 Tie Rods, Super Duplex Stainless Steel S32760 Stud Stockist, Super Duplex Steel S32760 Single End Stud Bolt, Super Duplex Steel S32750 Tap End Stud Bolts Supplier in Mumbai, India.
By means of having a base corrosion, temperature and wear-resistant alloys, they are categorized as mild-to-hard while machining, however, it must be emphasised that these alloys may be machined the usage of traditional manufacturing techniques at exceptional rates. During machining these alloys work harden rapidly, generate excessive warmth in the course of reducing, weld to the reducing device floor and provide excessive resistance to metallic elimination due to their excessive shear strengths. Alloy 2507 Stud Bolts offers mechanical properties over an extensive variety of temperature and superb resistance to many corrosives, mainly hydroxides. It is also used in production of viscose rayon, and manufacture of vinyl chloride monomer.
Good resistance to corrosion in acids and alkalis and is maximum beneficial beneath decreasing conditions. In acid, alkaline and impartial salt solutions the material indicates true resistance, however in oxidizing salt solutions extreme assault will occur. Resistant to all dry gases at room temperature and in dry chlorine and hydrogen chloride can be utilized in temperatures as much as 550 Degree C. Resistance to mineral acids varies consistent with temperature and attention and whether or not the answer is aerated or not. Corrosion resistance is higher in de-aerated acid. Super Duplex WNR 1.4501 Stud Bolts is used in manufacture and coping in company of sodium hydroxide, mainly at temperature above 300C.
Material Specification Chart of Super Duplex Steel S32750 / S32760 Stud Bolt
| Specification | ASTM F468, A193 / ASME SF468, SA193 |
|---|---|
| Size | M02 to M33, Custom Sizes |
| Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Types | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
Various Types Of Super Duplex Steel S32750 / S32760 Stud Bolt
Super Duplex Steel S32750 / S32760 Double Ended Stud Bolt
- Super Duplex Stenless Steel S32760 Double Ended Wheel Stud
- ASME SA193 Super Duplex Steel UNS S32760 Dual Threaded Stud
- 1.4410 Double End Stud
- Super Duplex 2507 Double Ended Stud Bolt
- UNS S32750 Double End Studs
- ASTM A193 SDSS S32750 Double Ended Stud Bolt
Super Duplex Steel S32750 / S32760 Stud Bolt
- Super Duplex Steel UNS S32760 Stud Bolts
- SAF 2507 Stud Bolts
- 1.4410 Stud Bolt
- ASME SA193 Super Duplex Stainless Steel S32760 Stud Bolts
- UNS S32760 Stud Bolts
- ASTM A193 Super Duplex Steel UNS S32750 Stud Bolts
Super Duplex Steel S32750 / S32760 Stud
- ASME SA193 Super Duplex Stainless Steel S32750 Stud
- 1.4410 Stud
- ASTM A193 DSS S32750 Clinch Stud
- UNS S32760 Dowel Studs
- Super Duplex 2507 Studs
- Super Duplex Steel UNS S32760 Weld Studs
Super Duplex Steel S32750 / S32760 Stud
- Super Duplex Steel UNS S32760 Flush Head Stud
- SAF 2507 Self Clinching Stud
- UNS S32760 Flush Head Clinch Studs
- ASTM A193 Super Duplex Stainless UNS S32750 Flush Head Self Clinching Studs
- 1.4410 Flush Head Studs
- ASME SA193 Super Duplex Grade S32750 Self Clinch Flush Head Stud
Super Duplex Steel S32750 / S32760 Threaded Rod
- Super Duplex Stainless Steel S32760 Threaded Rods
- UNS S32750 Threaded Stud
- ASME SA193 Super Duplex Steel UNS S32760 Threaded Rods
- Super Duplex 2507 Fully Threaded Rod
- ASTM A193 Super Duplex Grade S32750 M5 Threaded Rod
- 1.4410 Threaded Rods
Super Duplex Steel S32750 / S32760 Single End Stud Bolt
- Super Duplex Steel UNS S32760 Single End Studs
- ASTM A193 Super Duplex Grade S32750 Single Ended Stud Bolt
- ASME SA193 SAF 2507 Single Ended Stud Bolt
- UNS S32750 Single Ended Threaded Stud
- 1.4410 Single Ended Stud Bolt
- Super Duplex Stainless Steel S32760 M6 Single End Stud
Equivalent Grades of Super Duplex Steel S32750 / S32760 Stud Bolts
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex 2507 | 1.4410 | S32750 / S32760 |
View Size Table Of Super Duplex Steel S32760 Stud Bolts, We have Global sales network for Super Duplex Stainless Steel S32750 Stud Bolts, Wide Stockist Of Werkstoff No 1.4410 Tap End Stud Bolts, Double End Stud Bolts In India.
Size Chart of Super Duplex Steel S32750 / S32760 Stud Bolts
| Class 150 Flanges ASME B16.5 (Stud bolt sizes) | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in | Ring Joint | |
| 1/2 | 3 1/2 | 2 3/8 | 5/8 | 4 | 1/2 | 2 1/4 | – | |
| 3/4 | 3 7/8 | 2 3/4 | 5/8 | 4 | 1/2 | 2 1/2 | – | |
| 1 | 4 1/4 | 3 1/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 1 1/4 | 4 5/8 | 3 1/2 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 1 1/2 | 5 | 3 7/8 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 2 | 6 | 4 3/4 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 2 1/2 | 7 | 5 1/2 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 | 7 1/2 | 6 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 1/2 | 8 1/2 | 7 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 4 | 9 | 7 1/2 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 5 | 10 | 8 1/2 | 7/8 | 8 | 3/4 | 3 3/4 | 4 1/4 | |
| 6 | 11 | 9 1/2 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 8 | 13 1/2 | 11 3/4 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 10 | 16 | 14 3/4 | 1 | 12 | 7/8 | 4 1/2 | 5 | |
| 12 | 19 | 17 | 1 | 12 | 7/8 | 4 3/4 | 5 1/4 | |
| 14 | 21 | 18 3/4 | 1 1/8 | 12 | 1 | 5 1/4 | 5 3/4 | |
| 16 | 23 1/2 | 21 1/4 | 1 1/8 | 16 | 1 | 5 1/4 | 5 3/4 | |
| 18 | 25 | 22 3/4 | 1 1/4 | 16 | 1 1/8 | 5 3/4 | 6 1/4 | |
| 20 | 27 1/2 | 25 | 1 1/4 | 20 | 1 1/8 | 6 1/4 | 6 3/4 | |
| 24 | 32 | 29 1/2 | 1 1/4 | 20 | 1 1/4 | 6 3/4 | 7 1/4 | |
| Class 300 Flanges ASME B16.5 | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in | Ring Joint | |
| 1/2 | 3 3/4 | 2 5/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 3/4 | 4 5/8 | 3 1/4 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 | 4 7/8 | 3 1/2 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 1/4 | 5 1/4 | 3 7/8 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 1 1/2 | 6 1/8 | 4 1/2 | 7/8 | 4 | 3/4 | 3 1/2 | 4 | |
| 2 | 6 1/2 | 5 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 2 1/2 | 7 1/2 | 5 7/8 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 3 | 8 1/4 | 6 5/8 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 3 1/2 | 9 | 7 1/4 | 7/8 | 8 | 3/4 | 4 1/4 | 5 | |
| 4 | 10 | 7 7/8 | 7/8 | 8 | 3/4 | 4 1/2 | 5 | |
| 5 | 11 | 9 1/4 | 7/8 | 8 | 3/4 | 4 3/4 | 5 1/4 | |
| 6 | 12 1/2 | 10 5/8 | 7/8 | 12 | 3/4 | 4 3/4 | 5 1/2 | |
| 8 | 15 | 13 | 1 | 12 | 7/8 | 5 1/2 | 6 | |
| 10 | 17 1/2 | 15 1/4 | 1 1/8 | 16 | 1 | 6 1/4 | 6 3/4 | |
| 12 | 20 1/2 | 17 3/4 | 1 1/4 | 16 | 1 1/8 | 6 3/4 | 7 1/4 | |
| 14 | 23 | 20 1/4 | 1 1/4 | 20 | 1 1/8 | 7 | 7 1/2 | |
| 16 | 25 1/2 | 22 1/2 | 1 3/8 | 20 | 1 1/4 | 7 1/2 | 8 | |
| 18 | 28 | 24 3/4 | 1 3/8 | 24 | 1 1/4 | 7 3/4 | 8 1/4 | |
| 20 | 30 1/2 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 8 3/4 | |
| 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 10 | |
Check available Sizes of ASME SA193 Super Duplex Steel S32750 Stud Bolt, Ask For Ready Stock of UNS S32760 Stud Bolts in Mumbai, India.
BAGODA
Quick Contact
Dimensions of Super Duplex Steel S32750 / S32760 Stud Bolts
| Diameter | Diameter in mm | Diameter in inch | Nut Sizes |
|---|---|---|---|
| M12 | 12 | 0.4724 | 19 |
| M10 | 10 | 0.3937 | 17 |
| M14 | 14 | 0.5512 | 22 |
| M18 | 18 | 0.7087 | 27 |
| M16 | 16 | 0.6299 | 24 |
| M20 | 20 | 0.7874 | 30 |
| M24 | 24 | 0.9449 | 36 |
| M22 | 22 | 0.8661 | 32 |
| M27 | 27 | 1.063 | 41 |
| M33 | 33 | 1.2992 | 50 |
| M30 | 30 | 1.1811 | 46 |
| M36 | 36 | 1.4173 | 55 |
| M42 | 42 | 1.6535 | 65 |
| M39 | 39 | 1.5354 | 60 |
| M45 | 45 | 1.7717 | 70 |
| M52 | 52 | 2.0472 | 80 |
| M48 | 48 | 1.8898 | 75 |
| M56 | 56 | 2.2047 | 85 |
| M64 | 64 | 2.5197 | 95 |
| M60 | 60 | 2.3622 | 90 |
| M68 | 68 | 2.6772 | 100 |
| M76 | 76 | 2.9921 | 110 |
| M72 | 72 | 2.8346 | 105 |
| M80 | 80 | 3.1496 | 115 |
| M90 | 90 | 3.5433 | 130 |
| M85 | 85 | 3.3464 | 120 |
| M100 | 100 | 3.937 | 145 |
| M160 | 160 | 6.2992 | 230 |
| M125 | 125 | 4.9212 | 180 |
| M110 | 110 | 4.3307 | 155 |
| M140 | 140 | 5.5118 | 200 |
Super Duplex Steel S32750 / S32760 Stud Bolt Torque Chart
| Flange Size | B16.5 Class 150 RF/ Ring Gaskets | B16.5 Class 150 FF/ Full Face Gaskets | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | |||||||
| 1st | 2nd | Final | Dwg/No. | Bolt Size | 1st | 2nd | Final | Dwg*/No. | Bolt Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 3/4″ | 13 | 27 | 40 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1″ | 15 | 30 | 50 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/4″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 2-1/2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3-1/2″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 4″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 8″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 10″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 12″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 14″ | 147 | 294 | 490 | 12-bolt | 1″ | 147 | 294 | 490 | 12-bolt | 1″ |
| 16″ | 147 | 294 | 490 | 16-bolt | 1″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 18″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 20″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ |
| 24″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ |
| Flange Size | B16.5 Class 300 RF/ Ring Gaskets | ||||
|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence* | ||||
| 1st | 2nd | Final | Dwg/No. | Stud Bolts Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ |
| 3/4″ | 15 | 30 | 50 | 4-bolt | 5/8″ |
| 1″ | 21 | 42 | 70 | 4-bolt | 5/8″ |
| 1-1/4″ | 30 | 60 | 100 | 4-bolt | 5/8″ |
| 1-1/2″ | 45 | 90 | 150 | 4-bolt | 3/4″ |
| 2″ | 33 | 66 | 110 | 8-bolt | 5/8″ |
| 2-1/2″ | 42 | 84 | 140 | 8-bolt | 3/4″ |
| 3″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 3-1/2″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 12-bolt | 3/4″ |
| 8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 10″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 12″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 14″ | 195 | 390 | 650 | 20-bolt | 1-1/8″ |
| 16″ | 273 | 546 | 910 | 20-bolt | 1-1/4″ |
| 18″ | 300 | 600 | 1,000 | 24-bolt | 1-1/4″ |
| 20″ | 300 | 600 | 1,000 | 24-bolt | 1-1/4″ |
| 24″ | 465 | 930 | 1,550 | 24-bolt | 1-1/2″ |
Weight Chart Of Super Duplex Steel S32750 / S32760 Stud Bolt
| Weight Imperial | |||||||||||||
| STUD BOLT LENGTH (in inches) | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1.3/8 | 1 1/2 | 1.5/8 | 1.3/4 | 1 7/8 | |
| 2.1/2 | 10.8 | ||||||||||||
| 2.3/4 | 11.6 | 19.8 | |||||||||||
| 3.1/4 | 12.4 | 21 | 32.4 | ||||||||||
| 3.1/2 | 13.2 | 22.2 | 34.3 | 50 | |||||||||
| 4 | 14 | 23.4 | 36.2 | 52.6 | 71.8 | ||||||||
| 4.1/2 | 14.8 | 24.6 | 38.1 | 55.2 | 75.2 | 102 | |||||||
| 4.3/4 | 15.6 | 25.8 | 40 | 57.8 | 78.6 | 106 | 137 | ||||||
| 5 | 16.4 | 27 | 41.9 | 60.4 | 82 | 111 | 142 | 179 | |||||
| 5.1/2 | 17.2 | 28.2 | 43.8 | 63 | 85.4 | 115 | 147 | 186 | 234 | ||||
| 6 | 18 | 29.4 | 45.7 | 65.6 | 88.8 | 119 | 153 | 193 | 242 | 289 | |||
| 6.1/4 | 18.8 | 30.6 | 47.6 | 68.2 | 92.2 | 123 | 158 | 200 | 250 | 298 | 263 | ||
| 6.1/2 | 19.6 | 32.3 | 49.5 | 70.8 | 95.6 | 128 | 164 | 206 | 258 | 308 | 374 | 437 | |
| 7 | 20.4 | 33.5 | 50.8 | 73.4 | 99 | 132 | 169 | 213 | 266 | 317 | 385 | 449 | |
| 7.1/2 | 21.2 | 34.8 | 52.7 | 75.5 | 103 | 136 | 174 | 220 | 275 | 326 | 396 | 462 | |
| 8 | 22 | 36.1 | 54.5 | 78 | 106 | 141 | 180 | 226 | 283 | 336 | 407 | 475 | |
| 8.1/4 | 37.3 | 56.3 | 80.5 | 108 | 145 | 185 | 233 | 291 | 345 | 418 | 488 | ||
| 8.3/4 | 38.6 | 58.1 | 83.1 | 112 | 149 | 191 | 240 | 299 | 354 | 429 | 500 | ||
| 9 | 39.8 | 60 | 85.6 | 115 | 153 | 196 | 246 | 307 | 364 | 440 | 513 | ||
| 9.1/2 | 41.1 | 61.8 | 88.2 | 118 | 158 | 201 | 253 | 316 | 373 | 451 | 526 | ||
| 10 | 63.7 | 90.7 | 122 | 162 | 206 | 260 | 324 | 382 | 463 | 538 | |||
| 10/1.4 | 93.3 | 125 | 166 | 212 | 267 | 332 | 391 | 474 | 551 | ||||
| 1.0.1/2 | 128 | 171 | 217 | 273 | 340 | 401 | 485 | 564 | |||||
| 11 | 132 | 175 | 223 | 279 | 345 | 410 | 496 | 576 | |||||
| 11.1/2 | 135 | 179 | 228 | 285 | 350 | 419 | 507 | 589 | |||||
| 12 | 138 | 184 | 233 | 292 | 358 | 429 | 518 | 602 | |||||
| Weight Of Metric Studs Bolt | |||||||||||||
| STUD BOLT LENGTH (in mm) | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
| 60 | 5,6 | 8,1 | 12 | 15,6 | |||||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | 23,7 | ||||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 25,4 | 32,5 | |||||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 27,1 | 34,5 | 45,5 | ||||||
| 100 | 7,6 | 11 | 16 | 21 | 28,8 | 36,7 | 47,2 | 54,2 | |||||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 30,4 | 38,7 | 48,3 | 58,2 | 80 | ||||
| 120 | 8,6 | 12,4 | 18 | 23,6 | 32,1 | 40,7 | 50,9 | 60,2 | 84,7 | 107 | |||
| 130 | 9,1 | 13,2 | 19 | 24,9 | 33,7 | 42,8 | 53,4 | 63,2 | 88,6 | 111 | 141 | ||
| 140 | 9,6 | 14,2 | 20 | 26,2 | 35,4 | 44,9 | 55,9 | 66,2 | 92,4 | 116 | 147 | 185 | |
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 36,9 | 46,9 | 58,5 | 69,2 | 96,3 | 121 | 153 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 38,6 | 49 | 61 | 72,2 | 100,1 | 126 | 159 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 40,2 | 51,1 | 63,5 | 75,2 | 104 | 130 | 165 | 206 | 253 | |
| 180 | 23,8 | 31,8 | 41,9 | 52,3 | 66,1 | 78,1 | 108 | 135 | 171 | 213 | 261 | ||
| 190 | 33,1 | 43,5 | 54,4 | 68,4 | 81,1 | 112 | 140 | 176 | 219 | 269 | |||
| 200 | 34,5 | 45,2 | 56,2 | 71 | 84 | 116 | 144 | 182 | 226 | 278 | |||
| 210 | 35,8 | 46,8 | 58,5 | 73,5 | 88,4 | 120 | 149 | 188 | 233 | 286 | |||
| 220 | 37,1 | 48,4 | 60,6 | 76,1 | 91,4 | 124 | 154 | 194 | 240 | 294 | |||
| 230 | 38,5 | 50,1 | 62,6 | 78,6 | 94,4 | 127 | 159 | 201 | 247 | 302 | |||
| 240 | 39,8 | 51,7 | 64,7 | 81,2 | 97,4 | 130,9 | 164 | 208 | 253 | 310 | |||
| 250 | 41,1 | 53,4 | 66,8 | 83,7 | 100,4 | 134,8 | 172 | 214 | 260 | 319 | |||
| 260 | 55 | 68,8 | 86,3 | 103,4 | 138,6 | 177 | 220 | 267 | 327 | ||||
| 270 | 56,6 | 70,9 | 88,8 | 106,4 | 142,5 | 182 | 224 | 274 | 335 | ||||
| 280 | 58,3 | 73 | 91,4 | 109,4 | 146,3 | 187 | 230 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 150,1 | 192 | 236 | 291 | 360 | |||||
| 300 | 77,1 | 96,5 | 115,4 | 154 | 196 | 241 | 298 | 368 | |||||
| 320 | 101,6 | 121,3 | 161,7 | 206 | 253 | 312 | 380 | ||||||
| 340 | 127,3 | 169,4 | 215 | 265 | 326 | 395 | |||||||
| 360 | 133,3 | 177,1 | 224 | 276 | 340 | 411 | |||||||
| 380 | 184,8 | 234 | 288 | 353 | 428 | ||||||||
| 400 | 192,5 | 243 | 299 | 367 | 444 | ||||||||
| 420 | 252 | 311 | 381 | 460 | |||||||||
| 440 | 262 | 322 | 394 | 477 | |||||||||
| 460 | 271 | 334 | 408 | 493 | |||||||||
| 480 | 281 | 345 | 422 | 509 | |||||||||
| 500 | 290 | 357 | 436 | 526 | |||||||||
Ready Stock Super Duplex Steel S32750 / S32760 Stud Bolts
- Super Duplex Steel UNS S32750 Double End Stud Bolts
- JIS NCF 2507 Stud Bolts
- Super Duplex Steel UNS S32750 Half Thread Stud Bolt
- SDSS S32760 Threaded Rod Exporter
- DIN 1.4410 Full Threaded Stud Bolt
- SDSS S32760 Double Ended Stud
- SDSS S32750 Threaded Studs
- Super Duplex Grade S32750 Tie Rods
- Super Duplex Grade S32760 M16 Stud Bolt
- ASTM A193 Super Duplex Steel S32760 Double Ended Stud
- Super Duplex 2507 Threaded Stud Bolt
- Super Duplex Steel UNS S32750 Tie Rods
- ASTM A193 SDSS S32760 Double Ended Stud
- SDSS S32750 Industrial Stud Bolts Supplier in Mumbai
- Super Duplex Steel UNS S32750 Continuous Thread Stud Bolt
- Super Duplex Steel UNS S32760 Wheel Lug Stud Bolt
- Super Duplex Grade S32760 Metric Thread Stud Bolt Manufacturer
- SDSS S32760 Single End Stud Bolt
- Super Duplex Steel UNS S32750 Threaded Studs
- SDSS S32750 Studs
- DDSS S32760 Continuous Thread Stud Bolt
- Super Super Duplex Grade S32760 Flush Head Studs Stockist
- SDSS S32760 Tap End Stud Bolts
- Super Duplex Steel S32760 Threaded Studs
- ASME SA193 Super Duplex 2507 Studs
- Super Duplex Grade S32760 Flush Head Studs
- SDSS S32760 High Pressure Stud Bolt
- ASTM A193 UNS S32760 Stud Bolts
- UNS S32750 Stud Bolt
- Super Duplex Steel UNS S32760 Partial Threaded Stud Bolt Stockholder
- ASTM A193 Super Duplex Steel UNS S32750 Double End Stud Bolts
- Super Duplex Steel UNS S32760 Full Threaded Stud Bolt Distributor
- Super Duplex Steel UNS S32750 Stud Bolts
- Super Duplex Grade S32750 Heavy Stud Bolt
- Super Duplex Stainless Steel S32760 Industrial Stud Bolts
- Super Duplex Grade S32750 Continuous Thread Stud Bolt
- SDSS S32760 Drywall Stud
- Super Duplex Stainless Steel S32760 Stud Bolts With Reduced Shank
- SDSS S32750 Tie Bars
- Super Duplex Grade S32750 Heavy Stud Bolt
- 1.4410 Continuous Thread Stud Bolt
- Super Duplex Steel UNS S32750 Threaded Stud Bolts
- Super Duplex Stainless Steel S32760 Double Ended Stud Manufacturer
- SDSS S32750 Threaded Rod
- SAF 2507 Stud Bolt
- Super Duplex Steel UNS S32760 Weld Studs
- Super Duplex Steel S32750 Stud Bolt
- Super Duplex Stainless Steel S32760 Tap End Stud Bolts
Super Duplex Steel S32750 / S32760 Stud Bolts Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
