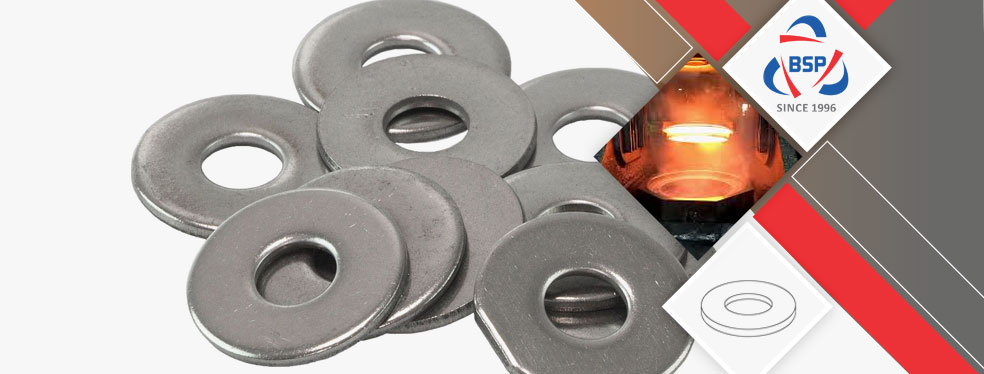

Super Duplex Steel S32750 / S32760 Washers

ASTM B479 Super Duplex Steel S32760 Spring Washers, Super Duplex Stainless Steel S32750 Washers, SAF 2507 Flat Washers, SDSS S32750 Star Washers, Super Duplex S32760 Industrial Washers Price in India.

Bagoda Steel is a distinguished seller of Super Duplex Steel UNS S32750 / S32760 Washers, which may be further strengthened by cold working earlier than the precipitation hardening. It is an alloy, immune to sea water and steam at excessive temperatures in addition to salt and caustic solutions.It is used in aniline hydrochloride manufacturing and within the chlorination of aliphatic hydrocarbons including benzene, methane and ethane.It is also used in reactors and vessels wherein fluorine is generated and reacted with hydrocarbons.Super Duplex Steel 2507 Flat Washersis an alloy which mixes the corrosion resistance by means of having an excessive strength corrosion fatigue and erosion resistance.It keeps the incredible corrosion resistant traits of four hundred and has enhanced strength and hardness after precipitation hardening.

Industrial Product
Super Duplex Steel S32750 / S32760 Washers

SDSS S32760 Tooth Lock Washer Stockist, UNS S32750 Fender Washer, SAF 2507 Lock Washers, Super Duplex Stainless Steel S32750 Dome Washers, 1.4410 Belleville Washers, Super Duplex S32760 Square Washer, Super Duplex Steel S32750 Split Washers, Super Duplex S32760 Ogee Washers Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

It offers excellent mechanical properties from sub-zero temperatures as much as approximately 480 Degree C.It provides corrosion resistance in an in depth variety of marine and chemical environments from natural water to non-oxidising mineral acids, salts and alkalis.It is often used in Propeller and pump shafts, Pumps and valves used within the manufacture of perchlorethylene, chlorinated plastics.Typical application for these SAF 2507 Lock Washers which takes benefit of excessive strength and corrosion resistance are pump shafts, impellers, propeller shafts, valve additives for ships and offshore drilling towers, bolting, oil nicely drill collars and instrumentation additives for oil and fueloline manufacturing.

It is non-magnetic and need to be annealed whilst welded and the weldment then strain relieved earlier than aging.Material may be provided in random lengths, reduce to reserve or machined on your specifications. Machining consists of drilling, turning, tapping, threading, CNC shapes, flanges and more. Super Duplex Steel WNR 1.4501 Machine Washers are categorized as slight to hard whilst machining, however, it need to be emphasised that these alloys may be machined the use of traditional manufacturing techniques at best costs.It is in particular nicely acceptable for centrifugal pumps within the marine enterprise due to its excessive strength and coffee corrosion costs in excessive-pace seawater.

Material Specification Chart of Super Duplex Steel S32750 / S32760 Washers

Specification ASTM B479 / ASME SB479
Size M02 to M33, Custom Sizes
Length 3 mm to 200 mm
Washer UNF, BSW, BSF, METRIC, UNC, or as required
Standard of Washers DIN 125A, DIN 125B, DIN 127B, DIN 137B, DIN 6797A, DIN 6797J, ISO 7089, DIN 7980, DIN 127 B, IS 2016, ASTM F436M, ASME B18.13, ASME B18.21.1, ASME B18.22.1, ASME B18.23.1
Form of Washers Hex, Threading, Square, Round as per Gauge Etc.
Raw materials Source JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate of Washers as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive of Washers Six-Lobe, Phillips, Phillips/Slot, Slotted etc
Packing of Washers IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating Ptfe Coated Washers
Phosphate Coating
Teflon Coating
Zinc Coating
Hot Dipped Galvanizing Coating
Cadmium Coating
Xylon Coating
Types Plain / Flat Washer, Spring Washers, Dome Washer, Hexagonal Washer, Square Washer, Dome Tooth Washer, Countersunk Washer, Tooth Lock Washer, Dock Washer, Fender Washer, Ogee Washer, Hex Washers, Split / Lock Washer, Customized Washer, Tab Washers

Various Types Of Super Duplex Steel S32750 / S32760 Washers

Super Duplex Steel S32750 / S32760 Flat Washers
Super Duplex Steel S32750 / S32760 Flat Washers
  • 1.4410 Flat Washer
  • UNS S32750 Plain Washer
  • ASME SB479 Super Duplex Stainless Steel S32750 Knurled Flat Washer
  • SAF 2507 Flat Washer
  • Super Duplex S32750 Thin Flat Washer
  • ASTM B479 Super Duplex Steel S32760 Thick Flat Washer
Super Duplex Steel S32750 / S32760 Ogee Washers
Super Duplex Steel S32750 / S32760 Ogee Washers
  • Super Duplex Steel S32750 Thick Ogee Washer
  • UNS S32750 Ogee Washer
  • ASTM B479 Super Duplex S32750 Ogee Washer
  • ASME SB479 Super Duplex Stainless Steel S32760 Thin Ogee Washer
  • 1.4410 Ogee Washer
  • SDSS S32760 Ogee Washer
Super Duplex Steel S32750 / S32760 Lock Washers
Super Duplex Steel S32750 / S32760 Lock Washers
  • UNS S32750 Lock Washer
  • ASME SB479 Super Duplex Stainless Steel S32750 Split Lock Washer
  • Super Duplex Steel S32750 Lock Washer
  • ASTM B479 SDSS S32760 Heavy Duty Lock Washers
  • 1.4410 Internal Tooth Lock Washer
  • Super Duplex S32760 Lock Washer
Super Duplex Steel S32750 / S32760 Spring Washers
Super Duplex Steel S32750 / S32760 Spring Washers
  • ASME SB479 Super Duplex Stainless Steel S32760 Flat Spring Washer
  • SDSS S32750 Wave Spring Washer
  • ASTM B479 Super Duplex S32760 Spring Washer
  • Super Duplex Steel S32750 Spring Washers
  • UNS S32760 Spring Washers
  • 1.4410 Helical Spring Washer
Super Duplex Steel S32750 / S32760 Star Washers
Super Duplex Steel S32750 / S32760 Star Washers
  • UNS S32760 Internal Star Washer
  • 1.4410 Spring Washer
  • SDSS S32750 Star Spring Washer
  • Super Duplex Steel S32760 External Star Washer
  • ASME SB479 Super Duplex Stainless Steel S32750 Spring Washer
  • ASTM B479 Super Duplex S32760 Spring Washer
Super Duplex Steel S32750 / S32760 Fender Washers
Super Duplex Steel S32750 / S32760 Fender Washers
  • Super Duplex Steel S32760 Spring Steel Fender Washer
  • ASTM B479 Super Duplex S32750 Standard Fender Washer
  • ASME SB479 Super Duplex Stainless Steel S32750 Fender Washer
  • 1.4501 Fender Washer
  • SDSS S32760 Fender Washer
  • UNS S32760 Heavy Duty Fender Washer

Equivalent Grades of Super Duplex Steel S32750 / S32760 Washers

STANDARD WERKSTOFF NR. UNS
Super Duplex 2507 1.4410 S32750
Super Duplex 2507 1.4501 S32760
Washers Dimensions

View Size Table Of Dyplex Steel S32750 Washers, We have Global sales network for Super Duplex S32760 Plain Washer, Wide Stockist Of Werkstoff No 1.4501 Spring Washers In India.

Size Chart of Super Duplex Steel S32750 / S32760 Washers

Size USS SAE
Inside Diameter
(A)		 Outside Diameter
(B)		 Thickness
(C)		 Inside Diameter
(A)		 Outside Diameter
(B)		 Thickness
(C)
#2 – – – 3/32″ 1/4″ 0.020″
#4 – – – 1/8″ 5/16″ 0.032″
#6 – – – 5/32″ 3/8″ 0.049″
#8 – – – 3/16″ 7/16″ 0.049″
#10 – – – 7/32″ 1/2″ 0.049″
#12 – – – 1/4″ 9/16″ 0.065″
1/4″ 5/16″ 0.734″ 0.065″ 9/32″ 5/8″ 0.065″
5/16″ 3/8″ 7/8″ 0.083″ 11/32″ 11/16″ 0.065″
3/8″ 7/16″ 1″ 0.083″ 13/32″ 13/16″ 0.065″
7/16″ 1/2″ 1-1/4″ 0.083″ 15/32″ 15/16″ 0.065″
1/2″ 9/16″ 1-3/8″ 0.109″ 17/32″ 1-1/16″ 0.095″
9/16″ 5/8″ 1-15/32″ 0.109″ 19/32″ 1-5/32″ 0.095″
5/8″ 11/16″ 1-3/4″ 0.134″ 21/32″ 1-5/16″ 0.095″
3/4″ 13/16″ 2″ 0.148″ 13/16″ 1-15/32″ 0.134″
7/8″ 15/16″ 2-1/4″ 0.165″ 15/16″ 1-3/4″ 0.134″
1″ 1-1/16″ 2-1/2″ 0.165″ 1-1/16″ 2″ 0.134″
1-1/8″ 1-1/4″ 2-3/4″ 0.165″ – – –
1-1/4″ 1-3/8″ 3″ 0.165″ – – –
1-3/8″ 1-1/2″ 3-1/4″ 0.180″ – – –
1-1/2″ 1-5/8″ 3-1/2″ 0.180″ – – –
1-5/8″ 1-3/4″ 3-3/4″ 0.180″ – – –
1-3/4″ 1-7/8″ 4″ 0.180″ – – –
2″ 2-1/8″ 4-1/2″ 0.213″ – – –

Check available Sizes of ASME SB 479 Super Duplex S32750 Washers, Ask For Ready Stock of UNS S32760 Washers in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Super Duplex Steel S32750 / S32760 Spring Washer

NOM SIZE Inner Dia (d) Basic Tol (+) Outer Dia (d1) Max WIDTH (b) Basic Tol (+ or -) THICKNESS (S) Basic Tol (+ or -) Weight per 1000 in Kgs
3 3.1 0.3 6.2 1.3 0.1 0.8 0.1 0.11
4 4.1 0.3 7.6 1.5 0.1 0.9 0.1 0.18
5 5.1 0.3 9.2 1.8 0.1 1.2 0.1 0.36
6 6.1 0.4 11.8 2.5 0.15 1.6 0.1 0.83
8 8.1 0.4 14.8 3 0.15 2 0.1 1.60
10 10.2 0.5 18.1 3.5 0.2 2.2 0.15 2.53
12 12.2 0.5 21.1 4 0.2 2.5 0.15 3.82
14 14.2 0.5 24.1 4.5 0.2 3 0.15 6.01
16 16.2 0.8 27.4 5 0.2 3.5 0.2 8.91
18 18.2 0.8 29.4 5 0.2 3.5 0.2 9.73
20 20.2 1 33.6 6 0.2 4 0.2 15.20
22 22.5 1 35.9 6 0.2 4 0.2 16.50
24 24.5 1 40 7 0.25 5 0.2 26.20
27 27.5 1 43 7 0.25 5 0.2 28.70
30 30.5 1.2 48.2 8 0.25 6 0.2 44.30
33 33.5 1.2 55.2 10 0.25 6 0.2 63.00
36 36.5 1.2 58.2 10 0.25 6 0.2 67.30
39 39.5 1.2 61.2 10 0.25 6 0.2 71.70
42 42.5 1.2 68.2 12 0.25 7 0.25 111.00
45 45.5 1.2 71.2 12 0.25 7 0.25 117.00
48 49 1.5 75 12 0.25 7 0.25 123.00
52 53 1.5 83 14 0.25 8 0.25 320.00

Dimensions of Super Duplex Steel S32750 / S32760 Flat Washer

Bolt Size USS SAE
OD (in.) ID (in.) Thickness OD (in.) ID (in.) Thickness
1/8 (#6) – – – 0.375 0.156 .036/.065
5/32 (#8) – – – 0.438 0.188 .036/.065
3/16 (#10) 0.560 0.250 .036/.065 0.500 0.220 .036/.065
7/32 (#12) – – – 0.562 0.250 .051/.080
1/4 (#14) 0.734 0.312 .051/.080 0.625 0.281 .051/.080
5/16 0.875 0.375 .064/.104 0.688 0.344 .051/.080
3/8 1.000 0.438 .064/.104 0.812 0.406 .051/.080
7/16 1.250 0.500 .064/.104 0.922 0.469 .051/.080
1/2 1.375 0.562 .086/.132 1.062 0.531 .074/.121
9/16 1.469 0.625 .086/.132 1.156 0.594 .074/.121
5/8 1.750 0.688 .108/.160 1.312 0.656 .074/.121
3/4 2.000 0.812 .122/.177 1.469 0.812 .108/.160
7/8 2.250 0.938 .136/.192 1.750 0.938 .108/.160
1 2.500 1.062 .136/.192 2.000 1.062 .108/.160
1 1/8 2.750 1.250 .136/.192 2.250 1.250 .108/.160
1 1/4 3.000 1.375 .136/.192 2.500 1.375 .136/.192
1 3/8 3.250 1.500 .153/.213 2.750 1.500 .136/.213
1 1/2 3.500 1.625 .153/.213 3.000 1.625 .153/.213
1 5/8 3.750 1.750 .153/.213 – – –
1 3/4 4.000 1.875 .153/.213 – – –
1 7/8 4.250 2.000 .153/.213 – – –
2 4.500 2.125 .153/.213 – – –
2 1/4 4.750 2.375 .320/.248 – – –
2 1/2 5.000 2.625 .210/.280 – – –
2 3/4 5.250 2.875 .228/.410S – – –
3 5.500 3.125 .249/.327 – – –

Weight Chart Of Super Duplex Stainless Steel S32750 / S32760 Washers

APPROX. WEIGHT IN KGS FOR 100 NOS
SIZE PLAIN PUNCHED WASHER
IS:2016		 HEAVY WASHER
IS:6610		 MACHINED WASHER
IS:2016		 SQUARE | TAPER | WASHERS SPRING WASHER FLAT SECTION IS:3063-72 SPRING WASHER SQUARE SECTION IS:6735-72
DIN : 7980		 Size (Inches) PLAIN PUNCHED WASHER
BS:3410 TABLE 7
MACHINED HIGH  STRENGTH
FRICTION  GRIP
FOR
CHANNELS IS:5372-75		 FOR
I-BEAM IS:5374-75		 TYPE-B
(CHANNELS) IS : 6649-85		 TYPE-C
( I-BEAMS ) IS : 6649-85
M-3               0.01 0.01
M-4               0.02 0.02
M-5 0.04   0.04         0.03 0.03
M-6 0.11   0.11         0.08 0.04 1/4″ 0.21
M-8 0.20   0.21 1.10 1.20     0.16 0.11 5/16″ 0.35
M-10 0.39 1.60 0.40 1.00 1.10     0.25 0.20 3/8″ 0.48
M-12 0.58 1.90 0.62 2.00 2.20 2.00 1.80 0.38 0.23 1/2″ 1.07
M-14 0.82             0.60 0.38
M-16 1.06 2.90 1.13 3.40 3.75 9.00 8.50 0.89 0.59 5/8″ 1.85
M-18 1.27             0.97 0.66
M-20 1.64 4.40 1.72 5.80 6.70 8.50 8.00 1.52 1.23 3/4″ 2.91
M-22 1.75         7.50 7.00 1.65 1.36 7/8″ 4.27
M-24 3.11 6.30 3.30 13.50 16.00 6.50 6.00 2.62 1.81 1″ 6.13
M-27 3.94 8.00 4.23 12.50 15.00 12.00 11.50 2.87 2.06 1.1/8″ 7.69
M-30 5.05 10.10 5.36 16.50 18.70 17.50 16.00 4.43 3.20 1.1/4″ 9.90
M-33 7.10 12.00 7.54 21.00 23.50 23.00 22.50 6.30 3.50
M-36 8.73 14.60 9.20 25.50 29.20 26.50 26.00 6.73 5.25 1.1/2″ 17.24
M-39 12.60 16.70 13.30 28.30 34.50     7.17 5.61
M-42 17.50 20.10 18.30         11.10 8.00
M-45 21.20 22.20 22.00         11.70 8.53
M-48 28.40 26.00 29.40         12.30 9.00 2″ 27.78
M-52 31.90   33.00         18.20
M-56 47.90             19.30
M-60 51.60             20.30
M-64 55.40             21.80
M-68 57.40
M-72 63.40             24.00

Ready Stock Super Duplex Steel S32750 / S32760 Washers

  • Super Duplex S32760 Industrial Washers
  • ASTM B479 Super Duplex Stainless Steel S32760 Dome Washer
  • Super Duplex Steel S32760 Countersunk Washer
  • Super Duplex S32750 Dome Tooth Washer
  • Super Duplex S32750 Tab Washers
  • UNS S32750 Washers
  • S32750 Super Duplex Stainless Steel Square Washer Manufacturer
  • S32750 Super Duplex Spherical Washer
  • Super Duplex 2205 Tooth Lock Washer
  • Super Duplex Steel S32750 Hex Washers
  • ASTM B479 SDSS S32760 Wave Washer
  • Super Duplex Stainless Steel S32750 Fender Washer
  • SDSS S32760 Tab Washer Manufacturer
  • SDSS S32750 Hex Washers
  • Super Duplex Stainless Steel S32750 Industrial Washers
  • Super Duplex Stainless Steel S32750 Washer
  • S32750 Super Duplex Split Ring Washer
  • SAF 2507 Dock Washer
  • ASME SB479 Super Duplex 2205 Fender Washer
  • Super Duplex S32750 Split Washer
  • Super Duplex S32750 Split / Lock Washer
  • ASTM B479 Super Duplex Stainless Steel S32760 Flat Washers
  • 1.4501 Machine Washer
  • Super Duplex Stainless Steel S32760 Dock Washer Stockholder
  • Super Duplex S32750 Hexagonal Washer
  • SDSS S32760 Square Washer
  • Super Duplex Steel S32760 Spring Washers Distributor
  • Super Duplex S32760 Spring Washers
  • Super Duplex S32750 Customized Washer
  • S32750 Duplex Conical Spring Washer
  • ASTM B479 Super Duplex S32750 Washers
  • SDSS S32750 Finishing Washers
  • DIN 1.4501 Countersunk Washer
  • SAF 2507 Plain Washer Supplier in Mumbai
  • Super Duplex S32750 Star Washers
  • Super Duplex Steel S32760 Fender Washers
  • Super Duplex Stainless Steel S32750 Flat Washer Stockist
  • Super Duplex Stainless Steel S32750 Punched Washer
  • SDSS S32750 Round Washer
  • Super Duplex Stainless Steel S32760 Flat Washer
  • Super Duplex Steel S32750 Countersunk Finishing Washer
  • Super Duplex 2205 S32750 Hexagonal Washer
  • SAF 2507 Ogee Washer
  • Super Duplex Steinless Steel S32750 Curved Spring Washer
  • SDSS S32760 Tab Washer Exporter
  • Super Duplex Stainless Steel S32750 Hex Washers
  • S32750 Super Duplex Belleville Washers
  • Super Duplex Stainless Steel Stainless Steel S32760 Customized Washer
  • SDSS S32750 Cup Washer
  • SDSS S32760 Spring Washers

Super Duplex Steel S32750 / S32760 Washers Chemical Composition

Grade C Mn Si P S Cr Mo Ni N Fe
S32750 0.030 max 1.20 max 0.80 max 0.035 max 0.020 max 24.00 – 26.00 3.00 – 5.00 6.00 – 8.00 0.24 – 0.32 58.095 min
S32760 0.05 max 1.00 max 1.00 max 0.030 max 0.010 max 24.00 – 26.00 3.00 – 4.00 6.00 – 8.00 0.20 – 0.30 57.61 min

Super Duplex Steel S32750 / S32760 Washers Mechanical Properties

Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
2507 7.8 g/cm3 1350 °C (2460 °F) Psi – 116000, MPa – 800 Psi – 80000, MPa – 550 15 %

Export Destinations For Super Duplex Steel S32750 / S32760 Washers

industry
