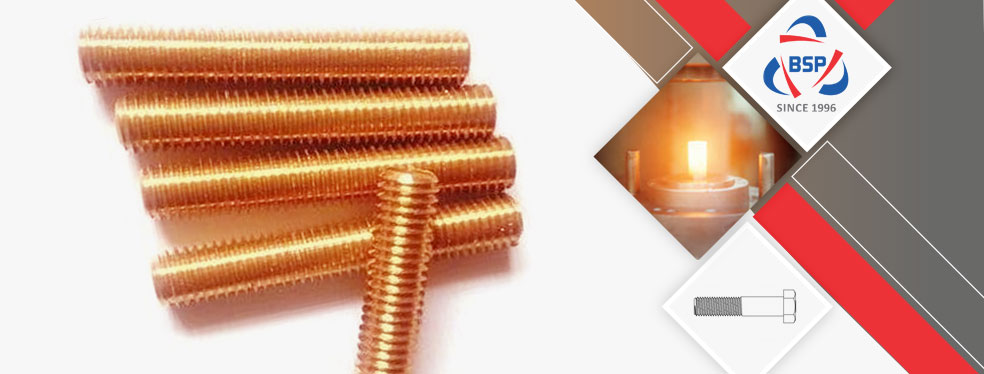

Copper Nickel 90/10 Stud Bolt

Copper Nickel 90/10 Industrial Stud Bolts, Cupro Nickel 90/10 Stud Bolts, Copper Nickel 90/10 Double End Stud Bolt, Copper Nickel 90/10 Studs, ASTM B151 Copper Nickel Alloy 90/10 Studs Price in India.

Bagoda Steel is a recognised exporter and distributor of Cupronickel 90 / 10 Stud Bolts, which may be age-hardened with the aid of using including aluminum and titanium. It has excessive strength and might best be hardened with the aid of using cold working. It is a nickel copper alloy with excellent strength and ductility, excellent weldability and extremely good resistance to corrosion. Cu-Ni 90 / 10 Stud Bolts have extremely good corrosion resistance in a huge variety of acidic & alkaline environments. The machinability of these stud bolts is tough as it work - hardens for the duration of machining. It is frequently utilized in chemical processing equipment; crude petroleum stills, manner vessels and piping; fueloline and sparkling water tanks; etc.

Industrial Product
Copper Nickel 90/10 Stud Bolts

Cupro Nickel 90/10 Single End Stud Bolt, Copper Nickel Alloy 90/10 Stud Stockist, Copper Nickel 90/10 Full Threaded Stud Bolt, Copper Nickel 90/10 Tap End Stud Bolts, UNS C70600 Half Thread Stud Bolts, Cu-Ni 90/10 Tie Rods, 2.0872 Tie Rods Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Large use of these products is made within the alkylation units, particularly within the reacting segment in touch with focused hydrofluoric acid. Copper Nickel UNS C70600 Stud Bolts has a low corrosion fee in swiftly flowing brackish or seawater blended with extremely good resistance to pressure - corrosion cracking in maximum freshwaters. It is likewise typically greater proof against assault with the aid of using oxidizing media than better copper alloys. Forging of our stud bolts can be achieved among 2150 Degree F (1175 Degree C) and 1200 Degree F (650 Degree C), with the decrease temperatures generating better mechanical properties and smaller grain size.

It is specifically proof against hydrochloric and hydrofluoric acids whilst they're de-aerated. It is proof against sulfide pressure cracking and pressure - corrosion cracking and consequently an ideal alloy to be used down-hollow and floor fueloline properly additives. Copper Nickel WNR 2.0872 Stud Bolts is used within the petroleum enterprise for applications along with fueloline properly additives, valves and tubing, in addition to locating use in excessive - strength piping systems. It is specially utilized in additives and components for the manufacturing of herbal fueloline and oil. The chromium content material of this stud bolts offers resistance to oxidizing environments, wherein the titanium and aluminum additions reason a strengthening response for the duration of warmness treatment.

Material Specification Chart of Copper Nickel 90/10 Stud Bolt

Specification ASTM F468,  B151 / ASME SF468, SB151
Size M02 to M33, Custom Sizes
Length 3 mm to 200 mm
Stud Bolt UNF, BSW, BSF, METRIC, UNC, or as required
Standard DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5
Form Hex, Threading, Square, Round as per Gauge Etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Types Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive of Stud Bolts Six-Lobe, Phillips, Phillips/Slot, Slotted etc
Packing of Stud Bolts IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating Ptfe Coated
Phosphate Coating
Teflon Coating
Zinc Coating
Hot Dipped Galvanizing Coating
Cadmium Coating
Xylon Coating

Various Types Of Copper Nickel 90/10 Stud Bolt

Copper Nickel 90/10 Double Ended Stud Bolt
Copper Nickel 90/10 Double Ended Stud Bolt
  • Cu-Ni 90/10 Double Ended Stud Bolt
  • Copper Nickel 90/10 Double Ended Wheel Stud
  • ASTM B151 Cupro Nickel 90/10 Double Ended Stud Bolt
  • UNS C70600 Double End Studs
  • 2.0872 Double End Stud
  • ASME SB151 Copper Nickel 90/10 Dual Threaded Stud
Copper Nickel 90/10 Stud Bolt
Copper Nickel 90/10 Stud Bolt
  • UNS C70600 Stud Bolts
  • 2.0872 Stud Bolt
  • ASTM B151 Copper Nickel 90/10 Stud Bolts
  • CuNi 90/10 Stud Bolts
  • Copper Nickel Alloy 90/10 Stud Bolts
  • ASME SB151 Copper Nickel 90/10 Stud Bolts
Copper Nickel 90/10 Stud
Copper Nickel 90/10 Stud
  • Copper Nickel Alloy 90/10 Weld Studs
  • 90/10 Copper Nickel Studs
  • ASTM B151 CuNi 90/10 Clinch Stud
  • ASME SB151 Copper Nickel 90/10 Stud
  • 2.0872 Stud
  • UNS C70600 Dowel Studs
Copper Nickel 90/10 Flush Head Stud
Copper Nickel 90/10 Flush Head Stud
  • ASME SB151 Copper Nickel 90/10 Self Clinch Flush Head Stud
  • 90/10 Cu-Ni Flush Head Stud
  • 2.0872 Flush Head Studs
  • UNS C70600 Flush Head Clinch Studs
  • ASTM B151 Copper Nickel 90/10 Flush Head Self Clinching Studs
  • Cupro Nickel 90/10 Self Clinching Stud
Copper Nickel 90/10Threaded Rods
Copper Nickel 90/10 Threaded Rod
  • UNS C70600 Threaded Stud
  • ASME SB151 Copper Nickel 90/10 Threaded Rods
  • ASTM B151 Cu-Ni 90/10 M5 Threaded Rod
  • Copper Nickel Alloy 90/10 Fully Threaded Rod
  • 2.0872 Threaded Rods
  • Copper Nickel 90/10 Threaded Rods
Copper Nickel 90/10 Single End Stud Bolt
Copper Nickel 90/10 Single End Stud Bolt
  • UNS C70600 Single Ended Threaded Stud
  • CuNi 90/10 Single End Studs
  • ASTM B151 Copper Nickel 90/10 Single Ended Stud Bolt
  • Copper Nickel 90/10 M6 Single End Stud
  • ASME SB151 Cupro Nickel 90/10 Single Ended Stud Bolt
  • 2.0872 Single Ended Stud Bolt

Equivalent Grades of Copper Nickel 90/10 Stud Bolts

STANDARD WERKSTOFF NR. UNS
90/10 2.0872 C70600
Stud Bolts Dimensions

View Size Table Of Copper Nickel 90/10 Stud Bolts, We have Global sales network for Copper Nickel Alloy 90/10 Stud Bolts, Wide Stockist Of Werkstoff No 2.0872 Tap End Stud Bolts, Double End Stud Bolts In India.

Size Chart of Copper Nickel 90/10 Stud Bolts

 Class 150 Flanges ASME B16.5 (Stud bolt sizes) Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face 0.06 in Ring Joint
1/2 3 1/2 2 3/8 5/8 4 1/2 2 1/4 –
3/4 3 7/8 2 3/4 5/8 4 1/2 2 1/2 –
1 4 1/4 3 1/8 5/8 4 1/2 2 1/2 3
1 1/4 4 5/8 3 1/2 5/8 4 1/2 2 3/4 3 1/4
1 1/2 5 3 7/8 5/8 4 1/2 2 3/4 3 1/4
2 6 4 3/4 3/4 4 5/8 3 1/4 3 3/4
2 1/2 7 5 1/2 3/4 4 5/8 3 1/2 4
3 7 1/2 6 3/4 4 5/8 3 1/2 4
3 1/2 8 1/2 7 3/4 8 5/8 3 1/2 4
4 9 7 1/2 3/4 8 5/8 3 1/2 4
5 10 8 1/2 7/8 8 3/4 3 3/4 4 1/4
6 11 9 1/2 7/8 8 3/4 4 4 1/2
8 13 1/2 11 3/4 7/8 8 3/4 4 1/4 4 3/4
10 16 14 3/4 1 12 7/8 4 1/2 5
12 19 17 1 12 7/8 4 3/4 5 1/4
14 21 18 3/4 1 1/8 12 1 5 1/4 5 3/4
16 23 1/2 21 1/4 1 1/8 16 1 5 1/4 5 3/4
18 25 22 3/4 1 1/4 16 1 1/8 5 3/4 6 1/4
20 27 1/2 25 1 1/4 20 1 1/8 6 1/4 6 3/4
24 32 29 1/2 1 1/4 20 1 1/4 6 3/4 7 1/4
Class 300 Flanges ASME B16.5 Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face 0.06 in Ring Joint
1/2 3 3/4 2 5/8 5/8 4 1/2 2 1/2 3
3/4 4 5/8 3 1/4 3/4 4 5/8 3 3 1/2
1 4 7/8 3 1/2 3/4 4 5/8 3 3 1/2
1 1/4 5 1/4 3 7/8 3/4 4 5/8 3 1/4 3 3/4
1 1/2 6 1/8 4 1/2 7/8 4 3/4 3 1/2 4
2 6 1/2 5 3/4 8 5/8 3 1/2 4
2 1/2 7 1/2 5 7/8 7/8 8 3/4 4 4 1/2
3 8 1/4 6 5/8 7/8 8 3/4 4 1/4 4 3/4
3 1/2 9 7 1/4 7/8 8 3/4 4 1/4 5
4 10 7 7/8 7/8 8 3/4 4 1/2 5
5 11 9 1/4 7/8 8 3/4 4 3/4 5 1/4
6 12 1/2 10 5/8 7/8 12 3/4 4 3/4 5 1/2
8 15 13 1 12 7/8 5 1/2 6
10 17 1/2 15 1/4 1 1/8 16 1 6 1/4 6 3/4
12 20 1/2 17 3/4 1 1/4 16 1 1/8 6 3/4 7 1/4
14 23 20 1/4 1 1/4 20 1 1/8 7 7 1/2
16 25 1/2 22 1/2 1 3/8 20 1 1/4 7 1/2 8
18 28 24 3/4 1 3/8 24 1 1/4 7 3/4 8 1/4
20 30 1/2 27 1 3/8 24 1 1/4 8 8 3/4
24 36 32 1 5/8 24 1 1/2 9 10

Check available Sizes of ASME SB151 Copper Nickel 90/10 Stud Bolt, Ask For Ready Stock of UNS C70600 Stud Bolts in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Copper Nickel 90/10 Stud Bolts

Diameter Diameter in mm Diameter in inch Nut Sizes
M12 12 0.4724 19
M10 10 0.3937 17
M14 14 0.5512 22
M18 18 0.7087 27
M16 16 0.6299 24
M20 20 0.7874 30
M24 24 0.9449 36
M22 22 0.8661 32
M27 27 1.063 41
M33 33 1.2992 50
M30 30 1.1811 46
M36 36 1.4173 55
M42 42 1.6535 65
M39 39 1.5354 60
M45 45 1.7717 70
M52 52 2.0472 80
M48 48 1.8898 75
M56 56 2.2047 85
M64 64 2.5197 95
M60 60 2.3622 90
M68 68 2.6772 100
M76 76 2.9921 110
M72 72 2.8346 105
M80 80 3.1496 115
M90 90 3.5433 130
M85 85 3.3464 120
M100 100 3.937 145
M160 160 6.2992 230
M125 125 4.9212 180
M110 110 4.3307 155
M140 140 5.5118 200

Copper Nickel 90/10 Stud Bolt Torque Chart

Flange Size B16.5 Class 150 RF/ Ring Gaskets B16.5 Class 150 FF/ Full Face Gaskets
Torque / Round (ft-lbs) Stud Bolts Tighten Sequence Torque / Round (ft-lbs) Stud Bolts Tighten Sequence
1st 2nd Final Dwg/No. Bolt Size 1st 2nd Final Dwg*/No. Bolt Size
1/2″ 10 20 30 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
3/4″ 13 27 40 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1″ 15 30 50 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1-1/4″ 20 40 60 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1-1/2″ 20 40 60 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
2″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
2-1/2″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
3″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
3-1/2″ 40 80 120 8-bolt 5/8″ 40 80 120 8-bolt 5/8″
4″ 40 80 120 8-bolt 5/8″ 40 80 120 8-bolt 5/8″
5″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
6″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
8″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
10″ 95 190 320 12-bolt 7/8″ 95 190 320 12-bolt 7/8″
12″ 95 190 320 12-bolt 7/8″ 95 190 320 12-bolt 7/8″
14″ 147 294 490 12-bolt 1″ 147 294 490 12-bolt 1″
16″ 147 294 490 16-bolt 1″ 147 294 490 16-bolt 1″
18″ 213 426 710 16-bolt 1-1/8″ 213 426 710 16-bolt 1-1/8″
20″ 213 426 710 20-bolt 1-1/8″ 213 426 710 20-bolt 1-1/8″
24″ 300 601 1,000 20-bolt 1-1/4″ 300 601 1,000 20-bolt 1-1/4″

Flange Size B16.5 Class 300 RF/ Ring Gaskets
Torque / Round (ft-lbs) Stud Bolts Tighten Sequence*
1st 2nd Final Dwg/No. Stud Bolts Size
1/2″ 10 20 30 4-bolt 1/2″
3/4″ 15 30 50 4-bolt 5/8″
1″ 21 42 70 4-bolt 5/8″
1-1/4″ 30 60 100 4-bolt 5/8″
1-1/2″ 45 90 150 4-bolt 3/4″
2″ 33 66 110 8-bolt 5/8″
2-1/2″ 42 84 140 8-bolt 3/4″
3″ 60 120 200 8-bolt 3/4″
3-1/2″ 60 120 200 8-bolt 3/4″
4″ 60 120 200 8-bolt 3/4″
5″ 60 120 200 8-bolt 3/4″
6″ 60 120 200 12-bolt 3/4″
8″ 95 190 320 12-bolt 7/8″
10″ 147 294 490 16-bolt 1″
12″ 213 426 710 16-bolt 1-1/8″
14″ 195 390 650 20-bolt 1-1/8″
16″ 273 546 910 20-bolt 1-1/4″
18″ 300 601 1,000 24-bolt 1-1/4″
20″ 300 601 1,000 24-bolt 1-1/4″
24″ 465 930 1,550 24-bolt 1-1/2″

Weight Chart Of Copper Nickel 90/10 Stud Bolt

Weight Imperial
STUD BOLT LENGTH (in inches) 1/2 5/8 3/4 7/8 1 1 1/8 1 1/4 1.3/8 1 1/2 1.5/8 1.3/4 1 7/8
2.1/2 10.8
2.3/4 11.6 19.8
3.1/4 12.4 21 32.4
3.1/2 13.2 22.2 34.3 50
4 14 23.4 36.2 52.6 71.8
4.1/2 14.8 24.6 38.1 55.2 75.2 102
4.3/4 15.6 25.8 40 57.8 78.6 106 137
5 16.4 27 41.9 60.4 82 111 142 179
5.1/2 17.2 28.2 43.8 63 85.4 115 147 186 234
6 18 29.4 45.7 65.6 88.8 119 153 193 242 289
6.1/4 18.8 30.6 47.6 68.2 92.2 123 158 200 250 298 263
6.1/2 19.6 32.3 49.5 70.8 95.6 128 164 206 258 308 374 437
7 20.4 33.5 50.8 73.4 99 132 169 213 266 317 385 449
7.1/2 21.2 34.8 52.7 75.5 103 136 174 220 275 326 396 462
8 22 36.1 54.5 78 106 141 180 226 283 336 407 475
8.1/4   37.3 56.3 80.5 108 145 185 233 291 345 418 488
8.3/4   38.6 58.1 83.1 112 149 191 240 299 354 429 500
9   39.8 60 85.6 115 153 196 246 307 364 440 513
9.1/2   41.1 61.8 88.2 118 158 201 253 316 373 451 526
10     63.7 90.7 122 162 206 260 324 382 463 538
10/1.4       93.3 125 166 212 267 332 391 474 551
1.0.1/2         128 171 217 273 340 401 485 564
11         132 175 223 279 345 410 496 576
11.1/2         135 179 228 285 350 419 507 589
12         138 184 233 292 358 429 518 602
Weight Of Metric Studs Bolt
STUD BOLT LENGTH (in mm) M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39
60 5,6 8,1 12 15,6
70 6,1 8,9 13 16,9 23,7
80 6,6 9,6 14 18,2 25,4 32,5
90 7,1 10,3 15 19,6 27,1 34,5 45,5
100 7,6 11 16 21 28,8 36,7 47,2 54,2
110 8,1 11,7 17 22,2 30,4 38,7 48,3 58,2 80
120 8,6 12,4 18 23,6 32,1 40,7 50,9 60,2 84,7 107
130 9,1 13,2 19 24,9 33,7 42,8 53,4 63,2 88,6 111 141
140 9,6 14,2 20 26,2 35,4 44,9 55,9 66,2 92,4 116 147 185
150 10,1 14,9 20,8 27,5 36,9 46,9 58,5 69,2 96,3 121 153 192 237
160 10,6 15,6 21,8 29,1 38,6 49 61 72,2 100,1 126 159 199 245
170   16,4 22,8 30,4 40,2 51,1 63,5 75,2 104 130 165 206 253
180     23,8 31,8 41,9 52,3 66,1 78,1 108 135 171 213 261
190       33,1 43,5 54,4 68,4 81,1 112 140 176 219 269
200       34,5 45,2 56,2 71 84 116 144 182 226 278
210       35,8 46,8 58,5 73,5 88,4 120 149 188 233 286
220       37,1 48,4 60,6 76,1 91,4 124 154 194 240 294
230       38,5 50,1 62,6 78,6 94,4 127 159 201 247 302
240       39,8 51,7 64,7 81,2 97,4 130,9 164 208 253 310
250       41,1 53,4 66,8 83,7 100,4 134,8 172 214 260 319
260         55 68,8 86,3 103,4 138,6 177 220 267 327
270         56,6 70,9 88,8 106,4 142,5 182 224 274 335
280         58,3 73 91,4 109,4 146,3 187 230 281 343
290           75 93,9 112,4 150,1 192 236 291 360
300           77,1 96,5 115,4 154 196 241 298 368
320             101,6 121,3 161,7 206 253 312 380
340               127,3 169,4 215 265 326 395
360               133,3 177,1 224 276 340 411
380                 184,8 234 288 353 428
400                 192,5 243 299 367 444
420                   252 311 381 460
440                   262 322 394 477
460                   271 334 408 493
480                   281 345 422 509
500                   290 357 436 526

Ready Stock Copper Nickel 90/10 Stud Bolts

  • Cupro Nickel 90/10 Stud Bolts
  • Copper Nickel Alloy 90/10 Flush Head Studs Stockist
  • Copper Nickel Alloy 90/10 Threaded Rod Exporter
  • Copper Nickel 90/10 Tap End Stud Bolts
  • Copper Nickel Alloy 90/10 Double End Stud Bolts
  • Copper Nickel 90/10 M16 Stud Bolt
  • Cupro Nickel 90/10 Wheel Lug Stud Bolt
  • UNS C70600 Stud Bolt
  • ASME SB151 Copper Nickel 90/10 Nickel Studs
  • 90/10 Copper Nickel Threaded Studs
  • ASTM B151 Cupro Nickel 90/10 Double End Stud Bolts
  • CuNi 90/10 Tie Bars
  • Copper Nickel 90/10 Threaded Studs
  • Cupro Nickel 90/10 Double Ended Stud Manufacturer
  • Copper Nickel 90/10 High Pressure Stud Bolt
  • 90/10 CuNi Heavy Stud Bolt
  • 90/10 Copper Nickel Stud Bolts With Reduced Shank
  • Cupro Nickel 90/10 Continuous Thread Stud Bolt
  • Cupro Nickel 90/10 Partial Threaded Stud Bolt Stockholder
  • Cupro Nickel 90/10 Metric Thread Stud Bolt Manufacturer
  • DIN 2.0872 Full Threaded Stud Bolt
  • Copper Nickel 90/10 Continuous Thread Stud Bolt
  • ASTM B151 Copper Nickel 90/10 Double Ended Stud
  • Cu-NI 90/10 Threaded Stud Bolt
  • ASTM B151 Copper Nickel 90/10 Double Ended Stud
  • Cu-Ni 90/10 Stud Bolt
  • Cuni 90/10 Stud Bolts
  • Copper Nickel 90/10 Stud Bolt
  • 90/10 Cu-Ni Stud Bolt
  • Copper Nickel Alloy 70 /30 Full Threaded Stud Bolt Distributor
  • Copper Nickel 90/10 Industrial Stud Bolts Supplier in Mumbai
  • Cu-Ni 90/10 Tie Rods
  • Copper Nickel 90/10 Continuous Thread Stud Bolt
  • Copper Nickel 90/10 Threaded Studs
  • Copper Nickel 90/10 Studs
  • 2.0872 Continuous Thread Stud Bolt
  • 90/10 Cu-Ni Threaded Rod
  • ASTM B151 Copper Nickel Alloy 90/10 Stud Bolts
  • 90/10 Cu-Ni Weld Studs
  • Copper Nickel Alloy 90/10 Drywall Stud
  • Copper Nickel Alloy 90/10 Tap End Stud Bolts
  • Cupro Nickel 90/10 Tie Rods
  • Copper Nickel 90/10 Threaded Stud Bolts
  • Copper Nickel 90/10 Double Ended Stud
  • Copper Nickel 90/10 Industrial Stud Bolts
  • Cu-Ni 90/10 Single End Stud Bolt
  • Copper Nickel Alloy 90/10 Half Thread Stud Bolt

Copper Nickel 90/10 Stud Bolts Chemical Composition

Grade Cu Mn Pb Ni Fe Zn
Cu-Ni 90-10 88.6 min 1.0 max .05 max 9-11 max 1.8 max 1 max

Copper Nickel 90/10 Stud Bolts Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Copper Nickel 90-10 0.323 lb/in3 at 68 F 2260 F 50000 psi 20000 psi 30 %

Export Destinations For Copper Nickel 90/10 Stud Bolts

industry
