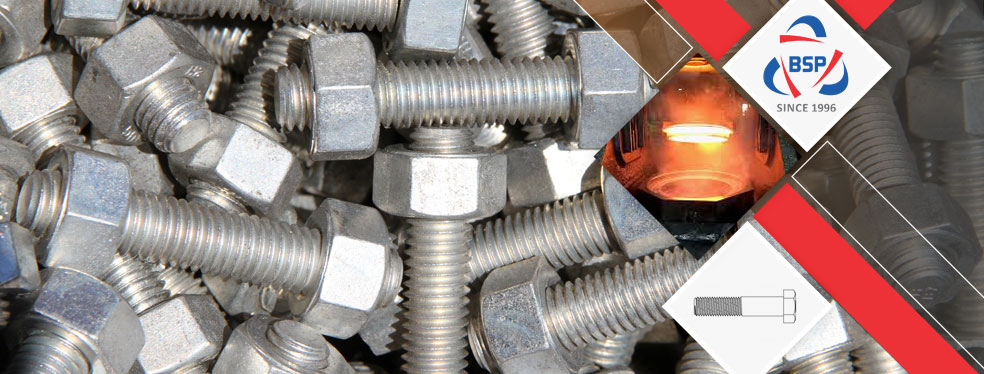

Inconel 600 U Bolts, 2.4816 Bolts, Inconel 600 Half Threaded Bolts, Inconel® Alloy 600 Eye Bolts, Inconel Alloy 600 Machine Bolts Stockist, UNS N06600 Acorn Bolts, Inconel 600 Set Screw, Nickel Alloy 600 Hex Flange Bolt, Alloy 600 J Bolts Supplier in Mumbai, India.
They are provided as complete plates, may be abrasive reduce, or processed similarly the usage of water jet services.They are labelled as slight with tough while machining, however, it have to be emphasised that these Inconel Alloy UNS N06600 Square Bolts may be machined the usage of traditional manufacturing strategies at exceptional rates. During machining these alloys work harden rapidly, generate excessive warmth throughout slicing, weld to the slicing device floor and provide excessive resistance to steel elimination due to their excessive shear strengths. They have to be taken into consideration throughout machining operations. They are supplied as complete plates, may be abrasive reduce, or processed in addition the usage of services.
Nickel Alloy 600 U-Bolt is the equal composition, besides the material is warm rolled after which age hardened. The direct age-hardening after warm rolling presents the most hardness and put on resistance. The benefits this creates are expanded put on life, retained area characteristics, and expanded hardness. These properties are further to the galling and seizing resistance of the ordinary alloy. It is thought within the enterprise as a metallic that keeps its reducing area. The financial benefits are in its lengthy put on time, much less down time, and less replacements.It gives the fatigue resistance and longevity of a warm worked microstructure, with the warmth corrosion and put on resistance of cobalt primarily based totally alloy.
Material Specification Chart of Inconel 600 Bolts
| Standard | ASTM B166, ASME SB166 |
|---|---|
| Size | M 02 to M 33 |
| Length | 3 mm to 200 mm |
| Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| Standard: | DIN, ISO, JIS, GB, IS, BS, ASTM, ANSI – American National Standards Institute
DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards |
| Scope of Manufacturer |
|
| Dia | M6 to M64 (1/4" - 2.5") |
| Length | 12 MM - 500 MM (Upto 20 Inch) |
| IS | 1363, 1364 |
| DIN | 931, 933 |
| ISO | ISO 3506 |
| Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
| Head Drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Finishing: | Zinc (yellow, white, blue, black), black oxide, , Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Passivated, Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Mechanically Applied coating and some special one like DACROMET |
| Production Process | M2-M24: Cold Froging, hot forging M24-M100, , machining and CNC for Customized connecting element |
| Types | Hex Head Bolt, Socket Cap Screw, Carriage Bolt, Anchor Bolt, Eye Bolt, Flange Bolt, Elevator Bolt, Lag Bolt, Draw Bolt, Plow Bolt, Stove Bolt, Tap Bolt, Machine Bolt, Hanger Bolt, U Bolt, Grub Screw, Set Screw, Shoulder Bolt, Step Bolt, J Bolt. |
Inconel 600 Bolts Manufacturing Standards
| DIN Bolts | Hexagon Bolts |
|---|---|
| DIN 315 Bolts | DIN 934 |
| DIN 431 Bolts | BS 1768 |
| DIN 555 Bolts | BS 1769 |
| DIN 557 Bolts | BS 1083 |
| DIN 562 Bolts | BS 3692 |
| DIN 582 Bolts | ISO 4032 |
| DIN 934 Bolts | ISO 4033 |
| DIN 936 Bolts | ANSI B18.2.2 |
| DIN 1587 Bolts | |
| DIN 6923 Bolts |
Various Types Of Inconel 600 Bolts
Inconel 600 Hex Bolts
- ASTM B166 Inconel 600 Heavy Hex Bolts
- 2.4816 Heavy Hex Bolts
- ASME SB166 Inconel Alloy 600 Hex Bolts
- UNS N06600 Hex Heavy Bolts
- Alloy 600 Hex Bolts
- Nickel Alloy 600 Hex Bolts

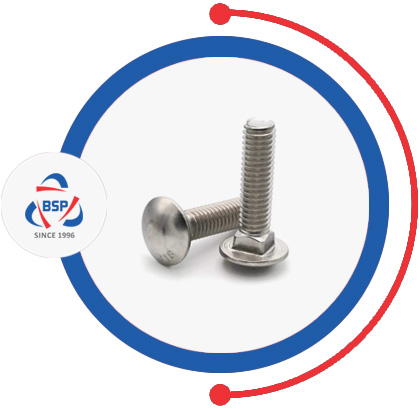

Inconel 600 Carriage Bolts
- Alloy 600 Carriage Bolts
- Nickel Alloy 600 Carriage Bolts
- ASTM B166 Inconel 600 Carriage Bolts
- 2.4816 Carriage Bolts
- ASME SB166 Inconel Alloy 600 Carriage Bolts
- UNS N06600 Carriage Bolts

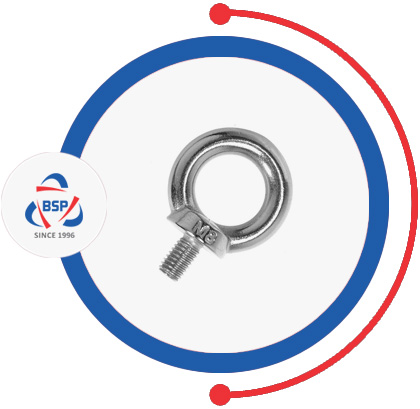

Inconel 600 Eye Bolts
- UNS N06600 Eye Bolts
- ASME SB166 Inconel Alloy 600 Eye Bolts
- ASTM B166 Inconel 600 Eye Bolts
- 2.4816 Eye Bolts
- Alloy 600 Eye Bolts
- Nickel Alloy 600 Eye Bolts

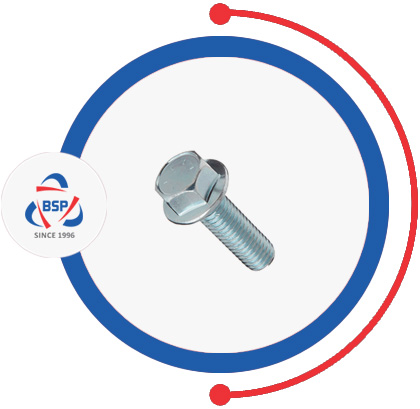

Inconel 600 Flange Bolts
- UNS N06600 Flange Bolts
- Alloy 600 Flange Bolts
- ASME SB166 Inconel Alloy 600 Flange Bolts
- ASTM B166 Inconel 600 Flange Bolts
- 2.4816 Beveled Flange Bolts
- Nickel Alloy 600 Flange Bolts

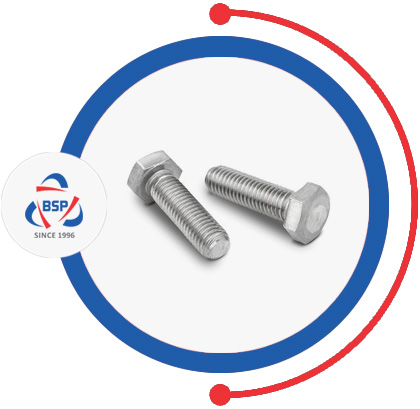

Inconel 600 Machine Bolts
- ASME SB166 Inconel Alloy 600 Machine Bolts
- Alloy 600 Machine Bolts
- Nickel Alloy 600 Machine Bolts
- ASTM B166 Inconel 600 Machine Bolts
- 2.4816 Machine Bolts
- UNS N06600 Machine Bolts

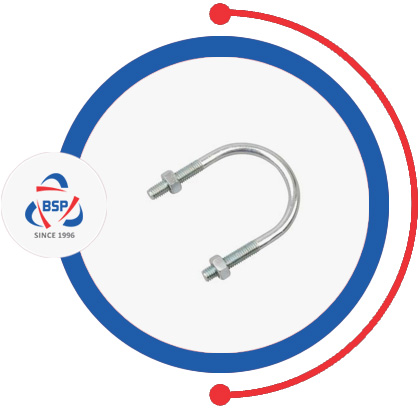

Inconel 600 U Bolts
- ASTM B166 Inconel 600 U Bolts
- UNS N06600 U Bolts
- ASME SB166 Inconel Alloy 600 U Bolts
- Alloy 600 U Bolts
- Nickel Alloy 600 U Bolts
- 2.4816 U Bolts

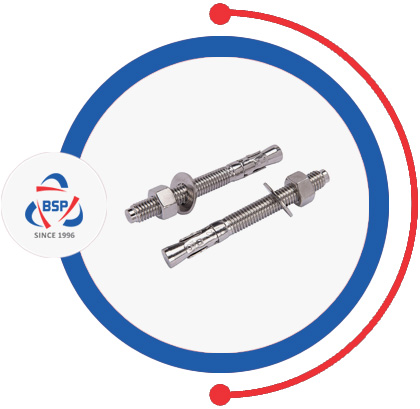

Inconel 600 Anchor Bolts
- UNS N06600 Anchor Bolts
- Alloy 600 Anchor Bolts
- 2.4816 Anchor Bolts
- ASME SB166 Inconel Alloy 600 Anchor Bolts
- ASTM B166 Inconel 600 Anchor Bolts
- Nickel Alloy 600 Anchor Bolts

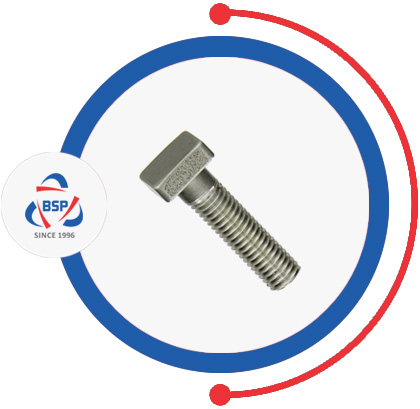

Inconel 600 Square Bolts
- ASTM B166 Inconel 600 Square Bolts
- Alloy 600 Square Bolts
- Nickel Alloy 600 Square Bolts
- UNS N06600 Square Bolts
- 2.4816 Square Bolts
- ASME SB166 Inconel Alloy 600 Square Bolts

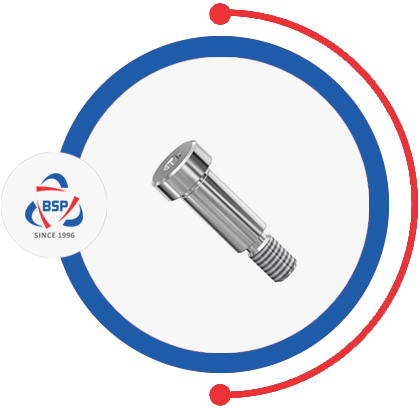

Inconel 600 Shoulder Bolts
- 2.4816 Shoulder Bolts
- ASME SB166 Inconel Alloy 600 Shoulder Bolts
- Alloy 600 Shoulder Bolts
- Nickel Alloy 600 Shoulder Bolts
- UNS N06600 Shoulder Bolts
- ASTM B166 Inconel 600 Shoulder Bolts
Equivalent Grades of Inconel 600 Bolts
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Alloy 600 | N06600 | 2.4816 | NC15FE11M | NiCr15Fe | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | ЭИ868 |
View Size Table Of Inconel 600 Bolts, We have Global sales network for Inconel 600 Heavy Hex Bolts, Wide Stockist Of Werkstoff No 2.4816 High Tensile Bolts, Hex Head Bolts, Industrial Bolts In India.
Size Chart of Inconel 600 Bolts
| Bolt Size | A (max) | B | C (min) | D | E | F Thread Length for Bolt Length |
||
|---|---|---|---|---|---|---|---|---|
| max | min | 6″ and shorter |
over 6″ | |||||
| 1/4″ | 0.260 | 7/16 | 0.484 | 11/64 | 0.03 | 0.01 | 0.750 | 1.000 |
| 5/16″ | 0.324 | 1/2 | 0.552 | 7/32 | 0.03 | 0.01 | 0.875 | 1.125 |
| 3/8″ | 0.388 | 9/16 | 0.620 | 1/4 | 0.03 | 0.01 | 1.000 | 1.250 |
| 7/16″ | 0.452 | 5/8 | 0.687 | 19/64 | 0.03 | 0.01 | 1.125 | 1.375 |
| 1/2″ | 0.515 | 3/4 | 0.826 | 11/32 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8″ | 0.642 | 15/16 | 1.033 | 27/64 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4″ | 0.768 | 1-1/8 | 1.240 | 1/2 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8″ | 0.895 | 1-5/16 | 1.447 | 37/64 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1″ | 1.022 | 1-1/2 | 1.653 | 43/64 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1-1/8″ | 1.149 | 1-11/16 | 1.859 | 3/4 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1-1/4″ | 1.277 | 1-7/8 | 2.066 | 27/32 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1-3/8″ | 1.404 | 2-1/16 | 2.273 | 29/32 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1-1/2″ | 1.531 | 2-1/4 | 2.480 | 1 | 0.09 | 0.03 | 3.250 | 3.500 |
| 1-3/4″ | 1.785 | 2-5/8 | 2.893 | 1-5/32 | 0.12 | 0.04 | 3.750 | 4.000 |
| 2″ | 2.039 | 3 | 3.306 | 1-11/32 | 0.12 | 0.04 | 4.250 | 4.500 |
| 2-1/4″ | 2.305 | 3-3/8 | 3.719 | 1-1/2 | 0.19 | 0.06 | 4.750 | 5.000 |
| 2-1/2″ | 2.559 | 3-3/4 | 4.133 | 1-21/32 | 0.19 | 0.06 | 5.250 | 5.500 |
| 2-3/4″ | 2.837 | 4-1/8 | 4.546 | 1-13/16 | 0.19 | 0.06 | 5.750 | 6.000 |
| 3″ | 3.081 | 4-1/2 | 4.959 | 2 | 0.19 | 0.06 | 6.250 | 6.500 |
| 3-1/4″ | 3.335 | 4-7/8 | 5.372 | 2-3/16 | 0.19 | 0.06 | 6.750 | 7.000 |
| 3-1/2″ | 3.589 | 5-1/4 | 5.786 | 2-5/16 | 0.19 | 0.06 | 7.250 | 7.500 |
| 3-3/4″ | 3.858 | 5-5/8 | 6.198 | 2-1/2 | 0.19 | 0.06 | 7.750 | 8.000 |
| 4″ | 4.111 | 6 | 6.612 | 2-11/16 | 0.19 | 0.06 | 8.250 | 8.500 |
Check available Sizes of ASME SB 166 Inconel 600 Bolts, Ask For Ready Stock of UNS N06600 Bolts in Mumbai, India.
BAGODA
Quick Contact
Dimensions of Inconel 600 Heavy Hex Structural Bolt
| Bolt Size | A | B | C | D | E Radius of Fillet |
F Thread Length |
G Transitional Thread Length |
Runout of Bearing Surface FIM |
||
|---|---|---|---|---|---|---|---|---|---|---|
| max | min | min | max | min | max | |||||
| 1/2″ | 0.515 | 0.482 | 7/8 | 0.969 | 5/16 | 0.031 | 0.009 | 1.00 | 0.19 | 0.016 |
| 5/8″ | 0.642 | 0.605 | 1-1/16 | 1.175 | 25/64 | 0.062 | 0.021 | 1.25 | 0.22 | 0.019 |
| 3/4″ | 0.768 | 0.729 | 1-1/4 | 1.383 | 15/32 | 0.062 | 0.021 | 1.38 | 0.25 | 0.022 |
| 7/8″ | 0.895 | 0.852 | 1-7/16 | 1.589 | 35/64 | 0.062 | 0.031 | 1.50 | 0.28 | 0.025 |
| 1″ | 1.022 | 0.976 | 1-5/8 | 1.796 | 39/64 | 0.093 | 0.062 | 1.75 | 0.31 | 0.028 |
| 1-1/8″ | 1.149 | 1.098 | 1-13/16 | 2.002 | 11/16 | 0.093 | 0.062 | 2.00 | 0.34 | 0.032 |
| 1-1/4″ | 1.277 | 1.223 | 2 | 2.209 | 25/32 | 0.093 | 0.062 | 2.00 | 0.38 | 0.035 |
| 1-3/8″ | 1.404 | 1.345 | 2-3/16 | 2.416 | 27/32 | 0.093 | 0.062 | 2.25 | 0.44 | 0.038 |
| 1-1/2″ | 1.531 | 1.470 | 2-3/8 | 2.622 | 15/16 | 0.093 | 0.062 | 2.25 | 0.44 | 0.041 |
Weight Chart Of Inconel Alloy 600 Bolts
| THREADS According to IS 1363/67 | ||||||||||
| APPROX. WEIGHT IN KGS FOR 100 NOS | ||||||||||
| LENGTH in mm | DIAMETER (METRIC) | |||||||||
| M5 | M6 | M12 | M8 | M10 | M16 | M14 | M20 | M18 | M22 | |
| 16 | 0.448 | 0.743 | 1.590 | 3.211 | ||||||
| 20 | 0.598 | 0.812 | 4.892 | 1.711 | 3.411 | |||||
| 25 | 0.660 | 0.897 | 5.252 | 1.871 | 3.660 | 8.170 | ||||
| 30 | 0.737 | 1.010 | 5.574 | 2.070 | 3.912 | 10.707 | 9.690 | 18.657 | ||
| 35 | 0.804 | 1.120 | 5.974 | 2.271 | 4.223 | 11.416 | 10.000 | 19.608 | 16.026 | |
| 40 | 0.881 | 1.230 | 6.410 | 2.470 | 4.533 | 12.107 | 10.288 | 20.747 | 16.667 | |
| 45 | 0.958 | 1.340 | 6.859 | 2.671 | 4.840 | 12.821 | 10.504 | 21.739 | 17.241 | |
| 50 | 1.030 | 1.450 | 7.299 | 2.870 | 5.155 | 13.624 | 11.261 | 22.727 | 17.857 | 28.409 |
| 55 | 1.560 | 7.740 | 3.071 | 5.464 | 14.409 | 11.628 | 23.810 | 18.868 | 30.120 | |
| 60 | 1.670 | 8.183 | 3.270 | 5.774 | 15.244 | 12.255 | 25.126 | 20.000 | 32.051 | |
| 65 | 1.781 | 8.621 | 3.472 | 6.083 | 16.026 | 12.626 | 26.455 | 21.008 | 34.014 | |
| 70 | 1.890 | 9.058 | 3.671 | 6.394 | 16.835 | 12.987 | 27.778 | 22.124 | 35.461 | |
| 75 | 2.000 | 9.506 | 3.873 | 6.702 | 17.606 | 13.228 | 29.070 | 23.256 | 39.063 | |
| 80 | 2.111 | 10.000 | 4.072 | 7.013 | 18.248 | 13.889 | 30.303 | 24.510 | 40.000 | |
| 90 | 10.917 | 4.472 | 7.634 | 19.841 | 14.925 | 33.113 | 26.042 | 41.667 | ||
| 100 | 11.820 | 4.873 | 8.251 | 21.459 | 16.340 | 35.714 | 27.778 | 46.296 | ||
| 110 | 12.723 | 8.881 | 23.041 | 17.730 | 38.168 | 31.250 | 47.170 | |||
| 120 | 13.624 | 9.506 | 24.631 | 18.797 | 40.984 | 32.895 | 50.000 | |||
| 130 | 14.535 | 10.101 | 26.316 | 20.000 | 43.478 | 34.722 | 52.632 | |||
| 140 | 15.432 | 10.707 | 27.933 | 20.833 | 46.296 | 35.461 | 55.556 | |||
| 150 | 16.340 | 11.312 | 29.412 | 22.222 | 48.544 | 37.594 | 58.824 | |||
| 160 | 17.241 | 11.905 | 31.056 | 24.272 | 50.505 | 40.984 | 61.728 | |||
| 170 | 18.116 | 12.500 | 32.680 | 53.191 | 64.935 | |||||
| 180 | 19.011 | 13.123 | 34.247 | 26.882 | 55.556 | 67.568 | ||||
| 190 | 19.920 | 13.736 | 35.971 | 58.140 | 70.423 | |||||
| 200 | 20.833 | 14.327 | 37.594 | 29.586 | 60.976 | 49.020 | 73.529 | |||
| 220 | 22.624 | 15.528 | 40.650 | 65.789 | 79.365 | |||||
| 240 | 24.510 | 16.722 | 43.860 | 71.429 | 84.746 | |||||
| 250 | 25.381 | 17.301 | 45.455 | 74.627 | 87.719 | |||||
| 260 | 26.316 | 17.921 | 47.170 | 76.923 | 90.909 | |||||
| 280 | 28.090 | 19.157 | 50.505 | 81.967 | 98.039 | |||||
| 300 | 29.940 | 20.325 | 53.763 | 87.719 | 104.167 | |||||
| 320 | 31.646 | 56.818 | 92.593 | |||||||
| 340 | 33.557 | 60.241 | 98.039 | |||||||
| 360 | 35.211 | 63.291 | 104.167 | |||||||
| 380 | 37.037 | 66.667 | 108.696 | |||||||
| 400 | 39.063 | 69.444 | 113.636 | |||||||
Ready Stock Inconel 600 Bolts
- ASTM F2281 Inconel 600 Bolts
- Inconel Alloy 600 Point Flange Bolt
- Nickel Alloy 600 Half Threaded Bolts
- Inconel® Alloy 600 High Tensile Bolts
- Inconel 600 Eye Bolts
- Inconel 600 Hex Cap Screw Manufacturer
- Inconel Alloy 600 Jack Bolts
- ASTM B166 Inconel 600 Fully Threaded Bolts
- Inconel 600 Connector Bolts Stockholder
- UNS N06600 Bolts
- Inconel Alloy 600 T Head Bolts
- DIN 2.4816 Bolts
- Nickel Alloy 600 Button Head Bolts
- Inconel® Alloy 600 Bolt
- Inconel Alloy 600 Round Head Bolts Stockist
- Nickel Alloy 600 Foundation Bolts
- Alloy 600 J Bolts
- Inconel 600 Allen Cap Bolt
- Inconel Alloy 600 Machine Bolts
- Alloy 600 Hex Head Bolts
- Nickel Alloy 600 Tower Bolts
- Inconel 600 High Tensile Bolts
- Inconel 600 Square Head Bolts
- Inconel 600 Heavy Hex Bolts
- Nickel Alloy 600 Step Bolt
- Inconel 600 Industrial Bolts Exporter
- Inconel 600 U Bolts
- 600 Inconel Heavy Hex Head Bolts
- Alloy 600 Carriage Bolts
- Inconel® Alloy 600 Socket Cap Screw
- ASME SB166 Inconel 600 Hex Bolts
- Inconel® Alloy 600 Countersunk Bolts
- Inconel Alloy 600 Elevator Bolt Supplier in Mumbai
- Inconel 600 Anchor Bolt
- ASTM B166 Inconel 600 Bolts
- Inconel 600 Round Headed Bolts
- 2.4816 Square Bolts
- Inconel Alloy 600 Long Bolts
- 600 Inconel Shoulder Bolt
- Alloy 600 Lag Bolts
- ASTM B166 Inconel 600 Inconel Stove Bolts
- Inconel 600 Structural Bolts
- Nickel Alloy 600 T-Bolts Distributor
- Inconel 600 Point Flange Bolts
- Inconel Alloy 600 Bolt Manufacturer
- ASTM B166 Inconel 600 Draw Bolt
- 600 Inconel High Tensile Bolts
- Alloy 600 Allen Cap Bolt
Inconel Alloy 600 Bolts Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Alloy 600 Bolts Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.47 g/cm3 | 1413 °C (2580 °F) | 655 MPa, 95000 psi | 310 MPa, 45000 psi | 45 % |
