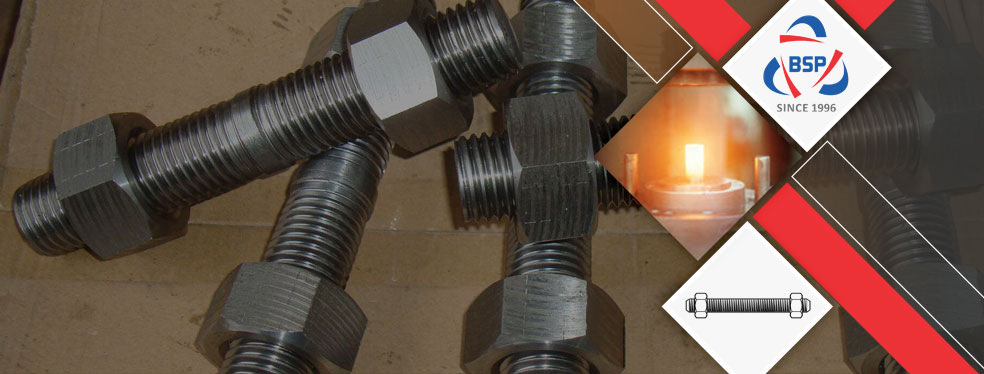

Inconel 600 Single End Stud Bolt, 2.4816 Tie Rods, Nickel Alloy 600 Full Threaded Stud Bolt, UNS N06600 Half Thread Stud Bolts, Alloy 600 Tie Rods, Inconel® Alloy 600 Stud Stockist, Alloy 600 Tap End Stud Bolts Supplier in Mumbai, India.
It is a set of alloys of nickel and copper, in company of small quantities of iron, manganese, carbon, and silicon. Stronger than natural nickel, they are proof against corrosion via way of means of many competitive agents, consisting of hastily flowing seawater. Inconel Alloy 600 Stud Bolts may be fabricated easily via way of means of hot- and cold-working, machining, and welding.They are collectively soluble in all proportions, it's far a single-segment alloy. Compared to metallic, it could be very tough to system as it work-hardens very quickly. It selects the best material for the process is going properly past the preliminary rate of the material.
It desires to be grew to become and worked at sluggish speeds and occasional feed fees. It is proof against corrosion and acids, and a few alloys can face up to an in natural oxygen. Nickel Alloy WNR 2.4816 Stud Bolts is normally utilized in applications with notably corrosive situations. Small additions of aluminium and titanium shape an alloy with the identical corrosion resistance however with plenty extra strength because of gamma top formation on aging. It offers a melting variety of 1300 Degree C – 1350 Degree C, an electrical conductivity (within the annealed state). It is first-rate for its toughness, that's maintained over a vast variety of temperatures.
Material Specification Chart of Inconel 600 Stud Bolt
| Specification | ASTM F468, B166 / ASME SF468, SB166 |
|---|---|
| Size | M02 to M33, Custom Sizes |
| Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Types | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
Various Types Of Inconel 600 Stud Bolt
Inconel 600 Double Ended Stud Bolt
- ASME SB166 Inconel Alloy 600 Dual Threaded Stud
- ASTM B166 Inconel 600 Double Ended Stud Bolt
- 2.4816 Double End Stud
- Inconel 600 Double Ended Wheel Stud
- UNS N06600 Double End Studs
- Alloy 600 Double Ended Stud Bolt
Inconel 600 Stud Bolt
- UNS N06600 Stud Bolts
- ASTM B166 Inconel 600 Stud Bolts
- 2.4816 Stud Bolt
- Nickel Alloy 600 Stud Bolts
- Alloy 600 Stud Bolts
- ASME SB166 Inconel Alloy 600 Stud Bolts
Inconel 600 Stud
- ASTM B166 Inconel 600 Clinch Stud
- UNS N06600 Dowel Studs
- ASME SB166 Inconel Alloy 600 Stud
- Alloy 600 Studs
- Inconel 600 Weld Studs
- 2.4816 Stud
Inconel 600 Flush Head Stud
- Alloy 600 Flush Head Stud
- ASME SB166 Inconel Alloy 600 Self Clinch Flush Head Stud
- 2.4816 Flush Head Studs
- Inconel 600 Self Clinching Stud
- ASTM B166 Inconel 600 Flush Head Self Clinching Studs
- UNS N06600 Flush Head Clinch Studs
Inconel 600 Threaded Rod
- ASME SB166 Inconel Alloy 600 Threaded Rods
- Alloy 600 Fully Threaded Rod
- UNS N06600 Threaded Stud
- 2.4816 Threaded Rods
- Alloy 600 Threaded Rods
- ASTM B166 Inconel 600 M5 Threaded Rod
Inconel 600 Single End Stud Bolt
- ASTM B166 Inconel 600 Single Ended Stud Bolt
- Alloy 600 Single End Studs
- UNS N06600 Single Ended Threaded Stud
- Alloy 600 M6 Single End Stud
- 2.4816 Single Ended Stud Bolt
- ASME SB166 Inconel Alloy 600 Single Ended Stud Bolt
Equivalent Grades of Inconel 600 Stud Bolts
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Inconel 600 | N06600 | 2.4816 | NC15FE11M | NiCr15Fe | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | ЭИ868 |
View Size Table Of Inconel 600 Stud Bolts, We have Global sales network for Inconel 600 Stud Bolts, Wide Stockist Of Werkstoff No 2.4816 Tap End Stud Bolts, Double End Stud Bolts In India.
Size Chart of Inconel 600 Stud Bolts
| Class 150 Flanges ASME B16.5 (Stud bolt sizes) | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in | Ring Joint | |
| 1/2 | 3 1/2 | 2 3/8 | 5/8 | 4 | 1/2 | 2 1/4 | – | |
| 3/4 | 3 7/8 | 2 3/4 | 5/8 | 4 | 1/2 | 2 1/2 | – | |
| 1 | 4 1/4 | 3 1/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 1 1/4 | 4 5/8 | 3 1/2 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 1 1/2 | 5 | 3 7/8 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 2 | 6 | 4 3/4 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 2 1/2 | 7 | 5 1/2 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 | 7 1/2 | 6 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 1/2 | 8 1/2 | 7 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 4 | 9 | 7 1/2 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 5 | 10 | 8 1/2 | 7/8 | 8 | 3/4 | 3 3/4 | 4 1/4 | |
| 6 | 11 | 9 1/2 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 8 | 13 1/2 | 11 3/4 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 10 | 16 | 14 3/4 | 1 | 12 | 7/8 | 4 1/2 | 5 | |
| 12 | 19 | 17 | 1 | 12 | 7/8 | 4 3/4 | 5 1/4 | |
| 14 | 21 | 18 3/4 | 1 1/8 | 12 | 1 | 5 1/4 | 5 3/4 | |
| 16 | 23 1/2 | 21 1/4 | 1 1/8 | 16 | 1 | 5 1/4 | 5 3/4 | |
| 18 | 25 | 22 3/4 | 1 1/4 | 16 | 1 1/8 | 5 3/4 | 6 1/4 | |
| 20 | 27 1/2 | 25 | 1 1/4 | 20 | 1 1/8 | 6 1/4 | 6 3/4 | |
| 24 | 32 | 29 1/2 | 1 1/4 | 20 | 1 1/4 | 6 3/4 | 7 1/4 | |
| Class 300 Flanges ASME B16.5 | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in | Ring Joint | |
| 1/2 | 3 3/4 | 2 5/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 3/4 | 4 5/8 | 3 1/4 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 | 4 7/8 | 3 1/2 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 1/4 | 5 1/4 | 3 7/8 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 1 1/2 | 6 1/8 | 4 1/2 | 7/8 | 4 | 3/4 | 3 1/2 | 4 | |
| 2 | 6 1/2 | 5 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 2 1/2 | 7 1/2 | 5 7/8 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 3 | 8 1/4 | 6 5/8 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 3 1/2 | 9 | 7 1/4 | 7/8 | 8 | 3/4 | 4 1/4 | 5 | |
| 4 | 10 | 7 7/8 | 7/8 | 8 | 3/4 | 4 1/2 | 5 | |
| 5 | 11 | 9 1/4 | 7/8 | 8 | 3/4 | 4 3/4 | 5 1/4 | |
| 6 | 12 1/2 | 10 5/8 | 7/8 | 12 | 3/4 | 4 3/4 | 5 1/2 | |
| 8 | 15 | 13 | 1 | 12 | 7/8 | 5 1/2 | 6 | |
| 10 | 17 1/2 | 15 1/4 | 1 1/8 | 16 | 1 | 6 1/4 | 6 3/4 | |
| 12 | 20 1/2 | 17 3/4 | 1 1/4 | 16 | 1 1/8 | 6 3/4 | 7 1/4 | |
| 14 | 23 | 20 1/4 | 1 1/4 | 20 | 1 1/8 | 7 | 7 1/2 | |
| 16 | 25 1/2 | 22 1/2 | 1 3/8 | 20 | 1 1/4 | 7 1/2 | 8 | |
| 18 | 28 | 24 3/4 | 1 3/8 | 24 | 1 1/4 | 7 3/4 | 8 1/4 | |
| 20 | 30 1/2 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 8 3/4 | |
| 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 10 | |
Check available Sizes of ASME SB 166 Inconel 600 Stud Bolt, Ask For Ready Stock of UNS N06600 Stud Bolts in Mumbai, India.
BAGODA
Quick Contact
Dimensions of Alloy 600 Stud Bolts
| Diameter | Diameter in mm | Diameter in inch | Nut Sizes |
|---|---|---|---|
| M12 | 12 | 0.4724 | 19 |
| M10 | 10 | 0.3937 | 17 |
| M14 | 14 | 0.5512 | 22 |
| M18 | 18 | 0.7087 | 27 |
| M16 | 16 | 0.6299 | 24 |
| M20 | 20 | 0.7874 | 30 |
| M24 | 24 | 0.9449 | 36 |
| M22 | 22 | 0.8661 | 32 |
| M27 | 27 | 1.063 | 41 |
| M33 | 33 | 1.2992 | 50 |
| M30 | 30 | 1.1811 | 46 |
| M36 | 36 | 1.4173 | 55 |
| M42 | 42 | 1.6535 | 65 |
| M39 | 39 | 1.5354 | 60 |
| M45 | 45 | 1.7717 | 70 |
| M52 | 52 | 2.0472 | 80 |
| M48 | 48 | 1.8898 | 75 |
| M56 | 56 | 2.2047 | 85 |
| M64 | 64 | 2.5197 | 95 |
| M60 | 60 | 2.3622 | 90 |
| M68 | 68 | 2.6772 | 100 |
| M76 | 76 | 2.9921 | 110 |
| M72 | 72 | 2.8346 | 105 |
| M80 | 80 | 3.1496 | 115 |
| M90 | 90 | 3.5433 | 130 |
| M85 | 85 | 3.3464 | 120 |
| M100 | 100 | 3.937 | 145 |
| M160 | 160 | 6.2992 | 230 |
| M125 | 125 | 4.9212 | 180 |
| M110 | 110 | 4.3307 | 155 |
| M140 | 140 | 5.5118 | 200 |
Alloy 600 Stud Bolt Torque Chart
| Flange Size | B16.5 Class 150 RF/ Ring Gaskets | B16.5 Class 150 FF/ Full Face Gaskets | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | |||||||
| 1st | 2nd | Final | Dwg/No. | Bolt Size | 1st | 2nd | Final | Dwg*/No. | Bolt Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 3/4″ | 13 | 27 | 40 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1″ | 15 | 30 | 50 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/4″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 2-1/2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3-1/2″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 4″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 8″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 10″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 12″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 14″ | 147 | 294 | 490 | 12-bolt | 1″ | 147 | 294 | 490 | 12-bolt | 1″ |
| 16″ | 147 | 294 | 490 | 16-bolt | 1″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 18″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 20″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ |
| 24″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ |
| Flange Size | B16.5 Class 300 RF/ Ring Gaskets | ||||
|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence* | ||||
| 1st | 2nd | Final | Dwg/No. | Stud Bolts Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ |
| 3/4″ | 15 | 30 | 50 | 4-bolt | 5/8″ |
| 1″ | 21 | 42 | 70 | 4-bolt | 5/8″ |
| 1-1/4″ | 30 | 60 | 100 | 4-bolt | 5/8″ |
| 1-1/2″ | 45 | 90 | 150 | 4-bolt | 3/4″ |
| 2″ | 33 | 66 | 110 | 8-bolt | 5/8″ |
| 2-1/2″ | 42 | 84 | 140 | 8-bolt | 3/4″ |
| 3″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 3-1/2″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 12-bolt | 3/4″ |
| 8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 10″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 12″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 14″ | 195 | 390 | 650 | 20-bolt | 1-1/8″ |
| 16″ | 273 | 546 | 910 | 20-bolt | 1-1/4″ |
| 18″ | 300 | 600 | 1,000 | 24-bolt | 1-1/4″ |
| 20″ | 300 | 600 | 1,000 | 24-bolt | 1-1/4″ |
| 24″ | 465 | 930 | 1,550 | 24-bolt | 1-1/2″ |
Weight Chart Of Inconel 600 Stud Bolt
| Weight Imperial | |||||||||||||
| STUD BOLT LENGTH (in inches) | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1.3/8 | 1 1/2 | 1.5/8 | 1.3/4 | 1 7/8 | |
| 2.1/2 | 10.8 | ||||||||||||
| 2.3/4 | 11.6 | 19.8 | |||||||||||
| 3.1/4 | 12.4 | 21 | 32.4 | ||||||||||
| 3.1/2 | 13.2 | 22.2 | 34.3 | 50 | |||||||||
| 4 | 14 | 23.4 | 36.2 | 52.6 | 71.8 | ||||||||
| 4.1/2 | 14.8 | 24.6 | 38.1 | 55.2 | 75.2 | 102 | |||||||
| 4.3/4 | 15.6 | 25.8 | 40 | 57.8 | 78.6 | 106 | 137 | ||||||
| 5 | 16.4 | 27 | 41.9 | 60.4 | 82 | 111 | 142 | 179 | |||||
| 5.1/2 | 17.2 | 28.2 | 43.8 | 63 | 85.4 | 115 | 147 | 186 | 234 | ||||
| 6 | 18 | 29.4 | 45.7 | 65.6 | 88.8 | 119 | 153 | 193 | 242 | 289 | |||
| 6.1/4 | 18.8 | 30.6 | 47.6 | 68.2 | 92.2 | 123 | 158 | 200 | 250 | 298 | 263 | ||
| 6.1/2 | 19.6 | 32.3 | 49.5 | 70.8 | 95.6 | 128 | 164 | 206 | 258 | 308 | 374 | 437 | |
| 7 | 20.4 | 33.5 | 50.8 | 73.4 | 99 | 132 | 169 | 213 | 266 | 317 | 385 | 449 | |
| 7.1/2 | 21.2 | 34.8 | 52.7 | 75.5 | 103 | 136 | 174 | 220 | 275 | 326 | 396 | 462 | |
| 8 | 22 | 36.1 | 54.5 | 78 | 106 | 141 | 180 | 226 | 283 | 336 | 407 | 475 | |
| 8.1/4 | 37.3 | 56.3 | 80.5 | 108 | 145 | 185 | 233 | 291 | 345 | 418 | 488 | ||
| 8.3/4 | 38.6 | 58.1 | 83.1 | 112 | 149 | 191 | 240 | 299 | 354 | 429 | 500 | ||
| 9 | 39.8 | 60 | 85.6 | 115 | 153 | 196 | 246 | 307 | 364 | 440 | 513 | ||
| 9.1/2 | 41.1 | 61.8 | 88.2 | 118 | 158 | 201 | 253 | 316 | 373 | 451 | 526 | ||
| 10 | 63.7 | 90.7 | 122 | 162 | 206 | 260 | 324 | 382 | 463 | 538 | |||
| 10/1.4 | 93.3 | 125 | 166 | 212 | 267 | 332 | 391 | 474 | 551 | ||||
| 1.0.1/2 | 128 | 171 | 217 | 273 | 340 | 401 | 485 | 564 | |||||
| 11 | 132 | 175 | 223 | 279 | 345 | 410 | 496 | 576 | |||||
| 11.1/2 | 135 | 179 | 228 | 285 | 350 | 419 | 507 | 589 | |||||
| 12 | 138 | 184 | 233 | 292 | 358 | 429 | 518 | 602 | |||||
| Weight Of Metric Studs Bolt | |||||||||||||
| STUD BOLT LENGTH (in mm) | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
| 60 | 5,6 | 8,1 | 12 | 15,6 | |||||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | 23,7 | ||||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 25,4 | 32,5 | |||||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 27,1 | 34,5 | 45,5 | ||||||
| 100 | 7,6 | 11 | 16 | 21 | 28,8 | 36,7 | 47,2 | 54,2 | |||||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 30,4 | 38,7 | 48,3 | 58,2 | 80 | ||||
| 120 | 8,6 | 12,4 | 18 | 23,6 | 32,1 | 40,7 | 50,9 | 60,2 | 84,7 | 107 | |||
| 130 | 9,1 | 13,2 | 19 | 24,9 | 33,7 | 42,8 | 53,4 | 63,2 | 88,6 | 111 | 141 | ||
| 140 | 9,6 | 14,2 | 20 | 26,2 | 35,4 | 44,9 | 55,9 | 66,2 | 92,4 | 116 | 147 | 185 | |
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 36,9 | 46,9 | 58,5 | 69,2 | 96,3 | 121 | 153 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 38,6 | 49 | 61 | 72,2 | 100,1 | 126 | 159 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 40,2 | 51,1 | 63,5 | 75,2 | 104 | 130 | 165 | 206 | 253 | |
| 180 | 23,8 | 31,8 | 41,9 | 52,3 | 66,1 | 78,1 | 108 | 135 | 171 | 213 | 261 | ||
| 190 | 33,1 | 43,5 | 54,4 | 68,4 | 81,1 | 112 | 140 | 176 | 219 | 269 | |||
| 200 | 34,5 | 45,2 | 56,2 | 71 | 84 | 116 | 144 | 182 | 226 | 278 | |||
| 210 | 35,8 | 46,8 | 58,5 | 73,5 | 88,4 | 120 | 149 | 188 | 233 | 286 | |||
| 220 | 37,1 | 48,4 | 60,6 | 76,1 | 91,4 | 124 | 154 | 194 | 240 | 294 | |||
| 230 | 38,5 | 50,1 | 62,6 | 78,6 | 94,4 | 127 | 159 | 201 | 247 | 302 | |||
| 240 | 39,8 | 51,7 | 64,7 | 81,2 | 97,4 | 130,9 | 164 | 208 | 253 | 310 | |||
| 250 | 41,1 | 53,4 | 66,8 | 83,7 | 100,4 | 134,8 | 172 | 214 | 260 | 319 | |||
| 260 | 55 | 68,8 | 86,3 | 103,4 | 138,6 | 177 | 220 | 267 | 327 | ||||
| 270 | 56,6 | 70,9 | 88,8 | 106,4 | 142,5 | 182 | 224 | 274 | 335 | ||||
| 280 | 58,3 | 73 | 91,4 | 109,4 | 146,3 | 187 | 230 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 150,1 | 192 | 236 | 291 | 360 | |||||
| 300 | 77,1 | 96,5 | 115,4 | 154 | 196 | 241 | 298 | 368 | |||||
| 320 | 101,6 | 121,3 | 161,7 | 206 | 253 | 312 | 380 | ||||||
| 340 | 127,3 | 169,4 | 215 | 265 | 326 | 395 | |||||||
| 360 | 133,3 | 177,1 | 224 | 276 | 340 | 411 | |||||||
| 380 | 184,8 | 234 | 288 | 353 | 428 | ||||||||
| 400 | 192,5 | 243 | 299 | 367 | 444 | ||||||||
| 420 | 252 | 311 | 381 | 460 | |||||||||
| 440 | 262 | 322 | 394 | 477 | |||||||||
| 460 | 271 | 334 | 408 | 493 | |||||||||
| 480 | 281 | 345 | 422 | 509 | |||||||||
| 500 | 290 | 357 | 436 | 526 | |||||||||
Ready Stock Inconel 600 Stud Bolts
- Alloy 600 Drywall Stud
- Inconel® Alloy 600 Stud Bolt
- Inconel Alloy 600 Tap End Stud Bolts
- Inconel 600 Continuous Thread Stud Bolt
- Nickel Alloy 600 Threaded Stud Bolt
- Inconel 600 Threaded Studs
- ASTM B166 Inconel 600 Double End Stud Bolts
- Nickel Alloy 600 Flush Head Studs
- Inconel 600 Heavy Stud Bolt
- Inconel 600 High Pressure Stud Bolt
- 600 Inconel Threaded Studs
- ASTM B166 Inconel 600 Double Ended Stud
- Alloy 600 Stud Bolts
- Inconel 600 Partial Threaded Stud Bolt Stockholder
- Inconel 600 Threaded Rod Exporter
- 2.4816 Continuous Thread Stud Bolt
- DIN 2.4816 Full Threaded Stud Bolt
- Inconel 600 Threaded Rod
- ASTM B166 Inconel 600 Stud Bolts
- Inconel Alloy® 600 Threaded Stud Bolts
- Inconel 600 Weld Studs
- Inconel Alloy 600 Tap End Stud Bolts
- Alloy 600 Tie Rods
- ASME SB166 Inconel 600 Studs
- Inconel Alloy 600 Flush Head Studs Stockist
- Alloy 600 Industrial Stud Bolts Supplier in Mumbai
- Alloy 600 Double Ended Stud
- Nickel Alloy 600 Stud Bolt
- 600 Inconel Metric Thread Stud Bolt Manufacturer
- UNS N06600 Stud Bolt
- Inconel Alloy 600 Continuous Thread Stud Bolt
- 600 Inconel Stud Bolts With Reduced Shank
- Alloy 600 Single End Stud Bolt
- Inconel 600 Threaded Studs
- ASTM B166 Inconel 600 Double Ended Stud
- Inconel 600 Half Thread Stud Bolt
- Nickel Alloy 600 Full Threaded Stud Bolt Distributor
- Inconel® Alloy 600 Double End Stud Bolts
- Inconel Alloy 600 Industrial Stud Bolts
- Nickel Alloy 600 Tie Bars
- Inconel® Alloy 600 M16 Stud Bolt
- Inconel 600 Heavy Stud Bolt
- JIS NCF 600 Stud Bolts
- 600 Inconel Wheel Lug Stud Bolt
- Inconel 600 Tie Rods
- Inconel® Alloy 600 Double Ended Stud Manufacturer
- Alloy 600 Studs
- Alloy 600 Continuous Thread Stud Bolt
Inconel 600 Stud Bolts Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Alloy 600 Stud Bolts Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.47 g/cm3 | 1413 °C (2580 °F) | 655 MPa, 95000 psi | 310 MPa, 45000 psi | 45 % |
