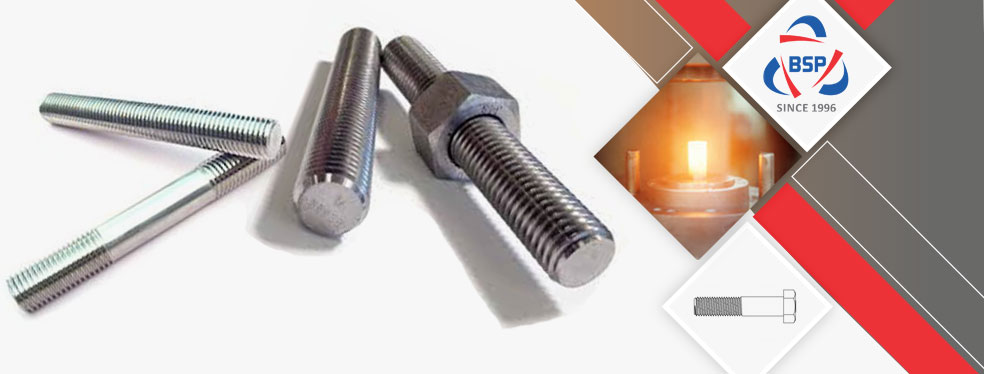

Incoloy 800 / 800H / 800HT Stud Bolt

Incoloy® Alloy 800 Studs, Incoloy 800H Industrial Stud Bolts, Alloy 800HT Double End Stud Bolt, Alloy 800 Stud Bolts, ASTM B425 Incoloy 800H Studs Price in India.

Bagoda Steel is a popular manufacturer and seller of Incoloy Alloy 800 / 800H / 800HT Stud Bolts, which may be welded via way of means of the not unusual place strategies used on steels. Incoloy Alloy UNS N08800 Stud Bolts is mostly utilized in applications by means of having temperatures as much as 1100° F, wherein they're generally utilized in temperatures above 1100° F wherein resistance to creep and rupture is required. The chemical stability lets in the nickel metal alloy to show off tremendous resistance to carburization, oxidation and nitriding atmospheres. Incoloy Alloy UNS N08810 Stud Bolts will now no longer turn out to be embrittled even after lengthy durations of utilization within the 1200-1600° F variety wherein many stainless steels turn out to be brittle. Excellent cold forming traits normally related to the nickel-chromium alloys are exhibited. When cold formed notably the grain length produces a visibly undulated. Incoloy Alloy UNS N08811 Stud Bolts gives High temperature strength, High creep rupture strength, Good corrosion resistance in lots of acidic environments, and Good resistance by means of having many sulphur-containing atmospheres. It is utilized in Ethylene furnace quench boilers; Hydrocarbon cracking; Valves, fittings and different additives uncovered to corrosive assault from 1100-1800° F; etc. Incoloy WNR 1.4876 Stud Bolts is likewise utilized in Industrial furnaces; Heat-treating gadget; Chemical and petrochemical processing; Super-heater and re-warmers in electricity plant life; Pressure vessels; and Heat exchangers.

Industrial Product
Incoloy 800 / 800H / 800HT Stud Bolts

Incoloy® Alloy 800 Stud Stockist, Alloy 800H Tap End Stud Bolts, Nickel Alloy 800HT Full Threaded Stud Bolt, Incoloy 800 Single End Stud Bolt, UNS N08800 Half Thread Stud Bolts, Alloy 800H Tie Rods, 2.4858 Tie Rods Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Incoloy WNR 1.4958 Stud Bolts has proof against oxidation and carburization in excessive temperature environments. They are utilized in a selection of applications concerning publicity to corrosive environments and excessive temperatures which include warmness treating gadget, chemical and petrochemical processing, nuclear electricity plant life and the paper pulp industry.

Heat-treating gadget which include baskets, trays, and furnishings appoint this Incoloy WNR 1.4959 Stud Bolts. Chemical and petrochemical processing industries use the alloys for warmth exchangers and different piping structures in nitric acid media particularly wherein resistance to chloride pressure-corrosion cracking is required. Power plant life use them for super-heater and re-heater tubing.

Material Specification Chart of Incoloy 800 / 800H / 800HT Stud Bolt

Specification ASTM F468,  B425 / ASME SF468, SB425
Size M02 to M33, Custom Sizes
Length 3 mm to 200 mm
Stud Bolt UNF, BSW, BSF, METRIC, UNC, or as required
Standard DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5
Form Hex, Threading, Square, Round as per Gauge Etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Types Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive of Stud Bolts Six-Lobe, Phillips, Phillips/Slot, Slotted etc
Packing of Stud Bolts IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating Ptfe Coated
Phosphate Coating
Teflon Coating
Zinc Coating
Hot Dipped Galvanizing Coating
Cadmium Coating
Xylon Coating

Various Types Of Incoloy 800 / 800H / 800HT Stud Bolt

Incoloy 825 Double Ended Stud Bolt
Incoloy 800 / 800H / 800HT Double Ended Stud Bolt
  • ASME SB425 Incoloy Alloy 800 Dual Threaded Stud
  • UNS N08810 Double End Studs
  • 1.4876 Double End Stud
  • Incoloy 800 Double Ended Wheel Stud
  • ASTM B425 Incoloy 800HT Double Ended Stud Bolt
  • Alloy 800H Double Ended Stud Bolt
Incoloy 800 / 800H / 800HT Stud Bolt
Incoloy 800 / 800H / 800HT Stud Bolt
  • ASTM B425 Incoloy 800H Stud Bolts
  • ASME SB425 Incoloy Alloy 800HT Stud Bolts
  • Nickel Alloy 800 Stud Bolts
  • Alloy 800 Stud Bolts
  • 1.4958 Stud Bolt
  • UNS N08811 Stud Bolts
Incoloy 800 / 800H / 800HT Stud
Incoloy 800 / 800H / 800HT Stud
  • ASME SB425 Incoloy Alloy 800 Stud
  • ASTM B425 Incoloy 800H Clinch Stud
  • Incoloy 800 Weld Studs
  • UNS N08810 Dowel Studs
  • 1.4859 Stud
  • Alloy 800HT Studs
Incoloy 800 / 800H / 800HT Flush Head Stud
Incoloy 800 / 800H / 800HT Flush Head Stud
  • 1.4876 Flush Head Studs
  • Incoloy 800 Self Clinching Stud
  • Alloy 800H Flush Head Stud
  • ASME SB425 Incoloy Alloy 800HT Self Clinch Flush Head Stud
  • ASTM B425 Incoloy 800 Flush Head Self Clinching Studs
  • UNS N08800 Flush Head Clinch Studs
Incoloy 800 / 800H / 800HT Threaded Rods
Incoloy 800 / 800H / 800HT Threaded Rod
  • ASTM B425 Incoloy 800 M5 Threaded Rod
  • Alloy 800HT Fully Threaded Rod
  • Alloy 800H Threaded Rods
  • 1.4958 Threaded Rods
  • ASME SB425 Incoloy Alloy 800 Threaded Rods
  • UNS N08810 Threaded Stud
Incoloy 800 / 800H / 800HT Single End Stud Bolt
Incoloy 800 / 800H / 800HT Single End Stud Bolt
  • 1.4859 Single Ended Stud Bolt
  • ASTM B425 Incoloy 800HT Single Ended Stud Bolt
  • ASME SB425 Incoloy Alloy 800 Single Ended Stud Bolt
  • Alloy 800H Single End Studs
  • Alloy 800 M6 Single End Stud
  • UNS N08811 Single Ended Threaded Stud

Equivalent Grades of Incoloy 800 / 800H / 800HT Stud Bolts

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 800 1.4876 N08800 NCF 800 NA 15 ЭИ670 Z8NC32-21 X10NiCrAlTi32-20 XH32T
Incoloy 800H 1.4958 / 1.4876 N08810 NCF 800H NA 15(H) ЭИ670 Z8NC33-21 X5NiCrAlTi31-20 XH32T
Incoloy 800HT 1.4859 / 1.4876 N08811 NCF 800HT NA 15(HT) ЭИ670 – X8NiCrAlTi32-21 XH32T
Stud Bolts Dimensions

View Size Table Of Incoloy 800 Stud Bolts, We have Global sales network for Incoloy 800H Stud Bolts, Wide Stockist Of Werkstoff No 1.4876 Tap End Stud Bolts, Double End Stud Bolts In India.

Size Chart of Incoloy 800 / 800H / 800HT Stud Bolts

 Class 150 Flanges ASME B16.5 (Stud bolt sizes) Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face 0.06 in Ring Joint
1/2 3 1/2 2 3/8 5/8 4 1/2 2 1/4 –
3/4 3 7/8 2 3/4 5/8 4 1/2 2 1/2 –
1 4 1/4 3 1/8 5/8 4 1/2 2 1/2 3
1 1/4 4 5/8 3 1/2 5/8 4 1/2 2 3/4 3 1/4
1 1/2 5 3 7/8 5/8 4 1/2 2 3/4 3 1/4
2 6 4 3/4 3/4 4 5/8 3 1/4 3 3/4
2 1/2 7 5 1/2 3/4 4 5/8 3 1/2 4
3 7 1/2 6 3/4 4 5/8 3 1/2 4
3 1/2 8 1/2 7 3/4 8 5/8 3 1/2 4
4 9 7 1/2 3/4 8 5/8 3 1/2 4
5 10 8 1/2 7/8 8 3/4 3 3/4 4 1/4
6 11 9 1/2 7/8 8 3/4 4 4 1/2
8 13 1/2 11 3/4 7/8 8 3/4 4 1/4 4 3/4
10 16 14 3/4 1 12 7/8 4 1/2 5
12 19 17 1 12 7/8 4 3/4 5 1/4
14 21 18 3/4 1 1/8 12 1 5 1/4 5 3/4
16 23 1/2 21 1/4 1 1/8 16 1 5 1/4 5 3/4
18 25 22 3/4 1 1/4 16 1 1/8 5 3/4 6 1/4
20 27 1/2 25 1 1/4 20 1 1/8 6 1/4 6 3/4
24 32 29 1/2 1 1/4 20 1 1/4 6 3/4 7 1/4
Class 300 Flanges ASME B16.5 Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face 0.06 in Ring Joint
1/2 3 3/4 2 5/8 5/8 4 1/2 2 1/2 3
3/4 4 5/8 3 1/4 3/4 4 5/8 3 3 1/2
1 4 7/8 3 1/2 3/4 4 5/8 3 3 1/2
1 1/4 5 1/4 3 7/8 3/4 4 5/8 3 1/4 3 3/4
1 1/2 6 1/8 4 1/2 7/8 4 3/4 3 1/2 4
2 6 1/2 5 3/4 8 5/8 3 1/2 4
2 1/2 7 1/2 5 7/8 7/8 8 3/4 4 4 1/2
3 8 1/4 6 5/8 7/8 8 3/4 4 1/4 4 3/4
3 1/2 9 7 1/4 7/8 8 3/4 4 1/4 5
4 10 7 7/8 7/8 8 3/4 4 1/2 5
5 11 9 1/4 7/8 8 3/4 4 3/4 5 1/4
6 12 1/2 10 5/8 7/8 12 3/4 4 3/4 5 1/2
8 15 13 1 12 7/8 5 1/2 6
10 17 1/2 15 1/4 1 1/8 16 1 6 1/4 6 3/4
12 20 1/2 17 3/4 1 1/4 16 1 1/8 6 3/4 7 1/4
14 23 20 1/4 1 1/4 20 1 1/8 7 7 1/2
16 25 1/2 22 1/2 1 3/8 20 1 1/4 7 1/2 8
18 28 24 3/4 1 3/8 24 1 1/4 7 3/4 8 1/4
20 30 1/2 27 1 3/8 24 1 1/4 8 8 3/4
24 36 32 1 5/8 24 1 1/2 9 10

Check available Sizes of ASME SB425 Incoloy 800 Stud Bolt, Ask For Ready Stock of UNS N08800 Stud Bolts in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Incoloy 800 / 800H / 800HT Stud Bolts

Diameter Diameter in mm Diameter in inch Nut Sizes
M12 12 0.4724 19
M10 10 0.3937 17
M14 14 0.5512 22
M18 18 0.7087 27
M16 16 0.6299 24
M20 20 0.7874 30
M24 24 0.9449 36
M22 22 0.8661 32
M27 27 1.063 41
M33 33 1.2992 50
M30 30 1.1811 46
M36 36 1.4173 55
M42 42 1.6535 65
M39 39 1.5354 60
M45 45 1.7717 70
M52 52 2.0472 80
M48 48 1.8898 75
M56 56 2.2047 85
M64 64 2.5197 95
M60 60 2.3622 90
M68 68 2.6772 100
M76 76 2.9921 110
M72 72 2.8346 105
M80 80 3.1496 115
M90 90 3.5433 130
M85 85 3.3464 120
M100 100 3.937 145
M160 160 6.2992 230
M125 125 4.9212 180
M110 110 4.3307 155
M140 140 5.5118 200

Incoloy 800 / 800H / 800HT Stud Bolt Torque Chart

Flange Size B16.5 Class 150 RF/ Ring Gaskets B16.5 Class 150 FF/ Full Face Gaskets
Torque / Round (ft-lbs) Stud Bolts Tighten Sequence Torque / Round (ft-lbs) Stud Bolts Tighten Sequence
1st 2nd Final Dwg/No. Bolt Size 1st 2nd Final Dwg*/No. Bolt Size
1/2″ 10 20 30 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
3/4″ 13 27 40 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1″ 15 30 50 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1-1/4″ 20 40 60 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1-1/2″ 20 40 60 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
2″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
2-1/2″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
3″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
3-1/2″ 40 80 120 8-bolt 5/8″ 40 80 120 8-bolt 5/8″
4″ 40 80 120 8-bolt 5/8″ 40 80 120 8-bolt 5/8″
5″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
6″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
8″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
10″ 95 190 320 12-bolt 7/8″ 95 190 320 12-bolt 7/8″
12″ 95 190 320 12-bolt 7/8″ 95 190 320 12-bolt 7/8″
14″ 147 294 490 12-bolt 1″ 147 294 490 12-bolt 1″
16″ 147 294 490 16-bolt 1″ 147 294 490 16-bolt 1″
18″ 213 426 710 16-bolt 1-1/8″ 213 426 710 16-bolt 1-1/8″
20″ 213 426 710 20-bolt 1-1/8″ 213 426 710 20-bolt 1-1/8″
24″ 300 601 1,000 20-bolt 1-1/4″ 300 601 1,000 20-bolt 1-1/4″

Flange Size B16.5 Class 300 RF/ Ring Gaskets
Torque / Round (ft-lbs) Stud Bolts Tighten Sequence*
1st 2nd Final Dwg/No. Stud Bolts Size
1/2″ 10 20 30 4-bolt 1/2″
3/4″ 15 30 50 4-bolt 5/8″
1″ 21 42 70 4-bolt 5/8″
1-1/4″ 30 60 100 4-bolt 5/8″
1-1/2″ 45 90 150 4-bolt 3/4″
2″ 33 66 110 8-bolt 5/8″
2-1/2″ 42 84 140 8-bolt 3/4″
3″ 60 120 200 8-bolt 3/4″
3-1/2″ 60 120 200 8-bolt 3/4″
4″ 60 120 200 8-bolt 3/4″
5″ 60 120 200 8-bolt 3/4″
6″ 60 120 200 12-bolt 3/4″
8″ 95 190 320 12-bolt 7/8″
10″ 147 294 490 16-bolt 1″
12″ 213 426 710 16-bolt 1-1/8″
14″ 195 390 650 20-bolt 1-1/8″
16″ 273 546 910 20-bolt 1-1/4″
18″ 300 601 1,000 24-bolt 1-1/4″
20″ 300 601 1,000 24-bolt 1-1/4″
24″ 465 930 1,550 24-bolt 1-1/2″

Weight Chart Of Incoloy 800 / 800H / 800HT Stud Bolt

Weight Imperial
STUD BOLT LENGTH (in inches) 1/2 5/8 3/4 7/8 1 1 1/8 1 1/4 1.3/8 1 1/2 1.5/8 1.3/4 1 7/8
2.1/2 10.8
2.3/4 11.6 19.8
3.1/4 12.4 21 32.4
3.1/2 13.2 22.2 34.3 50
4 14 23.4 36.2 52.6 71.8
4.1/2 14.8 24.6 38.1 55.2 75.2 102
4.3/4 15.6 25.8 40 57.8 78.6 106 137
5 16.4 27 41.9 60.4 82 111 142 179
5.1/2 17.2 28.2 43.8 63 85.4 115 147 186 234
6 18 29.4 45.7 65.6 88.8 119 153 193 242 289
6.1/4 18.8 30.6 47.6 68.2 92.2 123 158 200 250 298 263
6.1/2 19.6 32.3 49.5 70.8 95.6 128 164 206 258 308 374 437
7 20.4 33.5 50.8 73.4 99 132 169 213 266 317 385 449
7.1/2 21.2 34.8 52.7 75.5 103 136 174 220 275 326 396 462
8 22 36.1 54.5 78 106 141 180 226 283 336 407 475
8.1/4   37.3 56.3 80.5 108 145 185 233 291 345 418 488
8.3/4   38.6 58.1 83.1 112 149 191 240 299 354 429 500
9   39.8 60 85.6 115 153 196 246 307 364 440 513
9.1/2   41.1 61.8 88.2 118 158 201 253 316 373 451 526
10     63.7 90.7 122 162 206 260 324 382 463 538
10/1.4       93.3 125 166 212 267 332 391 474 551
1.0.1/2         128 171 217 273 340 401 485 564
11         132 175 223 279 345 410 496 576
11.1/2         135 179 228 285 350 419 507 589
12         138 184 233 292 358 429 518 602
Weight Of Metric Studs Bolt
STUD BOLT LENGTH (in mm) M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39
60 5,6 8,1 12 15,6
70 6,1 8,9 13 16,9 23,7
80 6,6 9,6 14 18,2 25,4 32,5
90 7,1 10,3 15 19,6 27,1 34,5 45,5
100 7,6 11 16 21 28,8 36,7 47,2 54,2
110 8,1 11,7 17 22,2 30,4 38,7 48,3 58,2 80
120 8,6 12,4 18 23,6 32,1 40,7 50,9 60,2 84,7 107
130 9,1 13,2 19 24,9 33,7 42,8 53,4 63,2 88,6 111 141
140 9,6 14,2 20 26,2 35,4 44,9 55,9 66,2 92,4 116 147 185
150 10,1 14,9 20,8 27,5 36,9 46,9 58,5 69,2 96,3 121 153 192 237
160 10,6 15,6 21,8 29,1 38,6 49 61 72,2 100,1 126 159 199 245
170   16,4 22,8 30,4 40,2 51,1 63,5 75,2 104 130 165 206 253
180     23,8 31,8 41,9 52,3 66,1 78,1 108 135 171 213 261
190       33,1 43,5 54,4 68,4 81,1 112 140 176 219 269
200       34,5 45,2 56,2 71 84 116 144 182 226 278
210       35,8 46,8 58,5 73,5 88,4 120 149 188 233 286
220       37,1 48,4 60,6 76,1 91,4 124 154 194 240 294
230       38,5 50,1 62,6 78,6 94,4 127 159 201 247 302
240       39,8 51,7 64,7 81,2 97,4 130,9 164 208 253 310
250       41,1 53,4 66,8 83,7 100,4 134,8 172 214 260 319
260         55 68,8 86,3 103,4 138,6 177 220 267 327
270         56,6 70,9 88,8 106,4 142,5 182 224 274 335
280         58,3 73 91,4 109,4 146,3 187 230 281 343
290           75 93,9 112,4 150,1 192 236 291 360
300           77,1 96,5 115,4 154 196 241 298 368
320             101,6 121,3 161,7 206 253 312 380
340               127,3 169,4 215 265 326 395
360               133,3 177,1 224 276 340 411
380                 184,8 234 288 353 428
400                 192,5 243 299 367 444
420                   252 311 381 460
440                   262 322 394 477
460                   271 334 408 493
480                   281 345 422 509
500                   290 357 436 526

Ready Stock Incoloy 800 / 800H / 800HT Stud Bolts

  • Alloy 800 Industrial Stud Bolts Supplier in Mumbai
  • Incoloy 800 Tie Rods
  • 800 Incoloy Stud Bolts With Reduced Shank
  • Incoloy® Alloy 800H M16 Stud Bolt
  • Incoloy 800H Threaded Rod Exporter
  • ASTM B425 Incoloy 800H Double Ended Stud
  • ASTM B425 Incoloy 800HT Stud Bolts
  • Incoloy 800HT Partial Threaded Stud Bolt Stockholder
  • Incoloy 800HT Weld Studs
  • Incoloy Alloy 800 Continuous Thread Stud Bolt
  • Incoloy 800 Heavy Stud Bolt
  • Alloy 800H Drywall Stud
  • Alloy 800H Tie Rods
  • 1.4859 Continuous Thread Stud Bolt
  • Incoloy Alloy 800 Flush Head Studs Stockist
  • 800HT Incoloy Wheel Lug Stud Bolt
  • ASTM B425 Incoloy 800 Double Ended Stud
  • Incoloy 800H Threaded Studs
  • Incoloy Alloy® 800HT Threaded Stud Bolts
  • Incoloy® Alloy 800HT Double End Stud Bolts
  • Incoloy Alloy 800 Industrial Stud Bolts
  • Alloy 800 Continuous Thread Stud Bolt
  • ASME SB425 Incoloy 800 Studs
  • Incoloy 800H Heavy Stud Bolt
  • ASTM B425 Incoloy 800HT Double End Stud Bolts
  • Nickel Alloy 800HT Stud Bolt
  • 800HT Incoloy Threaded Studs
  • Incoloy 800 Threaded Rod
  • Alloy 800 Stud Bolts
  • Alloy 800H Studs
  • Incoloy 800 High Pressure Stud Bolt
  • UNS N08810 Stud Bolt
  • Incoloy 800H Threaded Studs
  • Nickel Alloy 800H Full Threaded Stud Bolt Distributor
  • Incoloy Alloy 800HT Tap End Stud Bolts
  • JIS NCF 800 Stud Bolts
  • Incoloy 800H Half Thread Stud Bolt
  • Incoloy® Alloy 800 Stud Bolt
  • DIN 1.4958 Full Threaded Stud Bolt
  • Nickel Alloy 800 Tie Bars
  • Incoloy 800H Continuous Thread Stud Bolt
  • Alloy 800HT Double Ended Stud
  • Nickel Alloy 800HT Threaded Stud Bolt
  • Incoloy® Alloy 800HT Double Ended Stud Manufacturer
  • Nickel Alloy 800 Flush Head Studs
  • 800H Incoloy Metric Thread Stud Bolt Manufacturer
  • Incoloy Alloy 800HT Tap End Stud Bolts
  • Alloy 800H Single End Stud Bolt

Incoloy 800 / 800H / 800HT Stud Bolts Chemical Composition

Grade C Mn Si Fe S Cr Al-Ti Ni
800 min. – – – 39.5 – 19.0 0.15 30.0
max. 0.1 1.5 1.0 – 0.015 23.0 0.60 35.0
800H min. 0.05 – – 39.5 – 19.0 0.15 30.0
max. 0.1 1.5 1.0 – 0.015 23.0 0.60 35.0
800HT min. 0.06 – – 39.5 – 19.0 0.85/0.25 30.0
max. 0.1 1.5 1.0 – 0.015 23.0 1.20/0.60 35.0

Incoloy 800 / 800H / 800HT Stud Bolts Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
800/800H/800HT Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa –205 30 – –

Export Destinations For Incoloy 800 / 800H / 800HT Stud Bolts

industry
