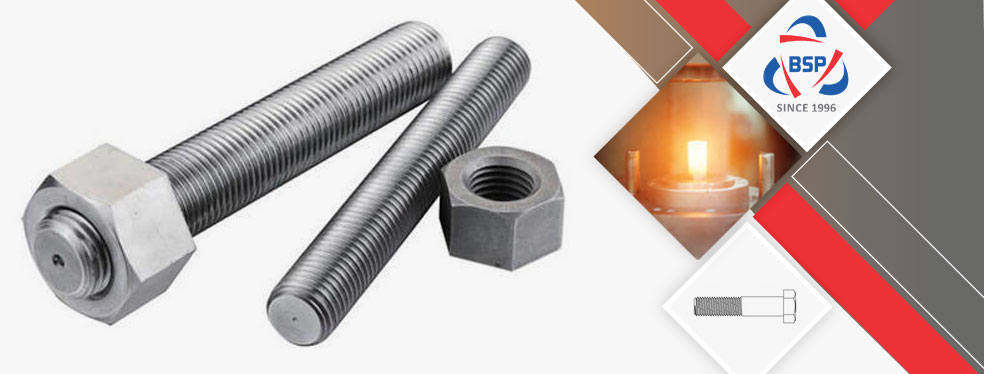

Inconel 625 Stud Bolt

Inconel® Alloy 625 Studs, Alloy 625 Double End Stud Bolt, Alloy 625 Stud Bolts, ASTM B166 Inconel 625 Studs, Inconel 625 Industrial Stud Bolts Price in India.

Bagoda Steel is a renowned seller and trader of Inconel Alloy 625 Stud Bolts, which is weldable, machinable and cold formable. It indicates true resistance to uniform corrosion. It is outstanding metallic this is widely known for its great resistance to pitting, pressure cracking, crevice corrosion, and fatigue corrosion. Enhanced ranges of key elements, molybdenum and chromium, plus the addition of nitrogen supply substantially advanced pitting and crevice corrosion resistance in chlorides. Inconel Alloy UNS N06625 Stud Bolts has an excellent weldability and the strategies used for welding traditional austenitic steels are used. It is frequently used as an alternative in essential additives of large buildings in which it has failed through pitting, crevice attack, or chloride pressure corrosion cracking.

Industrial Product
Inconel 625 Stud Bolts

2.4856 Tie Rods, Alloy 625 Tie Rods, Inconel 625 Single End Stud Bolt, UNS N06625 Half Thread Stud Bolts, Inconel® Alloy 625 Stud Stockist, Nickel Alloy 625 Full Threaded Stud Bolt, Alloy 625 Tap End Stud Bolts Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

It is appropriate to be used in chemical processing industries, fueloline platform system and offshore oil structures and desalination device. It is an excessive alloyed austenitic chrome steel with superb corrosion resistance, and is frequently called a first-class grade because of the molybdenum content material. It is likewise utilized in flue fueloline desulfurization scrubbers, pulp mill bleach structures, and tall oil distillation columns. Inconel Alloy WNR 2.4856 Stud Bolts is designed for optimum resistance to pitting and crevice corrosion. Due to its austenitic microstructure, it has excellent impact strength each at room temperature and at cryogenic temperatures. It has high-quality fashionable corrosion resistance to sulfuric acid and to chloride pressure corrosion cracking.

It is an iron - base and austenitic alloy with high-quality corrosion resistance to a huge variety of media. We deliver our stud bolts for a form of applications and could assist in figuring out the best quantity on your contemporary project. They are frequently utilized in device for the manufacture of artificial rubber, natural and heavy chemicals, plastics, pharmaceuticals, petroleum products, solvents and explosives, etc. Nickel Alloy 625 Stud Bolts is as properly utilized in Mixing tanks, Process piping, Heat exchangers, and more, in which these applications are confined to a most temperature of one thousand Degree F according to ASME. At with some percentage of nickel content material, it has realistic immunity to chloride pressure corrosion cracking.

Material Specification Chart of Inconel 625 Stud Bolt

Specification ASTM F468,  B166 / ASME SF468, SB166
Size M02 to M33, Custom Sizes
Length 3 mm to 200 mm
Stud Bolt UNF, BSW, BSF, METRIC, UNC, or as required
Standard DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5
Form Hex, Threading, Square, Round as per Gauge Etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Types Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive of Stud Bolts Six-Lobe, Phillips, Phillips/Slot, Slotted etc
Packing of Stud Bolts IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating Ptfe Coated
Phosphate Coating
Teflon Coating
Zinc Coating
Hot Dipped Galvanizing Coating
Cadmium Coating
Xylon Coating

Various Types Of Inconel 625 Stud Bolt

Inconel 625 Double Ended Stud Bolt
Inconel 625 Double Ended Stud Bolt
  • 2.4856 Double End Stud
  • Alloy 625 Double Ended Stud Bolt
  • UNS N06625 Double End Studs
  • Inconel 625 Double Ended Wheel Stud
  • ASME SB166 Inconel Alloy 625 Dual Threaded Stud
  • ASTM B166 Inconel 625 Double Ended Stud Bolt
Inconel 625 Stud Bolt
Inconel 625 Stud Bolt
  • ASTM B166 Inconel 625 Stud Bolts
  • Nickel Alloy 625 Stud Bolts
  • 2.4856 Stud Bolt
  • UNS N06625 Stud Bolts
  • ASME SB166 Inconel Alloy 625 Stud Bolts
  • Alloy 625 Stud Bolts
Inconel 625 Stud
Inconel 625 Stud
  • ASTM B166 Inconel 625 Clinch Stud
  • UNS N06625 Dowel Studs
  • Inconel 625 Weld Studs
  • ASME SB166 Inconel Alloy 625 Stud
  • 2.4856 Stud
  • Alloy 625 Studs
Inconel 625 Flush Head Stud
Inconel 625 Flush Head Stud
  • 2.4856 Flush Head Studs
  • ASTM B166 Inconel 625 Flush Head Self Clinching Studs
  • Alloy 625 Flush Head Stud
  • ASME SB166 Inconel Alloy 625 Self Clinch Flush Head Stud
  • UNS N06625 Flush Head Clinch Studs
  • Inconel 625 Self Clinching Stud
Inconel 625 Threaded Rods
Inconel 625 Threaded Rod
  • ASTM B166 Inconel 625 M5 Threaded Rod
  • Alloy 625 Fully Threaded Rod
  • UNS N06625 Threaded Stud
  • 2.4856 Threaded Rods
  • ASME SB166 Inconel Alloy 625 Threaded Rods
  • Alloy 625 Threaded Rods
Inconel 625 Single End Stud Bolt
Inconel 625 Single End Stud Bolt
  • 2.4856 Single Ended Stud Bolt
  • Alloy 625 Single End Studs
  • ASTM B166 Inconel 625 Single Ended Stud Bolt
  • ASME SB166 Inconel Alloy 625 Single Ended Stud Bolt
  • Alloy 625 M6 Single End Stud
  • UNS N06625 Single Ended Threaded Stud

Equivalent Grades of Inconel 625 Stud Bolts

STANDARD WERKSTOFF NR. UNS JIS BS AFNOR GOST EN
Inconel 625 2.4856 N06625 NCF 625 NA 21 NC22DNB4M ХН75МБТЮ NiCr22Mo9Nb
Stud Bolts Dimensions

View Size Table Of Inconel 625 Stud Bolts, We have Global sales network for Inconel 625 Stud Bolts, Wide Stockist Of Werkstoff No 2.4856 Tap End Stud Bolts, Double End Stud Bolts In India.

Size Chart of Inconel 625 Stud Bolts

 Class 150 Flanges ASME B16.5 (Stud bolt sizes) Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face 0.06 in Ring Joint
1/2 3 1/2 2 3/8 5/8 4 1/2 2 1/4 –
3/4 3 7/8 2 3/4 5/8 4 1/2 2 1/2 –
1 4 1/4 3 1/8 5/8 4 1/2 2 1/2 3
1 1/4 4 5/8 3 1/2 5/8 4 1/2 2 3/4 3 1/4
1 1/2 5 3 7/8 5/8 4 1/2 2 3/4 3 1/4
2 6 4 3/4 3/4 4 5/8 3 1/4 3 3/4
2 1/2 7 5 1/2 3/4 4 5/8 3 1/2 4
3 7 1/2 6 3/4 4 5/8 3 1/2 4
3 1/2 8 1/2 7 3/4 8 5/8 3 1/2 4
4 9 7 1/2 3/4 8 5/8 3 1/2 4
5 10 8 1/2 7/8 8 3/4 3 3/4 4 1/4
6 11 9 1/2 7/8 8 3/4 4 4 1/2
8 13 1/2 11 3/4 7/8 8 3/4 4 1/4 4 3/4
10 16 14 3/4 1 12 7/8 4 1/2 5
12 19 17 1 12 7/8 4 3/4 5 1/4
14 21 18 3/4 1 1/8 12 1 5 1/4 5 3/4
16 23 1/2 21 1/4 1 1/8 16 1 5 1/4 5 3/4
18 25 22 3/4 1 1/4 16 1 1/8 5 3/4 6 1/4
20 27 1/2 25 1 1/4 20 1 1/8 6 1/4 6 3/4
24 32 29 1/2 1 1/4 20 1 1/4 6 3/4 7 1/4
Class 300 Flanges ASME B16.5 Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face 0.06 in Ring Joint
1/2 3 3/4 2 5/8 5/8 4 1/2 2 1/2 3
3/4 4 5/8 3 1/4 3/4 4 5/8 3 3 1/2
1 4 7/8 3 1/2 3/4 4 5/8 3 3 1/2
1 1/4 5 1/4 3 7/8 3/4 4 5/8 3 1/4 3 3/4
1 1/2 6 1/8 4 1/2 7/8 4 3/4 3 1/2 4
2 6 1/2 5 3/4 8 5/8 3 1/2 4
2 1/2 7 1/2 5 7/8 7/8 8 3/4 4 4 1/2
3 8 1/4 6 5/8 7/8 8 3/4 4 1/4 4 3/4
3 1/2 9 7 1/4 7/8 8 3/4 4 1/4 5
4 10 7 7/8 7/8 8 3/4 4 1/2 5
5 11 9 1/4 7/8 8 3/4 4 3/4 5 1/4
6 12 1/2 10 5/8 7/8 12 3/4 4 3/4 5 1/2
8 15 13 1 12 7/8 5 1/2 6
10 17 1/2 15 1/4 1 1/8 16 1 6 1/4 6 3/4
12 20 1/2 17 3/4 1 1/4 16 1 1/8 6 3/4 7 1/4
14 23 20 1/4 1 1/4 20 1 1/8 7 7 1/2
16 25 1/2 22 1/2 1 3/8 20 1 1/4 7 1/2 8
18 28 24 3/4 1 3/8 24 1 1/4 7 3/4 8 1/4
20 30 1/2 27 1 3/8 24 1 1/4 8 8 3/4
24 36 32 1 5/8 24 1 1/2 9 10

Check available Sizes of ASME SB 166 Inconel 625 Stud Bolt, Ask For Ready Stock of UNS N06625 Stud Bolts in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Alloy 625 Stud Bolts

Diameter Diameter in mm Diameter in inch Nut Sizes
M12 12 0.4724 19
M10 10 0.3937 17
M14 14 0.5512 22
M18 18 0.7087 27
M16 16 0.6299 24
M20 20 0.7874 30
M24 24 0.9449 36
M22 22 0.8661 32
M27 27 1.063 41
M33 33 1.2992 50
M30 30 1.1811 46
M36 36 1.4173 55
M42 42 1.6535 65
M39 39 1.5354 60
M45 45 1.7717 70
M52 52 2.0472 80
M48 48 1.8898 75
M56 56 2.2047 85
M64 64 2.5197 95
M60 60 2.3622 90
M68 68 2.6772 100
M76 76 2.9921 110
M72 72 2.8346 105
M80 80 3.1496 115
M90 90 3.5433 130
M85 85 3.3464 120
M100 100 3.937 145
M160 160 6.2992 230
M125 125 4.9212 180
M110 110 4.3307 155
M140 140 5.5118 200

Alloy 625 Stud Bolt Torque Chart

Flange Size B16.5 Class 150 RF/ Ring Gaskets B16.5 Class 150 FF/ Full Face Gaskets
Torque / Round (ft-lbs) Stud Bolts Tighten Sequence Torque / Round (ft-lbs) Stud Bolts Tighten Sequence
1st 2nd Final Dwg/No. Bolt Size 1st 2nd Final Dwg*/No. Bolt Size
1/2″ 10 20 30 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
3/4″ 13 27 40 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1″ 15 30 50 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1-1/4″ 20 40 60 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1-1/2″ 20 40 60 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
2″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
2-1/2″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
3″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
3-1/2″ 40 80 120 8-bolt 5/8″ 40 80 120 8-bolt 5/8″
4″ 40 80 120 8-bolt 5/8″ 40 80 120 8-bolt 5/8″
5″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
6″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
8″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
10″ 95 190 320 12-bolt 7/8″ 95 190 320 12-bolt 7/8″
12″ 95 190 320 12-bolt 7/8″ 95 190 320 12-bolt 7/8″
14″ 147 294 490 12-bolt 1″ 147 294 490 12-bolt 1″
16″ 147 294 490 16-bolt 1″ 147 294 490 16-bolt 1″
18″ 213 426 710 16-bolt 1-1/8″ 213 426 710 16-bolt 1-1/8″
20″ 213 426 710 20-bolt 1-1/8″ 213 426 710 20-bolt 1-1/8″
24″ 300 601 1,000 20-bolt 1-1/4″ 300 601 1,000 20-bolt 1-1/4″

Flange Size B16.5 Class 300 RF/ Ring Gaskets
Torque / Round (ft-lbs) Stud Bolts Tighten Sequence*
1st 2nd Final Dwg/No. Stud Bolts Size
1/2″ 10 20 30 4-bolt 1/2″
3/4″ 15 30 50 4-bolt 5/8″
1″ 21 42 70 4-bolt 5/8″
1-1/4″ 30 60 100 4-bolt 5/8″
1-1/2″ 45 90 150 4-bolt 3/4″
2″ 33 66 110 8-bolt 5/8″
2-1/2″ 42 84 140 8-bolt 3/4″
3″ 60 120 200 8-bolt 3/4″
3-1/2″ 60 120 200 8-bolt 3/4″
4″ 60 120 200 8-bolt 3/4″
5″ 60 120 200 8-bolt 3/4″
6″ 60 120 200 12-bolt 3/4″
8″ 95 190 320 12-bolt 7/8″
10″ 147 294 490 16-bolt 1″
12″ 213 426 710 16-bolt 1-1/8″
14″ 195 390 650 20-bolt 1-1/8″
16″ 273 546 910 20-bolt 1-1/4″
18″ 300 601 1,000 24-bolt 1-1/4″
20″ 300 601 1,000 24-bolt 1-1/4″
24″ 465 930 1,550 24-bolt 1-1/2″

Weight Chart Of Inconel 625 Stud Bolt

Weight Imperial
STUD BOLT LENGTH (in inches) 1/2 5/8 3/4 7/8 1 1 1/8 1 1/4 1.3/8 1 1/2 1.5/8 1.3/4 1 7/8
2.1/2 10.8
2.3/4 11.6 19.8
3.1/4 12.4 21 32.4
3.1/2 13.2 22.2 34.3 50
4 14 23.4 36.2 52.6 71.8
4.1/2 14.8 24.6 38.1 55.2 75.2 102
4.3/4 15.6 25.8 40 57.8 78.6 106 137
5 16.4 27 41.9 60.4 82 111 142 179
5.1/2 17.2 28.2 43.8 63 85.4 115 147 186 234
6 18 29.4 45.7 65.6 88.8 119 153 193 242 289
6.1/4 18.8 30.6 47.6 68.2 92.2 123 158 200 250 298 263
6.1/2 19.6 32.3 49.5 70.8 95.6 128 164 206 258 308 374 437
7 20.4 33.5 50.8 73.4 99 132 169 213 266 317 385 449
7.1/2 21.2 34.8 52.7 75.5 103 136 174 220 275 326 396 462
8 22 36.1 54.5 78 106 141 180 226 283 336 407 475
8.1/4   37.3 56.3 80.5 108 145 185 233 291 345 418 488
8.3/4   38.6 58.1 83.1 112 149 191 240 299 354 429 500
9   39.8 60 85.6 115 153 196 246 307 364 440 513
9.1/2   41.1 61.8 88.2 118 158 201 253 316 373 451 526
10     63.7 90.7 122 162 206 260 324 382 463 538
10/1.4       93.3 125 166 212 267 332 391 474 551
1.0.1/2         128 171 217 273 340 401 485 564
11         132 175 223 279 345 410 496 576
11.1/2         135 179 228 285 350 419 507 589
12         138 184 233 292 358 429 518 602
Weight Of Metric Studs Bolt
STUD BOLT LENGTH (in mm) M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39
60 5,6 8,1 12 15,6
70 6,1 8,9 13 16,9 23,7
80 6,6 9,6 14 18,2 25,4 32,5
90 7,1 10,3 15 19,6 27,1 34,5 45,5
100 7,6 11 16 21 28,8 36,7 47,2 54,2
110 8,1 11,7 17 22,2 30,4 38,7 48,3 58,2 80
120 8,6 12,4 18 23,6 32,1 40,7 50,9 60,2 84,7 107
130 9,1 13,2 19 24,9 33,7 42,8 53,4 63,2 88,6 111 141
140 9,6 14,2 20 26,2 35,4 44,9 55,9 66,2 92,4 116 147 185
150 10,1 14,9 20,8 27,5 36,9 46,9 58,5 69,2 96,3 121 153 192 237
160 10,6 15,6 21,8 29,1 38,6 49 61 72,2 100,1 126 159 199 245
170   16,4 22,8 30,4 40,2 51,1 63,5 75,2 104 130 165 206 253
180     23,8 31,8 41,9 52,3 66,1 78,1 108 135 171 213 261
190       33,1 43,5 54,4 68,4 81,1 112 140 176 219 269
200       34,5 45,2 56,2 71 84 116 144 182 226 278
210       35,8 46,8 58,5 73,5 88,4 120 149 188 233 286
220       37,1 48,4 60,6 76,1 91,4 124 154 194 240 294
230       38,5 50,1 62,6 78,6 94,4 127 159 201 247 302
240       39,8 51,7 64,7 81,2 97,4 130,9 164 208 253 310
250       41,1 53,4 66,8 83,7 100,4 134,8 172 214 260 319
260         55 68,8 86,3 103,4 138,6 177 220 267 327
270         56,6 70,9 88,8 106,4 142,5 182 224 274 335
280         58,3 73 91,4 109,4 146,3 187 230 281 343
290           75 93,9 112,4 150,1 192 236 291 360
300           77,1 96,5 115,4 154 196 241 298 368
320             101,6 121,3 161,7 206 253 312 380
340               127,3 169,4 215 265 326 395
360               133,3 177,1 224 276 340 411
380                 184,8 234 288 353 428
400                 192,5 243 299 367 444
420                   252 311 381 460
440                   262 322 394 477
460                   271 334 408 493
480                   281 345 422 509
500                   290 357 436 526

Ready Stock Inconel 625 Stud Bolts

  • 625 Inconel Metric Thread Stud Bolt Manufacturer
  • Nickel Alloy 625 Full Threaded Stud Bolt Distributor
  • 625 Inconel Threaded Studs
  • Inconel Alloy 625 Tap End Stud Bolts
  • Inconel 625 Threaded Rod
  • DIN 2.4856 Full Threaded Stud Bolt
  • Alloy 625 Stud Bolts
  • Inconel 625 Half Thread Stud Bolt
  • Inconel® Alloy 625 Stud Bolt
  • Inconel 625 Tie Rods
  • Inconel 625 Weld Studs
  • Inconel 625 Heavy Stud Bolt
  • Inconel 625 Continuous Thread Stud Bolt
  • Inconel Alloy® 625 Threaded Stud Bolts
  • ASTM B166 Inconel 625 Double Ended Stud
  • Inconel® Alloy 625 Double Ended Stud Manufacturer
  • Inconel 625 Heavy Stud Bolt
  • Inconel® Alloy 625 Double End Stud Bolts
  • Inconel 625 Threaded Rod Exporter
  • Inconel Alloy 625 Industrial Stud Bolts
  • Inconel® Alloy 625 M16 Stud Bolt
  • 625 Inconel Wheel Lug Stud Bolt
  • Inconel Alloy 625 Tap End Stud Bolts
  • ASTM B166 Inconel 625 Stud Bolts
  • Inconel 625 High Pressure Stud Bolt
  • 625 Inconel Stud Bolts With Reduced Shank
  • ASTM B166 Inconel 625 Double Ended Stud
  • UNS N06625 Stud Bolt
  • Alloy 625 Double Ended Stud
  • Alloy 625 Studs
  • Inconel 625 Threaded Studs
  • Alloy 625 Tie Rods
  • Alloy 625 Single End Stud Bolt
  • ASME SB166 Inconel 625 Studs
  • ASTM B166 Inconel 625 Double End Stud Bolts
  • JIS NCF 625 Stud Bolts
  • Inconel 625 Threaded Studs
  • 2.4856 Continuous Thread Stud Bolt
  • Inconel Alloy 625 Continuous Thread Stud Bolt
  • Nickel Alloy 625 Flush Head Studs
  • Inconel Alloy 625 Flush Head Studs Stockist
  • Inconel 625 Partial Threaded Stud Bolt Stockholder
  • Nickel Alloy 625 Threaded Stud Bolt
  • Alloy 625 Drywall Stud
  • Nickel Alloy 625 Tie Bars
  • Alloy 625 Continuous Thread Stud Bolt
  • Alloy 625 Industrial Stud Bolts Supplier in Mumbai
  • Nickel Alloy 625 Stud Bolt

Inconel 625 Stud Bolts Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Inconel 625 0.10 max 0.50 max 0.50 max 0.015 max - 5.0 max 58.0 min 20.0 - 23.0

Alloy 625 Stud Bolts Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 625 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %

Export Destinations For Inconel 625 Stud Bolts

industry
