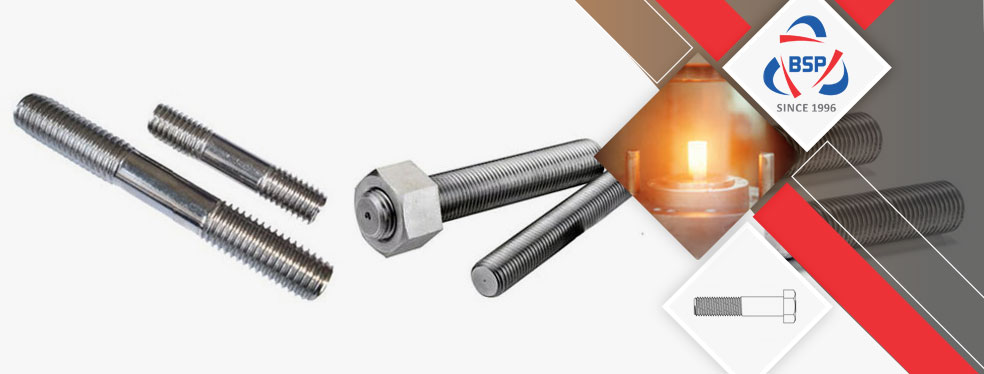

Incoloy® Alloy 825 Stud Stockist, Alloy 825 Tap End Stud Bolts, Nickel Alloy 825 Full Threaded Stud Bolt, Incoloy 825 Single End Stud Bolt, UNS N08825 Half Thread Stud Bolts, Alloy 825 Tie Rods, 2.4858 Tie Rods Supplier in Mumbai, India.
A low corrosion charge in unexpectedly flowing brackish or seawater mixed with superb resistance to pressure corrosion cracking in maximum freshwaters, and its resistance to a number of corrosive situations brought about its extensive use in marine applications and different non-oxidizing chloride solutions. This nickel metallic alloy is specially proof against hydrochloric and hydrofluoric acids whilst they're de-aerated. As could be anticipated from its excessive copper content, Incoloy Alloy WNR 2.4858 Stud Bolts is unexpectedly attacked through nitric acid and ammonia systems. Screw device inventory for fasteners and comparable excessive manufacturing run items.
Generally, its corrosion resistance is excellent in decreasing environments, however terrible in oxidizing situations. It isn't always beneficial in oxidizing acids, consisting of nitric acid and nitrous. Nevertheless, it's far proof against maximum alkalis, salts, waters, food products, natural materials and atmospheric situations at regular and accelerated temperatures. Nickel Alloy 825 Stud Bolts gives approximately the equal corrosion resistance as nickel however with better maximum working pressures and temperatures and at a decrease price because of its advanced capacity to be machined. It gives right machinability and is usually recommended to be used with automated screw machines. It is proof against seawater and steam at excessive temperatures, and has excessive resistance to alkalis.
Material Specification Chart of Incoloy 825 Stud Bolt
| Specification | ASTM F468, B425 / ASME SF468, SB425 |
|---|---|
| Size | M02 to M33, Custom Sizes |
| Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Types | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
Various Types Of Incoloy 825 Stud Bolt
Incoloy 825 Double Ended Stud Bolt
- ASME SB425 Incoloy Alloy 825 Dual Threaded Stud
- Alloy 825 Double Ended Stud Bolt
- ASTM B425 Incoloy 825 Double Ended Stud Bolt
- UNS N08825 Double End Studs
- Incoloy 825 Double Ended Wheel Stud
- 2.4858 Double End Stud
Incoloy 825 Stud Bolt
- Alloy 825 Stud Bolts
- ASTM B425 Incoloy 825 Stud Bolts
- ASME SB425 Incoloy Alloy 825 Stud Bolts
- Nickel Alloy 825 Stud Bolts
- UNS N08825 Stud Bolts
- 2.4858 Stud Bolt
Incoloy 825 Stud
- Incoloy 825 Weld Studs
- ASTM B425 Incoloy 825 Clinch Stud
- 2.4858 Stud
- UNS N08825 Dowel Studs
- Alloy 825 Studs
- ASME SB425 Incoloy Alloy 825 Stud
Incoloy 825 Flush Head Stud
- UNS N08825 Flush Head Clinch Studs
- ASTM B425 Incoloy 825 Flush Head Self Clinching Studs
- Alloy 825 Flush Head Stud
- ASME SB425 Incoloy Alloy 825 Self Clinch Flush Head Stud
- 2.4858 Flush Head Studs
- Incoloy 825 Self Clinching Stud
Incoloy 825 Threaded Rod
- ASTM B425 Incoloy 825 M5 Threaded Rod
- Alloy 825 Threaded Rods
- Alloy 825 Fully Threaded Rod
- ASME SB425 Incoloy Alloy 825 Threaded Rods
- 2.4858 Threaded Rods
- UNS N08825 Threaded Stud
Incoloy 825 Single End Stud Bolt
- ASME SB425 Incoloy Alloy 825 Single Ended Stud Bolt
- Alloy 825 Single End Studs
- UNS N08825 Single Ended Threaded Stud
- ASTM B425 Incoloy 825 Single Ended Stud Bolt
- 2.4858 Single Ended Stud Bolt
- Alloy 825 M6 Single End Stud
Equivalent Grades of Incoloy 825 Stud Bolts
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo |
View Size Table Of Incoloy 825 Stud Bolts, We have Global sales network for Incoloy 825 Stud Bolts, Wide Stockist Of Werkstoff No 2.4858 Tap End Stud Bolts, Double End Stud Bolts In India.
Size Chart of Incoloy 825 Stud Bolts
| Class 150 Flanges ASME B16.5 (Stud bolt sizes) | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in | Ring Joint | |
| 1/2 | 3 1/2 | 2 3/8 | 5/8 | 4 | 1/2 | 2 1/4 | – | |
| 3/4 | 3 7/8 | 2 3/4 | 5/8 | 4 | 1/2 | 2 1/2 | – | |
| 1 | 4 1/4 | 3 1/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 1 1/4 | 4 5/8 | 3 1/2 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 1 1/2 | 5 | 3 7/8 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 2 | 6 | 4 3/4 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 2 1/2 | 7 | 5 1/2 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 | 7 1/2 | 6 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 1/2 | 8 1/2 | 7 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 4 | 9 | 7 1/2 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 5 | 10 | 8 1/2 | 7/8 | 8 | 3/4 | 3 3/4 | 4 1/4 | |
| 6 | 11 | 9 1/2 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 8 | 13 1/2 | 11 3/4 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 10 | 16 | 14 3/4 | 1 | 12 | 7/8 | 4 1/2 | 5 | |
| 12 | 19 | 17 | 1 | 12 | 7/8 | 4 3/4 | 5 1/4 | |
| 14 | 21 | 18 3/4 | 1 1/8 | 12 | 1 | 5 1/4 | 5 3/4 | |
| 16 | 23 1/2 | 21 1/4 | 1 1/8 | 16 | 1 | 5 1/4 | 5 3/4 | |
| 18 | 25 | 22 3/4 | 1 1/4 | 16 | 1 1/8 | 5 3/4 | 6 1/4 | |
| 20 | 27 1/2 | 25 | 1 1/4 | 20 | 1 1/8 | 6 1/4 | 6 3/4 | |
| 24 | 32 | 29 1/2 | 1 1/4 | 20 | 1 1/4 | 6 3/4 | 7 1/4 | |
| Class 300 Flanges ASME B16.5 | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in | Ring Joint | |
| 1/2 | 3 3/4 | 2 5/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 3/4 | 4 5/8 | 3 1/4 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 | 4 7/8 | 3 1/2 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 1/4 | 5 1/4 | 3 7/8 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 1 1/2 | 6 1/8 | 4 1/2 | 7/8 | 4 | 3/4 | 3 1/2 | 4 | |
| 2 | 6 1/2 | 5 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 2 1/2 | 7 1/2 | 5 7/8 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 3 | 8 1/4 | 6 5/8 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 3 1/2 | 9 | 7 1/4 | 7/8 | 8 | 3/4 | 4 1/4 | 5 | |
| 4 | 10 | 7 7/8 | 7/8 | 8 | 3/4 | 4 1/2 | 5 | |
| 5 | 11 | 9 1/4 | 7/8 | 8 | 3/4 | 4 3/4 | 5 1/4 | |
| 6 | 12 1/2 | 10 5/8 | 7/8 | 12 | 3/4 | 4 3/4 | 5 1/2 | |
| 8 | 15 | 13 | 1 | 12 | 7/8 | 5 1/2 | 6 | |
| 10 | 17 1/2 | 15 1/4 | 1 1/8 | 16 | 1 | 6 1/4 | 6 3/4 | |
| 12 | 20 1/2 | 17 3/4 | 1 1/4 | 16 | 1 1/8 | 6 3/4 | 7 1/4 | |
| 14 | 23 | 20 1/4 | 1 1/4 | 20 | 1 1/8 | 7 | 7 1/2 | |
| 16 | 25 1/2 | 22 1/2 | 1 3/8 | 20 | 1 1/4 | 7 1/2 | 8 | |
| 18 | 28 | 24 3/4 | 1 3/8 | 24 | 1 1/4 | 7 3/4 | 8 1/4 | |
| 20 | 30 1/2 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 8 3/4 | |
| 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 10 | |
Check available Sizes of ASME SB425 Incoloy 825 Stud Bolt, Ask For Ready Stock of UNS N08825 Stud Bolts in Mumbai, India.
BAGODA
Quick Contact
Dimensions of Incoloy 825 Stud Bolts
| Diameter | Diameter in mm | Diameter in inch | Nut Sizes |
|---|---|---|---|
| M12 | 12 | 0.4724 | 19 |
| M10 | 10 | 0.3937 | 17 |
| M14 | 14 | 0.5512 | 22 |
| M18 | 18 | 0.7087 | 27 |
| M16 | 16 | 0.6299 | 24 |
| M20 | 20 | 0.7874 | 30 |
| M24 | 24 | 0.9449 | 36 |
| M22 | 22 | 0.8661 | 32 |
| M27 | 27 | 1.063 | 41 |
| M33 | 33 | 1.2992 | 50 |
| M30 | 30 | 1.1811 | 46 |
| M36 | 36 | 1.4173 | 55 |
| M42 | 42 | 1.6535 | 65 |
| M39 | 39 | 1.5354 | 60 |
| M45 | 45 | 1.7717 | 70 |
| M52 | 52 | 2.0472 | 80 |
| M48 | 48 | 1.8898 | 75 |
| M56 | 56 | 2.2047 | 85 |
| M64 | 64 | 2.5197 | 95 |
| M60 | 60 | 2.3622 | 90 |
| M68 | 68 | 2.6772 | 100 |
| M76 | 76 | 2.9921 | 110 |
| M72 | 72 | 2.8346 | 105 |
| M80 | 80 | 3.1496 | 115 |
| M90 | 90 | 3.5433 | 130 |
| M85 | 85 | 3.3464 | 120 |
| M100 | 100 | 3.937 | 145 |
| M160 | 160 | 6.2992 | 230 |
| M125 | 125 | 4.9212 | 180 |
| M110 | 110 | 4.3307 | 155 |
| M140 | 140 | 5.5118 | 200 |
Incoloy 825 Stud Bolt Torque Chart
| Flange Size | B16.5 Class 150 RF/ Ring Gaskets | B16.5 Class 150 FF/ Full Face Gaskets | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | |||||||
| 1st | 2nd | Final | Dwg/No. | Bolt Size | 1st | 2nd | Final | Dwg*/No. | Bolt Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 3/4″ | 13 | 27 | 40 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1″ | 15 | 30 | 50 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/4″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 2-1/2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3-1/2″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 4″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 8″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 10″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 12″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 14″ | 147 | 294 | 490 | 12-bolt | 1″ | 147 | 294 | 490 | 12-bolt | 1″ |
| 16″ | 147 | 294 | 490 | 16-bolt | 1″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 18″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 20″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ |
| 24″ | 300 | 601 | 1,000 | 20-bolt | 1-1/4″ | 300 | 601 | 1,000 | 20-bolt | 1-1/4″ |
| Flange Size | B16.5 Class 300 RF/ Ring Gaskets | ||||
|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence* | ||||
| 1st | 2nd | Final | Dwg/No. | Stud Bolts Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ |
| 3/4″ | 15 | 30 | 50 | 4-bolt | 5/8″ |
| 1″ | 21 | 42 | 70 | 4-bolt | 5/8″ |
| 1-1/4″ | 30 | 60 | 100 | 4-bolt | 5/8″ |
| 1-1/2″ | 45 | 90 | 150 | 4-bolt | 3/4″ |
| 2″ | 33 | 66 | 110 | 8-bolt | 5/8″ |
| 2-1/2″ | 42 | 84 | 140 | 8-bolt | 3/4″ |
| 3″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 3-1/2″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 12-bolt | 3/4″ |
| 8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 10″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 12″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 14″ | 195 | 390 | 650 | 20-bolt | 1-1/8″ |
| 16″ | 273 | 546 | 910 | 20-bolt | 1-1/4″ |
| 18″ | 300 | 601 | 1,000 | 24-bolt | 1-1/4″ |
| 20″ | 300 | 601 | 1,000 | 24-bolt | 1-1/4″ |
| 24″ | 465 | 930 | 1,550 | 24-bolt | 1-1/2″ |
Weight Chart Of Incoloy 825 Stud Bolt
| Weight Imperial | |||||||||||||
| STUD BOLT LENGTH (in inches) | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1.3/8 | 1 1/2 | 1.5/8 | 1.3/4 | 1 7/8 | |
| 2.1/2 | 10.8 | ||||||||||||
| 2.3/4 | 11.6 | 19.8 | |||||||||||
| 3.1/4 | 12.4 | 21 | 32.4 | ||||||||||
| 3.1/2 | 13.2 | 22.2 | 34.3 | 50 | |||||||||
| 4 | 14 | 23.4 | 36.2 | 52.6 | 71.8 | ||||||||
| 4.1/2 | 14.8 | 24.6 | 38.1 | 55.2 | 75.2 | 102 | |||||||
| 4.3/4 | 15.6 | 25.8 | 40 | 57.8 | 78.6 | 106 | 137 | ||||||
| 5 | 16.4 | 27 | 41.9 | 60.4 | 82 | 111 | 142 | 179 | |||||
| 5.1/2 | 17.2 | 28.2 | 43.8 | 63 | 85.4 | 115 | 147 | 186 | 234 | ||||
| 6 | 18 | 29.4 | 45.7 | 65.6 | 88.8 | 119 | 153 | 193 | 242 | 289 | |||
| 6.1/4 | 18.8 | 30.6 | 47.6 | 68.2 | 92.2 | 123 | 158 | 200 | 250 | 298 | 263 | ||
| 6.1/2 | 19.6 | 32.3 | 49.5 | 70.8 | 95.6 | 128 | 164 | 206 | 258 | 308 | 374 | 437 | |
| 7 | 20.4 | 33.5 | 50.8 | 73.4 | 99 | 132 | 169 | 213 | 266 | 317 | 385 | 449 | |
| 7.1/2 | 21.2 | 34.8 | 52.7 | 75.5 | 103 | 136 | 174 | 220 | 275 | 326 | 396 | 462 | |
| 8 | 22 | 36.1 | 54.5 | 78 | 106 | 141 | 180 | 226 | 283 | 336 | 407 | 475 | |
| 8.1/4 | 37.3 | 56.3 | 80.5 | 108 | 145 | 185 | 233 | 291 | 345 | 418 | 488 | ||
| 8.3/4 | 38.6 | 58.1 | 83.1 | 112 | 149 | 191 | 240 | 299 | 354 | 429 | 500 | ||
| 9 | 39.8 | 60 | 85.6 | 115 | 153 | 196 | 246 | 307 | 364 | 440 | 513 | ||
| 9.1/2 | 41.1 | 61.8 | 88.2 | 118 | 158 | 201 | 253 | 316 | 373 | 451 | 526 | ||
| 10 | 63.7 | 90.7 | 122 | 162 | 206 | 260 | 324 | 382 | 463 | 538 | |||
| 10/1.4 | 93.3 | 125 | 166 | 212 | 267 | 332 | 391 | 474 | 551 | ||||
| 1.0.1/2 | 128 | 171 | 217 | 273 | 340 | 401 | 485 | 564 | |||||
| 11 | 132 | 175 | 223 | 279 | 345 | 410 | 496 | 576 | |||||
| 11.1/2 | 135 | 179 | 228 | 285 | 350 | 419 | 507 | 589 | |||||
| 12 | 138 | 184 | 233 | 292 | 358 | 429 | 518 | 602 | |||||
| Weight Of Metric Studs Bolt | |||||||||||||
| STUD BOLT LENGTH (in mm) | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
| 60 | 5,6 | 8,1 | 12 | 15,6 | |||||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | 23,7 | ||||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 25,4 | 32,5 | |||||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 27,1 | 34,5 | 45,5 | ||||||
| 100 | 7,6 | 11 | 16 | 21 | 28,8 | 36,7 | 47,2 | 54,2 | |||||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 30,4 | 38,7 | 48,3 | 58,2 | 80 | ||||
| 120 | 8,6 | 12,4 | 18 | 23,6 | 32,1 | 40,7 | 50,9 | 60,2 | 84,7 | 107 | |||
| 130 | 9,1 | 13,2 | 19 | 24,9 | 33,7 | 42,8 | 53,4 | 63,2 | 88,6 | 111 | 141 | ||
| 140 | 9,6 | 14,2 | 20 | 26,2 | 35,4 | 44,9 | 55,9 | 66,2 | 92,4 | 116 | 147 | 185 | |
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 36,9 | 46,9 | 58,5 | 69,2 | 96,3 | 121 | 153 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 38,6 | 49 | 61 | 72,2 | 100,1 | 126 | 159 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 40,2 | 51,1 | 63,5 | 75,2 | 104 | 130 | 165 | 206 | 253 | |
| 180 | 23,8 | 31,8 | 41,9 | 52,3 | 66,1 | 78,1 | 108 | 135 | 171 | 213 | 261 | ||
| 190 | 33,1 | 43,5 | 54,4 | 68,4 | 81,1 | 112 | 140 | 176 | 219 | 269 | |||
| 200 | 34,5 | 45,2 | 56,2 | 71 | 84 | 116 | 144 | 182 | 226 | 278 | |||
| 210 | 35,8 | 46,8 | 58,5 | 73,5 | 88,4 | 120 | 149 | 188 | 233 | 286 | |||
| 220 | 37,1 | 48,4 | 60,6 | 76,1 | 91,4 | 124 | 154 | 194 | 240 | 294 | |||
| 230 | 38,5 | 50,1 | 62,6 | 78,6 | 94,4 | 127 | 159 | 201 | 247 | 302 | |||
| 240 | 39,8 | 51,7 | 64,7 | 81,2 | 97,4 | 130,9 | 164 | 208 | 253 | 310 | |||
| 250 | 41,1 | 53,4 | 66,8 | 83,7 | 100,4 | 134,8 | 172 | 214 | 260 | 319 | |||
| 260 | 55 | 68,8 | 86,3 | 103,4 | 138,6 | 177 | 220 | 267 | 327 | ||||
| 270 | 56,6 | 70,9 | 88,8 | 106,4 | 142,5 | 182 | 224 | 274 | 335 | ||||
| 280 | 58,3 | 73 | 91,4 | 109,4 | 146,3 | 187 | 230 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 150,1 | 192 | 236 | 291 | 360 | |||||
| 300 | 77,1 | 96,5 | 115,4 | 154 | 196 | 241 | 298 | 368 | |||||
| 320 | 101,6 | 121,3 | 161,7 | 206 | 253 | 312 | 380 | ||||||
| 340 | 127,3 | 169,4 | 215 | 265 | 326 | 395 | |||||||
| 360 | 133,3 | 177,1 | 224 | 276 | 340 | 411 | |||||||
| 380 | 184,8 | 234 | 288 | 353 | 428 | ||||||||
| 400 | 192,5 | 243 | 299 | 367 | 444 | ||||||||
| 420 | 252 | 311 | 381 | 460 | |||||||||
| 440 | 262 | 322 | 394 | 477 | |||||||||
| 460 | 271 | 334 | 408 | 493 | |||||||||
| 480 | 281 | 345 | 422 | 509 | |||||||||
| 500 | 290 | 357 | 436 | 526 | |||||||||
Ready Stock Incoloy 825 Stud Bolts
- 825 Incoloy Stud Bolts With Reduced Shank
- Incoloy® Alloy 825 M16 Stud Bolt
- 825 Incoloy Wheel Lug Stud Bolt
- Incoloy 825 Tie Rods
- Alloy 825 Studs
- ASTM B425 Incoloy 825 Double End Stud Bolts
- UNS N08825 Stud Bolt
- Incoloy 825 High Pressure Stud Bolt
- Incoloy 825 Heavy Stud Bolt
- Incoloy Alloy 825 Tap End Stud Bolts
- Incoloy® Alloy 825 Stud Bolt
- DIN 2.4858 Full Threaded Stud Bolt
- Alloy 825 Single End Stud Bolt
- Nickel Alloy 825 Threaded Stud Bolt
- Nickel Alloy 825 Flush Head Studs
- Incoloy 825 Threaded Rod Exporter
- Incoloy Alloy® 825 Threaded Stud Bolts
- Incoloy Alloy 825 Continuous Thread Stud Bolt
- Incoloy 825 Threaded Studs
- Incoloy® Alloy 825 Double End Stud Bolts
- Incoloy Alloy 825 Industrial Stud Bolts
- 825 Incoloy Metric Thread Stud Bolt Manufacturer
- Incoloy Alloy 825 Tap End Stud Bolts
- Alloy 825 Stud Bolts
- Incoloy 825 Threaded Studs
- Incoloy® Alloy 825 Double Ended Stud Manufacturer
- Alloy 825 Continuous Thread Stud Bolt
- Alloy 825 Tie Rods
- 825 Incoloy Threaded Studs
- Nickel Alloy 825 Tie Bars
- JIS NCF 825 Stud Bolts
- Nickel Alloy 825 Full Threaded Stud Bolt Distributor
- Alloy 825 Double Ended Stud
- Incoloy 825 Threaded Rod
- 2.4858 Continuous Thread Stud Bolt
- ASME SB425 Incoloy 825 Studs
- Incoloy 825 Continuous Thread Stud Bolt
- Incoloy 825 Weld Studs
- Alloy 825 Industrial Stud Bolts Supplier in Mumbai
- Alloy 825 Drywall Stud
- ASTM B425 Incoloy 825 Stud Bolts
- Incoloy Alloy 825 Flush Head Studs Stockist
- Incoloy 825 Half Thread Stud Bolt
- Nickel Alloy 825 Stud Bolt
- Incoloy 825 Heavy Stud Bolt
- ASTM B425 Incoloy 825 Double Ended Stud
- Incoloy 825 Partial Threaded Stud Bolt Stockholder
- ASTM B425 Incoloy 825 Double Ended Stud
Incoloy 825 Stud Bolts Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 |
Incoloy 825 Stud Bolts Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
