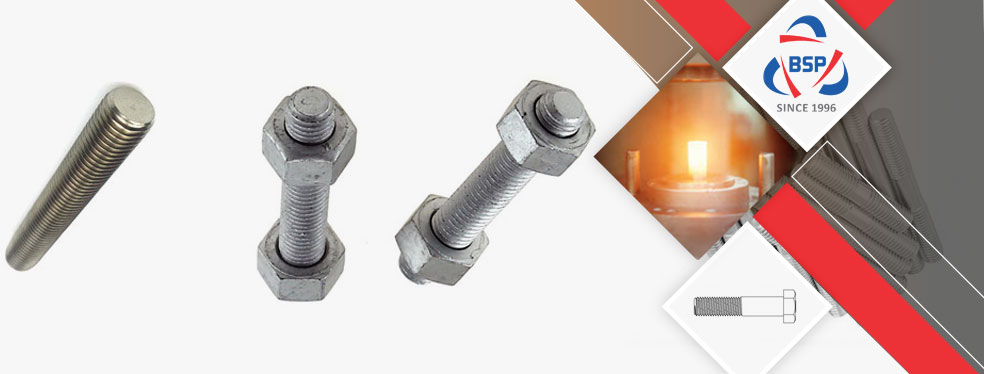

Inconel 718 Stud Bolt

ASTM B637 Inconel 718 Studs, Inconel 718 Industrial Stud Bolts, Inconel® Alloy 718 Studs, Alloy 718 Double End Stud Bolt, Alloy 718 Stud Bolts Price in India.

Bagoda Steel is a renowned stockist and trader of Inconel Alloy 718 Stud Bolts, which has brilliant resistance to pitting and pressure corrosion cracking. This nickel alloy resists the formation of grain-boundary precipitates within the weld warmness-affected zone, accordingly making it appropriate for maximum chemical procedure applications within the as-welded condition. It must now no longer be utilized in provider temperatures above 1250° F because of the formation of unfavourable stages which shape above this temperature. Inconel Alloy UNS N07718 Stud Bolts has a great resistance to each lowering and oxidizing media, and a brilliant resistance to oxidizing aqueous media. It presents an extremely good resistance to an extensive kind of chemical manner environments together with robust oxidizers which include ferric acids, acetic anhydride, and seawater and brine solutions.

Industrial Product
Inconel 718 Stud Bolts

Inconel 718 Single End Stud Bolt, Alloy 718 Tie Rods, Alloy 718 Tap End Stud Bolts, Inconel® Alloy 718 Stud Stockist, Nickel Alloy 718 Full Threaded Stud Bolt, UNS N07718 Half Thread Stud Bolts, 2.4668 Tie Rods Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

It has a brilliant weldability and resists the formation of grain-boundary precipitates within the weld warmness-affected sector. It is utilized in Cellophane manufacturing, Chlorination systems, Pesticide production, Incineration scrubber systems, Waste water processing, and so on. Pharmaceutical industries use alloy to keep away from infection resulting from corrosion associated failures. It gives proof against pitting, crevice corrosion and pressure corrosion cracking. Inconel Alloy WNR 2.4668 Stud Bolts is regularly utilized in chemical manner enterprise in device like flue fueloline scrubbers, chlorination systems, sulphur dioxide scrubbers, pulp and paper bleach plants, pickling systems, and nuclear gasoline reprocessing.

Although ductile sufficient to be formed by means of having the aid of using cold working, intermediate annealing can be essential because of work hardening. Forging must be done among 1750-2050° F accompanied by means of having the aid of using fast cooling. Annealing may be done at a temperature variety among 2020-2150° F accompanied with the aid of using a fast quench. Cooling at an multiplied price avoids the formation of unfavourable stages which shape among 1400-1800° F. Welding may be performed with the aid of using fueloline tungsten-arc, fueloline metal-arc and shielded metal-arc tactics. Nickel Alloy 718 Stud Bolts is a nickel-molybdenum-chromium super-alloy with an addition of tungsten designed to have brilliant corrosion resistance in an extensive variety of intense environments.

Material Specification Chart of Inconel 718 Stud Bolt

Specification ASTM F468,  B637 / ASME SF468, SB637
Size M02 to M33, Custom Sizes
Length 3 mm to 200 mm
Stud Bolt UNF, BSW, BSF, METRIC, UNC, or as required
Standard DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5
Form Hex, Threading, Square, Round as per Gauge Etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Types Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive of Stud Bolts Six-Lobe, Phillips, Phillips/Slot, Slotted etc
Packing of Stud Bolts IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating Ptfe Coated
Phosphate Coating
Teflon Coating
Zinc Coating
Hot Dipped Galvanizing Coating
Cadmium Coating
Xylon Coating

Various Types Of Inconel 718 Stud Bolt

Inconel 718 Double Ended Stud Bolt
Inconel 718 Double Ended Stud Bolt
  • Alloy 718 Double Ended Stud Bolt
  • 2.4668 Double End Stud
  • Inconel 718 Double Ended Wheel Stud
  • ASME SB637 Inconel Alloy 718 Dual Threaded Stud
  • UNS N07718 Double End Studs
  • ASTM B637 Inconel 718 Double Ended Stud Bolt
Inconel 718 Stud Bolt
Inconel 718 Stud Bolt
  • Alloy 718 Stud Bolts
  • 2.4668 Stud Bolt
  • Nickel Alloy 718 Stud Bolts
  • ASTM B637 Inconel 718 Stud Bolts
  • ASME SB637 Inconel Alloy 718 Stud Bolts
  • UNS N07718 Stud Bolts
Inconel 718 Stud
Inconel 718 Stud
  • 2.4668 Stud
  • Inconel 718 Weld Studs
  • ASTM B637 Inconel 718 Clinch Stud
  • ASME SB637 Inconel Alloy 718 Stud
  • UNS N07718 Dowel Studs
  • Alloy 718 Studs
Inconel 718 Flush Head Stud
Inconel 718 Flush Head Stud
  • ASTM B637 Inconel 718 Flush Head Self Clinching Studs
  • Alloy 718 Flush Head Stud
  • ASME SB637 Inconel Alloy 718 Self Clinch Flush Head Stud
  • Inconel 718 Self Clinching Stud
  • 2.4668 Flush Head Studs
  • UNS N07718 Flush Head Clinch Studs
Inconel 718 Threaded Rods
Inconel 718 Threaded Rod
  • UNS N07718 Threaded Stud
  • ASME SB637 Inconel Alloy 718 Threaded Rods
  • 2.4668 Threaded Rods
  • Alloy 718 Threaded Rods
  • Alloy 718 Fully Threaded Rod
  • ASTM B637 Inconel 718 M5 Threaded Rod
Inconel 718 Single End Stud Bolt
Inconel 718 Single End Stud Bolt
  • ASTM B637 Inconel 718 Single Ended Stud Bolt
  • 2.4668 Single Ended Stud Bolt
  • ASME SB637 Inconel Alloy 718 Single Ended Stud Bolt
  • UNS N07718 Single Ended Threaded Stud
  • Alloy 718 Single End Studs
  • Alloy 718 M6 Single End Stud

Equivalent Grades of Inconel 718 Stud Bolts

STANDARD WERKSTOFF NR. UNS
Inconel 718 2.4668 N07718
Stud Bolts Dimensions

View Size Table Of Inconel 718 Stud Bolts, We have Global sales network for Inconel 718 Stud Bolts, Wide Stockist Of Werkstoff No 2.4668 Tap End Stud Bolts, Double End Stud Bolts In India.

Size Chart of Inconel 718 Stud Bolts

 Class 150 Flanges ASME B16.5 (Stud bolt sizes) Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face 0.06 in Ring Joint
1/2 3 1/2 2 3/8 5/8 4 1/2 2 1/4 –
3/4 3 7/8 2 3/4 5/8 4 1/2 2 1/2 –
1 4 1/4 3 1/8 5/8 4 1/2 2 1/2 3
1 1/4 4 5/8 3 1/2 5/8 4 1/2 2 3/4 3 1/4
1 1/2 5 3 7/8 5/8 4 1/2 2 3/4 3 1/4
2 6 4 3/4 3/4 4 5/8 3 1/4 3 3/4
2 1/2 7 5 1/2 3/4 4 5/8 3 1/2 4
3 7 1/2 6 3/4 4 5/8 3 1/2 4
3 1/2 8 1/2 7 3/4 8 5/8 3 1/2 4
4 9 7 1/2 3/4 8 5/8 3 1/2 4
5 10 8 1/2 7/8 8 3/4 3 3/4 4 1/4
6 11 9 1/2 7/8 8 3/4 4 4 1/2
8 13 1/2 11 3/4 7/8 8 3/4 4 1/4 4 3/4
10 16 14 3/4 1 12 7/8 4 1/2 5
12 19 17 1 12 7/8 4 3/4 5 1/4
14 21 18 3/4 1 1/8 12 1 5 1/4 5 3/4
16 23 1/2 21 1/4 1 1/8 16 1 5 1/4 5 3/4
18 25 22 3/4 1 1/4 16 1 1/8 5 3/4 6 1/4
20 27 1/2 25 1 1/4 20 1 1/8 6 1/4 6 3/4
24 32 29 1/2 1 1/4 20 1 1/4 6 3/4 7 1/4
Class 300 Flanges ASME B16.5 Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face 0.06 in Ring Joint
1/2 3 3/4 2 5/8 5/8 4 1/2 2 1/2 3
3/4 4 5/8 3 1/4 3/4 4 5/8 3 3 1/2
1 4 7/8 3 1/2 3/4 4 5/8 3 3 1/2
1 1/4 5 1/4 3 7/8 3/4 4 5/8 3 1/4 3 3/4
1 1/2 6 1/8 4 1/2 7/8 4 3/4 3 1/2 4
2 6 1/2 5 3/4 8 5/8 3 1/2 4
2 1/2 7 1/2 5 7/8 7/8 8 3/4 4 4 1/2
3 8 1/4 6 5/8 7/8 8 3/4 4 1/4 4 3/4
3 1/2 9 7 1/4 7/8 8 3/4 4 1/4 5
4 10 7 7/8 7/8 8 3/4 4 1/2 5
5 11 9 1/4 7/8 8 3/4 4 3/4 5 1/4
6 12 1/2 10 5/8 7/8 12 3/4 4 3/4 5 1/2
8 15 13 1 12 7/8 5 1/2 6
10 17 1/2 15 1/4 1 1/8 16 1 6 1/4 6 3/4
12 20 1/2 17 3/4 1 1/4 16 1 1/8 6 3/4 7 1/4
14 23 20 1/4 1 1/4 20 1 1/8 7 7 1/2
16 25 1/2 22 1/2 1 3/8 20 1 1/4 7 1/2 8
18 28 24 3/4 1 3/8 24 1 1/4 7 3/4 8 1/4
20 30 1/2 27 1 3/8 24 1 1/4 8 8 3/4
24 36 32 1 5/8 24 1 1/2 9 10

Check available Sizes of ASME SB 166 Inconel 718 Stud Bolt, Ask For Ready Stock of UNS N07718 Stud Bolts in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Alloy 718 Stud Bolts

Diameter Diameter in mm Diameter in inch Nut Sizes
M12 12 0.4724 19
M10 10 0.3937 17
M14 14 0.5512 22
M18 18 0.7087 27
M16 16 0.6299 24
M20 20 0.7874 30
M24 24 0.9449 36
M22 22 0.8661 32
M27 27 1.063 41
M33 33 1.2992 50
M30 30 1.1811 46
M36 36 1.4173 55
M42 42 1.6535 65
M39 39 1.5354 60
M45 45 1.7717 70
M52 52 2.0472 80
M48 48 1.8898 75
M56 56 2.2047 85
M64 64 2.5197 95
M60 60 2.3622 90
M68 68 2.6772 100
M76 76 2.9921 110
M72 72 2.8346 105
M80 80 3.1496 115
M90 90 3.5433 130
M85 85 3.3464 120
M100 100 3.937 145
M160 160 6.2992 230
M125 125 4.9212 180
M110 110 4.3307 155
M140 140 5.5118 200

Alloy 718 Stud Bolt Torque Chart

Flange Size B16.5 Class 150 RF/ Ring Gaskets B16.5 Class 150 FF/ Full Face Gaskets
Torque / Round (ft-lbs) Stud Bolts Tighten Sequence Torque / Round (ft-lbs) Stud Bolts Tighten Sequence
1st 2nd Final Dwg/No. Bolt Size 1st 2nd Final Dwg*/No. Bolt Size
1/2″ 10 20 30 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
3/4″ 13 27 40 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1″ 15 30 50 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1-1/4″ 20 40 60 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1-1/2″ 20 40 60 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
2″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
2-1/2″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
3″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
3-1/2″ 40 80 120 8-bolt 5/8″ 40 80 120 8-bolt 5/8″
4″ 40 80 120 8-bolt 5/8″ 40 80 120 8-bolt 5/8″
5″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
6″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
8″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
10″ 95 190 320 12-bolt 7/8″ 95 190 320 12-bolt 7/8″
12″ 95 190 320 12-bolt 7/8″ 95 190 320 12-bolt 7/8″
14″ 147 294 490 12-bolt 1″ 147 294 490 12-bolt 1″
16″ 147 294 490 16-bolt 1″ 147 294 490 16-bolt 1″
18″ 213 426 710 16-bolt 1-1/8″ 213 426 710 16-bolt 1-1/8″
20″ 213 426 710 20-bolt 1-1/8″ 213 426 710 20-bolt 1-1/8″
24″ 300 601 1,000 20-bolt 1-1/4″ 300 601 1,000 20-bolt 1-1/4″

Flange Size B16.5 Class 300 RF/ Ring Gaskets
Torque / Round (ft-lbs) Stud Bolts Tighten Sequence*
1st 2nd Final Dwg/No. Stud Bolts Size
1/2″ 10 20 30 4-bolt 1/2″
3/4″ 15 30 50 4-bolt 5/8″
1″ 21 42 70 4-bolt 5/8″
1-1/4″ 30 60 100 4-bolt 5/8″
1-1/2″ 45 90 150 4-bolt 3/4″
2″ 33 66 110 8-bolt 5/8″
2-1/2″ 42 84 140 8-bolt 3/4″
3″ 60 120 200 8-bolt 3/4″
3-1/2″ 60 120 200 8-bolt 3/4″
4″ 60 120 200 8-bolt 3/4″
5″ 60 120 200 8-bolt 3/4″
6″ 60 120 200 12-bolt 3/4″
8″ 95 190 320 12-bolt 7/8″
10″ 147 294 490 16-bolt 1″
12″ 213 426 710 16-bolt 1-1/8″
14″ 195 390 650 20-bolt 1-1/8″
16″ 273 546 910 20-bolt 1-1/4″
18″ 300 601 1,000 24-bolt 1-1/4″
20″ 300 601 1,000 24-bolt 1-1/4″
24″ 465 930 1,550 24-bolt 1-1/2″

Weight Chart Of Inconel 718 Stud Bolt

Weight Imperial
STUD BOLT LENGTH (in inches) 1/2 5/8 3/4 7/8 1 1 1/8 1 1/4 1.3/8 1 1/2 1.5/8 1.3/4 1 7/8
2.1/2 10.8
2.3/4 11.6 19.8
3.1/4 12.4 21 32.4
3.1/2 13.2 22.2 34.3 50
4 14 23.4 36.2 52.6 71.8
4.1/2 14.8 24.6 38.1 55.2 75.2 102
4.3/4 15.6 25.8 40 57.8 78.6 106 137
5 16.4 27 41.9 60.4 82 111 142 179
5.1/2 17.2 28.2 43.8 63 85.4 115 147 186 234
6 18 29.4 45.7 65.6 88.8 119 153 193 242 289
6.1/4 18.8 30.6 47.6 68.2 92.2 123 158 200 250 298 263
6.1/2 19.6 32.3 49.5 70.8 95.6 128 164 206 258 308 374 437
7 20.4 33.5 50.8 73.4 99 132 169 213 266 317 385 449
7.1/2 21.2 34.8 52.7 75.5 103 136 174 220 275 326 396 462
8 22 36.1 54.5 78 106 141 180 226 283 336 407 475
8.1/4   37.3 56.3 80.5 108 145 185 233 291 345 418 488
8.3/4   38.6 58.1 83.1 112 149 191 240 299 354 429 500
9   39.8 60 85.6 115 153 196 246 307 364 440 513
9.1/2   41.1 61.8 88.2 118 158 201 253 316 373 451 526
10     63.7 90.7 122 162 206 260 324 382 463 538
10/1.4       93.3 125 166 212 267 332 391 474 551
1.0.1/2         128 171 217 273 340 401 485 564
11         132 175 223 279 345 410 496 576
11.1/2         135 179 228 285 350 419 507 589
12         138 184 233 292 358 429 518 602
Weight Of Metric Studs Bolt
STUD BOLT LENGTH (in mm) M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39
60 5,6 8,1 12 15,6
70 6,1 8,9 13 16,9 23,7
80 6,6 9,6 14 18,2 25,4 32,5
90 7,1 10,3 15 19,6 27,1 34,5 45,5
100 7,6 11 16 21 28,8 36,7 47,2 54,2
110 8,1 11,7 17 22,2 30,4 38,7 48,3 58,2 80
120 8,6 12,4 18 23,6 32,1 40,7 50,9 60,2 84,7 107
130 9,1 13,2 19 24,9 33,7 42,8 53,4 63,2 88,6 111 141
140 9,6 14,2 20 26,2 35,4 44,9 55,9 66,2 92,4 116 147 185
150 10,1 14,9 20,8 27,5 36,9 46,9 58,5 69,2 96,3 121 153 192 237
160 10,6 15,6 21,8 29,1 38,6 49 61 72,2 100,1 126 159 199 245
170   16,4 22,8 30,4 40,2 51,1 63,5 75,2 104 130 165 206 253
180     23,8 31,8 41,9 52,3 66,1 78,1 108 135 171 213 261
190       33,1 43,5 54,4 68,4 81,1 112 140 176 219 269
200       34,5 45,2 56,2 71 84 116 144 182 226 278
210       35,8 46,8 58,5 73,5 88,4 120 149 188 233 286
220       37,1 48,4 60,6 76,1 91,4 124 154 194 240 294
230       38,5 50,1 62,6 78,6 94,4 127 159 201 247 302
240       39,8 51,7 64,7 81,2 97,4 130,9 164 208 253 310
250       41,1 53,4 66,8 83,7 100,4 134,8 172 214 260 319
260         55 68,8 86,3 103,4 138,6 177 220 267 327
270         56,6 70,9 88,8 106,4 142,5 182 224 274 335
280         58,3 73 91,4 109,4 146,3 187 230 281 343
290           75 93,9 112,4 150,1 192 236 291 360
300           77,1 96,5 115,4 154 196 241 298 368
320             101,6 121,3 161,7 206 253 312 380
340               127,3 169,4 215 265 326 395
360               133,3 177,1 224 276 340 411
380                 184,8 234 288 353 428
400                 192,5 243 299 367 444
420                   252 311 381 460
440                   262 322 394 477
460                   271 334 408 493
480                   281 345 422 509
500                   290 357 436 526

Ready Stock Inconel 718 Stud Bolts

  • Inconel Alloy 718 Tap End Stud Bolts
  • Inconel 718 Threaded Rod Exporter
  • Inconel® Alloy 718 M16 Stud Bolt
  • Inconel Alloy 718 Industrial Stud Bolts
  • Inconel 718 Partial Threaded Stud Bolt Stockholder
  • Alloy 718 Double Ended Stud
  • Inconel Alloy 718 Continuous Thread Stud Bolt
  • Alloy 718 Industrial Stud Bolts Supplier in Mumbai
  • Inconel 718 Weld Studs
  • DIN 2.4668 Full Threaded Stud Bolt
  • Inconel 718 Heavy Stud Bolt
  • 718 Inconel Metric Thread Stud Bolt Manufacturer
  • ASTM B637 Inconel 718 Double Ended Stud
  • Inconel® Alloy 718 Stud Bolt
  • 2.4668 Continuous Thread Stud Bolt
  • Inconel Alloy® 718 Threaded Stud Bolts
  • Alloy 718 Tie Rods
  • Nickel Alloy 718 Threaded Stud Bolt
  • Nickel Alloy 718 Flush Head Studs
  • Inconel 718 Threaded Studs
  • Alloy 718 Stud Bolts
  • Alloy 718 Continuous Thread Stud Bolt
  • JIS NCF 718 Stud Bolts
  • ASTM B637 Inconel 718 Double Ended Stud
  • Nickel Alloy 718 Stud Bolt
  • Nickel Alloy 718 Tie Bars
  • Inconel® Alloy 718 Double Ended Stud Manufacturer
  • Alloy 718 Studs
  • Inconel 718 Threaded Rod
  • ASTM B637 Inconel 718 Stud Bolts
  • 718 Inconel Wheel Lug Stud Bolt
  • Inconel 718 Half Thread Stud Bolt
  • 718 Inconel Stud Bolts With Reduced Shank
  • Inconel 718 Threaded Studs
  • Inconel® Alloy 718 Double End Stud Bolts
  • 718 Inconel Threaded Studs
  • ASTM B637 Inconel 718 Double End Stud Bolts
  • Alloy 718 Drywall Stud
  • Inconel 718 Tie Rods
  • Alloy 718 Single End Stud Bolt
  • Inconel 718 High Pressure Stud Bolt
  • Nickel Alloy 718 Full Threaded Stud Bolt Distributor
  • Inconel 718 Heavy Stud Bolt
  • ASME SB637 Inconel 718 Studs
  • Inconel Alloy 718 Flush Head Studs Stockist
  • Inconel Alloy 718 Tap End Stud Bolts
  • Inconel 718 Continuous Thread Stud Bolt
  • UNS N07718 Stud Bolt

Inconel 718 Stud Bolts Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Inconel 718 0.08 max 0.35 max 0.35 max 0.015 max 0.30 max - 50.00 - 55.00 17.00 - 21.00

Alloy 718 Stud Bolts Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 718 8.2 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 482 45 %

Export Destinations For Inconel 718 Stud Bolts

industry
